Model Maytag JLRP548WP00 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS
03 - BURNER BOX, GAS VALVES AND SWITCHES
04 - 48" CHASSIS PARTS

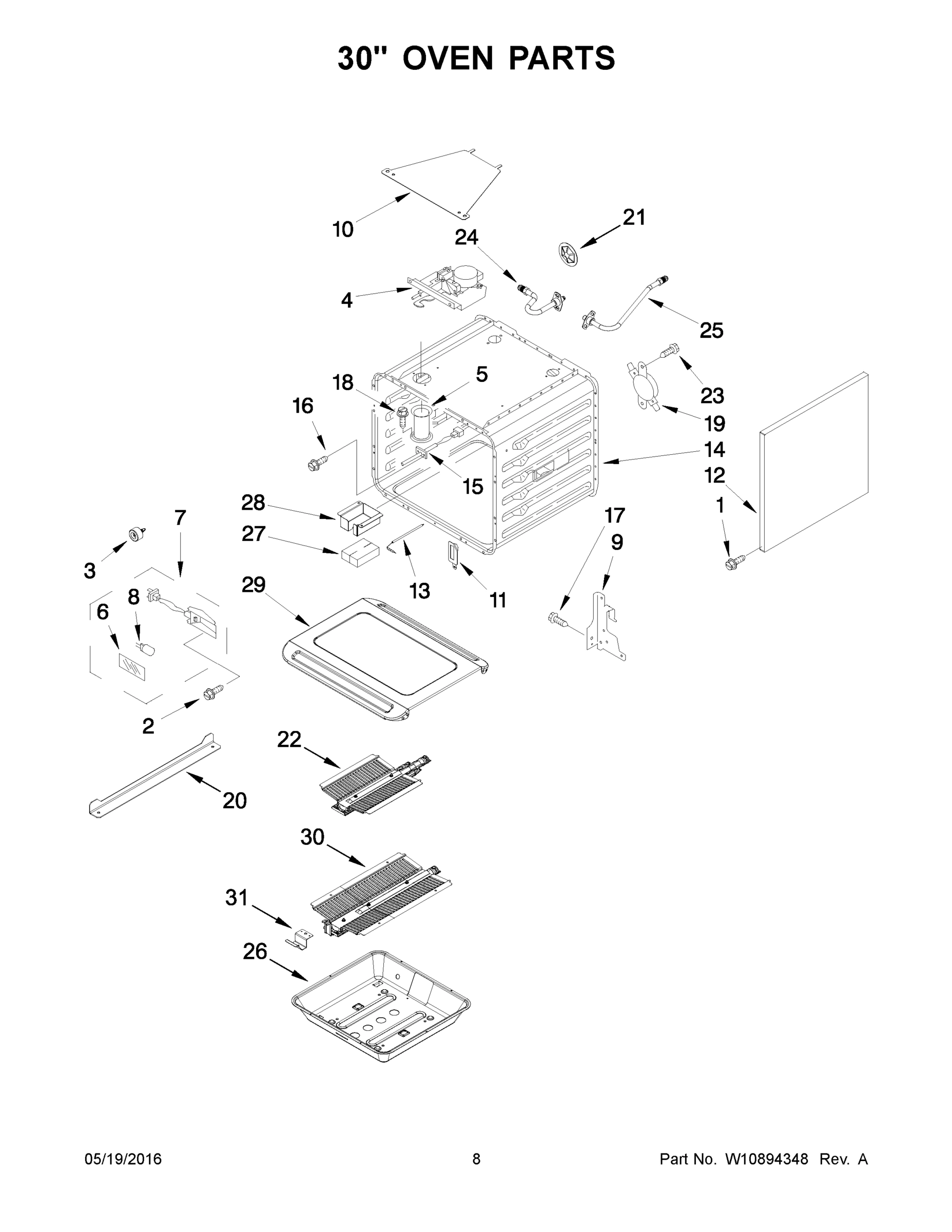

05 - 30" OVEN PARTS

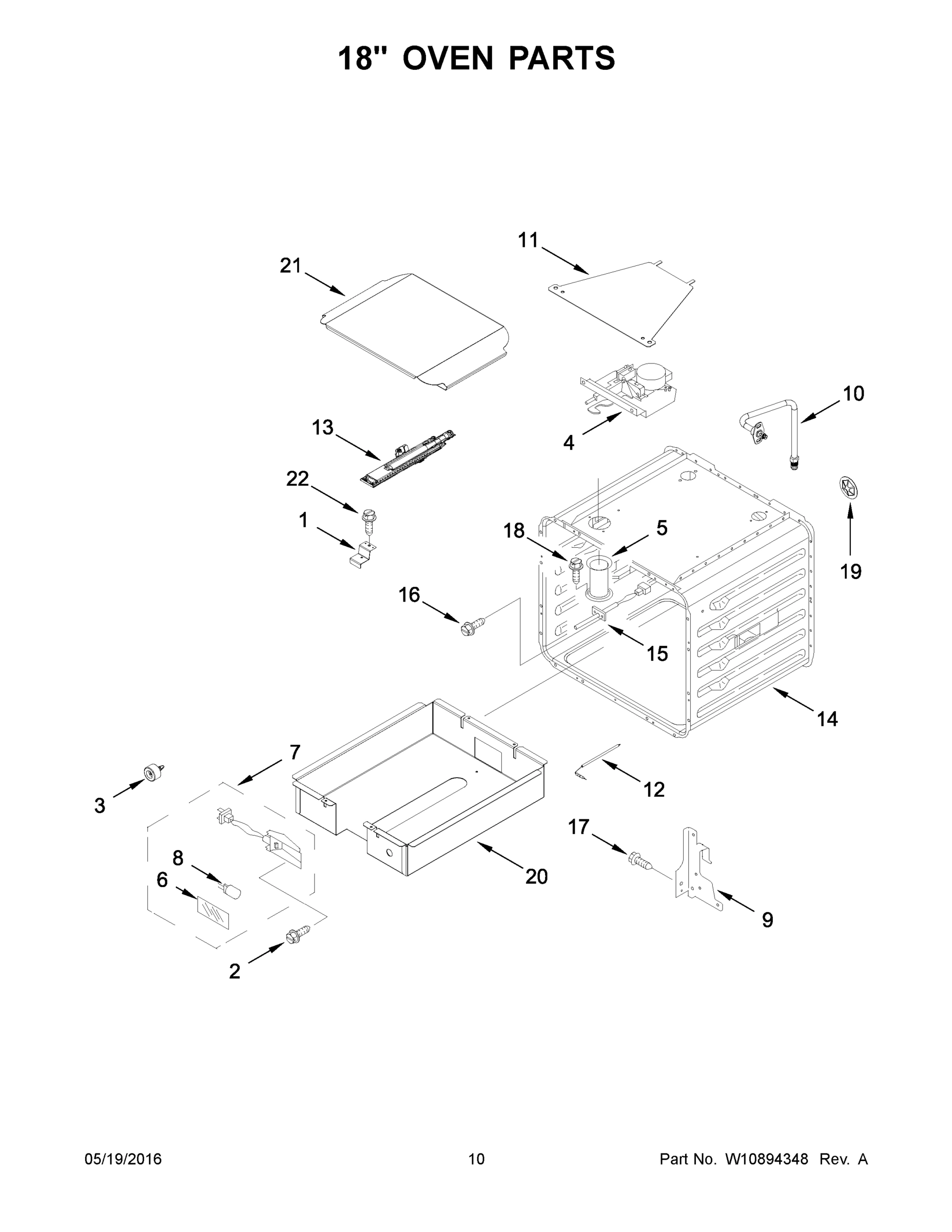

06 - 18" OVEN PARTS

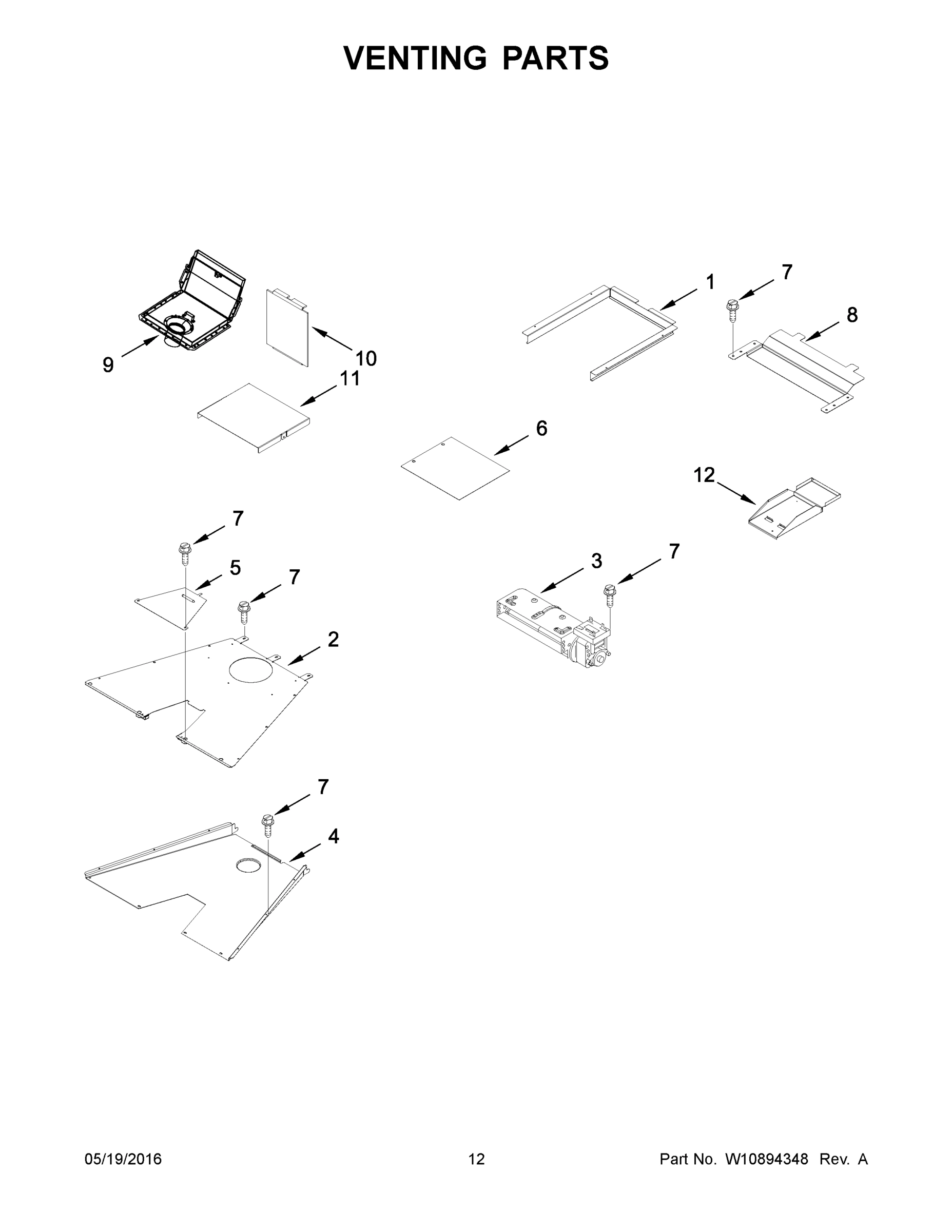

07 - VENTING PARTS

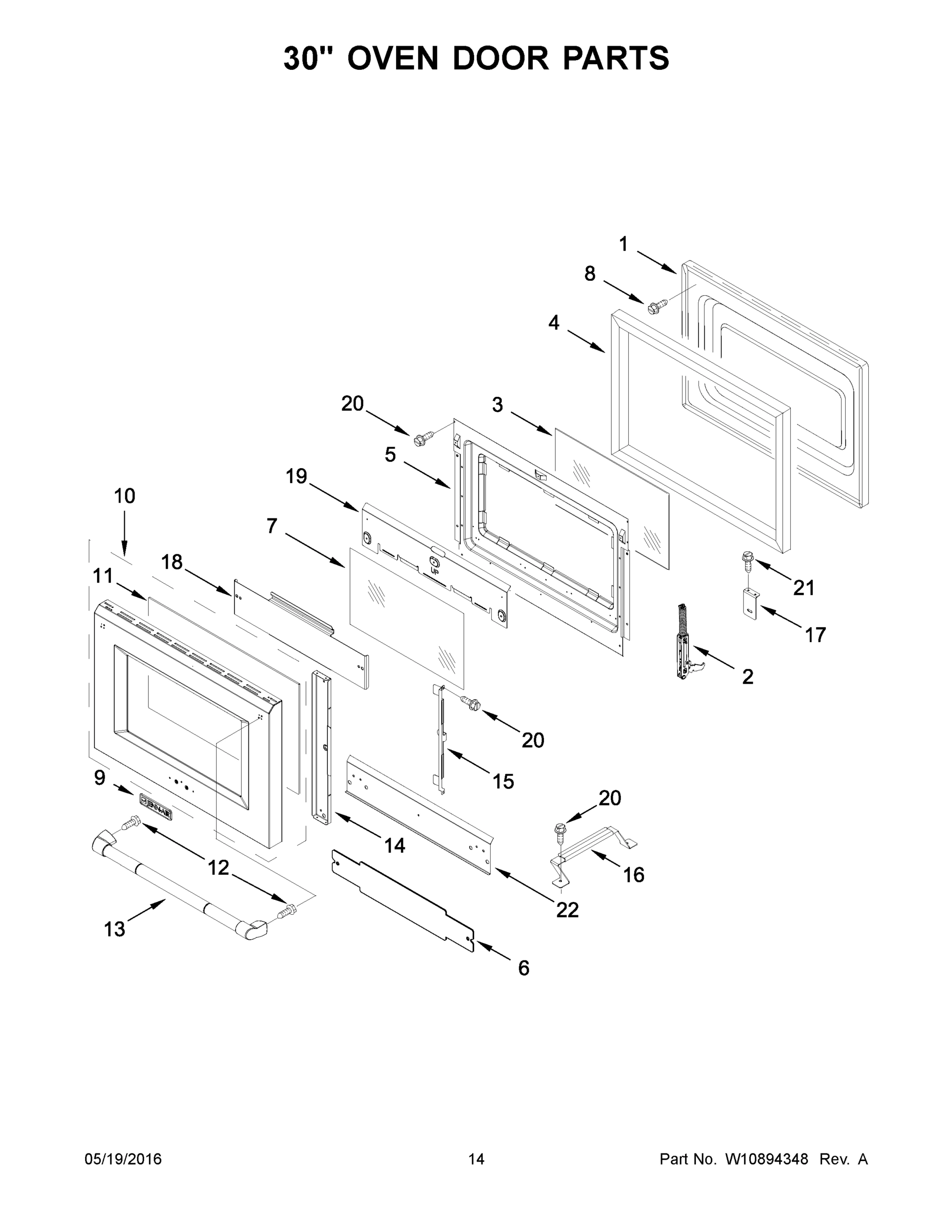

08 - 30" OVEN DOOR PARTS

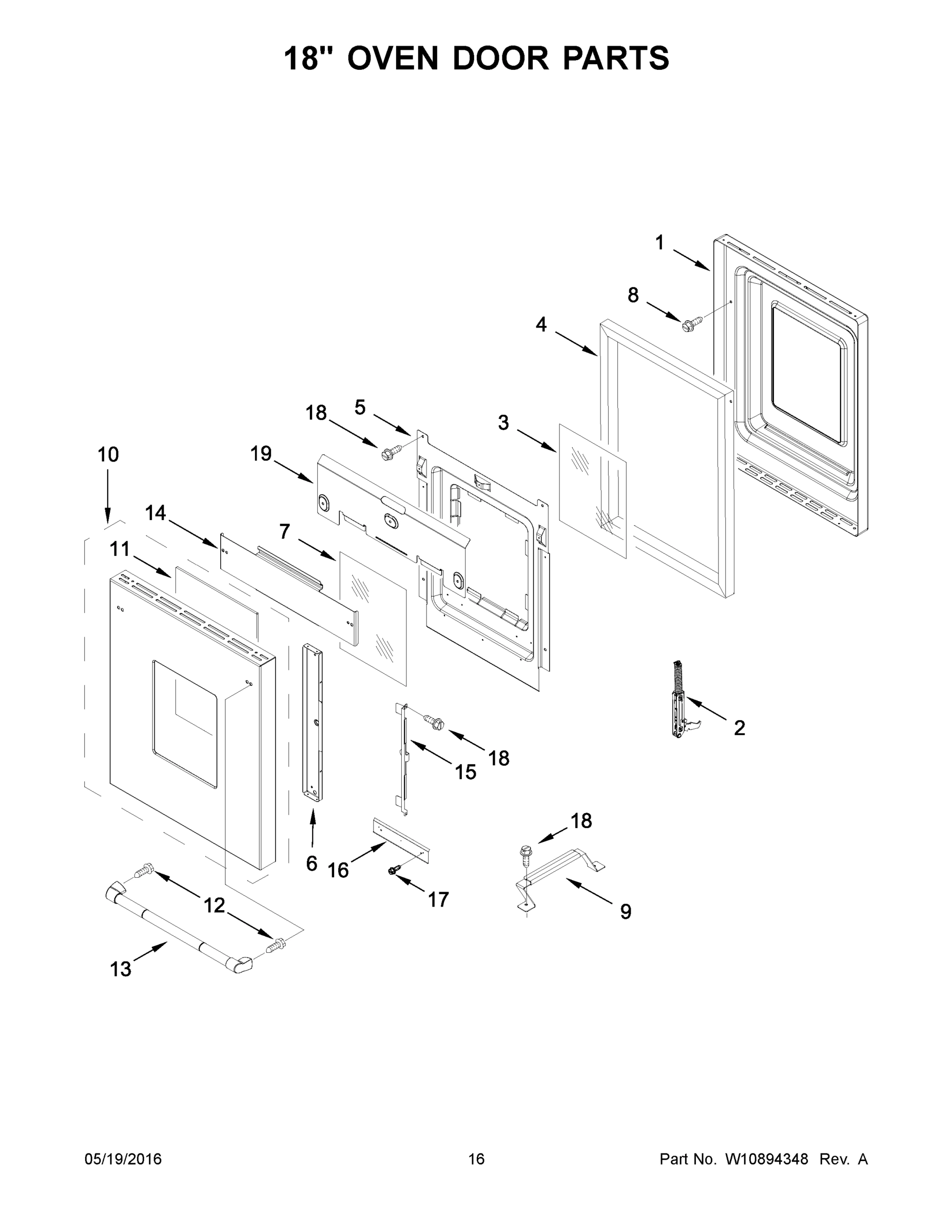

09 - 18" OVEN DOOR PARTS

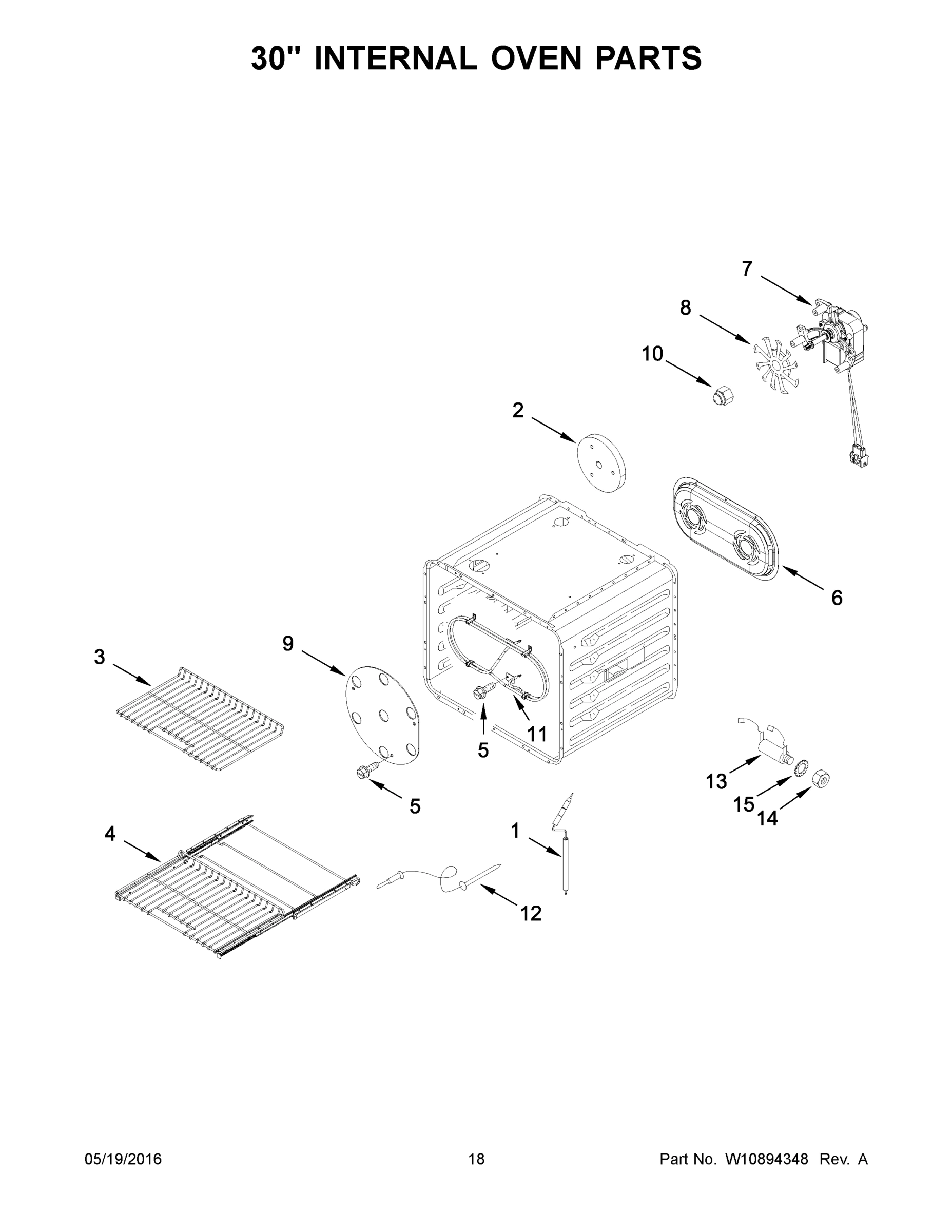

10 - 30" INTERNAL OVEN PARTS
11 - 18" INTERNAL OVEN PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JLRP548WP00 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE
1
MAY W10821591 MAY W10821591 Contact Us For Availability
1
MAY W10193014 MAY W10193014 Contact Us For Availability
1
MAY W10454313 MAY W10454313 Contact Us For Availability
1
MAY W10308041 MAY W10308041 Contact Us For Availability
1
DUCT, PRIMARY AIR (30") MAY W10145363 Contact Us For Availability
1
LINER, DOOR MAY 9759413 Contact Us For Availability
1
MAY W10188323 MAY W10188323 Contact Us For Availability
1
MAY W10332287 MAY W10332287 Contact Us For Availability
1
MAY W10282821 MAY W10282821 Contact Us For Availability
1A
MAY W10837388 MAY W10837388 Contact Us For Availability
1A
DUCT, PRIMARY AIR (18") MAY W10145364 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10403310 Contact Us For Availability
1C
SHEET, TECH (FRENCH) MAY W10403311 Contact Us For Availability
1D
MAY 9762761 MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
ORIFICE (HIGH) (LEFT FRONT & RIGHT FRONT) MAY W10340425 Contact Us For Availability
2
TRAY, ELEMENT GRIDDLE MAY W10145620 Contact Us For Availability
2
MAY W10145354 MAY W10145354 Contact Us For Availability
2
MAY 4449748 MAY 4449748 Contact Us For Availability
2
MAY 4449154 MAY 4449154 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10299182 Contact Us For Availability
2
MAY W10774095 MAY W10774095 Contact Us For Availability
2
MAY W10774091 MAY W10774091 Contact Us For Availability
2A
ORIFICE (LOW) (LEFT FRONT & RIGHT FRONT) MAY W10371246 Contact Us For Availability
2A
VENT, COOLING TOP (18") MAY W10246081 Contact Us For Availability
2A
MAY W10774094 MAY W10774094 Contact Us For Availability
2A
MAY W10774090 MAY W10774090 Contact Us For Availability
2B
ORIFICE (11K) (LEFT REAR, RIGHT REAR, CENTER MAY W10371247 Contact Us For Availability
2C
ORIFICE (3K) (CENTER REAR) MAY W10282664 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT MAY W10813979 Contact Us For Availability
3
MAY W10348600 MAY W10348600 Contact Us For Availability
3
MAY W10138054 MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
MAY W10245511 MAY W10245511 Contact Us For Availability
3
GLASS, INNER (SINGLE COATED) MAY 4449259 Contact Us For Availability
3
GLASS, INNER DOOR MAY W10115693 Contact Us For Availability
3
MAY W10570887 MAY W10570887 Contact Us For Availability
3
MAY W10570879 MAY W10570879 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR, RIGHT RE MAY W10813992 Contact Us For Availability
4
MAY W10432260 MAY W10432260 Contact Us For Availability
4
MAY W10774046 MAY W10774046 Contact Us For Availability
4
MAY W10195935 MAY W10195935 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10349015 Contact Us For Availability
4
MAY 4451722 MAY 4451722 Contact Us For Availability
4
MAY W10115737 MAY W10115737 Contact Us For Availability
4
MAY W10570865 MAY W10570865 Contact Us For Availability
4
MAY W10631506 MAY W10631506 Contact Us For Availability
4A
VENT, COOLING BOTTOM (18") MAY W10349047 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) MAY W10276551 Contact Us For Availability
5
MAY W10475147 MAY W10475147 Contact Us For Availability
5
MAY W10145743 MAY W10145743 Contact Us For Availability
5
MAY W10160875 MAY W10160875 Contact Us For Availability
5
MAY 4457132 MAY 4457132 Contact Us For Availability
5
MAY W10188325 MAY W10188325 Contact Us For Availability
5
MAY W10631503 MAY W10631503 Contact Us For Availability
6
MAY W10323251 MAY W10323251 Contact Us For Availability
6
TRAY, GRIDDLE INSULATION MAY W10246074 Contact Us For Availability
6
MAY 9760860 MAY 9760860 Contact Us For Availability
6
MAY W10239444 MAY W10239444 Contact Us For Availability
6
MAY W10169756 MAY W10169756 Contact Us For Availability
6
MAY W10335955 MAY W10335955 Contact Us For Availability
6
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
6
MAY W10246060 MAY W10246060 Contact Us For Availability
6
MAY W10160821 MAY W10160821 Contact Us For Availability
7
BRACKET, ORIFICE SUPPORT MAY 3801F946-51 Contact Us For Availability
7
MAY W10815785 MAY W10815785 Contact Us For Availability
7
MAY W10249333 MAY W10249333 Contact Us For Availability
7
MAY W10307114 MAY W10307114 Contact Us For Availability
7
GLASS, INNER (DOUBLE COATED) MAY 9759225 Contact Us For Availability
7
MAY W10115695 MAY W10115695 Contact Us For Availability
7
MAY W10631504 MAY W10631504 Contact Us For Availability
8
BUMPER, GRATE MAY 8286695 Contact Us For Availability
8
MAY W10813922 MAY W10813922 Contact Us For Availability
8
MAY W10292297 MAY W10292297 Contact Us For Availability
8
MAY W10169757 MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER (30") MAY W10145748 Contact Us For Availability
8A
BRACKET, BLOWER (18") MAY W10160844 Contact Us For Availability
9
MAY W10323252 MAY W10323252 Contact Us For Availability
9
MAY W10189097 MAY W10189097 Contact Us For Availability
9
MAY W10250467 MAY W10250467 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
9
BOX, CHIMNEY (30") MAY W10145684 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
9
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
9
MAY W10261523 MAY W10261523 Contact Us For Availability
9A
MAY W10250466 MAY W10250466 Contact Us For Availability
9A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
9A
BOX, CHIMNEY (18") MAY W10145740 Contact Us For Availability
10
MAY 3196160 MAY 3196160 Contact Us For Availability
10
MAY W10189140 MAY W10189140 Contact Us For Availability
10
MAY W10115869 MAY W10115869 Contact Us For Availability
10
MAY W10813897 MAY W10813897 Contact Us For Availability
10
MAY W10246087 MAY W10246087 Contact Us For Availability
10
MAY W10145759 MAY W10145759 Contact Us For Availability
10
MAY W10145758 MAY W10145758 Contact Us For Availability
11
BEZEL, FRONT MAY W10276494 Contact Us For Availability
11
MAY W10160202 MAY W10160202 Contact Us For Availability
11
MAY W10115793 MAY W10115793 Contact Us For Availability
11
MAY W10160858 MAY W10160858 Contact Us For Availability
11
MAY W10115876 MAY W10115876 Contact Us For Availability
11
RETAINER, INSULATION MAY W10246086 Contact Us For Availability
11
MAY W10145850 MAY W10145850 Contact Us For Availability
11
MAY W10145849 MAY W10145849 Contact Us For Availability
11
MAY W10145949 MAY W10145949 Contact Us For Availability
11A
MAY W10115877 MAY W10115877 Contact Us For Availability
12
SPRING, ELECTRODE (CENTER REAR) MAY 8286863 Contact Us For Availability
12
MAY W10371521 MAY W10371521 Contact Us For Availability
12
MAY 489504 MAY 489504 Contact Us For Availability
12
MAY W10249337 MAY W10249337 Contact Us For Availability
12
MAY W10269206 MAY W10269206 Contact Us For Availability
12
MAY W10332290 MAY W10332290 Contact Us For Availability
12
MAY W10276043 MAY W10276043 Contact Us For Availability
12
MAY 9755542 MAY 9755542 Contact Us For Availability
12A
MAY W10269205 MAY W10269205 Contact Us For Availability
13
CAP, BURNER (BLACK) (LEFT FRONT & RIGHT FRONT MAY W10256034 Contact Us For Availability
13
SENSOR, GRIDDLE MAY W10319835 Contact Us For Availability
13
MAY W10337289 MAY W10337289 Contact Us For Availability
13
HANDLE, DOOR MAY 7701P475-60 Contact Us For Availability
13
HANDLE, DOOR MAY W10145768 Contact Us For Availability
13
MAY 9755543 MAY 9755543 Contact Us For Availability
13A
CAP, BURNER (BLACK) (LEFT REAR, RIGHT REAR, C MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK) (CENTER REAR) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10495853 Contact Us For Availability
14
VALVE, SIMMER MAY W10813921 Contact Us For Availability
14
MAY W10145375 MAY W10145375 Contact Us For Availability
14
MAY W10145762 MAY W10145762 Contact Us For Availability
14
MAY 9755546 MAY 9755546 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR, RIGHT REAR, CENTE MAY W10256027 Contact Us For Availability
14B
SPREADER, FLAME (CENTER REAR) MAY W10282515 Contact Us For Availability
15
SPRING, ELECTRODE (ALL EXCEPT CENTER REAR) MAY W10256046 Contact Us For Availability
15
MAY W10145621 MAY W10145621 Contact Us For Availability
15
MAY W10131825 MAY W10131825 Contact Us For Availability
15
MAY W10850858 MAY W10850858 Contact Us For Availability
15
BRACKET, SIDE MAY 9759229 Contact Us For Availability
15
MAY 9755547 MAY 9755547 Contact Us For Availability
15A
MAY W10775946 MAY W10775946 Contact Us For Availability
16
ELECTRODE, BURNER (ALL EXCEPT CENTER REAR) MAY W10256047 Contact Us For Availability
16
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
16
MAY W10160895 MAY W10160895 Contact Us For Availability
16
MAY W10115708 MAY W10115708 Contact Us For Availability
17
ASSEMBLY, ORIFICE HOLDER (CENTER REAR) MAY W10813995 Contact Us For Availability
17
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
17
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
17
MAY W10115819 MAY W10115819 Contact Us For Availability
17
MAY 4449040 MAY 4449040 Contact Us For Availability
17
MAY W10115715 MAY W10115715 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
MAY W10560553 MAY W10560553 Contact Us For Availability
18
SCREW MAY 3196537 Contact Us For Availability
18
RETAINER, GASKET (30") MAY W10157511 Contact Us For Availability
18
SCREW MAY 3196176 Contact Us For Availability
18
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352963 Contact Us For Availability
18A
RETAINER, GASKET (18") MAY W10216520 Contact Us For Availability
18B
COOKTOP (BLACK (CENTER)) MAY W10352966 Contact Us For Availability
19
MAY 8286724 MAY 8286724 Contact Us For Availability
19
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
19
MAY W10145372 MAY W10145372 Contact Us For Availability
19
THERMOSTAT (TOD) MAY 4450249 Contact Us For Availability
19
MAY 3400968 MAY 3400968 Contact Us For Availability
19
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
19
MAY W10115700 MAY W10115700 Contact Us For Availability
20
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
20
VALVE, DUAL MAY W10371235 Contact Us For Availability
20
MAY W10145369 MAY W10145369 Contact Us For Availability
20
BRACKET, BROIL STANDOFF MAY W10317437 Contact Us For Availability
20
MAY W10145651 MAY W10145651 Contact Us For Availability
21
MAY W10130760 MAY W10130760 Contact Us For Availability
21
MAY W10115843 MAY W10115843 Contact Us For Availability
21
MAY W10321816 MAY W10321816 Contact Us For Availability
21
MAY W10246100 MAY W10246100 Contact Us For Availability
21A
MAY W10130759 MAY W10130759 Contact Us For Availability
22
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
22
INSULATION, SPARK MODULE MAY 8287102 Contact Us For Availability
22
MAY W10145390 MAY W10145390 Contact Us For Availability
22
BURNER, BAKE MAY W10311409 Contact Us For Availability
22
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
23
MAY W10789955 MAY W10789955 Contact Us For Availability
23
MAY W10189177 MAY W10189177 Contact Us For Availability
23
MAY W10145680 MAY W10145680 Contact Us For Availability
24
KNOB, DUAL (STAINLESS) (LEFT FRONT & RIGHT FR MAY W10145568 Contact Us For Availability
24
MAY W10311268 MAY W10311268 Contact Us For Availability
24
MAY W10813909 MAY W10813909 Contact Us For Availability
25
MAY W10464534 MAY W10464534 Contact Us For Availability
25
MAY W10308051 MAY W10308051 Contact Us For Availability
25
MAY W10813915 MAY W10813915 Contact Us For Availability
26
MAY W10145453 MAY W10145453 Contact Us For Availability
26
MAY W10498404 MAY W10498404 Contact Us For Availability
26
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
26
SUPPORT, BAKE PAN MAY W10145744 Contact Us For Availability
27
MAY 8286921 MAY 8286921 Contact Us For Availability
27
BRACKET, BAKE ALIGNEMENT MAY W10308039 Contact Us For Availability
27
MAY W10311009 MAY W10311009 Contact Us For Availability
28
KNOB, SINGLE (STAINLESS) (LEFT REAR, RIG MAY W10145454 Contact Us For Availability
28
REIGNITOR MAY W10116108 Contact Us For Availability
28
MAY W10310985 MAY W10310985 Contact Us For Availability
29
MAY 3177991 MAY 3177991 Contact Us For Availability
29
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
30
MAY W10116114 MAY W10116114 Contact Us For Availability
30
MAY W10859106 MAY W10859106 Contact Us For Availability
30
BURNER, BROIL MAY W10311335 Contact Us For Availability
31
MAY W10294500 MAY W10294500 Contact Us For Availability
31
FOOT, DUAL FUEL MAY 9759117 Contact Us For Availability
31
MAY W10308040 MAY W10308040 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
32
MAY 9759118 MAY 9759118 Contact Us For Availability
33
MAY W10145531 MAY W10145531 Contact Us For Availability
33
MAY 3400518 MAY 3400518 Contact Us For Availability
34
MAY W10116113 MAY W10116113 Contact Us For Availability
34
MAY W10115855 MAY W10115855 Contact Us For Availability
35
MAY W10271524 MAY W10271524 Contact Us For Availability
35
MAY W10813917 MAY W10813917 Contact Us For Availability
36
MAY W10145566 MAY W10145566 Contact Us For Availability
36
MAY W10308042 MAY W10308042 Contact Us For Availability
37
MAY W10625221 MAY W10625221 Contact Us For Availability
37
MAY W10511278 MAY W10511278 Contact Us For Availability
38
MAY 8286930 MAY 8286930 Contact Us For Availability
38
MAY W10145704 MAY W10145704 Contact Us For Availability
39
BRACKET-BOARD, DSI MAY W10145362 Contact Us For Availability
40
MAY W10145381 MAY W10145381 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116146 MAY W10116146 Contact Us For Availability
NI
MAY W10116169 MAY W10116169 Contact Us For Availability
NI
MAY W10146036 MAY W10146036 Contact Us For Availability
NI
MAY W10146037 MAY W10146037 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10253333 MAY W10253333 Contact Us For Availability
NI
MAY W10323791 MAY W10323791 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
NI
MAY W10399611 MAY W10399611 Contact Us For Availability
NI
MAY W10507832 MAY W10507832 Contact Us For Availability
NI
MAY W10624584 MAY W10624584 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
TUBE (CENTER REAR) MAY W10145492 Contact Us For Availability
NI
MAY W10367095 MAY W10367095 Contact Us For Availability
NI
MAY W10367096 MAY W10367096 Contact Us For Availability
NI
MAY W10367097 MAY W10367097 Contact Us For Availability
NI
MAY W10367098 MAY W10367098 Contact Us For Availability
NI
MAY W10367099 MAY W10367099 Contact Us For Availability
NI
MAY W10367100 MAY W10367100 Contact Us For Availability
NI
MAY W10367101 MAY W10367101 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10299350 Contact Us For Availability
NI
MAY W10299354 MAY W10299354 Contact Us For Availability
NI
INSULATION, WRAP, 18" MAY W10282820 Contact Us For Availability
NI
INSULATION, BACK, 18" MAY W10299353 Contact Us For Availability
NI
MAY W10299355 MAY W10299355 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORIES, GAS GRATE & DRIP PAN CLEANER MAY 31617 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
ACCESSORIES, STONE, BRICK PIZZA MAY 4378577 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
MAY 4396920 MAY 4396920 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL MAY 8212510 Contact Us For Availability
NI
MAY 8284755 MAY 8284755 Contact Us For Availability
NI
MAY W10115777 MAY W10115777 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
MAY W10188343 MAY W10188343 Contact Us For Availability
NI
ACCESSORIES, RING, WOK MAY W10216179 Contact Us For Availability
NI
MAY W10225948 MAY W10225948 Contact Us For Availability
NI
MAY W10231704 MAY W10231704 Contact Us For Availability
× ![]()
