Common parts from model GE JLBS15GEK3 Gas Range Or Dual Fuel
2
END CAP RT GEN WB07X1592 Contact Us For Availability
4
LOWER BACKGUARD PANEL GEN WB61X0359 Contact Us For Availability
7
GEN WB07X9180 GEN WB07X9180 Contact Us For Availability
7
GEN WB07X9181 GEN WB07X9181 Contact Us For Availability
11
BACKGUARD PANEL-UPPER GEN WB07X1590 Contact Us For Availability
15
BACKGUARD WIRE COVER GEN WB02X9179 Contact Us For Availability
16
GEN WB19X0257 GEN WB19X0257 Contact Us For Availability
20
CLOCK BRACKET GEN WB02X9183 Contact Us For Availability
21
GEN WB24X0435 GEN WB24X0435 Contact Us For Availability
29
GAS VALVE KNOB GEN WB03X0760 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0773 Contact Us For Availability
51

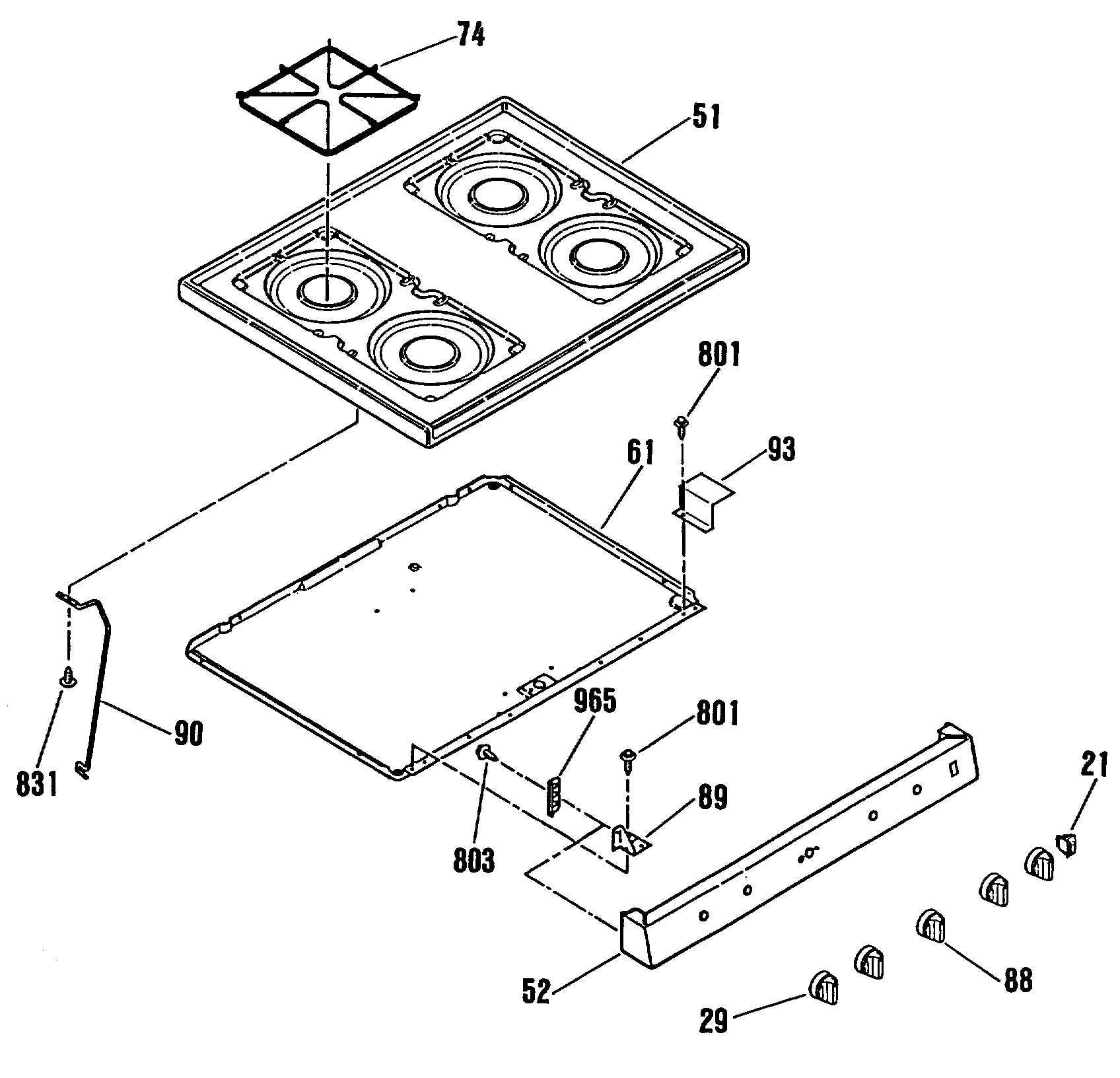

MAIN TOP-WHITE GEN WB62X1675 Contact Us For Availability
51
MAIN TOP-ALMOND GEN WB62X1676 Contact Us For Availability
52
GEN WB07X1593 GEN WB07X1593 Contact Us For Availability
61
GEN WB63X0336 GEN WB63X0336 Contact Us For Availability
70
FOAM STRIP GEN WB02X9182 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
88
THERMOSTAT KNOB GEN WB03X0761 Contact Us For Availability
89
MANIF PANEL BRACKET-LT GEN WB02X9001 Contact Us For Availability
89
MANIF PANEL BRACKET-RT GEN WB02X9002 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
91
GEN WB14K5004 GEN WB14K5004 Contact Us For Availability
91
GEN WB14K5005 GEN WB14K5005 Contact Us For Availability
93
GEN WB34M0017 GEN WB34M0017 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9439 Contact Us For Availability
112
OV DR LINING GEN WB56M0002 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X1910 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OV DOOR GLASS-INNER GEN WB56X1901 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0272 Contact Us For Availability
140
OV DOOR FRAME GEN WB07X1585 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
201
OVEN BODY GEN WB53X0274 Contact Us For Availability
202
FRONT FRAME ASM GEN WB63X0328 Contact Us For Availability
203
GEN WB63M0047 GEN WB63M0047 Contact Us For Availability
204
BROILER DRAWER ASM GEN WB58M0001 Contact Us For Availability
205
BROILER DOOR LINING GEN WB56X2015 Contact Us For Availability
206
BROILER DRAWER BOTTOM GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
215
FLUE DEFLECTOR ASM GEN WB38X0105 Contact Us For Availability
217
WIRE SHIELD ASM GEN WB02X9101 Contact Us For Availability
219
GEN WB02X9102 GEN WB02X9102 Contact Us For Availability
221
BODY SIDE-WHITE GEN WB63K5065 Contact Us For Availability
221
GEN WB63K5066 GEN WB63K5066 Contact Us For Availability
222
GEN WB56X2013 GEN WB56X2013 Contact Us For Availability
222
GEN WB56X2014 GEN WB56X2014 Contact Us For Availability
226
GEN WB15X0270 GEN WB15X0270 Contact Us For Availability
230
GEN WB02X9034 GEN WB02X9034 Contact Us For Availability
231
OVEN BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
GEN WB02X9746 GEN WB02X9746 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
246
GEN WB49X0619 GEN WB49X0619 Contact Us For Availability
247
GEN WB49X0620 GEN WB49X0620 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
266
BASE ASM W/LEVELER GEN WB02X9187 Contact Us For Availability
267
DRAWER GUIDE ASM RT GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
271
LIGHT FLUE PLATE GEN WB02X9749 Contact Us For Availability
272
BODY SIDE SUPPORT LT GEN WB02X9023 Contact Us For Availability
272
BODY SIDE SUPPORT RT GEN WB02X9024 Contact Us For Availability
275
OV DOOR SEAL GEN WB06X0105 Contact Us For Availability
276
DOOR SEAL RETAINER GEN WB02X9029 Contact Us For Availability
281
BROILER DRAWER HINGE LT GEN WB14X0116 Contact Us For Availability
281
BROILER DRAWER HINGE RT GEN WB14X0117 Contact Us For Availability
286
GEN WB09X0267 GEN WB09X0267 Contact Us For Availability
287
GEN WB09X0240 GEN WB09X0240 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
RIVET GEN WB01X1331 Contact Us For Availability
296
LEG LEVELER GEN WB02X9188 Contact Us For Availability
303
3/8 TUBE W/NUTS GEN WB02X9282 Contact Us For Availability
307

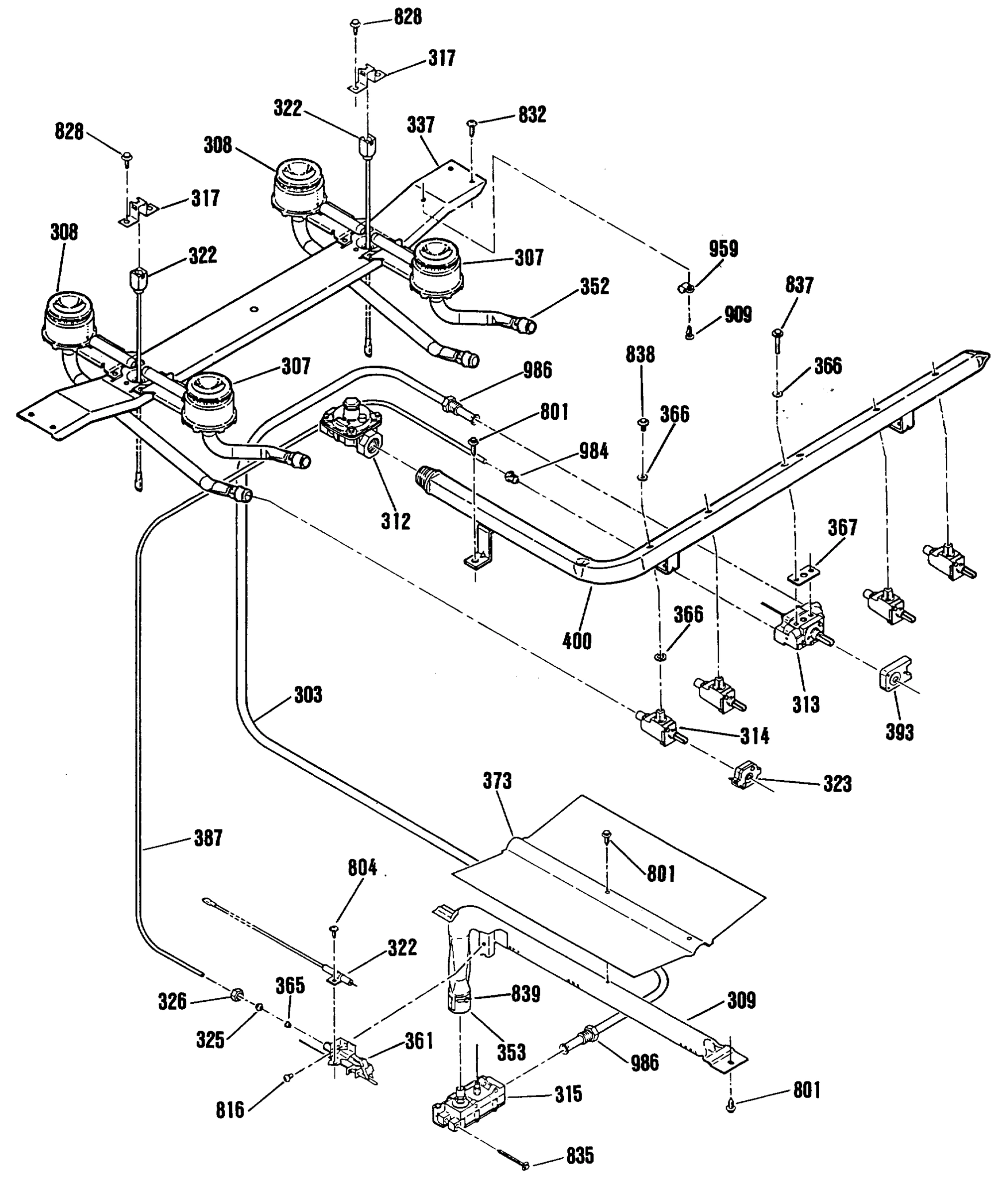

TOP BURNER ASM FRONT GEN WB28X0112 Contact Us For Availability
308
TOP BURNER ASM REAR GEN WB28X0111 Contact Us For Availability
309
GEN WB16K5011 GEN WB16K5011 Contact Us For Availability
312
GEN WB19M0002 GEN WB19M0002 Contact Us For Availability
313
GEN WB19M0004 GEN WB19M0004 Contact Us For Availability
314
GAS VALVE 90 DRGREES GEN WB21M0005 Contact Us For Availability
315
GEN WB19M0005 GEN WB19M0005 Contact Us For Availability
317
IGNITER BRACKET GEN WB02X9003 Contact Us For Availability
318
GEN WB20X0105 GEN WB20X0105 Contact Us For Availability
322
SPARK IGN ELECTRODE RT GEN WB02X9005 Contact Us For Availability
322
OVEN SPARK IGN ELECTRODE GEN WB02X9018 Contact Us For Availability
322
SPARK IGN ELECTRODE-LT GEN WB13K5039 Contact Us For Availability
323
VALVE SWITCH GEN WB24X0412 Contact Us For Availability
325
TUBING SLEEVE 3/16 GEN WB02X9751 Contact Us For Availability
326
TUBING NUT GEN WB01X1126 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9744 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
PILOT W/CUP GEN WB02X9015 Contact Us For Availability
365
GEN WB02X9017 GEN WB02X9017 Contact Us For Availability
366
VALVE SCREW GASKET GEN WB02X9008 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
367
THERMOSTAT GASKET GEN WB02X9010 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
387
3/16 TUBE GEN WB02X9019 Contact Us For Availability
393
THERMOSTAT SWITCH GEN WB24X0411 Contact Us For Availability
400
MANIFOLD PIPE ASM GEN WB02X9012 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
829
GEN WB01X1128 GEN WB01X1128 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTMENT SCREW GEN WB01X1327 Contact Us For Availability
840
SCREW GEN WB01X1430 Contact Us For Availability
909
RIVET GEN WB01X1347 Contact Us For Availability
922
MAINTOP STRIKE GEN WB14X0105 Contact Us For Availability
936
SNAP BUSHING 1/2" GEN WB02X9033 Contact Us For Availability
936
SNAP BUSHING 1 1/2" GEN WB02X9103 Contact Us For Availability
953
GEN WB02X9106 GEN WB02X9106 Contact Us For Availability
954
THMST BULB RETAINER CLIP GEN WB02X9105 Contact Us For Availability
959
GEN WB02X9737 GEN WB02X9737 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
980
HEX NUT GEN WB01X1129 Contact Us For Availability
983
HEX NUT GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-0698 GEN 31-0698 Contact Us For Availability
999
GEN 49-4997 GEN 49-4997 Contact Us For Availability
999
GEN WB18M0035 GEN WB18M0035 Contact Us For Availability
999
GEN WB18M0036 GEN WB18M0036 Contact Us For Availability
999
GEN WB18X0299 GEN WB18X0299 Contact Us For Availability
× ![]()
