Model GE JKP80G*05 Electric Range – Common Parts & Diagrams

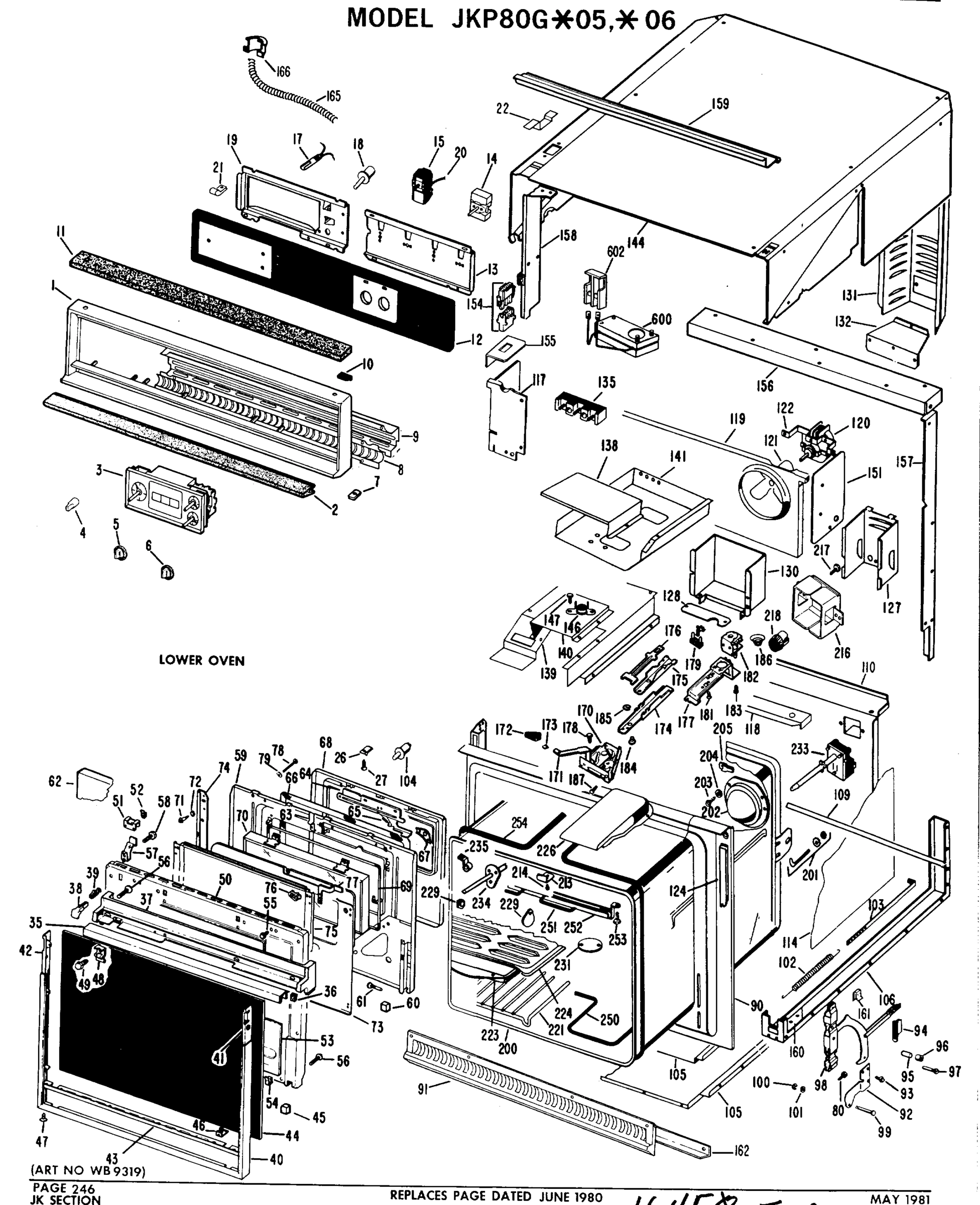

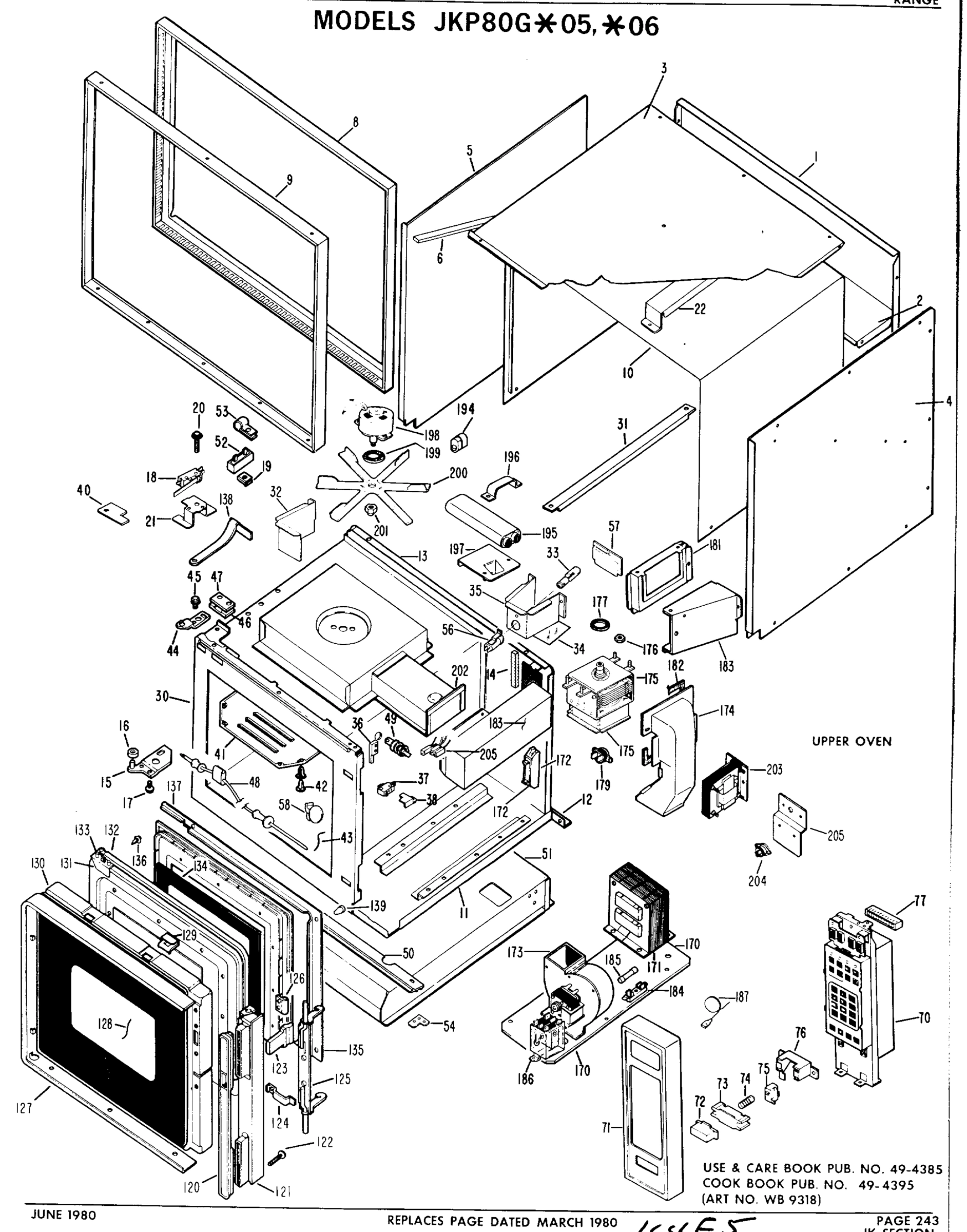

Common parts from model GE JKP80G*05 Electric Range
1
GEN WB49X5218 GEN WB49X5218 Contact Us For Availability
1
CONTROL TRIM GEN WB07X1122 Contact Us For Availability
2
GEN WB56X5754 GEN WB56X5754 Contact Us For Availability
2
NOSE, SPACER GEN WB02X3297 Contact Us For Availability
2
NOSE GEN WB07X1123 Contact Us For Availability
2
SCREW, MTG. NOSE GEN WZ05X0226 Contact Us For Availability
3
HARNESS CLAMP GEN WB02X1422 Contact Us For Availability
3
GEN WB49X5219 GEN WB49X5219 Contact Us For Availability
3
NUT, MT. TIMER GEN WB01X0540 Contact Us For Availability
4
GEN WB56X5756 GEN WB56X5756 Contact Us For Availability
4
GEN WB03X0218 GEN WB03X0218 Contact Us For Availability
5
GEN WB56X5757 GEN WB56X5757 Contact Us For Availability
5
KNOB - THERMOSTAT GEN WB03X0463 Contact Us For Availability
6
GEN WB02X6659 GEN WB02X6659 Contact Us For Availability
6
GEN WB56X5758 GEN WB56X5758 Contact Us For Availability
6
KNOB - OVEN SWITCH GEN WB03X0462 Contact Us For Availability
7
SPEEDNUT - MTG. TRIM TO GEN WB01X0544 Contact Us For Availability
7
SCREW - MT. TRIM GEN WZ04X0218 Contact Us For Availability
8
GEN WB56X5792 GEN WB56X5792 Contact Us For Availability
8
GRILL GEN WB07X0635 Contact Us For Availability
9
GEN WB56X5760 GEN WB56X5760 Contact Us For Availability
9
SCR 8 A IHW 3/8 S GEN WZ04X0322 Contact Us For Availability
9
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
9
SCREW - MT. DEFL. & GRIL GEN WZ05X0132 Contact Us For Availability
10
GEN WB01X0568 GEN WB01X0568 Contact Us For Availability
10
GEN WB56X5838 GEN WB56X5838 Contact Us For Availability
10
GEN WB02X6671 GEN WB02X6671 Contact Us For Availability
11
GEN WB49X5151 GEN WB49X5151 Contact Us For Availability
11
GEN WB02X6668 GEN WB02X6668 Contact Us For Availability
12
GEN WB02X6658 GEN WB02X6658 Contact Us For Availability
12
GEN WB36X5347 GEN WB36X5347 Contact Us For Availability
13
GEN WB49X5217 GEN WB49X5217 Contact Us For Availability
13
INSTRUMENT BRACKET GEN WB02X3453 Contact Us For Availability
13
GEN WB02X6494 GEN WB02X6494 Contact Us For Availability
13
OVEN SWITCH GEN WB22X5083 Contact Us For Availability
13
SCREW - MT. SWITCH GEN WZ02X0528 Contact Us For Availability
14
GEN WB02X6404 GEN WB02X6404 Contact Us For Availability
15
GEN WB10X5113 GEN WB10X5113 Contact Us For Availability
15
THERMOSTAT GEN WB24X0176 Contact Us For Availability
16
GEN WB02X6473 GEN WB02X6473 Contact Us For Availability
17
NEON LAMP - 118V GEN WB02X1608 Contact Us For Availability
17
NEON LAMP - 240V GEN WB02X1609 Contact Us For Availability
18
GEN WB24X5102 GEN WB24X5102 Contact Us For Availability
18
TRIM SWITCH GEN WB02X1838 Contact Us For Availability
18
LATCH SWITCH GEN WB24X0108 Contact Us For Availability
19
GEN WB02X6490 GEN WB02X6490 Contact Us For Availability
19
GEN WB02X6617 GEN WB02X6617 Contact Us For Availability
19
NUT, HEX GEN WB01X5220 Contact Us For Availability
19
TIMER BRACKET GEN WB02X3405 Contact Us For Availability
20
GEN WZ05X0234 GEN WZ05X0234 Contact Us For Availability
20
SLEEVE - THERMOSTAT GEN WB02X6274 Contact Us For Availability
21
GEN WB02X6697 GEN WB02X6697 Contact Us For Availability
21
CLAMP GEN WB02X2006 Contact Us For Availability
22
GEN WB02X3430 GEN WB02X3430 Contact Us For Availability
22
BRKT. TRIM GEN WB02X3291 Contact Us For Availability
22
SCREW MTG. BRKT TO TRIM GEN WZ04X0369 Contact Us For Availability
22
SCREW MTG. BRKT TO TOP GEN WZ04X0372 Contact Us For Availability
30
GEN WB53X5081 GEN WB53X5081 Contact Us For Availability
31
GEN WB59X5153 GEN WB59X5153 Contact Us For Availability
32
GEN WB02X6853 GEN WB02X6853 Contact Us For Availability
32
GEN WB02X6857 GEN WB02X6857 Contact Us For Availability
33
GEN WX12X0085 GEN WX12X0085 Contact Us For Availability
34
GEN WB02X6855 GEN WB02X6855 Contact Us For Availability
35
GEN WB02X6854 GEN WB02X6854 Contact Us For Availability
35
HANDLE GRIP GEN WB15X0153 Contact Us For Availability
36
GEN WB10X5121 GEN WB10X5121 Contact Us For Availability
36
SPEEDNUT - GRIP (4) GEN WB01X0579 Contact Us For Availability
37
GEN WB02X6699 GEN WB02X6699 Contact Us For Availability
37
GEN WB24X5101 GEN WB24X5101 Contact Us For Availability
37
GEN WB24X5109 GEN WB24X5109 Contact Us For Availability
37
GEN WD02X0437 GEN WD02X0437 Contact Us For Availability
37
TRIM DOOR TOP GEN WB07X1151 Contact Us For Availability
38
GEN WB02X6698 GEN WB02X6698 Contact Us For Availability
38
GEN WB02X3459 GEN WB02X3459 Contact Us For Availability
39
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
40
GEN WB02X6557 GEN WB02X6557 Contact Us For Availability
40
TRIM DOOR GEN WB07X1150 Contact Us For Availability
41
GEN WB02X6723 GEN WB02X6723 Contact Us For Availability
41
GEN WB56X5639 GEN WB56X5639 Contact Us For Availability
41
BRACE SIDE - RH GEN WB02X3334 Contact Us For Availability
42
GEN WB01X5453 GEN WB01X5453 Contact Us For Availability
42
BRACE SIDE - LH GEN WB02X3335 Contact Us For Availability
43
GEN WB48X5056 GEN WB48X5056 Contact Us For Availability
43
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
44
GEN WB10X5110 GEN WB10X5110 Contact Us For Availability
44
CRYSTAL BLK. (03-UP) GEN WB36X0557 Contact Us For Availability
45
SCREW WASHER ASM GEN WB01X0438 Contact Us For Availability
46
GEN WB10X5123 GEN WB10X5123 Contact Us For Availability
46
BACKER - CRYSTAL (4) GEN WB02X3333 Contact Us For Availability
47
GEN WB10X5117 GEN WB10X5117 Contact Us For Availability
47
SCR 8-32 T HXW 7/8 S GEN WZ05X0139 Contact Us For Availability
48
GEN WB20X5041 GEN WB20X5041 Contact Us For Availability
48
CLAMP CRYSTAL (4) GEN WB02X3331 Contact Us For Availability
49
GEN WB20X5042 GEN WB20X5042 Contact Us For Availability
50
GEN WB01X5471 GEN WB01X5471 Contact Us For Availability
50
GEN WB02X6667 GEN WB02X6667 Contact Us For Availability
50
MIDDLE DOOR LINER GEN WB55X0419 Contact Us For Availability
51
GEN WB49X5184 GEN WB49X5184 Contact Us For Availability
51
BRACKET - MID. LINER (2) GEN WB02X3310 Contact Us For Availability
52
GEN WB27X5071 GEN WB27X5071 Contact Us For Availability
52
SPEEDNUT - MID. LINER BR GEN WB01X0439 Contact Us For Availability
53
GEN WB02X6609 GEN WB02X6609 Contact Us For Availability
53
CLIP CRYSTAL BOTTOM GEN WB02X3332 Contact Us For Availability
54
WASHER GEN WB02X3429 Contact Us For Availability
55
GEN WB18X5053 GEN WB18X5053 Contact Us For Availability
56
GEN WB08X5084 GEN WB08X5084 Contact Us For Availability
56
SCREW MT. GRIP (4) GEN WZ04X0410 Contact Us For Availability
57
GEN WB02X6856 GEN WB02X6856 Contact Us For Availability
57
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
58
GEN WB02X6852 GEN WB02X6852 Contact Us For Availability
59
GEN WB55X0406 GEN WB55X0406 Contact Us For Availability
60
LINER SOCKET PAD GEN WB02X3285 Contact Us For Availability
62
INSULATION LINER GEN WB02X3312 Contact Us For Availability
62
REFLECTOR, FOIL GEN WB02X3314 Contact Us For Availability
63
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
64
COVER & GUARD ASM. GEN WB02X3315 Contact Us For Availability
65
GEN WB09X0128 GEN WB09X0128 Contact Us For Availability
67
GEN WB02X3316 GEN WB02X3316 Contact Us For Availability
68
REFLECTOR - PANEL GEN WB02X2276 Contact Us For Availability
68
INSULATION - PANEL GEN WB02X3313 Contact Us For Availability
68
GEN WB55X0407 GEN WB55X0407 Contact Us For Availability
69
GASKET GEN WB02X3048 Contact Us For Availability
70
GEN WB27X5113 GEN WB27X5113 Contact Us For Availability
70
WINDOW GEN WB36X0448 Contact Us For Availability
71
GEN WB01X5512 GEN WB01X5512 Contact Us For Availability
71
GEN WB01X5513 GEN WB01X5513 Contact Us For Availability
71
GEN WB01X5514 GEN WB01X5514 Contact Us For Availability
71
GEN WB36X5386 GEN WB36X5386 Contact Us For Availability
71
GEN WB01X0547 GEN WB01X0547 Contact Us For Availability
72
GEN WB02X6716 GEN WB02X6716 Contact Us For Availability
72
GEN WB01X0548 GEN WB01X0548 Contact Us For Availability
73
GEN WB02X6717 GEN WB02X6717 Contact Us For Availability
73
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
74
GEN WB09X5084 GEN WB09X5084 Contact Us For Availability
74
GEN WB02X3317 GEN WB02X3317 Contact Us For Availability
74
GEN WB02X3318 GEN WB02X3318 Contact Us For Availability
75
GEN WB01X5511 GEN WB01X5511 Contact Us For Availability
75
GEN WB24X5113 GEN WB24X5113 Contact Us For Availability
75
GEN WB55X0408 GEN WB55X0408 Contact Us For Availability
76
GEN WB01X5515 GEN WB01X5515 Contact Us For Availability
76
GEN WB02X6719 GEN WB02X6719 Contact Us For Availability
76
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
76
GEN WB02X3040 GEN WB02X3040 Contact Us For Availability
77
GEN WB17X5058 GEN WB17X5058 Contact Us For Availability
77
GEN WB02X3319 GEN WB02X3319 Contact Us For Availability
77
GEN WB02X3320 GEN WB02X3320 Contact Us For Availability
78
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
90
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
91
GEN WB07X0636 GEN WB07X0636 Contact Us For Availability
91
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
92
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
92
GEN WB10X1555 GEN WB10X1555 Contact Us For Availability
93
GEN WZ06X0086 GEN WZ06X0086 Contact Us For Availability
94
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
95
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
96
GEN WB02 GEN WB02 Contact Us For Availability
120
GEN WB15X5113 GEN WB15X5113 Contact Us For Availability
121
GEN WB07X5635 GEN WB07X5635 Contact Us For Availability
122
GEN WB01X5462 GEN WB01X5462 Contact Us For Availability
123
GEN WB03X5589 GEN WB03X5589 Contact Us For Availability
124
GEN WB02X6644 GEN WB02X6644 Contact Us For Availability
125
GEN WB10X5112 GEN WB10X5112 Contact Us For Availability
126
GEN WB02X6580 GEN WB02X6580 Contact Us For Availability
126
GEN WB10X5111 GEN WB10X5111 Contact Us For Availability
127
GEN WB07X5634 GEN WB07X5634 Contact Us For Availability
128
GEN WB36X5374 GEN WB36X5374 Contact Us For Availability
129
GEN WB02X6643 GEN WB02X6643 Contact Us For Availability
130
GEN WB56X5686 GEN WB56X5686 Contact Us For Availability
131
GEN WB55X5227 GEN WB55X5227 Contact Us For Availability
132
GEN WB02X6700 GEN WB02X6700 Contact Us For Availability
133
GEN WB02X6476 GEN WB02X6476 Contact Us For Availability
134
GEN WB02X6474 GEN WB02X6474 Contact Us For Availability
134
GEN WB36X5415 GEN WB36X5415 Contact Us For Availability
135
GEN WB55X5232 GEN WB55X5232 Contact Us For Availability
136
GEN WB01 GEN WB01 Contact Us For Availability
× ![]()
