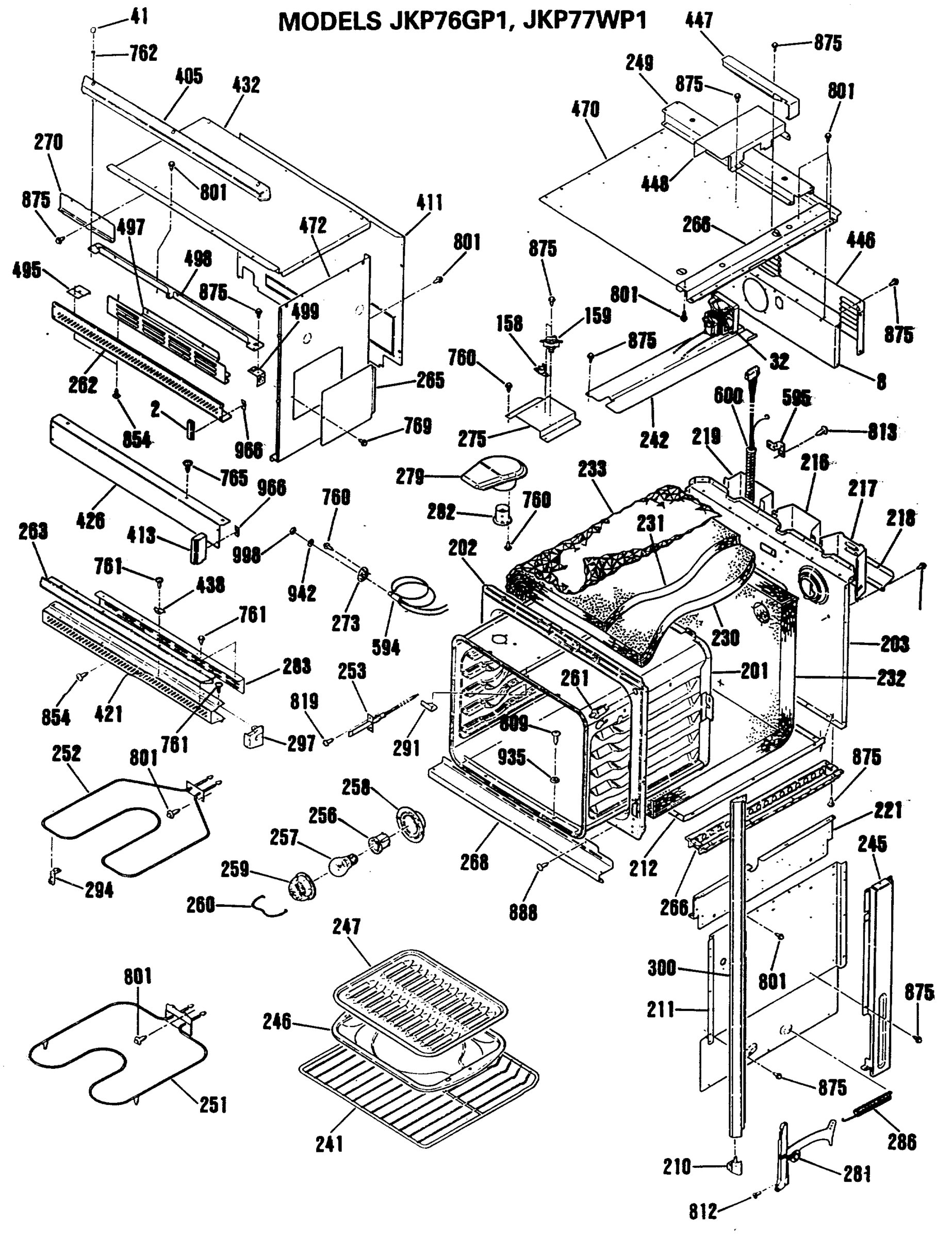

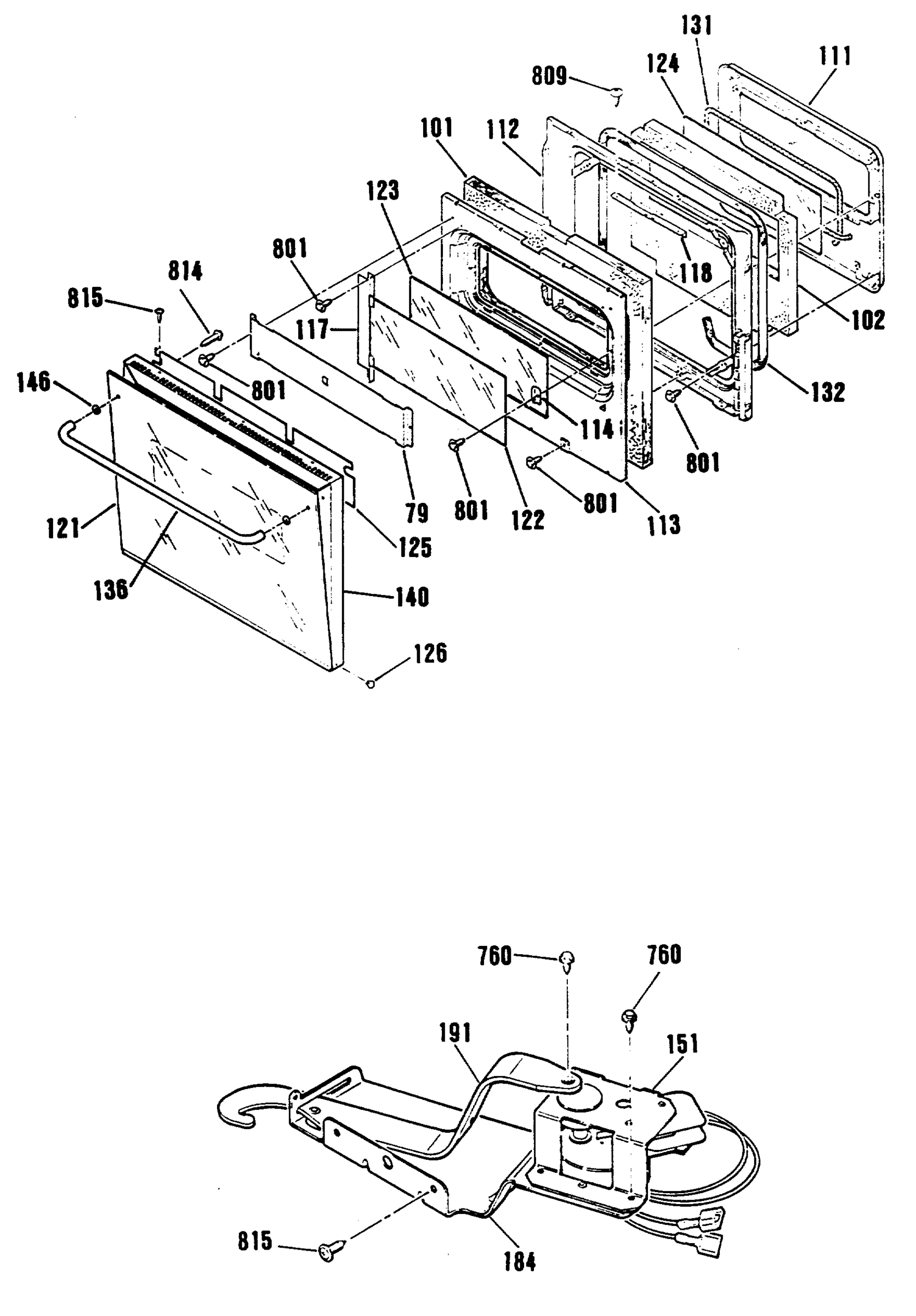

Model GE JKP76GP1 – Common Parts & Diagrams
0
1
2
3
4
Common parts from model GE JKP76GP1
2
END CAP-LT GEN WB36K5113 Contact Us For Availability
2
END CAP-RT GEN WB36K5114 Contact Us For Availability
8
FAN SUPPORT-LO GEN WB02K5137 Contact Us For Availability
9
GEN WB57K5076 GEN WB57K5076 Contact Us For Availability
10
GEN WB57K5079 GEN WB57K5079 Contact Us For Availability
16
DP CIRCUIT ASS'Y GEN WB27K5067 Contact Us For Availability
20
GEN WB02K5189 GEN WB02K5189 Contact Us For Availability
20
GEN WB02K5192 GEN WB02K5192 Contact Us For Availability
20
GEN WB02K5193 GEN WB02K5193 Contact Us For Availability
20
HV CAPACITOR BRACKET GEN WB02X7731 Contact Us For Availability
20
FAN MOTOR BRACKET GEN WB02X7733 Contact Us For Availability
25
GEN WB34K5110 GEN WB34K5110 Contact Us For Availability
32
FAN ASM GEN WB26X0113 Contact Us For Availability
41
GEN WB07K5036 GEN WB07K5036 Contact Us For Availability
42
FUSE INSULATOR GEN WB35K5070 Contact Us For Availability
43
GEN WB02X7552 GEN WB02X7552 Contact Us For Availability
44
GEN WB02X7722 GEN WB02X7722 Contact Us For Availability
47
GEN WB02X7724 GEN WB02X7724 Contact Us For Availability
48
GEN WB02X7635 GEN WB02X7635 Contact Us For Availability
95
REAR STOP BRACKET GEN WB02K5194 Contact Us For Availability
99
SPACER GEN WB02K5188 Contact Us For Availability
102
DOOR PLUG INSULATION GEN WB35K5050 Contact Us For Availability
111
OV DR LINING PLUG GEN WB55K5018 Contact Us For Availability
112
GEN WB55K5017 GEN WB55K5017 Contact Us For Availability
112
DOOR FRAME-M/W GEN WB55K5028 Contact Us For Availability
113
OV DR INSLN RETAINER GEN WB02K5127 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
117
GEN WB02K5131 GEN WB02K5131 Contact Us For Availability
118
GEN WB02K5132 GEN WB02K5132 Contact Us For Availability
121
OUTER WINDOW M/W GEN WB36X5637 Contact Us For Availability
121
GEN WB57K5051 GEN WB57K5051 Contact Us For Availability
122
OV DR INTERMEDIATE GLASS GEN WB56M1906 Contact Us For Availability
123
GEN WB55K5030 GEN WB55K5030 Contact Us For Availability
123
OV DR CENTER GLASS GEN WB57K5038 Contact Us For Availability
124
DOOR TRIM-M/W GEN WB07X6925 Contact Us For Availability
124
OV DR INNER GLASS GEN WB57M0001 Contact Us For Availability
126
GEN WB03K5042 GEN WB03K5042 Contact Us For Availability
136
GEN WB15K5023 GEN WB15K5023 Contact Us For Availability
140
DOOR-M/W GEN WB55X5326 Contact Us For Availability
140
OV DR FRAME W/REFLECTOR GEN WB56K5033 Contact Us For Availability
141
DOOR SASH RUBBER GEN WB02X7857 Contact Us For Availability
143
DOOR SASH LEFT M/W GEN WB02X7735 Contact Us For Availability
146
DOOR HANDLE SPACER-BLK GEN WB02K5151 Contact Us For Availability
149
FERRITE SIDE GEN WB02X7642 Contact Us For Availability
150
FERRITE TOP & BOTTOM GEN WB02X7643 Contact Us For Availability
159
GEN WB24K5037 GEN WB24K5037 Contact Us For Availability
201
GEN WB63K5086 GEN WB63K5086 Contact Us For Availability
202
GEN WB63K5084 GEN WB63K5084 Contact Us For Availability
203
GEN WB63K5078 GEN WB63K5078 Contact Us For Availability
210
BTM TRIM END CAP-RT-BLK GEN WB07K5034 Contact Us For Availability
210
BTM TRIM END CAP-LT-BLK GEN WB07K5035 Contact Us For Availability
211
GEN WB63K5085 GEN WB63K5085 Contact Us For Availability
212
GEN WB63K5080 GEN WB63K5080 Contact Us For Availability
216
ELEMENT WIRE COVER GEN WB34K5069 Contact Us For Availability
217
LIGHT WIRE COVER GEN WB34K5070 Contact Us For Availability
218
GEN WB34K5067 GEN WB34K5067 Contact Us For Availability
221
GEN WB63K5093 GEN WB63K5093 Contact Us For Availability
231
GEN WB35K5049 GEN WB35K5049 Contact Us For Availability
233
GEN WB34K5080 GEN WB34K5080 Contact Us For Availability
245
VERTICAL SIDE SUPPORT GEN WB02K5139 Contact Us For Availability
246
CERAMIC TRAY GEN WB06K5020 Contact Us For Availability
249
MICROWAVE SUPPORT GEN WB02K5138 Contact Us For Availability
253
SENSOR GEN WB21X0158 Contact Us For Availability
256
GEN WB08K5096 GEN WB08K5096 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
257
OVEM LAMP-M/W GEN WB08K5032 Contact Us For Availability
258
OV LIGHT CUP GEN WB02X7693 Contact Us For Availability
260
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
261
JAM SWITCH GEN WB24K5061 Contact Us For Availability
262
VENT TRIM-UPPER-BLK GEN WB07K5084 Contact Us For Availability
265
ACCESS COVER GEN WB02X7255 Contact Us For Availability
266
BASE RAIL MICROWAVE GEN WB63K5088 Contact Us For Availability
268
GEN WB07K5169 GEN WB07K5169 Contact Us For Availability
270
LIGHT COVER GEN WB34K5085 Contact Us For Availability
273
PROBE COVER GEN WB34K5140 Contact Us For Availability
279
VENT BOX ASM-BLK GEN WB38K5028 Contact Us For Availability
281
GEN WB14K5006 GEN WB14K5006 Contact Us For Availability
281
GEN WB14K5007 GEN WB14K5007 Contact Us For Availability
282
GEN WB28K5010 GEN WB28K5010 Contact Us For Availability
286
GEN WB09K5010 GEN WB09K5010 Contact Us For Availability
291
COVER GEN WB34K5088 Contact Us For Availability
297
GEN WB36K5101 GEN WB36K5101 Contact Us For Availability
297
GEN WB36K5102 GEN WB36K5102 Contact Us For Availability
300
GEN WB02K5190 GEN WB02K5190 Contact Us For Availability
300
HINGE SPACER GEN WB02X7103 Contact Us For Availability
300
VENT TRIM-SIDE-RT-BLK GEN WB07K5085 Contact Us For Availability
300
VENT TRIM-SIDE-LT-BLK GEN WB07K5086 Contact Us For Availability
339
GEN WB02X7728 GEN WB02X7728 Contact Us For Availability
401
BOTTOM WINDOW GEN WB49X5387 Contact Us For Availability
405
CONT PANEL TRIM-TOP-BLK GEN WB07K5039 Contact Us For Availability
407
DOOR HOOK-UPPER GEN WB10X5165 Contact Us For Availability
407
DOOR HOOK-LOWER GEN WB10X5174 Contact Us For Availability
411
CABINET BACK GEN WB63K5087 Contact Us For Availability
413
CTR TRIM END CAP-LT-BLK GEN WB36K5115 Contact Us For Availability
413
CTR TRIM END CAP-RT-BLK GEN WB36K5116 Contact Us For Availability
413
GEN WB63K5124 GEN WB63K5124 Contact Us For Availability
416
SENSOR JACK GEN WB08K5030 Contact Us For Availability
421
ANTENNA ASS'Y GEN WB02X7626 Contact Us For Availability
426
LOWER TRIM-M/W-BLK GEN WB07K5083 Contact Us For Availability
427
STIRRER MOTOR GEN WB26X5080 Contact Us For Availability
428
RACK SUPPORT GEN WB02X7640 Contact Us For Availability
431
GEN WB48K5008 GEN WB48K5008 Contact Us For Availability
432
CABINET TOP GEN WB63K5092 Contact Us For Availability
435
THERMAL CUT OUT GEN WB27X5381 Contact Us For Availability
437
GEN WB38K5038 GEN WB38K5038 Contact Us For Availability
438
LO TRIM SPRING CLIP GEN WB01K5063 Contact Us For Availability
438
BOTTOM WINDOW GEN WB02X7723 Contact Us For Availability
439
FUSE HOLDER GEN WB02X7787 Contact Us For Availability
443
THERMAL SWITCH GEN WB24K5050 Contact Us For Availability
444
GEN WB07K5141 GEN WB07K5141 Contact Us For Availability
447
WIRE COVER-MICRO SIDE GEN WB34K5086 Contact Us For Availability
448
WIRE COVER-MICRO CENTER GEN WB34K5087 Contact Us For Availability
452
GEN WB24K5053 GEN WB24K5053 Contact Us For Availability
453
ESCUT SLIDE ASS'Y GEN WB02X7729 Contact Us For Availability
461
CAVITY GEN WB63K5125 Contact Us For Availability
462
ANTENNA STOPPER GEN WB02X7625 Contact Us For Availability
463
SENSOR BRACKET GEN WB02X7649 Contact Us For Availability
463
THERMAL CUT OUT GEN WB27X5371 Contact Us For Availability
466
HINGE-UPPER GEN WB10X5179 Contact Us For Availability
466
HINGE BOTTOM GEN WB10X5184 Contact Us For Availability
468
ANTENNA SUPPORT GEN WB02X7624 Contact Us For Availability
470
COMPARTMENT BOTTOM GEN WB55K5022 Contact Us For Availability
472
CABINET SIDE-RT GEN WB63K5090 Contact Us For Availability
472
CABINET SIDE-LT GEN WB63K5091 Contact Us For Availability
476
SERVICE CAUTION LABEL GEN WB07K5139 Contact Us For Availability
480
HUMIDITY SENSOR ASS'Y GEN WB27X5406 Contact Us For Availability
487
NAME PLATE GEN WB07K5138 Contact Us For Availability
489
HOOK SPACER GEN WB10X5186 Contact Us For Availability
489
GEN WB15K5039 GEN WB15K5039 Contact Us For Availability
494
GEN WB06K5021 GEN WB06K5021 Contact Us For Availability
495
VENT TRIM BRACKET GEN WB02K5204 Contact Us For Availability
496
GEN WB06K5019 GEN WB06K5019 Contact Us For Availability
496
GEN WB09K5015 GEN WB09K5015 Contact Us For Availability
497
GEN WB02X7628 GEN WB02X7628 Contact Us For Availability
497
VENT BARRIER TRIM GEN WB38K5032 Contact Us For Availability
498
CABINET BRACE GEN WB02K5136 Contact Us For Availability
499
CABINET BRACE BRACKET GEN WB02K5205 Contact Us For Availability
511
FAN MOTOR GEN WB26K5035 Contact Us For Availability
512
FAN BLADE GEN WB02X4114 Contact Us For Availability
522
CUSHION 15T 10W 450L GEN WB35K5069 Contact Us For Availability
531
CUSHION 5T 10W 450L GEN WB35K5071 Contact Us For Availability
531
CUSHION 5T 10W 550L GEN WB35K5072 Contact Us For Availability
533
AIR SEPARATION GEN WB38K5039 Contact Us For Availability
562
FUSE #SS6-15A GEN WB08K5033 Contact Us For Availability
576
LATCH SWITCH GEN WB24X0352 Contact Us For Availability
577
SHORT SWITCH GEN WB24X0353 Contact Us For Availability
582
HV TRANFORMER GEN WB27X5447 Contact Us For Availability
583
GEN WB20K5017 GEN WB20K5017 Contact Us For Availability
594
GEN WB08K5014 GEN WB08K5014 Contact Us For Availability
597
HV DIODE GEN WB08K5031 Contact Us For Availability
598
GEN WB18K5297 GEN WB18K5297 Contact Us For Availability
599
GEN WB18K5299 GEN WB18K5299 Contact Us For Availability
600
GEN WB18K5215 GEN WB18K5215 Contact Us For Availability
753
GEN WB01K5086 GEN WB01K5086 Contact Us For Availability
762
GEN WB01K5061 GEN WB01K5061 Contact Us For Availability
765
SCREW GEN WB01X5716 Contact Us For Availability
773
SCREW GEN WB01K5088 Contact Us For Availability
775
GEN WB01K5090 GEN WB01K5090 Contact Us For Availability
778
GEN WB01K5092 GEN WB01K5092 Contact Us For Availability
780
SCREW GEN WB01K5094 Contact Us For Availability
781
GEN WB01K5095 GEN WB01K5095 Contact Us For Availability
782
GEN WB01K5096 GEN WB01K5096 Contact Us For Availability
783
SCREW GEN WB01K5097 Contact Us For Availability
784
GEN WB01K5098 GEN WB01K5098 Contact Us For Availability
785
GEN WB01K5099 GEN WB01K5099 Contact Us For Availability
786
SCREW GEN WB01K5100 Contact Us For Availability
787
GEN WB01X5613 GEN WB01X5613 Contact Us For Availability
788
SCREW GEN WB01K5101 Contact Us For Availability
789
GEN WB01K5102 GEN WB01K5102 Contact Us For Availability
790
SCREW GEN WB01X5742 Contact Us For Availability
791
SCREW GEN WB01K5103 Contact Us For Availability
792
GEN WB01K5104 GEN WB01K5104 Contact Us For Availability
793
GEN WB01K5105 GEN WB01K5105 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
875
GEN WB01K5057 GEN WB01K5057 Contact Us For Availability
888
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
916
PLASTIC RIVET GEN WB01K5082 Contact Us For Availability
917
PLASTIC RIVET GEN WB02X7650 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
959
LOWER TRIM CLIP GEN WB01K5085 Contact Us For Availability
966
PUSH ON CLIP GEN WB01 Contact Us For Availability
989
NUT GEN WB01K5087 Contact Us For Availability
999
LEAD WIRE GEN WB18K5096 Contact Us For Availability
999
INSTALLATION INSTRUCTION GEN 31-0972 Contact Us For Availability
999
MINI MANUAL/WIRE DIAGRAM GEN 31-13023 Contact Us For Availability
999
MINI MAN/WIRE DIAGRAM-MW GEN 31-13034 Contact Us For Availability
999
GEN 49-8180 GEN 49-8180 Contact Us For Availability
999
LEAD WIRE GEN WB00X6432 Contact Us For Availability
999
GEN WB06K5022 GEN WB06K5022 Contact Us For Availability
999
HV LEAD WIRE GEN WB18K5097 Contact Us For Availability
999
MAIN WIRE HARNE GEN WB18K5216 Contact Us For Availability
999
GEN WB18K5217 GEN WB18K5217 Contact Us For Availability
999
GEN WB18K5300 GEN WB18K5300 Contact Us For Availability
999
GEN WB18K5301 GEN WB18K5301 Contact Us For Availability
× ![]()
