Model GE JKP67G*J3 Electric Range – Common Parts & Diagrams

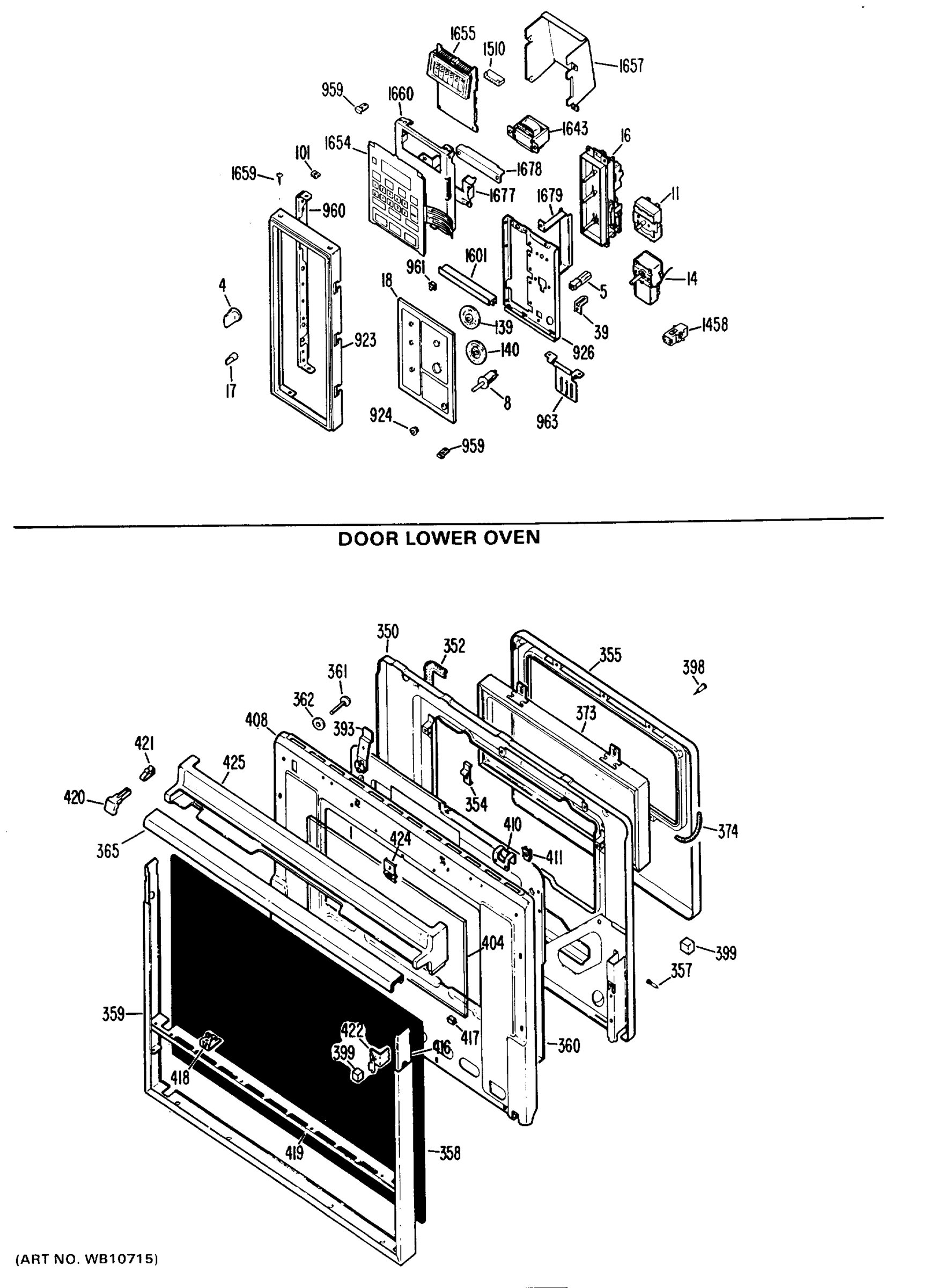

DOOR LOWER OVEN

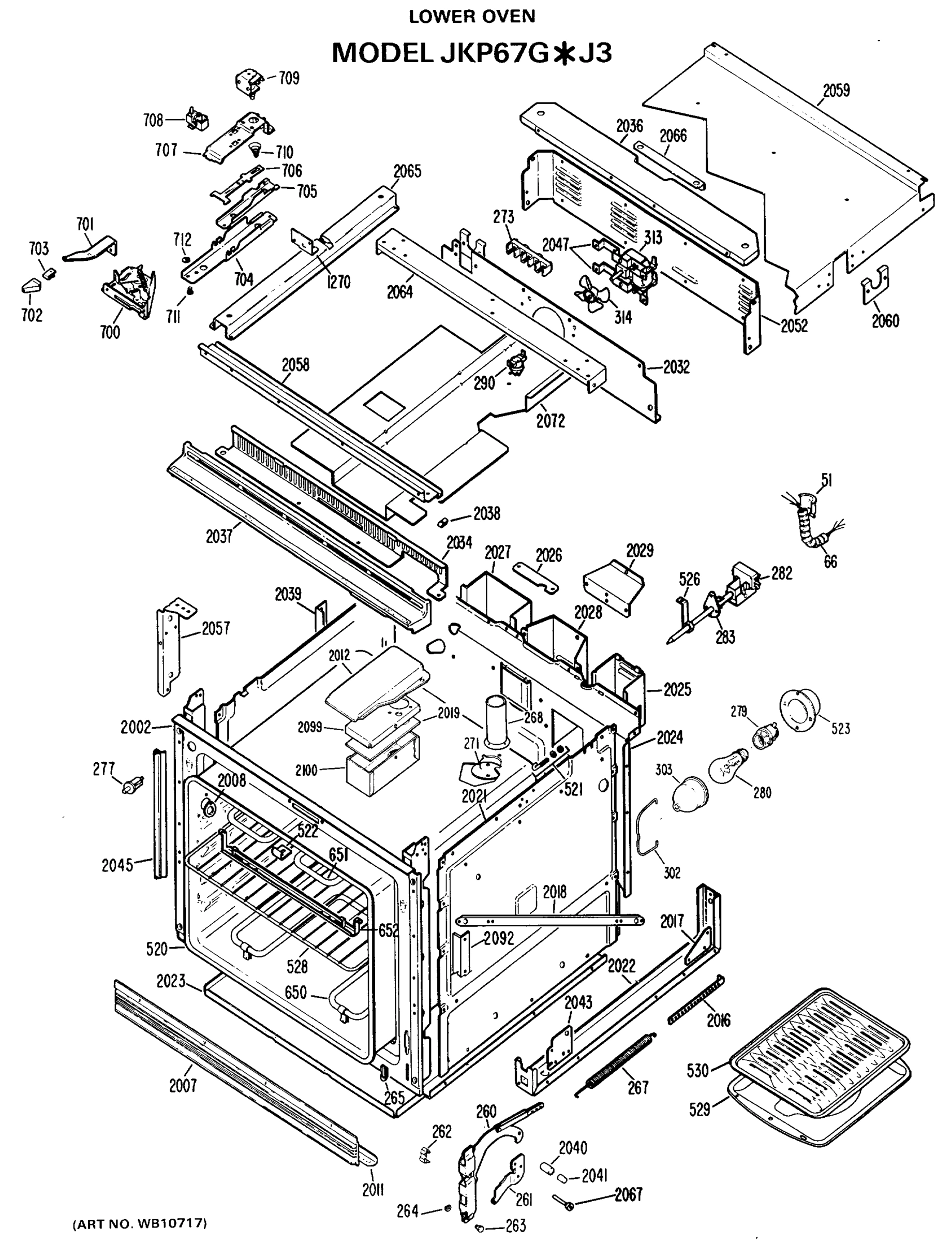

LOWER OVEN

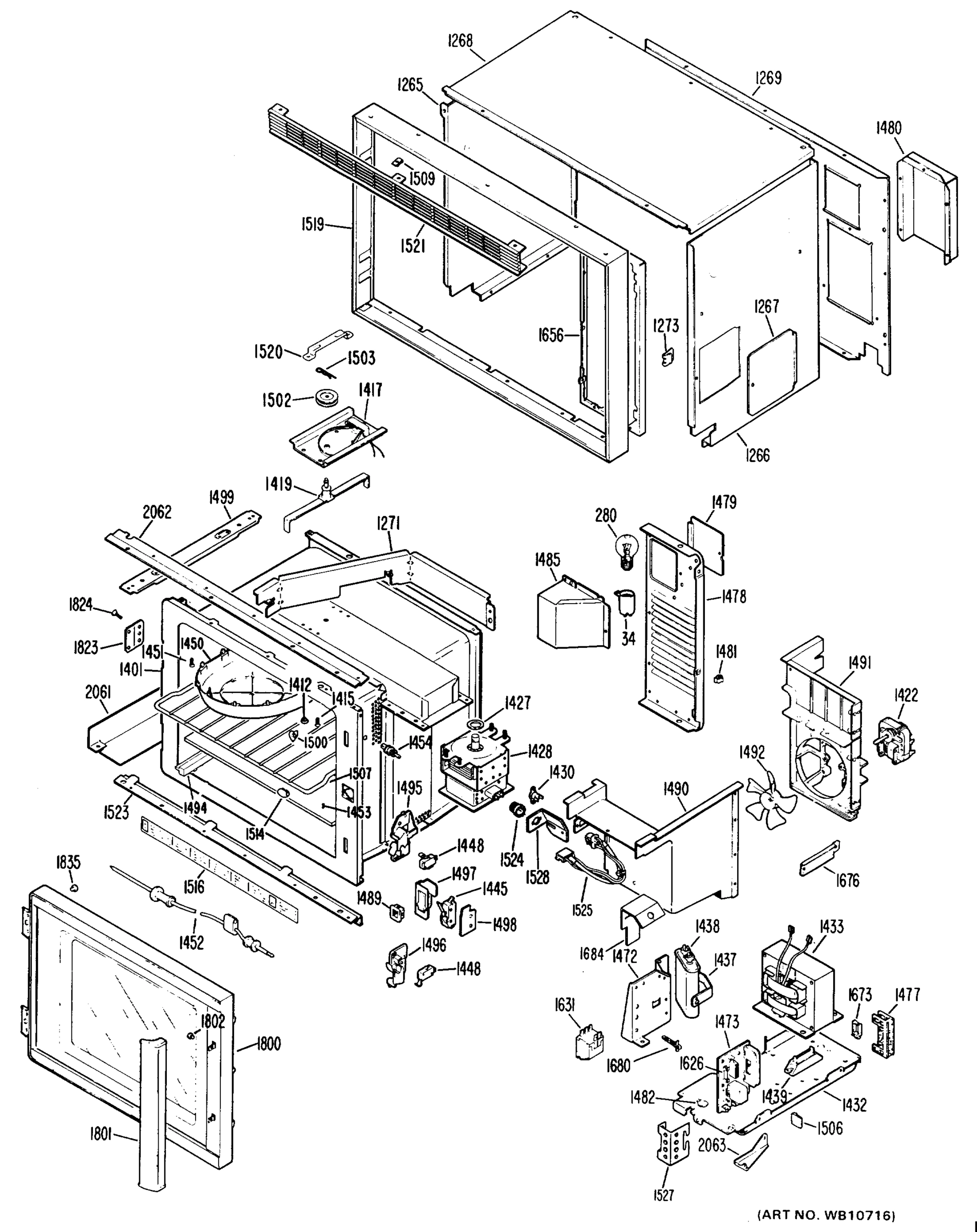

Common parts from model GE JKP67G*J3 Electric Range
4
GEN WB03X5618 GEN WB03X5618 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
5
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
8
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
11
GEN WB22X5118 GEN WB22X5118 Contact Us For Availability
14
GEN WB02X6494 GEN WB02X6494 Contact Us For Availability
14
GEN WB24X0234 GEN WB24X0234 Contact Us For Availability
16
GEN WB19X5290 GEN WB19X5290 Contact Us For Availability
17
GEN WB03X5630 GEN WB03X5630 Contact Us For Availability
18
GEN WB02X3232 GEN WB02X3232 Contact Us For Availability
18
GEN WB36X5512 GEN WB36X5512 Contact Us For Availability
39
GEN WB02X6624 GEN WB02X6624 Contact Us For Availability
51
GEN WB02X1409 GEN WB02X1409 Contact Us For Availability
51
GEN WB02X3061 GEN WB02X3061 Contact Us For Availability
103
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
139
GEN WB04X5107 GEN WB04X5107 Contact Us For Availability
140
GEN WB04X5106 GEN WB04X5106 Contact Us For Availability
146
GEN WB01X0271 GEN WB01X0271 Contact Us For Availability
148
SCREW GEN WB01X5716 Contact Us For Availability
260
HINGE LEVER RH & LH GEN WB10X0158 Contact Us For Availability
261
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
261
GEN WB10X0155 GEN WB10X0155 Contact Us For Availability
263
PIN HINGE GEN WB02X6195 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
267
GEN WB09X0156 GEN WB09X0156 Contact Us For Availability
268
GEN WB29X5018 GEN WB29X5018 Contact Us For Availability
271
COVER VENT GEN WB02X0818 Contact Us For Availability
273
BLOCK TERM DISTRIBUTION GEN WB17X0167 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
282
GEN WB24X5164 GEN WB24X5164 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
290
GEN WB24X0199 GEN WB24X0199 Contact Us For Availability
302
BAIL GEN WB02X7694 Contact Us For Availability
313
GEN WB26X5052 GEN WB26X5052 Contact Us For Availability
314
GEN WB02X2911 GEN WB02X2911 Contact Us For Availability
350
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
350
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
350
GEN WB55X5319 GEN WB55X5319 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
355
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
355
GEN WB55X5299 GEN WB55X5299 Contact Us For Availability
358
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
359
GEN WB07X1150 GEN WB07X1150 Contact Us For Availability
360
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
361
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
365
GEN WB15X0154 GEN WB15X0154 Contact Us For Availability
373
GEN WB36X5495 GEN WB36X5495 Contact Us For Availability
374
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
393
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
397
SCREW MTG END CAP GEN WB01X5754 Contact Us For Availability
397
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
398
GEN WB01X0600 GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
404
GEN WB36X5595 GEN WB36X5595 Contact Us For Availability
408
GEN WB02X7208 GEN WB02X7208 Contact Us For Availability
408
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
410
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
411
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
412
GEN WB01X0589 GEN WB01X0589 Contact Us For Availability
416
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
416
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
417
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
418
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
419
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
420
GEN WB02X3337 GEN WB02X3337 Contact Us For Availability
421
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
422
GEN WB02X7209 GEN WB02X7209 Contact Us For Availability
424
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
425
GEN WB07X1151 GEN WB07X1151 Contact Us For Availability
520
GEN WB02X2116 GEN WB02X2116 Contact Us For Availability
520
PLUG BUTTON CAP TUBE GEN WB02X1125 Contact Us For Availability
520
GEN WB02X3471 GEN WB02X3471 Contact Us For Availability
520
GEN WB53X5124 GEN WB53X5124 Contact Us For Availability
521
HOOK PACKAGE GEN WB09X0088 Contact Us For Availability
522
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
523
HOUSING RECEPTACLE GEN WB02X7693 Contact Us For Availability
526
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
528
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
700
BARRIER LATCH SW LOW OV GEN WB02X6912 Contact Us For Availability
700
GEN WB14X5036 GEN WB14X5036 Contact Us For Availability
701
HANDLE LATCH GEN WB15X0151 Contact Us For Availability
702
GEN WB03X0434 GEN WB03X0434 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X7717 GEN WB02X7717 Contact Us For Availability
705
GEN WB02X3158 GEN WB02X3158 Contact Us For Availability
706
GEN WB02X3159 GEN WB02X3159 Contact Us For Availability
707
GEN WB02X7716 GEN WB02X7716 Contact Us For Availability
708
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
709
GEN WB24X5097 GEN WB24X5097 Contact Us For Availability
710
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
740
CLIP WIRE(NATURAL) LARGE GEN WB02X7066 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
749
GEN WB01X5578 GEN WB01X5578 Contact Us For Availability
788
GEN WB17X5064 GEN WB17X5064 Contact Us For Availability
789
GEN WB27X5271 GEN WB27X5271 Contact Us For Availability
790
SPEEDNUT GEN WB01X0365 Contact Us For Availability
796
GEN WB02X6654 GEN WB02X6654 Contact Us For Availability
923
GEN WB07X6806 GEN WB07X6806 Contact Us For Availability
924
GEN WB02X6497 GEN WB02X6497 Contact Us For Availability
926
GEN WB02X7259 GEN WB02X7259 Contact Us For Availability
959
GEN WB02X7238 GEN WB02X7238 Contact Us For Availability
960
SUPPORT SIDE L H GEN WB02X7239 Contact Us For Availability
960
GEN WB02X7240 GEN WB02X7240 Contact Us For Availability
961
GEN WB01X5628 GEN WB01X5628 Contact Us For Availability
961
GEN WB02X7241 GEN WB02X7241 Contact Us For Availability
963
GEN WB02X7223 GEN WB02X7223 Contact Us For Availability
1265
GEN WB56X5931 GEN WB56X5931 Contact Us For Availability
1266
GEN WB56X5932 GEN WB56X5932 Contact Us For Availability
1267
GEN WB02X7255 GEN WB02X7255 Contact Us For Availability
1268
GEN WB56X5933 GEN WB56X5933 Contact Us For Availability
1269
GEN WB49X5301 GEN WB49X5301 Contact Us For Availability
1270
GEN WB02X7256 GEN WB02X7256 Contact Us For Availability
1271
GEN WB49X5303 GEN WB49X5303 Contact Us For Availability
1273
GEN WB02X7258 GEN WB02X7258 Contact Us For Availability
1412
GEN WB02X7539 GEN WB02X7539 Contact Us For Availability
1417
GEN WB26X5071 GEN WB26X5071 Contact Us For Availability
1419
GEN WB02X7410 GEN WB02X7410 Contact Us For Availability
1422
GEN WB26X5063 GEN WB26X5063 Contact Us For Availability
1427
GEN WB02X6046 GEN WB02X6046 Contact Us For Availability
1428
HI VOLTAGE WIRE GEN WB18X5048 Contact Us For Availability
1430
GEN WB27X5219 GEN WB27X5219 Contact Us For Availability
1432
GEN WB02X7063 GEN WB02X7063 Contact Us For Availability
1433
GEN WB02X7202 GEN WB02X7202 Contact Us For Availability
1433
GEN WB27X5360 GEN WB27X5360 Contact Us For Availability
1437
GEN WB02X7061 GEN WB02X7061 Contact Us For Availability
1438
GEN WB27X5212 GEN WB27X5212 Contact Us For Availability
1439
GEN WB27X5070 GEN WB27X5070 Contact Us For Availability
1445
GEN WB24X5157 GEN WB24X5157 Contact Us For Availability
1448
SWITCH, DOOR GEN WB24X5168 Contact Us For Availability
1450
GEN WB56X5882 GEN WB56X5882 Contact Us For Availability
1451
GEN WB01X5714 GEN WB01X5714 Contact Us For Availability
1451
GEN WB01X5453 GEN WB01X5453 Contact Us For Availability
1452
GEN WB20X5045 GEN WB20X5045 Contact Us For Availability
1453
GEN WB48X5062 GEN WB48X5062 Contact Us For Availability
1454
GEN WB20X5042 GEN WB20X5042 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
1458
TERMINAL BLK ASM (1 PIN) GEN WB17X5073 Contact Us For Availability
1472
GEN WB02X7060 GEN WB02X7060 Contact Us For Availability
1473
GEN WB27X5315 GEN WB27X5315 Contact Us For Availability
1477
GEN WB02X7065 GEN WB02X7065 Contact Us For Availability
1478
GEN WB49X5275 GEN WB49X5275 Contact Us For Availability
1479
GEN WB02X7068 GEN WB02X7068 Contact Us For Availability
1480
GEN WB49X5302 GEN WB49X5302 Contact Us For Availability
1481
GEN WB02X7069 GEN WB02X7069 Contact Us For Availability
1485
GEN WB02X6855 GEN WB02X6855 Contact Us For Availability
1485
GEN WB02X7073 GEN WB02X7073 Contact Us For Availability
1489
GEN WB10X5138 GEN WB10X5138 Contact Us For Availability
1490
GEN WB49X5300 GEN WB49X5300 Contact Us For Availability
1491
GEN WB02X7254 GEN WB02X7254 Contact Us For Availability
1492
GEN WB02X7079 GEN WB02X7079 Contact Us For Availability
1494
GEN WB02X7652 GEN WB02X7652 Contact Us For Availability
1495
GEN WB02X7083 GEN WB02X7083 Contact Us For Availability
1496
GEN WB02X7084 GEN WB02X7084 Contact Us For Availability
1497
GEN WB02X7085 GEN WB02X7085 Contact Us For Availability
1498
GEN WB02X7086 GEN WB02X7086 Contact Us For Availability
1499
GEN WB49X5274 GEN WB49X5274 Contact Us For Availability
1500
GEN WB02X7509 GEN WB02X7509 Contact Us For Availability
1502
GEN WB02X7292 GEN WB02X7292 Contact Us For Availability
1503
GEN WB02X6844 GEN WB02X6844 Contact Us For Availability
1506
GEN WB17X5077 GEN WB17X5077 Contact Us For Availability
1506
GEN WB17X5078 GEN WB17X5078 Contact Us For Availability
1507
GEN WB48X5080 GEN WB48X5080 Contact Us For Availability
1510
GEN WB17X5076 GEN WB17X5076 Contact Us For Availability
1514
GEN WB02X7510 GEN WB02X7510 Contact Us For Availability
1515
GEN WB27X5302 GEN WB27X5302 Contact Us For Availability
1516
GEN WB07X6869 GEN WB07X6869 Contact Us For Availability
1519
GEN WB07X6805 GEN WB07X6805 Contact Us For Availability
1520
GEN WB02X7303 GEN WB02X7303 Contact Us For Availability
1521
GEN WB07X6813 GEN WB07X6813 Contact Us For Availability
1523
RAIL SUPPORT FRONT GEN WB49X5185 Contact Us For Availability
1525
GEN WB27X5304 GEN WB27X5304 Contact Us For Availability
1527
GEN WB02X7606 GEN WB02X7606 Contact Us For Availability
1528
GEN WB02X7527 GEN WB02X7527 Contact Us For Availability
1601
GEN WB07X6807 GEN WB07X6807 Contact Us For Availability
1643
GEN WB27X5303 GEN WB27X5303 Contact Us For Availability
1654
GEN WB27X5306 GEN WB27X5306 Contact Us For Availability
1655
GEN WB27X5301 GEN WB27X5301 Contact Us For Availability
1656
GEN WB02X7252 GEN WB02X7252 Contact Us For Availability
1657
GEN WB02X7229 GEN WB02X7229 Contact Us For Availability
1660
GEN WB02X7260 GEN WB02X7260 Contact Us For Availability
1676
GEN WB02X7253 GEN WB02X7253 Contact Us For Availability
1677
GEN WB02X7262 GEN WB02X7262 Contact Us For Availability
1678
GEN WB02X7263 GEN WB02X7263 Contact Us For Availability
1679
GEN WB02X7264 GEN WB02X7264 Contact Us For Availability
1680
GEN WB02X7587 GEN WB02X7587 Contact Us For Availability
1684
GEN WB02X7511 GEN WB02X7511 Contact Us For Availability
1800
GEN WB56X5925 GEN WB56X5925 Contact Us For Availability
1801
GEN WB15X5139 GEN WB15X5139 Contact Us For Availability
1802
GEN WB01X5580 GEN WB01X5580 Contact Us For Availability
1812
GEN WB01X5541 GEN WB01X5541 Contact Us For Availability
1823
GEN WB10X5133 GEN WB10X5133 Contact Us For Availability
1824
GEN WB01X5581 GEN WB01X5581 Contact Us For Availability
1835
GEN WB01X5584 GEN WB01X5584 Contact Us For Availability
2002
GEN WB56X6066 GEN WB56X6066 Contact Us For Availability
2007
GEN WB07X0934 GEN WB07X0934 Contact Us For Availability
2008
COVER ROTO & MEAT METER GEN WB02X3230 Contact Us For Availability
2011
GEN WB02X3425 GEN WB02X3425 Contact Us For Availability
2012
GEN WB38X0075 GEN WB38X0075 Contact Us For Availability
2016
GEN WB02X3289 GEN WB02X3289 Contact Us For Availability
2017
GEN WB02X2861 GEN WB02X2861 Contact Us For Availability
2018
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
2019
GEN WB02X3292 GEN WB02X3292 Contact Us For Availability
2021
GEN WB59X0164 GEN WB59X0164 Contact Us For Availability
2022
GEN WB59X0163 GEN WB59X0163 Contact Us For Availability
2023
GEN WB55X0302 GEN WB55X0302 Contact Us For Availability
2024
GEN WB49X0327 GEN WB49X0327 Contact Us For Availability
2025
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
2026
GEN WB02X2842 GEN WB02X2842 Contact Us For Availability
2027
GEN WB02X3156 GEN WB02X3156 Contact Us For Availability
2028
GEN WB49X0268 GEN WB49X0268 Contact Us For Availability
2029
GEN WB49X0223 GEN WB49X0223 Contact Us For Availability
2032
GEN WB49X5299 GEN WB49X5299 Contact Us For Availability
2034
GEN WB49X0355 GEN WB49X0355 Contact Us For Availability
2036
GEN WB49X0357 GEN WB49X0357 Contact Us For Availability
2037
GEN WB07X6804 GEN WB07X6804 Contact Us For Availability
2038
SPEEDNUT GEN WB02X3298 Contact Us For Availability
2039
GEN WB02X7247 GEN WB02X7247 Contact Us For Availability
2039
GEN WB02X7248 GEN WB02X7248 Contact Us For Availability
2040
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
2041
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
2043
GEN WB02X3423 GEN WB02X3423 Contact Us For Availability
2045
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
2047
GEN WB02X2846 GEN WB02X2846 Contact Us For Availability
2052
GEN WB49X0269 GEN WB49X0269 Contact Us For Availability
2057
GEN WB02X7244 GEN WB02X7244 Contact Us For Availability
2057
GEN WB02X7245 GEN WB02X7245 Contact Us For Availability
2058
GEN WB02X7257 GEN WB02X7257 Contact Us For Availability
2059
GEN WB49X5298 GEN WB49X5298 Contact Us For Availability
2060
GEN WB02X7246 GEN WB02X7246 Contact Us For Availability
2061
GEN WB02X7249 GEN WB02X7249 Contact Us For Availability
2062
GEN WB02X7250 GEN WB02X7250 Contact Us For Availability
2063
GEN WB02X7251 GEN WB02X7251 Contact Us For Availability
2064
SUPPORT REAR GEN WB63X5198 Contact Us For Availability
2065
GEN WB02X7265 GEN WB02X7265 Contact Us For Availability
2066
GEN WB02X7266 GEN WB02X7266 Contact Us For Availability
2067
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
2072
GEN WB49X5385 GEN WB49X5385 Contact Us For Availability
2092
ANGLE REAR GEN WB02X3299 Contact Us For Availability
2099
GEN WB02X7714 GEN WB02X7714 Contact Us For Availability
2100
GEN WB02X7715 GEN WB02X7715 Contact Us For Availability
32767
GEN WB27X5230 GEN WB27X5230 Contact Us For Availability
32767
GEN 04-9073 GEN 04-9073 Contact Us For Availability
32767
GEN 31-0364 GEN 31-0364 Contact Us For Availability
32767
GEN 31-0425 GEN 31-0425 Contact Us For Availability
32767
GEN 31-0544 GEN 31-0544 Contact Us For Availability
32767
GEN 49-4662 GEN 49-4662 Contact Us For Availability
32767
GEN 49-4774 GEN 49-4774 Contact Us For Availability
32767
GEN WB01X0120 GEN WB01X0120 Contact Us For Availability
32767
SCREW & WASHER ASM GEN WB01X0438 Contact Us For Availability
32767
GEN WB01X0448 GEN WB01X0448 Contact Us For Availability
32767
SPEEDNUT GEN WB01X0528 Contact Us For Availability
32767
GEN WB01X5510 GEN WB01X5510 Contact Us For Availability
32767
GEN WB01X5577 GEN WB01X5577 Contact Us For Availability
32767
GEN WB01X5582 GEN WB01X5582 Contact Us For Availability
32767
GEN WB02X2115 GEN WB02X2115 Contact Us For Availability
32767
GEN WB02X3 GEN WB02X3 Contact Us For Availability
× ![]()
