Model GE JKP65G*D1 Electric Range – Common Parts & Diagrams

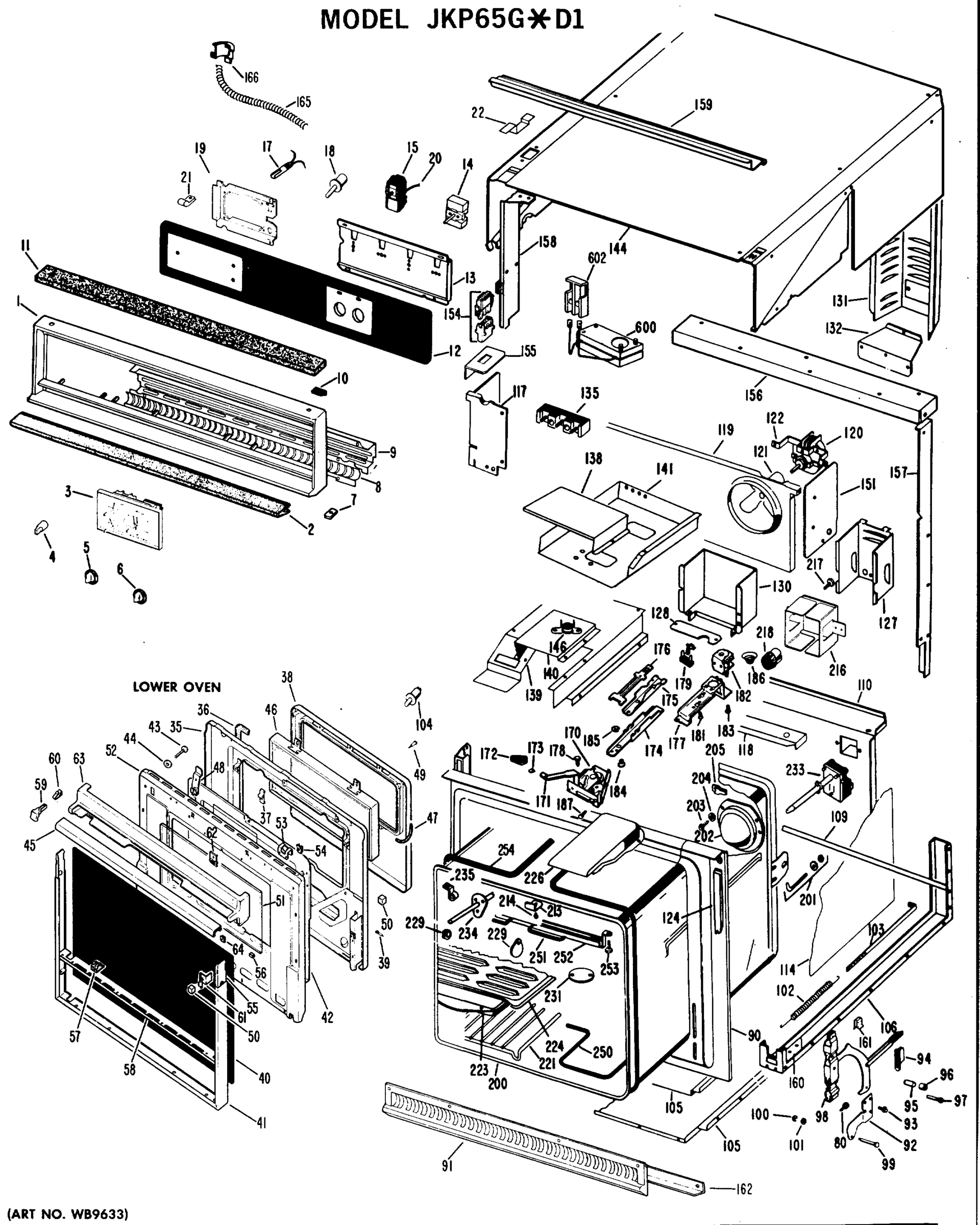

LOWER OVEN

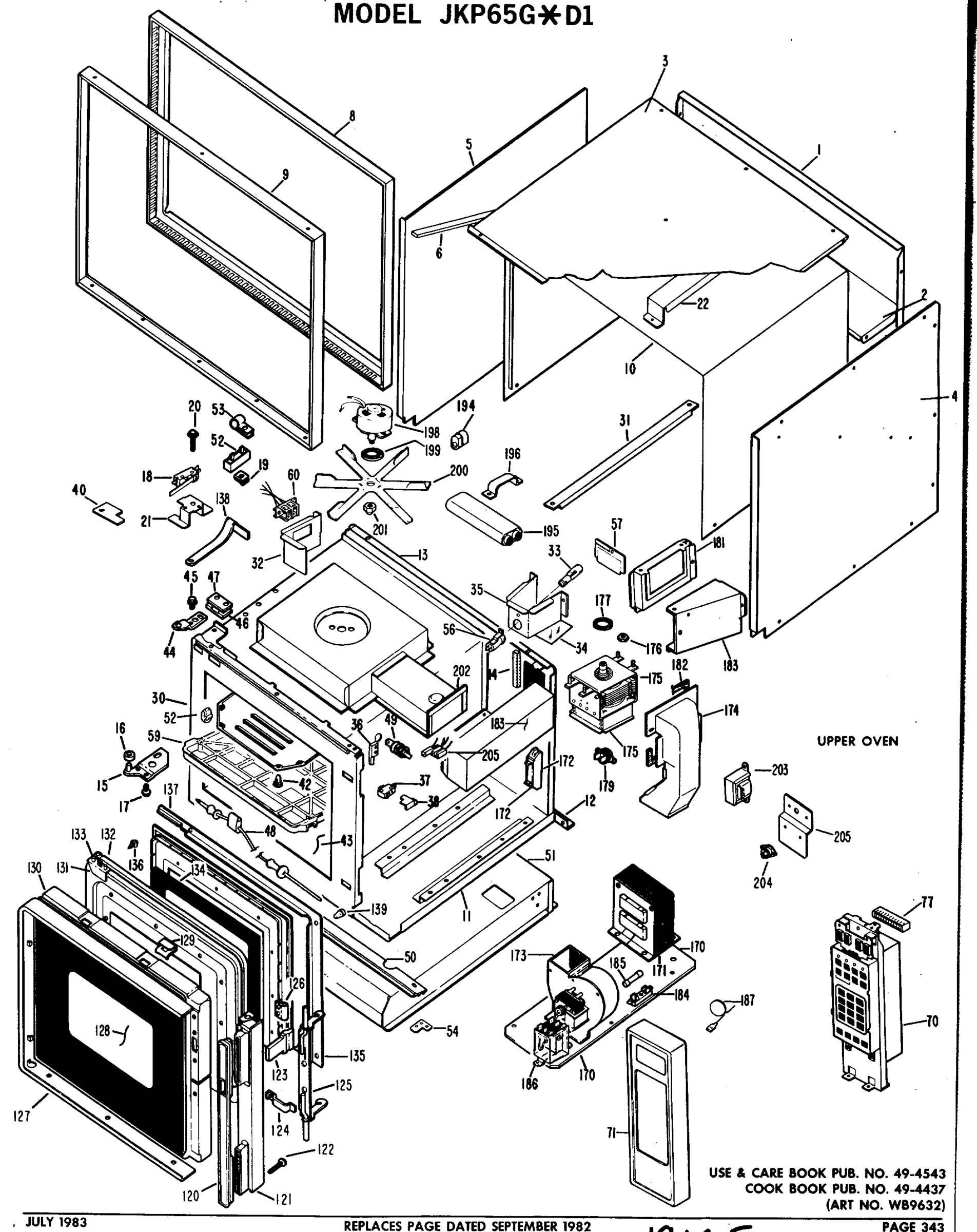

UPPER OVEN
Common parts from model GE JKP65G*D1 Electric Range
1
CONTROL TRIM GEN WB07X1122 Contact Us For Availability
1
GEN WB49X5218 GEN WB49X5218 Contact Us For Availability
2
SPACER, NOSE GEN WB02X3297 Contact Us For Availability
2
NOSE GEN WB07X1123 Contact Us For Availability
2
SCREW, MTG. NOSE GEN WZ05X0226 Contact Us For Availability
2
GEN WB56X5754 GEN WB56X5754 Contact Us For Availability
3
GEN WB01X0540 GEN WB01X0540 Contact Us For Availability
3
GEN WB19X5254 GEN WB19X5254 Contact Us For Availability
3
HARNESS CLAMP GEN WB02X1422 Contact Us For Availability
3
GEN WB49X5219 GEN WB49X5219 Contact Us For Availability
4
KNOB - TIMER GEN WB03X0459 Contact Us For Availability
4
GEN WB56X5756 GEN WB56X5756 Contact Us For Availability
5
KNOB - THERMOSTAT GEN WB03X0463 Contact Us For Availability
5
GEN WB56X5757 GEN WB56X5757 Contact Us For Availability
6
KNOB - OVEN SWITCH GEN WB03X0462 Contact Us For Availability
6
GEN WB02X6659 GEN WB02X6659 Contact Us For Availability
6
GEN WB56X5758 GEN WB56X5758 Contact Us For Availability
7
SPEEDNUT - MTG. TRIM TO GEN WB01X0544 Contact Us For Availability
7
SCREW - MT. TRIM GEN WZ04X0218 Contact Us For Availability
8
GRILL GEN WB07X0635 Contact Us For Availability
8
GEN WB56X5792 GEN WB56X5792 Contact Us For Availability
9
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
9
SCREW - MT. DEFL. & GRIL GEN WZ05X0132 Contact Us For Availability
9
GEN WB56X5760 GEN WB56X5760 Contact Us For Availability
9
SCR 8 A IHW 3/8 S GEN WZ04X0322 Contact Us For Availability
10
GEN WB02X6671 GEN WB02X6671 Contact Us For Availability
10
GEN WB01X0568 GEN WB01X0568 Contact Us For Availability
10
GEN WB56X5838 GEN WB56X5838 Contact Us For Availability
11
GEN WB02X6668 GEN WB02X6668 Contact Us For Availability
11
GEN WB49X5151 GEN WB49X5151 Contact Us For Availability
12
GEN WB36X5501 GEN WB36X5501 Contact Us For Availability
12
GEN WB02X6658 GEN WB02X6658 Contact Us For Availability
13
INSTRUMENT BRACKET GEN WB02X3453 Contact Us For Availability
13
GEN WB02X6494 GEN WB02X6494 Contact Us For Availability
13
OVEN SWITCH GEN WB22X5083 Contact Us For Availability
13
SCREW - MT. SWITCH GEN WZ02X0528 Contact Us For Availability
13
GEN WB49X5217 GEN WB49X5217 Contact Us For Availability
14
GEN WB02X6404 GEN WB02X6404 Contact Us For Availability
15
THERMOSTAT GEN WB24X0176 Contact Us For Availability
15
GEN WB10X5113 GEN WB10X5113 Contact Us For Availability
16
GEN WB02X6473 GEN WB02X6473 Contact Us For Availability
17
NEON LAMP - 118V GEN WB02X1608 Contact Us For Availability
17
NEON LAMP - 240V GEN WB02X3468 Contact Us For Availability
18
LATCH SWITCH GEN WB24X0108 Contact Us For Availability
18
GEN WB24X5102 GEN WB24X5102 Contact Us For Availability
19
NUT, HEX GEN WB01X5220 Contact Us For Availability
19
TIMER BRACKET GEN WB02X1968 Contact Us For Availability
19
GEN WB02X6490 GEN WB02X6490 Contact Us For Availability
19
GEN WB02X6617 GEN WB02X6617 Contact Us For Availability
20
SLEEVE THERMOSTAT GEN WB02X6937 Contact Us For Availability
20
GEN WZ05X0234 GEN WZ05X0234 Contact Us For Availability
21
CLAMP GEN WB02X2006 Contact Us For Availability
21
GEN WB02X6697 GEN WB02X6697 Contact Us For Availability
22
BRKT. TRIM GEN WB02X3291 Contact Us For Availability
22
SCREW MTG. BRKT. TO TRIM GEN WZ04X0369 Contact Us For Availability
22
SCREW MTG. BRKT. TO TOP GEN WZ04X0372 Contact Us For Availability
22
GEN WB02X3230 GEN WB02X3230 Contact Us For Availability
30
GEN WB53X5081 GEN WB53X5081 Contact Us For Availability
31
GEN WB59X5153 GEN WB59X5153 Contact Us For Availability
32
GEN WB02X6857 GEN WB02X6857 Contact Us For Availability
32
GEN WB02X6918 GEN WB02X6918 Contact Us For Availability
33
GEN WX12X1560 GEN WX12X1560 Contact Us For Availability
34
GEN WB02X6855 GEN WB02X6855 Contact Us For Availability
35
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
35
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
35
LINER DOOR GEN WB55X5247 Contact Us For Availability
35
GEN WB02X6854 GEN WB02X6854 Contact Us For Availability
36
GEN WB10X5121 GEN WB10X5121 Contact Us For Availability
37
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
37
GEN WB02X6699 GEN WB02X6699 Contact Us For Availability
37
GEN WB24X5101 GEN WB24X5101 Contact Us For Availability
37
GEN WB24X5109 GEN WB24X5109 Contact Us For Availability
37
GEN WD02X0437 GEN WD02X0437 Contact Us For Availability
38
GEN WB55X5246 GEN WB55X5246 Contact Us For Availability
38
GEN WB02X6698 GEN WB02X6698 Contact Us For Availability
40
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
40
GEN WB02X6557 GEN WB02X6557 Contact Us For Availability
41
TRIM DOOR GEN WB07X1150 Contact Us For Availability
41
GEN WB02X6723 GEN WB02X6723 Contact Us For Availability
41
GEN WB56X5639 GEN WB56X5639 Contact Us For Availability
42
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
42
GEN WB01X5453 GEN WB01X5453 Contact Us For Availability
43
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
43
GEN WB48X5056 GEN WB48X5056 Contact Us For Availability
44
GEN WB10X5110 GEN WB10X5110 Contact Us For Availability
45
GRIP HANDLE GEN WB15X0153 Contact Us For Availability
45
SCREW WASHER ASM GEN WB01X0438 Contact Us For Availability
46
WINDOW GEN WB36X5495 Contact Us For Availability
46
GEN WB10X5123 GEN WB10X5123 Contact Us For Availability
47
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
47
GEN WB10X5117 GEN WB10X5117 Contact Us For Availability
47
SCR 8-32 T HXW 7/8 S GEN WZ05X0139 Contact Us For Availability
48
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
48
GEN WB20X5041 GEN WB20X5041 Contact Us For Availability
49
SCREW MTG. PANEL GEN WB01X0600 Contact Us For Availability
49
GEN WB20X5042 GEN WB20X5042 Contact Us For Availability
50
PAD GEN WB02X3285 Contact Us For Availability
50
GEN WB01X5471 GEN WB01X5471 Contact Us For Availability
50
GEN WB02X6667 GEN WB02X6667 Contact Us For Availability
51
GEN WB36X0540 GEN WB36X0540 Contact Us For Availability
51
GEN WB49X5184 GEN WB49X5184 Contact Us For Availability
52
GEN WB02X7208 GEN WB02X7208 Contact Us For Availability
52
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
52
GEN WB27X5071 GEN WB27X5071 Contact Us For Availability
53
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
53
GEN WB02X6609 GEN WB02X6609 Contact Us For Availability
54
WASHER GEN WB02X3429 Contact Us For Availability
54
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
55
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
55
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
55
GEN WB18X5053 GEN WB18X5053 Contact Us For Availability
56
CLIP CRYSTAL BOTTOM GEN WB02X3332 Contact Us For Availability
56
GEN WB08X5084 GEN WB08X5084 Contact Us For Availability
57
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
57
GEN WB02X6856 GEN WB02X6856 Contact Us For Availability
58
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
58
GEN WB02X6827 GEN WB02X6827 Contact Us For Availability
59
GEN WB02X3337 GEN WB02X3337 Contact Us For Availability
59
GEN WB48X5058 GEN WB48X5058 Contact Us For Availability
60
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
60
GEN WB27X5165 GEN WB27X5165 Contact Us For Availability
61
GEN WB02X7209 GEN WB02X7209 Contact Us For Availability
62
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
63
GEN WB07X1151 GEN WB07X1151 Contact Us For Availability
64
GEN WB01X0579 GEN WB01X0579 Contact Us For Availability
70
GEN WB17X5063 GEN WB17X5063 Contact Us For Availability
70
GEN WB27X5192 GEN WB27X5192 Contact Us For Availability
71
GEN WB01X5476 GEN WB01X5476 Contact Us For Availability
71
GEN WB01X5569 GEN WB01X5569 Contact Us For Availability
71
GEN WB36X5460 GEN WB36X5460 Contact Us For Availability
71
SCR 8-18 AB OVR 3/4 S GEN WZ04X0249 Contact Us For Availability
71
GEN WZ04X0413 GEN WZ04X0413 Contact Us For Availability
72
GEN WB17X5058 GEN WB17X5058 Contact Us For Availability
90
FRAME ASM. GEN WB56X1327 Contact Us For Availability
91
GEN WB07X0636 GEN WB07X0636 Contact Us For Availability
91
SCREW MT. BOTTOM TRIM GEN WZ04X0237 Contact Us For Availability
92
HINGE SUPPORT - RH GEN WB10X0154 Contact Us For Availability
92
HINGE SUPPORT - LH GEN WB10X0155 Contact Us For Availability
93
SCREW MT. SUPPORT GEN WZ06X0086 Contact Us For Availability
94
HINGE LEVER GUIDE GEN WB02X3303 Contact Us For Availability
95
SLEEVE GEN WB02X3305 Contact Us For Availability
96
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
97
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
98
HINGE LEVER - RH & LH GEN WB10X0158 Contact Us For Availability
99
HINGE PIN GEN WB02X6195 Contact Us For Availability
100
HINGE PIN RETAINER GEN WB02X1082 Contact Us For Availability
101
GEN WZ10X0017 GEN WZ10X0017 Contact Us For Availability
102
DOOR SPRING RH & LH GEN WB09X0156 Contact Us For Availability
103
LINK GEN WB02X3289 Contact Us For Availability
104
BARRIER, SWITCH GEN WB02X3421 Contact Us For Availability
104
SWITCH DOOR GEN WB24X0105 Contact Us For Availability
105
BOTTOM OUTER INNER GEN WB55X0302 Contact Us For Availability
106
CHANNEL & SPACER - RH & GEN WB59X0163 Contact Us For Availability
109
SIDE BRACE RH & LH GEN WB02X2401 Contact Us For Availability
110
BACK INNER GEN WB49X0327 Contact Us For Availability
114
SIDE INNER RH & LH GEN WB59X0164 Contact Us For Availability
117
GEN WB02X2858 GEN WB02X2858 Contact Us For Availability
118
GEN WB02X2083 GEN WB02X2083 Contact Us For Availability
119
PAD GEN WB02X6426 Contact Us For Availability
119
AIR SHIELD & MTG. BRACKE GEN WB55X0303 Contact Us For Availability
120
FAN MOTOR GEN WB26X5052 Contact Us For Availability
120
GEN WB15X5113 GEN WB15X5113 Contact Us For Availability
121
FAN BLADE GEN WB02X2001 Contact Us For Availability
121
GEN WB07X5635 GEN WB07X5635 Contact Us For Availability
122
BRACKET MTG. FAN GEN WB02X2846 Contact Us For Availability
122
SCREW MT. MOTOR BRKT. GEN WZ05X0345 Contact Us For Availability
122
GEN WB01X5462 GEN WB01X5462 Contact Us For Availability
123
GEN WB05 GEN WB05 Contact Us For Availability
123
GEN WB03X5589 GEN WB03X5589 Contact Us For Availability
124
GEN WB02X6644 GEN WB02X6644 Contact Us For Availability
125
GEN WB10X5112 GEN WB10X5112 Contact Us For Availability
126
GEN WB02X6580 GEN WB02X6580 Contact Us For Availability
126
GEN WB10X5111 GEN WB10X5111 Contact Us For Availability
127
GEN WB07X5634 GEN WB07X5634 Contact Us For Availability
128
GEN WB36X5374 GEN WB36X5374 Contact Us For Availability
129
GEN WB02X6643 GEN WB02X6643 Contact Us For Availability
130
GEN WB56X5686 GEN WB56X5686 Contact Us For Availability
131
GEN WB55X5227 GEN WB55X5227 Contact Us For Availability
132
GEN WB02X6700 GEN WB02X6700 Contact Us For Availability
133
GEN WB02X6476 GEN WB02X6476 Contact Us For Availability
134
GEN WB02X6474 GEN WB02X6474 Contact Us For Availability
134
GEN WB36X5415 GEN WB36X5415 Contact Us For Availability
135
GEN WB55X5232 GEN WB55X5232 Contact Us For Availability
136
GEN WB01X5518 GEN WB01X5518 Contact Us For Availability
137
GEN WB07X5643 GEN WB07X5643 Contact Us For Availability
138
GEN WB10 GEN WB10 Contact Us For Availability
× ![]()
