Model GE JKP62G*K1 Electric Range – Common Parts & Diagrams

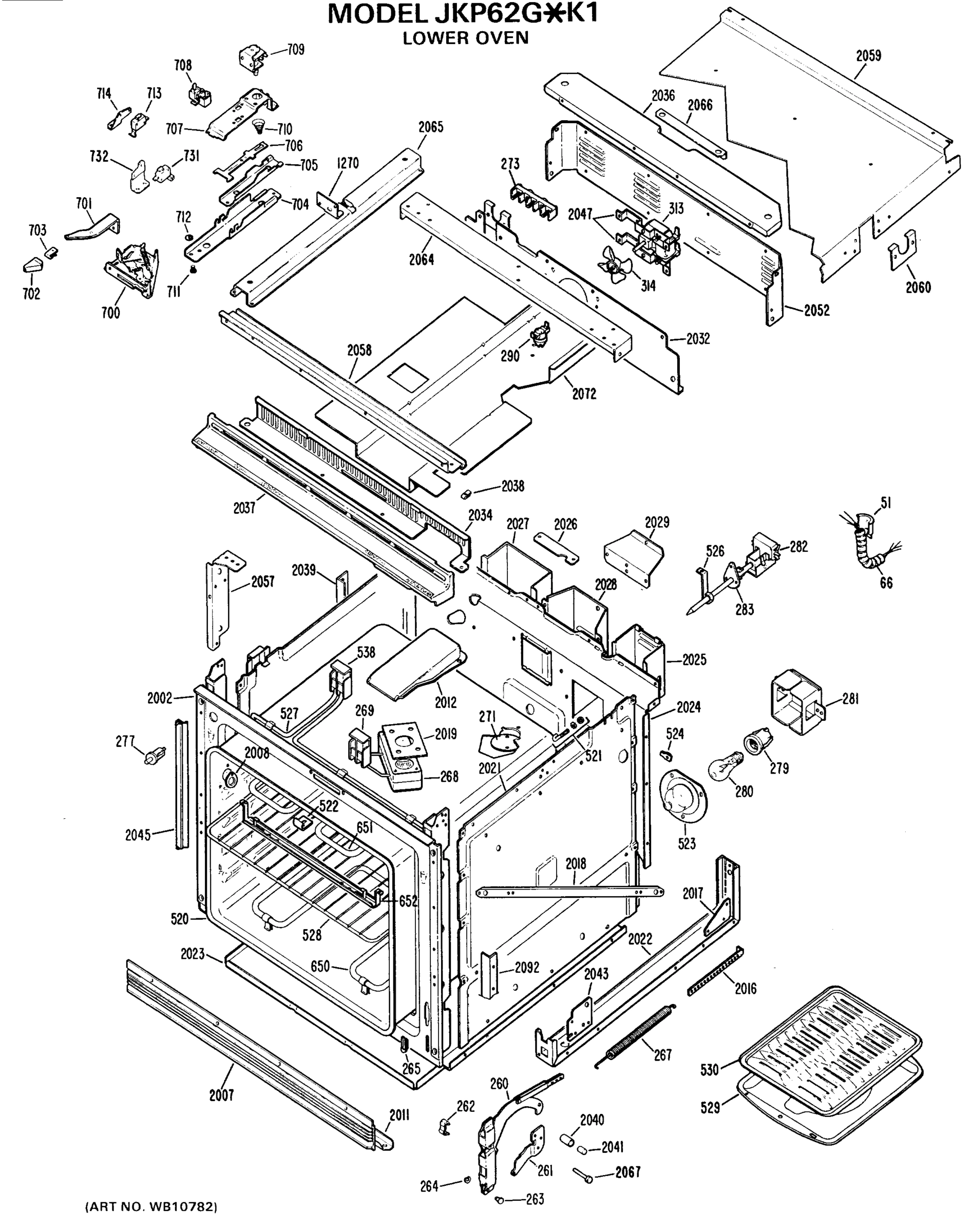

LOWER OVEN

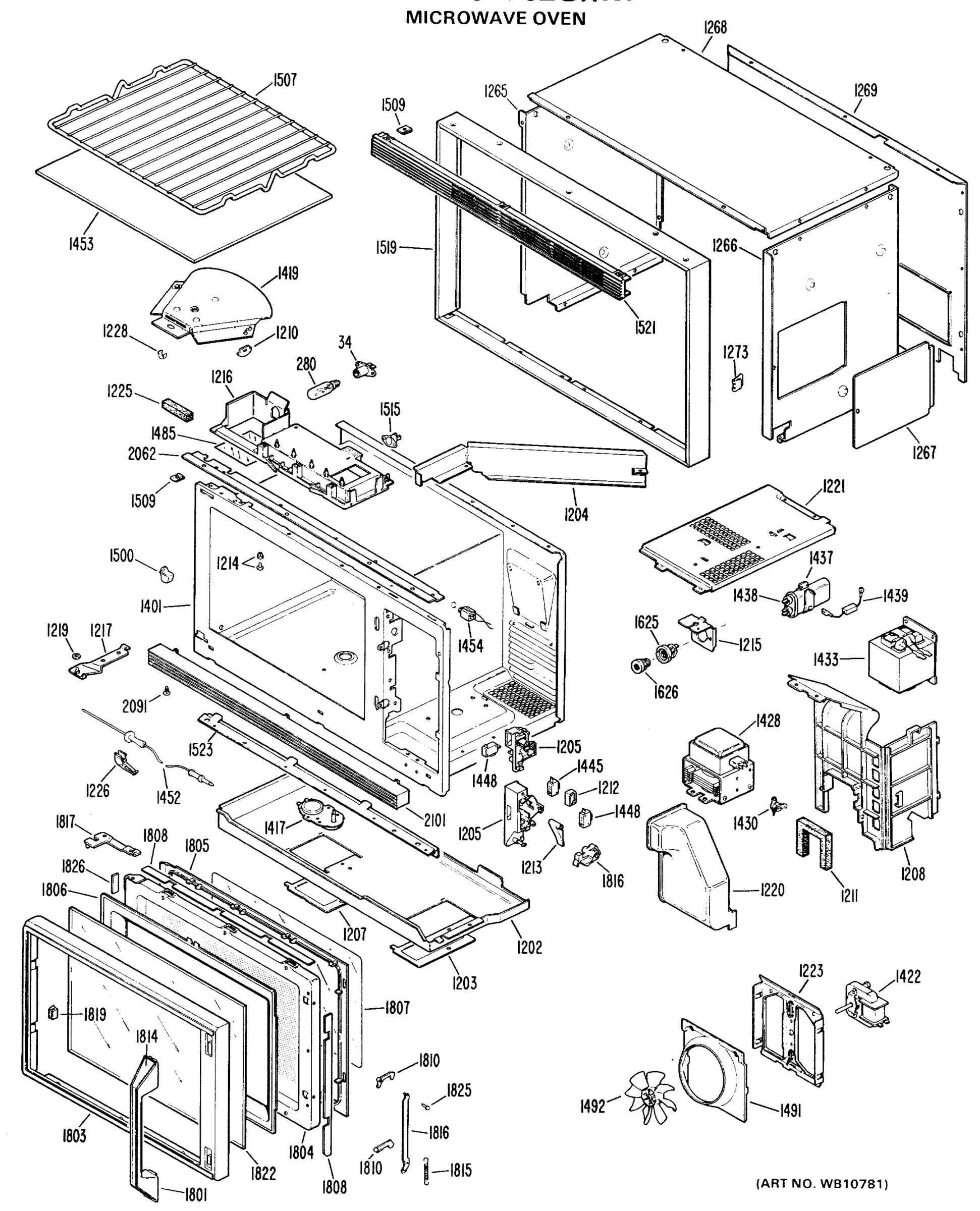

MICROWAVE OVEN
WIRING MATERIAL
Common parts from model GE JKP62G*K1 Electric Range
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
5
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
11
GEN WB22X5123 GEN WB22X5123 Contact Us For Availability
12
GEN WB03X5627 GEN WB03X5627 Contact Us For Availability
14
GEN WB02X6494 GEN WB02X6494 Contact Us For Availability
14
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
15
GEN WB03X5695 GEN WB03X5695 Contact Us For Availability
18
GEN WB36X5609 GEN WB36X5609 Contact Us For Availability
34
GEN WB08X5096 GEN WB08X5096 Contact Us For Availability
39
GEN WB02X6624 GEN WB02X6624 Contact Us For Availability
103
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
148
SCREW GEN WB01X5716 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
267
GEN WB09X0156 GEN WB09X0156 Contact Us For Availability
268
GEN WB29X0053 GEN WB29X0053 Contact Us For Availability
269
INSULATOR TERMINAL GEN WB02X3388 Contact Us For Availability
269
GEN WB02X3421 GEN WB02X3421 Contact Us For Availability
271
COVER VENT GEN WB02X0818 Contact Us For Availability
273
BLOCK TERM DISTRIBUTION GEN WB17X0167 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
279
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
280
GEN WB02X7560 GEN WB02X7560 Contact Us For Availability
281
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
282
GEN WB24X5164 GEN WB24X5164 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
290
GEN WB24X0199 GEN WB24X0199 Contact Us For Availability
313
GEN WB26X5052 GEN WB26X5052 Contact Us For Availability
314
GEN WB02X2911 GEN WB02X2911 Contact Us For Availability
350
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
350
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
350
GEN WB55X5321 GEN WB55X5321 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
355
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
355
GEN WB55X5299 GEN WB55X5299 Contact Us For Availability
358
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
359
GEN WB07X1150 GEN WB07X1150 Contact Us For Availability
360
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
361
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
365
GEN WB15X0154 GEN WB15X0154 Contact Us For Availability
373
GEN WB36X5495 GEN WB36X5495 Contact Us For Availability
374
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
397
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
398
GEN WB01X0600 GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
404
GEN WB36X0540 GEN WB36X0540 Contact Us For Availability
408
GEN WB02X7208 GEN WB02X7208 Contact Us For Availability
408
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
410
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
411
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
412
GEN WB01X0589 GEN WB01X0589 Contact Us For Availability
416
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
416
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
417
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
418
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
419
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
422
GEN WB02X7209 GEN WB02X7209 Contact Us For Availability
424
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
425
GEN WB07X6923 GEN WB07X6923 Contact Us For Availability
520
PLUG BUTTON CAP TUBE GEN WB02X1125 Contact Us For Availability
520
GEN WB02X3471 GEN WB02X3471 Contact Us For Availability
520
GEN WB53X5104 GEN WB53X5104 Contact Us For Availability
522
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
526
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
527
GEN WB44X0207 GEN WB44X0207 Contact Us For Availability
528
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
538
GEN WB02X3452 GEN WB02X3452 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
700
BARRIER LATCH SW LOW OV GEN WB02X6912 Contact Us For Availability
700
GEN WB14X5036 GEN WB14X5036 Contact Us For Availability
701
HANDLE LATCH GEN WB15X0151 Contact Us For Availability
702
GEN WB03X0434 GEN WB03X0434 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X7717 GEN WB02X7717 Contact Us For Availability
705
GEN WB02X7718 GEN WB02X7718 Contact Us For Availability
706
GEN WB02X7708 GEN WB02X7708 Contact Us For Availability
707
GEN WB02X7716 GEN WB02X7716 Contact Us For Availability
708
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
709
GEN WB24X5097 GEN WB24X5097 Contact Us For Availability
710
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
713
GEN WB24X5234 GEN WB24X5234 Contact Us For Availability
714
GEN WB02X3475 GEN WB02X3475 Contact Us For Availability
715
GEN WB01X5751 GEN WB01X5751 Contact Us For Availability
731
GEN WB02X7719 GEN WB02X7719 Contact Us For Availability
732
GEN WB24X5238 GEN WB24X5238 Contact Us For Availability
733
GEN WB02X7750 GEN WB02X7750 Contact Us For Availability
734
GEN WB02X7738 GEN WB02X7738 Contact Us For Availability
737
GEN WB02X7766 GEN WB02X7766 Contact Us For Availability
737
GEN WB27X5407 GEN WB27X5407 Contact Us For Availability
739
GEN WB08X5097 GEN WB08X5097 Contact Us For Availability
742
GEN WB27X5405 GEN WB27X5405 Contact Us For Availability
743
GEN WB18X5094 GEN WB18X5094 Contact Us For Availability
744
GEN WB18X5096 GEN WB18X5096 Contact Us For Availability
745
GEN WB18X5097 GEN WB18X5097 Contact Us For Availability
750
GEN WB02X7726 GEN WB02X7726 Contact Us For Availability
752
GEN WB10X5184 GEN WB10X5184 Contact Us For Availability
753
GEN WB02X7103 GEN WB02X7103 Contact Us For Availability
755
GEN WB02X7732 GEN WB02X7732 Contact Us For Availability
756
GEN WB02X7733 GEN WB02X7733 Contact Us For Availability
757
GEN WB02X7734 GEN WB02X7734 Contact Us For Availability
758
GEN WB02X7660 GEN WB02X7660 Contact Us For Availability
760
GEN WB02X7625 GEN WB02X7625 Contact Us For Availability
766
GEN WB26X5080 GEN WB26X5080 Contact Us For Availability
768
GEN WB26X5082 GEN WB26X5082 Contact Us For Availability
770
GEN WB27X5371 GEN WB27X5371 Contact Us For Availability
772
GEN WB02X7731 GEN WB02X7731 Contact Us For Availability
778
GEN WB48X5084 GEN WB48X5084 Contact Us For Availability
779
GEN WB01X5588 GEN WB01X5588 Contact Us For Availability
779
GEN WB02X7552 GEN WB02X7552 Contact Us For Availability
779
GEN WB20X5053 GEN WB20X5053 Contact Us For Availability
786
GEN WB02X4114 GEN WB02X4114 Contact Us For Availability
787
GEN WB02X7640 GEN WB02X7640 Contact Us For Availability
790
SPEEDNUT GEN WB01X0365 Contact Us For Availability
792
GEN WB27X5381 GEN WB27X5381 Contact Us For Availability
793
GEN WB07X6931 GEN WB07X6931 Contact Us For Availability
795
GEN WB07X6930 GEN WB07X6930 Contact Us For Availability
796
GEN WB02X6654 GEN WB02X6654 Contact Us For Availability
797
GEN WB36X5604 GEN WB36X5604 Contact Us For Availability
798
GEN WB02X7736 GEN WB02X7736 Contact Us For Availability
799
GEN WB02X7769 GEN WB02X7769 Contact Us For Availability
809
GEN WB15X5163 GEN WB15X5163 Contact Us For Availability
811
GEN WB55X5285 GEN WB55X5285 Contact Us For Availability
814
GEN WB02X7647 GEN WB02X7647 Contact Us For Availability
815
GEN WB02X7642 GEN WB02X7642 Contact Us For Availability
815
GEN WB02X7643 GEN WB02X7643 Contact Us For Availability
818
GEN WB07X6900 GEN WB07X6900 Contact Us For Availability
821
GEN WB10X5179 GEN WB10X5179 Contact Us For Availability
822
GEN WB02X7735 GEN WB02X7735 Contact Us For Availability
824
GEN WB02X7559 GEN WB02X7559 Contact Us For Availability
825
GEN WB02X7857 GEN WB02X7857 Contact Us For Availability
923
GEN WB07X6927 GEN WB07X6927 Contact Us For Availability
924
GEN WB49X5387 GEN WB49X5387 Contact Us For Availability
924
GEN WB02X6497 GEN WB02X6497 Contact Us For Availability
926
GEN WB02X7740 GEN WB02X7740 Contact Us For Availability
959
GEN WB10X5165 GEN WB10X5165 Contact Us For Availability
959
GEN WB10X5174 GEN WB10X5174 Contact Us For Availability
961
GEN WB01X5750 GEN WB01X5750 Contact Us For Availability
963
GEN WB02X7729 GEN WB02X7729 Contact Us For Availability
994
GEN WB02X7723 GEN WB02X7723 Contact Us For Availability
996
GEN WB02X7624 GEN WB02X7624 Contact Us For Availability
997
GEN WB02X7580 GEN WB02X7580 Contact Us For Availability
998
GEN WB02X7628 GEN WB02X7628 Contact Us For Availability
1202
GEN WB49X5386 GEN WB49X5386 Contact Us For Availability
1204
GEN WB02X7722 GEN WB02X7722 Contact Us For Availability
1208
GEN WB02X7724 GEN WB02X7724 Contact Us For Availability
1211
GEN WB02X7725 GEN WB02X7725 Contact Us For Availability
1216
GEN WB02X7727 GEN WB02X7727 Contact Us For Availability
1220
GEN WB02X7635 GEN WB02X7635 Contact Us For Availability
1229
GEN WB02X7632 GEN WB02X7632 Contact Us For Availability
1265
GEN WB56X5931 GEN WB56X5931 Contact Us For Availability
1266
GEN WB56X5932 GEN WB56X5932 Contact Us For Availability
1267
GEN WB02X7255 GEN WB02X7255 Contact Us For Availability
1268
GEN WB56X5933 GEN WB56X5933 Contact Us For Availability
1269
GEN WB49X5388 GEN WB49X5388 Contact Us For Availability
1270
GEN WB02X7256 GEN WB02X7256 Contact Us For Availability
1273
GEN WB02X7258 GEN WB02X7258 Contact Us For Availability
1401
GEN WB53X5129 GEN WB53X5129 Contact Us For Availability
1419
GEN WB02X7626 GEN WB02X7626 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
1462
GEN WB02X7544 GEN WB02X7544 Contact Us For Availability
1485
GEN WB02X7730 GEN WB02X7730 Contact Us For Availability
1491
GEN WB02X7728 GEN WB02X7728 Contact Us For Availability
1506
GEN WB17X5078 GEN WB17X5078 Contact Us For Availability
1507
GEN WB48X5085 GEN WB48X5085 Contact Us For Availability
1521
GEN WB07X6933 GEN WB07X6933 Contact Us For Availability
1523
RAIL SUPPORT FRONT GEN WB49X5185 Contact Us For Availability
1624
GEN WB01X0245 GEN WB01X0245 Contact Us For Availability
1654
GEN WB27X5401 GEN WB27X5401 Contact Us For Availability
1803
GEN WB07X6925 GEN WB07X6925 Contact Us For Availability
1805
GEN WB55X5286 GEN WB55X5286 Contact Us For Availability
1806
GEN WB55X5287 GEN WB55X5287 Contact Us For Availability
1810
GEN WB10X5176 GEN WB10X5176 Contact Us For Availability
1811
GEN WB10X5177 GEN WB10X5177 Contact Us For Availability
1815
GEN WB09X5112 GEN WB09X5112 Contact Us For Availability
1816
GEN WB10X5178 GEN WB10X5178 Contact Us For Availability
1822
GEN WB36X5602 GEN WB36X5602 Contact Us For Availability
2002
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
2007
GEN WB07X0934 GEN WB07X0934 Contact Us For Availability
2008
COVER ROTO & MEAT METER GEN WB02X3230 Contact Us For Availability
2011
GEN WB02X3425 GEN WB02X3425 Contact Us For Availability
2012
GEN WB38X0075 GEN WB38X0075 Contact Us For Availability
2016
GEN WB02X3289 GEN WB02X3289 Contact Us For Availability
2017
GEN WB02X2861 GEN WB02X2861 Contact Us For Availability
2018
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
2019
GEN WB02X3292 GEN WB02X3292 Contact Us For Availability
2021
GEN WB59X0164 GEN WB59X0164 Contact Us For Availability
2022
GEN WB59X0163 GEN WB59X0163 Contact Us For Availability
2023
GEN WB55X0302 GEN WB55X0302 Contact Us For Availability
2024
GEN WB49X0327 GEN WB49X0327 Contact Us For Availability
2025
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
2026
GEN WB02X2842 GEN WB02X2842 Contact Us For Availability
2027
GEN WB02X3156 GEN WB02X3156 Contact Us For Availability
2028
GEN WB49X0268 GEN WB49X0268 Contact Us For Availability
2029
GEN WB49X0223 GEN WB49X0223 Contact Us For Availability
2032
GEN WB49X5299 GEN WB49X5299 Contact Us For Availability
2034
GEN WB49X0355 GEN WB49X0355 Contact Us For Availability
2036
GEN WB49X0357 GEN WB49X0357 Contact Us For Availability
2037
GEN WB07X6804 GEN WB07X6804 Contact Us For Availability
2038
SPEEDNUT GEN WB02X3298 Contact Us For Availability
2039
GEN WB02X7247 GEN WB02X7247 Contact Us For Availability
2039
GEN WB02X7248 GEN WB02X7248 Contact Us For Availability
2040
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
2041
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
2043
GEN WB02X3423 GEN WB02X3423 Contact Us For Availability
2045
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
2047
GEN WB02X2846 GEN WB02X2846 Contact Us For Availability
2052
GEN WB49X0269 GEN WB49X0269 Contact Us For Availability
2057
GEN WB02X7244 GEN WB02X7244 Contact Us For Availability
2057
GEN WB02X7245 GEN WB02X7245 Contact Us For Availability
2058
GEN WB02X7257 GEN WB02X7257 Contact Us For Availability
2059
GEN WB49X5298 GEN WB49X5298 Contact Us For Availability
2060
GEN WB02X7246 GEN WB02X7246 Contact Us For Availability
2062
GEN WB02X7741 GEN WB02X7741 Contact Us For Availability
2064
SUPPORT REAR GEN WB63X5198 Contact Us For Availability
2065
GEN WB02X7265 GEN WB02X7265 Contact Us For Availability
2066
GEN WB02X7266 GEN WB02X7266 Contact Us For Availability
2067
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
2072
GEN WB49X5385 GEN WB49X5385 Contact Us For Availability
2092
ANGLE REAR GEN WB02 Contact Us For Availability
2101
GEN WB07X6932 GEN WB07X6932 Contact Us For Availability
32767
GEN WB02X2116 GEN WB02X2116 Contact Us For Availability
32767
LOCKWASHER GEN WB09X0088 Contact Us For Availability
32767
GEN WB24X0353 GEN WB24X0353 Contact Us For Availability
32767
GEN WB24X0352 GEN WB24X0352 Contact Us For Availability
32767
GEN WB20X5054 GEN WB20X5054 Contact Us For Availability
32767
GEN WB27X5398 GEN WB27X5398 Contact Us For Availability
32767
GEN WB27X5399 GEN WB27X5399 Contact Us For Availability
32767
GEN 31-0425 GEN 31-0425 Contact Us For Availability
32767
GEN 31-0556 GEN 31-0556 Contact Us For Availability
32767
GEN 31-0564 GEN 31-0564 Contact Us For Availability
32767
GEN 49-4706 GEN 49-4706 Contact Us For Availability
32767
GEN 49-4790 GEN 49-4790 Contact Us For Availability
32767
SCREW & WASHER ASM GEN WB01X0438 Contact Us For Availability
32767
GEN WB01X0448 GEN WB01X0448 Contact Us For Availability
32767
GEN WB02X2115 GEN WB02X2115 Contact Us For Availability
32767
GEN WB02X3152 GEN WB02X3152 Contact Us For Availability
32767
GEN WB02X3191 GEN WB02X3191 Contact Us For Availability
32767
GEN WB27 GEN WB27 Contact Us For Availability
× ![]()
