Model GE JKP36*D1 Electric Range – Common Parts & Diagrams

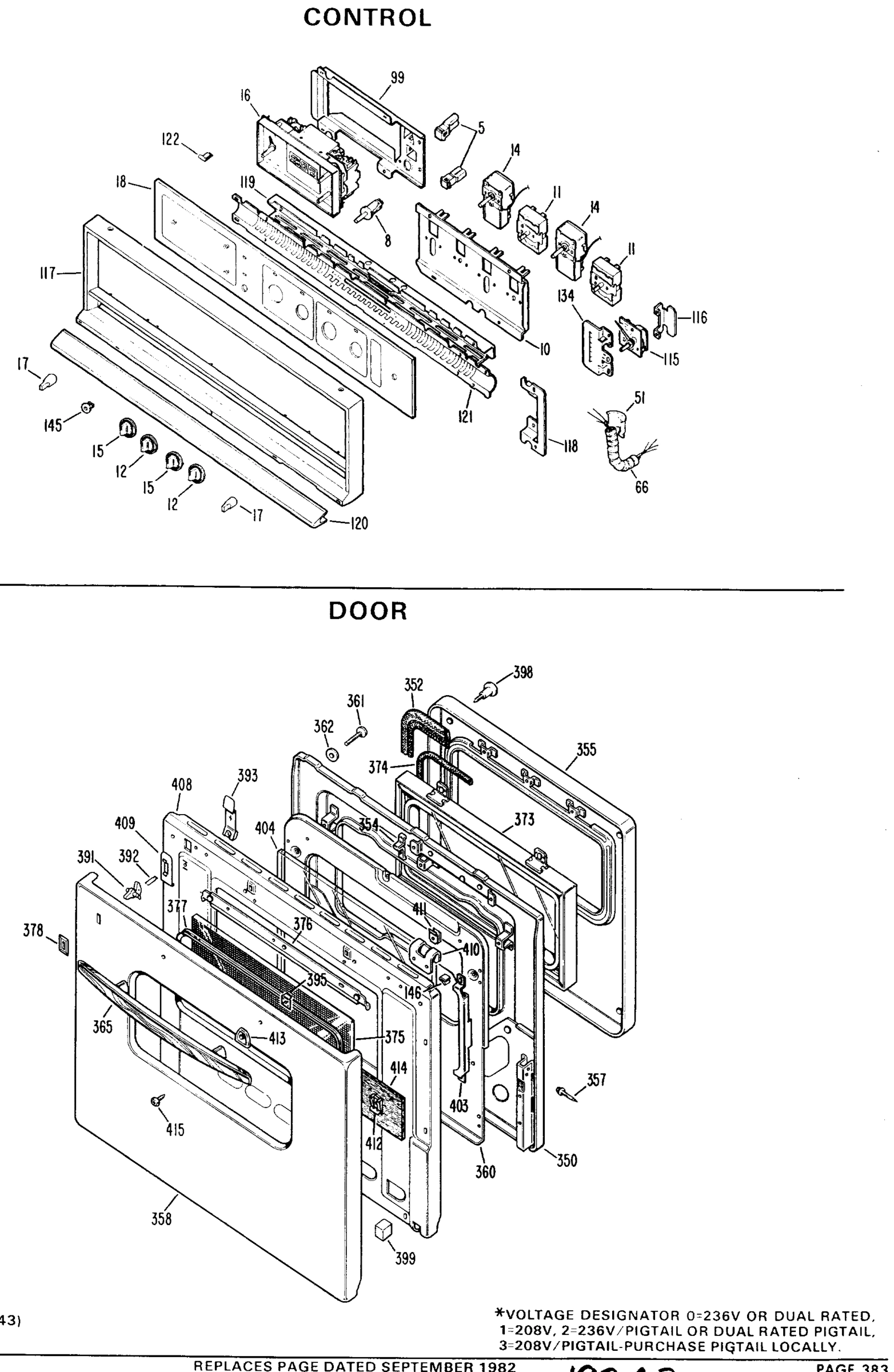

CONTROL

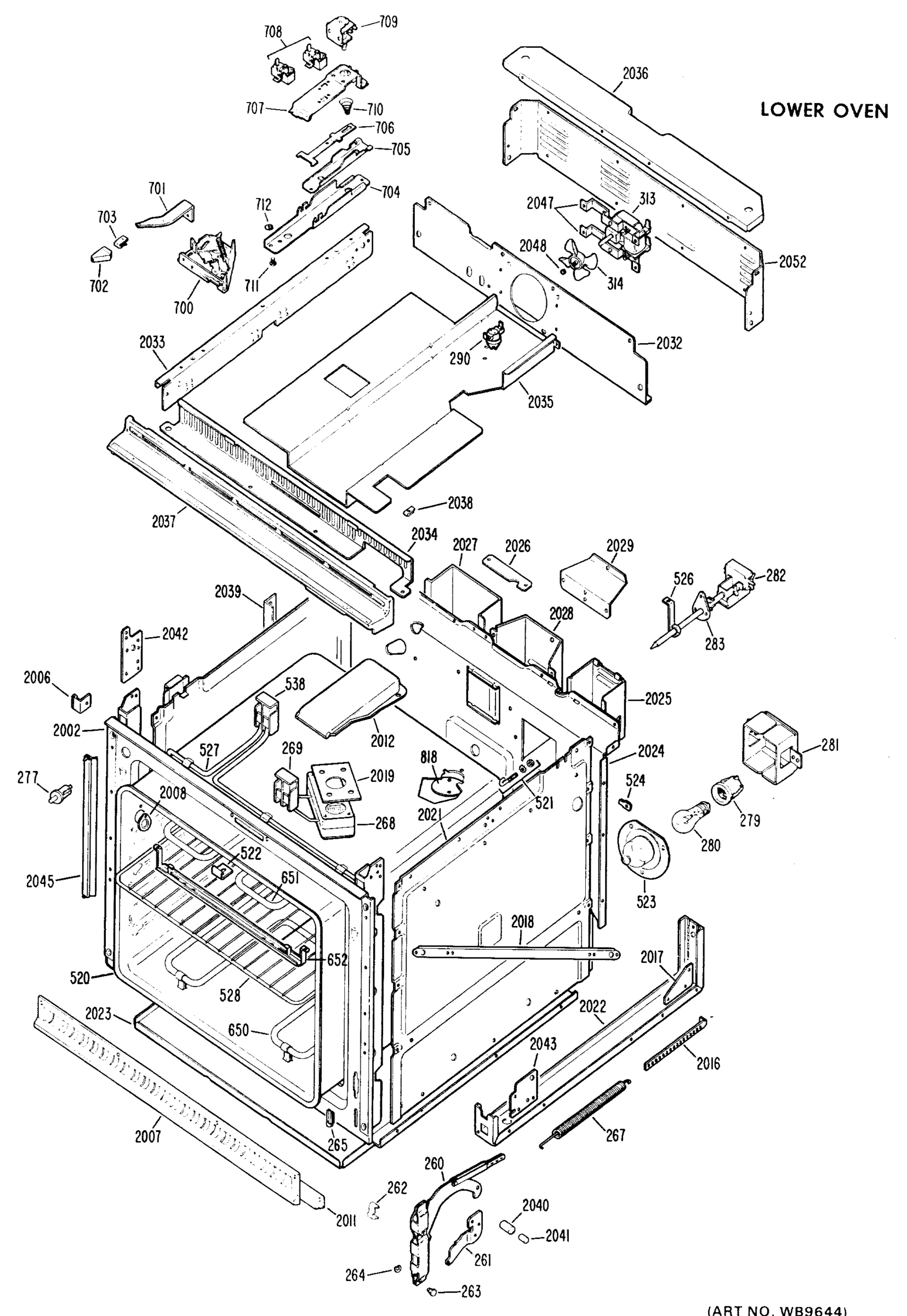

LOWER OVEN

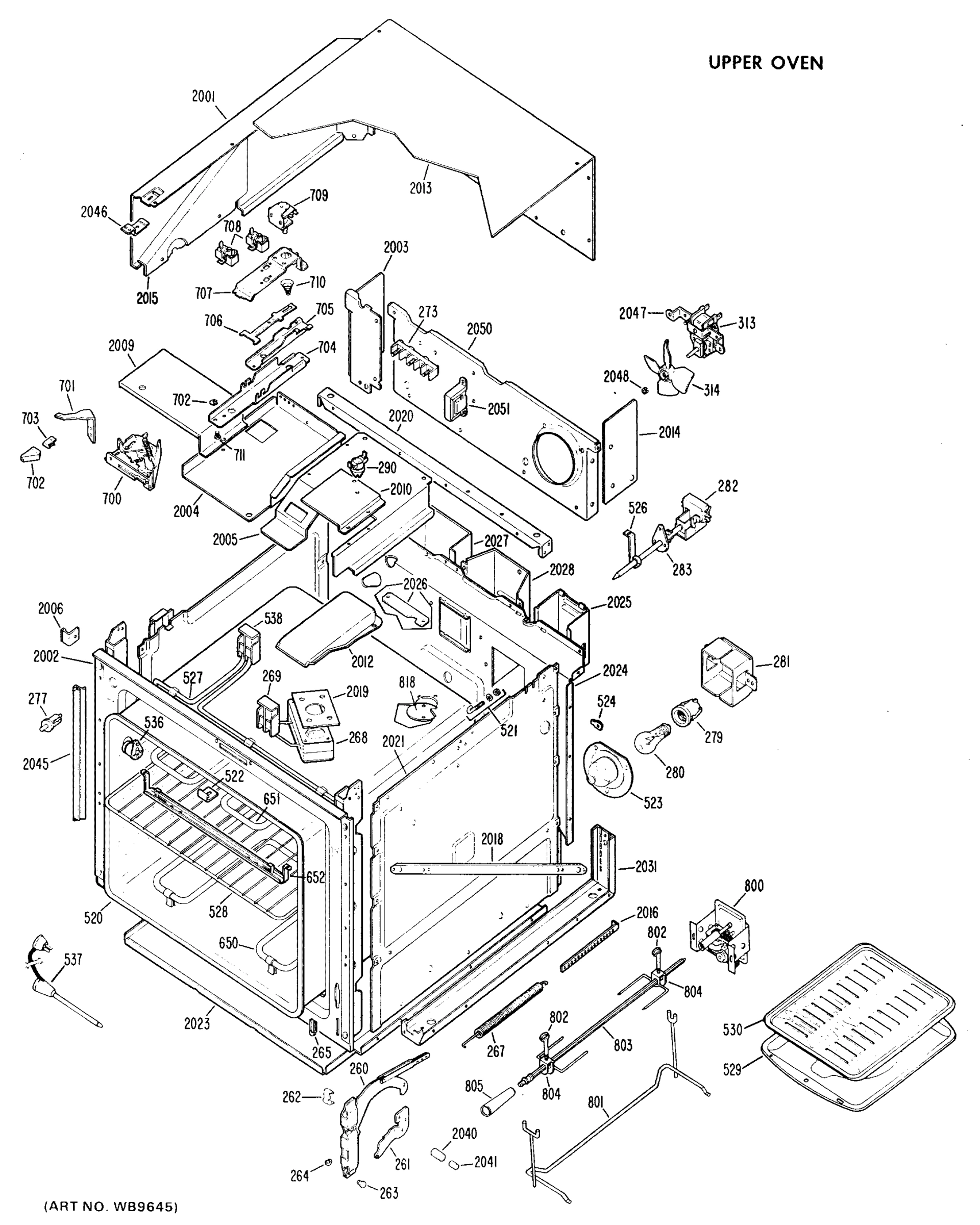

UPPER OVEN
Common parts from model GE JKP36*D1 Electric Range
10
GEN WB01X5220 GEN WB01X5220 Contact Us For Availability
10
GEN WB02X3453 GEN WB02X3453 Contact Us For Availability
11
GEN WB22X5082 GEN WB22X5082 Contact Us For Availability
11
GEN WB22X5083 GEN WB22X5083 Contact Us For Availability
12
GEN WB03X0462 GEN WB03X0462 Contact Us For Availability
12
GEN WB03X0483 GEN WB03X0483 Contact Us For Availability
14
GEN WB02X6494 GEN WB02X6494 Contact Us For Availability
14
GEN WB02X6937 GEN WB02X6937 Contact Us For Availability
14
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
14
GEN WB24X0184 GEN WB24X0184 Contact Us For Availability
15
GEN WB03X0463 GEN WB03X0463 Contact Us For Availability
15
GEN WB03X0482 GEN WB03X0482 Contact Us For Availability
17
GEN WB3X459 GEN WB3X459 Contact Us For Availability
18
GEN WB02X3232 GEN WB02X3232 Contact Us For Availability
18
GEN WB36X5496 GEN WB36X5496 Contact Us For Availability
45
NUT GEN WB01X0540 Contact Us For Availability
51
GEN WB02X1409 GEN WB02X1409 Contact Us For Availability
51
GEN WB02X3061 GEN WB02X3061 Contact Us For Availability
99
GEN WB02X3405 GEN WB02X3405 Contact Us For Availability
103
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
115
CIRCUIT BOARD ASM THERMO GEN WB20X0052 Contact Us For Availability
116
BRACKET CIRCUIT BOARD GEN WB02X3148 Contact Us For Availability
117
GEN WB07X1122 GEN WB07X1122 Contact Us For Availability
118
GEN WB02X2407 GEN WB02X2407 Contact Us For Availability
119
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
120
GEN WB07X1123 GEN WB07X1123 Contact Us For Availability
121
GEN WB07X0635 GEN WB07X0635 Contact Us For Availability
122
GEN WB02X2006 GEN WB02X2006 Contact Us For Availability
134
FACEPLATE & SHAFT ASM GEN WB07X0980 Contact Us For Availability
145
GEN WB02X3429 GEN WB02X3429 Contact Us For Availability
148
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
260
HINGE LEVER RH & LH GEN WB10X0158 Contact Us For Availability
261
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
261
GEN WB10X0155 GEN WB10X0155 Contact Us For Availability
263
PIN HINGE GEN WB02X6195 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
267
GEN WB09X0156 GEN WB09X0156 Contact Us For Availability
268
GEN WB29X0053 GEN WB29X0053 Contact Us For Availability
269
INSULATOR TERMINAL GEN WB02X3388 Contact Us For Availability
269
GEN WB02X3421 GEN WB02X3421 Contact Us For Availability
271
COVER VENT GEN WB02X0818 Contact Us For Availability
273
BLOCK TERM DISTRIBUTION GEN WB17X0167 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
279
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
281
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
282
GEN WB24X5138 GEN WB24X5138 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
290
GEN WB24X0199 GEN WB24X0199 Contact Us For Availability
313
GEN WB26X5052 GEN WB26X5052 Contact Us For Availability
314
GEN WB02X2001 GEN WB02X2001 Contact Us For Availability
314
GEN WB02X2911 GEN WB02X2911 Contact Us For Availability
350
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
350
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
350
GEN WB55X5247 GEN WB55X5247 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
355
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
355
GEN WB55X5246 GEN WB55X5246 Contact Us For Availability
358
GEN WB56X1366 GEN WB56X1366 Contact Us For Availability
358
GEN WB56X1367 GEN WB56X1367 Contact Us For Availability
358
GEN WB56X1368 GEN WB56X1368 Contact Us For Availability
358
GEN WB56X1369 GEN WB56X1369 Contact Us For Availability
358
GEN WB56X1370 GEN WB56X1370 Contact Us For Availability
358
GEN WB56X1371 GEN WB56X1371 Contact Us For Availability
358
GEN WB56X1372 GEN WB56X1372 Contact Us For Availability
358
GEN WB56X1373 GEN WB56X1373 Contact Us For Availability
358
GEN WB56X1374 GEN WB56X1374 Contact Us For Availability
358
GEN WB56X1375 GEN WB56X1375 Contact Us For Availability
360
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
361
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
365
GEN WB15X0152 GEN WB15X0152 Contact Us For Availability
373
GEN WB36X5495 GEN WB36X5495 Contact Us For Availability
374
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
375
GEN WB36X5478 GEN WB36X5478 Contact Us For Availability
376
GEN WB02X3282 GEN WB02X3282 Contact Us For Availability
377
GEN WB07X1031 GEN WB07X1031 Contact Us For Availability
378
TRIM PLATE GEN WB07X0273 Contact Us For Availability
391
GEN WB02X2248 GEN WB02X2248 Contact Us For Availability
392
CAM LINK GEN WB02X5217 Contact Us For Availability
393
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
395
GEN WB02X3323 GEN WB02X3323 Contact Us For Availability
398
GEN WB01X0600 GEN WB01X0600 Contact Us For Availability
399
GEN WB02X3285 GEN WB02X3285 Contact Us For Availability
402
GEN WB01X0591 GEN WB01X0591 Contact Us For Availability
403
GEN WB02X7188 GEN WB02X7188 Contact Us For Availability
404
GEN WB36X5477 GEN WB36X5477 Contact Us For Availability
408
GEN WB56X1386 GEN WB56X1386 Contact Us For Availability
408
GEN WB56X1387 GEN WB56X1387 Contact Us For Availability
408
GEN WB56X1388 GEN WB56X1388 Contact Us For Availability
408
GEN WB56X1389 GEN WB56X1389 Contact Us For Availability
408
GEN WB56X1390 GEN WB56X1390 Contact Us For Availability
409
GEN WB02X3307 GEN WB02X3307 Contact Us For Availability
410
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
411
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
412
GEN WB01X0589 GEN WB01X0589 Contact Us For Availability
413
GEN WB02X3322 GEN WB02X3322 Contact Us For Availability
414
GEN WB02X7207 GEN WB02X7207 Contact Us For Availability
415
GEN WZ05X0244 GEN WZ05X0244 Contact Us For Availability
520
GEN WB02X1132 GEN WB02X1132 Contact Us For Availability
520
PLUG BUTTON CAP TUBE GEN WB02X1125 Contact Us For Availability
520
GEN WB02X1925 GEN WB02X1925 Contact Us For Availability
520
GEN WB02X2116 GEN WB02X2116 Contact Us For Availability
520
GEN WB02X3471 GEN WB02X3471 Contact Us For Availability
520
GEN WB53X0252 GEN WB53X0252 Contact Us For Availability
521
HOOK PACKAGE GEN WB09X0088 Contact Us For Availability
522
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
526
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
527
GEN WB44X0207 GEN WB44X0207 Contact Us For Availability
528
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
529
GEN WB49X0075 GEN WB49X0075 Contact Us For Availability
536
GEN WB20X0055 GEN WB20X0055 Contact Us For Availability
537
GEN WB20X0054 GEN WB20X0054 Contact Us For Availability
538
GEN WB02X3452 GEN WB02X3452 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
700
BARRIER LATCH SW LOW OV GEN WB02X6912 Contact Us For Availability
700
LATCH GEN WB14X5035 Contact Us For Availability
701
GEN WB15X0150 GEN WB15X0150 Contact Us For Availability
701
HANDLE LATCH GEN WB15X0151 Contact Us For Availability
702
GEN WB03X0434 GEN WB03X0434 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X3157 GEN WB02X3157 Contact Us For Availability
705
GEN WB02X3158 GEN WB02X3158 Contact Us For Availability
706
GEN WB02X3159 GEN WB02X3159 Contact Us For Availability
707
PLATE MOUNTING GEN WB02X7301 Contact Us For Availability
708
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
709
GEN WB24X5097 GEN WB24X5097 Contact Us For Availability
709
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
710
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
800
GEN WB26X5053 GEN WB26X5053 Contact Us For Availability
801
SUPPORT SPIT GEN WB48X0062 Contact Us For Availability
802
SCREW THUMB GEN WB01X0272 Contact Us For Availability
803
SPIT BLADE GEN WB02X1166 Contact Us For Availability
804
SKEWER ASM GEN WB02X1167 Contact Us For Availability
805
HANDLE SPIT GEN WB15X0080 Contact Us For Availability
961
GEN WZ04X0369 GEN WZ04X0369 Contact Us For Availability
1201
GEN WB01X0575 GEN WB01X0575 Contact Us For Availability
2001
GEN WB55X0304 GEN WB55X0304 Contact Us For Availability
2001
GEN WB55X0305 GEN WB55X0305 Contact Us For Availability
2002
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
2003
GEN WB02X2858 GEN WB02X2858 Contact Us For Availability
2004
GEN WB59X0170 GEN WB59X0170 Contact Us For Availability
2005
GEN WB59X0134 GEN WB59X0134 Contact Us For Availability
2006
GEN WB02X2104 GEN WB02X2104 Contact Us For Availability
2007
GEN WB07X0636 GEN WB07X0636 Contact Us For Availability
2008
COVER ROTO & MEAT METER GEN WB02X3230 Contact Us For Availability
2009
GEN WB59X0165 GEN WB59X0165 Contact Us For Availability
2010
GEN WB02X3173 GEN WB02X3173 Contact Us For Availability
2011
GEN WB02X2082 GEN WB02X2082 Contact Us For Availability
2011
GEN WB02X3425 GEN WB02X3425 Contact Us For Availability
2012
GEN WB38X0075 GEN WB38X0075 Contact Us For Availability
2013
GEN WB49X0330 GEN WB49X0330 Contact Us For Availability
2014
GEN WB02X2847 GEN WB02X2847 Contact Us For Availability
2015
GEN WB02X2402 GEN WB02X2402 Contact Us For Availability
2016
GEN WB02X3289 GEN WB02X3289 Contact Us For Availability
2017
GEN WB02X2861 GEN WB02X2861 Contact Us For Availability
2018
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
2019
GEN WB02X3292 GEN WB02X3292 Contact Us For Availability
2020
GEN WB02X2083 GEN WB02X2083 Contact Us For Availability
2021
GEN WB59X0164 GEN WB59X0164 Contact Us For Availability
2022
GEN WB59X0163 GEN WB59X0163 Contact Us For Availability
2023
GEN WB55X0302 GEN WB55X0302 Contact Us For Availability
2024
GEN WB49X0327 GEN WB49X0327 Contact Us For Availability
2025
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
2026
GEN WB02X2842 GEN WB02X2842 Contact Us For Availability
2027
GEN WB02X3156 GEN WB02X3156 Contact Us For Availability
2028
GEN WB49X0268 GEN WB49X0268 Contact Us For Availability
2029
GEN WB49X0223 GEN WB49X0223 Contact Us For Availability
2031
GEN WB59X0167 GEN WB59X0167 Contact Us For Availability
2032
GEN WB49X0275 GEN WB49X0275 Contact Us For Availability
2033
GEN WB49X0382 GEN WB49X0382 Contact Us For Availability
2034
GEN WB49X0355 GEN WB49X0355 Contact Us For Availability
2036
GEN WB49X0357 GEN WB49X0357 Contact Us For Availability
2037
GEN WB07X1125 GEN WB07X1125 Contact Us For Availability
2038
SPEEDNUT GEN WB02X3298 Contact Us For Availability
2040
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
2041
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
2042
SUPPORT DOUBLE OVEN GEN WB02X3302 Contact Us For Availability
2043
GEN WB02X3423 GEN WB02X3423 Contact Us For Availability
2045
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
2046
GEN WB02X3291 GEN WB02X3291 Contact Us For Availability
2047
GEN WB02X2846 GEN WB02X2846 Contact Us For Availability
2050
SHIELD AIR GEN WB55X0303 Contact Us For Availability
2051
GEN WB20X0057 GEN WB20X0057 Contact Us For Availability
2052
GEN WB49X0269 GEN WB49X0269 Contact Us For Availability
2067
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
2072
CHANNEL AIR GEN WB49X0356 Contact Us For Availability
2092
ANGLE REAR GEN WB02X3299 Contact Us For Availability
32767
GEN 31-0409 GEN 31-0409 Contact Us For Availability
32767
GEN WB01X0284 GEN WB01X0284 Contact Us For Availability
32767
GEN WB01X0422 GEN WB01X0422 Contact Us For Availability
32767
SCREW & WASHER ASM GEN WB01X0438 Contact Us For Availability
32767
GEN WB01X0448 GEN WB01X0448 Contact Us For Availability
32767
WASHER GEN WB01X052 Contact Us For Availability
32767
SPEEDNUT GEN WB02X1659 Contact Us For Availability
× ![]()
