Model GE JKP27G*J2 – Common Parts & Diagrams
CONTROL

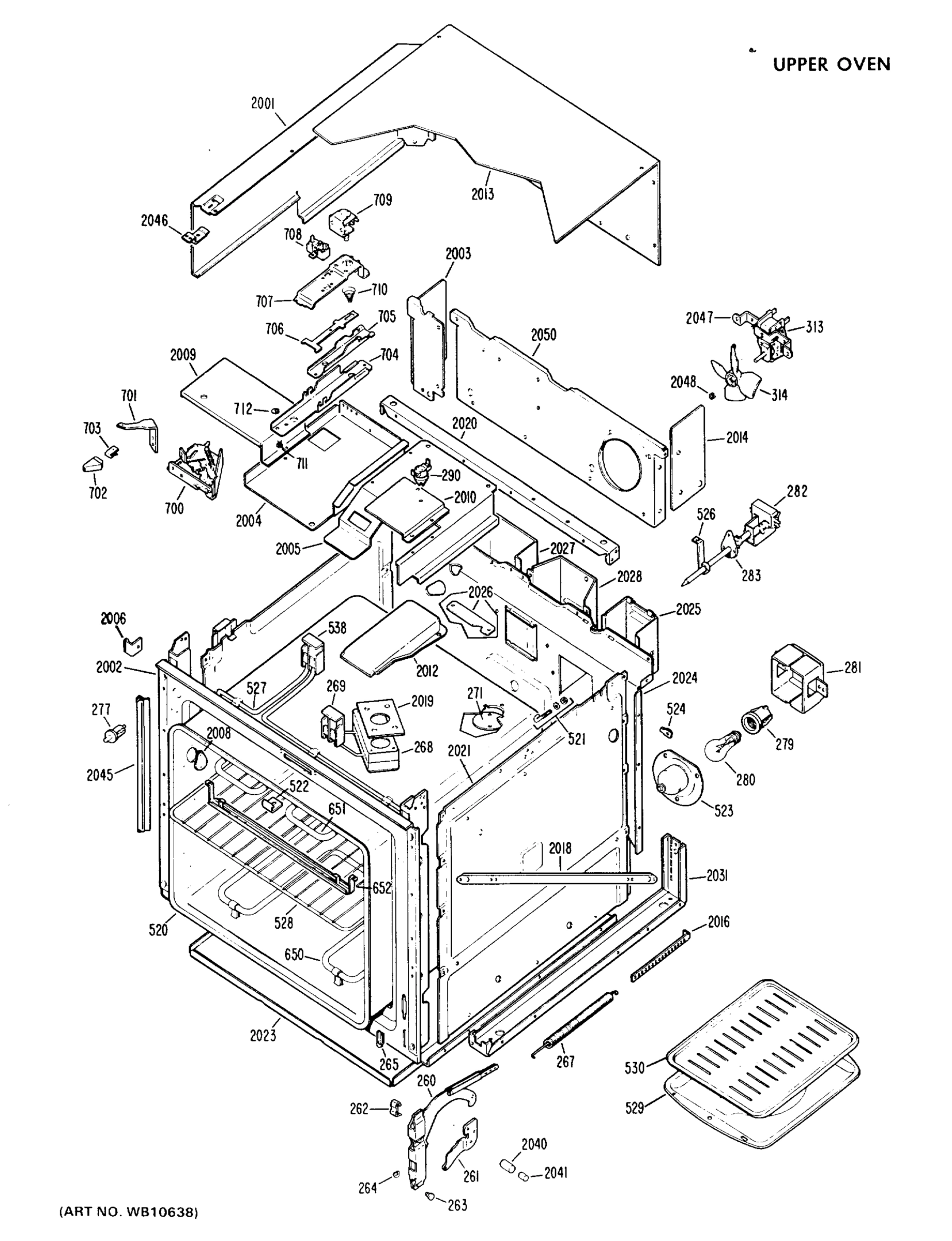

UPPER OVEN
Common parts from model GE JKP27G*J2
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
5
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
8
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
10
GEN WB01X5220 GEN WB01X5220 Contact Us For Availability
10
GEN WB02X3453 GEN WB02X3453 Contact Us For Availability
11
GEN WB22X0073 GEN WB22X0073 Contact Us For Availability
11
GEN WB22X5110 GEN WB22X5110 Contact Us For Availability
12
GEN WB03X5678 GEN WB03X5678 Contact Us For Availability
12
GEN WB03X5683 GEN WB03X5683 Contact Us For Availability
14
GEN WB02X6937 GEN WB02X6937 Contact Us For Availability
14
THERMOSTAT GEN WB21X5209 Contact Us For Availability
14
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
15
GEN WB03X5685 GEN WB03X5685 Contact Us For Availability
15
GEN WB03X5686 GEN WB03X5686 Contact Us For Availability
17
GEN WB3X459 GEN WB3X459 Contact Us For Availability
18
GEN WB02X3232 GEN WB02X3232 Contact Us For Availability
18
GEN WB36X5569 GEN WB36X5569 Contact Us For Availability
51
GEN WB02X1409 GEN WB02X1409 Contact Us For Availability
51
GEN WB02X3061 GEN WB02X3061 Contact Us For Availability
99
GEN WB02X3405 GEN WB02X3405 Contact Us For Availability
103
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
117
GEN WB07X1122 GEN WB07X1122 Contact Us For Availability
119
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
120
GEN WB07X1123 GEN WB07X1123 Contact Us For Availability
121
GEN WB07X0635 GEN WB07X0635 Contact Us For Availability
122
GEN WB02X2006 GEN WB02X2006 Contact Us For Availability
135
GEN WB02X1949 GEN WB02X1949 Contact Us For Availability
148
SCREW GEN WB01X5716 Contact Us For Availability
260
HINGE LEVER RH & LH GEN WB10X0158 Contact Us For Availability
261
GEN WB10X0155 GEN WB10X0155 Contact Us For Availability
261
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
263
PIN HINGE GEN WB02X6195 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X1460 GEN WB02X1460 Contact Us For Availability
265
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
267
GEN WB09X0156 GEN WB09X0156 Contact Us For Availability
268
GEN WB29X0053 GEN WB29X0053 Contact Us For Availability
269
INSULATOR TERMINAL GEN WB02X3388 Contact Us For Availability
271
COVER VENT GEN WB02X0818 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
279
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
281
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
282
GEN WB24X5164 GEN WB24X5164 Contact Us For Availability
282
GEN WB24X5226 GEN WB24X5226 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
287
GEN WB02X3447 GEN WB02X3447 Contact Us For Availability
290
GEN WB24X0199 GEN WB24X0199 Contact Us For Availability
302
GEN WB02X2885 GEN WB02X2885 Contact Us For Availability
313
GEN WB26X5052 GEN WB26X5052 Contact Us For Availability
314
GEN WB02X2001 GEN WB02X2001 Contact Us For Availability
341
GEN WB10X0151 GEN WB10X0151 Contact Us For Availability
350
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
350
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
350
GEN WB55X5298 GEN WB55X5298 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
355
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
355
GEN WB55X5299 GEN WB55X5299 Contact Us For Availability
358
GLASS BLACK LOWER OVEN GEN WB36X0556 Contact Us For Availability
358
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
359
GEN WB07X1152 GEN WB07X1152 Contact Us For Availability
360
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
361
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
363
GEN WB02X3025 GEN WB02X3025 Contact Us For Availability
365
GEN WB15X0154 GEN WB15X0154 Contact Us For Availability
373
GEN WB36X5495 GEN WB36X5495 Contact Us For Availability
374
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
393
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
397
SCREW MTG END CAP GEN WB01X5754 Contact Us For Availability
398
GEN WB01X0600 GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
404
GEN WB36X0540 GEN WB36X0540 Contact Us For Availability
408
GEN WB02X7208 GEN WB02X7208 Contact Us For Availability
408
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
410
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
411
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
416
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
416
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
417
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
418
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
419
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
420
GEN WB02X3337 GEN WB02X3337 Contact Us For Availability
421
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
422
GEN WB02X7209 GEN WB02X7209 Contact Us For Availability
424
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
425
GEN WB07X1151 GEN WB07X1151 Contact Us For Availability
427
GEN WB01X0580 GEN WB01X0580 Contact Us For Availability
429
GEN WB02X3283 GEN WB02X3283 Contact Us For Availability
429
GEN WB55X5297 GEN WB55X5297 Contact Us For Availability
430
GEN WB55X0403 GEN WB55X0403 Contact Us For Availability
431
GEN WB02X3338 GEN WB02X3338 Contact Us For Availability
431
GEN WB02X3339 GEN WB02X3339 Contact Us For Availability
432
GEN WB02X3341 GEN WB02X3341 Contact Us For Availability
433
GEN WB02X3340 GEN WB02X3340 Contact Us For Availability
434
GEN WB07X1154 GEN WB07X1154 Contact Us For Availability
435
GEN WB02X3342 GEN WB02X3342 Contact Us For Availability
436
GEN WB02X3284 GEN WB02X3284 Contact Us For Availability
437
GEN WB07X1153 GEN WB07X1153 Contact Us For Availability
439
GEN WZ04X0426 GEN WZ04X0426 Contact Us For Availability
440
GEN WB01X0585 GEN WB01X0585 Contact Us For Availability
520
PLUG BUTTON CAP TUBE GEN WB02X1125 Contact Us For Availability
520
GEN WB02X1132 GEN WB02X1132 Contact Us For Availability
520
GEN WB02X2116 GEN WB02X2116 Contact Us For Availability
520
GEN WB02X3417 GEN WB02X3417 Contact Us For Availability
520
GEN WB02X3471 GEN WB02X3471 Contact Us For Availability
520
GEN WB53X5104 GEN WB53X5104 Contact Us For Availability
520
GEN WB53X5117 GEN WB53X5117 Contact Us For Availability
521
HOOK PACKAGE GEN WB09X0088 Contact Us For Availability
522
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
525
GEN WB02X3448 GEN WB02X3448 Contact Us For Availability
526
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
527
GEN WB44X0207 GEN WB44X0207 Contact Us For Availability
528
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
538
GEN WB02X3452 GEN WB02X3452 Contact Us For Availability
540
RACK OVEN GEN WB48X0073 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
700
LATCH GEN WB14X5035 Contact Us For Availability
701
GEN WB15X0150 GEN WB15X0150 Contact Us For Availability
702
GEN WB03X0434 GEN WB03X0434 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X3157 GEN WB02X3157 Contact Us For Availability
705
GEN WB02X3158 GEN WB02X3158 Contact Us For Availability
706
GEN WB02X3159 GEN WB02X3159 Contact Us For Availability
707
PLATE MOUNTING GEN WB02X7301 Contact Us For Availability
708
GEN WB02X3147 GEN WB02X3147 Contact Us For Availability
708
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
709
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
710
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
2001
GEN WB55X0304 GEN WB55X0304 Contact Us For Availability
2001
GEN WB55X0305 GEN WB55X0305 Contact Us For Availability
2002
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
2003
GEN WB02X2858 GEN WB02X2858 Contact Us For Availability
2004
GEN WB59X0170 GEN WB59X0170 Contact Us For Availability
2005
GEN WB59X0134 GEN WB59X0134 Contact Us For Availability
2006
GEN WB02X2104 GEN WB02X2104 Contact Us For Availability
2007
GRILL GEN WB07X1236 Contact Us For Availability
2008
COVER ROTO & MEAT METER GEN WB02X3230 Contact Us For Availability
2009
GEN WB59X0165 GEN WB59X0165 Contact Us For Availability
2010
GEN WB02X3173 GEN WB02X3173 Contact Us For Availability
2011
SUPPORT TRIM GEN WB02X3467 Contact Us For Availability
2012
GEN WB38X0075 GEN WB38X0075 Contact Us For Availability
2013
GEN WB49X0330 GEN WB49X0330 Contact Us For Availability
2014
GEN WB02X2847 GEN WB02X2847 Contact Us For Availability
2016
GEN WB02X3289 GEN WB02X3289 Contact Us For Availability
2018
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
2019
GEN WB02X3292 GEN WB02X3292 Contact Us For Availability
2020
GEN WB02X2083 GEN WB02X2083 Contact Us For Availability
2021
GEN WB59X0164 GEN WB59X0164 Contact Us For Availability
2023
GEN WB55X0302 GEN WB55X0302 Contact Us For Availability
2024
GEN WB49X0327 GEN WB49X0327 Contact Us For Availability
2025
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
2026
GEN WB02X2842 GEN WB02X2842 Contact Us For Availability
2027
GEN WB02X3156 GEN WB02X3156 Contact Us For Availability
2028
GEN WB49X0268 GEN WB49X0268 Contact Us For Availability
2031
GEN WB59X0167 GEN WB59X0167 Contact Us For Availability
2035
GEN WB02X7186 GEN WB02X7186 Contact Us For Availability
2037
GEN WB07X1124 GEN WB07X1124 Contact Us For Availability
2038
SPEEDNUT GEN WB02X3298 Contact Us For Availability
2040
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
2041
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
2042
SUPPORT DOUBLE OVEN GEN WB02X3302 Contact Us For Availability
2045
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
2046
GEN WB02X3291 GEN WB02X3291 Contact Us For Availability
2047
GEN WB02X2846 GEN WB02X2846 Contact Us For Availability
2050
SHIELD AIR GEN WB55X0303 Contact Us For Availability
2067
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
2068
GEN WB02X1462 GEN WB02X1462 Contact Us For Availability
2069
SPACER BACK GEN WB02X3300 Contact Us For Availability
2070
GUARD WIRE GEN WB02X3301 Contact Us For Availability
2071
GASKET VENT GEN WB38X0061 Contact Us For Availability
2071
VENT ASM GEN WB38X0062 Contact Us For Availability
2073
GUARD BOTTOM GEN WB59X0069 Contact Us For Availability
2074
GEN WB59X0137 GEN WB59X0137 Contact Us For Availability
2075
GEN WB59X5023 GEN WB59X5023 Contact Us For Availability
2076
GEN WB59X5025 GEN WB59X5025 Contact Us For Availability
2077
GUARD SIDE GEN WB59X0105 Contact Us For Availability
2078
GEN WB59X0108 GEN WB59X0108 Contact Us For Availability
2079
SPACER BOTTOM GEN WB02X2063 Contact Us For Availability
2080
CHANNEL BOTTOM GEN WB59X0107 Contact Us For Availability
2081
GEN WB59X0106 GEN WB59X0106 Contact Us For Availability
2082
GEN WB56X1326 GEN WB56X1326 Contact Us For Availability
2083
SPRING HINGE LEVER GEN WB02X1461 Contact Us For Availability
2084
GEN WB09X0151 GEN WB09X0151 Contact Us For Availability
2085
ANGLE REAR GEN WB59X0071 Contact Us For Availability
2086
GEN WB09X0150 GEN WB09X0150 Contact Us For Availability
2092
ANGLE REAR GEN WB02X3299 Contact Us For Availability
2095
SCREW GEN WB01X0352 Contact Us For Availability
2098
GEN WB59X5022 GEN WB59X5022 Contact Us For Availability
32767
WASHER GEN WB02X3429 Contact Us For Availability
32767
GEN 31-0409 GEN 31-0409 Contact Us For Availability
32767
GEN 31-0524 GEN 31-0524 Contact Us For Availability
32767
GEN 49-4720 GEN 49-4720 Contact Us For Availability
32767
SCREW & WASHER ASM GEN WB01X0438 Contact Us For Availability
32767
GEN WB01X0448 GEN WB01X0448 Contact Us For Availability
32767
GEN WB01X0547 GEN WB01X0547 Contact Us For Availability
32767
GEN WB01X5550 GEN WB01X5550 Contact Us For Availability
32767
GEN WB02X3152 GEN WB02X3152 Contact Us For Availability
32767
GEN WB02X3191 GEN WB02X3191 Contact Us For Availability
32767
GEN WB02X3251 GEN WB02X3251 Contact Us For Availability
32767
SCR 8-32 M PHR 3/16 S GEN WZ02X0528 Contact Us For Availability
32767
SCR 8-18 B RDR 3/16 S GEN WZ04X0228 Contact Us For Availability
32767
GEN WZ04X0255 GEN WZ04X0255 Contact Us For Availability
32767
GEN WZ04X0372 GEN WZ04X0372 Contact Us For Availability
32767
GEN WZ04X0394 GEN WZ04X0394 Contact Us For Availability
32767
GEN WZ04X0396 GEN WZ04X0396 Contact Us For Availability
32767
GEN WZ04X0397 GEN WZ04X0397 Contact Us For Availability
32767
GEN WZ05X0132 GEN WZ05X0132 Contact Us For Availability
32767
GEN WZ05X0234 GEN WZ05X0234 Contact Us For Availability
32767
GEN WZ06X0038 GEN WZ06X0038 Contact Us For Availability
32767
GEN WZ07X0035 GEN WZ07X0035 Contact Us For Availability
32767
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
32767
SPEEDNUT GEN WB02X1659 Contact Us For Availability
× ![]()
