Model GE JKP27BW1BB Electric Range – Common Parts & Diagrams
BODY PARTS
CONTROL PANEL

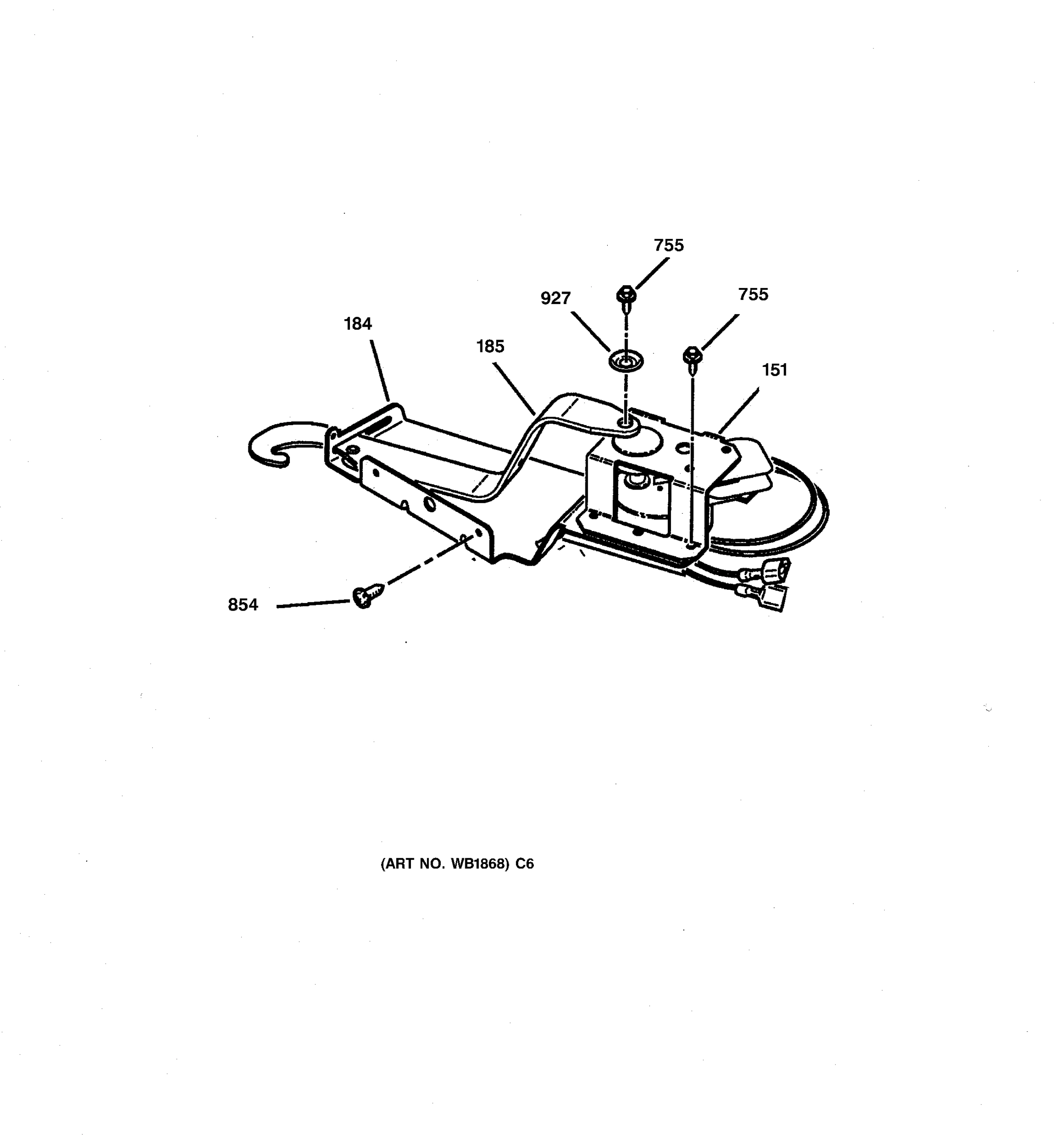

LOCK

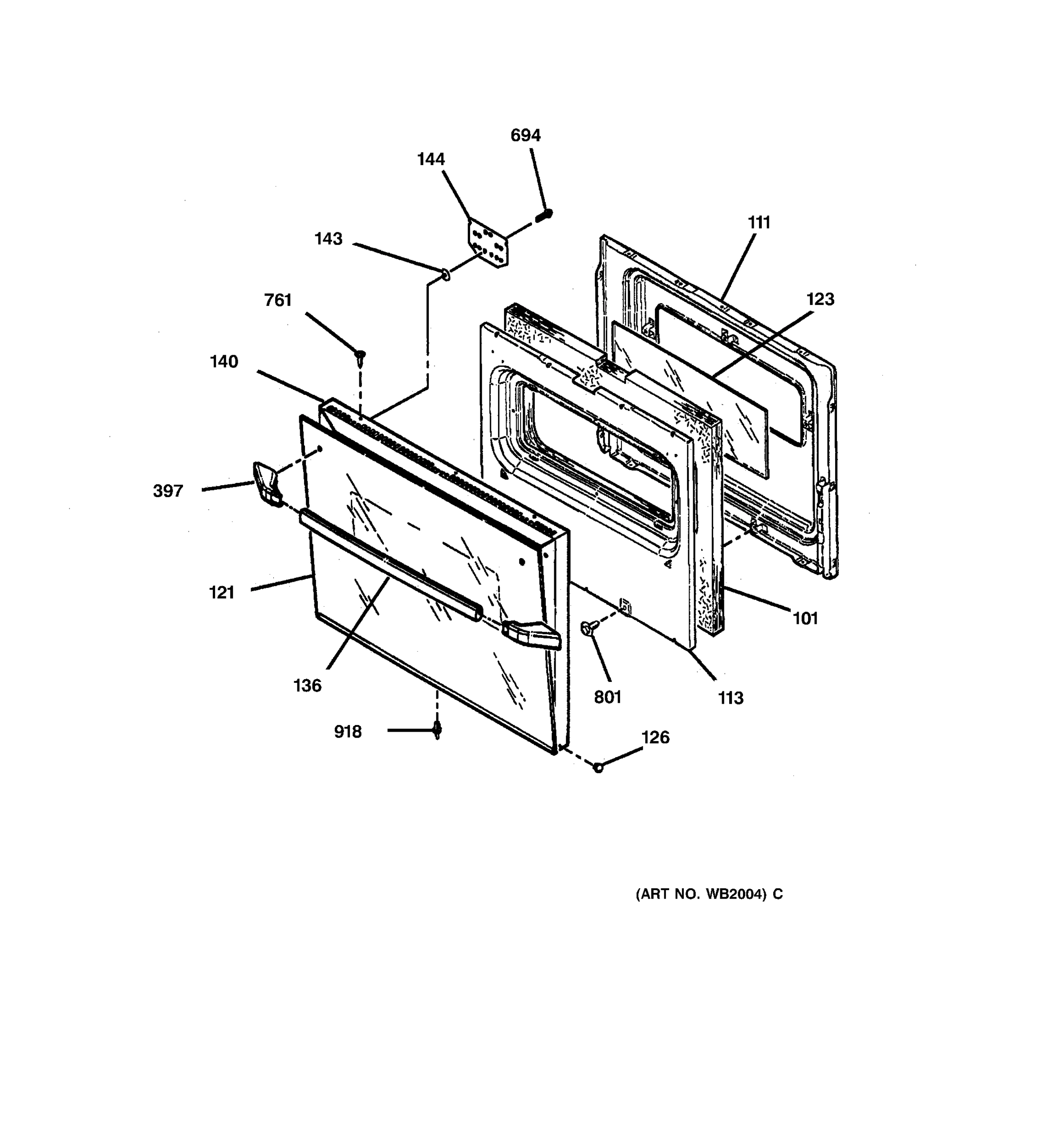

LOWER DOOR

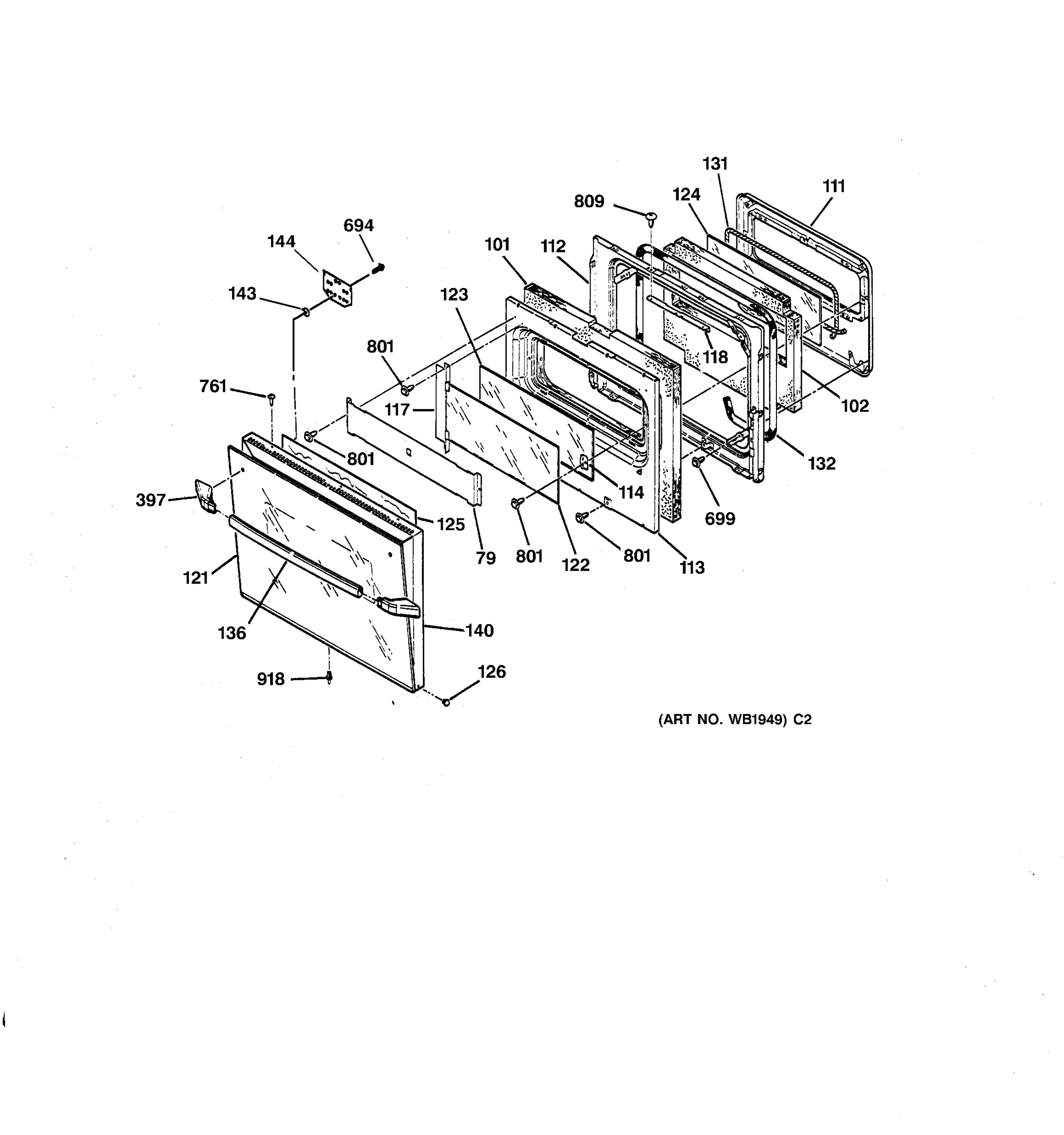

UPPER DOOR
Common parts from model GE JKP27BW1BB Electric Range
1
GEN WB36T10130 GEN WB36T10130 Contact Us For Availability
2
CAP VENT TRIM GEN WB07K5442 Contact Us For Availability
2
GEN WB36K5638 GEN WB36K5638 Contact Us For Availability
2
GEN WB36K5639 GEN WB36K5639 Contact Us For Availability
5
THERMOSTAT OVEN GEN WB20K5011 Contact Us For Availability
8
FAN SUPPORT-LOWER GEN WB02K5137 Contact Us For Availability
8
GEN WB02K5257 GEN WB02K5257 Contact Us For Availability
16
CONTROL OVN (ERCIII-B) GEN WB27K5299 Contact Us For Availability
32
GEN WB26K5045 GEN WB26K5045 Contact Us For Availability
35
SWITCH SELECTOR GEN WB24K5040 Contact Us For Availability
40
GEN WB03K5254 GEN WB03K5254 Contact Us For Availability
88
GEN WB03K5253 GEN WB03K5253 Contact Us For Availability
102
DOOR PLUG INSULATION GEN WB35K5050 Contact Us For Availability
111
GEN WB55K5016 GEN WB55K5016 Contact Us For Availability
111
OV DR LINING PLUG-UPPER GEN WB55K5018 Contact Us For Availability
112
GEN WB55K5017 GEN WB55K5017 Contact Us For Availability
113
GEN WB02K5127 GEN WB02K5127 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
117
GEN WB02K5131 GEN WB02K5131 Contact Us For Availability
118
OV DR LINING STIFFENER GEN WB02K5132 Contact Us For Availability
121
GEN WB57K5248 GEN WB57K5248 Contact Us For Availability
122
GEN WB57K5102 GEN WB57K5102 Contact Us For Availability
123
GEN WB57K5038 GEN WB57K5038 Contact Us For Availability
124
GLASS OV DR INNER GEN WB56X1907 Contact Us For Availability
125
GEN WB34K5255 GEN WB34K5255 Contact Us For Availability
126
GEN WB03K5077 GEN WB03K5077 Contact Us For Availability
136
HANDLE OVN DR GEN WB15K5068 Contact Us For Availability
157
SWITCH LIMIT GEN WB24K5029 Contact Us For Availability
221
GEN WB63K5174 GEN WB63K5174 Contact Us For Availability
221
GEN WB63K5200 GEN WB63K5200 Contact Us For Availability
221
GEN WB63K5201 GEN WB63K5201 Contact Us For Availability
231
INSULATION-OUTER-LOWER GEN WB35K5042 Contact Us For Availability
232
INSULATION BACK/BTM-LOW GEN WB35K5040 Contact Us For Availability
232
INSULATION BACK/BTTM-UPR GEN WB35K5089 Contact Us For Availability
233
GEN WB34K5080 GEN WB34K5080 Contact Us For Availability
239
BUTTON PLUG GEN WB02X9587 Contact Us For Availability
245
SUPPORT VERTICAL SIDE GEN WB02K5139 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
258
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
260
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
261
SWITCH OVEN LIGHT (JAM) GEN WB24K5061 Contact Us For Availability
262
TRIM VENT (BLK) GEN WB07K5481 Contact Us For Availability
262
GEN WB07K5486 GEN WB07K5486 Contact Us For Availability
262
GEN WB07K5487 GEN WB07K5487 Contact Us For Availability
263
GEN WB07K5440 GEN WB07K5440 Contact Us For Availability
263
GEN WB07K5488 GEN WB07K5488 Contact Us For Availability
268
GEN WB07K5449 GEN WB07K5449 Contact Us For Availability
273
COVER HOLE GEN WB02K5365 Contact Us For Availability
274
GEN WB07K5489 GEN WB07K5489 Contact Us For Availability
276
GEN WB32K5019 GEN WB32K5019 Contact Us For Availability
279
GEN WB38K5028 GEN WB38K5028 Contact Us For Availability
281
GEN WB14K5006 GEN WB14K5006 Contact Us For Availability
281
GEN WB14K5007 GEN WB14K5007 Contact Us For Availability
286
GEN WB09K5021 GEN WB09K5021 Contact Us For Availability
286
OVEN DOOR SPRING-UPPER GEN WB09K5022 Contact Us For Availability
288
GEN WB03K5043 GEN WB03K5043 Contact Us For Availability
291
COVER ENAM WIPE GEN WB02X9152 Contact Us For Availability
432
GEN WB63K5094 GEN WB63K5094 Contact Us For Availability
676
GEN WB01K5206 GEN WB01K5206 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
854
SCREW TC 10-32X.500 SP GEN WB01X1164 Contact Us For Availability
854
SCREW-BLACK GEN WB01X1328 Contact Us For Availability
862
SCREW TC6-32X.250HEXNI GEN WB01X1178 Contact Us For Availability
904
SCR 8/32 TF FLR 5/16 S GEN WB01X0521 Contact Us For Availability
926
WASHER GROUND GEN WB01X1260 Contact Us For Availability
954
THERMOSTAT BULB RET CLIP GEN WB02X9105 Contact Us For Availability
999
GEN 31-10200 GEN 31-10200 Contact Us For Availability
999
GEN 31-13326 GEN 31-13326 Contact Us For Availability
999
GEN 49-8706 GEN 49-8706 Contact Us For Availability
999
GEN WB18K5617 GEN WB18K5617 Contact Us For Availability
999
GEN WB18K5637 GEN WB18K5637 Contact Us For Availability
× ![]()
