Model GE JKP27*08 Electric Range – Common Parts & Diagrams

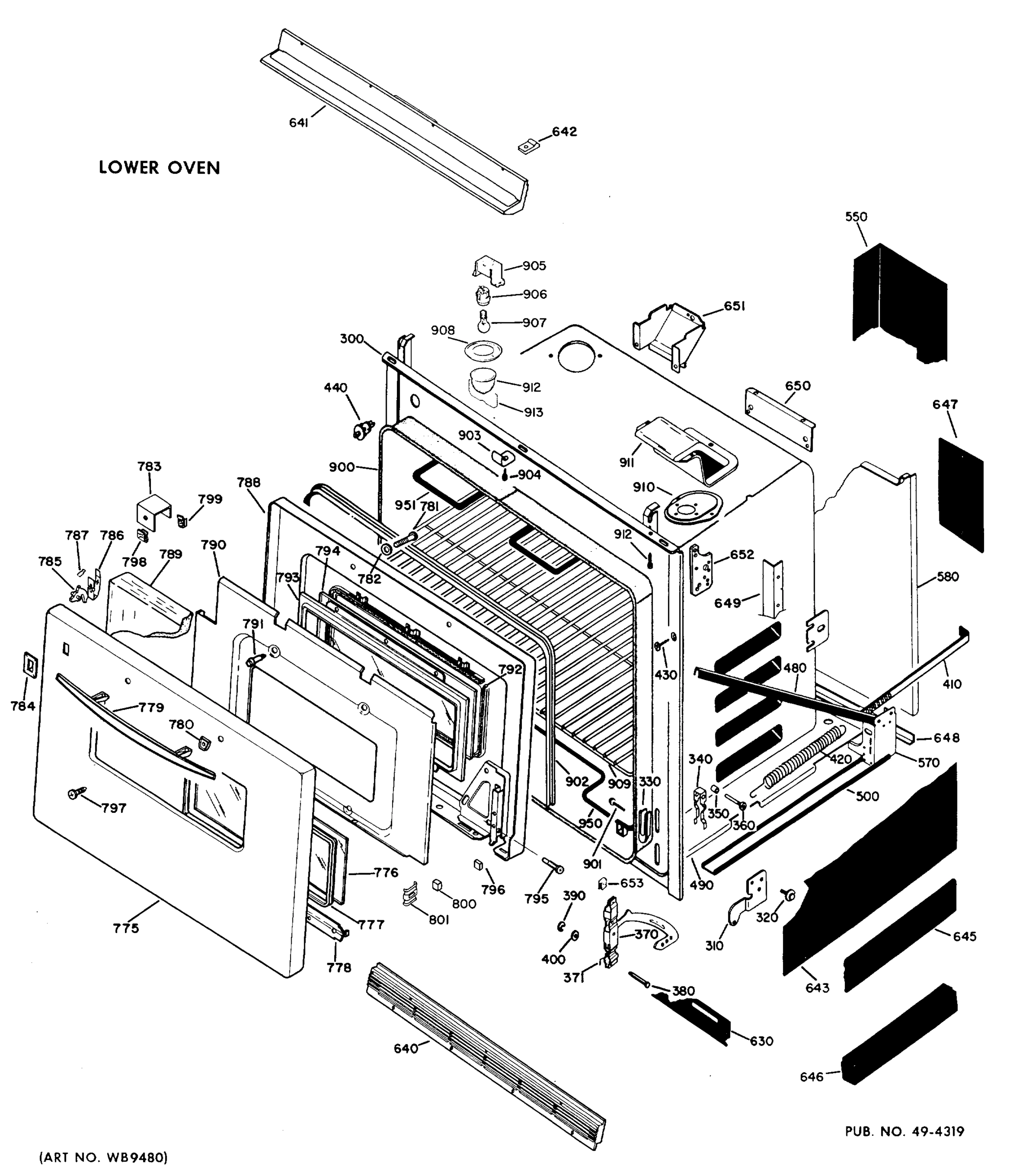

LOWER OVEN

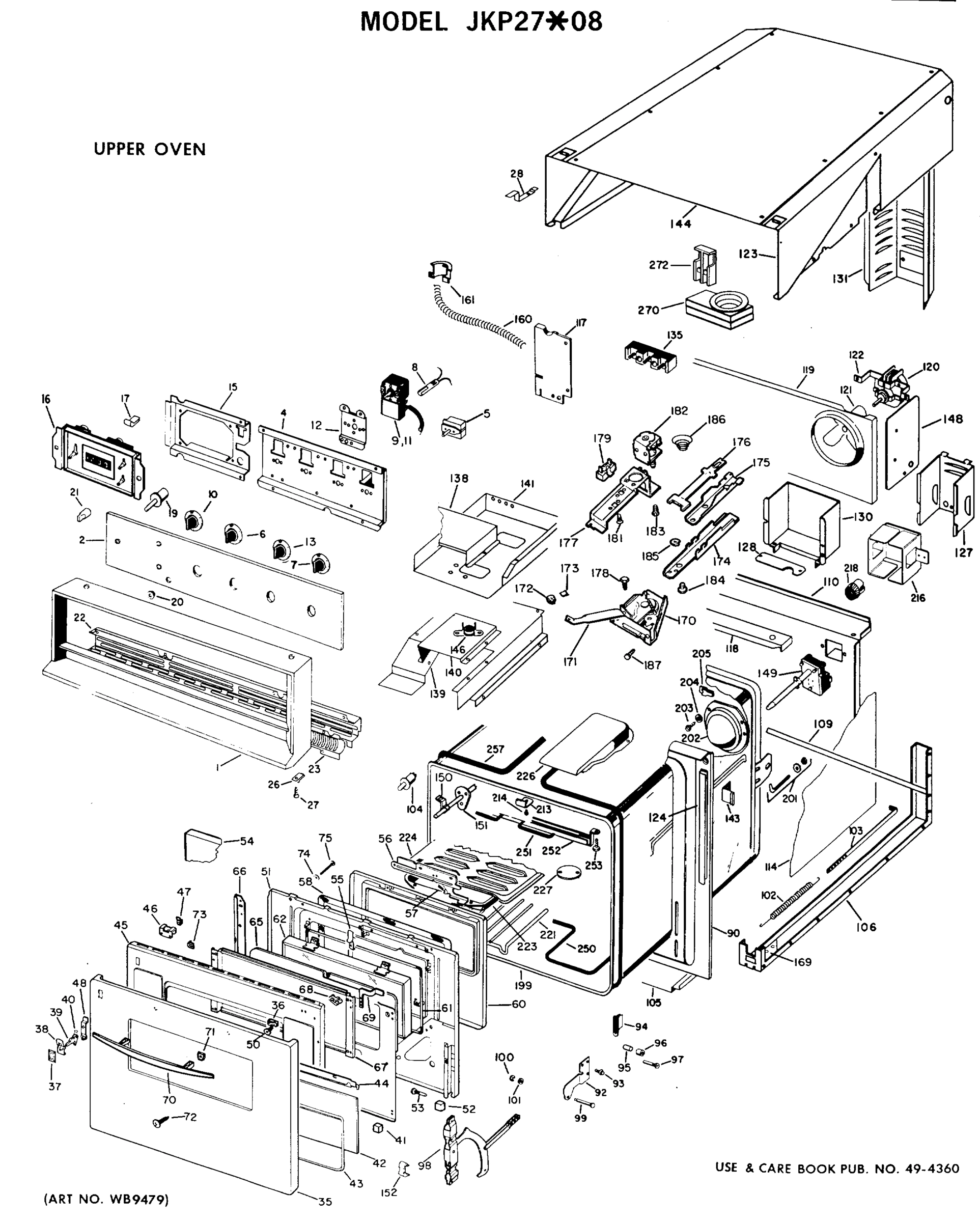

UPPER OVEN
Common parts from model GE JKP27*08 Electric Range
1
GEN WB02X3297 GEN WB02X3297 Contact Us For Availability
1
GEN WB07X1122 GEN WB07X1122 Contact Us For Availability
1
GEN WB07X1123 GEN WB07X1123 Contact Us For Availability
1
SCREW MT. NOSE GEN WZ05X0226 Contact Us For Availability
2
GEN WB36X0561 GEN WB36X0561 Contact Us For Availability
4
GEN WB02X3171 GEN WB02X3171 Contact Us For Availability
5
GEN WB22X0073 GEN WB22X0073 Contact Us For Availability
5
GEN WB22X5085 GEN WB22X5085 Contact Us For Availability
6
GEN WB03X0465 GEN WB03X0465 Contact Us For Availability
7
GEN WB03X0469 GEN WB03X0469 Contact Us For Availability
8
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
8
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
9
SCR 8-32 M PHR 3/16 S GEN WZ02X0528 Contact Us For Availability
9
GEN WB02X5545 GEN WB02X5545 Contact Us For Availability
9
GEN WB02X6937 GEN WB02X6937 Contact Us For Availability
9
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
10
GEN WB03X0466 GEN WB03X0466 Contact Us For Availability
11
SCR 8/32 TF FLR 5/16 S GEN WB01X0521 Contact Us For Availability
11
GEN WB02X3178 GEN WB02X3178 Contact Us For Availability
11
THERMOSTAT, L.O. GEN WB21X0178 Contact Us For Availability
12
GEN WB02X1949 GEN WB02X1949 Contact Us For Availability
13
GEN WB03X0470 GEN WB03X0470 Contact Us For Availability
15
NUT GEN WB01X5220 Contact Us For Availability
15
GEN WB02X3405 GEN WB02X3405 Contact Us For Availability
16
NUT GEN WB01X0540 Contact Us For Availability
17
GEN WB02X2006 GEN WB02X2006 Contact Us For Availability
19
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
20
TRIM - SWITCH GEN WB02X1838 Contact Us For Availability
21
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
22
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
23
GEN WB07X0635 GEN WB07X0635 Contact Us For Availability
23
GEN WZ05X0132 GEN WZ05X0132 Contact Us For Availability
26
GEN WB01X0544 GEN WB01X0544 Contact Us For Availability
27
GEN WZ04X0218 GEN WZ04X0218 Contact Us For Availability
28
GEN WB02X3291 GEN WB02X3291 Contact Us For Availability
28
GEN WZ04X0369 GEN WZ04X0369 Contact Us For Availability
28
GEN WZ04X0372 GEN WZ04X0372 Contact Us For Availability
35
GEN WB02X3306 GEN WB02X3306 Contact Us For Availability
35
GEN WB56X1366 GEN WB56X1366 Contact Us For Availability
35
GEN WB56X1367 GEN WB56X1367 Contact Us For Availability
35
GEN WB56X1368 GEN WB56X1368 Contact Us For Availability
35
GEN WB56X1369 GEN WB56X1369 Contact Us For Availability
35
GEN WB56X1370 GEN WB56X1370 Contact Us For Availability
36
SPEEDNUT GEN WB01X0365 Contact Us For Availability
37
TRIM PLATE GEN WB07X0273 Contact Us For Availability
38
GEN WB02X3307 GEN WB02X3307 Contact Us For Availability
39
GEN WB02X2248 GEN WB02X2248 Contact Us For Availability
40
CAM LINK GEN WB02X5217 Contact Us For Availability
42
GEN WB36X0430 GEN WB36X0430 Contact Us For Availability
43
GEN WB07X1031 GEN WB07X1031 Contact Us For Availability
44
GEN WB02X3282 GEN WB02X3282 Contact Us For Availability
45
GEN WB02X3424 GEN WB02X3424 Contact Us For Availability
45
GEN WB56X1386 GEN WB56X1386 Contact Us For Availability
45
GEN WB56X1387 GEN WB56X1387 Contact Us For Availability
45
GEN WB56X1388 GEN WB56X1388 Contact Us For Availability
45
GEN WB56X1389 GEN WB56X1389 Contact Us For Availability
45
GEN WB56X1390 GEN WB56X1390 Contact Us For Availability
46
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
47
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
48
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
51
GEN WB55X0406 GEN WB55X0406 Contact Us For Availability
52
PAD GEN WB02X3285 Contact Us For Availability
54
GEN WB02X3212 GEN WB02X3212 Contact Us For Availability
54
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
55
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
56
GEN WB02X3315 GEN WB02X3315 Contact Us For Availability
56
GEN WZ04X0289 GEN WZ04X0289 Contact Us For Availability
57
GEN WB09X0128 GEN WB09X0128 Contact Us For Availability
60
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
60
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
60
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
60
GEN WB55X0425 GEN WB55X0425 Contact Us For Availability
61
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
62
WINDOW GEN WB36X0448 Contact Us For Availability
65
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
66
GEN WB02X3317 GEN WB02X3317 Contact Us For Availability
66
GEN WB02X3318 GEN WB02X3318 Contact Us For Availability
67
GEN WB55X0408 GEN WB55X0408 Contact Us For Availability
68
GEN WB02X3040 GEN WB02X3040 Contact Us For Availability
68
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
69
GEN WB02X3319 GEN WB02X3319 Contact Us For Availability
69
GEN WB02X3320 GEN WB02X3320 Contact Us For Availability
70
GEN WB15X0152 GEN WB15X0152 Contact Us For Availability
71
GEN WB02X3322 GEN WB02X3322 Contact Us For Availability
72
GEN WZ05X0244 GEN WZ05X0244 Contact Us For Availability
73
GEN WB02X3323 GEN WB02X3323 Contact Us For Availability
75
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
90
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
90
GEN WZ04 GEN WZ04 Contact Us For Availability
252
SUPPORT BROIL UNIT GEN WB02X1452 Contact Us For Availability
300
GEN WB56X1326 GEN WB56X1326 Contact Us For Availability
310
HINGE SUPPORT - RH GEN WB10X0154 Contact Us For Availability
310
HINGE SUPPORT LH GEN WB10X0155 Contact Us For Availability
320
SCREW MTG. SUPPORT GEN WZ06X0086 Contact Us For Availability
330
HINGE LEVER GUIDE GEN WB02X1460 Contact Us For Availability
340
GEN WB02X1461 GEN WB02X1461 Contact Us For Availability
350
GEN WB02X1462 GEN WB02X1462 Contact Us For Availability
360
SCREW MTG. ROLLER GEN WB01X0352 Contact Us For Availability
370
HINGE LEVER KIT GEN WB10X0151 Contact Us For Availability
371
STOP SPRING GEN WB09X0150 Contact Us For Availability
380
HINGE PIN GEN WB02X6195 Contact Us For Availability
390
HINGE PIN RETAINER GEN WB02X1082 Contact Us For Availability
400
GEN WZ10X0017 GEN WZ10X0017 Contact Us For Availability
410
LINK GEN WB02X3289 Contact Us For Availability
420
SPRING GEN WB09X0151 Contact Us For Availability
430
SCREW - 3/4 GEN WB01X0292 Contact Us For Availability
430
SCREW 1-1/4 GEN WB01X0295 Contact Us For Availability
440
GEN WB24X0105 GEN WB24X0105 Contact Us For Availability
480
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
490
GEN WB59X0069 GEN WB59X0069 Contact Us For Availability
500
GEN WB59X0107 GEN WB59X0107 Contact Us For Availability
550
GEN WB59X0064 GEN WB59X0064 Contact Us For Availability
570
GEN WB59X0108 GEN WB59X0108 Contact Us For Availability
580
GEN WB59X0136 GEN WB59X0136 Contact Us For Availability
630
SUPPORT TRIM (05) GEN WB02X2064 Contact Us For Availability
630
GEN WB02X3467 GEN WB02X3467 Contact Us For Availability
640
TRIM (05) GEN WB07X0673 Contact Us For Availability
640
GEN WB07X1236 GEN WB07X1236 Contact Us For Availability
640
SCREW MTG. TRIM (05) GEN WZ04X0237 Contact Us For Availability
640
SCREW MTG. TRIM (06 - UP GEN WZ04X0349 Contact Us For Availability
641
GEN WB07X1124 GEN WB07X1124 Contact Us For Availability
642
GEN WB02X3298 GEN WB02X3298 Contact Us For Availability
643
CASE SIDE - RH & LH GEN WB59X0105 Contact Us For Availability
645
GEN WB59X0106 GEN WB59X0106 Contact Us For Availability
646
SPACER BOTTOM GEN WB02X2063 Contact Us For Availability
647
GEN WB59X0137 GEN WB59X0137 Contact Us For Availability
648
GEN WB59X0071 GEN WB59X0071 Contact Us For Availability
649
GEN WB02X3299 GEN WB02X3299 Contact Us For Availability
650
GEN WB02X3300 GEN WB02X3300 Contact Us For Availability
651
GEN WB02X3301 GEN WB02X3301 Contact Us For Availability
652
SUPPORT GEN WB02X3302 Contact Us For Availability
652
SCREW MOUNT GEN WB04X0231 Contact Us For Availability
653
SHIM GEN WB02X3403 Contact Us For Availability
775
GEN WB56X1361 GEN WB56X1361 Contact Us For Availability
775
GEN WB56X1362 GEN WB56X1362 Contact Us For Availability
775
GEN WB56X1363 GEN WB56X1363 Contact Us For Availability
775
GEN WB56X1364 GEN WB56X1364 Contact Us For Availability
775
GEN WB56X1365 GEN WB56X1365 Contact Us For Availability
783
GEN WB02X3324 GEN WB02X3324 Contact Us For Availability
784
TRIM GEN WB07X5022 Contact Us For Availability
785
TOGGLE GEN WB02X5410 Contact Us For Availability
786
SPRING GEN WB09X5083 Contact Us For Availability
788
GEN WB55X0402 GEN WB55X0402 Contact Us For Availability
789
LINER INSULATION GEN WB02X3283 Contact Us For Availability
790
INSULATION GUARD GEN WB55X0403 Contact Us For Availability
791
SCREW MTG. GUARD GEN WB01X0547 Contact Us For Availability
793
WINDOW FRAME GEN WB02X3284 Contact Us For Availability
794
WINDOW GEN WB36X0526 Contact Us For Availability
798
SPEEDNUT GEN WB01X0358 Contact Us For Availability
799
GEN WB01X0577 GEN WB01X0577 Contact Us For Availability
801
GEN WB02X6707 GEN WB02X6707 Contact Us For Availability
900
GEN WB02X3290 GEN WB02X3290 Contact Us For Availability
900
GEN WB53X0242 GEN WB53X0242 Contact Us For Availability
903
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
905
BRACKET, SUPPORT GEN WB02X3447 Contact Us For Availability
906
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
908
TRIM GEN WB02X3448 Contact Us For Availability
909
GEN WB48X0073 GEN WB48X0073 Contact Us For Availability
911
SCREW MTG. VENT GEN WB01X0556 Contact Us For Availability
911
GASKET VENT GEN WB38X0061 Contact Us For Availability
911
GEN WB38X0062 GEN WB38X0062 Contact Us For Availability
913
GEN WB02X2885 GEN WB02X2885 Contact Us For Availability
951
CAPILLARY TUBE CLIP GEN WB02X0596 Contact Us For Availability
951
GASKET BROIL UNIT GEN WB02X1543 Contact Us For Availability
951
SCREW MTG. SUPPORT GEN WZ05X0128 Contact Us For Availability
× ![]()
