Model GE JKP19G*K2 Electric Range – Common Parts & Diagrams

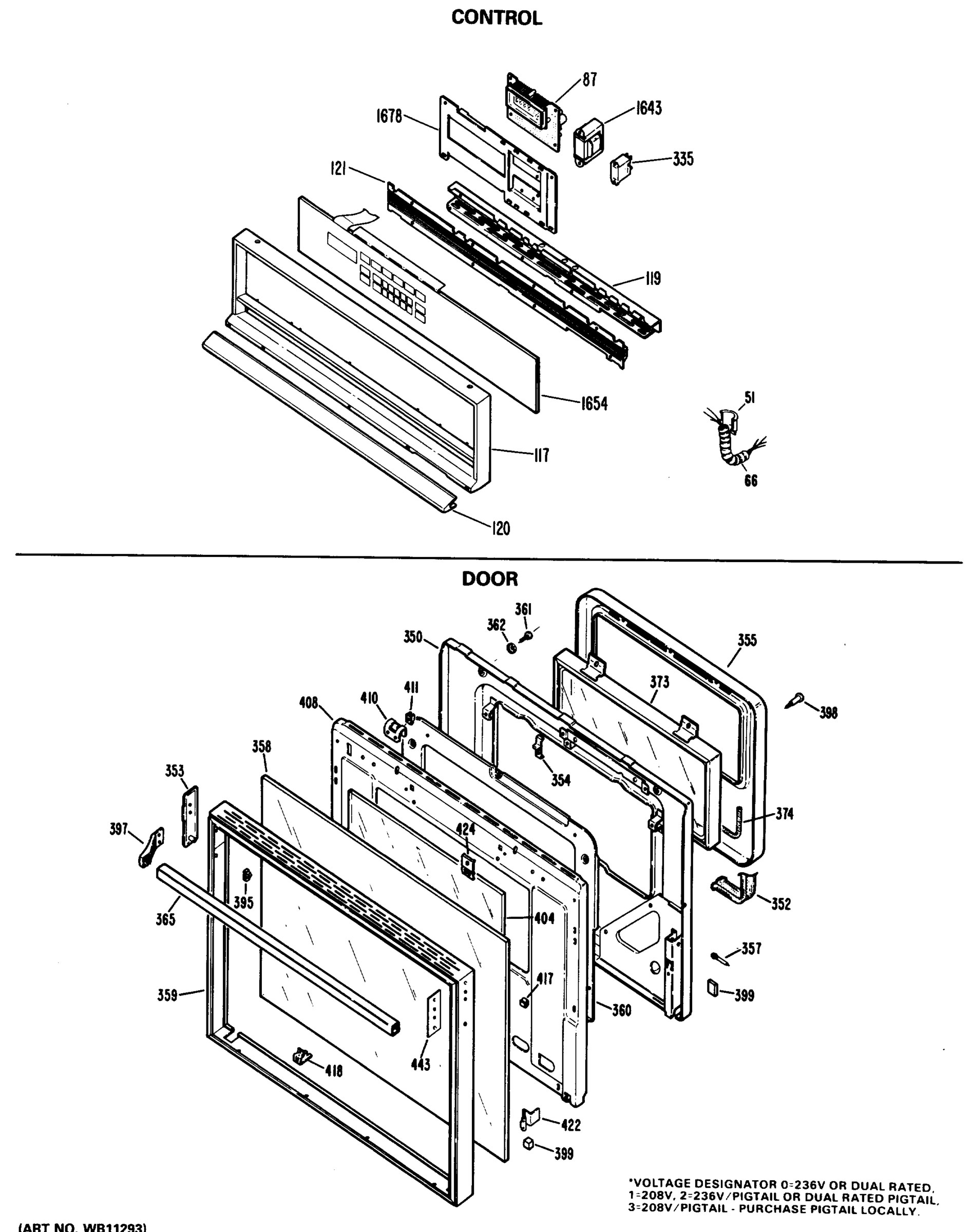

CONTROL

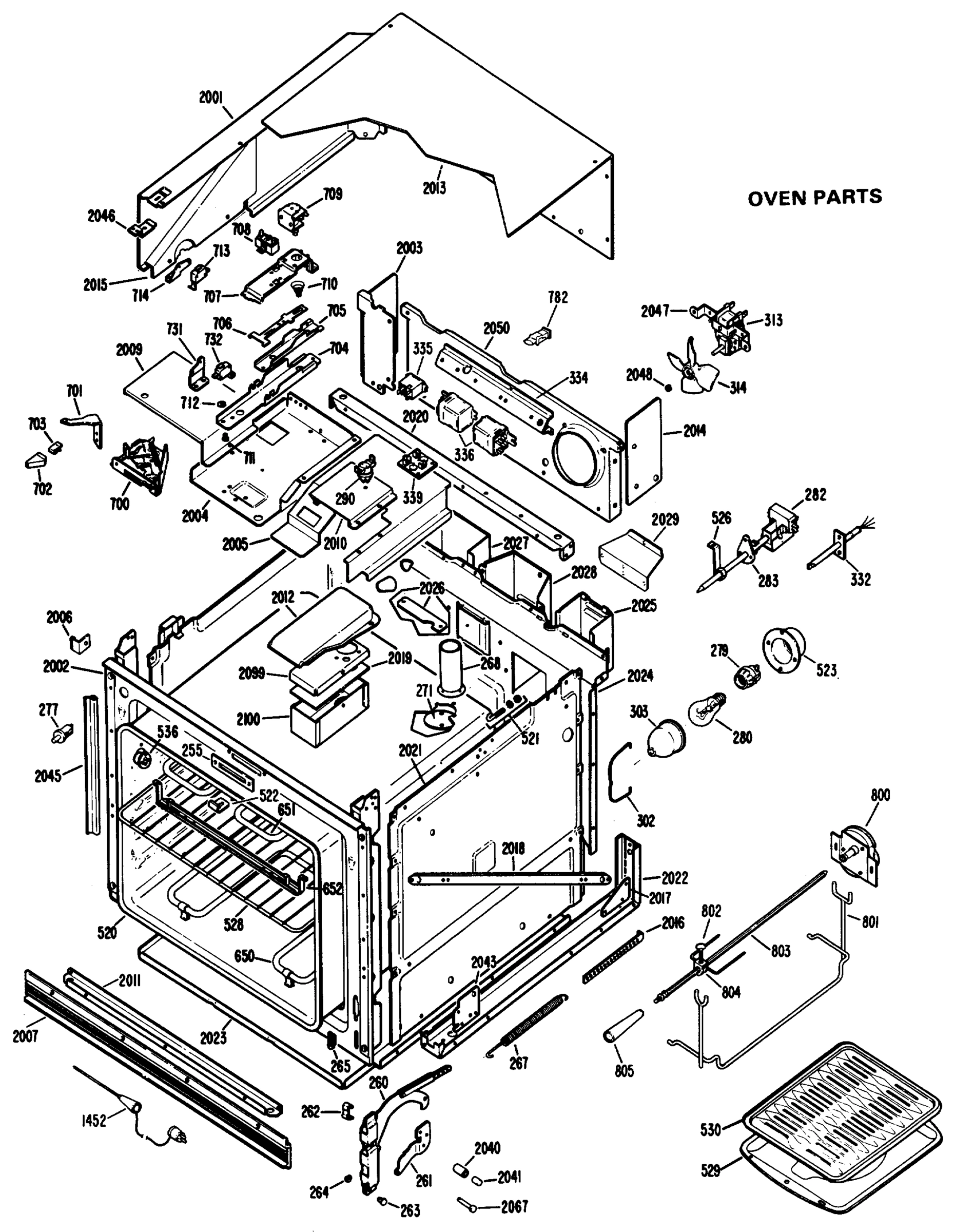

OVEN PARTS
Common parts from model GE JKP19G*K2 Electric Range
51
GEN WB02X2843 GEN WB02X2843 Contact Us For Availability
66
FLEXIBLE CONDUIT 3/8"X48 GEN OBT LOCAL Contact Us For Availability
84
GEN WB27X5417 GEN WB27X5417 Contact Us For Availability
117
GEN WB07X1122 GEN WB07X1122 Contact Us For Availability
119
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
120
GEN WB07X6973 GEN WB07X6973 Contact Us For Availability
121
GEN WB07X6974 GEN WB07X6974 Contact Us For Availability
255
GEN WB07X7023 GEN WB07X7023 Contact Us For Availability
260
HINGE LEVER RH & LH GEN WB10X0158 Contact Us For Availability
261
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
261
GEN WB10X0155 GEN WB10X0155 Contact Us For Availability
263
PIN HINGE GEN WB02X6195 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
267
GEN WB09X0156 GEN WB09X0156 Contact Us For Availability
268
GEN WB29X5018 GEN WB29X5018 Contact Us For Availability
271
COVER VENT GEN WB02X0818 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
282
GEN WB02X7290 GEN WB02X7290 Contact Us For Availability
282
GEN WB24X5164 GEN WB24X5164 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
290
GEN WB24X0199 GEN WB24X0199 Contact Us For Availability
302
BAIL GEN WB02X7694 Contact Us For Availability
313
GEN WB26X5052 GEN WB26X5052 Contact Us For Availability
314
GEN WB02X2001 GEN WB02X2001 Contact Us For Availability
332
SENSOR, OVEN GEN WB21X0158 Contact Us For Availability
334
GEN WB02X3481 GEN WB02X3481 Contact Us For Availability
335
GEN WB21X5222 GEN WB21X5222 Contact Us For Availability
336
GEN WB21X5256 GEN WB21X5256 Contact Us For Availability
339
GEN WB27X5293 GEN WB27X5293 Contact Us For Availability
350
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
350
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
350
GEN WB55X5318 GEN WB55X5318 Contact Us For Availability
353
GEN WB02X7806 GEN WB02X7806 Contact Us For Availability
353
GEN WB02X7807 GEN WB02X7807 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
355
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
355
GEN WB55X5338 GEN WB55X5338 Contact Us For Availability
358
GEN WB36X5628 GEN WB36X5628 Contact Us For Availability
359
GEN WB07X6979 GEN WB07X6979 Contact Us For Availability
360
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
361
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
365
GEN WB15X5168 GEN WB15X5168 Contact Us For Availability
373
GEN WB36X5495 GEN WB36X5495 Contact Us For Availability
374
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
395
GEN WB02X3053 GEN WB02X3053 Contact Us For Availability
397
SCREW MTG END CAP GEN WB01X5754 Contact Us For Availability
397
GEN WB07X6978 GEN WB07X6978 Contact Us For Availability
397
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
GEN WB02X3285 GEN WB02X3285 Contact Us For Availability
404
GEN WB36X5595 GEN WB36X5595 Contact Us For Availability
408
GEN WB55X5330 GEN WB55X5330 Contact Us For Availability
410
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
411
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
417
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
418
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
422
GEN WB02X7209 GEN WB02X7209 Contact Us For Availability
424
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
443
GEN WB02X7805 GEN WB02X7805 Contact Us For Availability
520
GEN WB02X1925 GEN WB02X1925 Contact Us For Availability
520
GEN WB02X2116 GEN WB02X2116 Contact Us For Availability
520
GEN WB53X5125 GEN WB53X5125 Contact Us For Availability
521
HOOK PACKAGE GEN WB09X0088 Contact Us For Availability
522
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
523
HOUSING RECEPTACLE GEN WB02X7693 Contact Us For Availability
526
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
528
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
536
GEN WB20X5057 GEN WB20X5057 Contact Us For Availability
541
COVER GEN WB02X7300 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
700
GEN WB14X5036 GEN WB14X5036 Contact Us For Availability
701
GEN WB15X0150 GEN WB15X0150 Contact Us For Availability
702
GEN WB03X5732 GEN WB03X5732 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X7717 GEN WB02X7717 Contact Us For Availability
705
GEN WB02X7718 GEN WB02X7718 Contact Us For Availability
706
PAWL LOCKING GEN WB02X7708 Contact Us For Availability
707
GEN WB02X7716 GEN WB02X7716 Contact Us For Availability
708
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
709
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
710
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
713
GEN WB24X5234 GEN WB24X5234 Contact Us For Availability
714
GEN WB02X3475 GEN WB02X3475 Contact Us For Availability
731
GEN WB02X7719 GEN WB02X7719 Contact Us For Availability
732
GEN WB24X5238 GEN WB24X5238 Contact Us For Availability
740
GEN WB02X7226 GEN WB02X7226 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
800
GEN WB26X5053 GEN WB26X5053 Contact Us For Availability
801
SUPPORT SPIT GEN WB48X0062 Contact Us For Availability
802
SCREW THUMB GEN WB01X0272 Contact Us For Availability
803
SPIT BLADE GEN WB02X1166 Contact Us For Availability
804
SKEWER ASM GEN WB02X1167 Contact Us For Availability
805
HANDLE SPIT GEN WB15X0080 Contact Us For Availability
1643
GEN WB27X5286 GEN WB27X5286 Contact Us For Availability
1654
GEN WB27X5439 GEN WB27X5439 Contact Us For Availability
1678
GEN WB02X7862 GEN WB02X7862 Contact Us For Availability
2001
GEN WB55X0304 GEN WB55X0304 Contact Us For Availability
2001
GEN WB55X0305 GEN WB55X0305 Contact Us For Availability
2002
GEN WB56X6066 GEN WB56X6066 Contact Us For Availability
2003
GEN WB02X2858 GEN WB02X2858 Contact Us For Availability
2004
GEN WB59X5028 GEN WB59X5028 Contact Us For Availability
2005
GEN WB59X0134 GEN WB59X0134 Contact Us For Availability
2006
GEN WB02X2104 GEN WB02X2104 Contact Us For Availability
2007
GEN WB07X6976 GEN WB07X6976 Contact Us For Availability
2009
GEN WB59X0165 GEN WB59X0165 Contact Us For Availability
2010
GEN WB02X3173 GEN WB02X3173 Contact Us For Availability
2011
GEN WB02X3425 GEN WB02X3425 Contact Us For Availability
2012
GEN WB38X0075 GEN WB38X0075 Contact Us For Availability
2013
GEN WB49X0330 GEN WB49X0330 Contact Us For Availability
2014
GEN WB02X2847 GEN WB02X2847 Contact Us For Availability
2015
GEN WB02X2402 GEN WB02X2402 Contact Us For Availability
2016
GEN WB02X3289 GEN WB02X3289 Contact Us For Availability
2017
GEN WB02X2861 GEN WB02X2861 Contact Us For Availability
2018
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
2019
GEN WB02X3292 GEN WB02X3292 Contact Us For Availability
2020
GEN WB02X2083 GEN WB02X2083 Contact Us For Availability
2021
GEN WB59X0164 GEN WB59X0164 Contact Us For Availability
2022
GEN WB59X0163 GEN WB59X0163 Contact Us For Availability
2023
GEN WB55X0302 GEN WB55X0302 Contact Us For Availability
2024
GEN WB49X0327 GEN WB49X0327 Contact Us For Availability
2025
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
2026
GEN WB02X2842 GEN WB02X2842 Contact Us For Availability
2027
GEN WB02X3156 GEN WB02X3156 Contact Us For Availability
2028
GEN WB49X0268 GEN WB49X0268 Contact Us For Availability
2029
GEN WB49X0223 GEN WB49X0223 Contact Us For Availability
2040
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
2041
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
2043
GEN WB02X3423 GEN WB02X3423 Contact Us For Availability
2045
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
2046
GEN WB02X3291 GEN WB02X3291 Contact Us For Availability
2047
GEN WB02 GEN WB02 Contact Us For Availability
32767
GEN 31-0672 GEN 31-0672 Contact Us For Availability
32767
GEN 49-4864 GEN 49-4864 Contact Us For Availability
× ![]()
