Model GE JKD915SK1SS Electric Range – Common Parts & Diagrams

Common parts from model GE JKD915SK1SS Electric Range

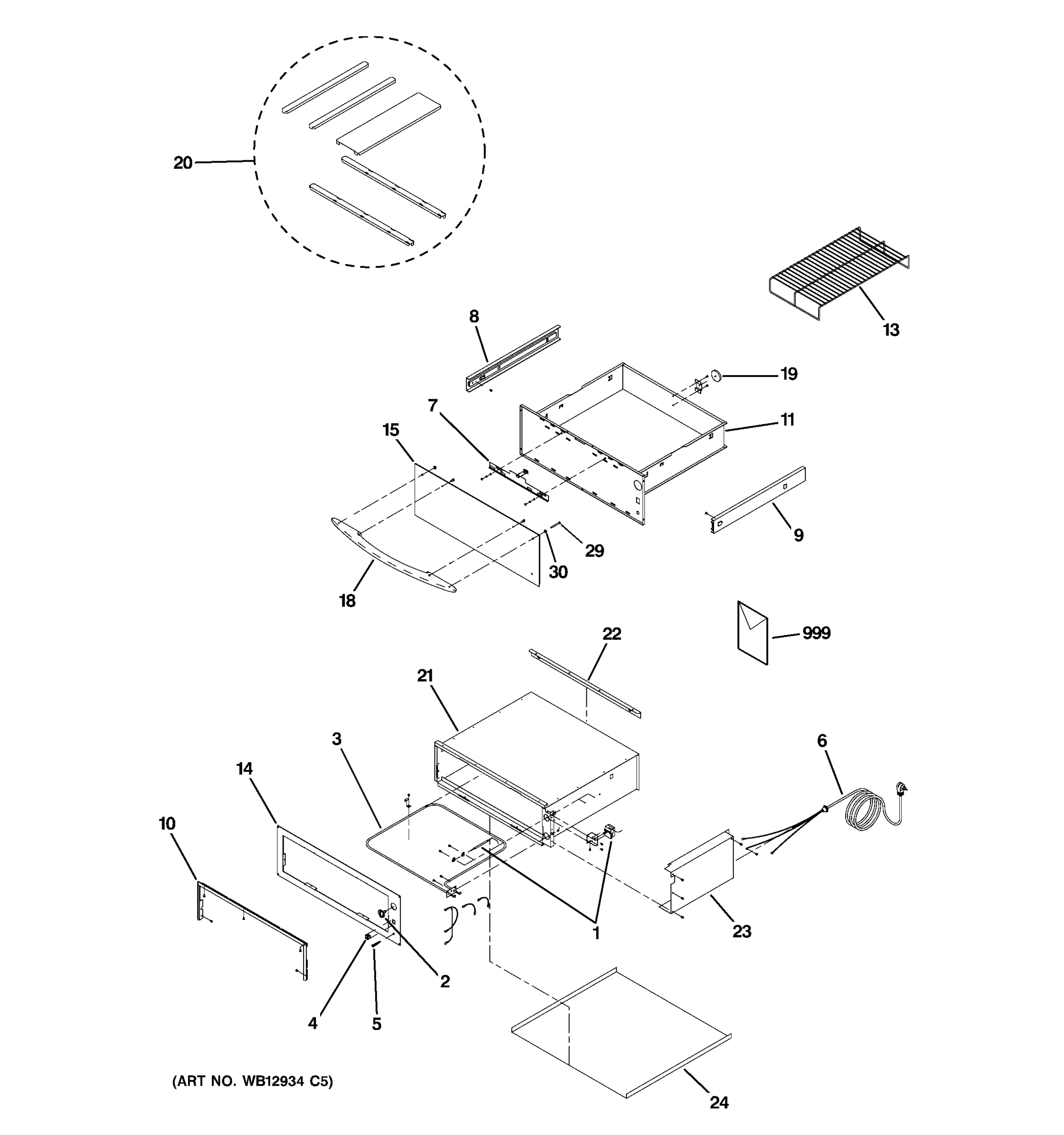

WARMING DRAWER

Print

• This Diagram
• All Diagrams

1

THERMOSTAT SERVICE ASS'Y GEN WB20X10011 Contact Us For Availability

View on Model

4

GEN WB24X10036 GEN WB24X10036 Contact Us For Availability

View on Model

6

GEN WB02X10588 GEN WB02X10588 Contact Us For Availability

View on Model

7

VENT SLIDE KNOB ASS'Y GEN WB03X10061 Contact Us For Availability

View on Model

8

GEN WB39X10014 GEN WB39X10014 Contact Us For Availability

View on Model

9

GEN WB39X10015 GEN WB39X10015 Contact Us For Availability

View on Model

10

GASKET SEAL 27" ASS'Y GEN WB02X10945 Contact Us For Availability

View on Model

11

WB58X10019 GE Oven Unitized Pan Weldment 27" Backorder GEN WB58X10019 View Details $343.85

View on Model

13

WB48X10045 GE Wire Rack Backorder GEN WB48X10045 View Details $179.34

View on Model

14

WB56X10118 GE 27" Face Panel Backorder GEN WB56X10118 View Details $247.46

View on Model

15

GEN WB55X10649 GEN WB55X10649 Contact Us For Availability

View on Model

18

GEN WB15T10130 GEN WB15T10130 Contact Us For Availability

View on Model

19

WB02X10592 GE Magnet Closed Detent Backorder GEN WB02X10592 View Details $190.61

View on Model

20

WB64X10031 GE Oven 27" Rail Kit Service Assem Backorder GEN WB64X10031 View Details $180.40

View on Model

21

GEN WB63X10046 GEN WB63X10046 Contact Us For Availability

View on Model

22

GEN WB02X11010 GEN WB02X11010 Contact Us For Availability

View on Model

23

GEN WB02X11007 GEN WB02X11007 Contact Us For Availability

View on Model

24

GEN WB02X11009 GEN WB02X11009 Contact Us For Availability

View on Model

29

WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head Backorder GEN WB01X10288 View Details $4.76

View on Model

30

GEN WB01X10289 GEN WB01X10289 Contact Us For Availability

View on Model

999

GEN 49-80300 GEN 49-80300 Contact Us For Availability

View on Model

×
