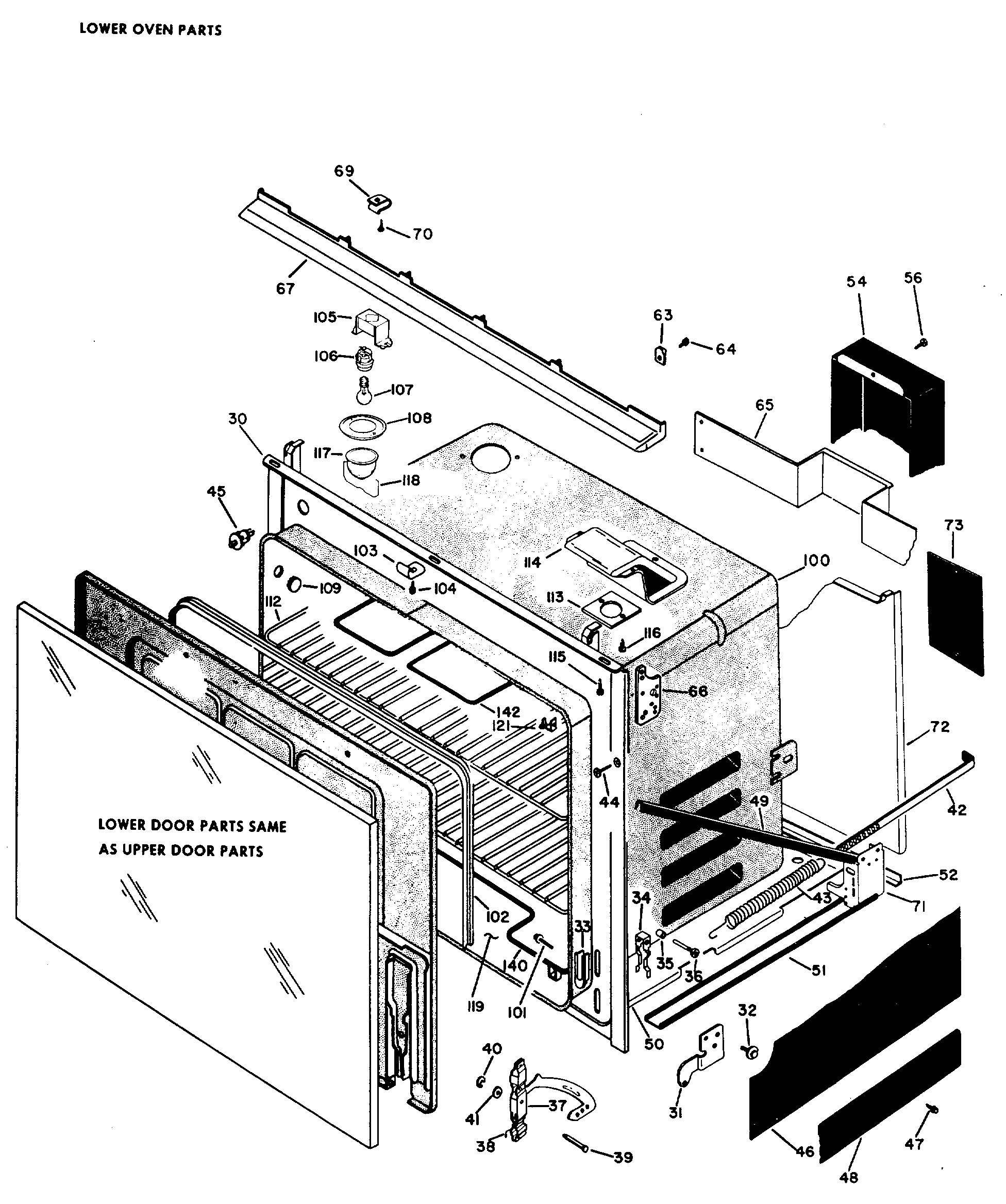

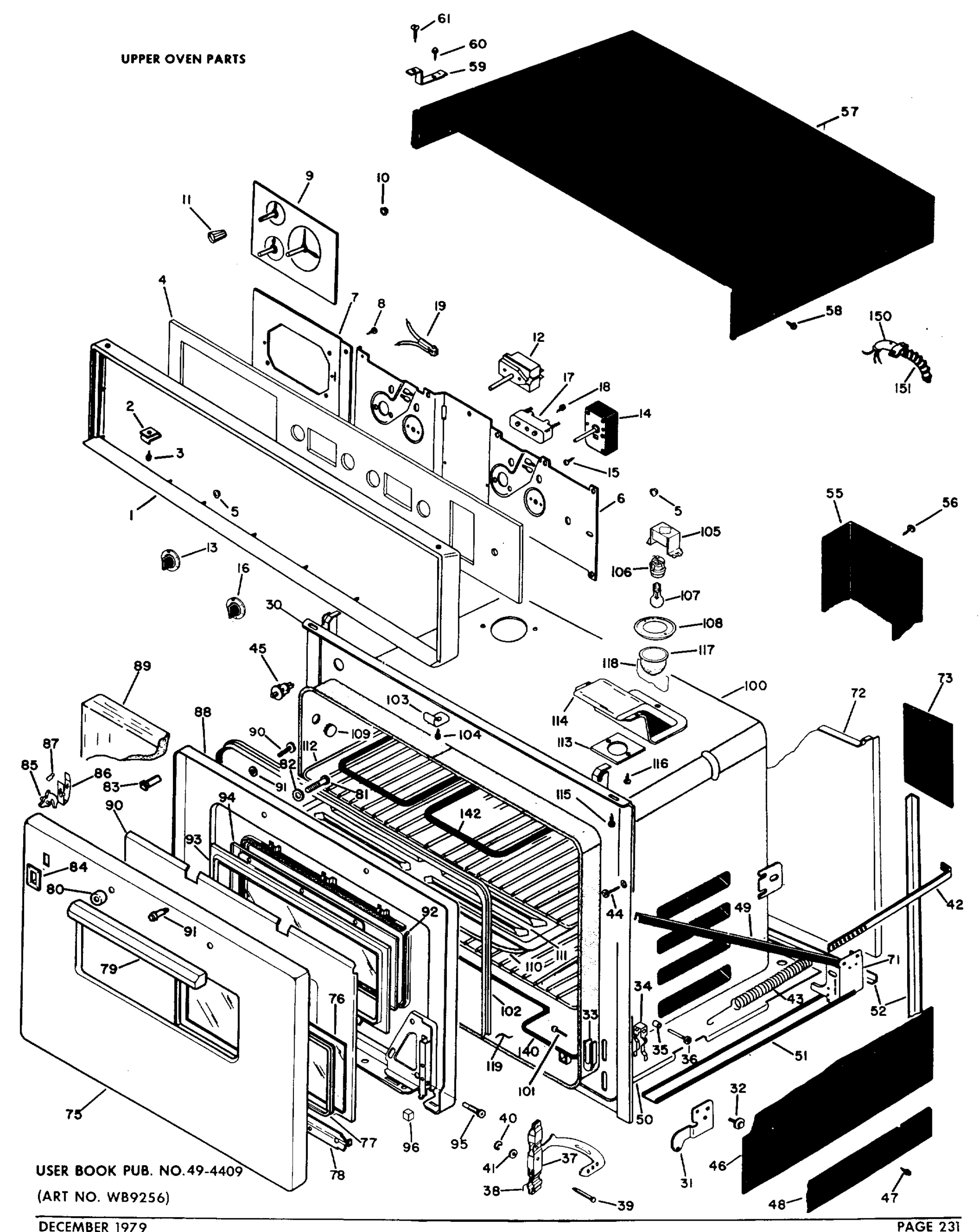

Model GE JKC26*04 – Common Parts & Diagrams
Common parts from model GE JKC26*04
1
GEN WB07X1121 GEN WB07X1121 Contact Us For Availability
2
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
3
GEN WZ04X0218 GEN WZ04X0218 Contact Us For Availability
4
GEN WB36X0537 GEN WB36X0537 Contact Us For Availability
5
GEN WB01X5221 GEN WB01X5221 Contact Us For Availability
6
GEN WB02X1632 GEN WB02X1632 Contact Us For Availability
7
GEN WB02X1392 GEN WB02X1392 Contact Us For Availability
8
GEN WZ04X0372 GEN WZ04X0372 Contact Us For Availability
9
GEN WB19X0127 GEN WB19X0127 Contact Us For Availability
10
CLIP MT. TIMER GEN WB01X0540 Contact Us For Availability
11
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
12
SWITCH, OVEN L.O. GEN WB22X0027 Contact Us For Availability
13
GEN WB02X0177 GEN WB02X0177 Contact Us For Availability
13
CLIP THERMOSTAT TUBE TO GEN WB02X1131 Contact Us For Availability
13
GEN WB02X1394 GEN WB02X1394 Contact Us For Availability
13
GEN WB03X0474 GEN WB03X0474 Contact Us For Availability
13
THERMOSTAT, L.O. GEN WB21X0178 Contact Us For Availability
15
SCR 8/32 TF FLR 5/16 S GEN WB01X0521 Contact Us For Availability
15
GEN WB03X0470 GEN WB03X0470 Contact Us For Availability
17
BLOCK TERM DISTRIBUTION GEN WB17X0167 Contact Us For Availability
18
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
19
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
30
GEN WB56X1326 GEN WB56X1326 Contact Us For Availability
31
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
31
GEN WB10X0155 GEN WB10X0155 Contact Us For Availability
32
SCREW MT. SUPPORT GEN WZ06X0086 Contact Us For Availability
33
HINGE LEVER GUIDE GEN WB02X1460 Contact Us For Availability
34
GEN WB02X1461 GEN WB02X1461 Contact Us For Availability
35
GEN WB02X1462 GEN WB02X1462 Contact Us For Availability
36
GEN WB01X0352 GEN WB01X0352 Contact Us For Availability
37
HINGE LEVER - RH GEN WB10X0151 Contact Us For Availability
38
STOP SPRING GEN WB09X0150 Contact Us For Availability
39
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
40
HINGE PIN RETAINER GEN WB02X1082 Contact Us For Availability
41
GEN WZ10X0017 GEN WZ10X0017 Contact Us For Availability
42
LINK GEN WB02X3289 Contact Us For Availability
43
GEN WB09X0151 GEN WB09X0151 Contact Us For Availability
44
GEN WB01X0292 GEN WB01X0292 Contact Us For Availability
44
SCREW 1-1/4" GEN WB01X0295 Contact Us For Availability
45
GEN WB24X0105 GEN WB24X0105 Contact Us For Availability
46
SIDE INSUL. GUARD RH & L GEN WB59X0105 Contact Us For Availability
48
SIDE COVER GEN WB59X0106 Contact Us For Availability
49
GEN WB59X0068 GEN WB59X0068 Contact Us For Availability
50
GEN WB59X0069 GEN WB59X0069 Contact Us For Availability
50
INSULATION GUARD GEN WB59X0154 Contact Us For Availability
51
GEN WB59X0107 GEN WB59X0107 Contact Us For Availability
52
REAR ANGLE GEN WB59X0071 Contact Us For Availability
54
TERMINAL GUARD GEN WB59X0089 Contact Us For Availability
55
GUARD TERMINAL GEN WB59X0064 Contact Us For Availability
56
SCREW MT. GUARD GEN WB01X0575 Contact Us For Availability
57
GEN WB59X0168 GEN WB59X0168 Contact Us For Availability
59
GEN WB02X1457 GEN WB02X1457 Contact Us For Availability
60
GEN WZ04X0362 GEN WZ04X0362 Contact Us For Availability
61
GEN WZ04X0369 GEN WZ04X0369 Contact Us For Availability
65
GEN WB59X0065 GEN WB59X0065 Contact Us For Availability
66
GEN WB02X3302 GEN WB02X3302 Contact Us For Availability
67
GEN WB07X1148 GEN WB07X1148 Contact Us For Availability
69
GEN WB02X3298 GEN WB02X3298 Contact Us For Availability
71
GEN WB59X0108 GEN WB59X0108 Contact Us For Availability
72
BACK COVER GEN WB59X0136 Contact Us For Availability
73
COVER PLATE GEN WB59X0137 Contact Us For Availability
75
GEN WB56X1356 GEN WB56X1356 Contact Us For Availability
75
GEN WB56X1357 GEN WB56X1357 Contact Us For Availability
75
GEN WB56X1358 GEN WB56X1358 Contact Us For Availability
75
GEN WB56X1359 GEN WB56X1359 Contact Us For Availability
75
GEN WB56X1360 GEN WB56X1360 Contact Us For Availability
76
GEN WB36X0430 GEN WB36X0430 Contact Us For Availability
77
GEN WB07X1031 GEN WB07X1031 Contact Us For Availability
78
GEN WB02X3282 GEN WB02X3282 Contact Us For Availability
79
GEN WB15X0094 GEN WB15X0094 Contact Us For Availability
80
SPACER GEN WB02X1404 Contact Us For Availability
81
GEN WZ04X0298 GEN WZ04X0298 Contact Us For Availability
83
SPACER PANEL GEN WB02X6204 Contact Us For Availability
84
TRIM PLATE LOWER OVEN GEN WB07X5022 Contact Us For Availability
85
GEN WB02X5410 GEN WB02X5410 Contact Us For Availability
86
GEN WB09X5083 GEN WB09X5083 Contact Us For Availability
87
CAM LINK GEN WB02X5217 Contact Us For Availability
88
GEN WB55X0143 GEN WB55X0143 Contact Us For Availability
89
GEN WB02X3283 GEN WB02X3283 Contact Us For Availability
90
GEN WB55X0403 GEN WB55X0403 Contact Us For Availability
91
GEN WB01X0547 GEN WB01X0547 Contact Us For Availability
92
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
93
GEN WB02X3284 GEN WB02X3284 Contact Us For Availability
94
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
96
PAD GEN WB02X3285 Contact Us For Availability
100
GEN WB02X0596 GEN WB02X0596 Contact Us For Availability
100
OVEN LINER INSUL. PKG. GEN WB02X3417 Contact Us For Availability
100
GEN WB53X0249 GEN WB53X0249 Contact Us For Availability
101
SCREW MT. LINER TO FRAME GEN WB01X0556 Contact Us For Availability
103
GEN WB02X2482 GEN WB02X2482 Contact Us For Availability
104
GEN WZ04X0221 GEN WZ04X0221 Contact Us For Availability
105
BRACKET, SUPPORT GEN WB02X3447 Contact Us For Availability
106
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
108
TRIM GEN WB02X3448 Contact Us For Availability
109
PLUG BUTTON ROUND GEN WB02X1125 Contact Us For Availability
109
PLUG BUTTON SHIELD SHAPE GEN WB02X2831 Contact Us For Availability
111
GEN WB48 GEN WB48 Contact Us For Availability
112
OVEN SHELF GEN WB48X0073 Contact Us For Availability
113
GEN WB38X0061 GEN WB38X0061 Contact Us For Availability
114
GEN WB38X0062 GEN WB38X0062 Contact Us For Availability
115
SCREW - VENT TRIM GEN WR02X0561 Contact Us For Availability
116
SCREW - VENT LINER GEN WB01X0275 Contact Us For Availability
118
GEN WB02X2885 GEN WB02X2885 Contact Us For Availability
142
BROIL UNIT SUPPORT - FRO GEN WB02X1452 Contact Us For Availability
× ![]()
