Model GE JK29*08 – Common Parts & Diagrams

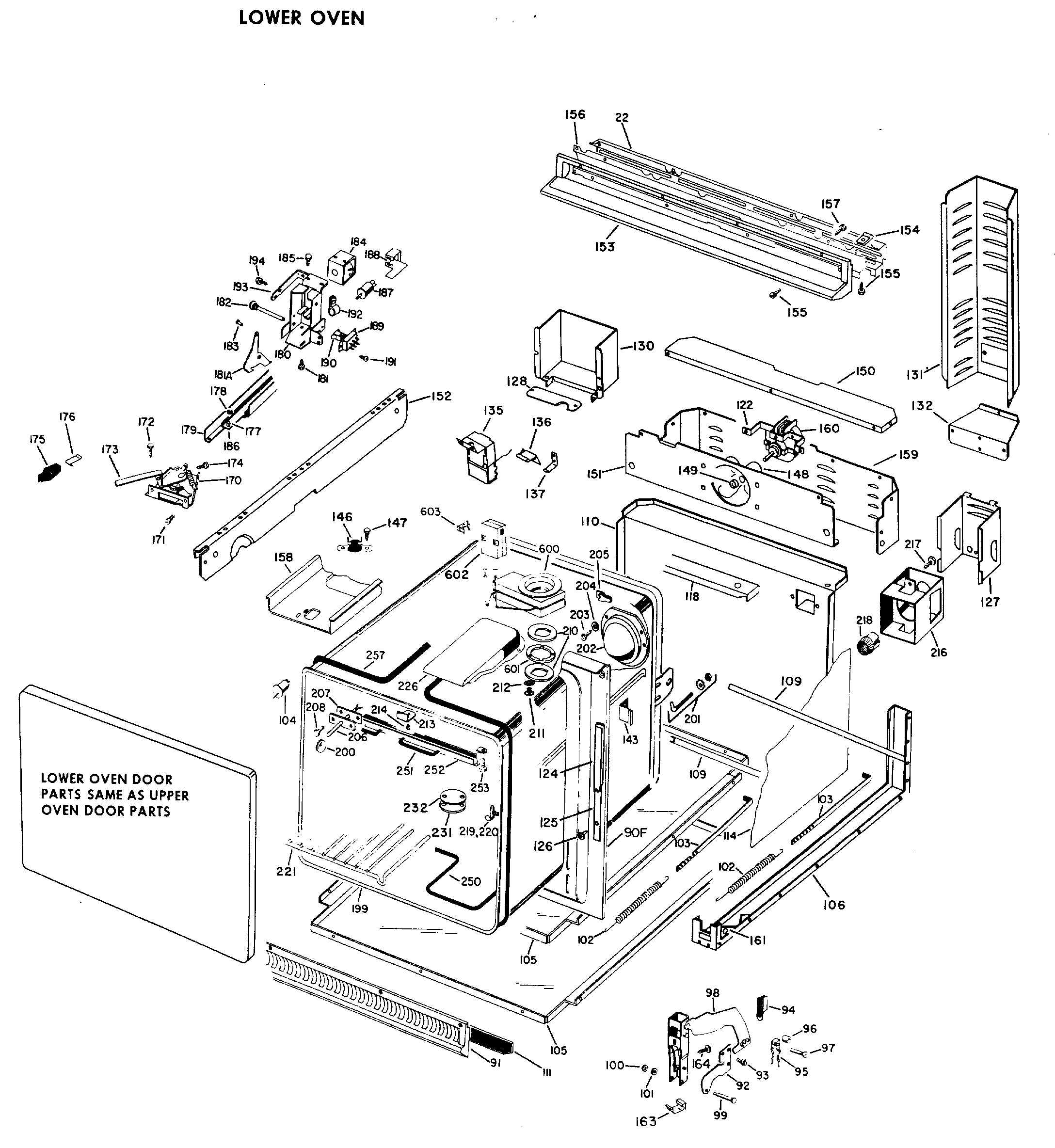

LOWER OVEN

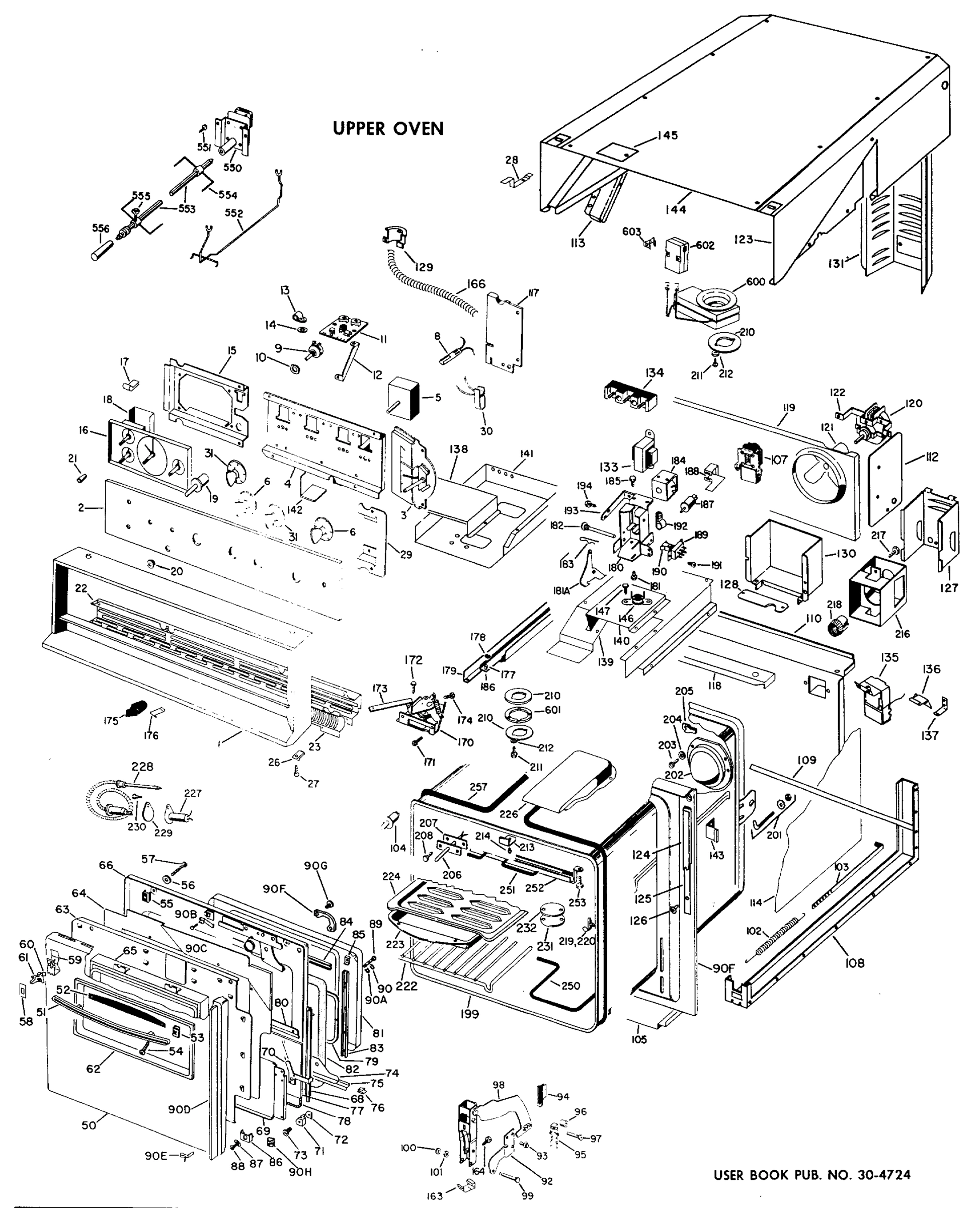

UPPER OVEN
Common parts from model GE JK29*08
1
GEN WB07X0634 GEN WB07X0634 Contact Us For Availability
2
GEN WB36X0236 GEN WB36X0236 Contact Us For Availability
3
GEN WB20X0038 GEN WB20X0038 Contact Us For Availability
4
GEN WB02X2120 GEN WB02X2120 Contact Us For Availability
5
GEN WB22X0053 GEN WB22X0053 Contact Us For Availability
5
GEN WB22X0055 GEN WB22X0055 Contact Us For Availability
5
SCREW MT. SW. GEN WZ02X0495 Contact Us For Availability
6
GEN WB03X0315 GEN WB03X0315 Contact Us For Availability
6
GEN WB03X0317 GEN WB03X0317 Contact Us For Availability
8
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
8
LAMP, INDICATOR GEN WB02X1609 Contact Us For Availability
9
GEN WB24X0153 GEN WB24X0153 Contact Us For Availability
10
NUT GEN WB01X0443 Contact Us For Availability
11
GEN WB24X0151 GEN WB24X0151 Contact Us For Availability
12
SCR 6-20 AB HXW 1/4 S GEN WZ04X0279 Contact Us For Availability
12
GEN WB02X2409 GEN WB02X2409 Contact Us For Availability
13
CLAMP HARNESS GEN WB02X1406 Contact Us For Availability
14
GEN WB01X0445 GEN WB01X0445 Contact Us For Availability
15
GEN WB02X2079 GEN WB02X2079 Contact Us For Availability
16
GEN WB19X0083 GEN WB19X0083 Contact Us For Availability
17
GEN WB02X2006 GEN WB02X2006 Contact Us For Availability
18
GEN WB02X2007 GEN WB02X2007 Contact Us For Availability
19
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
20
TRIM - SWITCH GEN WB02X1838 Contact Us For Availability
21
KNOB, TIMER GEN WB03X0218 Contact Us For Availability
22
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
23
GEN WZ05X0132 GEN WZ05X0132 Contact Us For Availability
23
GEN WB07X0635 GEN WB07X0635 Contact Us For Availability
24
GEN WB07X0598 GEN WB07X0598 Contact Us For Availability
26
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
27
GEN WZ04X0218 GEN WZ04X0218 Contact Us For Availability
28
GEN WB02X1457 GEN WB02X1457 Contact Us For Availability
28
GEN WZ04X0222 GEN WZ04X0222 Contact Us For Availability
28
SCREW MT. BRKT. TO TOP GEN WZ04X0282 Contact Us For Availability
29
GEN WB02X2407 GEN WB02X2407 Contact Us For Availability
30
GEN WB08X0163 GEN WB08X0163 Contact Us For Availability
50
GEN WB02X2267 GEN WB02X2267 Contact Us For Availability
50
GEN WB56X0772 GEN WB56X0772 Contact Us For Availability
50
GEN WB56X0776 GEN WB56X0776 Contact Us For Availability
50
GEN WB56X0777 GEN WB56X0777 Contact Us For Availability
50
GEN WB56X0778 GEN WB56X0778 Contact Us For Availability
50
GEN WB56X0849 GEN WB56X0849 Contact Us For Availability
51
GEN WB15X0121 GEN WB15X0121 Contact Us For Availability
52
GEN WB07X0519 GEN WB07X0519 Contact Us For Availability
53
GEN WB01X0440 GEN WB01X0440 Contact Us For Availability
55
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
57
GEN WZ02X0492 GEN WZ02X0492 Contact Us For Availability
58
TRIM PLATE GEN WB07X0273 Contact Us For Availability
59
GEN WB02X2249 GEN WB02X2249 Contact Us For Availability
60
GEN WB02X2250 GEN WB02X2250 Contact Us For Availability
61
GEN WB02X2248 GEN WB02X2248 Contact Us For Availability
62
GEN WB01X0239 GEN WB01X0239 Contact Us For Availability
62
GEN WB07X0695 GEN WB07X0695 Contact Us For Availability
63
GEN WB02X1867 GEN WB02X1867 Contact Us For Availability
63
GEN WB55X0227 GEN WB55X0227 Contact Us For Availability
64
GEN WB55X0223 GEN WB55X0223 Contact Us For Availability
65
GEN WB36X0270 GEN WB36X0270 Contact Us For Availability
66
GEN WB55X0229 GEN WB55X0229 Contact Us For Availability
66
GEN WB55X0327 GEN WB55X0327 Contact Us For Availability
66
GEN WB55X0342 GEN WB55X0342 Contact Us For Availability
67
GEN WB09X0099 GEN WB09X0099 Contact Us For Availability
68
GUIDE ASM. RH GEN WB02X2251 Contact Us For Availability
68
GUIDE ASM. LH GEN WB02X2252 Contact Us For Availability
69
GEN WB55X0218 GEN WB55X0218 Contact Us For Availability
70
GEN WB02X2272 GEN WB02X2272 Contact Us For Availability
70
GEN WB02X2273 GEN WB02X2273 Contact Us For Availability
70
SCR 8-32 M PT 1/4 S GEN WZ05X0179 Contact Us For Availability
71
GEN WB02X2255 GEN WB02X2255 Contact Us For Availability
72
SIDE CLIP GEN WB02X2256 Contact Us For Availability
73
GEN WZ02X0513 GEN WZ02X0513 Contact Us For Availability
74
GEN WB02X2269 GEN WB02X2269 Contact Us For Availability
74
GEN WB04X0231 GEN WB04X0231 Contact Us For Availability
75
GEN WB02X2274 GEN WB02X2274 Contact Us For Availability
76
GEN WB02X1132 GEN WB02X1132 Contact Us For Availability
77
GEN WB36X0277 GEN WB36X0277 Contact Us For Availability
78
GEN WB02X2257 GEN WB02X2257 Contact Us For Availability
79
GEN WB07X0693 GEN WB07X0693 Contact Us For Availability
80
GEN WB02X2275 GEN WB02X2275 Contact Us For Availability
81
GEN WB02X2270 GEN WB02X2270 Contact Us For Availability
81
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
81
GEN WB55X0230 GEN WB55X0230 Contact Us For Availability
81
GEN WB55X0326 GEN WB55X0326 Contact Us For Availability
82
GEN WB02X2076 GEN WB02X2076 Contact Us For Availability
83
CHNL. LONG SIDE (02-03) GEN WB02X1797 Contact Us For Availability
84
CHNL. SHORT SIDE (02-03) GEN WB02X1796 Contact Us For Availability
84
GEN WB02X2009 GEN WB02X2009 Contact Us For Availability
85
BRACKET (02-03) GEN WB02X1801 Contact Us For Availability
85
SCR 8-18 B HXW 3/8 S GEN WZ06X0082 Contact Us For Availability
86
BRACKET (02-03) GEN WB02 Contact Us For Availability
90
BRACKET GASKET (08 UP) GEN WB02X2941 Contact Us For Availability
91
BOTTOM GEN WB07X0636 Contact Us For Availability
92
HINGE SUPPORT RH GEN WB10X0120 Contact Us For Availability
92
HINGE SUPPORT LH GEN WB10X0121 Contact Us For Availability
93
GEN WB01X0351 GEN WB01X0351 Contact Us For Availability
94
HINGE LEVER GUIDE GEN WB02X1460 Contact Us For Availability
95
SPRING GEN WB02X1983 Contact Us For Availability
96
GEN WB02X1462 GEN WB02X1462 Contact Us For Availability
96
GEN WB02X2794 GEN WB02X2794 Contact Us For Availability
97
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
98
GEN WB02X1115 GEN WB02X1115 Contact Us For Availability
98
GEN WB02X1116 GEN WB02X1116 Contact Us For Availability
98
GEN WB02X1117 GEN WB02X1117 Contact Us For Availability
98
GEN WB10X0122 GEN WB10X0122 Contact Us For Availability
98
GEN WB10X0123 GEN WB10X0123 Contact Us For Availability
99
GEN WB02X1081 GEN WB02X1081 Contact Us For Availability
100
HINGE PIN RETAINER GEN WB02X1082 Contact Us For Availability
101
GEN WZ10X0017 GEN WZ10X0017 Contact Us For Availability
102
DOOR SPRING GEN WB09X0101 Contact Us For Availability
103
GEN WB09X0127 GEN WB09X0127 Contact Us For Availability
104
SWITCH DOOR GEN WB24X0105 Contact Us For Availability
105
BOTTOM OUTER INNER GEN WB55X0302 Contact Us For Availability
106
CHANNEL & SPACER RH,LH GEN WB59X0163 Contact Us For Availability
109
SIDE BRACE RH,LH GEN WB02X2401 Contact Us For Availability
110
BACK INNER GEN WB49X0265 Contact Us For Availability
111
TRIM BRACKET GEN WB02X2082 Contact Us For Availability
114
SIDE INNER - RH,LH GEN WB59X0164 Contact Us For Availability
118
GEN WB02X1981 GEN WB02X1981 Contact Us For Availability
122
BRACKET MT. FAN GEN WB02X2846 Contact Us For Availability
122
GEN WZ05X0131 GEN WZ05X0131 Contact Us For Availability
124
GEN WB02X2848 GEN WB02X2848 Contact Us For Availability
125
GEN WB02X2849 GEN WB02X2849 Contact Us For Availability
126
RIVET GEN WB01X0523 Contact Us For Availability
127
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
128
PLATE GEN WB02X2842 Contact Us For Availability
130
GEN WB02X2844 GEN WB02X2844 Contact Us For Availability
131
GUARD GEN WB49X0268 Contact Us For Availability
132
CAP GUARD GEN WB49X0223 Contact Us For Availability
135
TEMPERATURE SWITCH GEN WB24X0160 Contact Us For Availability
136
BRACKET GEN WB02X2826 Contact Us For Availability
137
SUPPORT GEN WB02X2827 Contact Us For Availability
143
SPACER - FRAME GEN WB02X2104 Contact Us For Availability
146
THERMO - FIXED GEN WB24X0134 Contact Us For Availability
148
GEN WB02X2282 GEN WB02X2282 Contact Us For Availability
150
GEN WB49X0269 GEN WB49X0269 Contact Us For Availability
151
GEN WB49X0275 GEN WB49X0275 Contact Us For Availability
152
GEN WB49X0266 GEN WB49X0266 Contact Us For Availability
153
GEN WB07X0729 GEN WB07X0729 Contact Us For Availability
155
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
156
GEN WB07X0697 GEN WB07X0697 Contact Us For Availability
158
GEN WB49X0195 GEN WB49X0195 Contact Us For Availability
159
GEN WB49X0276 GEN WB49X0276 Contact Us For Availability
160
GEN WB26X0035 GEN WB26X0035 Contact Us For Availability
161
GEN WB02X2861 GEN WB02X2861 Contact Us For Availability
170
LOCK ASM. GEN WB14X5035 Contact Us For Availability
172
SCREW MT. LATCH GEN WZ04X0256 Contact Us For Availability
173
GEN WB15X0098 GEN WB15X0098 Contact Us For Availability
174
GEN WB01X0438 GEN WB01X0438 Contact Us For Availability
175
GEN WB03X0268 GEN WB03X0268 Contact Us For Availability
176
GEN WB02X2118 GEN WB02X2118 Contact Us For Availability
177
GEN WB02X1822 GEN WB02X1822 Contact Us For Availability
178
GEN WB02X1800 GEN WB02X1800 Contact Us For Availability
179
CHANNEL LATCH - LOWER LA GEN WB02X2037 Contact Us For Availability
179
CHANNEL LATCH - UPPER LA GEN WB02X2073 Contact Us For Availability
180
BRACKET MOUNTING GEN WB02X2035 Contact Us For Availability
181
LOCKING LEVER GEN WB02X2032 Contact Us For Availability
181
SCREW MT. BRACKET GEN WZ04X0289 Contact Us For Availability
182
SCREW - BEARING GEN WB01X0428 Contact Us For Availability
183
RIVET GEN WZ09X0014 Contact Us For Availability
184
SOLENOID COIL GEN WB24X0125 Contact Us For Availability
185
GEN WZ02X0500 GEN WZ02X0500 Contact Us For Availability
186
LOCK BAR - LOWER LATCH GEN WB02X2036 Contact Us For Availability
186
LOCK BAR - UPPER LATCH GEN WB02X2072 Contact Us For Availability
187
SWITCH LOCK GEN WB24X0131 Contact Us For Availability
188
GEN WB02X2114 GEN WB02X2114 Contact Us For Availability
189
GEN WB02X2033 GEN WB02X2033 Contact Us For Availability
189
GEN WB24X0130 GEN WB24X0130 Contact Us For Availability
190
GEN WB02X2034 GEN WB02X2034 Contact Us For Availability
191
GEN WZ05X0152 GEN WZ05X0152 Contact Us For Availability
192
CLAMP GEN WB02X1422 Contact Us For Availability
193
GEN WB02X2056 GEN WB02X2056 Contact Us For Availability
199
OVEN LNS. GEN WB02X2116 Contact Us For Availability
199
OVEN LINER (06) GEN WB53X0155 Contact Us For Availability
199
OVEN LINER (07 UP) GEN WB53X0197 Contact Us For Availability
200
PLUG BUTTON - LG. GEN WB02X1957 Contact Us For Availability
200
PLUG BUTTON - SM. GEN WB02X1959 Contact Us For Availability
201
OVEN HOOK PKG. GEN WB09X0088 Contact Us For Availability
202
LAMP COVER ASM. GEN WB36 Contact Us For Availability
× ![]()
