Model Maytag JJW9627BAS ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

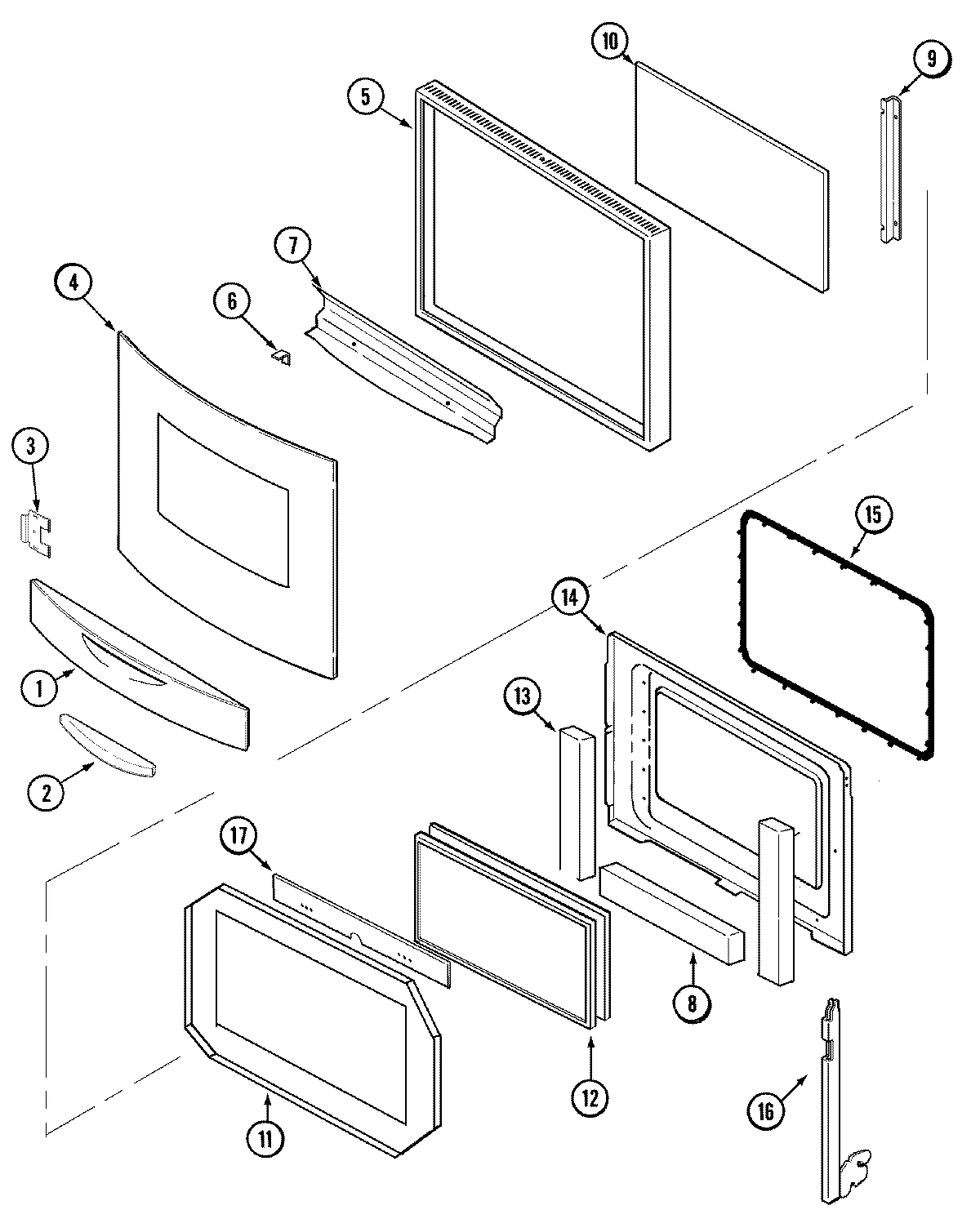

03 - DOOR (UPPER & LOWER)

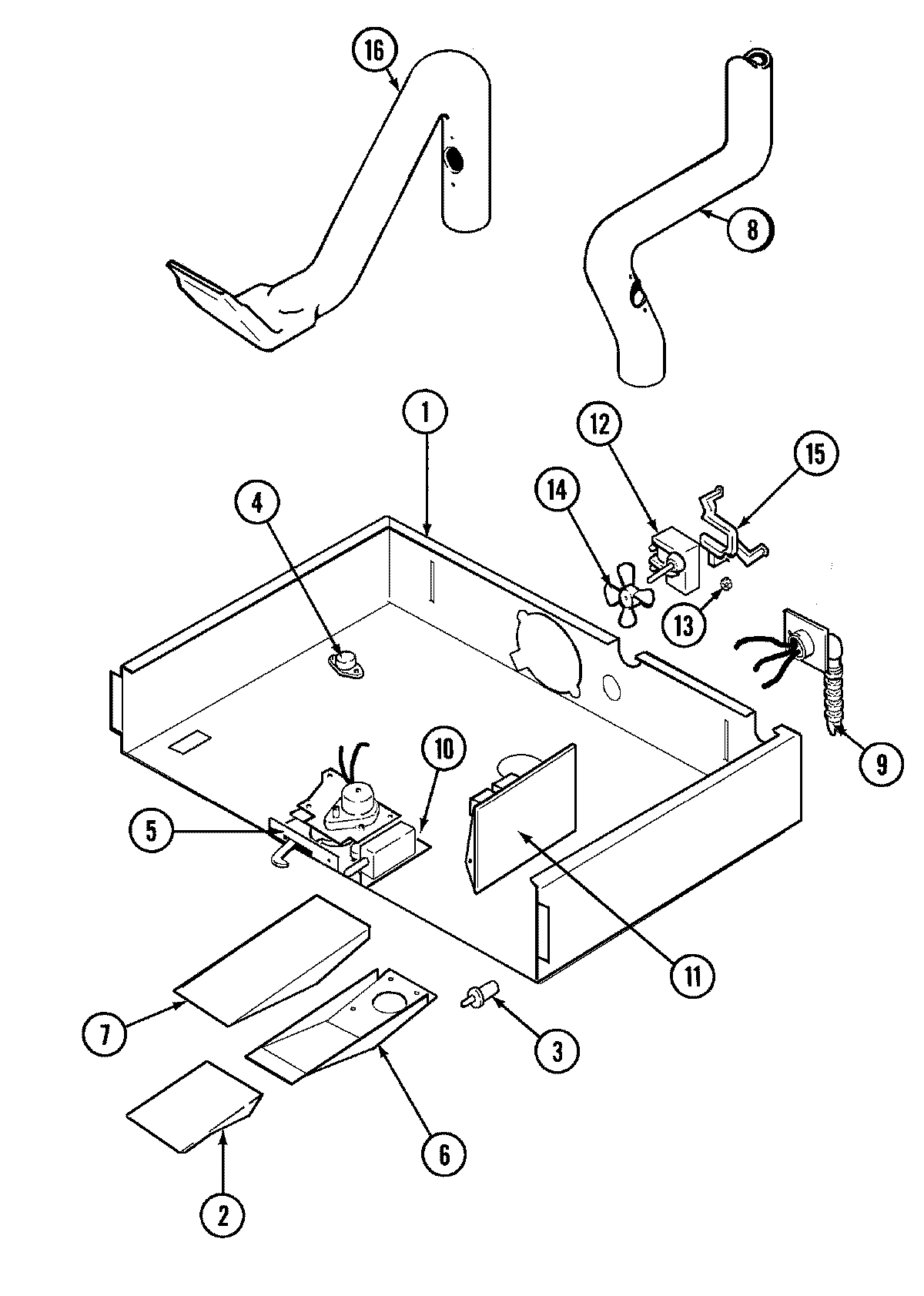

04 - INTERNAL CONTROLS

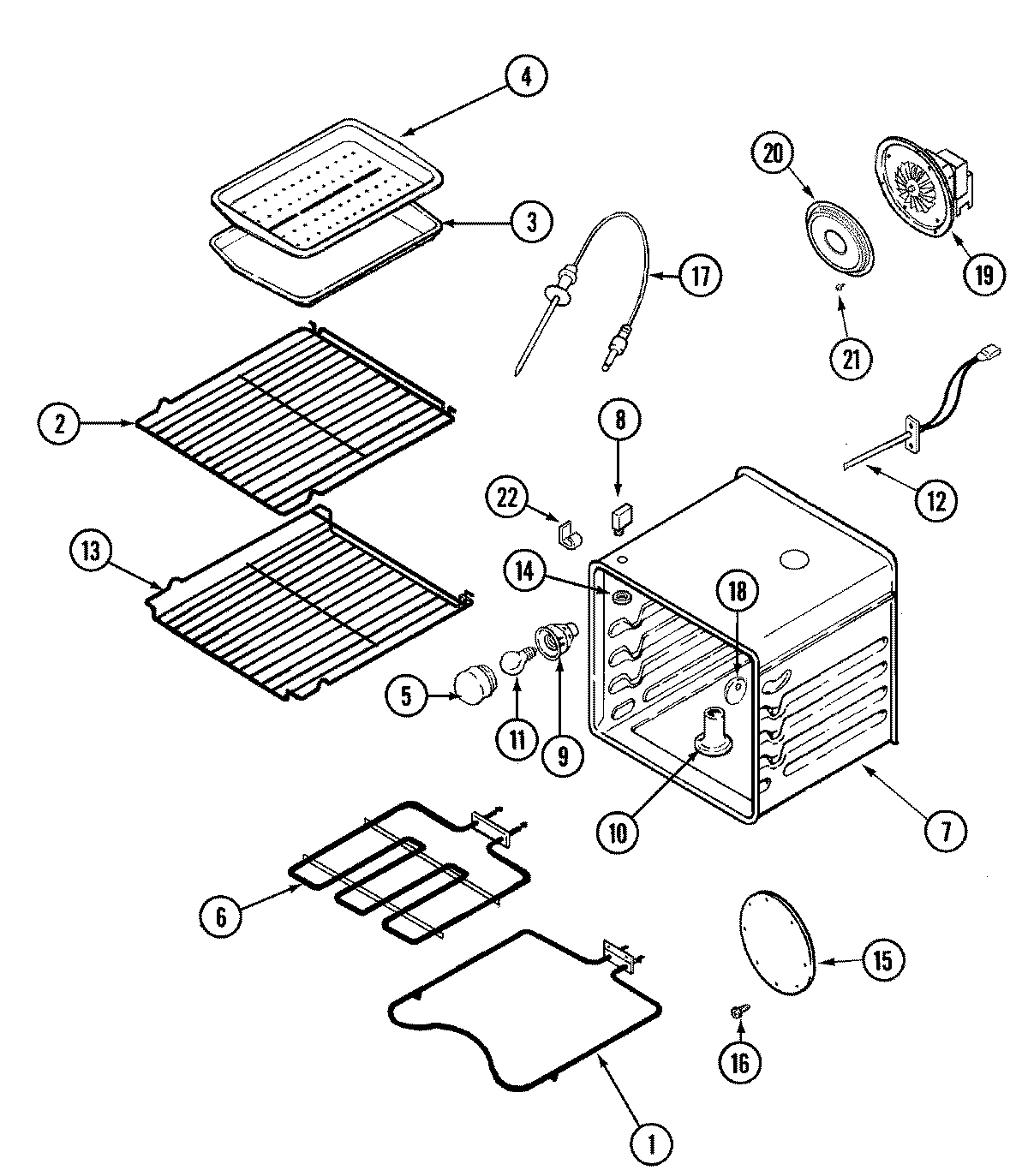

05 - OVEN

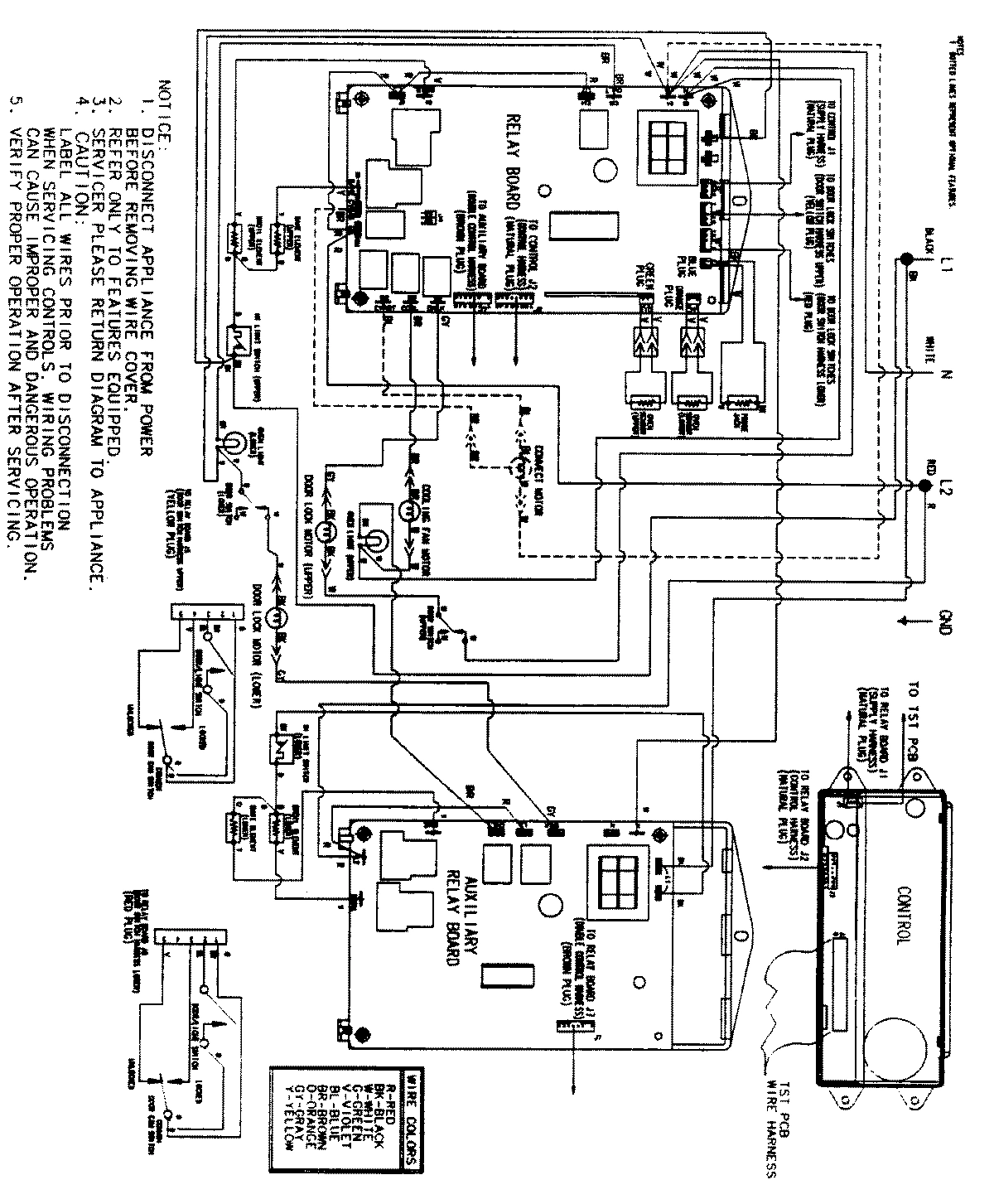

06 - WIRING INFORMATION
Common parts from model Maytag JJW9627BAS ELECTRIC WALL OVEN
1
MAY 71003466 MAY 71003466 Contact Us For Availability
1
MAY 74005591 MAY 74005591 Contact Us For Availability
1
MAY 74004615 MAY 74004615 Contact Us For Availability
2
MAY 71003449 MAY 71003449 Contact Us For Availability
2
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
2
MAY 7109P036-60 MAY 7109P036-60 Contact Us For Availability
2
MAY 74005592 MAY 74005592 Contact Us For Availability
2
MAY 71001843 MAY 71001843 Contact Us For Availability
2
MAY Y704660 MAY Y704660 Contact Us For Availability
3
MAY 71003386 MAY 71003386 Contact Us For Availability
3
MAY 71001129 MAY 71001129 Contact Us For Availability
3
MAY 3401F014-19 MAY 3401F014-19 Contact Us For Availability
3
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
4
MAY 74005626 MAY 74005626 Contact Us For Availability
4
MAY 71001946 MAY 71001946 Contact Us For Availability
4
MAY 74005610 MAY 74005610 Contact Us For Availability
4
MAY 71001887 MAY 71001887 Contact Us For Availability
4
MAY 703165 MAY 703165 Contact Us For Availability
4
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
5
MAY 71001845 MAY 71001845 Contact Us For Availability
5
MAY 74005627 MAY 74005627 Contact Us For Availability
5
MAY 71001798 MAY 71001798 Contact Us For Availability
5
MAY 71001808 MAY 71001808 Contact Us For Availability
5
MAY 71001809 MAY 71001809 Contact Us For Availability
5
MAY 71001861 MAY 71001861 Contact Us For Availability
5
MAY 71001868 MAY 71001868 Contact Us For Availability
5
MAY 71001876 MAY 71001876 Contact Us For Availability
5
MAY 71001877 MAY 71001877 Contact Us For Availability
5
MAY 71001892 MAY 71001892 Contact Us For Availability
5
MAY 71003403 MAY 71003403 Contact Us For Availability
5
MAY 71003404 MAY 71003404 Contact Us For Availability
5
MAY 74005197 MAY 74005197 Contact Us For Availability
5
MAY 74005199 MAY 74005199 Contact Us For Availability
5
MAY 71003446 MAY 71003446 Contact Us For Availability
5
MAY 74006315 MAY 74006315 Contact Us For Availability
5
MAY 71001867 MAY 71001867 Contact Us For Availability
6
MAY 71003185 MAY 71003185 Contact Us For Availability
6
MAY 71003508 MAY 71003508 Contact Us For Availability
6
MAY 74005475 MAY 74005475 Contact Us For Availability
6
MAY 74005656 MAY 74005656 Contact Us For Availability
6
MAY 71001831 MAY 71001831 Contact Us For Availability
6
MAY Y700725 MAY Y700725 Contact Us For Availability
6
MAY 71001846 MAY 71001846 Contact Us For Availability
7
MAY 71003396 MAY 71003396 Contact Us For Availability
7
GASKET, WINDOW MAY 790058 Contact Us For Availability
7
MAY 71001847 MAY 71001847 Contact Us For Availability
7
MAY 71001403 MAY 71001403 Contact Us For Availability
7
MAY 71003006 MAY 71003006 Contact Us For Availability
8
MAY 74004616 MAY 74004616 Contact Us For Availability
8
MAY 71001969 MAY 71001969 Contact Us For Availability
8
MAY 71002418 MAY 71002418 Contact Us For Availability
8
MAY 71001863 MAY 71001863 Contact Us For Availability
9
MAY 71003411 MAY 71003411 Contact Us For Availability
9
MAY Y04100669 MAY Y04100669 Contact Us For Availability
9
MAY 74003650 MAY 74003650 Contact Us For Availability
9
MAY 71001888 MAY 71001888 Contact Us For Availability
9
MAY 71001866 MAY 71001866 Contact Us For Availability
10
MAY 71002904 MAY 71002904 Contact Us For Availability
10
MAY 71001812 MAY 71001812 Contact Us For Availability
10
MAY 74005637 MAY 74005637 Contact Us For Availability
10
MAY 71002419 MAY 71002419 Contact Us For Availability
11
MAY 71003425 MAY 71003425 Contact Us For Availability
11
MAY 715634 MAY 715634 Contact Us For Availability
11
MAY 74005638 MAY 74005638 Contact Us For Availability
11
MAY 71003399 MAY 71003399 Contact Us For Availability
11
MAY 71003402 MAY 71003402 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY 71001960 MAY 71001960 Contact Us For Availability
12
MAY 74005639 MAY 74005639 Contact Us For Availability
12
MAY 71001851 MAY 71001851 Contact Us For Availability
12
MAY 71003083 MAY 71003083 Contact Us For Availability
13
MAY 71001963 MAY 71001963 Contact Us For Availability
13
MAY 71001839 MAY 71001839 Contact Us For Availability
13
MAY Y704662 MAY Y704662 Contact Us For Availability
14
MAY 71002227 MAY 71002227 Contact Us For Availability
14
MAY 74005615 MAY 74005615 Contact Us For Availability
14
MAY 71001852 MAY 71001852 Contact Us For Availability
14
MAY Y703356 MAY Y703356 Contact Us For Availability
15
MAY 71001853 MAY 71001853 Contact Us For Availability
15
MAY 71002903 MAY 71002903 Contact Us For Availability
16
MAY 71002417 MAY 71002417 Contact Us For Availability
17
MAY 702731 MAY 702731 Contact Us For Availability
17
MAY 74005614 MAY 74005614 Contact Us For Availability
18
MAY 74004226 MAY 74004226 Contact Us For Availability
18
MAY 702929 MAY 702929 Contact Us For Availability
19
MAY 74005657 MAY 74005657 Contact Us For Availability
20
MAY 74005658 MAY 74005658 Contact Us For Availability
21
MAY 71001394 MAY 71001394 Contact Us For Availability
21
MAY 702592 MAY 702592 Contact Us For Availability
22
MAY 71001170 MAY 71001170 Contact Us For Availability
NI
MAY 15002513 MAY 15002513 Contact Us For Availability
× ![]()
