Model Maytag JJW9530DDS31 ELECTRIC WALL OVEN – Common Parts & Diagrams

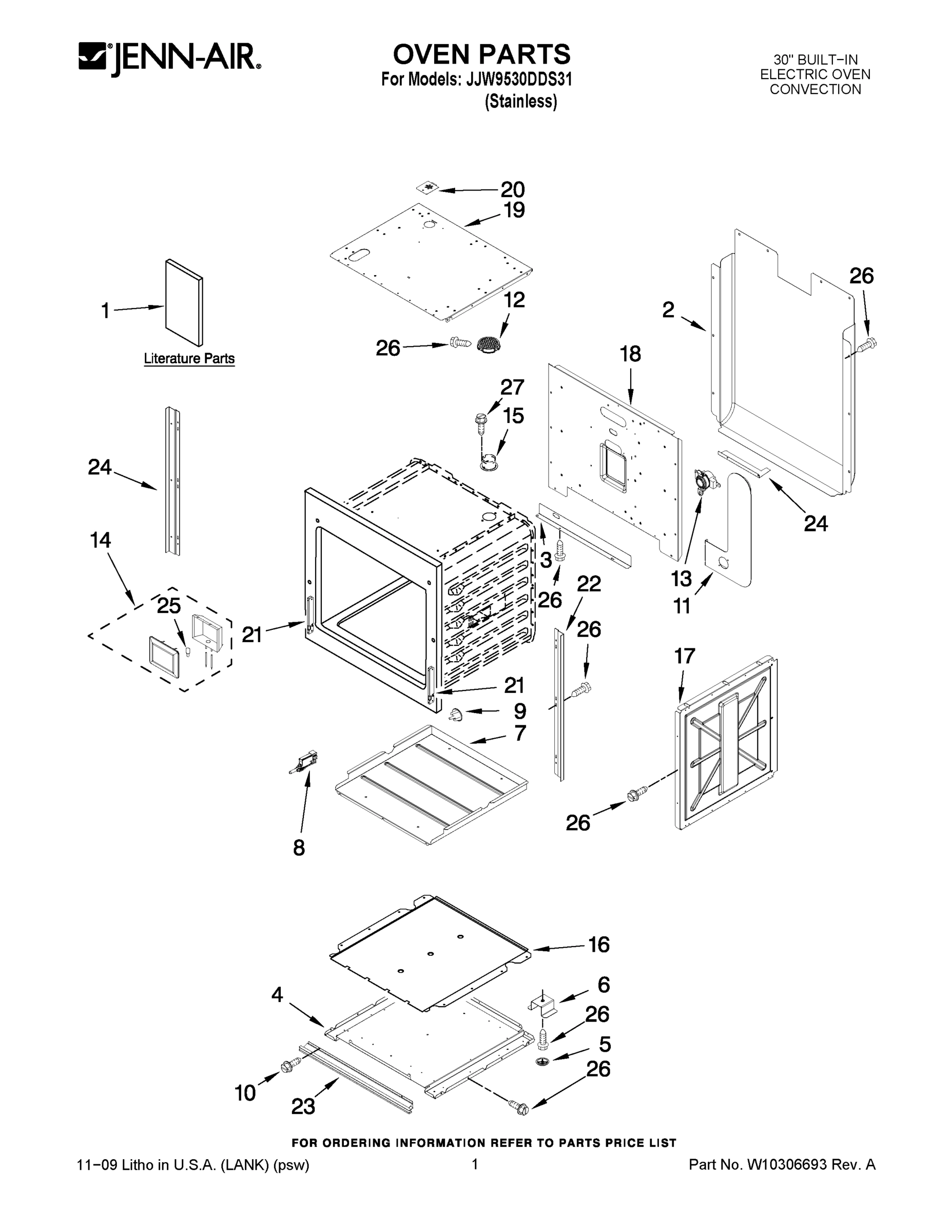

01 - OVEN PARTS

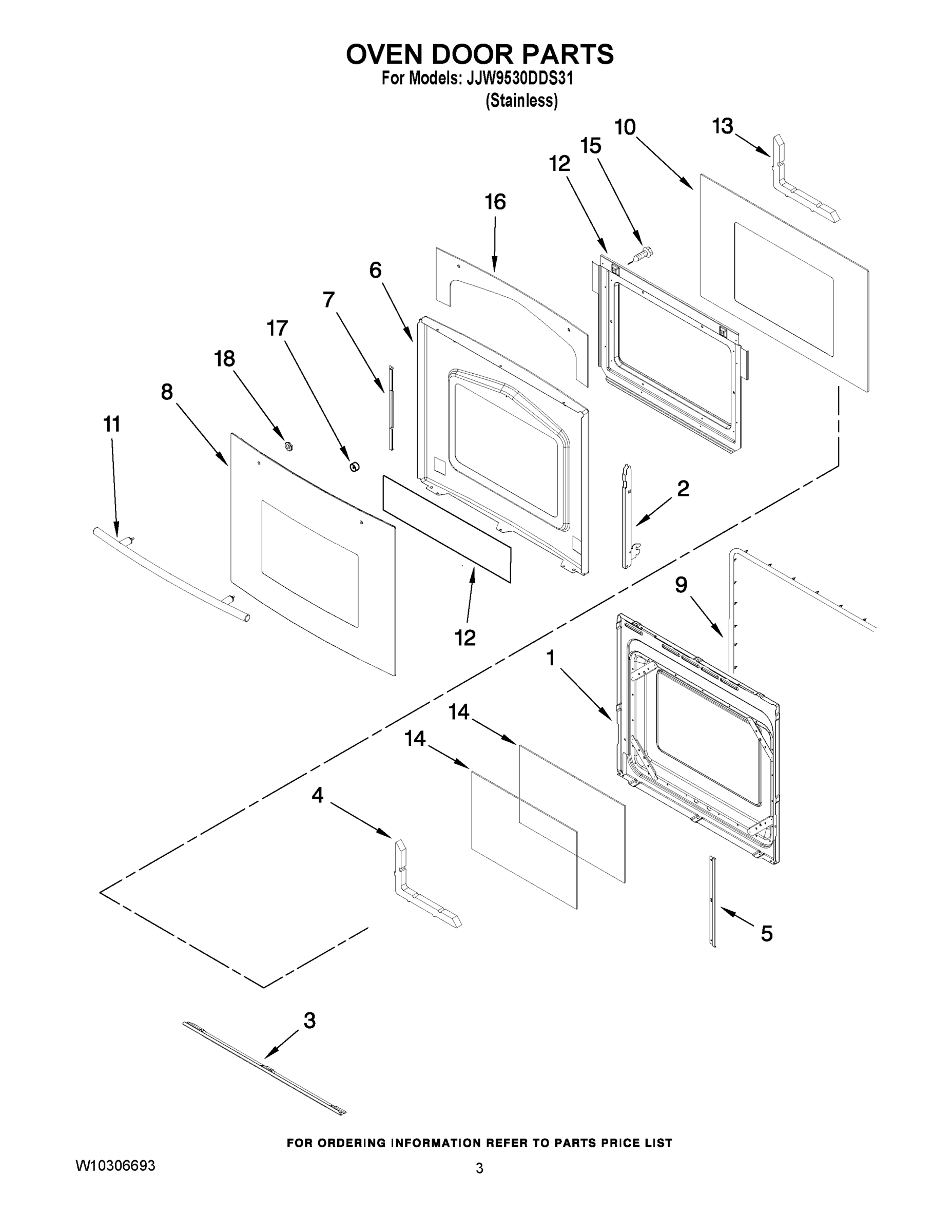

02 - OVEN DOOR PARTS

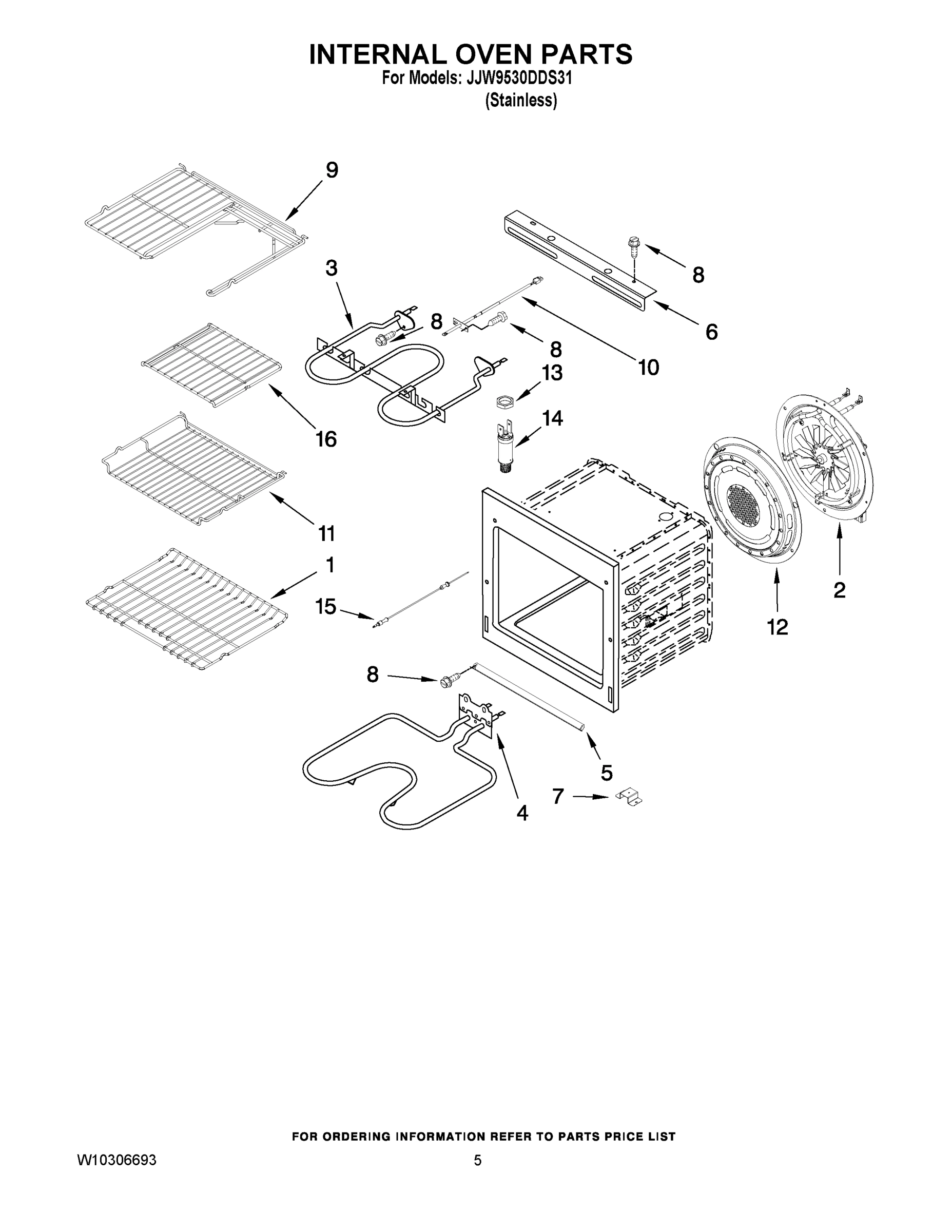

03 - INTERNAL OVEN PARTS

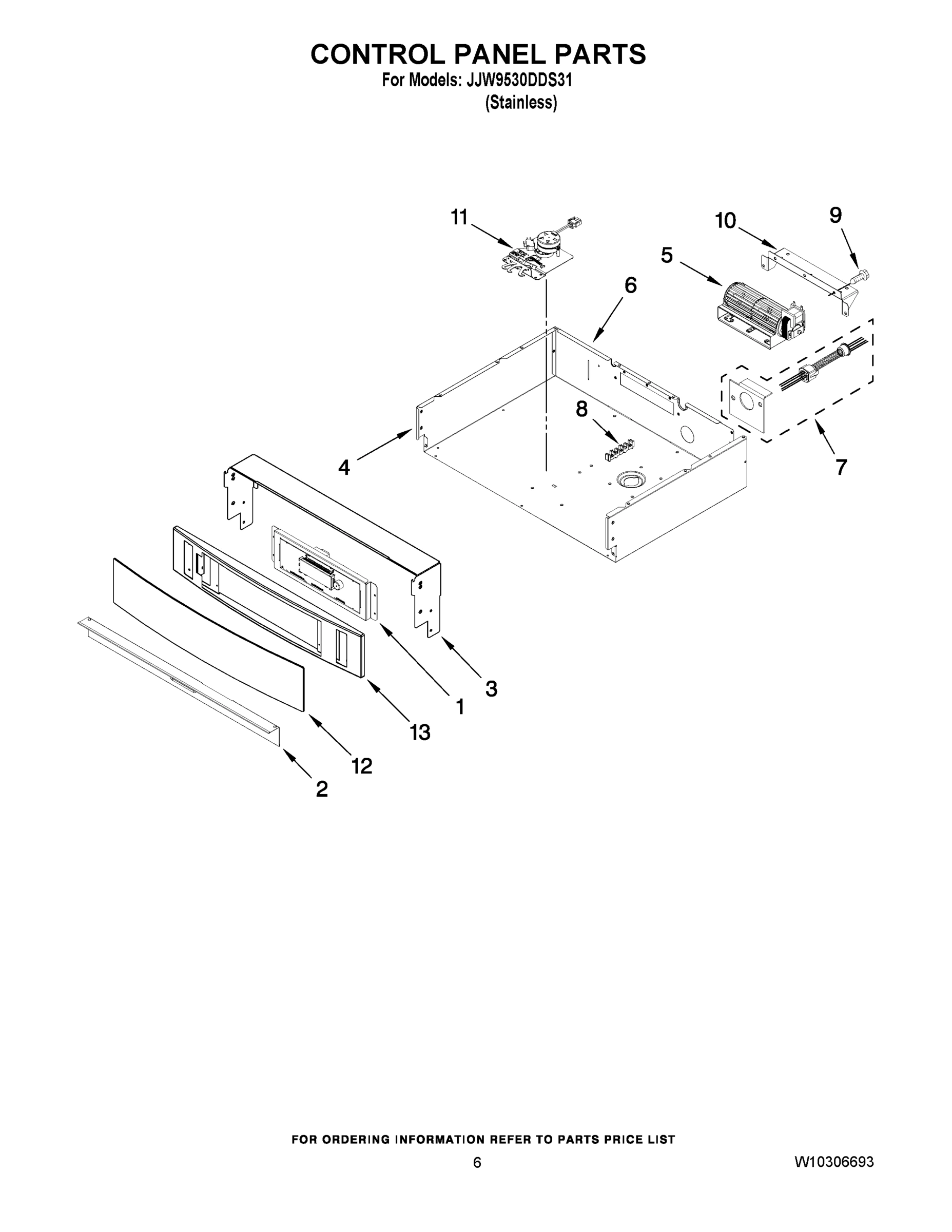

04 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JJW9530DDS31 ELECTRIC WALL OVEN
1
MAY 8101P602-60 MAY 8101P602-60 Contact Us For Availability
1
MAY 8119P253-60 MAY 8119P253-60 Contact Us For Availability
1
MAY 8119P258-60 MAY 8119P258-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
OWNERS MANUAL MAY W10169642 Contact Us For Availability
1
MAY 2402W314-19 MAY 2402W314-19 Contact Us For Availability
1
MAY W10273863 MAY W10273863 Contact Us For Availability
1
MAY 8507P346-60 MAY 8507P346-60 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY 7106P117-60 MAY 7106P117-60 Contact Us For Availability
2
ASSY., COVECT FAN MAY W10206587 Contact Us For Availability
2
MAY 3608F107-70 MAY 3608F107-70 Contact Us For Availability
3
BAFFLE, REAR LOWER MAY 3601F343-51 Contact Us For Availability
3
TRIM, BTM DR VENT MAY 3608F102-70 Contact Us For Availability
3
MAY W10184147 MAY W10184147 Contact Us For Availability
3
SUPPORT, TOP CNTRL MAY 3807F717-51 Contact Us For Availability
4
MAY 2624F079-51 MAY 2624F079-51 Contact Us For Availability
4
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
4
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) MAY 2624F076-51 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) MAY 2624F077-51 Contact Us For Availability
5
MAY 8038P035-60 MAY 8038P035-60 Contact Us For Availability
5
BRACKET, INNER GLASS MAY 3801F886-51 Contact Us For Availability
5
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
5
FAN, TANGENTIAL MAY 7427P062-60 Contact Us For Availability
6
SUPPORT, AIR CHANNEL MAY 3807F706-51 Contact Us For Availability
6
MAY 3603F073-70 MAY 3603F073-70 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
6
PANEL, CONTROL BOX REAR MAY 2624F100-51 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DR GLASS MAY 3804F144-45 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
ASSEMBLY, CABLE MAY 5700P829-60 Contact Us For Availability
8
ASSY., LIGHT SW MAY 7450P109-60 Contact Us For Availability
8
ASSY., DOOR GLASS MAY 7922P020-60 Contact Us For Availability
9
PLUG, BUTTON MAY 7718P033-60 Contact Us For Availability
9
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
9
MAY W10162386 MAY W10162386 Contact Us For Availability
9
RACK, HALF MAY W10273862 Contact Us For Availability
10
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
10
MAY 7902P656-60 MAY 7902P656-60 Contact Us For Availability
10
MAY 7430P043-60 MAY 7430P043-60 Contact Us For Availability
10
BRKT., COOLING FAN MAY 3801F829-51 Contact Us For Availability
11
BOX, VENT MAY 4006W217-45 Contact Us For Availability
11
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
11
MAY 7801P162-60 MAY 7801P162-60 Contact Us For Availability
11
ASSY., LATCH DOOR MAY W10186996 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY 3804F303-51 MAY 3804F303-51 Contact Us For Availability
12
MAY 3605F336-19 MAY 3605F336-19 Contact Us For Availability
12
MAY 7912P361-60 MAY 7912P361-60 Contact Us For Availability
13
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
13
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
13
NUT MAY 7103P177-60 Contact Us For Availability
13
FRAME, CNTRL ASSY. MAY 3807W664-70 Contact Us For Availability
14
ASSEMBLY, LIGHT MAY 7407P179-60 Contact Us For Availability
14
Glass, Inner MAY 7902P436-60 Contact Us For Availability
14
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
16
CHANNEL, BOTTOM MAY 3818F108-51 Contact Us For Availability
16
INSUL., TOP DOOR MAY 7002P397-60 Contact Us For Availability
16
RACK, OVEN HALF MAY W10275560 Contact Us For Availability
17
MAY 2618F215-51 MAY 2618F215-51 Contact Us For Availability
17
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
18
MAY 2624F094-51 MAY 2624F094-51 Contact Us For Availability
18
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
19
PNL, TOP RETAINER MAY 2618F226-51 Contact Us For Availability
20
MAY 4005F726-45 MAY 4005F726-45 Contact Us For Availability
21
RECEIVER, HINGE MAY 7106P127-60 Contact Us For Availability
22
MAY 7744P460-60 MAY 7744P460-60 Contact Us For Availability
22
MAY 7744P461-60 MAY 7744P461-60 Contact Us For Availability
23
TRIM, BOTTOM VENT MAY 3608F099-70 Contact Us For Availability
24
COVER, REAR MAY 4005P712-51 Contact Us For Availability
25
BULB, OVEN MAY 899138-001 Contact Us For Availability
27
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
NI
MAY 7002P352-60 MAY 7002P352-60 Contact Us For Availability
NI
MAY 7002P423-60 MAY 7002P423-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 482338 MAY 482338 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL TOP) MAY 5171P072-60 Contact Us For Availability
NI
MAY 5171P153-60 MAY 5171P153-60 Contact Us For Availability
NI
MAY 5171P208-60 MAY 5171P208-60 Contact Us For Availability
NI
MAY 5171P672-60 MAY 5171P672-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
× ![]()
