Model Maytag JJW9530DDP29 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - OVEN PARTS
02 - OVEN DOOR PARTS

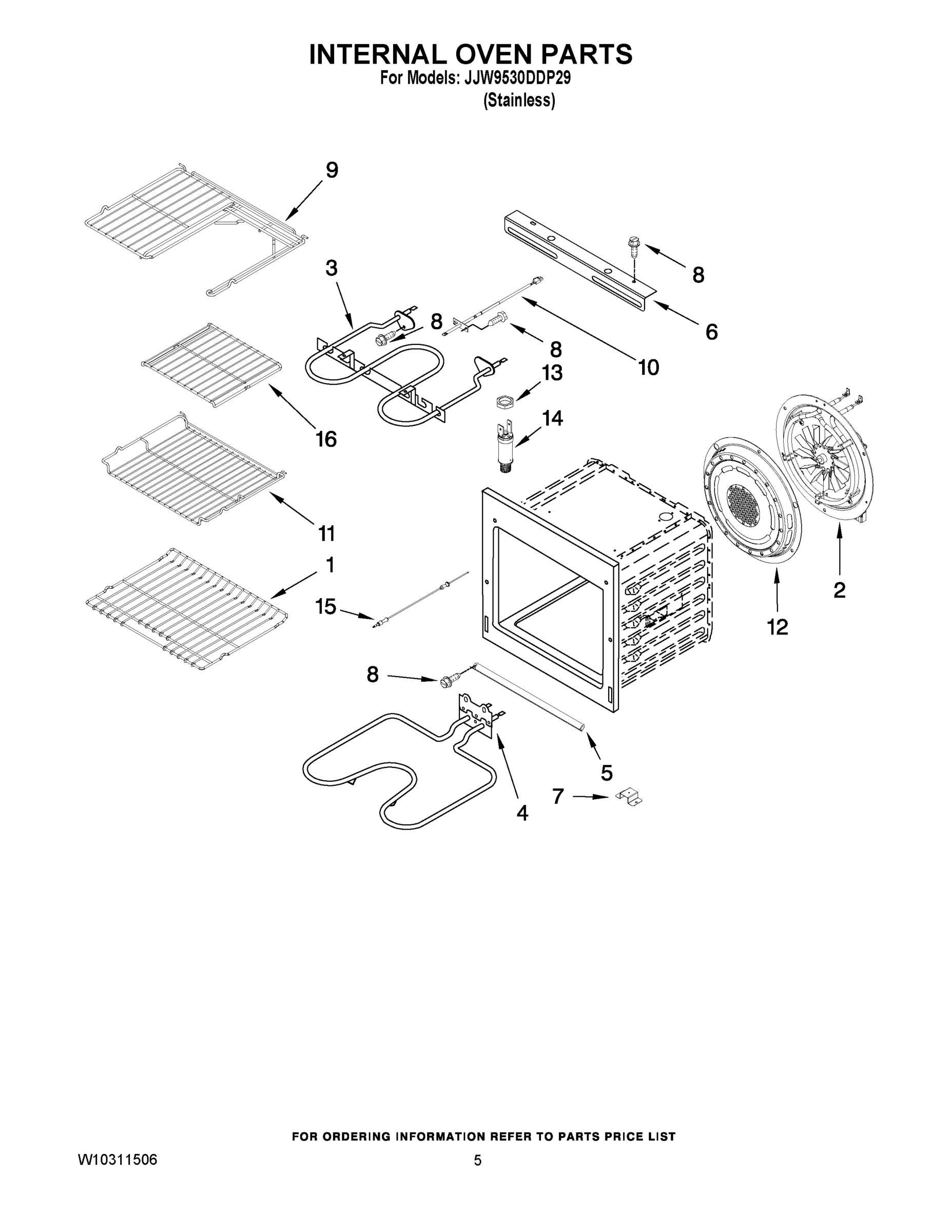

03 - INTERNAL OVEN PARTS

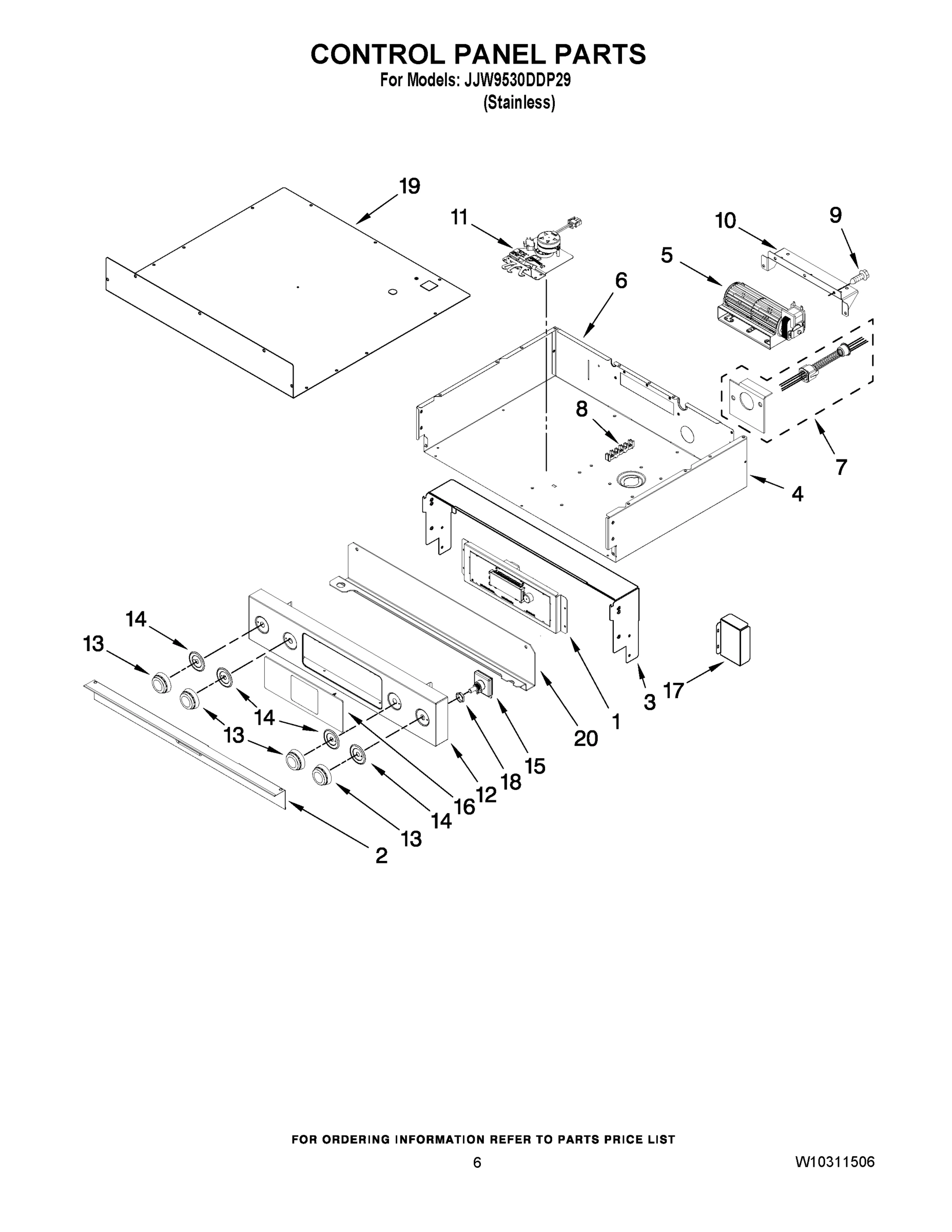

04 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JJW9530DDP29 ELECTRIC WALL OVEN
1
MAY 8101P602-60 MAY 8101P602-60 Contact Us For Availability
1
MAY 8119P255-60 MAY 8119P255-60 Contact Us For Availability
1
MAY 8119P260-60 MAY 8119P260-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10169644 MAY W10169644 Contact Us For Availability
1
MAY 2402W314-19 MAY 2402W314-19 Contact Us For Availability
1
MAY W10273863 MAY W10273863 Contact Us For Availability
1
MAY 8507P338-60 MAY 8507P338-60 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY 7106P117-60 MAY 7106P117-60 Contact Us For Availability
2
ASSY., COVECT FAN MAY W10206587 Contact Us For Availability
2
MAY 3608F109-70 MAY 3608F109-70 Contact Us For Availability
3
BAFFLE, REAR LOWER MAY 3601F343-51 Contact Us For Availability
3
TRIM, BTM DR VENT MAY 3608F102-70 Contact Us For Availability
3
MAY W10184147 MAY W10184147 Contact Us For Availability
3
SUPPORT, TOP CNTRL MAY 3807F717-51 Contact Us For Availability
4
MAY 2624F079-51 MAY 2624F079-51 Contact Us For Availability
4
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
4
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) MAY 2624F076-51 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) MAY 2624F077-51 Contact Us For Availability
5
MAY 8038P035-60 MAY 8038P035-60 Contact Us For Availability
5
BRACKET, INNER GLASS MAY 3801F886-51 Contact Us For Availability
5
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
5
FAN, TANGENTIAL MAY 7427P062-60 Contact Us For Availability
6
SUPPORT, AIR CHANNEL MAY 3807F706-51 Contact Us For Availability
6
MAY 7760P115-60 MAY 7760P115-60 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
6
PANEL, CONTROL BOX REAR MAY 2624F100-51 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DR GLASS MAY 3804F144-45 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
ASSEMBLY, CABLE MAY 5700P829-60 Contact Us For Availability
8
ASSY., LIGHT SW MAY 7450P109-60 Contact Us For Availability
8
MAY 3804F244-51 MAY 3804F244-51 Contact Us For Availability
9
PLUG, BUTTON MAY 7718P033-60 Contact Us For Availability
9
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
9
MAY W10162386 MAY W10162386 Contact Us For Availability
9
RACK, HALF MAY W10273862 Contact Us For Availability
10
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
10
MAY 7902P656-60 MAY 7902P656-60 Contact Us For Availability
10
MAY 7430P043-60 MAY 7430P043-60 Contact Us For Availability
10
BRKT., COOLING FAN MAY 3801F829-51 Contact Us For Availability
11
BOX, VENT MAY 4006W217-45 Contact Us For Availability
11
Handle, Door MAY 7701P475-60 Contact Us For Availability
11
MAY 7801P162-60 MAY 7801P162-60 Contact Us For Availability
11
ASSY., LATCH DOOR MAY W10186996 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY 3804F303-51 MAY 3804F303-51 Contact Us For Availability
12
MAY 3605F336-19 MAY 3605F336-19 Contact Us For Availability
12
MAY 7720P544-60 MAY 7720P544-60 Contact Us For Availability
13
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
13
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
13
NUT MAY 7103P177-60 Contact Us For Availability
13
MAY 7711P506-60 MAY 7711P506-60 Contact Us For Availability
14
ASSEMBLY, LIGHT MAY 7407P179-60 Contact Us For Availability
14
Glass, Inner MAY 7902P436-60 Contact Us For Availability
14
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
14
MAY 7740P149-60 MAY 7740P149-60 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
15
MAY 7422P015-60 MAY 7422P015-60 Contact Us For Availability
16
CHANNEL, BOTTOM MAY 3818F108-51 Contact Us For Availability
16
MAY 7101P652-60 MAY 7101P652-60 Contact Us For Availability
16
RACK, OVEN HALF MAY W10275560 Contact Us For Availability
16
MAY 7912P375-60 MAY 7912P375-60 Contact Us For Availability
17
MAY 2618F215-51 MAY 2618F215-51 Contact Us For Availability
17
MAY 7902P585-60 MAY 7902P585-60 Contact Us For Availability
17
MAY 4005F698-51 MAY 4005F698-51 Contact Us For Availability
18
MAY 2624F094-51 MAY 2624F094-51 Contact Us For Availability
18
MAY 7760P112-60 MAY 7760P112-60 Contact Us For Availability
18
MAY 7760P113-60 MAY 7760P113-60 Contact Us For Availability
18
NUT MAY 7103P161-60 Contact Us For Availability
19
PNL, TOP RETAINER MAY 2618F226-51 Contact Us For Availability
19
MAY 7719P087-60 MAY 7719P087-60 Contact Us For Availability
19
PANEL, CONTROL BOX TOP MAY 2624F098-44 Contact Us For Availability
20
MAY 4005F726-45 MAY 4005F726-45 Contact Us For Availability
20
MAY 3804F246-51 MAY 3804F246-51 Contact Us For Availability
21
RECEIVER, HINGE MAY 7106P127-60 Contact Us For Availability
22
MAY 7744P460-60 MAY 7744P460-60 Contact Us For Availability
22
MAY 7744P461-60 MAY 7744P461-60 Contact Us For Availability
23
TRIM, BOTTOM VENT MAY 3608F099-70 Contact Us For Availability
24
COVER, REAR MAY 4005P712-51 Contact Us For Availability
25
BULB, OVEN MAY 899138-001 Contact Us For Availability
27
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
NI
MAY 7002P352-60 MAY 7002P352-60 Contact Us For Availability
NI
MAY 7002P423-60 MAY 7002P423-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL TOP) MAY 5171P072-60 Contact Us For Availability
NI
MAY 5171P084-60 MAY 5171P084-60 Contact Us For Availability
NI
MAY 5171P153-60 MAY 5171P153-60 Contact Us For Availability
NI
MAY 5171P208-60 MAY 5171P208-60 Contact Us For Availability
NI
MAY 5171P672-60 MAY 5171P672-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
× ![]()
