Model Maytag JJW9527DDB29 ELECTRIC WALL OVEN – Common Parts & Diagrams

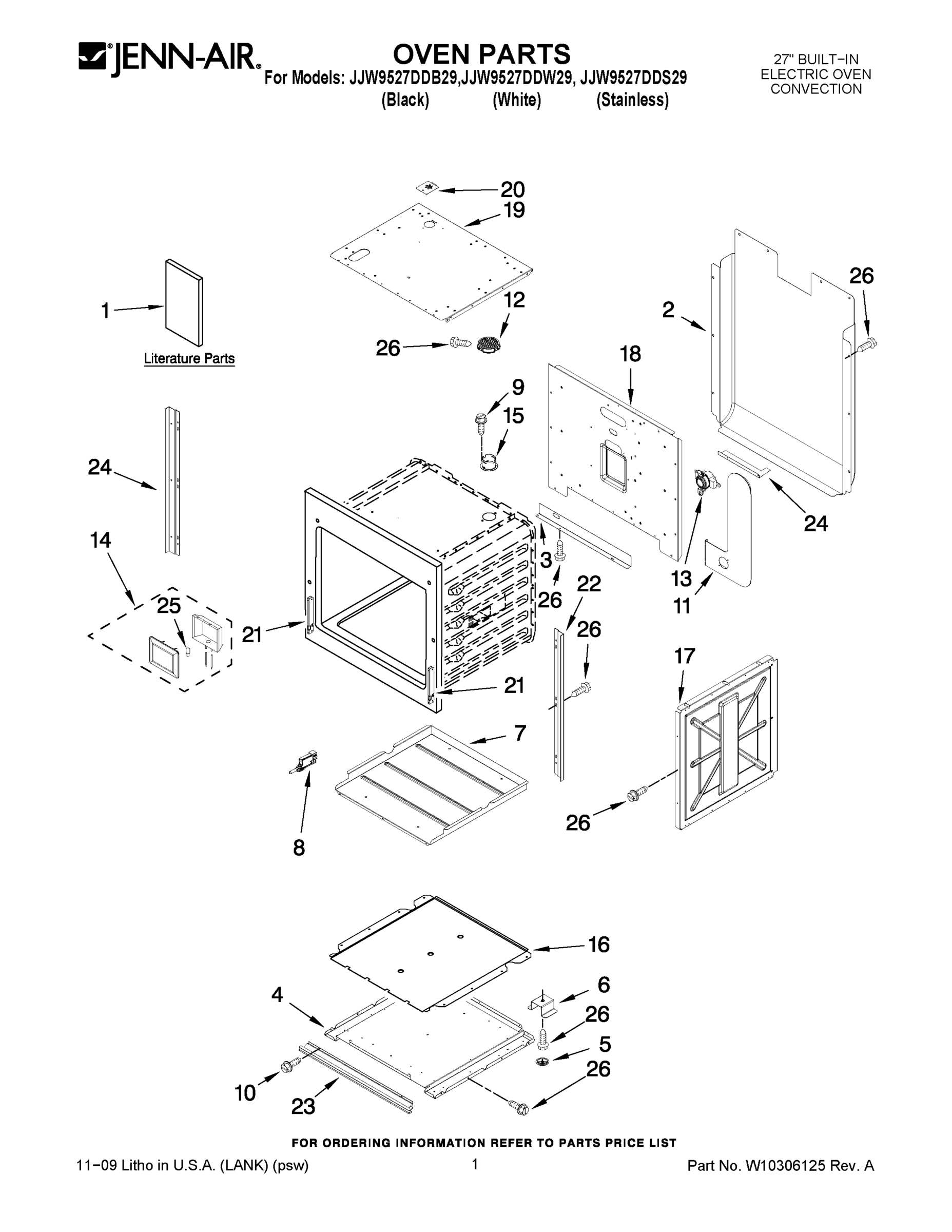

01 - OVEN PARTS

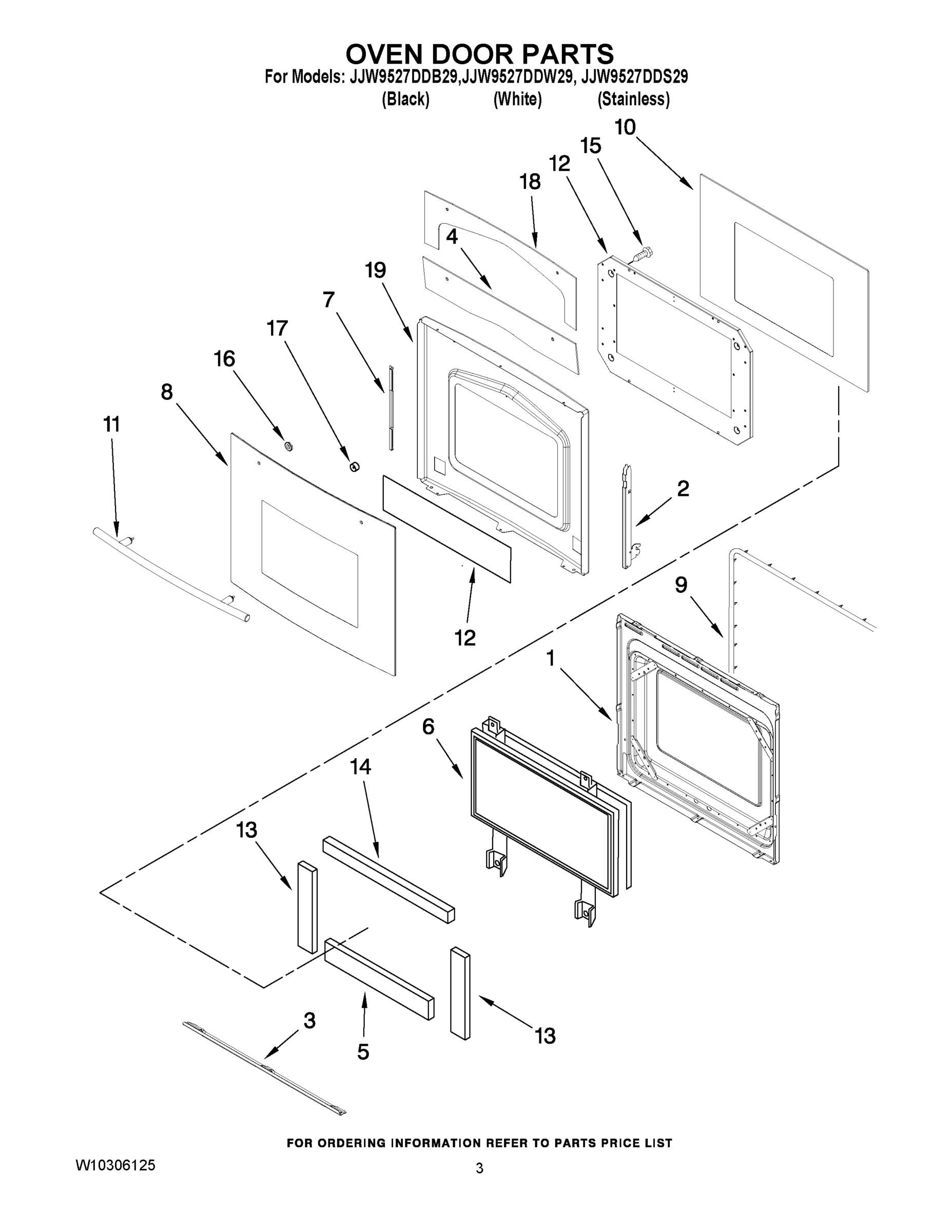

02 - OVEN DOOR PARTS

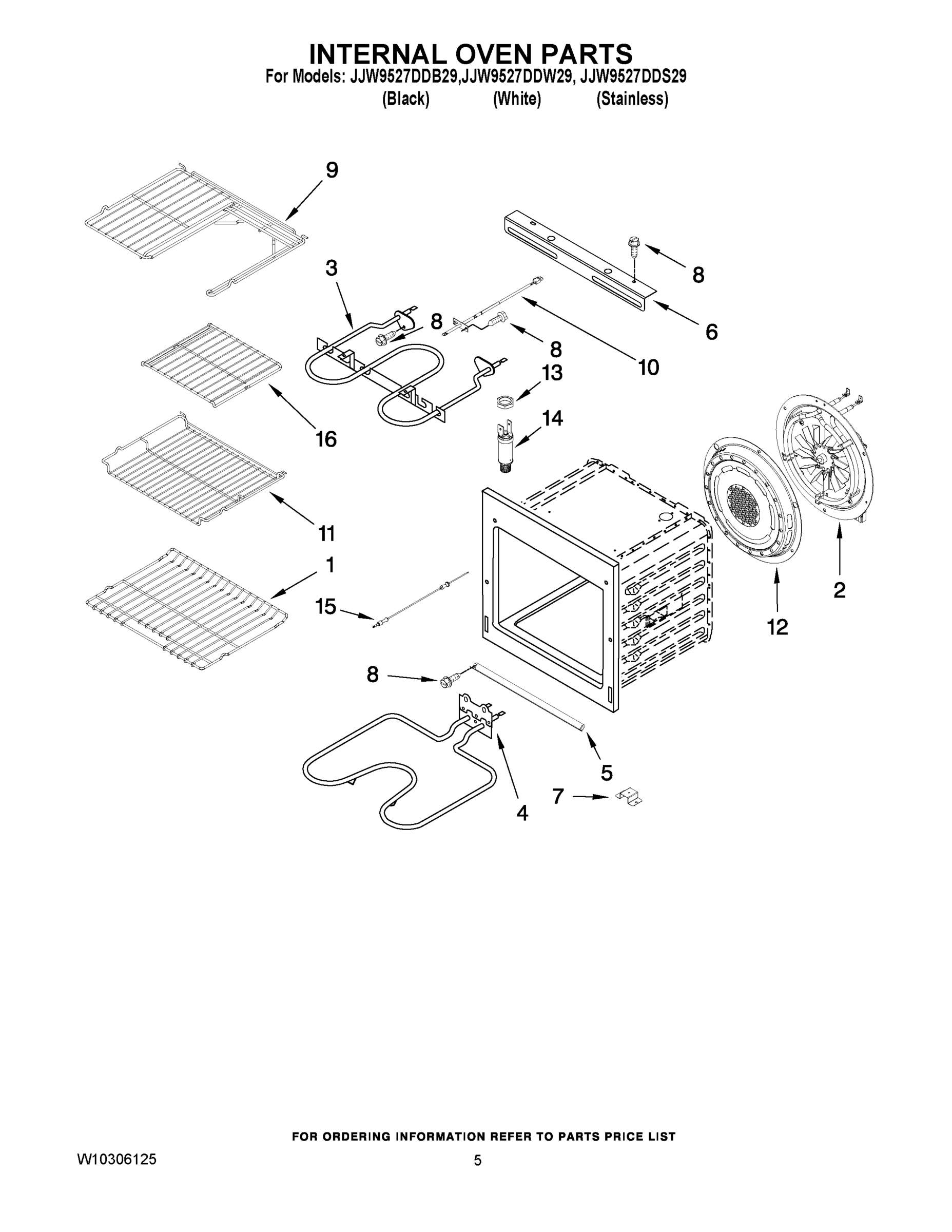

03 - INTERNAL OVEN PARTS

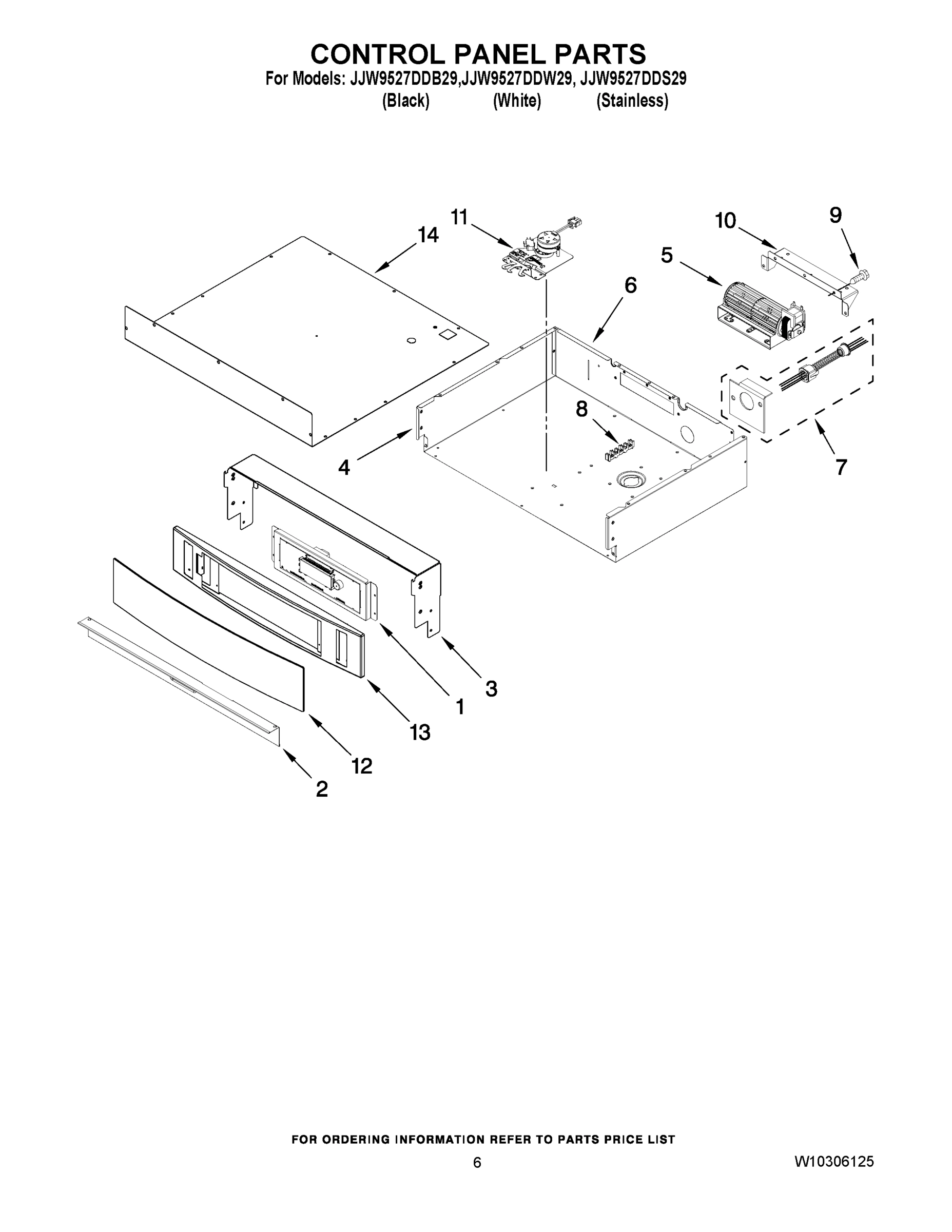

04 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JJW9527DDB29 ELECTRIC WALL OVEN
1
MAY 8101P602-60 MAY 8101P602-60 Contact Us For Availability
1
MAY 8119P253-60 MAY 8119P253-60 Contact Us For Availability
1
MAY 8119P258-60 MAY 8119P258-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
OWNERS MANUAL MAY W10169641 Contact Us For Availability
1
MAY 2402W311-19 MAY 2402W311-19 Contact Us For Availability
1
MAY 7801P129-60 MAY 7801P129-60 Contact Us For Availability
1
MAY 8507P346-60 MAY 8507P346-60 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY 7106P118-60 MAY 7106P118-60 Contact Us For Availability
2
ASSY., CONVECT FAN MAY W10206587 Contact Us For Availability
2
MAY 3608F106-70 MAY 3608F106-70 Contact Us For Availability
3
BAFFLE, REAR LOWER MAY 3601F343-51 Contact Us For Availability
3
TRIM, BTM DR VENT MAY 3608F102-70 Contact Us For Availability
3
MAY W10184147 MAY W10184147 Contact Us For Availability
3
SUPPORT, TOP CNTRL MAY 3807F717-51 Contact Us For Availability
4
MAY 2624F078-51 MAY 2624F078-51 Contact Us For Availability
4
INSULATION, DOOR MAY 7002P392-60 Contact Us For Availability
4
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) MAY 2624F076-51 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) MAY 2624F077-51 Contact Us For Availability
5
MAY 8038P035-60 MAY 8038P035-60 Contact Us For Availability
5
MAY 7002P201-60 MAY 7002P201-60 Contact Us For Availability
5
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
5
FAN, TANGENTIAL MAY 7427P062-60 Contact Us For Availability
6
SUPPORT, AIR CHANNEL MAY 3807F706-51 Contact Us For Availability
6
MAY 5700M867-60 MAY 5700M867-60 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
6
PANEL, CONTROL BOX REAR MAY 2624F100-51 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DR GLASS MAY 3804F144-45 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
ASSEMBLY, CABLE MAY 5700P829-60 Contact Us For Availability
8
ASSY., LIGHT SW MAY 7450P109-60 Contact Us For Availability
8
MAY 7922P017-60 MAY 7922P017-60 Contact Us For Availability
8
MAY 7922P018-60 MAY 7922P018-60 Contact Us For Availability
8
MAY W10202022 MAY W10202022 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
9
MAY 7212P060-60 MAY 7212P060-60 Contact Us For Availability
9
MAY 7801P138-60 MAY 7801P138-60 Contact Us For Availability
10
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
10
MAY 7902P707-60 MAY 7902P707-60 Contact Us For Availability
10
MAY 7430P043-60 MAY 7430P043-60 Contact Us For Availability
10
BRKT., COOLING FAN MAY 3801F829-51 Contact Us For Availability
11
MAY 4006W218-45 MAY 4006W218-45 Contact Us For Availability
11
MAY 7701P472-60 MAY 7701P472-60 Contact Us For Availability
11
MAY W10275562 MAY W10275562 Contact Us For Availability
11
ASSY., LATCH DOOR MAY W10186996 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY 3804F200-51 MAY 3804F200-51 Contact Us For Availability
12
MAY 3605F336-19 MAY 3605F336-19 Contact Us For Availability
12
MAY 7912P339-60 MAY 7912P339-60 Contact Us For Availability
12
MAY 7912P349-60 MAY 7912P349-60 Contact Us For Availability
12
MAY 7912P359-60 MAY 7912P359-60 Contact Us For Availability
13
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
13
MAY 7002P195-60 MAY 7002P195-60 Contact Us For Availability
13
NUT MAY 7103P177-60 Contact Us For Availability
13
MAY 3807W663-70 MAY 3807W663-70 Contact Us For Availability
14
ASSEMBLY, LIGHT MAY 7407P179-60 Contact Us For Availability
14
MAY 7002P249-60 MAY 7002P249-60 Contact Us For Availability
14
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
14
PANEL, CONTROL BOX TOP MAY 2624F098-44 Contact Us For Availability
15
MAY 8026P066-60 MAY 8026P066-60 Contact Us For Availability
15
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
16
CHANNEL, BOTTOM MAY 3818F108-51 Contact Us For Availability
16
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
16
MAY 7801P141-60 MAY 7801P141-60 Contact Us For Availability
17
MAY 2618F215-51 MAY 2618F215-51 Contact Us For Availability
17
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
18
MAY 2624F096-51 MAY 2624F096-51 Contact Us For Availability
18
INSULATION, DOOR (STAINLESS ONLY) MAY 7002P396-60 Contact Us For Availability
19
PNL, TOP RETAINER MAY 2618F223-51 Contact Us For Availability
19
MAY 3603F074-70 MAY 3603F074-70 Contact Us For Availability
20
MAY 4005F726-45 MAY 4005F726-45 Contact Us For Availability
21
RECEIVER, HINGE MAY 7106P127-60 Contact Us For Availability
22
MAY 7744P460-60 MAY 7744P460-60 Contact Us For Availability
22
MAY 7744P461-60 MAY 7744P461-60 Contact Us For Availability
23
MAY 3608F098-70 MAY 3608F098-70 Contact Us For Availability
24
COVER, REAR MAY 4005P712-51 Contact Us For Availability
25
BULB, OVEN MAY 899138-001 Contact Us For Availability
NI
MAY 7002P407-60 MAY 7002P407-60 Contact Us For Availability
NI
MAY 7002P422-60 MAY 7002P422-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 482338 MAY 482338 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL TOP) MAY 5171P072-60 Contact Us For Availability
NI
MAY 5171P153-60 MAY 5171P153-60 Contact Us For Availability
NI
MAY 5171P208-60 MAY 5171P208-60 Contact Us For Availability
NI
MAY 5171P672-60 MAY 5171P672-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
× ![]()
