Model Whirlpool JJW9430DDS13 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - OVEN PARTS
02 - UPPER OVEN DOOR PARTS

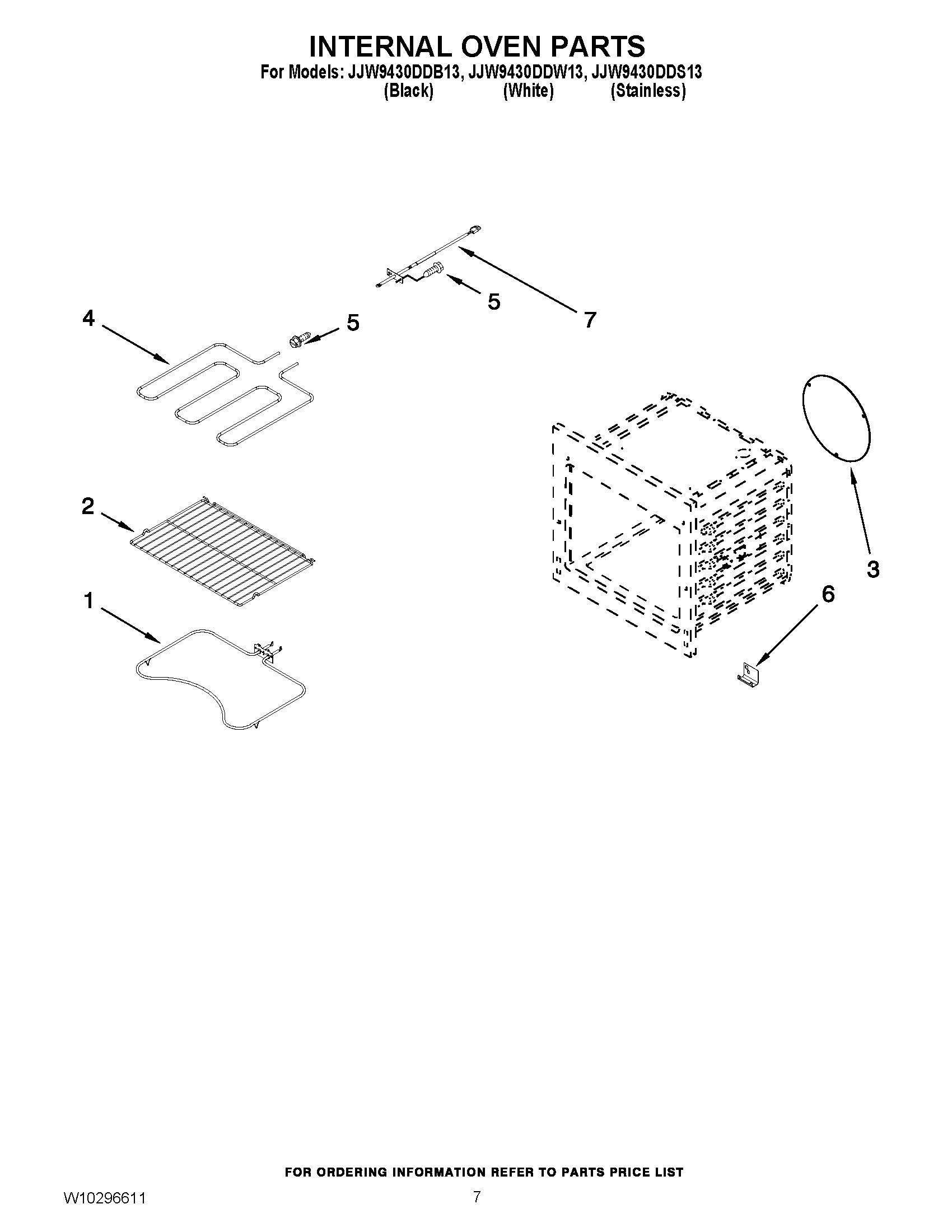

04 - INTERNAL OVEN PARTS

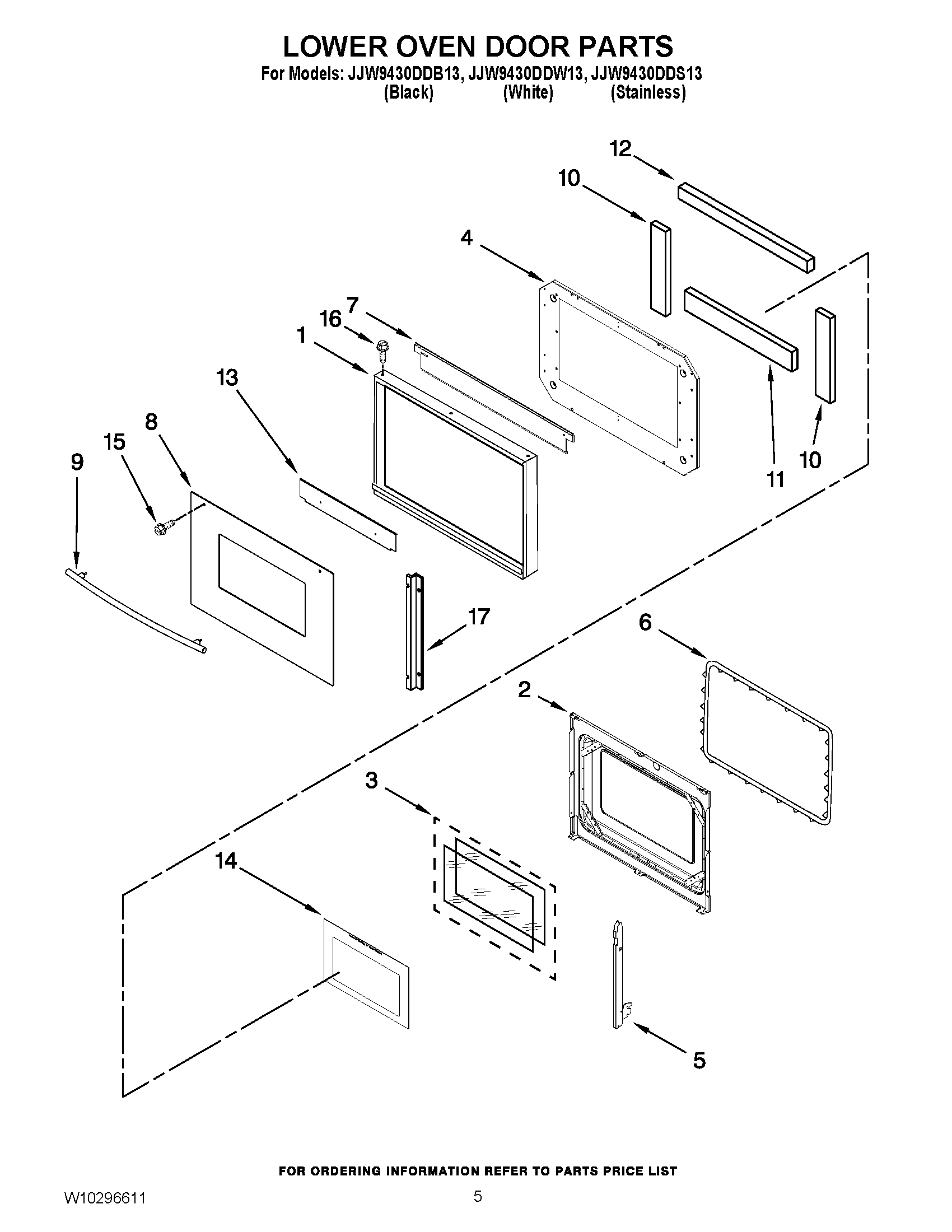

03 - LOWER OVEN DOOR PARTS

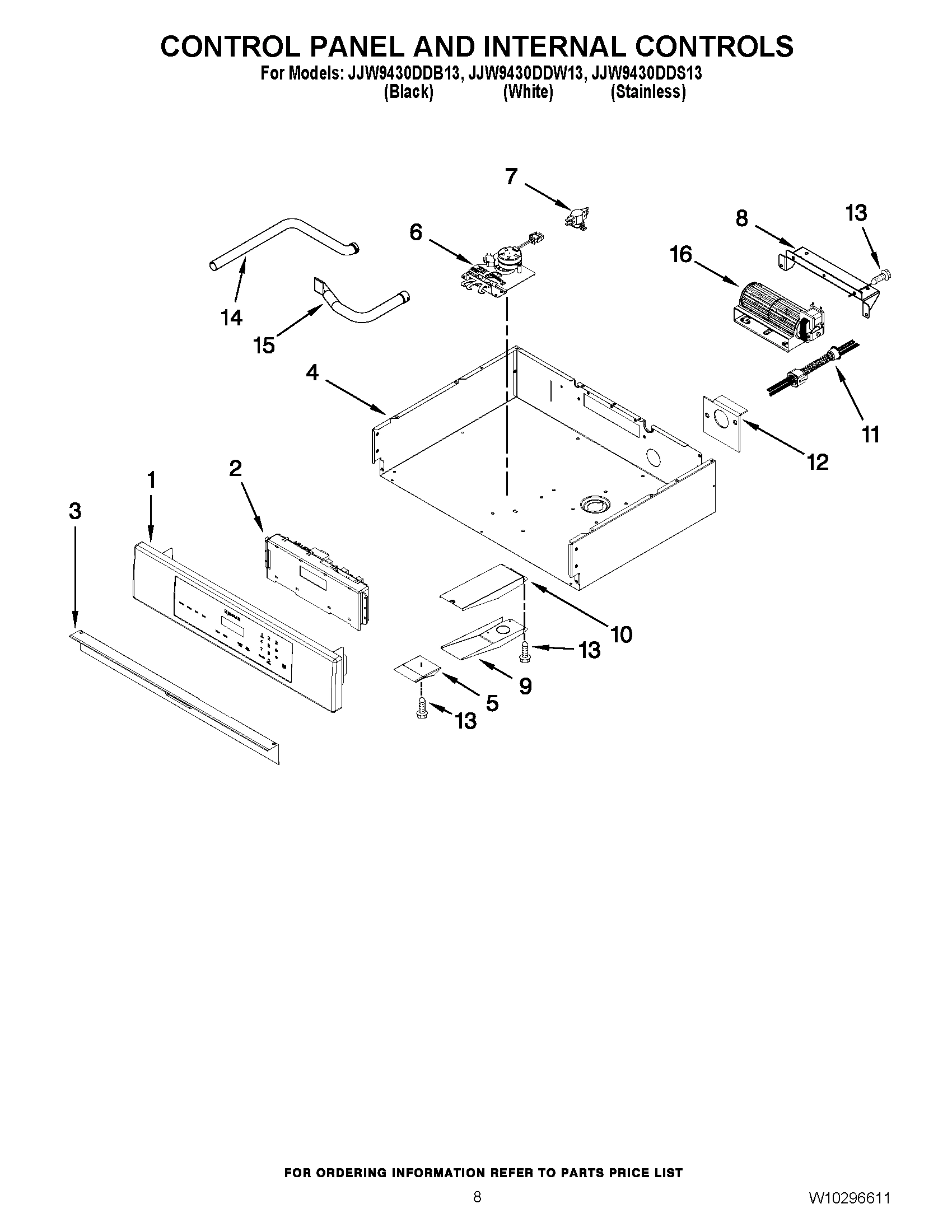

05 - CONTROL PANEL AND INTERNAL CONTROLS
06 - OPTIONAL PARTS
Common parts from model Whirlpool JJW9430DDS13 ELECTRIC WALL OVEN
1
TRIM, FRAME DOOR ASSY. WPL 7706P56460 Contact Us For Availability
1
ELEMENT, BAKE WPL 7406P27160 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (BLACK) WPL 5765M49160 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (WHITE) WPL 5765M49260 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (STAINLESS) WPL 5765M49360 Contact Us For Availability
2
LINER, OVEN DOOR WPL 2402W26519 Contact Us For Availability
2
CONTROL, H2 WPL 8507P32760 Contact Us For Availability
3
BACK, LOWER OUTER WPL 4002F28251 Contact Us For Availability
3
ASSY., WINDOW WPL 5700M86860 Contact Us For Availability
3
PLATE, CONVECT WPL 3605F21119 Contact Us For Availability
3
TRIM, CONTROL PNL WPL 3608F10570 Contact Us For Availability
4
TRIM, SIDE (BLACK/STAINLESS) WPL 7744P40960 Contact Us For Availability
4
TRIM, SIDE (WHITE) WPL 7744P41060 Contact Us For Availability
4
RETAINER, INSUL. WPL 3804F21851 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P27360 Contact Us For Availability
4
PANEL, TOP WPL 4026F09251 Contact Us For Availability
5
TRIM, OVEN (BLACK/STAINLESS) WPL 3608F08570 Contact Us For Availability
5
TRIM, OVEN (WHITE) WPL 3608F08571 Contact Us For Availability
5
HINGE, DOOR WPL 7106P11560 Contact Us For Availability
5
EXTENSION, VENT WPL 8312P23260 Contact Us For Availability
6
PANEL-SIDE WPL 2618F22251 Contact Us For Availability
6
SEAL, DOOR WPL 7212P06160 Contact Us For Availability
6
CLIP, OVEN WPL 7112P12660 Contact Us For Availability
7
BUMPER, RUBBER WPL 7109P08560 Contact Us For Availability
7
BRACKET, HANDLE WPL W10205611 Contact Us For Availability
7
Sensor, Oven WPL 7430P04260 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT (LOWER) WPL 7403P85560 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT (UPPER) WPL 7403P85660 Contact Us For Availability
8
RECEPTACLE, HINGE ASSEMBLY WPL 8014P03160 Contact Us For Availability
8
GLASS, DOOR (BLACK/STAINLESS) WPL 7902P69860 Contact Us For Availability
8
GLASS, DOOR (WHITE) WPL 7902P69960 Contact Us For Availability
8
BKT., COOLIG FAN WPL 3801F93651 Contact Us For Availability
9
RETAINER, INSUL. WPL 2624F05651 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P51560 Contact Us For Availability
9
VENT, TOP WPL 4011F43845 Contact Us For Availability
10
INSULATION, (TOP/BACK) WPL 7002P35860 Contact Us For Availability
10
INSULATION, DOOR WPL 7002P38060 Contact Us For Availability
10
VENT, BOTTOM WPL 4006F16945 Contact Us For Availability
11
PLATE, HINGE TRAP WPL 3605F23650 Contact Us For Availability
11
INSULATION, BTM WPL 7002P38360 Contact Us For Availability
11
ASSY., WIRE CABLE WPL 5700P82160 Contact Us For Availability
12
BOTTOM, BRACE WPL 3802F11651 Contact Us For Availability
12
INSULATION, TOP WPL 7002P38460 Contact Us For Availability
12
BRACKET, CABLE WPL 8020P04860 Contact Us For Availability
13
SCREW WPL 7101P42660 Contact Us For Availability
13
SHIELD, HEAT WPL 3604F37045 Contact Us For Availability
14
SCREW WPL 7101P63560 Contact Us For Availability
14
GLASS, DOOR INNER WPL 7902P71360 Contact Us For Availability
14
TUBE, VENT LOWER WPL 7506P40460 Contact Us For Availability
15
ASSY, LIGHT SWITCH WPL 7450P10960 Contact Us For Availability
15
TUBE, VENT UPPER WPL 7506P40560 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
Screw WPL 7101P42760 Contact Us For Availability
16
ASSY., FAN MOTOR WPL 7427P07960 Contact Us For Availability
17
ASSY., LIGHT WPL 7407P18160 Contact Us For Availability
17
RETAINER, GLASS WPL 3804F14445 Contact Us For Availability
18
FAN, CONVECTION WPL W10210594 Contact Us For Availability
19
COVER, CONV. FAN WPL 3605F32319 Contact Us For Availability
20
TOP, INNER CENTER WPL 2624F06351 Contact Us For Availability
21
EXTRUSION, CENTER WPL 7756P19560 Contact Us For Availability
22
BACK, UPPER OUTER WPL 2624F06251 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P25160 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P36860 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P93660 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5171P93760 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) WPL 591014 Contact Us For Availability
× ![]()
