  • Whirlpool JJW9427DDS11 Parts List

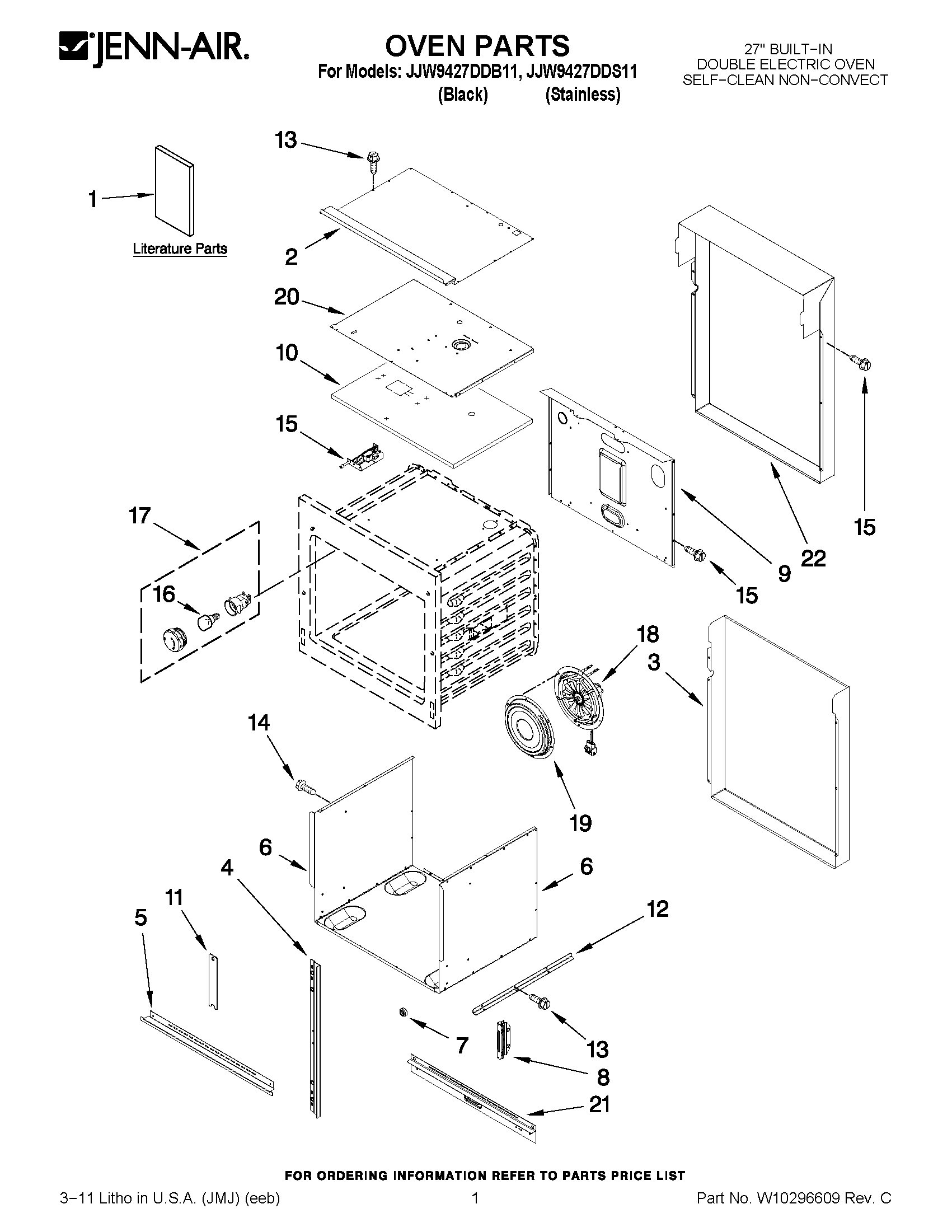

Model Whirlpool JJW9427DDS11 ELECTRIC WALL OVEN – Common Parts & Diagrams

1

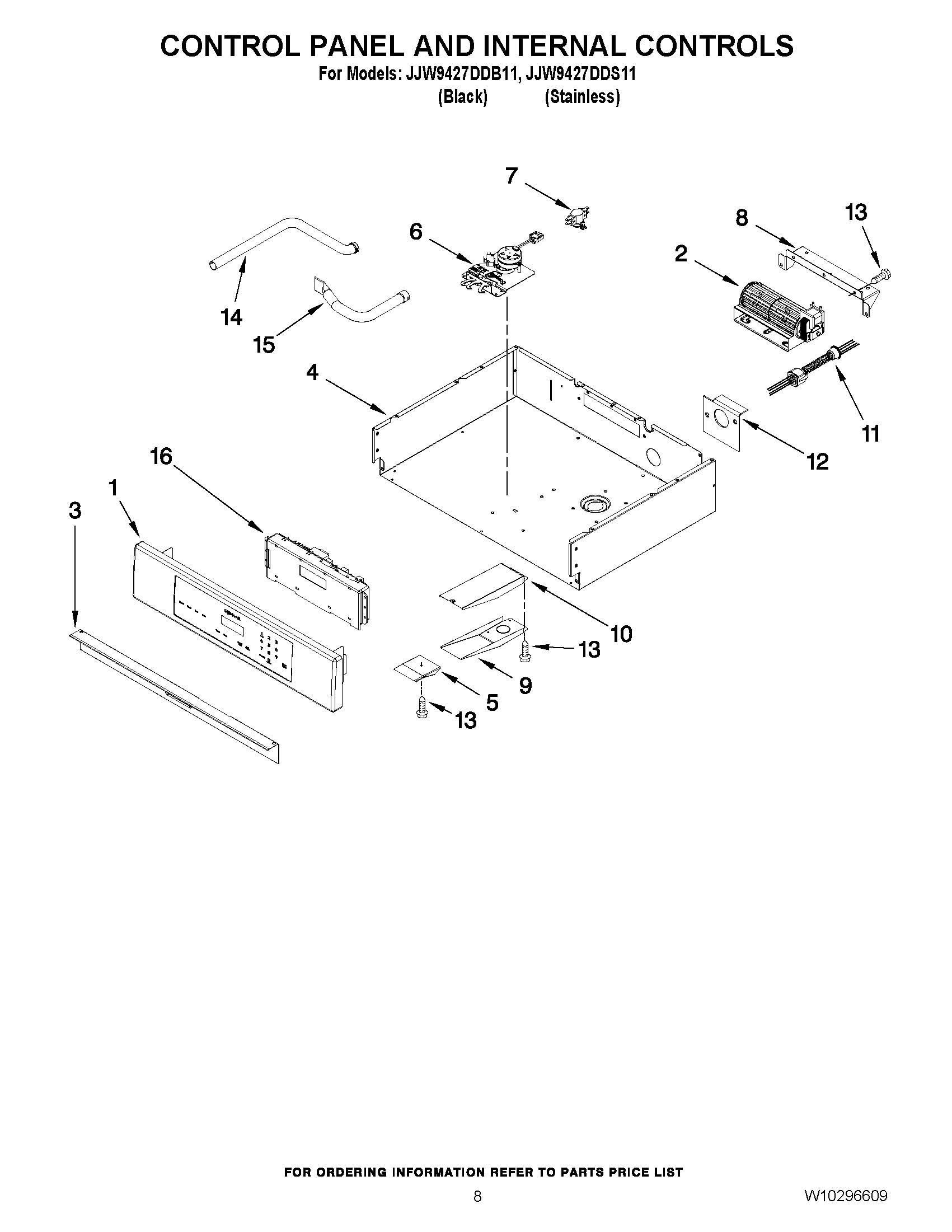

ASSEMBLY, CONTROL PANEL (STAINLESS)
ASSEMBLY, CONTROL PANEL (STAINLESS) WPL W10239430 Contact Us For Availability
View on Model
1
TRIM, FRAME DOOR ASSY.
TRIM, FRAME DOOR ASSY. WPL 7706P56160 Contact Us For Availability
View on Model
1
BROCHURE, TIPS SAFE COOKING (ENGLISH)
BROCHURE, TIPS SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
View on Model
1
BROCHURE, TIPS SAFE COOKING (FRENCH)
BROCHURE, TIPS SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
View on Model
1
OWNERS MANUAL
OWNERS MANUAL WPL W10176680 Contact Us For Availability
View on Model
1
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS WPL W10176681 Contact Us For Availability
View on Model
1
WIRING DIAGRAM (ENGLISH)
WIRING DIAGRAM (ENGLISH) WPL W10192630 Contact Us For Availability
View on Model
1
WIRING DIAGRAM (FRENCH)
WIRING DIAGRAM (FRENCH) WPL W10192631 Contact Us For Availability
View on Model
2
RACK, OVEN OFFSET
RACK, OVEN OFFSET WPL W10275562 Contact Us For Availability
View on Model
2
LINER, OVEN DOOR
LINER, OVEN DOOR WPL 2402W26419 Contact Us For Availability
View on Model
2
TOP, OUTER
TOP, OUTER WPL 2624F07551 Contact Us For Availability
View on Model
3
ASSY., WINDOW
ASSY., WINDOW WPL 5700M86760 Contact Us For Availability
View on Model
3
PLATE, CONVECT
PLATE, CONVECT WPL 3605F21119 Contact Us For Availability
View on Model
3
BACK, OUTER (LOWER)
BACK, OUTER (LOWER) WPL 4002F28251 Contact Us For Availability
View on Model
4

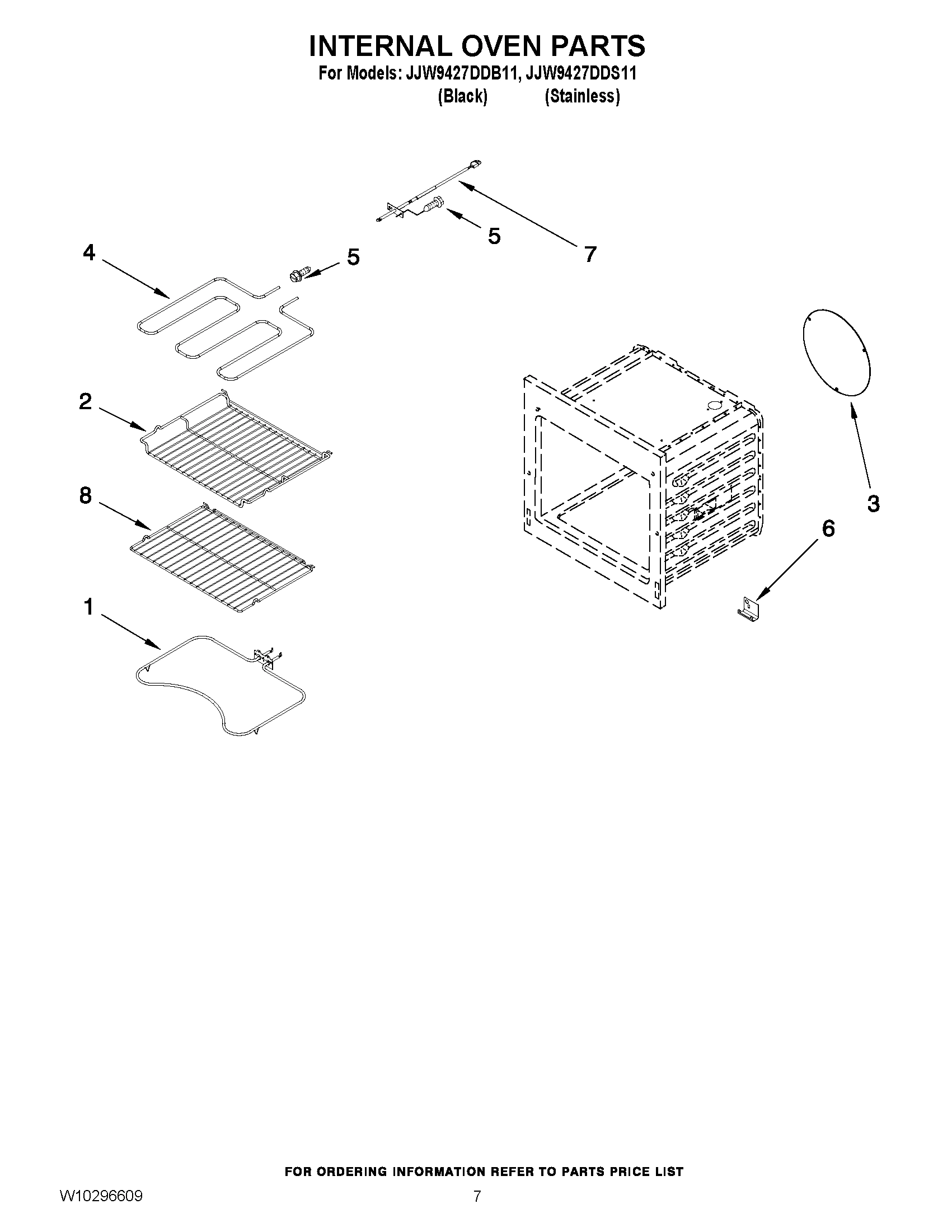

ELEMENT, BROIL
ELEMENT, BROIL WPL W10310260 Contact Us For Availability
View on Model
4
RETAINER, INSUL.
RETAINER, INSUL. WPL 3804F20051 Contact Us For Availability
View on Model
4
TRIM, SIDE
TRIM, SIDE WPL 7744P44560 Contact Us For Availability
View on Model
5
HINGE, DOOR
HINGE, DOOR WPL 7106P11560 Contact Us For Availability
View on Model
5
TRIM, OVEN
TRIM, OVEN WPL 3608F08470 Contact Us For Availability
View on Model
6
SEAL, DOOR
SEAL, DOOR WPL 7212P06060 Contact Us For Availability
View on Model
6
CLIP, OVEN
CLIP, OVEN WPL 7112P12660 Contact Us For Availability
View on Model
6
PANEL, SIDE
PANEL, SIDE WPL 2618F22151 Contact Us For Availability
View on Model
7
BRACKET, HANDLE
BRACKET, HANDLE WPL W10205610 Contact Us For Availability
View on Model
7
Sensor, Oven
Sensor, Oven WPL 7430P04260 Contact Us For Availability
View on Model
7
BUMPER, RUBBER
BUMPER, RUBBER WPL 7109P08560 Contact Us For Availability
View on Model
8

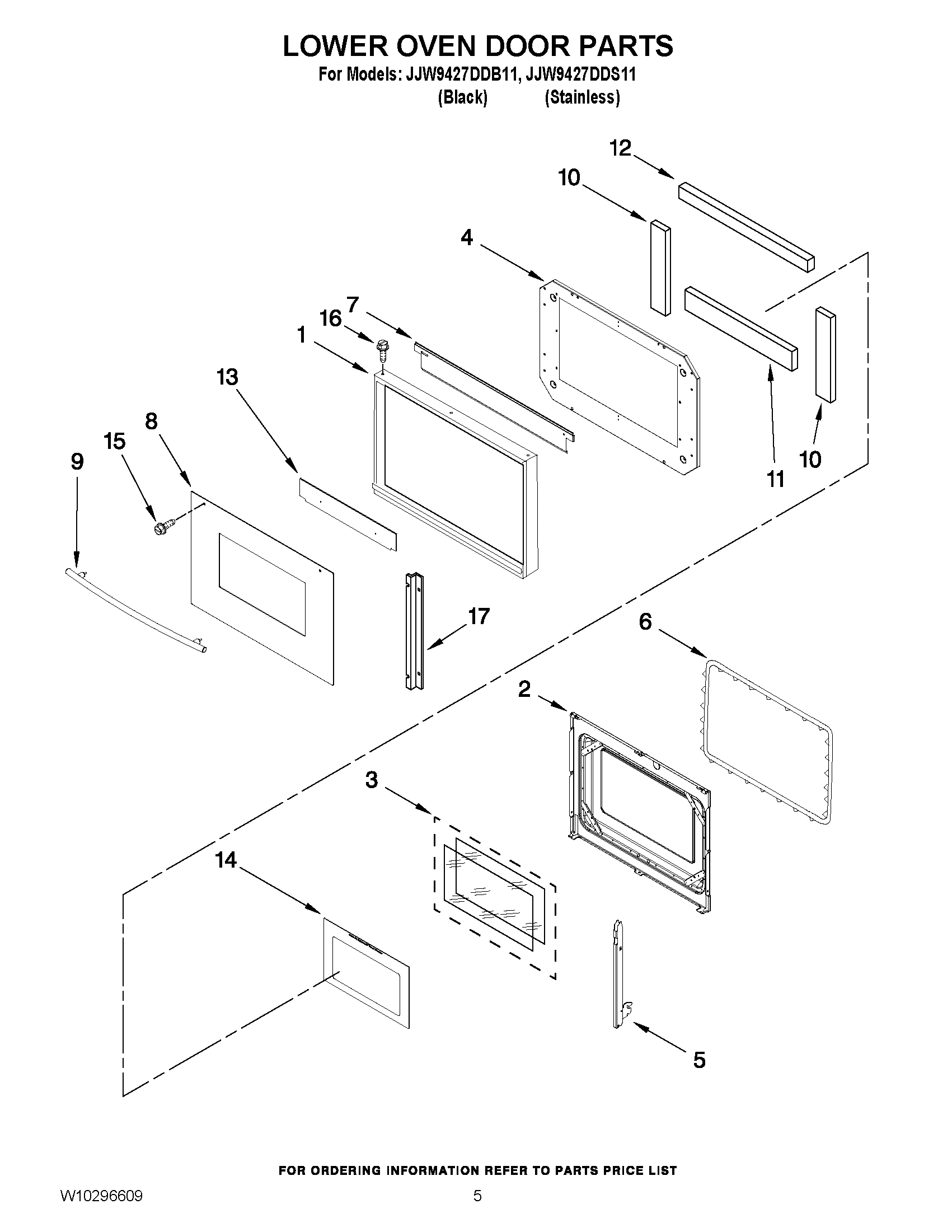

GLASS, DOOR
GLASS, DOOR WPL 7902P81360 Contact Us For Availability
View on Model
8
RACK, OVEN (STRAIGHT)
RACK, OVEN (STRAIGHT) WPL 7801P15660 Contact Us For Availability
View on Model
8
RECEPTACLE, HINGE ASSEMBLY
RECEPTACLE, HINGE ASSEMBLY WPL 8014P03160 Contact Us For Availability
View on Model
9
HANDLE, DOOR
HANDLE, DOOR WPL 7701P54360 Contact Us For Availability
View on Model
9
RETAINER, INSUL.
RETAINER, INSUL. WPL 2624F05551 Contact Us For Availability
View on Model
10
VENT, BOTTOM
VENT, BOTTOM WPL 4006F16945 Contact Us For Availability
View on Model
10
INSULATION, DOOR
INSULATION, DOOR WPL 7002P38060 Contact Us For Availability
View on Model
10
INSULATION, TOP/BACK
INSULATION, TOP/BACK WPL 7002P35760 Contact Us For Availability
View on Model
11
ASSY., WIRE CABLE
ASSY., WIRE CABLE WPL 5700P82160 Contact Us For Availability
View on Model
11
INSULATION, BTM
INSULATION, BTM WPL 7002P38160 Contact Us For Availability
View on Model
11
PLATE, HINGE TRAP
PLATE, HINGE TRAP WPL 3605F23650 Contact Us For Availability
View on Model
12
BRACKET, CABLE
BRACKET, CABLE WPL 8020P04860 Contact Us For Availability
View on Model
12
INSULATION, TOP
INSULATION, TOP WPL 7002P38260 Contact Us For Availability
View on Model
12
BOTTOM, BRACE
BOTTOM, BRACE WPL 3802F11651 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
13
SHIELD, HEAT
SHIELD, HEAT WPL 3604F36945 Contact Us For Availability
View on Model
14
TUBE, VENT LOWER
TUBE, VENT LOWER WPL 7506P40460 Contact Us For Availability
View on Model
14
GLASS, DOOR INNER
GLASS, DOOR INNER WPL 7902P81260 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 7101P63560 Contact Us For Availability
View on Model
15
TUBE, VENT UPPER
TUBE, VENT UPPER WPL 7506P40560 Contact Us For Availability
View on Model
15
ASSY, LIGHT SWITCH
ASSY, LIGHT SWITCH WPL 7450P10960 Contact Us For Availability
View on Model
16
CONTROL
CONTROL WPL 8507P36060 Contact Us For Availability
View on Model
16
Screw
Screw WPL 7101P42760 Contact Us For Availability
View on Model
16
BULB-OVEN
BULB-OVEN WPL 7407P10360 Contact Us For Availability
View on Model
17
RETAINER, GLASS
RETAINER, GLASS WPL 3804F14445 Contact Us For Availability
View on Model
17
ASSY., LIGHT
ASSY., LIGHT WPL 7407P18160 Contact Us For Availability
View on Model
18
FAN, CONVECTION
FAN, CONVECTION WPL W10210594 Contact Us For Availability
View on Model
19
COVER, CONV. FAN
COVER, CONV. FAN WPL 3605F32319 Contact Us For Availability
View on Model
20
TOP, INNER CENTER
TOP, INNER CENTER WPL 2624F06451 Contact Us For Availability
View on Model
21
EXTRUSION, CENTER
EXTRUSION, CENTER WPL 7756P19660 Contact Us For Availability
View on Model
22
BACK, UPPER OUTER
BACK, UPPER OUTER WPL 2624F06251 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN WPL 5171P93660 Contact Us For Availability
View on Model
NI
HARNESS, SENSOR & LOCK
HARNESS, SENSOR & LOCK WPL 5171P93760 Contact Us For Availability
View on Model
NI
HARNESS, LWR DOOR LOCK
HARNESS, LWR DOOR LOCK WPL 5171P93860 Contact Us For Availability
View on Model
NI
ADHESIVE LOCTITE (1/3 OZ.))
ADHESIVE LOCTITE (1/3 OZ.)) WPL 591014 Contact Us For Availability
View on Model
NI
INSULATION, BACK
INSULATION, BACK WPL 7002P26360 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL 7002P36760 Contact Us For Availability
View on Model
