Model Whirlpool JJW8530DDB28 ELECTRIC WALL OVEN – Common Parts & Diagrams
05 - OPTIONAL PARTS
01 - OVEN PARTS

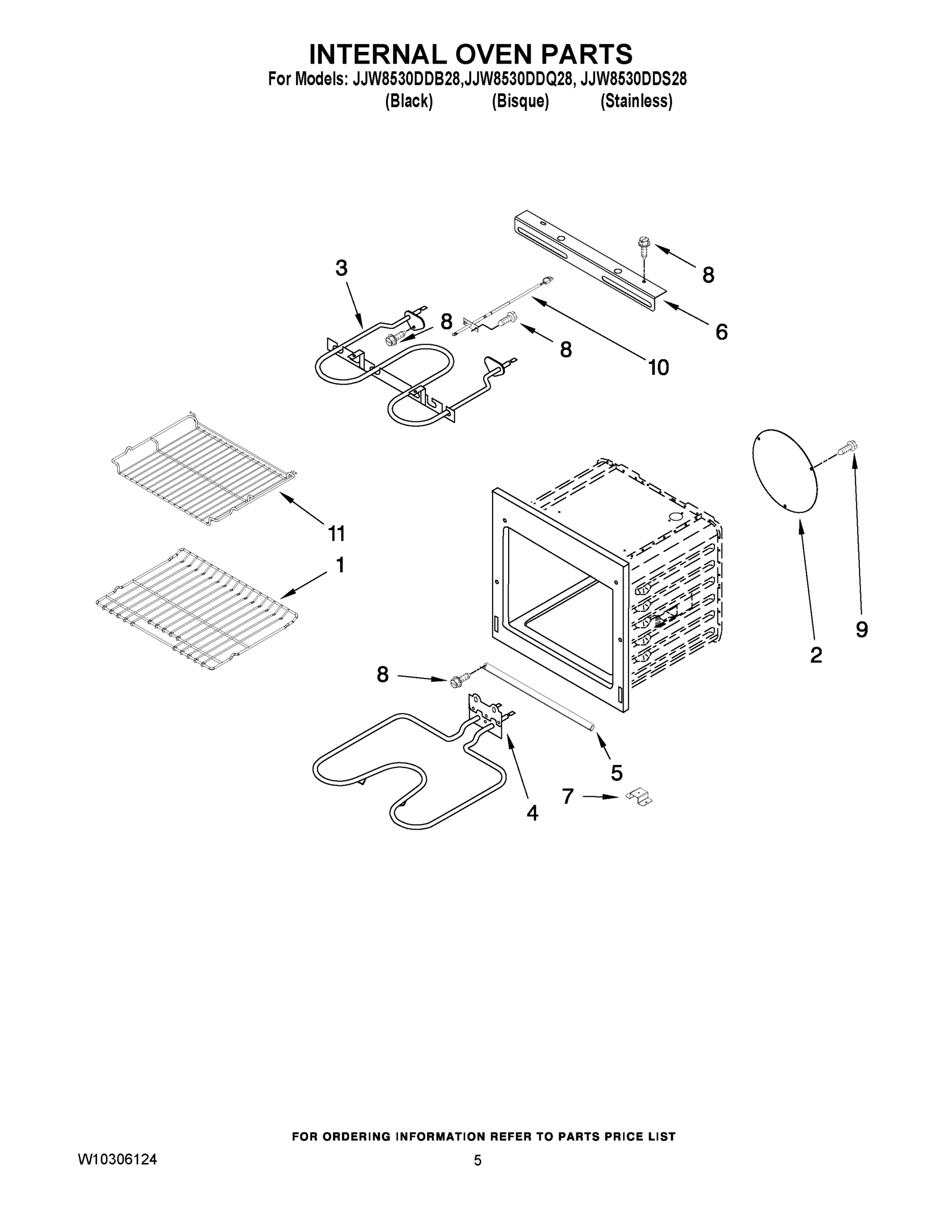

03 - INTERNAL OVEN PARTS

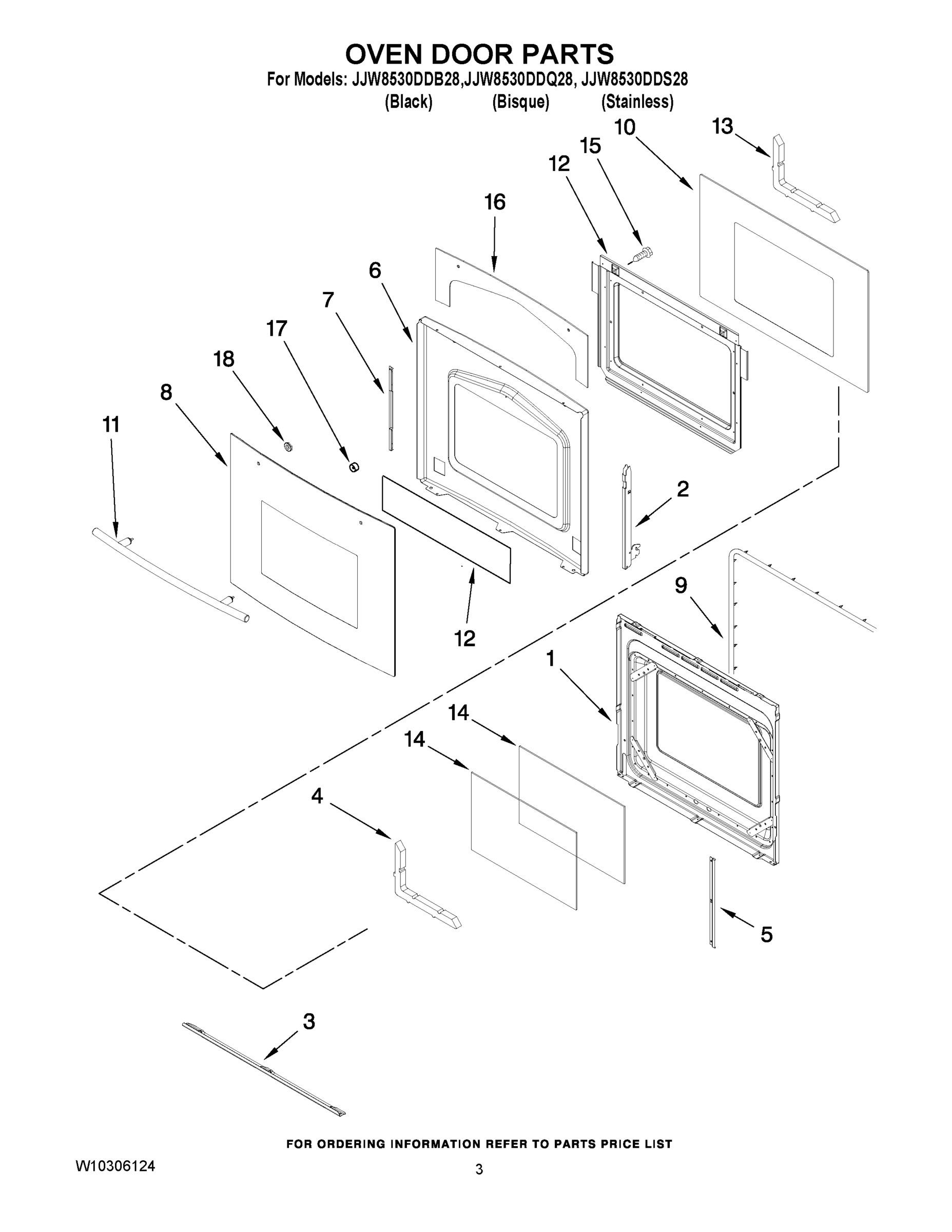

02 - OVEN DOOR PARTS

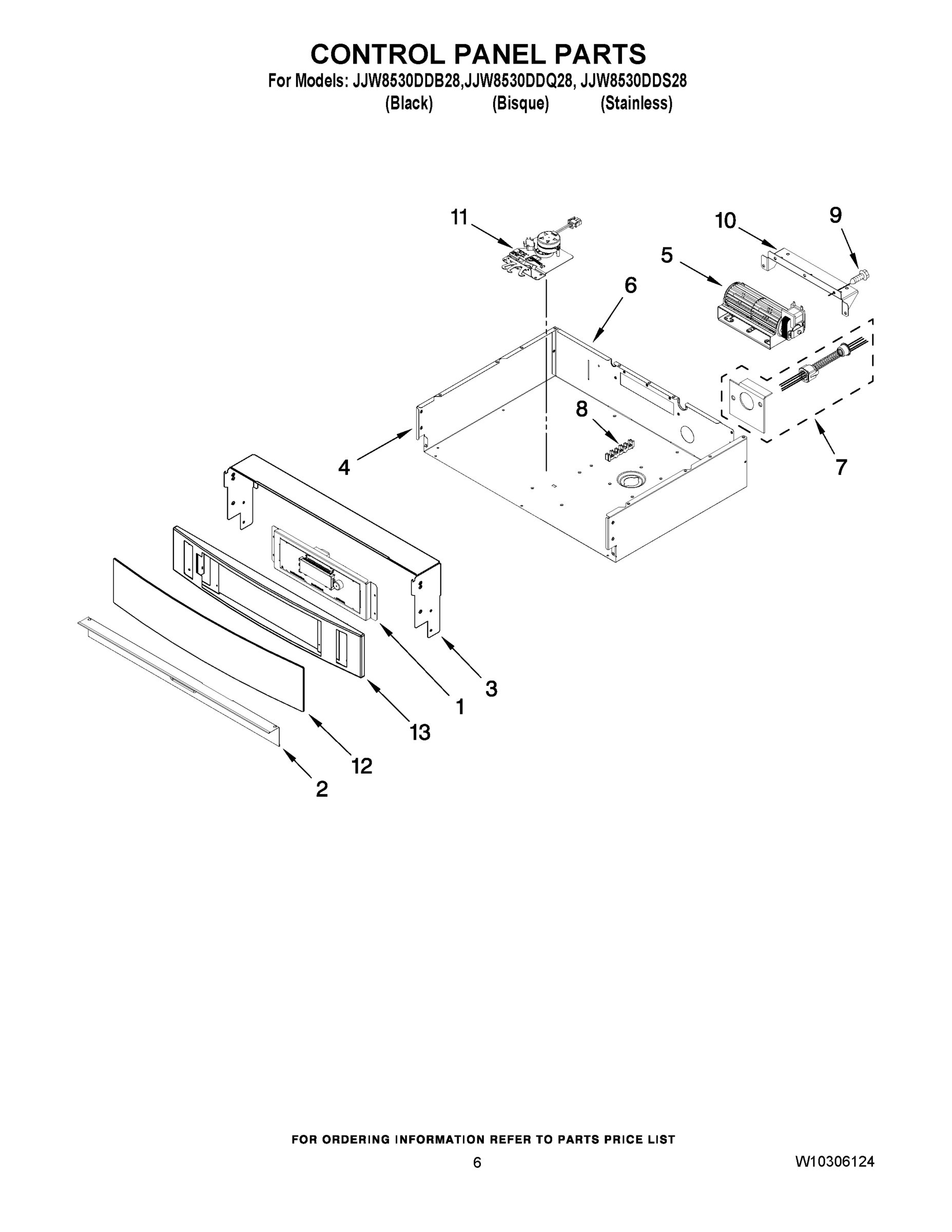

04 - CONTROL PANEL PARTS
Common parts from model Whirlpool JJW8530DDB28 ELECTRIC WALL OVEN
1
DIAGRAM, WIRING (FRENCH) WPL 8119P25860 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
OWNERS MANUAL WPL W10169642 Contact Us For Availability
1
RACK-OVEN WPL W10273863 Contact Us For Availability
1
LINER-DOOR WPL 2402W31419 Contact Us For Availability
1
CONTROL, SINGLE WPL 8507P34560 Contact Us For Availability
2
BACK, MAIN WPL 2624F04351 Contact Us For Availability
2
PLATE, NON-CONVECT WPL 3605F21119 Contact Us For Availability
2
HINGE, DOOR WPL 7106P11760 Contact Us For Availability
2
TRIM, CONTROL PNL WPL 3608F10770 Contact Us For Availability
3
BAFFLE, REAR LOWER WPL 3601F34351 Contact Us For Availability
3
TRIM, BTM DR VENT WPL 3608F10270 Contact Us For Availability
3
SUPPORT, TOP CNTRL WPL 3807F71751 Contact Us For Availability
4
PANEL, BOTTOM WPL 2624F07951 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P32260 Contact Us For Availability
4
Insulation, Door WPL 7002P24660 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) WPL 2624F07651 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) WPL 2624F07751 Contact Us For Availability
5
FOOT, PLASTIC (4) WPL 8038P03560 Contact Us For Availability
5
RETAINER, ELEMENT BAKE WPL 3807F67845 Contact Us For Availability
5
BRACKET, INNER GLASS WPL 3801F88651 Contact Us For Availability
5
FAN, TANGENTIAL WPL 7427P06260 Contact Us For Availability
6
SUPPORT, AIR CHANNEL WPL 3807F70651 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT WPL 3807F75445 Contact Us For Availability
6
FRAME-DOOR WPL 3603F07370 Contact Us For Availability
6
PANEL, CONTROL BOX REAR WPL 2624F10051 Contact Us For Availability
7
PAN, HIDDEN BAKE WPL 3401F07945 Contact Us For Availability
7
BRACKET, SUPPORT (HIDDEN BAKE) WPL 3801F82351 Contact Us For Availability
7
RETAINER, DR GLASS WPL 3804F14445 Contact Us For Availability
7
ASSEMBLY, CABLE WPL 5700P82960 Contact Us For Availability
8
ASSY., LIGHT SW WPL 7450P10960 Contact Us For Availability
8
ASSY., DOOR GLASS (BLACK) WPL 7922P02060 Contact Us For Availability
8
ASSY., DOOR GLASS (BISQUE) WPL 7922P02260 Contact Us For Availability
8
ASSY., DOOR GLASS (STAINLESS) WPL W10202023 Contact Us For Availability
8
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
9
PLUG, BUTTON WPL 7718P03360 Contact Us For Availability
9
SCREW WPL 7101P42660 Contact Us For Availability
9
Screw WPL 7101P50060 Contact Us For Availability
10
Screw WPL 7101P42760 Contact Us For Availability
10
SENSOR WPL 7430P04360 Contact Us For Availability
10
GLASS, DOOR (SCREENED) WPL 7902P65660 Contact Us For Availability
10
BRKT., COOLING FAN WPL 3801F82951 Contact Us For Availability
11
BOX, VENT WPL 4006W21745 Contact Us For Availability
11
RACK, OFFSET WPL 7801P16260 Contact Us For Availability
11
HANDLE, DOOR WPL 7701P47360 Contact Us For Availability
12
SCREEN, SMOKE ELM. WPL 8034P00860 Contact Us For Availability
12
RETAINER, INSUL. WPL 3804F30351 Contact Us For Availability
12
GLASS, CONTROL PNL (BLACK) WPL 7912P33660 Contact Us For Availability
12
GLASS, CONTROL PNL (BISQUE) WPL 7912P34360 Contact Us For Availability
12
GLASS, CONTROL PNL (STAINLESS) WPL 7912P35660 Contact Us For Availability
13
SWITCH, HI LIMIT WPL 7403P89960 Contact Us For Availability
13
Baffle, Door WPL 3601F37351 Contact Us For Availability
13
FRAME, CNTRL ASSY. WPL 3807W66470 Contact Us For Availability
14
ASSEMBLY, LIGHT WPL 7407P17960 Contact Us For Availability
14
Glass, Inner WPL 7902P43660 Contact Us For Availability
15
TUBE, VENT WPL 8026P06560 Contact Us For Availability
16
CHANNEL, BOTTOM WPL 3818F10851 Contact Us For Availability
16
INSULATION, DOOR (STAINLESS ONLY) WPL 7002P39760 Contact Us For Availability
17
PANEL, SIDE WPL 2618F21551 Contact Us For Availability
17
Nut WPL 7103P17660 Contact Us For Availability
18
RETAINER, REAR INSULATION WPL 2624F09451 Contact Us For Availability
18
WASHER WPL 7109P08260 Contact Us For Availability
19
PNL, TOP RETAINER WPL 2618F22651 Contact Us For Availability
20
COVER, VENT WPL 4005F72645 Contact Us For Availability
21
RECEIVER, HINGE WPL 7106P12760 Contact Us For Availability
22
TRIM, SIDE (RIGHT) WPL 7744P46060 Contact Us For Availability
22
TRIM, SIDE (LEFT) WPL 7744P46160 Contact Us For Availability
23
TRIM, BOTTOM VENT WPL 3608F09970 Contact Us For Availability
24
COVER, REAR WPL 4005P71251 Contact Us For Availability
25
BULB, OVEN WPL 899138001 Contact Us For Availability
27
Screw WPL 7101P43460 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P35260 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P42360 Contact Us For Availability
× ![]()
