Model Maytag JJW8530BCW ELECTRIC WALL OVEN – Common Parts & Diagrams

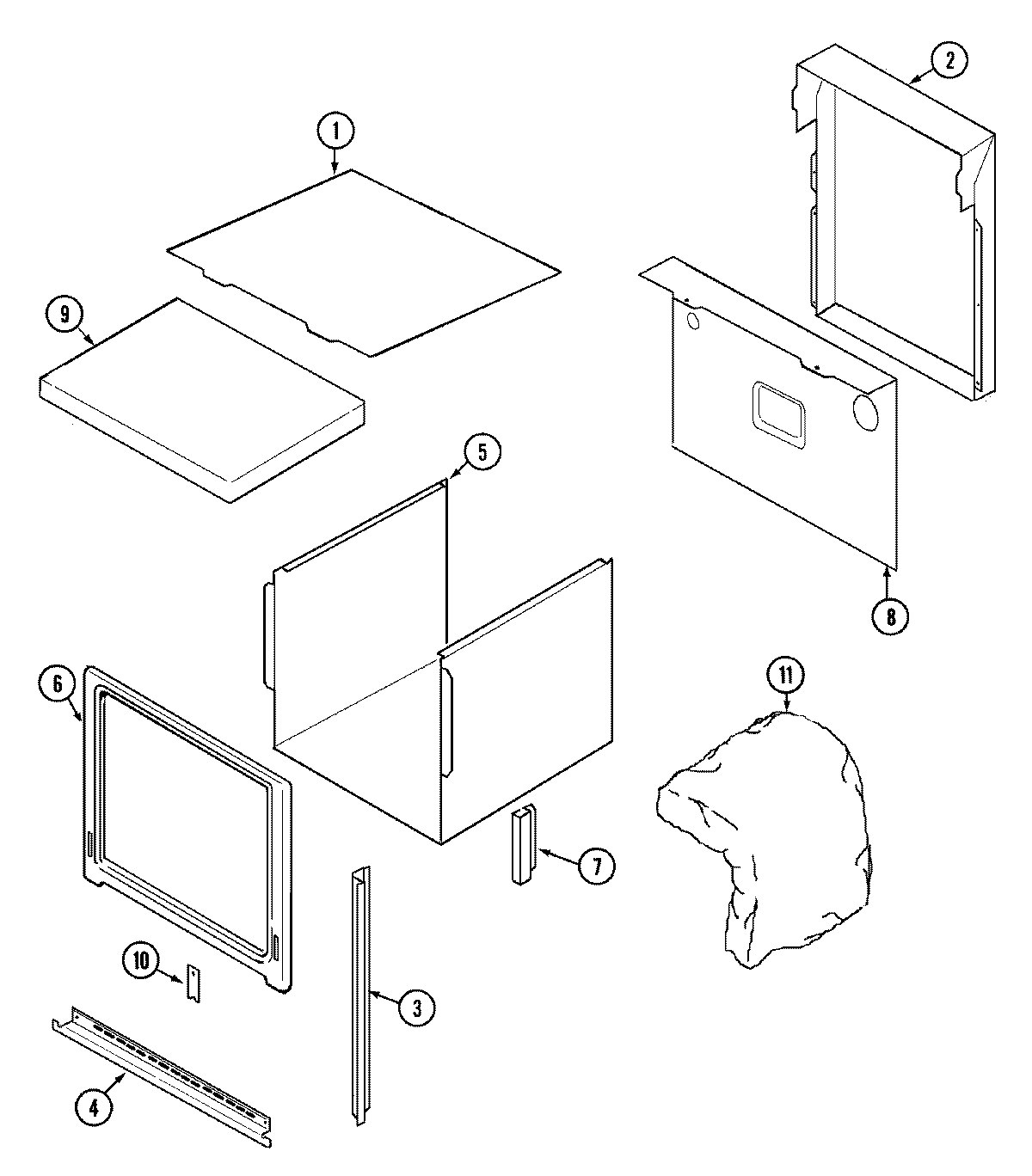

01 - BODY

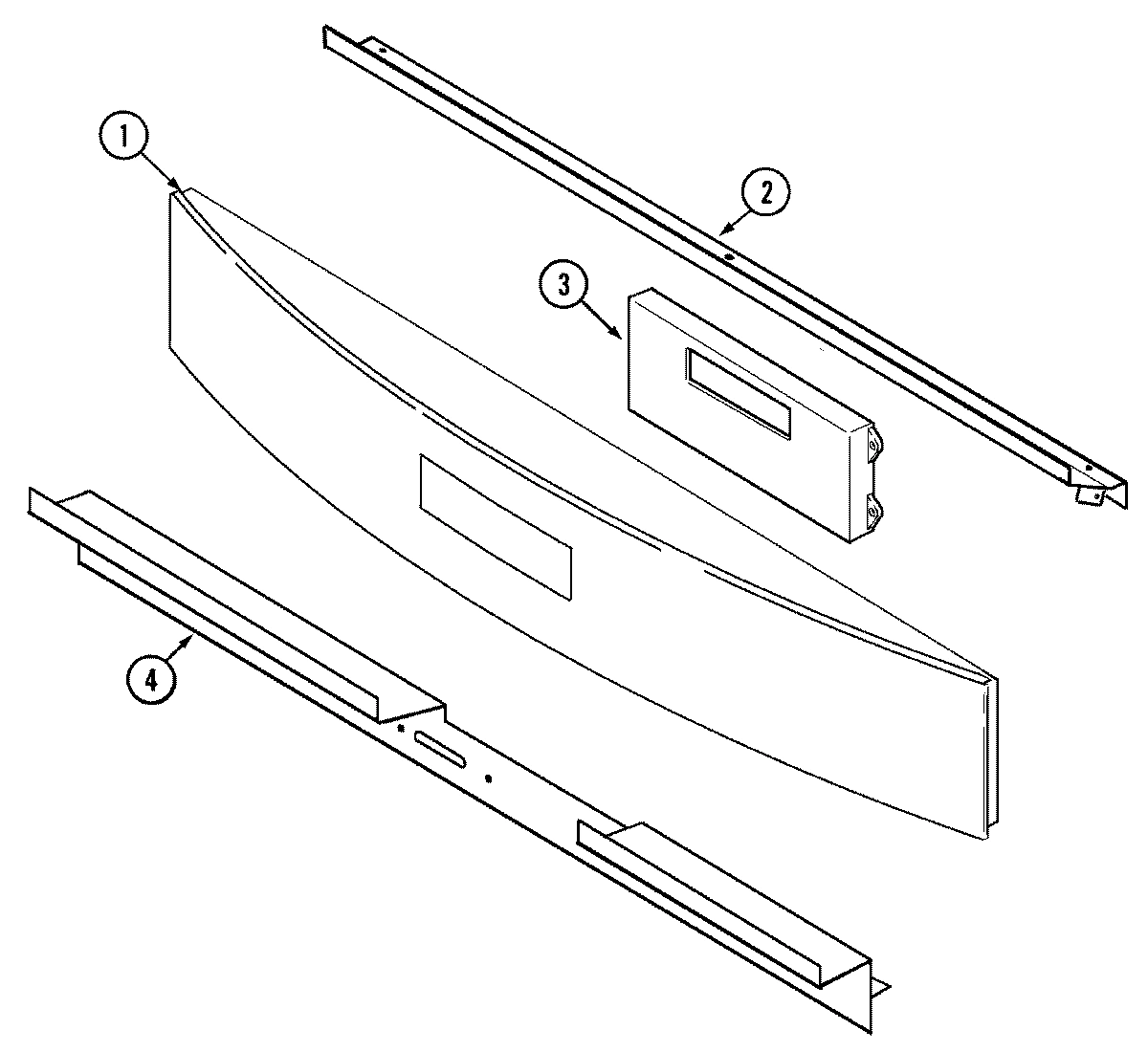

02 - CONTROL PANEL

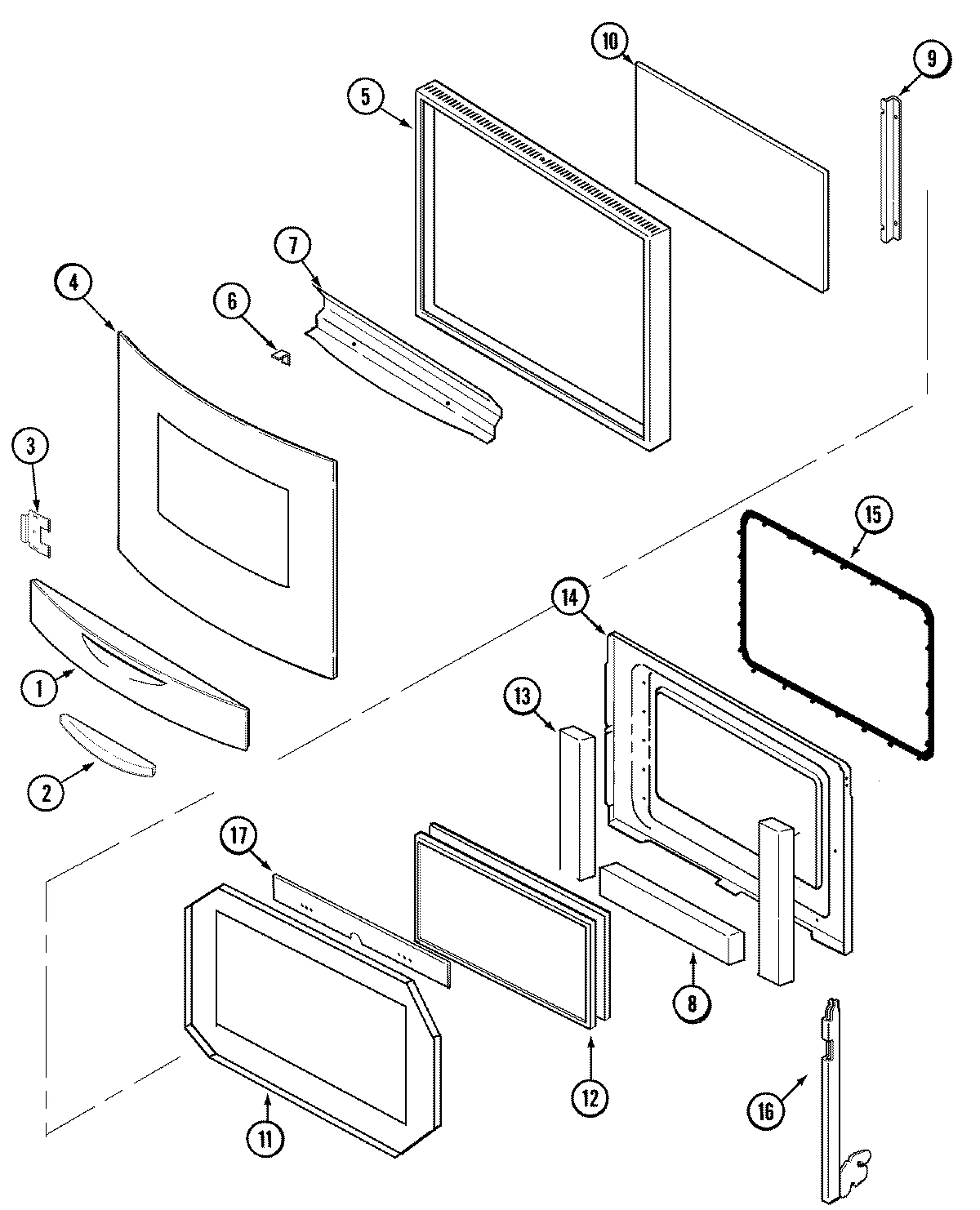

03 - DOOR

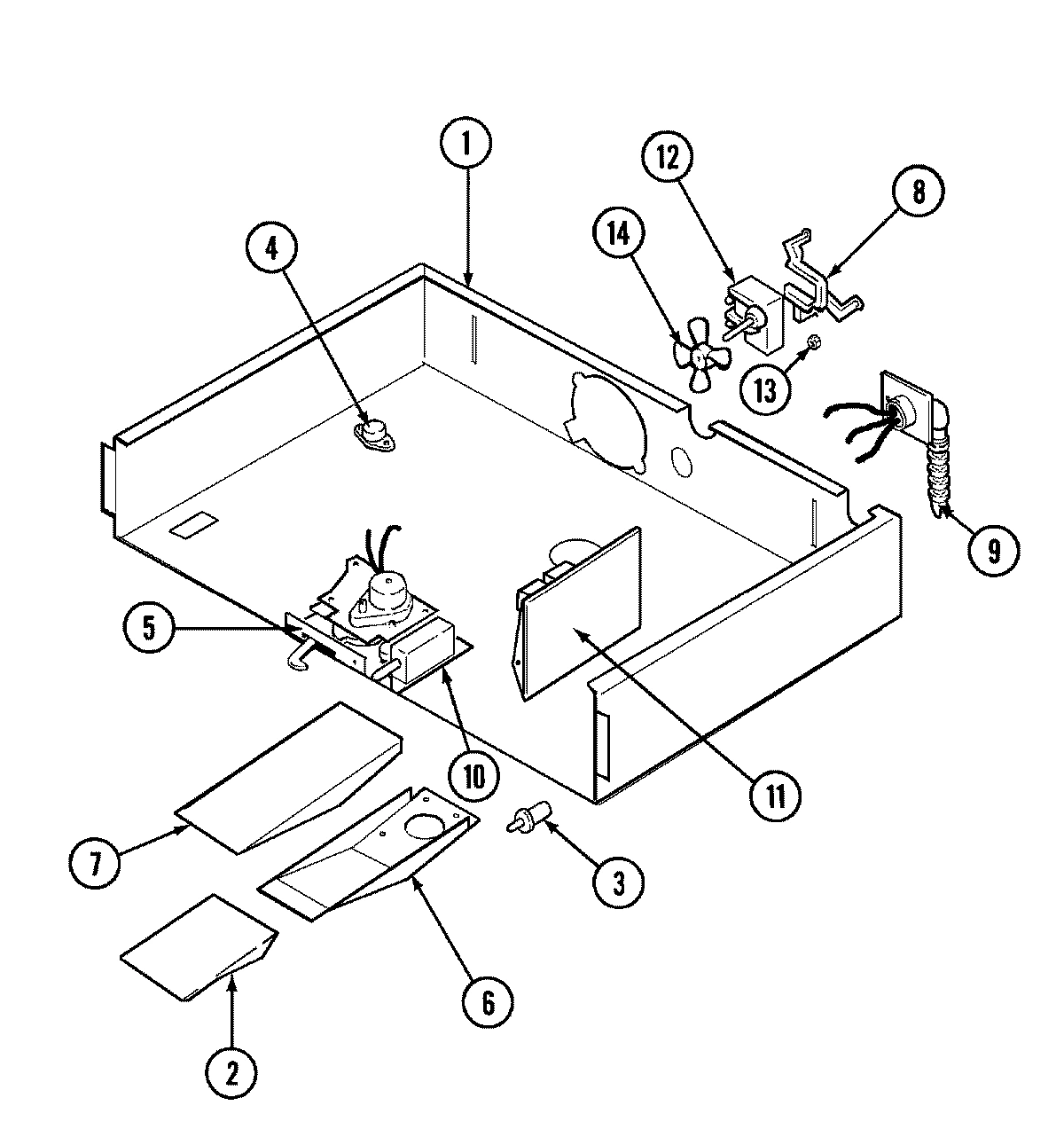

04 - INTERNAL CONTROLS
05 - OVEN

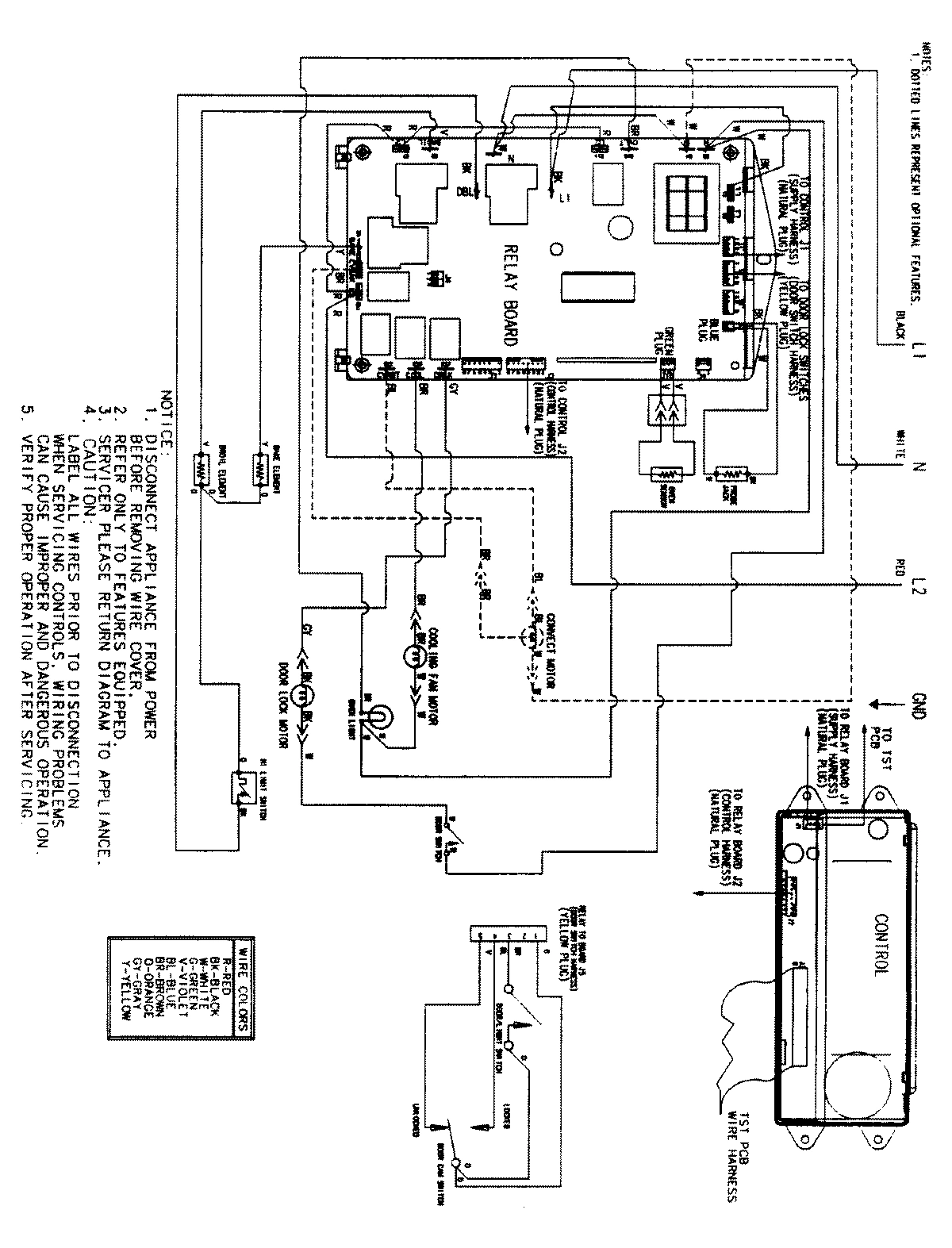

06 - WIRING INFORMATION
Common parts from model Maytag JJW8530BCW ELECTRIC WALL OVEN
1
MAY 74005616 MAY 74005616 Contact Us For Availability
1
MAY 74005647 MAY 74005647 Contact Us For Availability
1
MAY 74004628 MAY 74004628 Contact Us For Availability
1
MAY 71001395 MAY 71001395 Contact Us For Availability
2
MAY 71003405 MAY 71003405 Contact Us For Availability
2
MAY 7109P036-60 MAY 7109P036-60 Contact Us For Availability
2
MAY 74005606 MAY 74005606 Contact Us For Availability
2
MAY 71001843 MAY 71001843 Contact Us For Availability
3
MAY 71003386 MAY 71003386 Contact Us For Availability
3
MAY 71001129 MAY 71001129 Contact Us For Availability
3
MAY 71002903 MAY 71002903 Contact Us For Availability
4
MAY 74005644 MAY 74005644 Contact Us For Availability
4
MAY 71001804 MAY 71001804 Contact Us For Availability
4
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
4
MAY 74005617 MAY 74005617 Contact Us For Availability
4
MAY Y702548 MAY Y702548 Contact Us For Availability
4
MAY Y708310 MAY Y708310 Contact Us For Availability
4
MAY 702592 MAY 702592 Contact Us For Availability
5
MAY 71001845 MAY 71001845 Contact Us For Availability
5
MAY 71001827 MAY 71001827 Contact Us For Availability
5
MAY 74005645 MAY 74005645 Contact Us For Availability
5
MAY 71001798 MAY 71001798 Contact Us For Availability
5
MAY 71001808 MAY 71001808 Contact Us For Availability
5
MAY 71001809 MAY 71001809 Contact Us For Availability
5
MAY 71003403 MAY 71003403 Contact Us For Availability
5
MAY 71003404 MAY 71003404 Contact Us For Availability
5
MAY 74005198 MAY 74005198 Contact Us For Availability
5
MAY 74005199 MAY 74005199 Contact Us For Availability
5
MAY 74007034 MAY 74007034 Contact Us For Availability
5
MAY 74007064 MAY 74007064 Contact Us For Availability
5
MAY 71003395 MAY 71003395 Contact Us For Availability
5
MAY 74006311 MAY 74006311 Contact Us For Availability
5
MAY 71001867 MAY 71001867 Contact Us For Availability
6
MAY 71003180 MAY 71003180 Contact Us For Availability
6
MAY 71003510 MAY 71003510 Contact Us For Availability
6
MAY 71003513 MAY 71003513 Contact Us For Availability
6
MAY 74005475 MAY 74005475 Contact Us For Availability
6
MAY 71001831 MAY 71001831 Contact Us For Availability
6
MAY Y700725 MAY Y700725 Contact Us For Availability
6
MAY 71001846 MAY 71001846 Contact Us For Availability
7
MAY 71003396 MAY 71003396 Contact Us For Availability
7
GASKET, WINDOW MAY 790058 Contact Us For Availability
7
MAY 71001847 MAY 71001847 Contact Us For Availability
7
MAY 71001403 MAY 71001403 Contact Us For Availability
7
MAY 71003005 MAY 71003005 Contact Us For Availability
8
MAY 74004629 MAY 74004629 Contact Us For Availability
8
MAY 71001838 MAY 71001838 Contact Us For Availability
8
MAY 71001853 MAY 71001853 Contact Us For Availability
9
MAY 71002329 MAY 71002329 Contact Us For Availability
9
MAY 71003614 MAY 71003614 Contact Us For Availability
9
MAY 74003650 MAY 74003650 Contact Us For Availability
9
MAY 71002603 MAY 71002603 Contact Us For Availability
9
MAY 71001866 MAY 71001866 Contact Us For Availability
10
MAY 71002904 MAY 71002904 Contact Us For Availability
10
MAY 71001812 MAY 71001812 Contact Us For Availability
10
MAY 74005640 MAY 74005640 Contact Us For Availability
10
MAY 71002419 MAY 71002419 Contact Us For Availability
11
MAY 71001817 MAY 71001817 Contact Us For Availability
11
MAY 715634 MAY 715634 Contact Us For Availability
11
MAY 74005648 MAY 74005648 Contact Us For Availability
11
MAY 71003412 MAY 71003412 Contact Us For Availability
11
MAY 71001170 MAY 71001170 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY 74005641 MAY 74005641 Contact Us For Availability
12
MAY 71001394 MAY 71001394 Contact Us For Availability
12
MAY 71001851 MAY 71001851 Contact Us For Availability
12
MAY 71003083 MAY 71003083 Contact Us For Availability
13
MAY 71001839 MAY 71001839 Contact Us For Availability
13
MAY 701678 MAY 701678 Contact Us For Availability
13
MAY 702929 MAY 702929 Contact Us For Availability
14
MAY 74005642 MAY 74005642 Contact Us For Availability
14
MAY 71001852 MAY 71001852 Contact Us For Availability
14
MAY 3401F014-19 MAY 3401F014-19 Contact Us For Availability
14
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
15
MAY 703165 MAY 703165 Contact Us For Availability
15
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
17
MAY 74005614 MAY 74005614 Contact Us For Availability
NI
MAY 15002516 MAY 15002516 Contact Us For Availability
× ![]()
