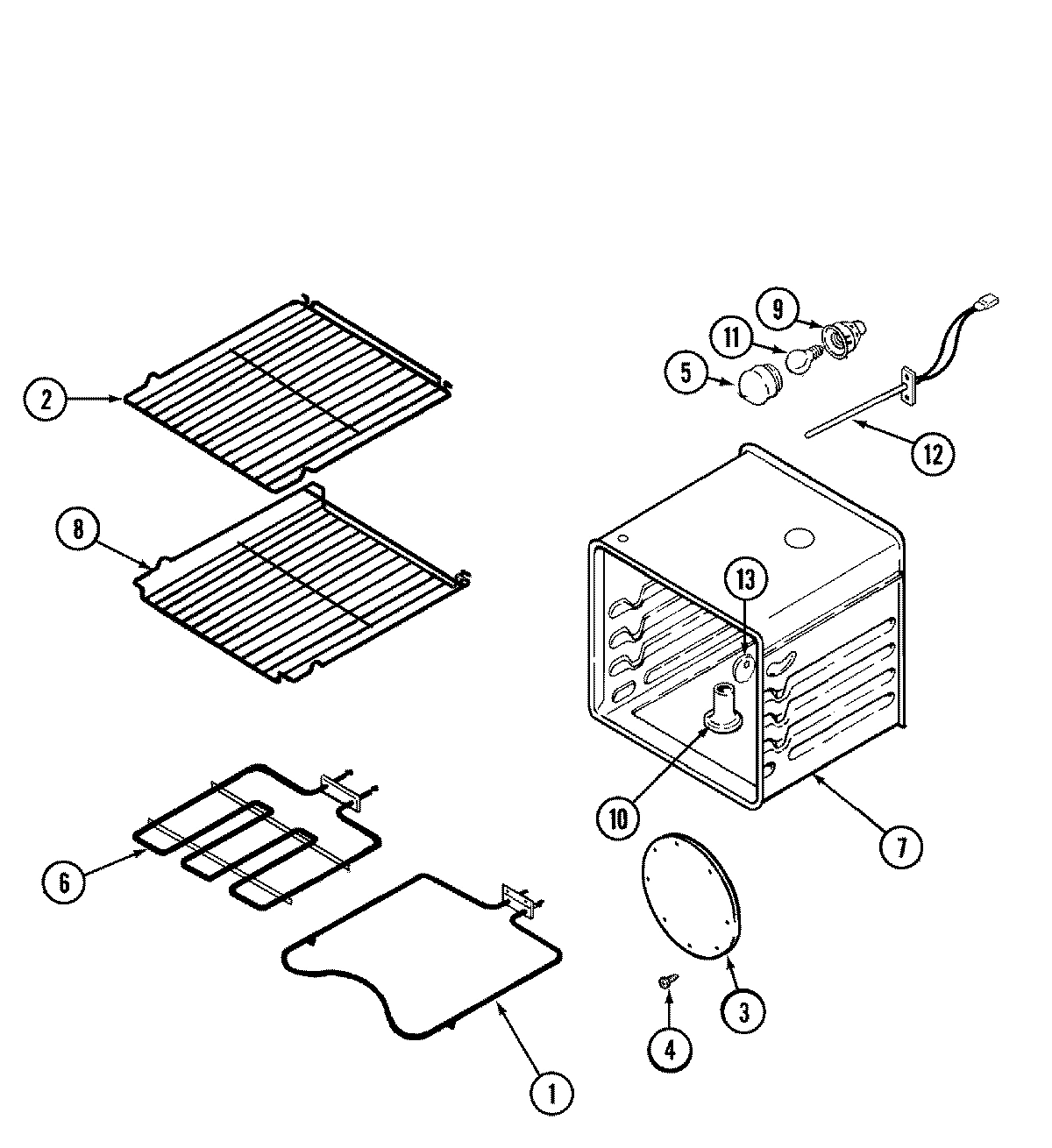

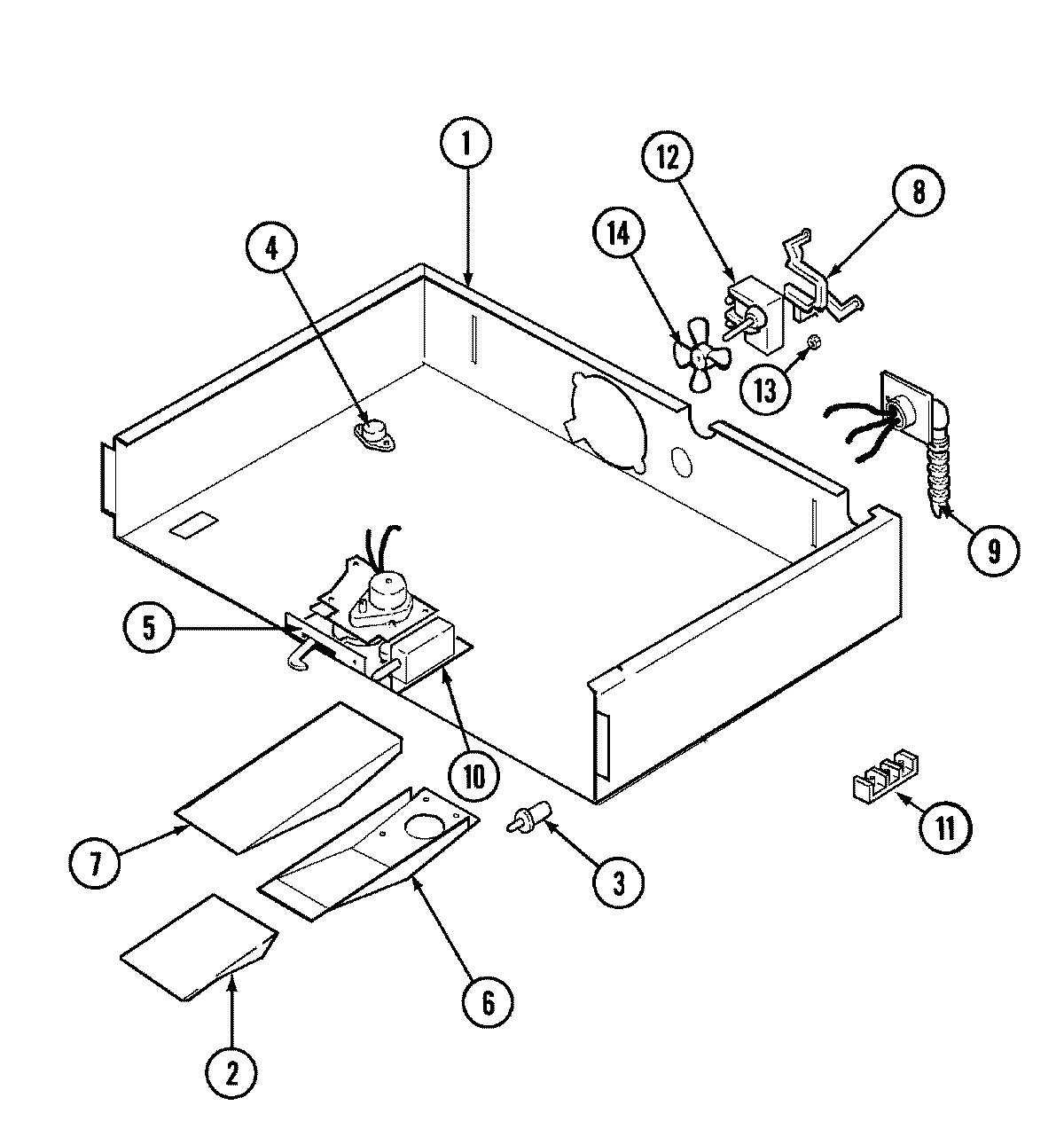

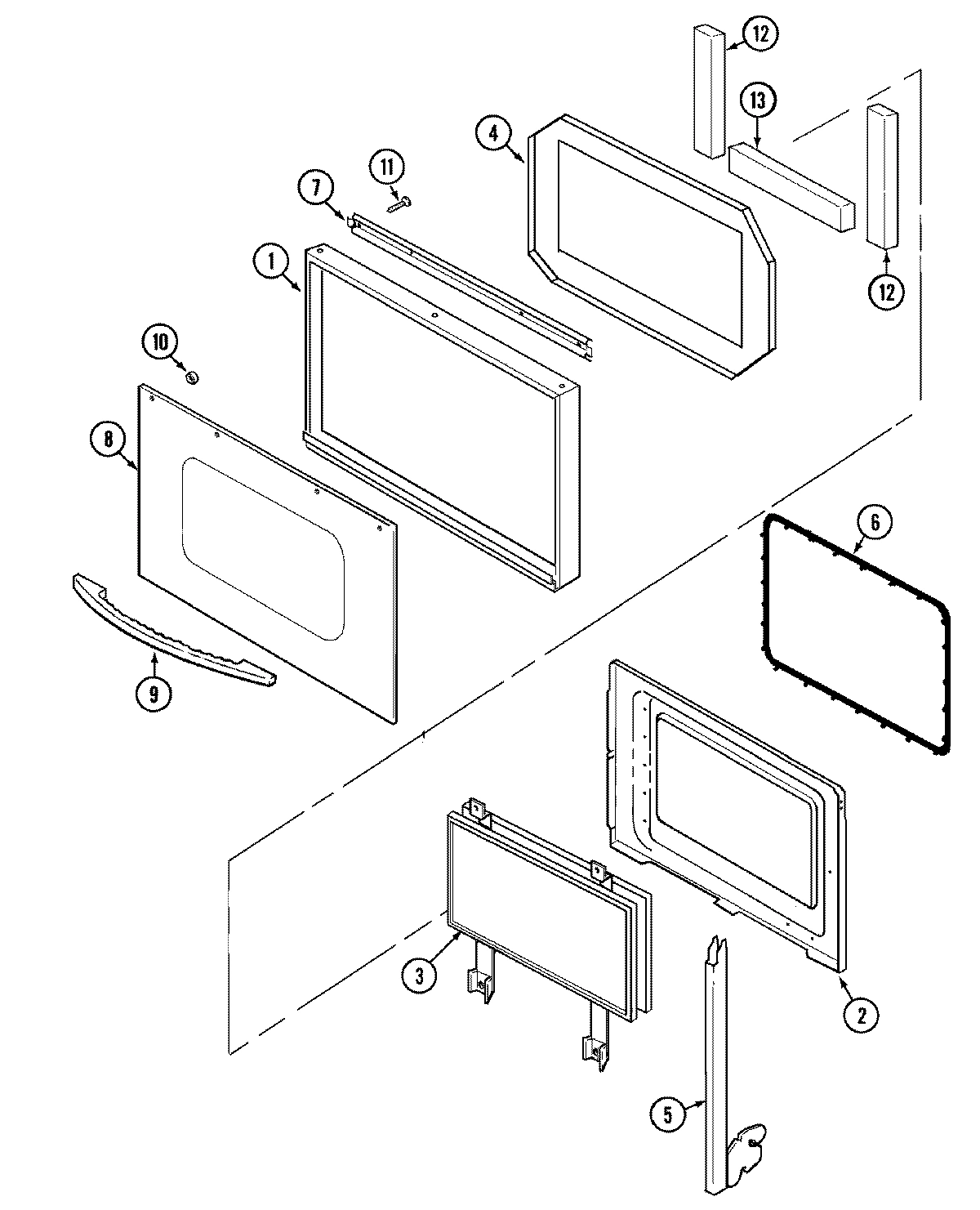

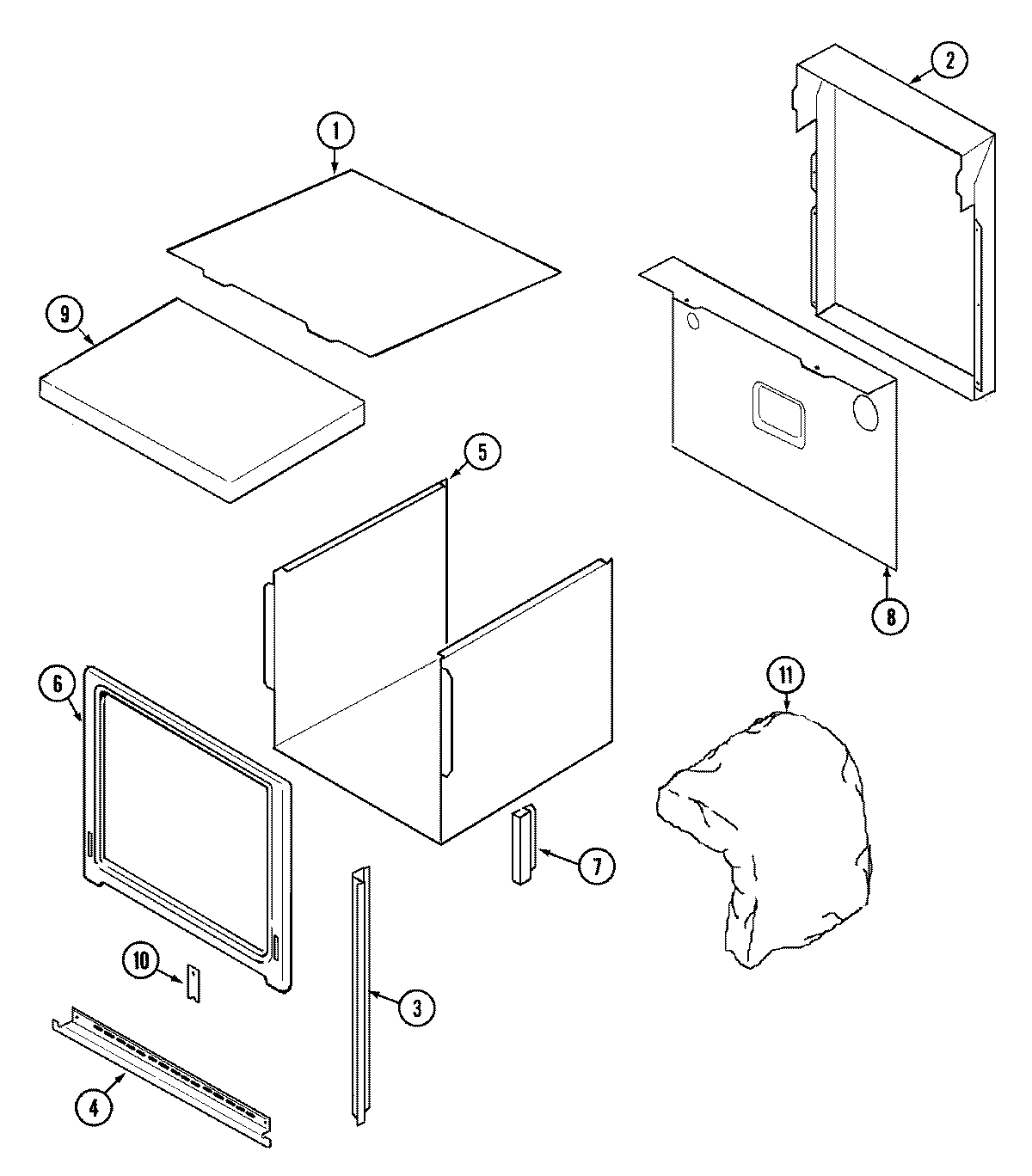

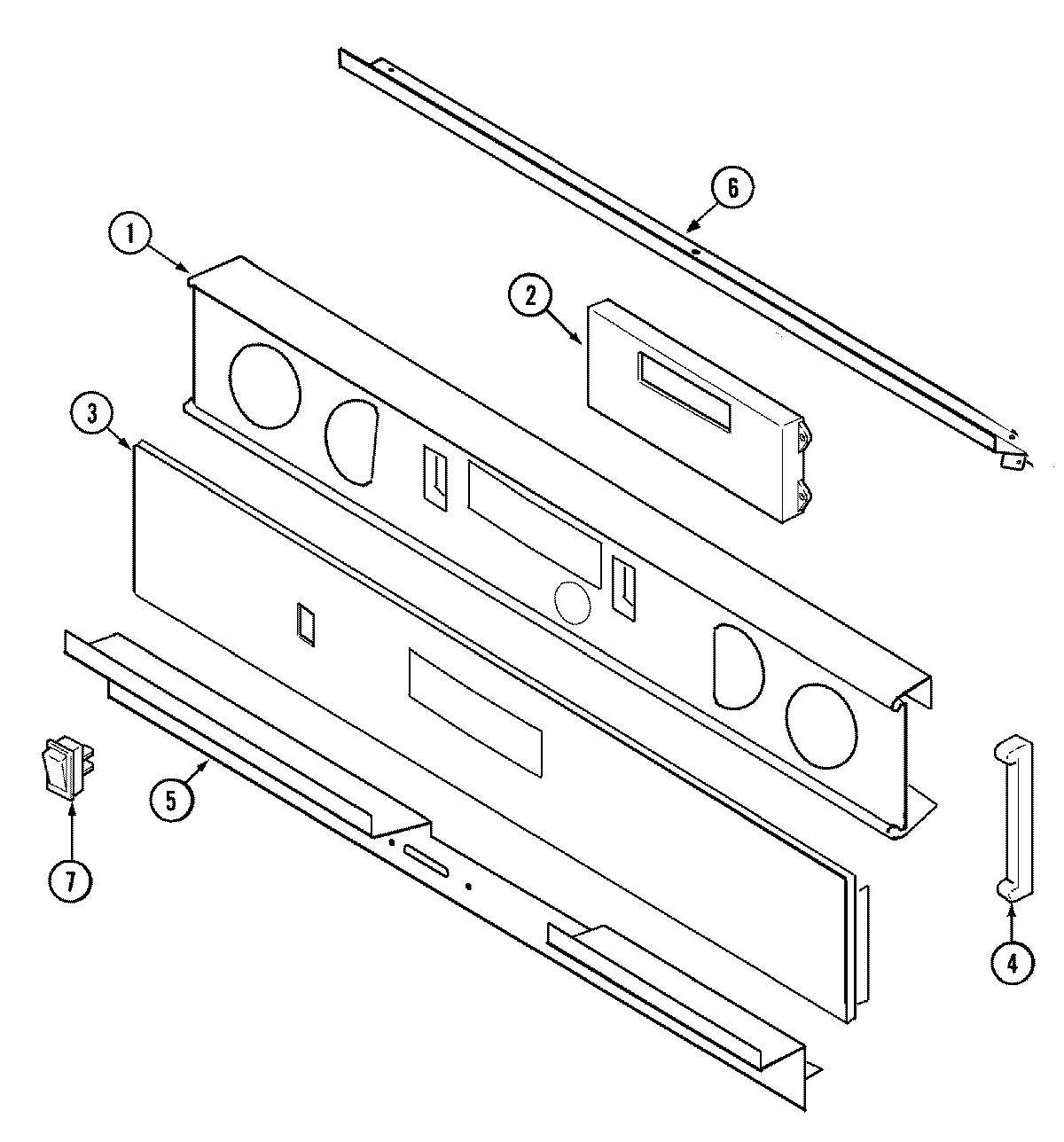

Model Whirlpool JJW8130AAW ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

WPW10310258 Whirlpool Bake Element In Stock WPL WPW10310258 $75.36

1

SCREW WPL 71001827 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 74004694 Contact Us For Availability

1

FRAME, DOOR (WHT) WPL 71001830 Contact Us For Availability

1

PANEL, INNER TOP (OVEN) WPL 71001976 Contact Us For Availability

1

TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $78.34

2

SCREW WPL 702731 Contact Us For Availability

2

CLOCK WPL 74004718 Contact Us For Availability

2

INSULATOR WPL Y705143 Contact Us For Availability

2

LINER, OVEN DOOR WPL 74005642 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

3

TAPE SUPT (CONTROL PANEL) KIT WPL 12001405 Contact Us For Availability

3

SWITCH, MEMBRANE ASY (WHT) WPL 74006441 Contact Us For Availability

3

SWITCH, MEMBRANE ASY (WHT) WPL 74006860 Contact Us For Availability

3

WINDOW ASSEMBLY WPL 74005641 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

3

TRIM, SIDE (LT-WHT) WPL 71001825 Contact Us For Availability

3

TRIM, SIDE (RT-WHT) WPL 71001826 Contact Us For Availability

3

END CAP, PANEL (WHT) WPL 74006763 Contact Us For Availability

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $89.06

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

4

END CAP, PANEL (WHT) WPL 71001795 Contact Us For Availability

4

RETAINER, INSULATION WPL 74005648 Contact Us For Availability

4

TRIM, OVEN (LWR-WHT) WPL 74005644 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $45.28

5

TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability

5

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

5

HINGE, DOOR WPL 71003352 Contact Us For Availability

5

LATCH, DOOR (W/LIGHT SWITCH) WPL 71003294 Contact Us For Availability

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 74005645 Contact Us For Availability

6

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $76.27

6

SUPPORT, TOP WPL 71003405 Contact Us For Availability

6

SUPPORT, TOP CONTROL WPL 74007581 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $154.88

7

SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability

7

BRACKET, DOOR HANDLE WPL 74004618 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

8

HARNESS, SENOR/LOCK WPL 74004701 Contact Us For Availability

8

HARNESS, LOCK SWITCH WPL 74004702 Contact Us For Availability

8

HARNESS, MAIN WPL 74004711 Contact Us For Availability

8

GLASS, DOOR (WHT) WPL 74005570 Contact Us For Availability

8

GLASS, DOOR (WHT) WPL 74006713 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

8

PANEL, BACK (INR) WPL 74004629 Contact Us For Availability

9

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

9

MANUAL, USE & CARE (TRI) WPL 74005958 Contact Us For Availability

9

HANDLE, OVEN DOOR (WHT) WPL 74004622 Contact Us For Availability

9

CABLE ASSEMBLY WPL 74004713 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability

9

INSULATION (BTM) WPL 71003614 Contact Us For Availability

SPACER, HANDLE WPL 8010P07360 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

SCREW WPL Y707402 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

W10759523 Whirlpool Screw Backorder WPL W10759523 $2.47

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

SCREW WPL 712067 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.60

INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

14

BLADE, FAN WPL 71001852 Contact Us For Availability

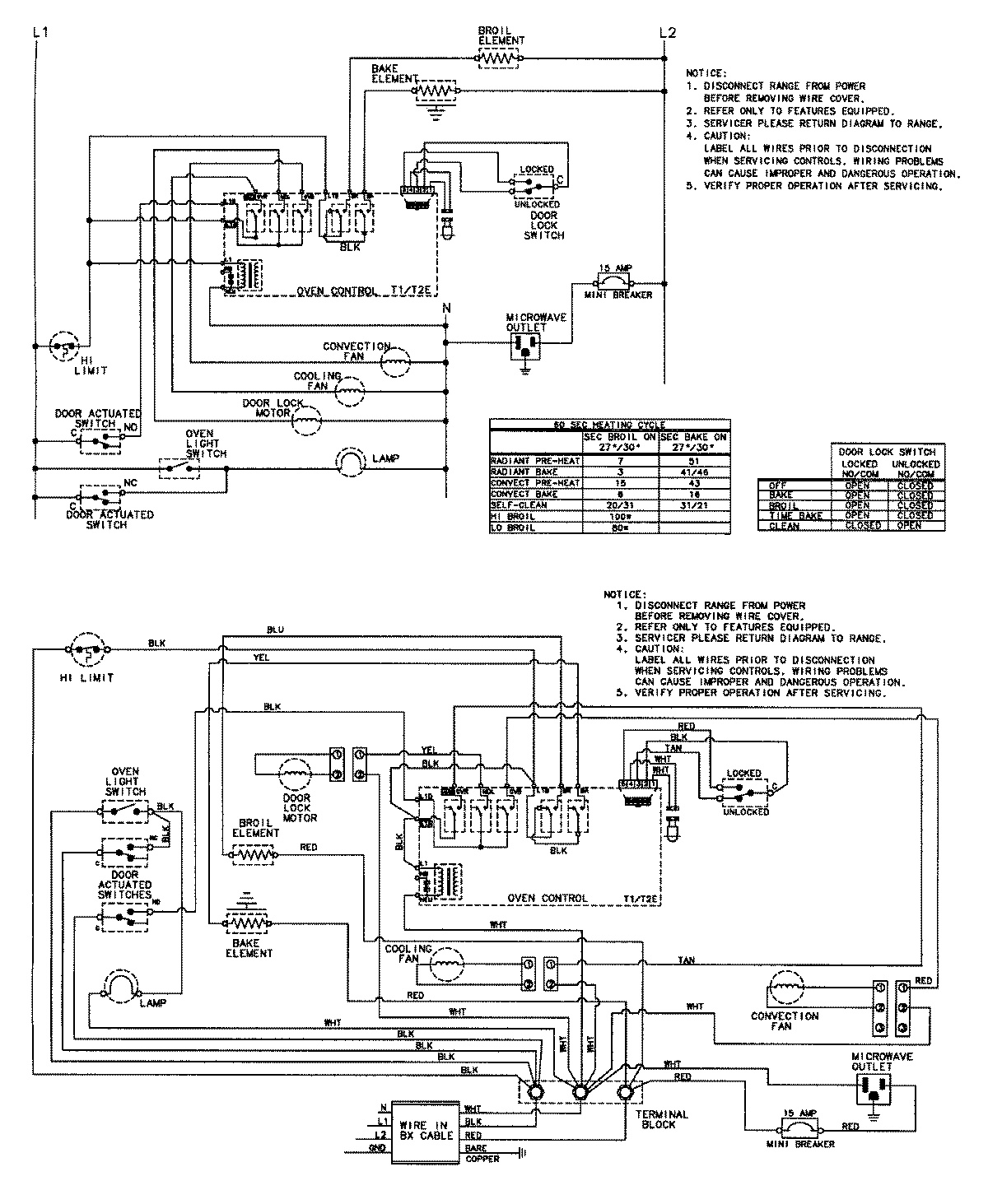

NI

WIRING INFORMATION WPL 15002627 Contact Us For Availability
