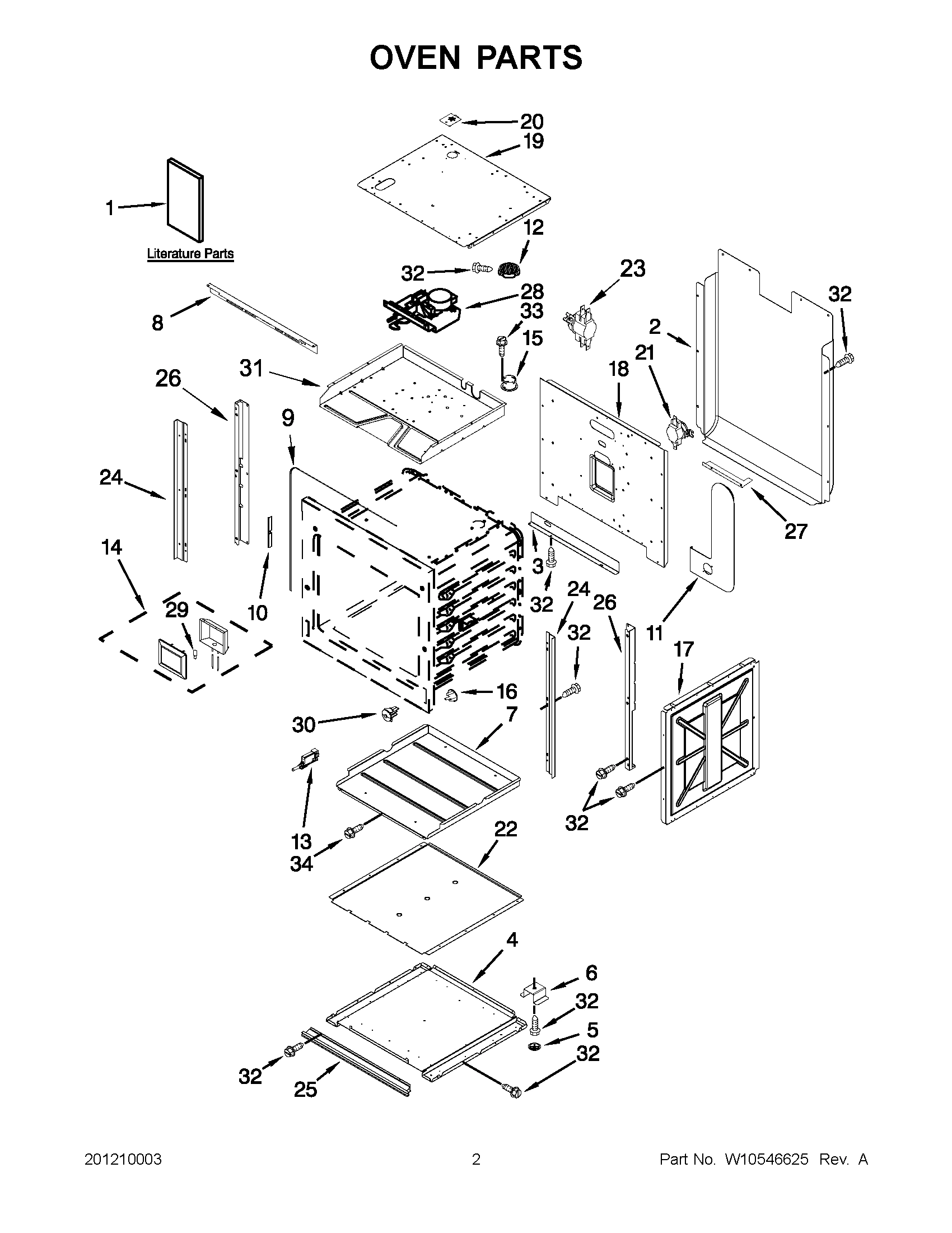

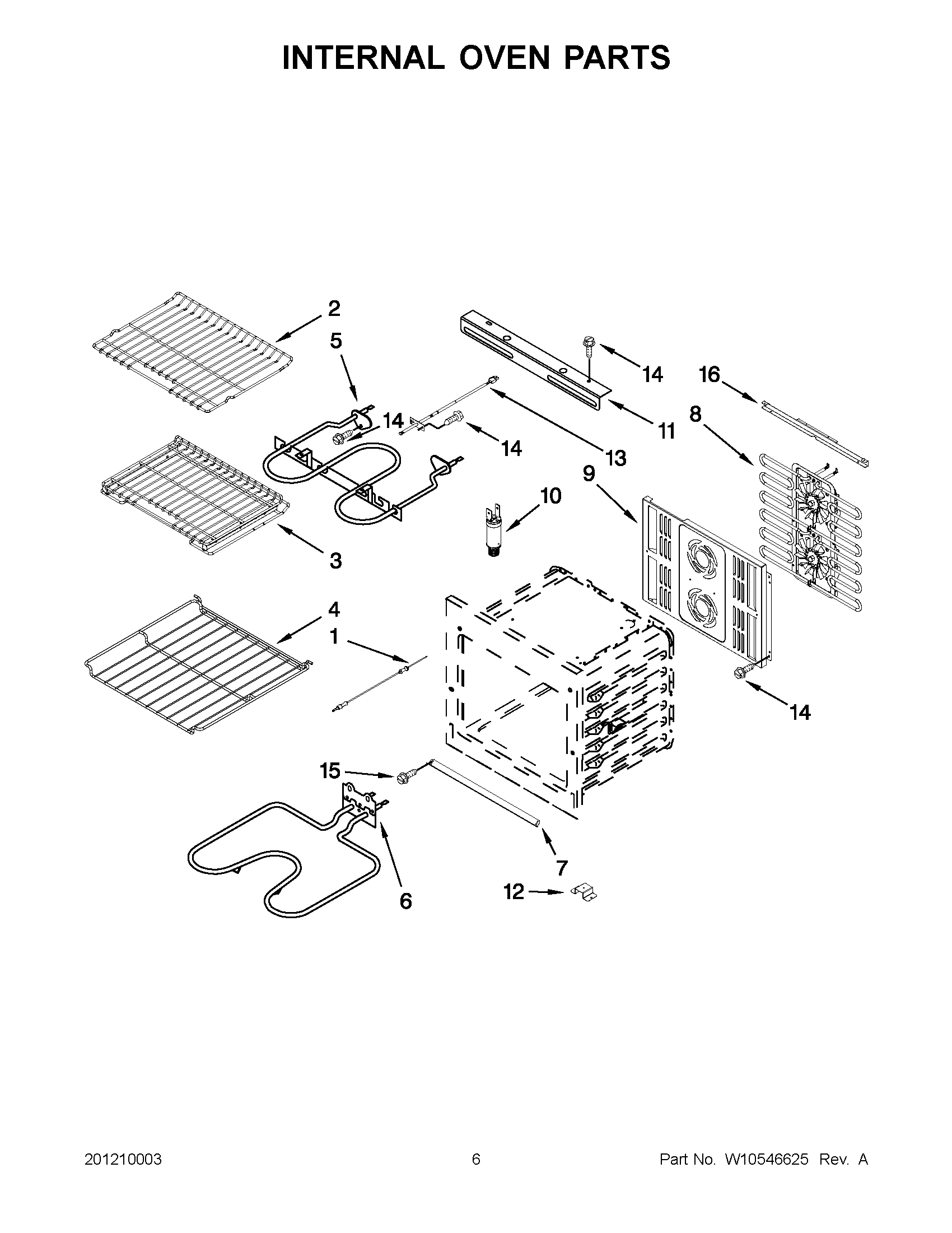

Model Whirlpool JJW3430WS02 ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

WPW10187019 Whirlpool Door Liner Backorder WPL WPW10187019 $192.04

1

ASSEMBLY, CONTROL PANEL (STAINLESS) WPL W10517905 Contact Us For Availability

2

WPW10286791-includeCORE Whirlpool WPW10286791 Backorder WPL WPW10286791-includeCORE $224.21

2

HINGE, DOOR (BLACK) WPL W10176157 Contact Us For Availability

2

RACK, BAKING WPL W10176138 Contact Us For Availability

2

HINGE, DOOR (STAINLESS) WPL W10277751 Contact Us For Availability

3

W10187048 Whirlpool Rear Cover Backorder WPL W10187048 $46.06

3

GLASS, INNER WPL W10176100 Contact Us For Availability

4

W11688417 Whirlpool Insulation Backorder WPL W11688417 $9.44

4

WPW10273667 Whirlpool Range Wall Oven Blower In Stock WPL WPW10273667 $151.26

4

RACK, OFFSET WPL W10186988 Contact Us For Availability

5

W10186997 Whirlpool Mounting Bracket Backorder WPL W10186997 $33.80

5

INSULATION, DOOR (VERTICAL) WPL W10273591 Contact Us For Availability

6

WP7406P322-60 Whirlpool Bake Element Backorder WPL WP7406P322-60 $101.20

6

BRACKET, DOOR CLIP WPL W10176175 Contact Us For Availability

6

PANEL, CONTROL BOX TOP WPL W10176180 Contact Us For Availability

7

W10176002 Whirlpool Compartment Side Backorder WPL W10176002 $53.94

7

RETAINER, DOOR GLASS WPL W10176103 Contact Us For Availability

7

PANEL, CONTROL BOX RIGHT HAND WPL W10176003 Contact Us For Availability

8

W10277580 Whirlpool Insulation Backorder WPL W10277580 $33.08

8

KIT, TWIN CONVECT WPL W10213812 Contact Us For Availability

8

SUPPORT, TOP CONTROL WPL W10512901 Contact Us For Availability

9

W10176233 Whirlpool Bumper Backorder WPL W10176233 $5.95

9

GASKET WPL W10213818 Contact Us For Availability

9

CABLE, USER INTERFACE WPL W10175829 Contact Us For Availability

10

W10176218 Whirlpool Retainer Backorder WPL W10176218 $5.93

10

W11684783 Whirlpool Insulation Backorder WPL W11684783 $12.31

10

SCREW WPL 7101P42660 Contact Us For Availability

W10186755 Whirlpool Door Handle Backorder WPL W10186755 $132.22

W10186757 Whirlpool Door Handle Backorder WPL W10186757 $173.27

MANAGER, APPLIANCE WPL W10292566 Contact Us For Availability

HANDLE, DOOR (STAINLESS) WPL W10186756 Contact Us For Availability

12

BRACKET, INNER DOOR GLASS WPL W10186882 Contact Us For Availability

13

SWITCH, MICRO WPL W10286173 Contact Us For Availability

13

ASSEMBLY, OUTER DOOR GLASS (STAINLESS) WPL W10186890 Contact Us For Availability

13

ASSEMBLY, OUTER DOOR GLASS (BLACK) WPL W10186889 Contact Us For Availability

14

W10175989 Whirlpool Oven Light In Stock WPL W10175989 $57.21

14

W10214169 Whirlpool Nameplate Assembly Backorder WPL W10214169 $40.20

14

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $43.11

15

GLASS, CAVITY WPL W10213803 Contact Us For Availability

16

KIT, GLASS ASSEMBLY (STAINLESS) WPL W10176184 Contact Us For Availability

16

KIT, GLASS ASSEMBLY (OILED BRONZE) WPL W10176224 Contact Us For Availability

16

KIT, GLASS ASSEMBLY (BLACK) WPL W10277593 Contact Us For Availability

17

PAD, HANDLE FOAM WPL W10213722 Contact Us For Availability

18

W10176126 Whirlpool Mounting Bracket Backorder WPL W10176126 $63.06

20

W10305979 Whirlpool Spacer Backorder WPL W10305979 $42.75

21

HINGE, RECEIVER WPL W10175993 Contact Us For Availability

23

W10277592 Whirlpool Thermostat Assembly Backorder WPL W10277592 $45.73

25

W10238700 Whirlpool Trim Vent Backorder WPL W10238700 $79.13

25

WPW10176036 Whirlpool Vent Trim Backorder WPL WPW10176036 $97.55

28

WPW10213755 Whirlpool Door Latch Backorder WPL WPW10213755 $197.60

29

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $25.07

30

W10213745 Whirlpool Switch Housing Backorder WPL W10213745 $6.99

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350938 Whirlpool Spray Gun Backorder WPL 350938 $52.25

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.93

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.95

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

PT220 Whirlpool Power Cord In Stock WPL PT220 $13.47

PT400 Whirlpool Range Power Cord In Stock WPL PT400 $15.47

PT500 Whirlpool Oven Power Cord Backorder WPL PT500 $20.71

PT600 Whirlpool M Power Cord Backorder WPL PT600 $20.96

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $75.20

W10209123 Whirlpool Wire Harness Backorder WPL W10209123 $69.35

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $27.40

ACCESSORIES, SS CLE WPL W10355016 Contact Us For Availability

ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability

ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, WIRE (SIGNAL E WPL W10172125 Contact Us For Availability

WIRING HARNESS PARTS, JUMPER, THERMAL WPL W10277599 Contact Us For Availability

WIRING HARNESS PARTS, JUMPER, SECONDARY THERM WPL W10282791 Contact Us For Availability
