Model Maytag JJW3430DP02 WALL OVEN, ELECTRIC, BUILT-IN, SINGLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

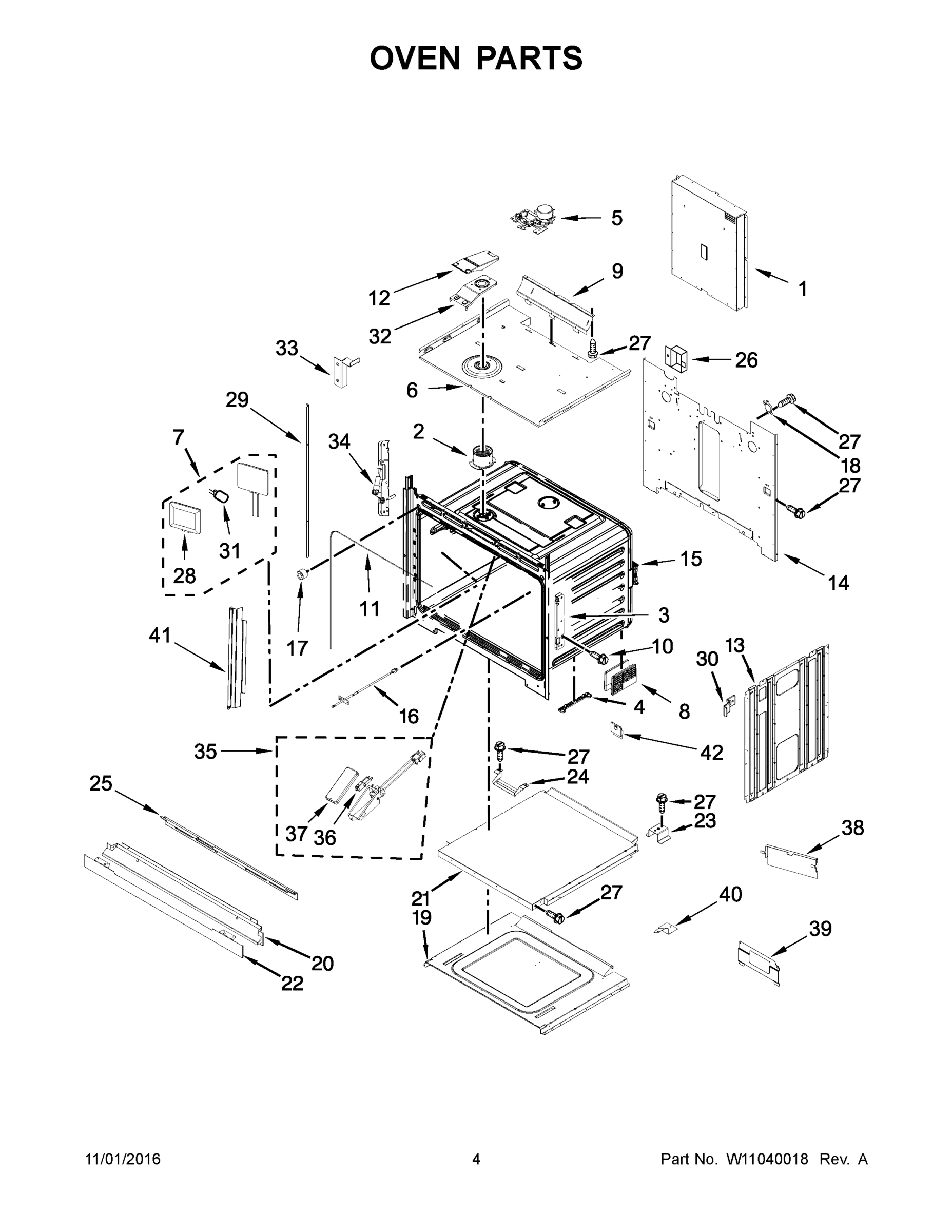

03 - OVEN PARTS

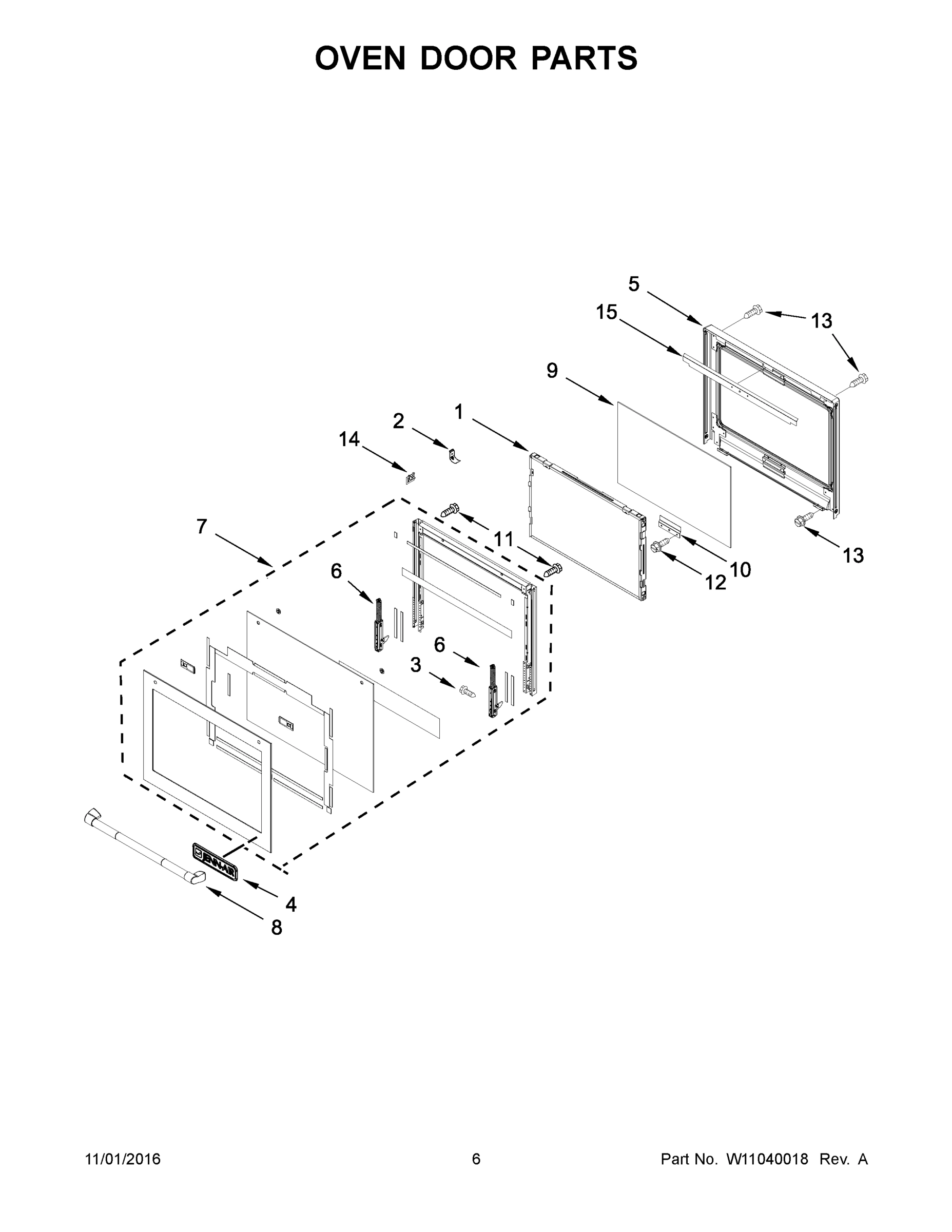

04 - OVEN DOOR PARTS

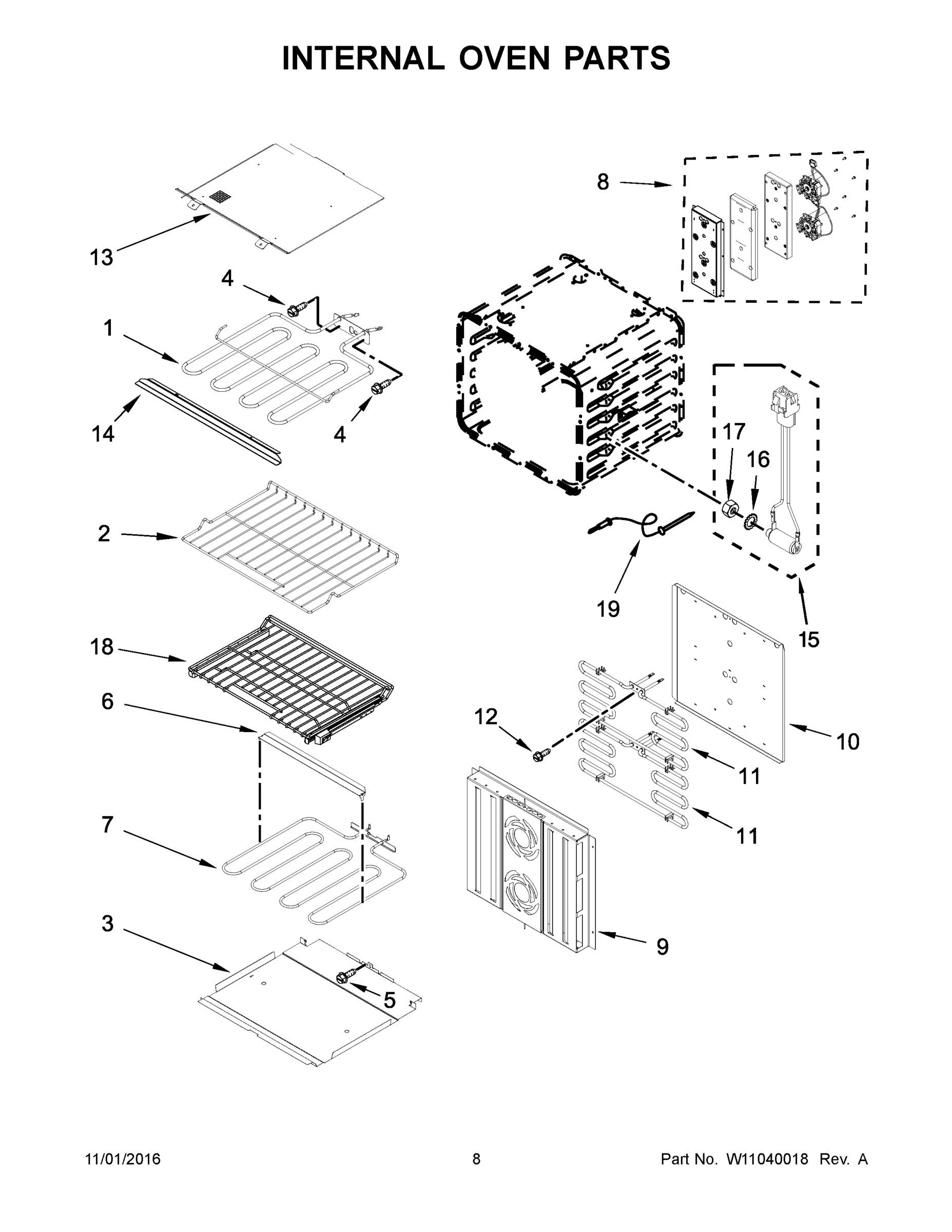

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag JJW3430DP02 WALL OVEN, ELECTRIC, BUILT-IN, SINGLE, 30 INCH
1
GUIDE, USE & CARE MAY W10754337 Contact Us For Availability
1
DUCT, CHASSIS BACK MAY W10318196 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W10347596 Contact Us For Availability
1
ELEMENT, BROIL MAY W10764078 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10790014 Contact Us For Availability
1B
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10351318 Contact Us For Availability
1C
SHEET, TECH MAY W10767737 Contact Us For Availability
1D
GUIDE, WIFI CONNECTIVITY MAY W10787928 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S MAY W10876349 Contact Us For Availability
2
TUBE, VENT MAY W10282946 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10554526 Contact Us For Availability
3
MANAGER, APPLIANCE MAY W10635086 Contact Us For Availability
3
RECEIVER, HINGE MAY W10616802 Contact Us For Availability
3
SCREW MAY 3196183 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
4
SPACER, LATERAL MAY W10618105 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
5
BLOWER MAY W10669823 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10709147 Contact Us For Availability
6
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
6
TOP, CHASSIS MAY W10813743 Contact Us For Availability
6
HINGE, DOOR MAY W10725130 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
7
FUSE, THERMAL MAY W10782117 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10519866 Contact Us For Availability
7
ASSEMBLY, DOOR (STAINLESS) MAY W10649195 Contact Us For Availability
7
ELEMENT, BAKE MAY W10546517 Contact Us For Availability
8
FOOT, BASE MAY W10618101 Contact Us For Availability
8
ASSEMBLY, HANDLE (STAINLESS) MAY W10483386 Contact Us For Availability
8
ASSEMBLY, CONVECTION MOTOR MAY W10853996 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10641572 Contact Us For Availability
9
GLASS, INNER MAY W10678524 Contact Us For Availability
9
ASSEMBLY, BAFFLE MAY W10559988 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
SCREW MAY W10254050 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
SHIELD, CONVECTION MAY W10853277 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
GASKET MAY W10739089 Contact Us For Availability
11
SCREW MAY W10530626 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10663735 Contact Us For Availability
12
TRAY, ELECTRONIC MAY W10864102 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
SCREW MAY W10236129 Contact Us For Availability
13
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
13
SIDE, CHASSIS (LEFT) MAY W10663556 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10318164 Contact Us For Availability
13A
SIDE, CHASSIS (RIGHT) MAY W10318190 Contact Us For Availability
14
CHASSIS, COVER TOP FRONT 30" MAY W10444125 Contact Us For Availability
14
BACK, CHASSIS MAY W10282992 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
SHIELD, BROIL FRONT MAY W10588737 Contact Us For Availability
15
CHASSIS, COVER TOP BACK 30" MAY W10667383 Contact Us For Availability
15
SHIELD, DOOR LINER MAY W10669415 Contact Us For Availability
15
JACK, MEAT PROBE MAY W10696226 Contact Us For Availability
16
SKIN, CONTROL PANEL (STAINLESS) MAY W10444132 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
16
WASHER, LOCK MAY 9755547 Contact Us For Availability
17
ASSEMBLY, GLASS PANEL (STAINLESS) MAY W10710542 Contact Us For Availability
17
BUMPER & SCREW MAY W10351278 Contact Us For Availability
17
NUT, HIDDEN MAY 9755546 Contact Us For Availability
18
GASKET, RUBBER MAY W10728475 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
RACK, SLIDING MAY W10840297 Contact Us For Availability
19
HARNESS, KEYPAD (LEFT TO CENTER) MAY W10566973 Contact Us For Availability
19
BASE, CHASSIS MAY W10834867 Contact Us For Availability
19
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
20
HARNESS, KEYPAD (RIGHT TO CENTER) MAY W10524350 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10327374 Contact Us For Availability
21
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
22
HOUSING MAY W10668510 Contact Us For Availability
22
TRIM, BOTTOM VENT (STAINLESS) MAY W10327377 Contact Us For Availability
23
HARNESS, POWER SUPPLY MAY W10575307 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
24
SHIELD, WIFI ACCESS MAY W10810292 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
25
VENT, TOP 30" MAY W10283036 Contact Us For Availability
26
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
28
LENS, LIGHT MAY W10472386 Contact Us For Availability
29
COVER, SIDE TRIM (BLACK (LEFT)) MAY W10344481 Contact Us For Availability
29A
COVER, SIDE TRIM (BLACK (RIGHT)) MAY W10344480 Contact Us For Availability
30
SPACERS, FRONT MAY W10834501 Contact Us For Availability
31
BULB, LIGHT MAY W10472384 Contact Us For Availability
32
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
33
BRACKET, SIDE COVER (LEFT) MAY W10737716 Contact Us For Availability
33A
BRACKET, SIDE COVER (RIGHT) MAY W10737715 Contact Us For Availability
34
RECEIVER, HINGE MAY W10864083 Contact Us For Availability
35
ASSEMBLY, LIGHT (TOP) MAY W10661201 Contact Us For Availability
36
BULB, LIGHT MAY W10169757 Contact Us For Availability
37
LENS, LIGHT MAY W10169756 Contact Us For Availability
38
SHIELD, INNER MAY W10753663 Contact Us For Availability
39
SHIELD, OUTER MAY W10846765 Contact Us For Availability
40
SHIELD. BOTTOM (LEFT) MAY W10832249 Contact Us For Availability
40A
SHIELD. BOTTOM (RIGHT) MAY W10832250 Contact Us For Availability
41
SHIELD, FRONT FRAME HEAT MAY W10791505 Contact Us For Availability
42
SPACER, CENTER MAY W10834286 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, HARNESS MAY W10487999 Contact Us For Availability
NI
HARNESS, SIGNAL MAY W10517751 Contact Us For Availability
NI
HARNESS, EOL MAY W10562910 Contact Us For Availability
NI
HARNESS, MAIN MAY W10571360 Contact Us For Availability
NI
BRACKET, HARNESS MAY W10655464 Contact Us For Availability
NI
ASSEMBLY, ANTENNA & HOUSING MAY W10766153 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W10775068 Contact Us For Availability
NI
INSULATION, CONTROL KNOB MAY W10464568 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520715 Contact Us For Availability
NI
INSULATION, CAVITY MAY W10566640 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
