Model Maytag JJW2830WS02 ELECTRIC WALL OVEN – Common Parts & Diagrams

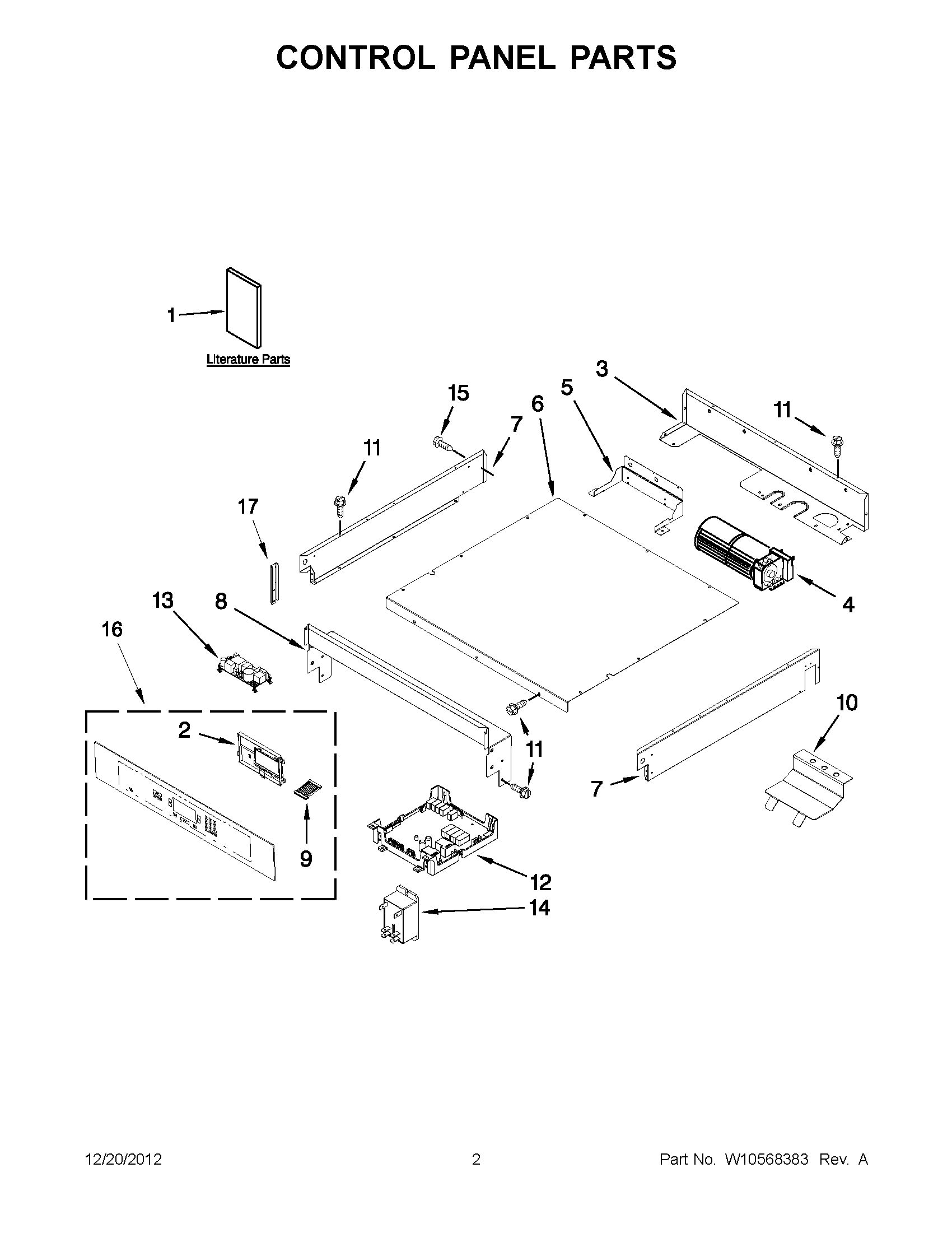

01 - CONTROL PANEL PARTS

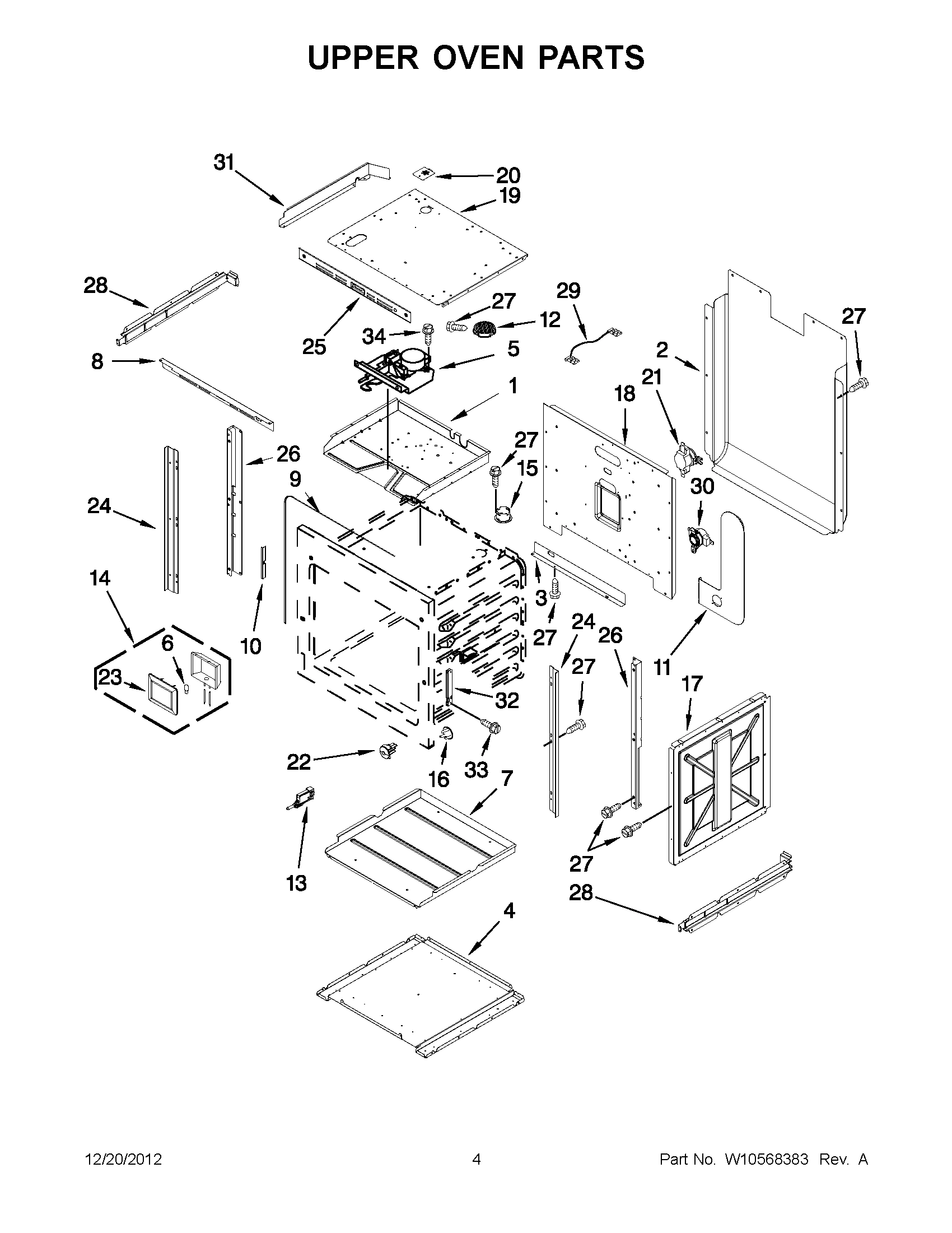

02 - UPPER OVEN PARTS

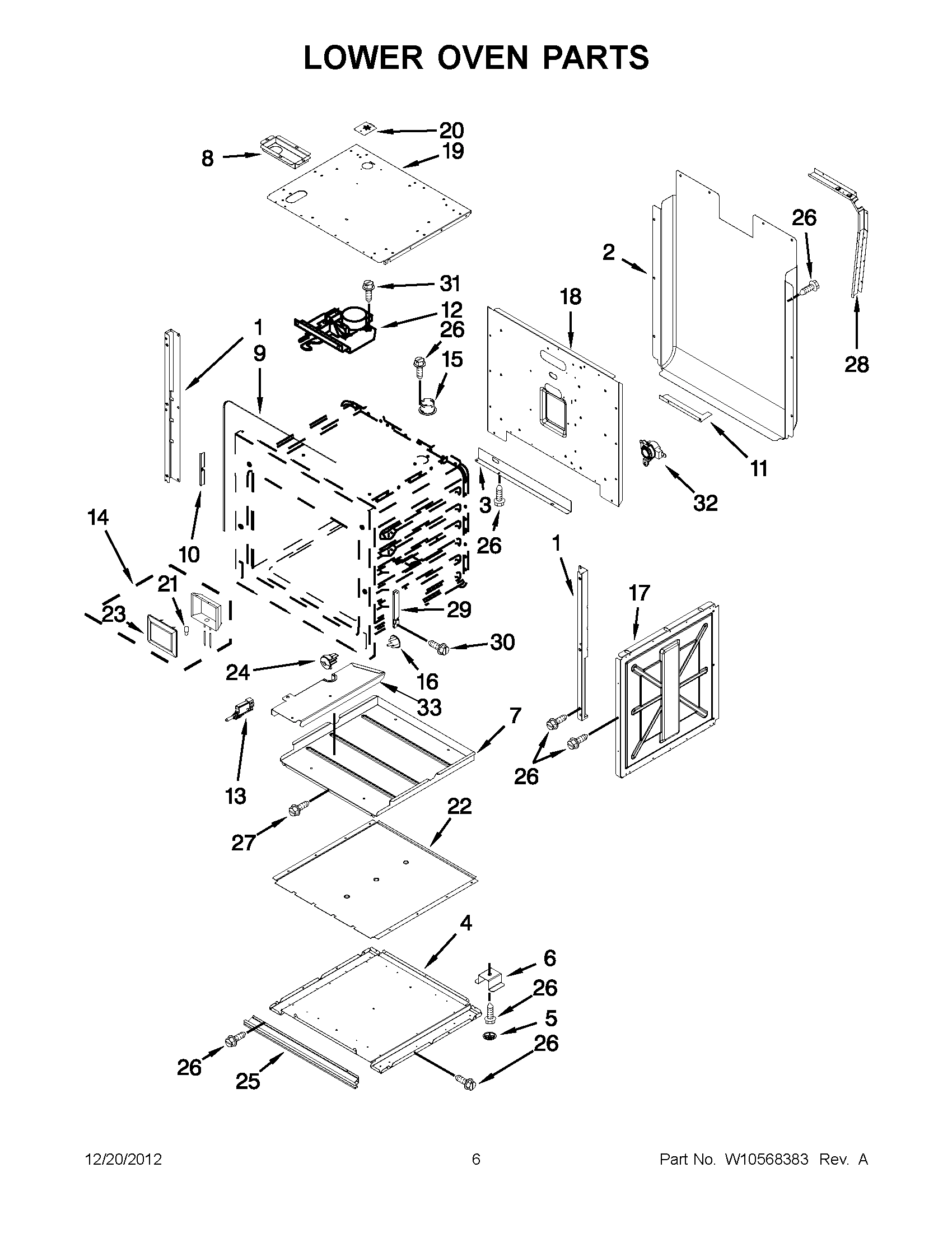

03 - LOWER OVEN PARTS

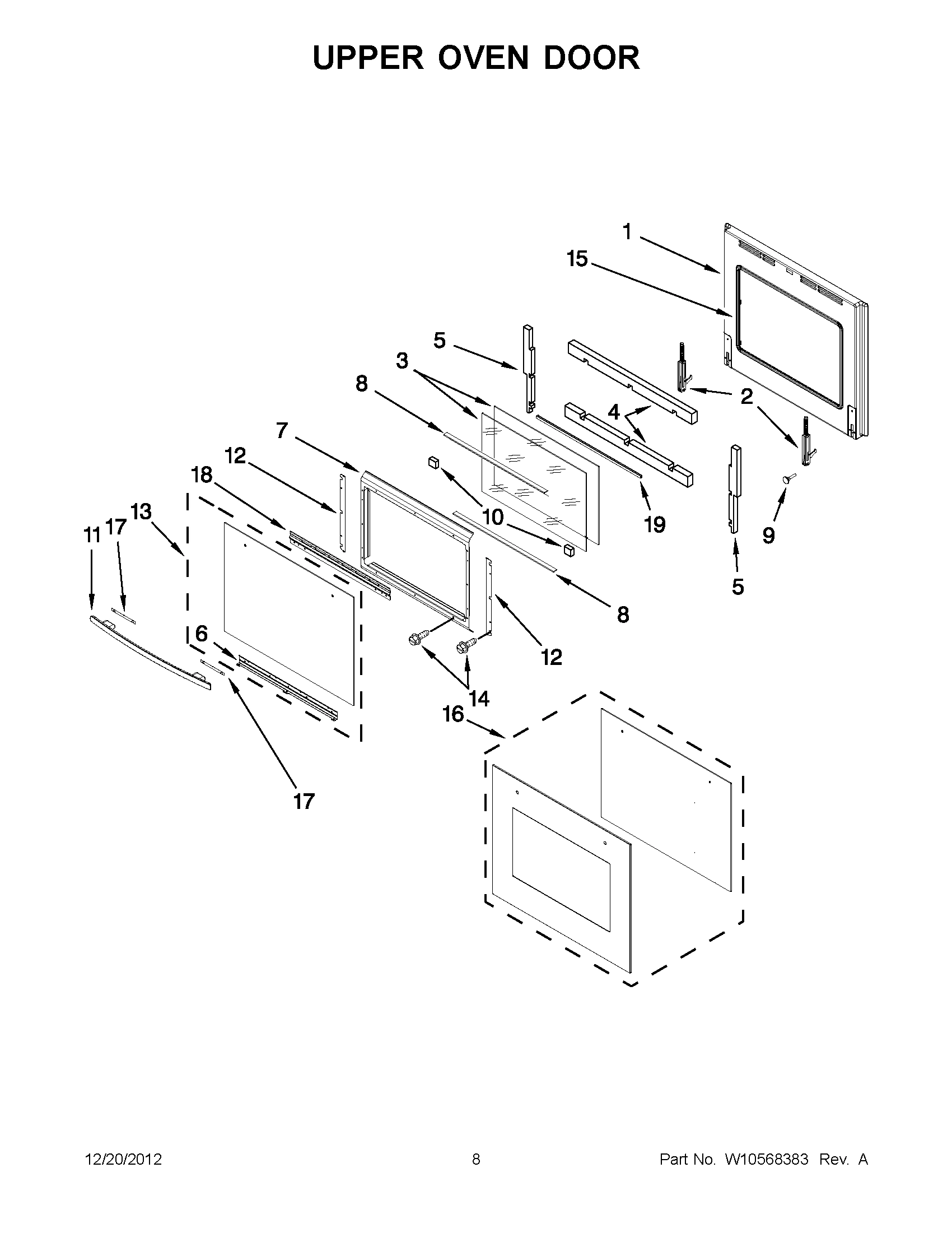

04 - UPPER OVEN DOOR

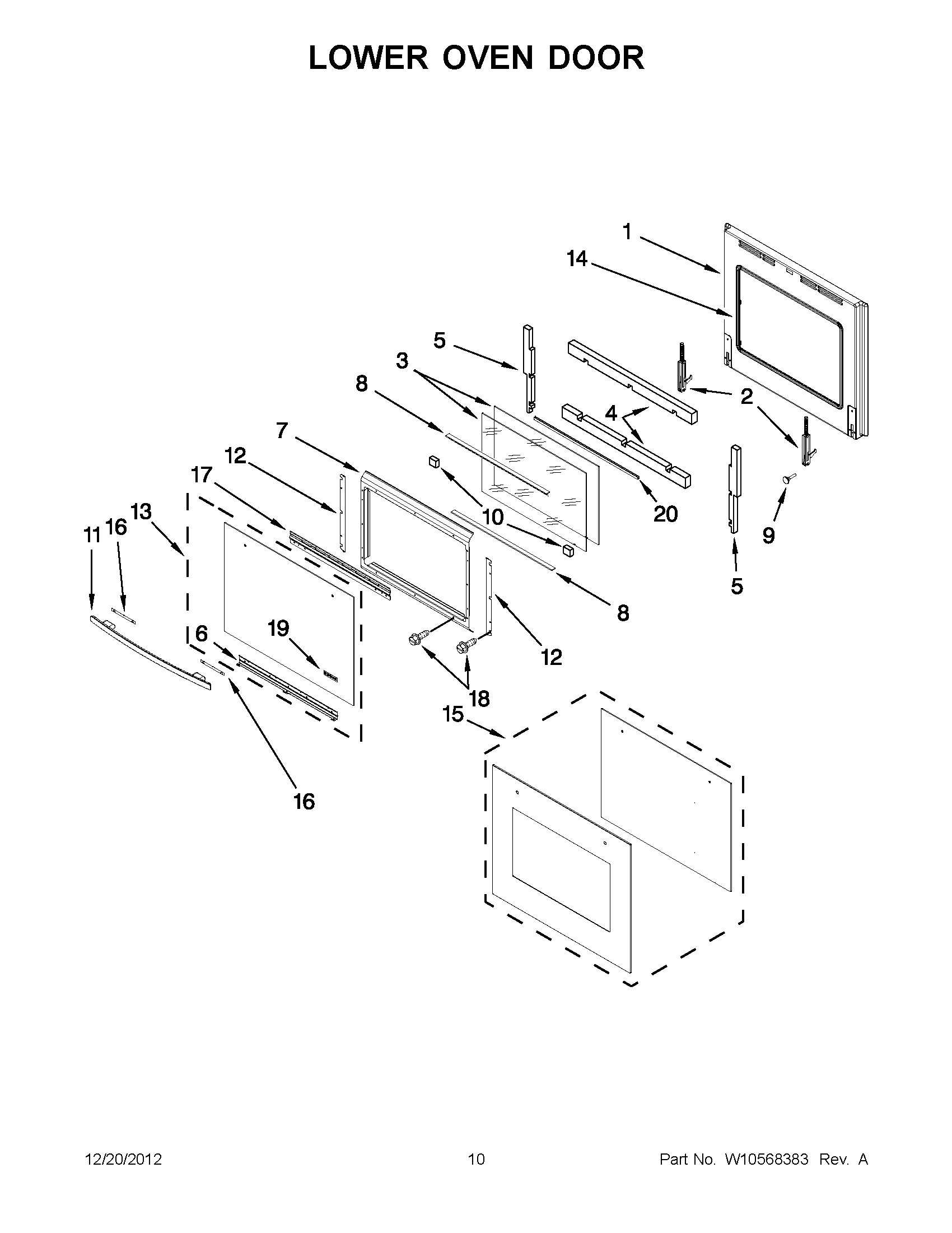

05 - LOWER OVEN DOOR

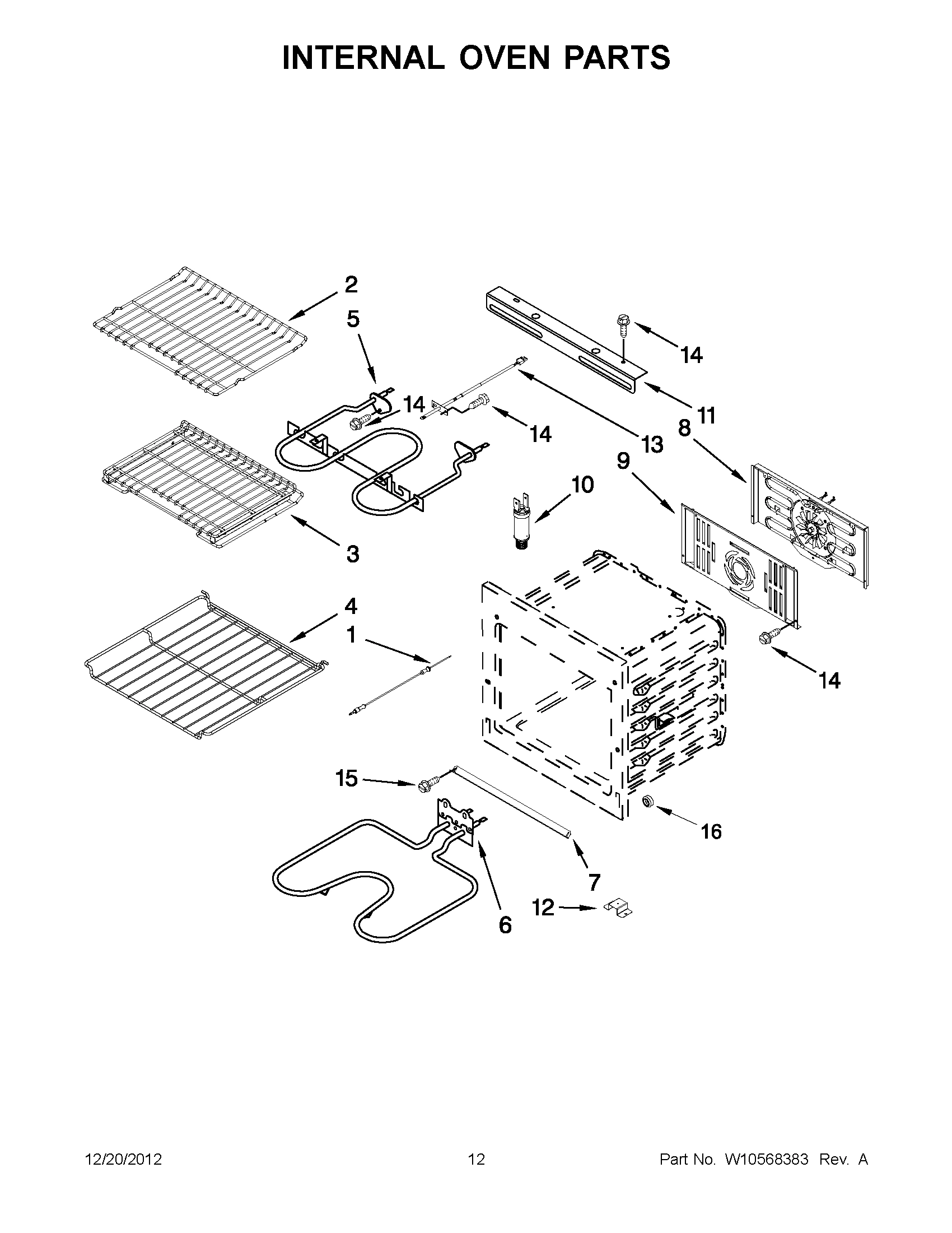

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag JJW2830WS02 ELECTRIC WALL OVEN
1
TIPS, SAFER COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTRUCTIONS, INSTALLER MAY W10075750 Contact Us For Availability
1
MAY W10213733 MAY W10213733 Contact Us For Availability
1
MAY W10213742 MAY W10213742 Contact Us For Availability
1
ENERGY GUIDE MAY W10217589 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10221386 Contact Us For Availability
1
USE & CARE GUIDE MAY W10450586 Contact Us For Availability
1
MAY W10186749 MAY W10186749 Contact Us For Availability
1
BRACKET, REINFORCEMENT LEFT HAND MAY W10277423 Contact Us For Availability
1
BRACKET, REINFORCEMENT RIGHT HAND MAY W10277424 Contact Us For Availability
1
MAY W10187019 MAY W10187019 Contact Us For Availability
1
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE MAY W10344083 Contact Us For Availability
2
MAY 2624F051-51 MAY 2624F051-51 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY W10176157 MAY W10176157 Contact Us For Availability
2
MAY W10277751 MAY W10277751 Contact Us For Availability
2
MAY W10176138 MAY W10176138 Contact Us For Availability
3
MAY W10187048 MAY W10187048 Contact Us For Availability
3
MAY W10254160 MAY W10254160 Contact Us For Availability
3
MAY W10254041 MAY W10254041 Contact Us For Availability
3
GLASS, INNER MAY W10176100 Contact Us For Availability
3
RACK, ROLL-OUT MAY W10445852 Contact Us For Availability
4
MAY W10273666 MAY W10273666 Contact Us For Availability
4
BLOWER (UPPER) MAY W10273667 Contact Us For Availability
4
MAY W10280327 MAY W10280327 Contact Us For Availability
4
MAY W10273676 MAY W10273676 Contact Us For Availability
4
MAY W10186988 MAY W10186988 Contact Us For Availability
5
BRACKET, COOLING FAN UPPER MAY W10186997 Contact Us For Availability
5
MAY W10187016 MAY W10187016 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY W10314708 MAY W10314708 Contact Us For Availability
6
MAY W10176180 MAY W10176180 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176175 Contact Us For Availability
6
MAY W10314698 MAY W10314698 Contact Us For Availability
7
PANEL, CONTROL BOX LEFT HAND MAY W10176002 Contact Us For Availability
7
PANEL, CONTROL BOX RIGHT HAND MAY W10176003 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DOOR GLASS MAY W10176103 Contact Us For Availability
7
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
8
MAY W10512901 MAY W10512901 Contact Us For Availability
8
TRIM, CONTROL PANEL TOP MAY W10176006 Contact Us For Availability
8
MAY 4006F236-45 MAY 4006F236-45 Contact Us For Availability
8
MAY W10277580 MAY W10277580 Contact Us For Availability
8
KIT, UNITY CONVECTION MAY W10213813 Contact Us For Availability
9
CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
9
MAY W10213818 MAY W10213818 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
MAY W10186795 MAY W10186795 Contact Us For Availability
10
BRACKET, COVER (LOWER COOLING FAN) MAY W10176243 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY W10296505 MAY W10296505 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
11
ASSEMBLY, BOX VENT MAY 4006W217-45 Contact Us For Availability
11
MAY W10186984 MAY W10186984 Contact Us For Availability
11
MAY W10186754 MAY W10186754 Contact Us For Availability
11
MAY W10186755 MAY W10186755 Contact Us For Availability
11
MAY W10186756 MAY W10186756 Contact Us For Availability
11
MAY W10186757 MAY W10186757 Contact Us For Availability
11
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
12
MANAGER, APPLIANCE MAY W10292568 Contact Us For Availability
12
LATCH, DOOR LOCK MAY W10213755 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
13
SUPPLY, POWER MAY W10286791 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (WHITE) MAY W10186888 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (BLACK) MAY W10186889 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (STAINLESS) MAY W10186890 Contact Us For Availability
13
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
14
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
14
RELAY MAY 9752759 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
MAY W10213803 MAY W10213803 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY 8026P063-60 MAY 8026P063-60 Contact Us For Availability
15
MAY W10236129 MAY W10236129 Contact Us For Availability
15
KIT, GLASS ASSEMBLY (STAINLESS) MAY W10176184 Contact Us For Availability
15
KIT, GLASS ASSEMBLY (OILED BRONZE) MAY W10176224 Contact Us For Availability
15
KIT, GLASS ASSEMBLY (BLACK) MAY W10277593 Contact Us For Availability
15
KIT, GLASS ASSEMBLY (WHITE) MAY W10277594 Contact Us For Availability
16
MAY W10517892 MAY W10517892 Contact Us For Availability
16
MAY W10517893 MAY W10517893 Contact Us For Availability
16
MAY W10517894 MAY W10517894 Contact Us For Availability
16
MAY W10517896 MAY W10517896 Contact Us For Availability
16
PLUG, BUTTON MAY 7718P033-60 Contact Us For Availability
16
MAY W10213722 MAY W10213722 Contact Us For Availability
16
MAY 7109P085-60 MAY 7109P085-60 Contact Us For Availability
17
MAY W10512904 MAY W10512904 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10176126 MAY W10176126 Contact Us For Availability
18
MAY W10213724 MAY W10213724 Contact Us For Availability
18
MAY W10255436 MAY W10255436 Contact Us For Availability
19
PANEL, TOP RETAINER MAY W10175998 Contact Us For Availability
19
PANEL, TOP RETAINER MAY W10176000 Contact Us For Availability
19
ASSEMBLY, BADGE (WHITE) MAY W10190723 Contact Us For Availability
19
ASSEMBLY, BADGE (BLACK) MAY W10190724 Contact Us For Availability
19
ASSEMBLY, BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
19
ASSEMBLY, BADGE (OILED BRONZE) MAY W10214169 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY 4005F721-45 MAY 4005F721-45 Contact Us For Availability
20
MAY W10305979 MAY W10305979 Contact Us For Availability
21
MAY W10169757 MAY W10169757 Contact Us For Availability
21
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
22
CHANNEL, BOTTOM AIR BAKE ELEMENT MAY W10280325 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
24
FRAME, MICRO SWITCH MAY W10213745 Contact Us For Availability
24
MAY W10277587 MAY W10277587 Contact Us For Availability
25
TRIM, CONTROL PANEL MAY W10176014 Contact Us For Availability
25
MAY W10176036 MAY W10176036 Contact Us For Availability
25
MAY W10238700 MAY W10238700 Contact Us For Availability
28
SUPPORT, UPPER OVEN MAY 3807F669-51 Contact Us For Availability
28
MAY W10251054 MAY W10251054 Contact Us For Availability
29
JUMPER, SECONDARY THERMAL FUSE MAY W10277590 Contact Us For Availability
29
MAY W10175993 MAY W10175993 Contact Us For Availability
30
MAY W10254050 MAY W10254050 Contact Us For Availability
31
MAY W10236043 MAY W10236043 Contact Us For Availability
31
BAFFLE, MIDDLE DOUBLE MAY W10187018 Contact Us For Availability
32
MAY W10277609 MAY W10277609 Contact Us For Availability
33
MAY W10254027 MAY W10254027 Contact Us For Availability
NI
MAY W10186989 MAY W10186989 Contact Us For Availability
NI
MAY W10213750 MAY W10213750 Contact Us For Availability
NI
MAY 7002P276-60 MAY 7002P276-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MEAT PROBE JAC MAY 5171P208-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIGNAL MAY W10174753 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10174754 Contact Us For Availability
NI
WIRING HARNESS PARTS, ASSEMBLY, CONDUIT DOUBL MAY W10176089 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, LATCH (NO MEAT MAY W10176216 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (LATCH, W MAY W10209123 Contact Us For Availability
× ![]()
