Model Maytag JJW2830DS02 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

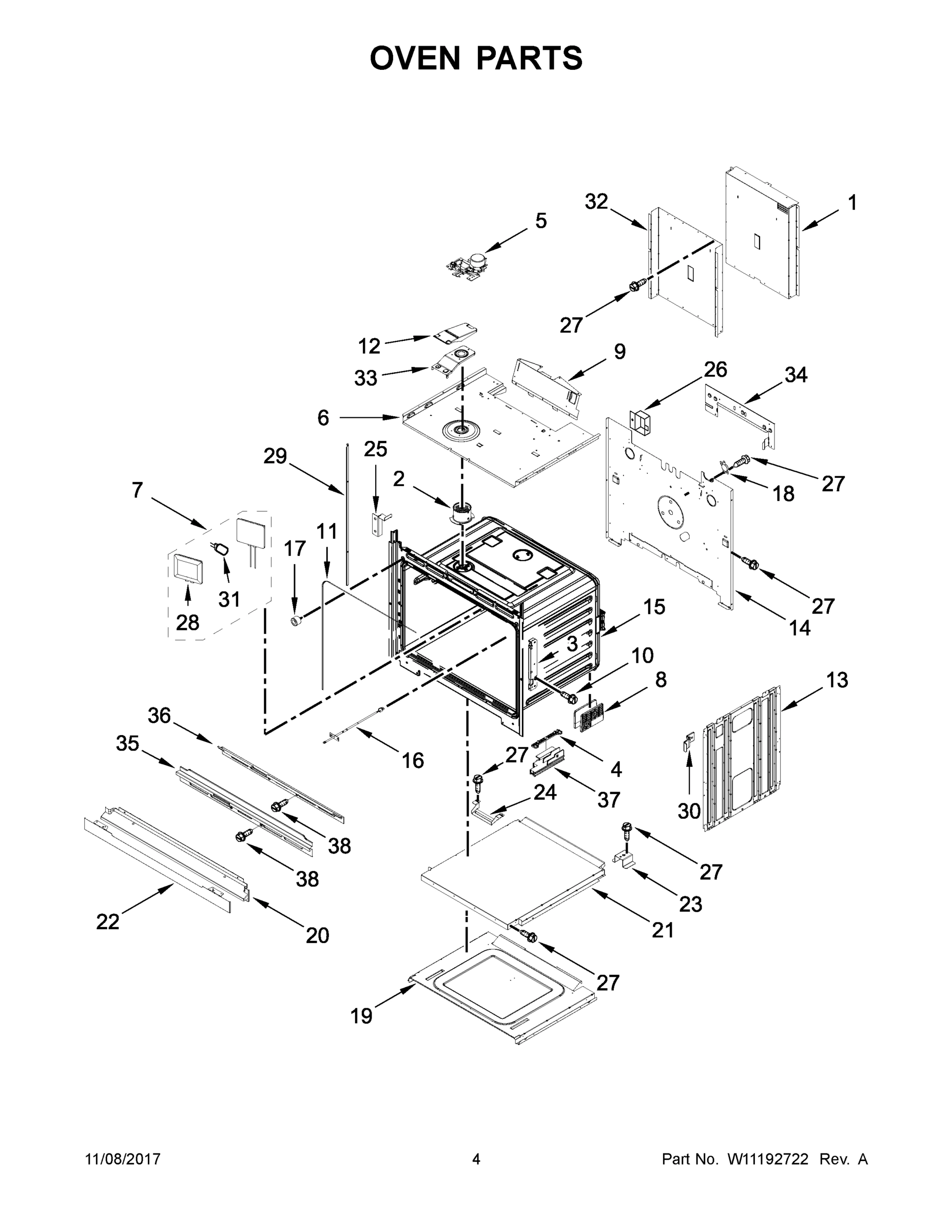

03 - OVEN PARTS

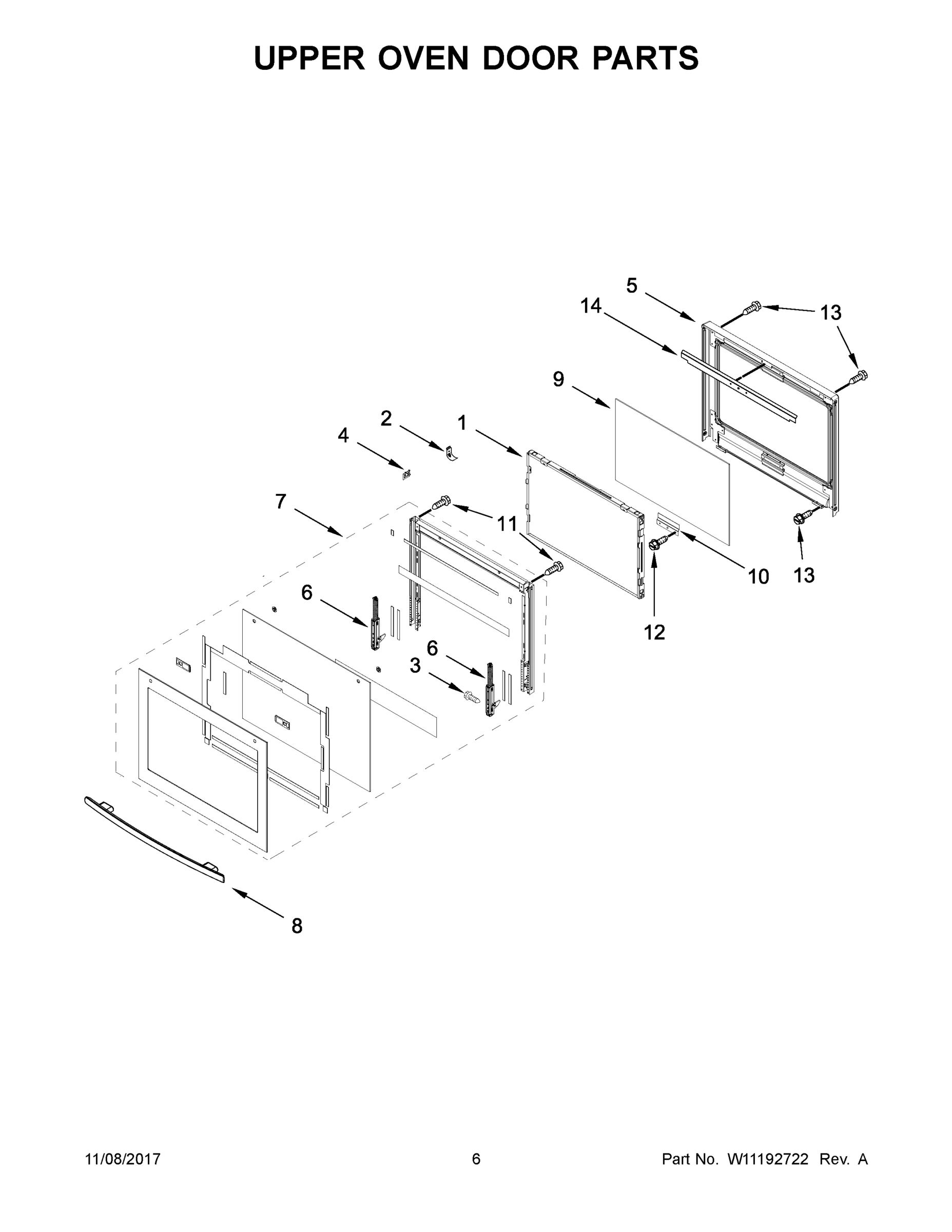

04 - UPPER OVEN DOOR PARTS

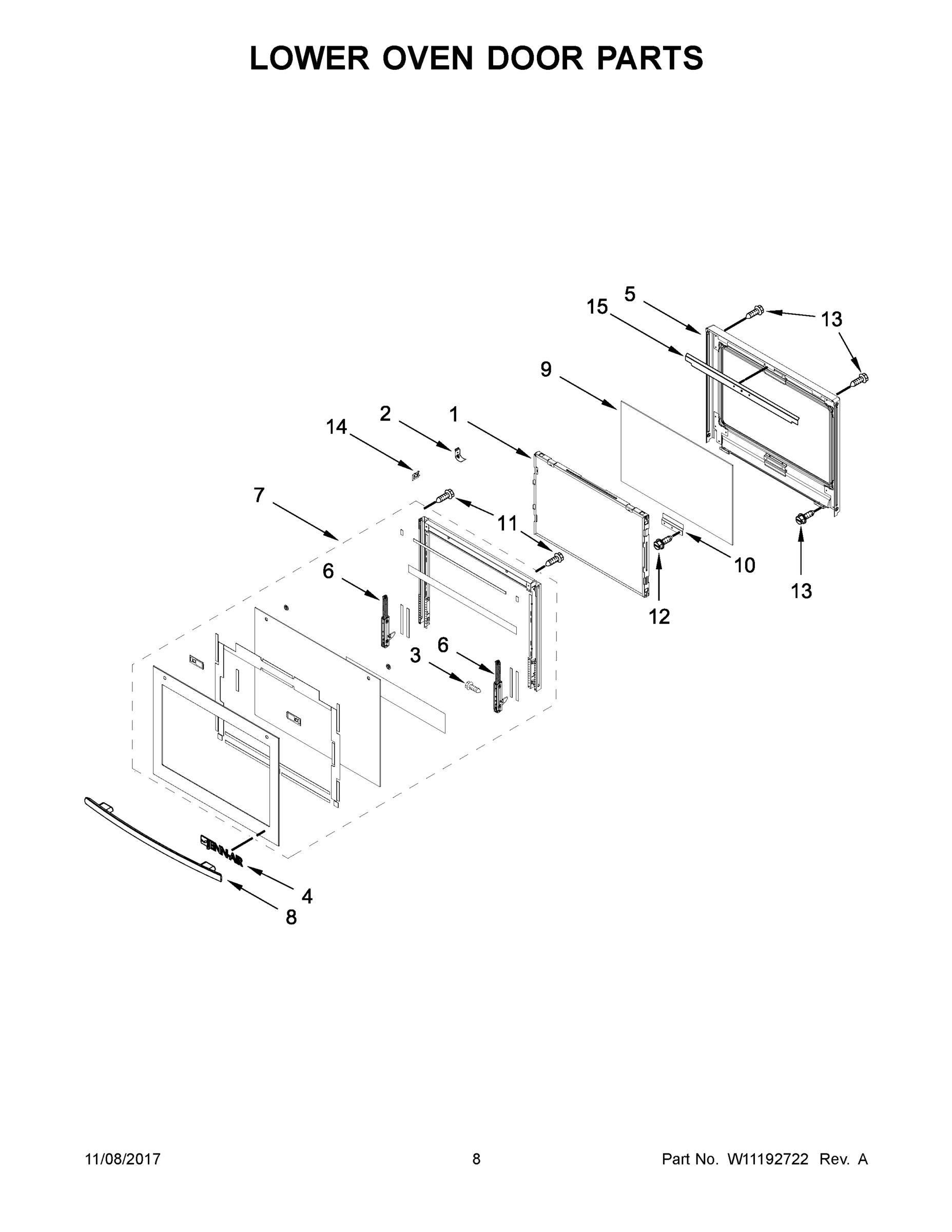

05 - LOWER OVEN DOOR PARTS

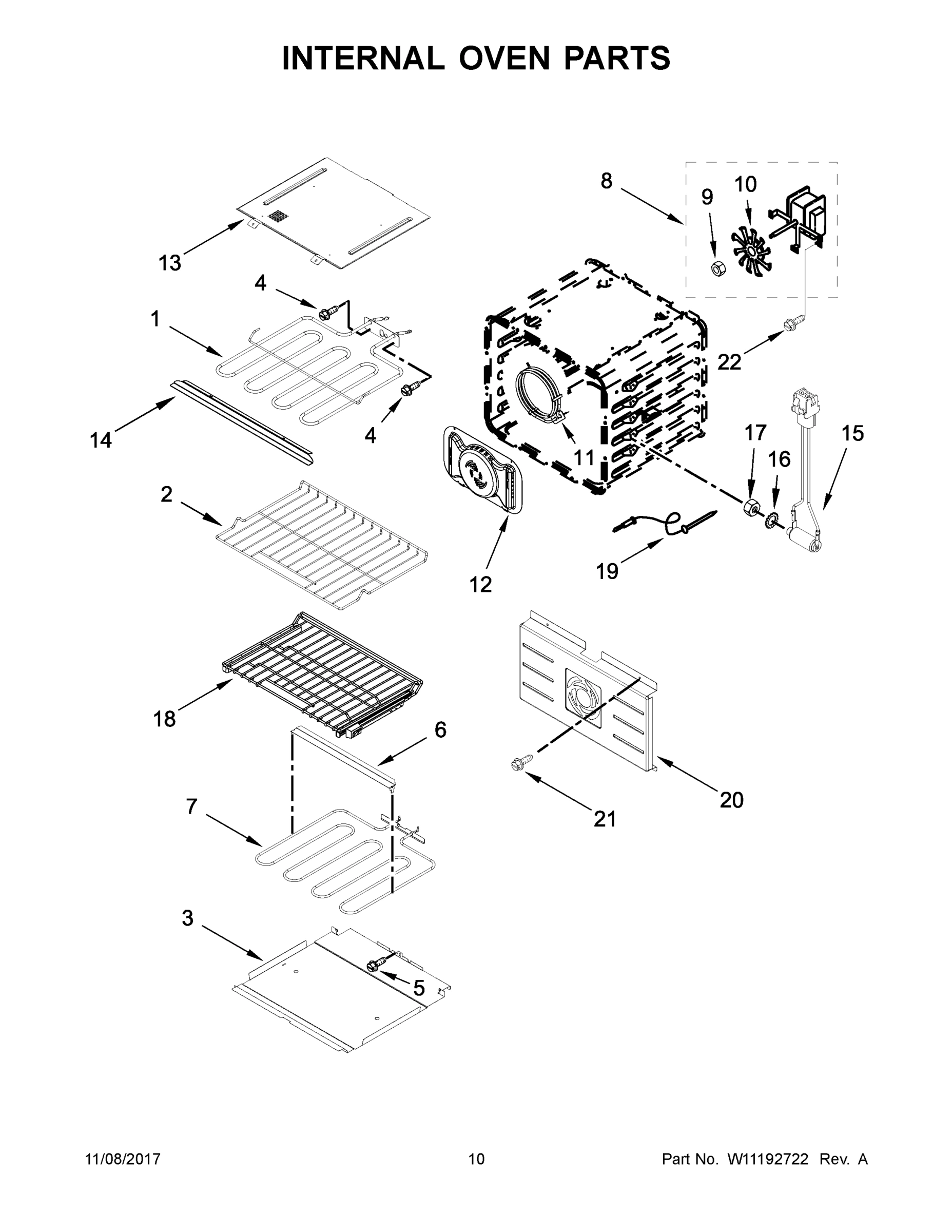

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JJW2830DS02 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
1
GUIDE, USE & CARE MAY W10754335 Contact Us For Availability
1
DUCT, CHASSIS BACK (UPPER) MAY W10318196 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W10347596 Contact Us For Availability
1
ELEMENT, BROIL MAY W10764078 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10768183 Contact Us For Availability
1B
SHEET, TECH MAY W11041085 Contact Us For Availability
2
MAY W10876357 MAY W10876357 Contact Us For Availability
2
TUBE, VENT MAY W10282946 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10554526 Contact Us For Availability
3
CONTROL (WITH POWER SUPPLY) MAY W11040195 Contact Us For Availability
3
RECEIVER, HINGE MAY W10616802 Contact Us For Availability
3
SCREW MAY 3196183 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
4
SPACER, LATERAL MAY W10618105 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
5
BLOWER MAY W10669823 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10709147 Contact Us For Availability
6
BUMPER MAY W10351295 Contact Us For Availability
6
TOP, CHASSIS MAY W10904158 Contact Us For Availability
6
HINGE, DOOR MAY W10639069 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
7
FUSE, THERMAL MAY W10782120 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10519866 Contact Us For Availability
7
ASSEMBLY, DOOR (STAINLESS) MAY W10725071 Contact Us For Availability
7
ELEMENT, BAKE MAY W10546517 Contact Us For Availability
8
FOOT, BASE MAY W10618101 Contact Us For Availability
8
ASSEMBLY, HANDLE (STAINLESS) MAY W10551013 Contact Us For Availability
8
FAN, CONVECTION MAY W10722667 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
GLASS, INNER MAY W10678524 Contact Us For Availability
9
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
SCREW MAY W10254050 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
BLADE, FAN MAY W10631503 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
GASKET MAY W10739089 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10546519 Contact Us For Availability
12
TRAY, ELECTRONIC MAY W10864102 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
BAFFLE, BOW TIE MAY W10496637 Contact Us For Availability
13
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
13
SIDE, CHASSIS MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10911205 Contact Us For Availability
14
CHASSIS, COVER TOP FRONT 30" MAY W10444125 Contact Us For Availability
14
BACK, CHASSIS MAY W10904160 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
SHIELD, BROIL FRONT MAY W10588738 Contact Us For Availability
15
CHASSIS, COVER TOP BACK 30" MAY W10694465 Contact Us For Availability
15
SHIELD, DOOR LINER MAY W10669415 Contact Us For Availability
15
JACK, MEAT PROBE MAY W10696226 Contact Us For Availability
16
SKIN, CONTROL PANEL (STAINLESS) MAY W10444132 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
16
WASHER, LOCK MAY 9755547 Contact Us For Availability
17
GASKET, RUBBER MAY W10728475 Contact Us For Availability
17
BUMPER & SCREW MAY W10351278 Contact Us For Availability
17
NUT, HIDDEN MAY 9755546 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
RACK, SLIDING MAY W10840297 Contact Us For Availability
19
BASE, CHASSIS MAY W10834867 Contact Us For Availability
19
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10327374 Contact Us For Availability
20
COVER, BAFFLE MAY W10521808 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
21
SCREW MAY W10739592 Contact Us For Availability
22
TRIM, BOTTOM VENT (STAINLESS) MAY W10327377 Contact Us For Availability
22
SCREW MAY W10720084 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
25
BRACKET, SIDE COVER (LEFT) MAY W10737716 Contact Us For Availability
25A
BRACKET, SIDE COVER (RIGHT) MAY W10737715 Contact Us For Availability
26
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
28
LENS, LIGHT MAY W10472386 Contact Us For Availability
29
COVER, SIDE TRIM (LEFT) MAY W10327369 Contact Us For Availability
29A
COVER, SIDE TRIM (RIGHT) MAY W10327368 Contact Us For Availability
30
SPACERS, FRONT MAY W10347649 Contact Us For Availability
31
BULB, LIGHT MAY W10472384 Contact Us For Availability
32
DUCT, CHASSIS BACK (LOWER) MAY W10542857 Contact Us For Availability
33
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
34
BRACKET, U-SHAPE MAY W10588736 Contact Us For Availability
35
VENT, CENTER 30" MAY W10283040 Contact Us For Availability
36
VENT, TOP 30" MAY W10283036 Contact Us For Availability
37
FOOT, FRONT (LEFT) MAY W10618103 Contact Us For Availability
37A
FOOT, FRONT (RIGHT) MAY W10618104 Contact Us For Availability
38
SCREW MAY W10607120 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SIGNAL MAY W10522152 Contact Us For Availability
NI
HARNESS, EOL MAY W10562910 Contact Us For Availability
NI
BRACKET, HARNESS MAY W10655464 Contact Us For Availability
NI
JUMPER TOD MAY W10679413 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W10775068 Contact Us For Availability
NI
MAY W11033086 MAY W11033086 Contact Us For Availability
NI
INSULATION, CAVITY MAY W10282944 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520715 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
