Model Maytag JJW2730WS01 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - UPPER OVEN PARTS
02 - LOWER OVEN PARTS

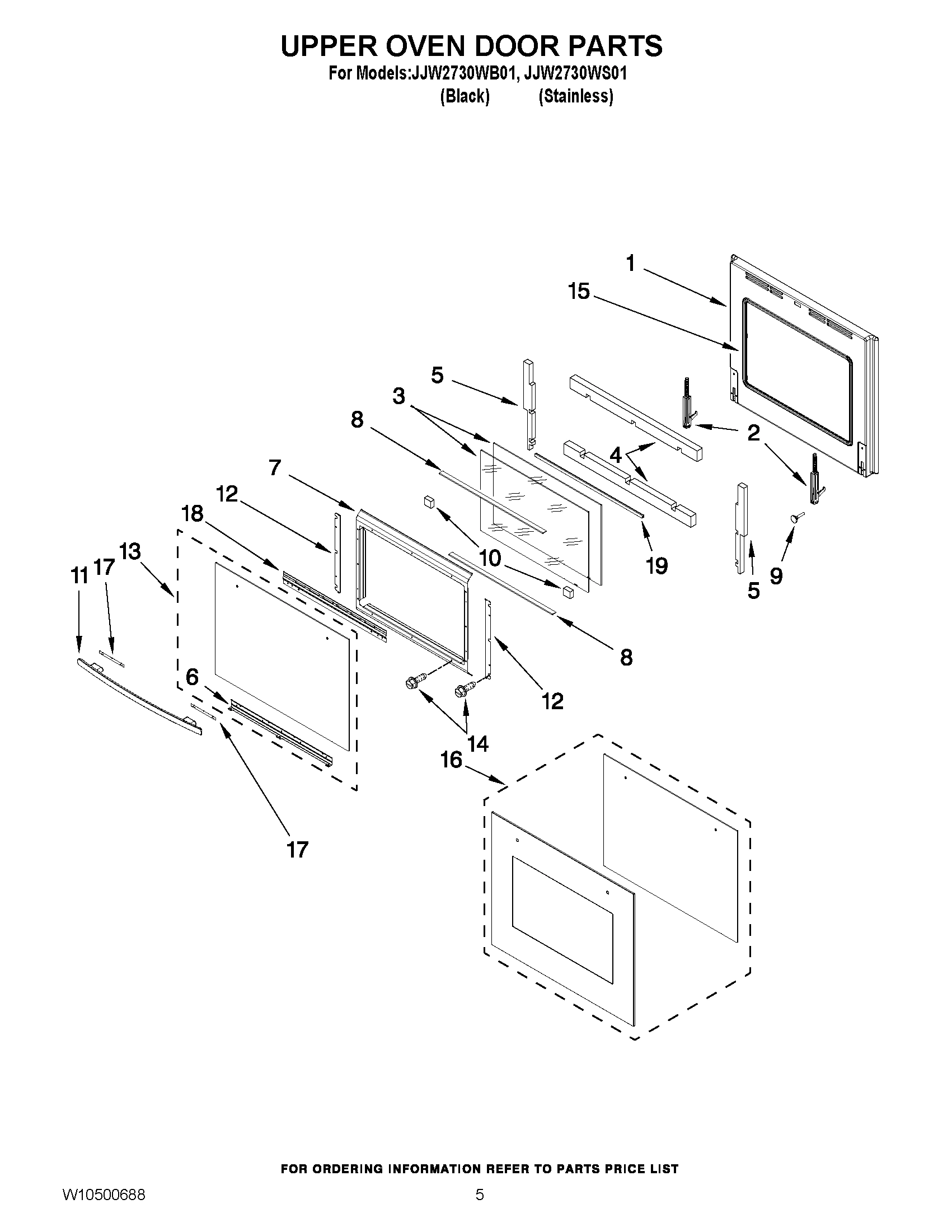

03 - UPPER OVEN DOOR PARTS

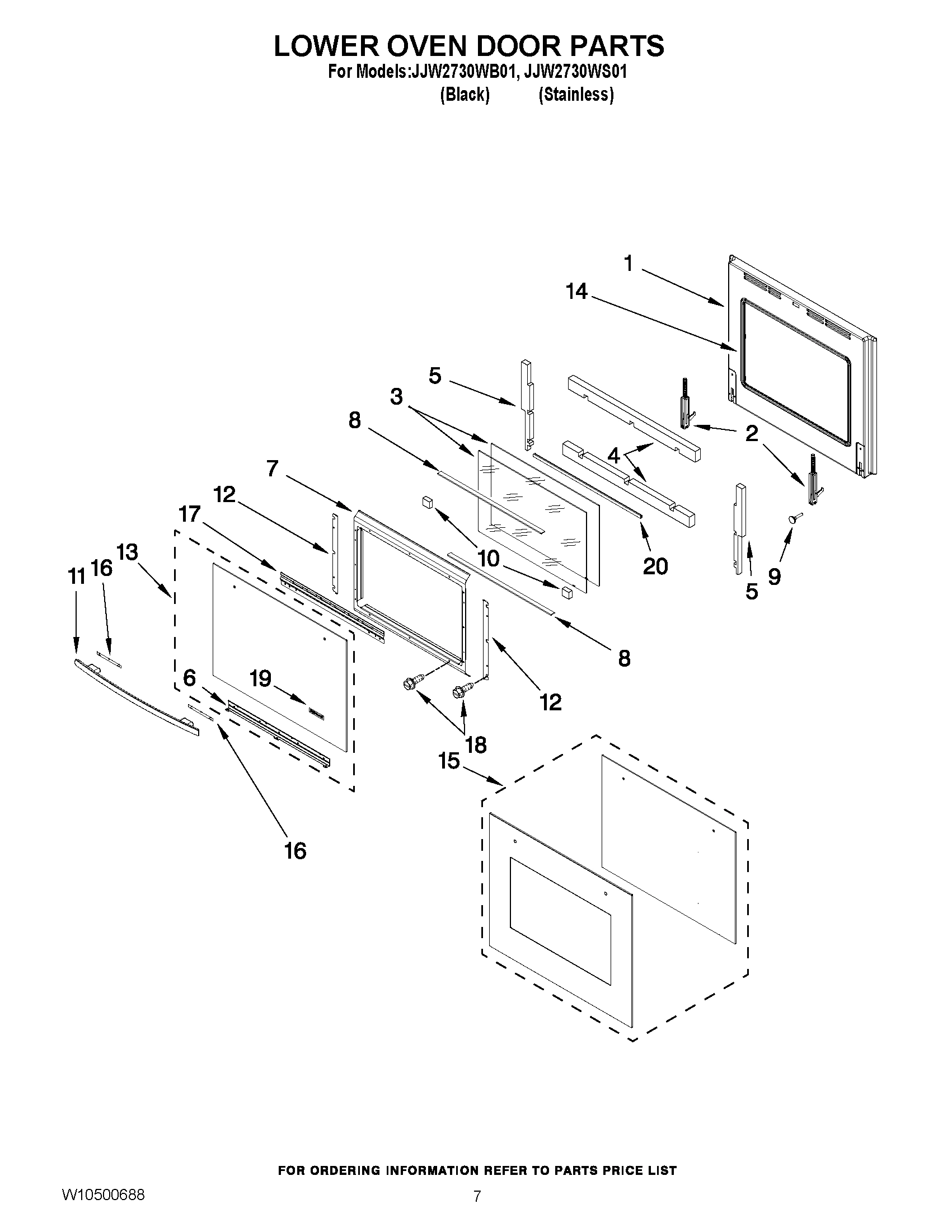

04 - LOWER OVEN DOOR PARTS

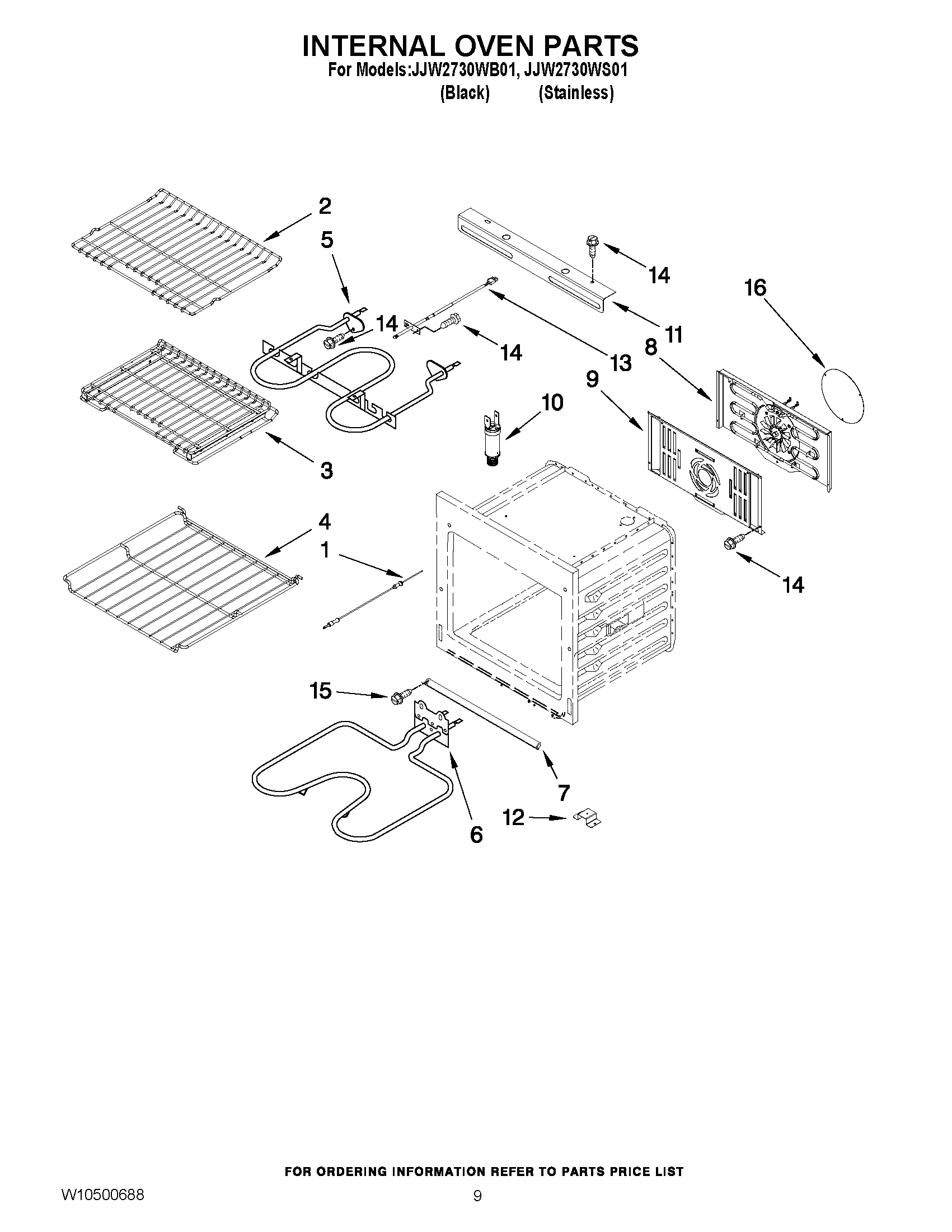

05 - INTERNAL OVEN PARTS

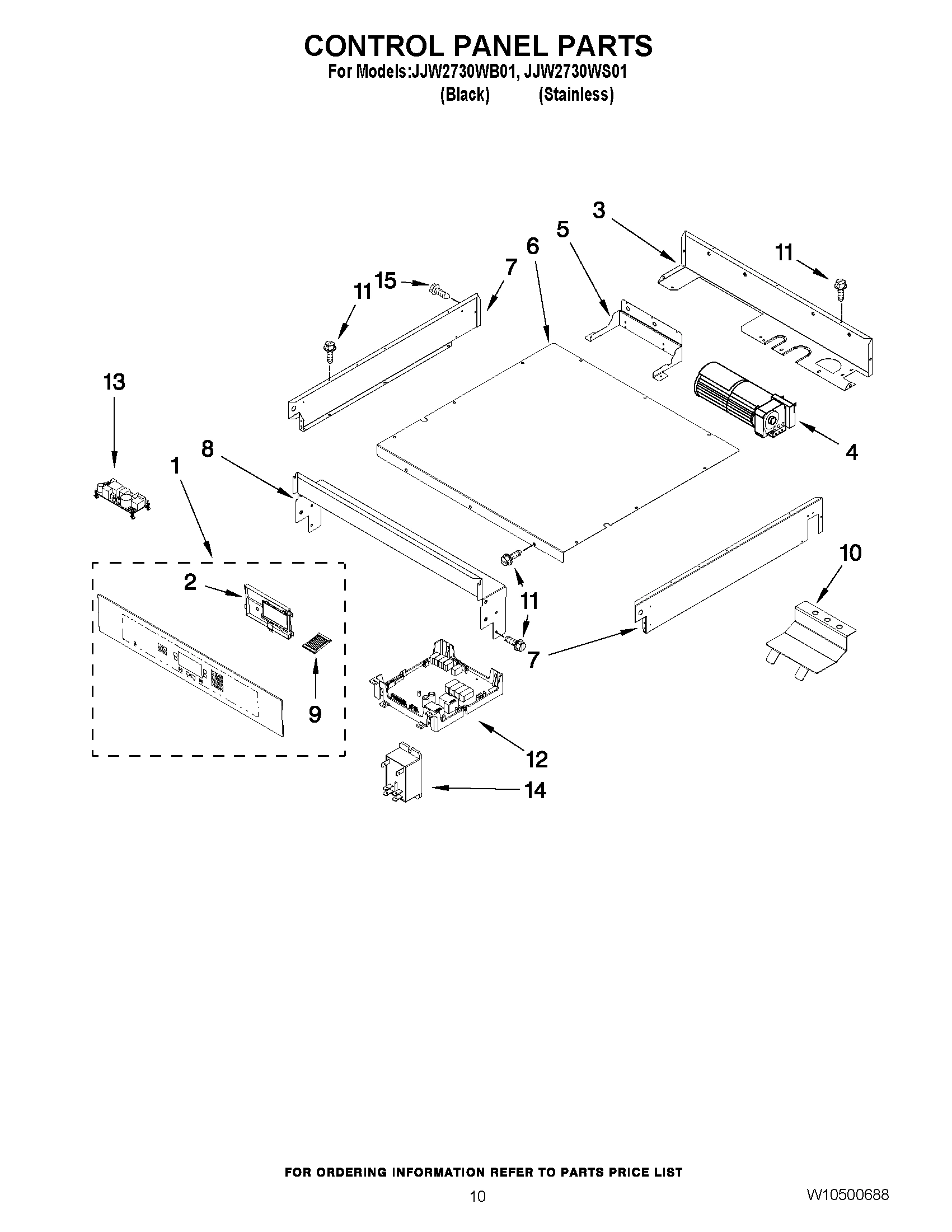

06 - CONTROL PANEL PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag JJW2730WS01 ELECTRIC WALL OVEN
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10213733 MAY W10213733 Contact Us For Availability
1
MAY W10213742 MAY W10213742 Contact Us For Availability
1
MAY W10217587 MAY W10217587 Contact Us For Availability
1
MAY W10221386 MAY W10221386 Contact Us For Availability
1
USE & CARE GUIDE MAY W10450586 Contact Us For Availability
1
MAY W10277423 MAY W10277423 Contact Us For Availability
1
MAY W10277424 MAY W10277424 Contact Us For Availability
1
MAY W10187019 MAY W10187019 Contact Us For Availability
1
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
1
MAY W10344134 MAY W10344134 Contact Us For Availability
1
MAY W10344137 MAY W10344137 Contact Us For Availability
2
MAY 2624F051-51 MAY 2624F051-51 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY W10176157 MAY W10176157 Contact Us For Availability
2
MAY W10277751 MAY W10277751 Contact Us For Availability
2
MAY W10176138 MAY W10176138 Contact Us For Availability
2
MAY W10186901 MAY W10186901 Contact Us For Availability
3
MAY W10254160 MAY W10254160 Contact Us For Availability
3
BAFFLE, REAR MAY W10254041 Contact Us For Availability
3
GLASS, INNER MAY W10176100 Contact Us For Availability
3
RACK, ROLL-OUT MAY W10445852 Contact Us For Availability
3
MAY W10187048 MAY W10187048 Contact Us For Availability
4
MAY W10280327 MAY W10280327 Contact Us For Availability
4
MAY W10273676 MAY W10273676 Contact Us For Availability
4
MAY W10186988 MAY W10186988 Contact Us For Availability
4
MAY W10273666 MAY W10273666 Contact Us For Availability
4
BLOWER (UPPER) MAY W10273667 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY W10314708 MAY W10314708 Contact Us For Availability
5
BRACKET, COOLING FAN UPPER MAY W10186997 Contact Us For Availability
5
MAY W10187016 MAY W10187016 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176175 Contact Us For Availability
6
MAY W10314698 MAY W10314698 Contact Us For Availability
6
MAY W10176180 MAY W10176180 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
MAY W10176103 MAY W10176103 Contact Us For Availability
7
RETAINER, BAKE ELEMENT MAY 3807F678-45 Contact Us For Availability
7
PANEL, CONTROL BOX (LEFT SIDE) MAY W10176002 Contact Us For Availability
7
PANEL, CONTROL BOX (RIGHT SIDE) MAY W10176003 Contact Us For Availability
8
TRIM, CTRL PNL TOP MAY W10176006 Contact Us For Availability
8
MAY 4006F236-45 MAY 4006F236-45 Contact Us For Availability
8
INSULATION, OVEN DOOR MAY W10277580 Contact Us For Availability
8
KIT, UNITY CONVECT (UPPER OVEN ONLY) MAY W10213813 Contact Us For Availability
8
SUPPORT, TOP CNTRL MAY W10176004 Contact Us For Availability
9
MAY W10213818 MAY W10213818 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
PLATE, UNITY CONVECTION (UPPER OVEN ONLY) MAY W10186795 Contact Us For Availability
9
MAY W10175829 MAY W10175829 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY W10296505 MAY W10296505 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
10
MAY W10176243 MAY W10176243 Contact Us For Availability
11
MAY 4006W217-45 MAY 4006W217-45 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11
MAY W10186984 MAY W10186984 Contact Us For Availability
11
MAY W10186755 MAY W10186755 Contact Us For Availability
11
MAY W10186756 MAY W10186756 Contact Us For Availability
11
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
12
LATCH, DOOR MAY W10213755 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
12
MAY W10292568 MAY W10292568 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
MAY W10186889 MAY W10186889 Contact Us For Availability
13
MAY W10186890 MAY W10186890 Contact Us For Availability
13
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
13
CONTROL, ELEC MAY W10286791 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
MAY W10213803 MAY W10213803 Contact Us For Availability
14
RELAY MAY 9752759 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY W10236043 MAY W10236043 Contact Us For Availability
15
MAY W10236129 MAY W10236129 Contact Us For Availability
15
ASSEMBLY, GLASS KIT (STAINLESS) MAY W10176184 Contact Us For Availability
15
MAY W10277593 MAY W10277593 Contact Us For Availability
16
MAY 7718P033-60 MAY 7718P033-60 Contact Us For Availability
16
MAY W10213722 MAY W10213722 Contact Us For Availability
16
PLATE, NON-CONVECT (LOWER OVEN ONLY) MAY W10209035 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10176126 MAY W10176126 Contact Us For Availability
18
MAY W10213724 MAY W10213724 Contact Us For Availability
18
MAY W10255436 MAY W10255436 Contact Us For Availability
19
MAY W10175998 MAY W10175998 Contact Us For Availability
19
MAY W10176000 MAY W10176000 Contact Us For Availability
19
ASSEMBLY, BADGE (BLACK) MAY W10190724 Contact Us For Availability
19
ASSEMBLY, BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY 4005F721-45 MAY 4005F721-45 Contact Us For Availability
20
MAY W10305979 MAY W10305979 Contact Us For Availability
21
BULB, OVEN MAY W10169757 Contact Us For Availability
21
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
22
CHANNEL, BTM AIR BAKE ELEMENT MAY W10280325 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
24
MAY W10213745 MAY W10213745 Contact Us For Availability
24
MAY W10277587 MAY W10277587 Contact Us For Availability
25
MAY W10176014 MAY W10176014 Contact Us For Availability
25
MAY W10176036 MAY W10176036 Contact Us For Availability
25
MAY W10238700 MAY W10238700 Contact Us For Availability
27
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
29
SUPPORT, OVEN MAY 3807F669-51 Contact Us For Availability
29
MAY W10251054 MAY W10251054 Contact Us For Availability
30
JUMPER, THERMAL SECONDARY MAY W10277590 Contact Us For Availability
30
RECEIVER, HINGE MAY W10175993 Contact Us For Availability
31
MAY W10277609 MAY W10277609 Contact Us For Availability
31
MAY W10254050 MAY W10254050 Contact Us For Availability
32
MAY W10187018 MAY W10187018 Contact Us For Availability
33
MAY W10176749 MAY W10176749 Contact Us For Availability
33
MAY W10254027 MAY W10254027 Contact Us For Availability
NI
MAY W10186989 MAY W10186989 Contact Us For Availability
NI
MAY W10213750 MAY W10213750 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
HARNESS, MEAT PROBE JACK MAY 5171P208-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
HARNESS, SIGNAL CORE DBL MAY W10174753 Contact Us For Availability
NI
ASSEMBLY, CONDUIT DOUBLE MAY W10176089 Contact Us For Availability
NI
HARNESS, LATCH NO MEAT PRB MAY W10176216 Contact Us For Availability
NI
MAY W10187000 MAY W10187000 Contact Us For Availability
NI
HARNESS, LATCH W/MEAT PROBE MAY W10209123 Contact Us For Availability
× ![]()
