Model Maytag JJW2427WS02 ELECTRIC WALL OVEN – Common Parts & Diagrams

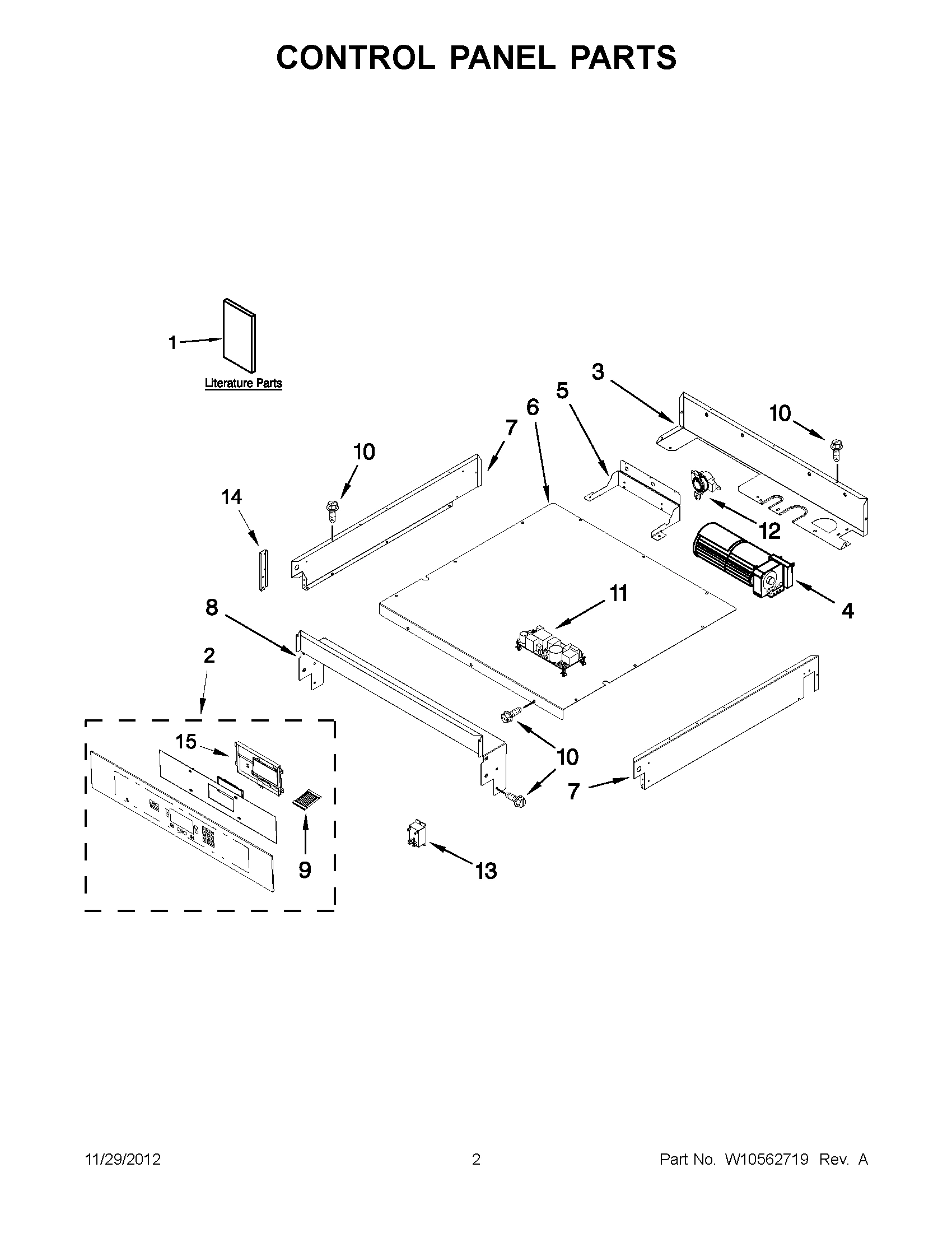

01 - CONTROL PANEL PARTS

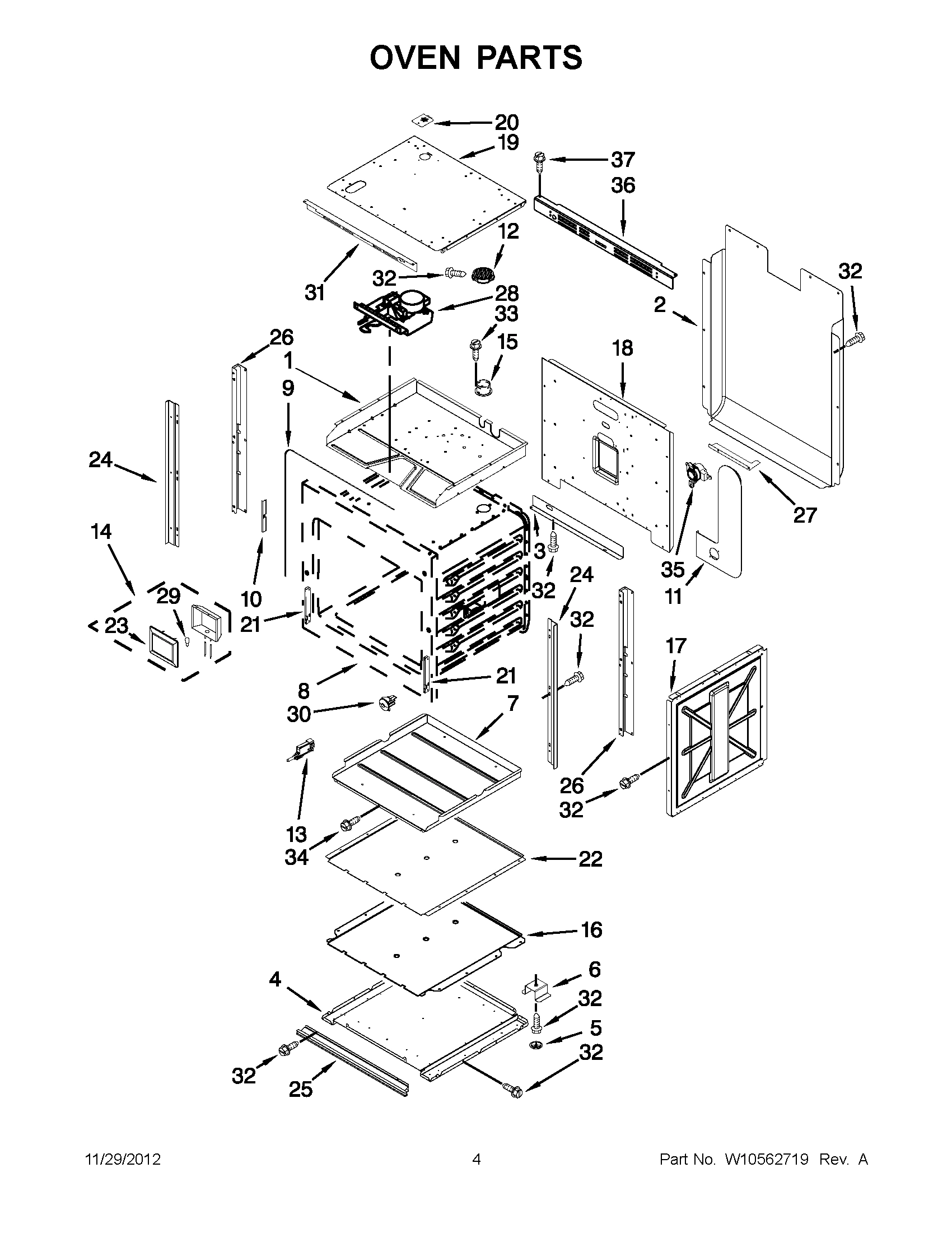

02 - OVEN PARTS

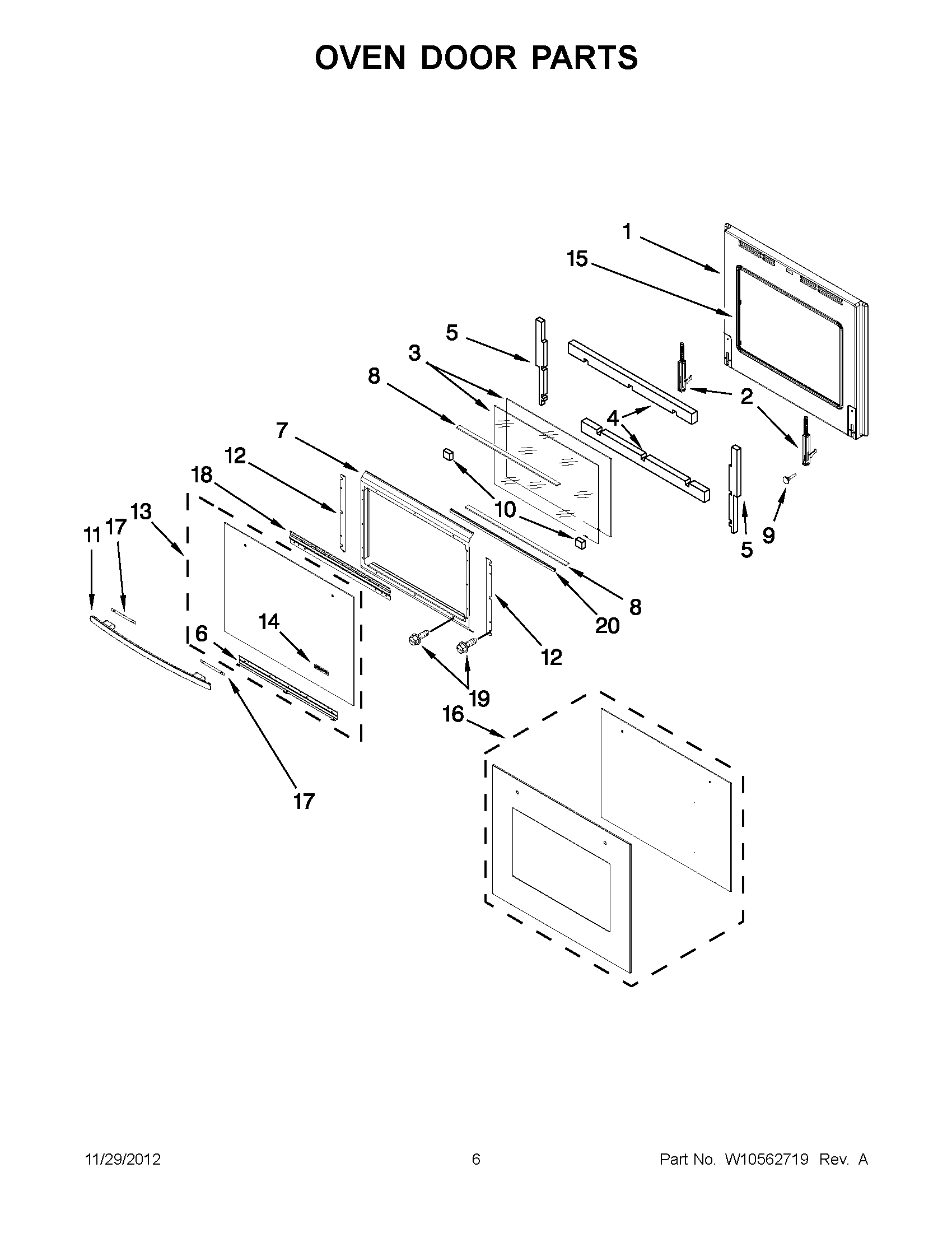

03 - OVEN DOOR PARTS

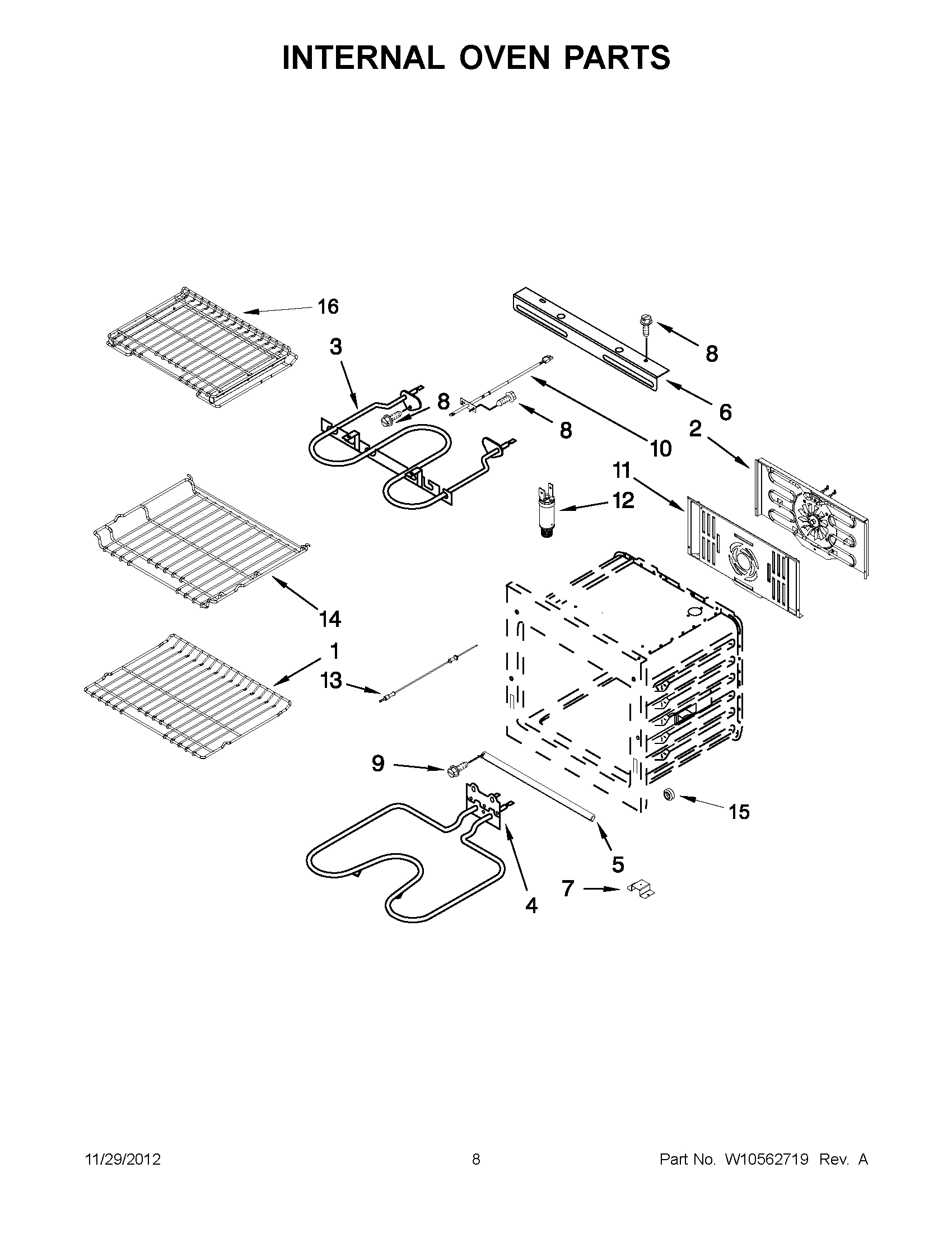

04 - INTERNAL OVEN PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JJW2427WS02 ELECTRIC WALL OVEN
1
TIPS, SAFER COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTRUCTIONS, INSTALLER MAY W10075750 Contact Us For Availability
1
MAY W10213733 MAY W10213733 Contact Us For Availability
1
MAY W10213742 MAY W10213742 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10221386 Contact Us For Availability
1
INSTRUCTIONS, UNDERCOUNTER MAY W10373103 Contact Us For Availability
1
USE & CARE GUIDE MAY W10450586 Contact Us For Availability
1
MAY W10186749 MAY W10186749 Contact Us For Availability
1
MAY W10187020 MAY W10187020 Contact Us For Availability
1
MAY W10176139 MAY W10176139 Contact Us For Availability
2
MAY W10517888 MAY W10517888 Contact Us For Availability
2
MAY W10517890 MAY W10517890 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
HINGE, DOOR FOR BLACK MODELS MAY W10186751 Contact Us For Availability
2
HINGE, DOOR FOR STAINLESS MODELS MAY W10277752 Contact Us For Availability
2
KIT, UNITY CONVECTION MAY W10213813 Contact Us For Availability
3
MAY W10187048 MAY W10187048 Contact Us For Availability
3
MAY 3601F343-51 MAY 3601F343-51 Contact Us For Availability
3
GLASS, INNER MAY W10176101 Contact Us For Availability
3
MAY W10314708 MAY W10314708 Contact Us For Availability
4
MAY W10273667 MAY W10273667 Contact Us For Availability
4
MAY W10280326 MAY W10280326 Contact Us For Availability
4
MAY W10273677 MAY W10273677 Contact Us For Availability
4
MAY W10314698 MAY W10314698 Contact Us For Availability
5
MAY W10186997 MAY W10186997 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
6
MAY W10176180 MAY W10176180 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176176 Contact Us For Availability
6
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
7
PANEL, CONTROL BOX LEFT HAND MAY W10176002 Contact Us For Availability
7
PANEL, CONTROL BOX RIGHT HAND MAY W10176003 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DOOR GLASS MAY W10176105 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
8
SUPPORT, TOP CONTROL MAY W10176004 Contact Us For Availability
8
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
MAY W10186993 MAY W10186993 Contact Us For Availability
8
MAY W10277580 MAY W10277580 Contact Us For Availability
9
MAY W10213819 MAY W10213819 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
MAY 7101P627-60 MAY 7101P627-60 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY W10296505 MAY W10296505 Contact Us For Availability
10
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
11
SUPPLY, POWER MAY W10286791 Contact Us For Availability
11
ASSEMBLY, BOX VENT MAY 4006W218-45 Contact Us For Availability
11
MAY W10186759 MAY W10186759 Contact Us For Availability
11
MAY W10186760 MAY W10186760 Contact Us For Availability
11
MAY W10186795 MAY W10186795 Contact Us For Availability
12
MAY W10277609 MAY W10277609 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
13
MANAGER, APPLIANCE MAY W10292566 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (BLACK) MAY W10186886 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (STAINLESS) MAY W10186887 Contact Us For Availability
13
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
14
MAY W10512904 MAY W10512904 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
ASSEMBLY, BADGE (BLACK) MAY W10190724 Contact Us For Availability
14
ASSEMBLY, BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
14
MAY W10186987 MAY W10186987 Contact Us For Availability
15
ASSEMBLY, USER INTERFACE MAY W10344083 Contact Us For Availability
15
MAY 8026P066-60 MAY 8026P066-60 Contact Us For Availability
15
MAY W10213804 MAY W10213804 Contact Us For Availability
15
MAY 7109P085-60 MAY 7109P085-60 Contact Us For Availability
16
CHANNEL, BOTTOM AIR MAY W10280323 Contact Us For Availability
16
KIT, GLASS ASSEMBLY (STAINLESS) MAY W10176228 Contact Us For Availability
16
KIT, GLASS ASSEMBLY (BLACK) MAY W10277595 Contact Us For Availability
16
MAY W10445854 MAY W10445854 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10213722 MAY W10213722 Contact Us For Availability
18
MAY W10213725 MAY W10213725 Contact Us For Availability
18
MAY W10176126 MAY W10176126 Contact Us For Availability
19
PANEL, TOP RETAINER MAY W10175999 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY W10305979 MAY W10305979 Contact Us For Availability
21
MAY W10175993 MAY W10175993 Contact Us For Availability
22
MAY W10512901 MAY W10512901 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
24
MAY W10277586 MAY W10277586 Contact Us For Availability
25
MAY W10176037 MAY W10176037 Contact Us For Availability
25
MAY W10238701 MAY W10238701 Contact Us For Availability
26
BRACKET, REINFORCEMENT LEFT HAND MAY W10277423 Contact Us For Availability
26
BRACKET, REINFORCEMENT RIGHT HAND MAY W10277424 Contact Us For Availability
27
MAY W10186984 MAY W10186984 Contact Us For Availability
28
LATCH, DOOR LOCK MAY W10213755 Contact Us For Availability
29
MAY W10169757 MAY W10169757 Contact Us For Availability
30
FRAME, MICRO SWITCH MAY W10213745 Contact Us For Availability
33
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
34
MAY W10236043 MAY W10236043 Contact Us For Availability
35
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
36
TRIM, CONTROL PANEL (TOP) MAY W10176007 Contact Us For Availability
37
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
NI
MAY 7002P276-60 MAY 7002P276-60 Contact Us For Availability
NI
MAY W10186990 MAY W10186990 Contact Us For Availability
NI
MAY W10213747 MAY W10213747 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MEAT PROBE JAC MAY 5171P208-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (SIGNAL E MAY W10172125 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (MAIN) MAY W10174752 Contact Us For Availability
NI
MAY W10174860 MAY W10174860 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (LATCH, W MAY W10209123 Contact Us For Availability
NI
MAY W10277590 MAY W10277590 Contact Us For Availability
× ![]()
