Model Whirlpool JJTU8100XTP1 TRASH COMPACTOR – Common Parts & Diagrams
01 - MOTOR AND DRIVE , LIT/OPTIONAL
06 - ACCESSORY

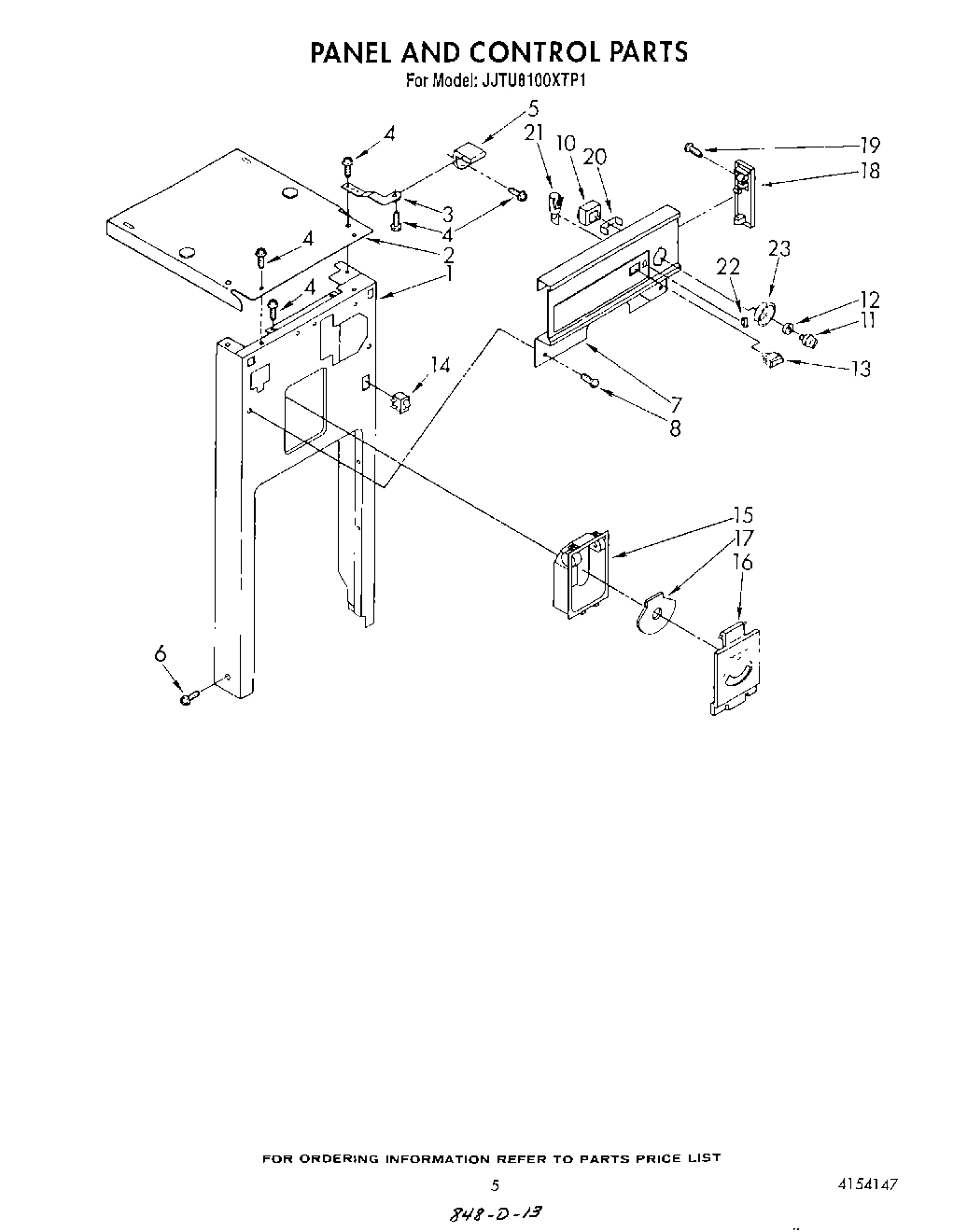

05 - PANEL AND CONTROL

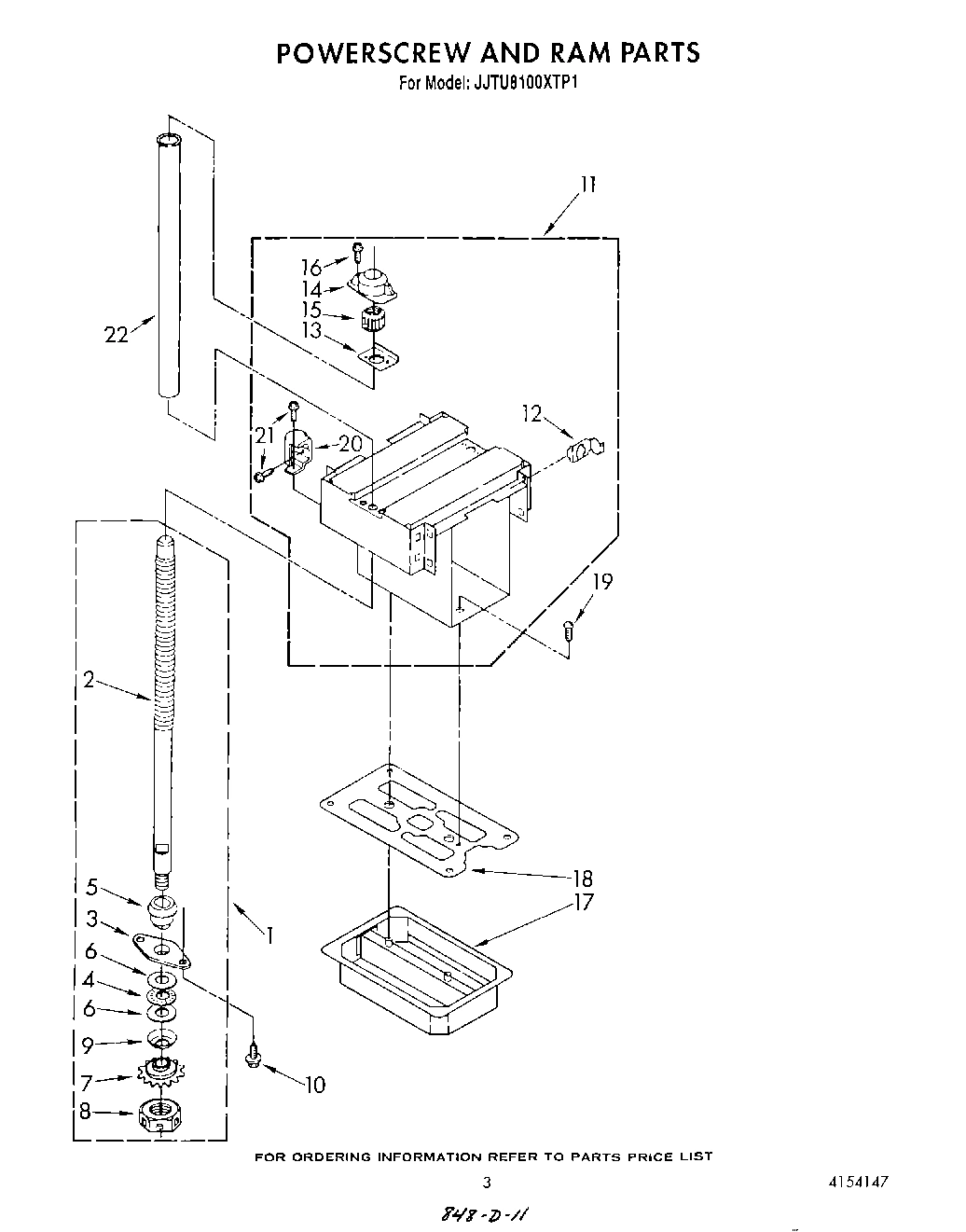

03 - POWER SCREW AND RAM

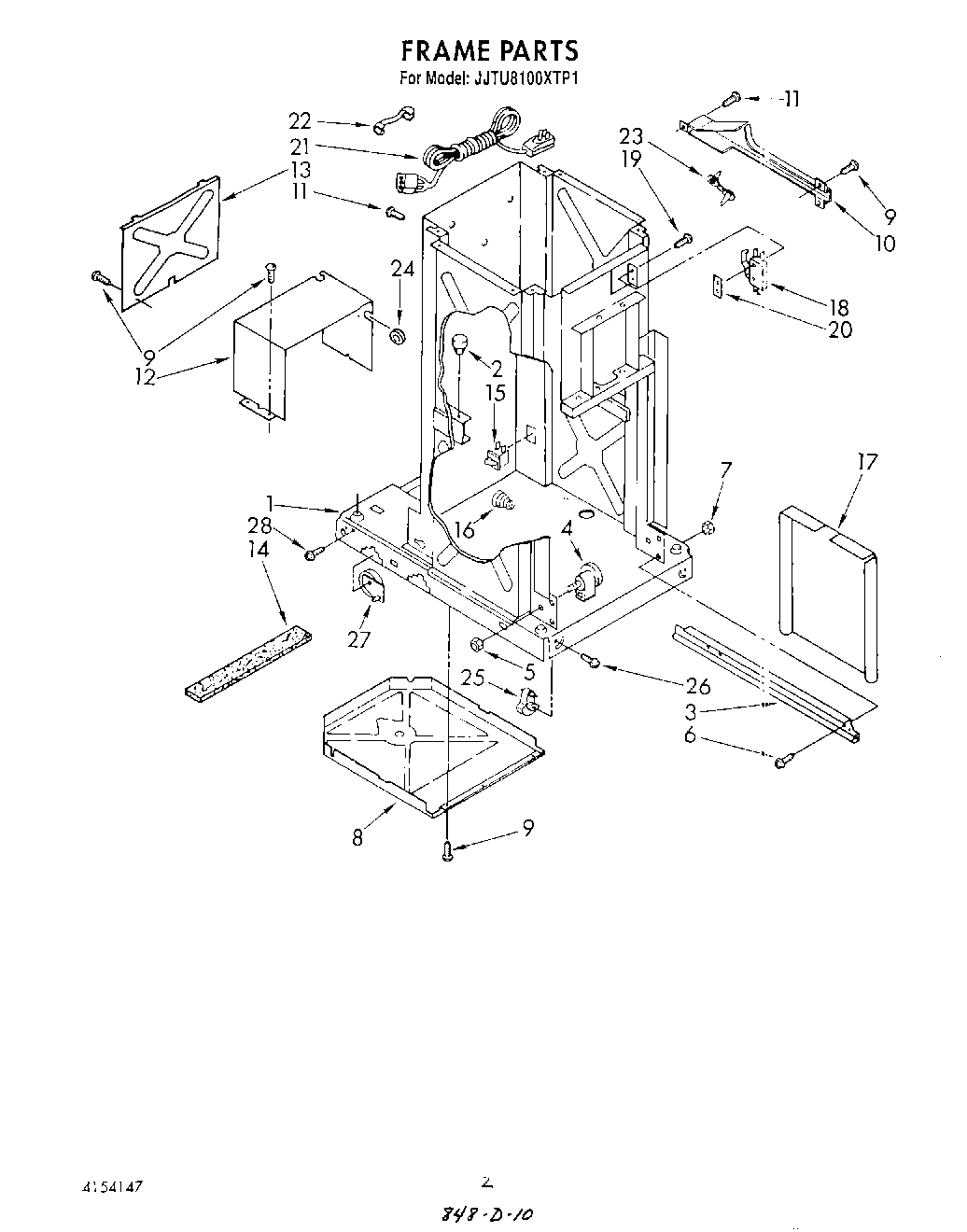

02 - FRAME

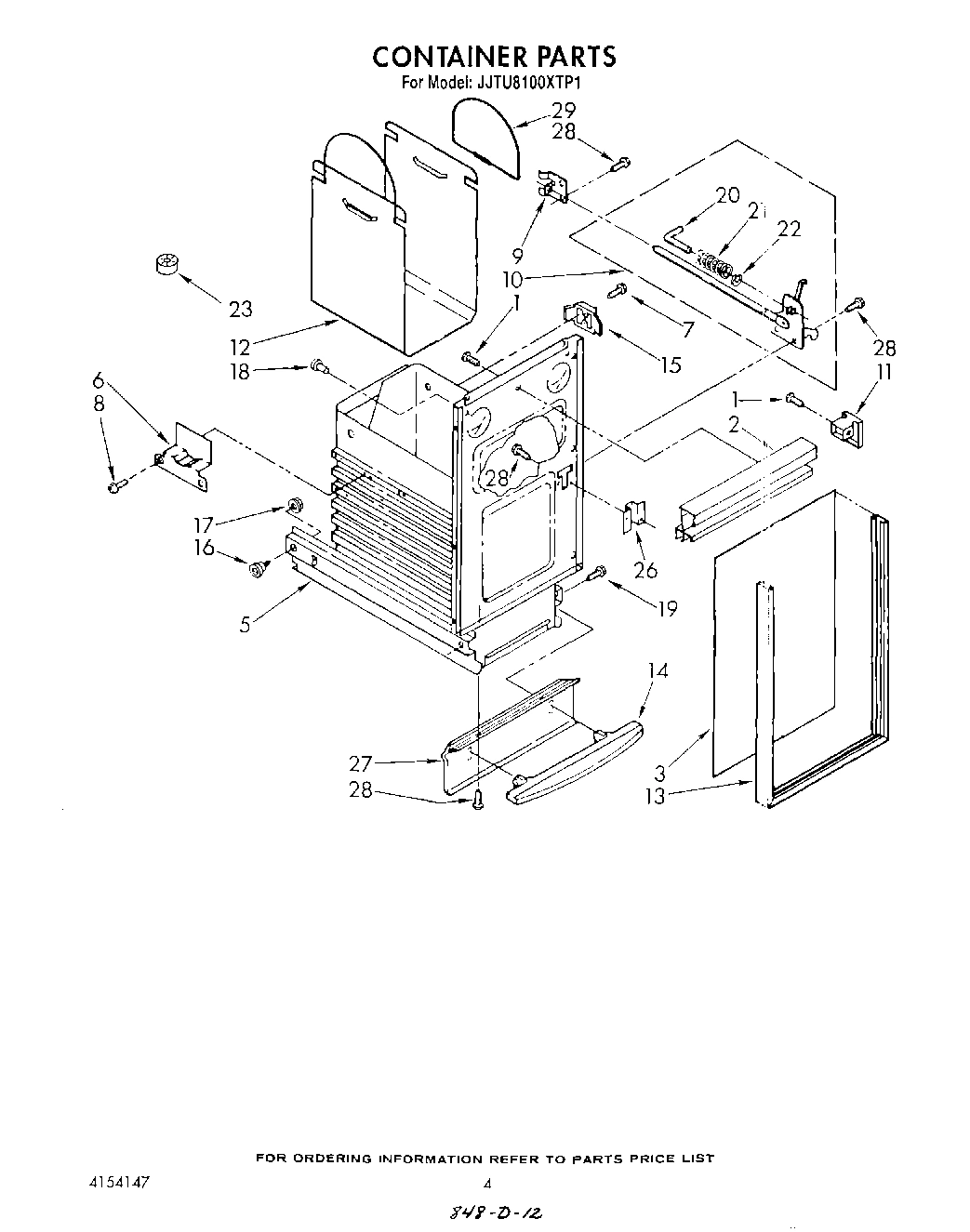

04 - CONTAINER
Common parts from model Whirlpool JJTU8100XTP1 TRASH COMPACTOR
1
Panel, Front Frame WPL 4152069 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI77832A5 Contact Us For Availability
2
Cover, Top WPL 608572 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI77833A6 Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
2
Handle, Container WPL 4149709 Contact Us For Availability
3
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
5
Container Assembly WPL 882666 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Escutcheon, Control WPL 4152837 Contact Us For Availability
7
Escutcheon, Control (Optional-White) WPL 882678 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
7
Screw (2) WPL 4149395 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
Cap, Handle R.H. WPL 780188 Contact Us For Availability
11
Cap, Handle L.H. WPL 780189 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Plate, Motor Cover WPL 780441 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Compartment, Air Flow WPL 777642 Contact Us For Availability
16
Cover, Air Flow WPL 608783 Contact Us For Availability
17
Dail, Air Flow WPL 608782 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
Panel, Inner Frame WPL 780412 Contact Us For Availability
18
End Cap, R.H. WPL 4151457 Contact Us For Availability
18
End Cap, L.H. WPL 4151458 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
18
Bumper, Container (2) WPL 775785 Contact Us For Availability
20
Bracket, Switch WPL 780417 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Light, Indicator WPL 4147718 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Lens, Indicator WPL 4147746 Contact Us For Availability
22
Protector, Powerscrew WPL 780413 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
22
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
23
Bezel WPL 780387 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
leveler (2) WPL 780082 Contact Us For Availability
26
Screw & Washer Assembly (2) WPL 780125 Contact Us For Availability
27
Wheel, Leveler (Right Side) WPL 780139 Contact Us For Availability
× ![]()
