Model Whirlpool JJTU8100XTP0 TRASH COMPACTOR – Common Parts & Diagrams

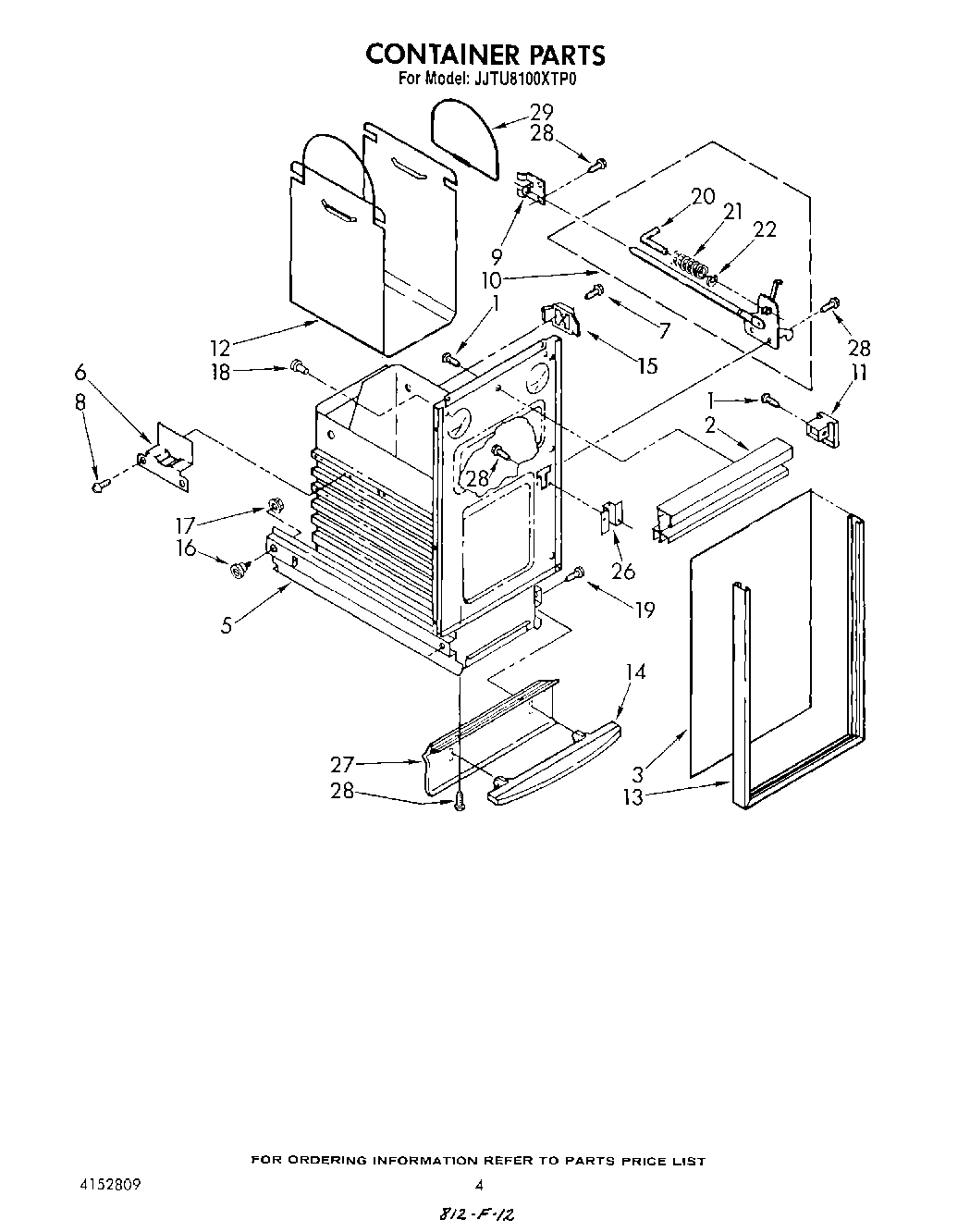

04 - CONTAINER

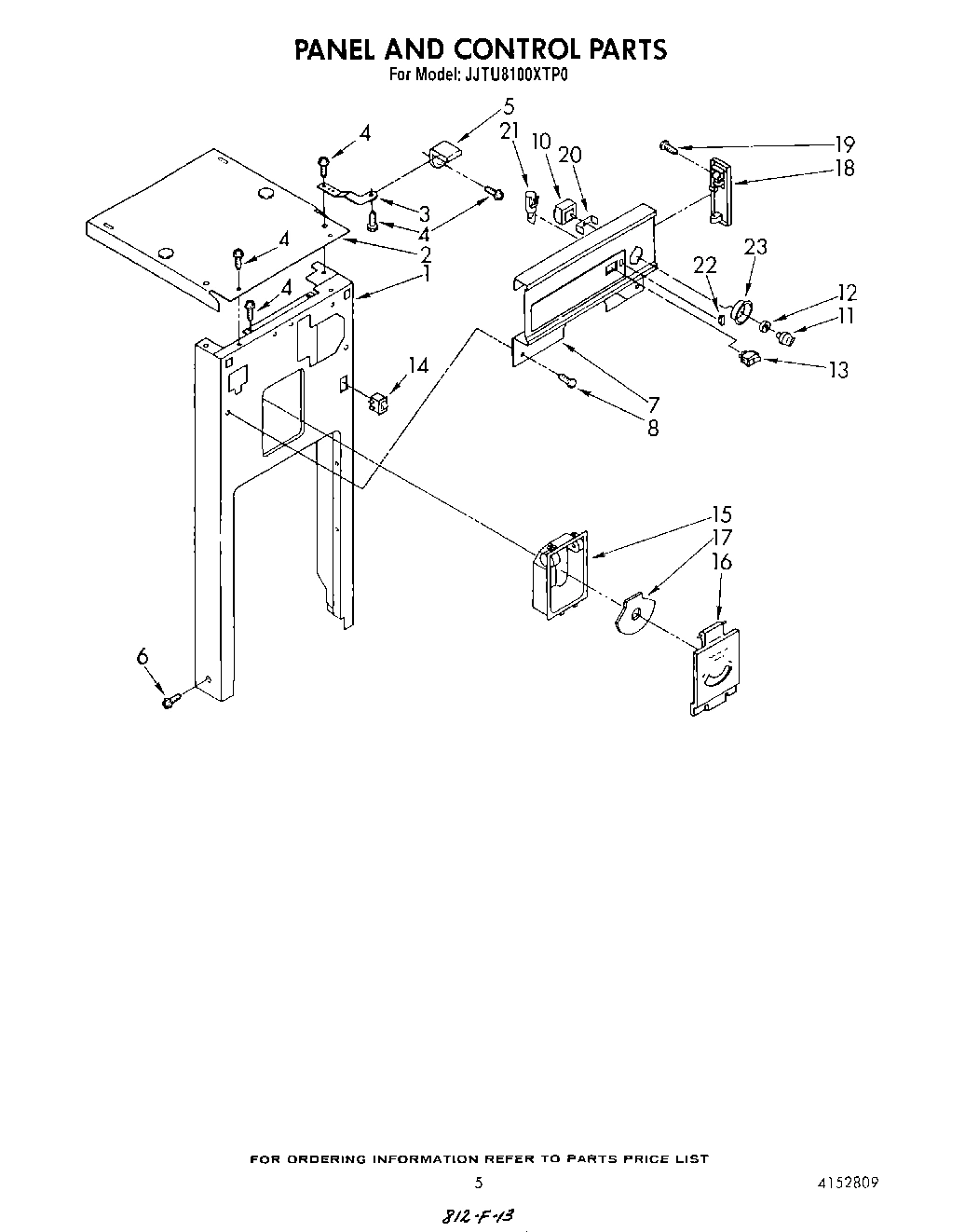

05 - PANEL AND CONTROL

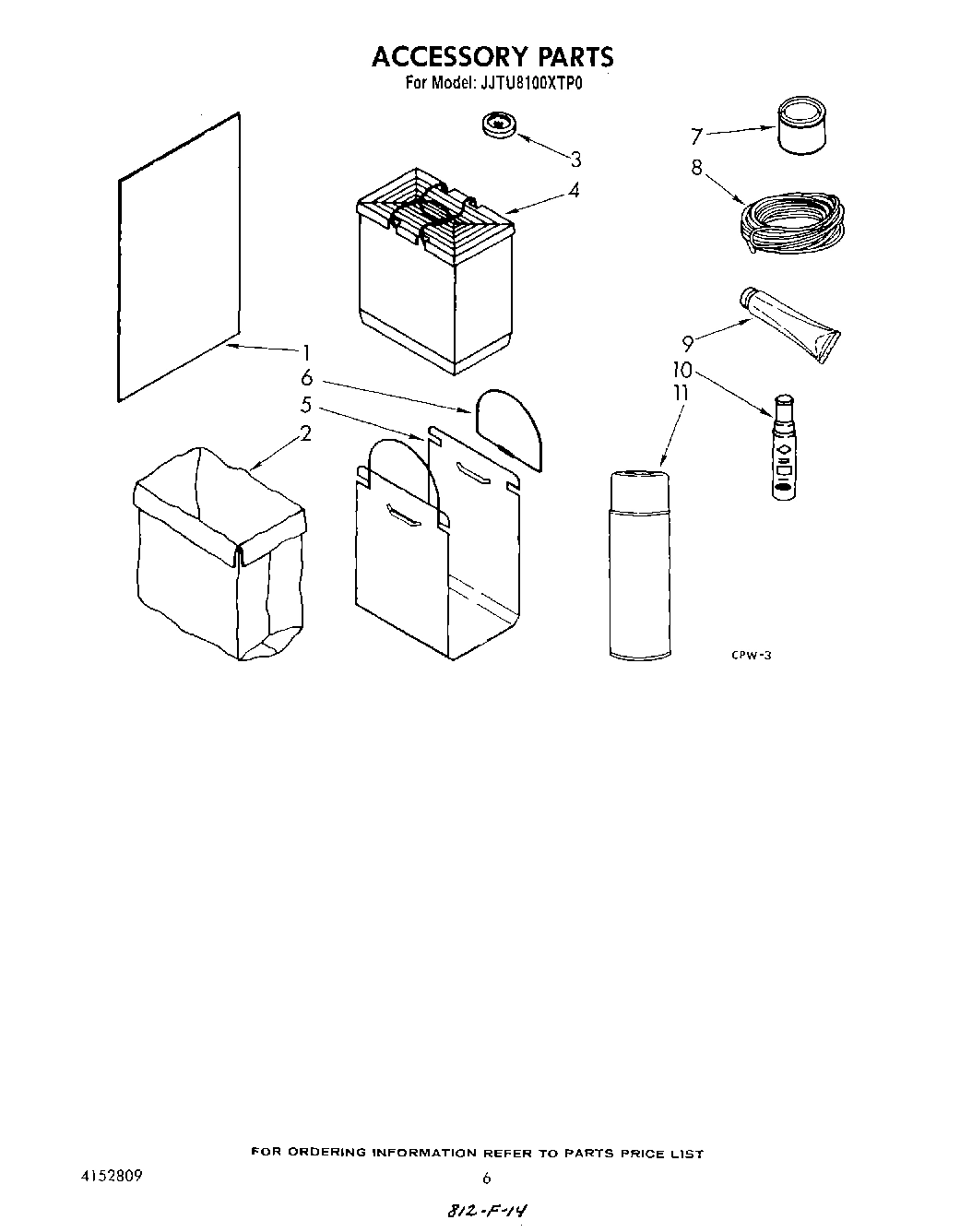

06 - ACCESSORY

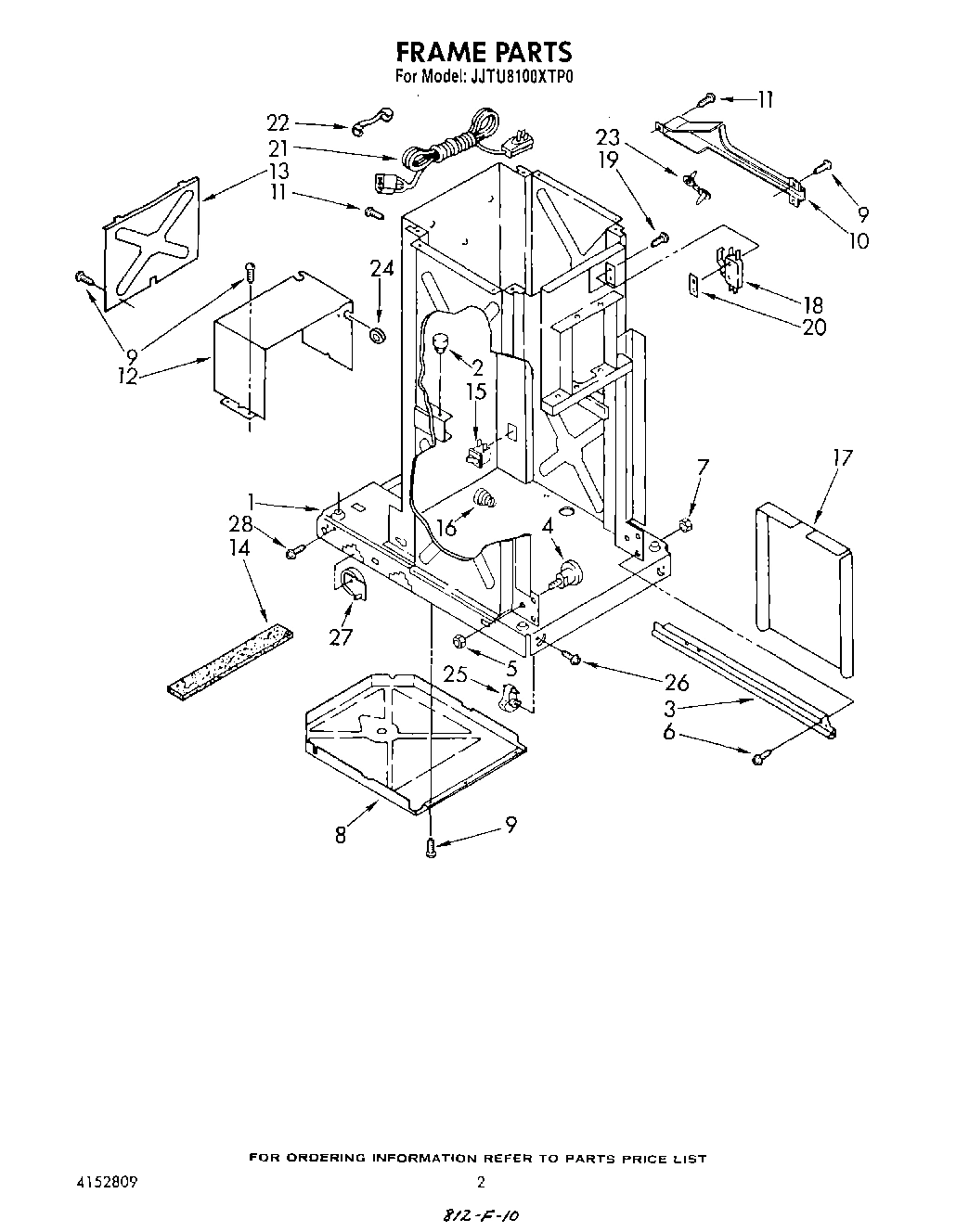

02 - FRAME

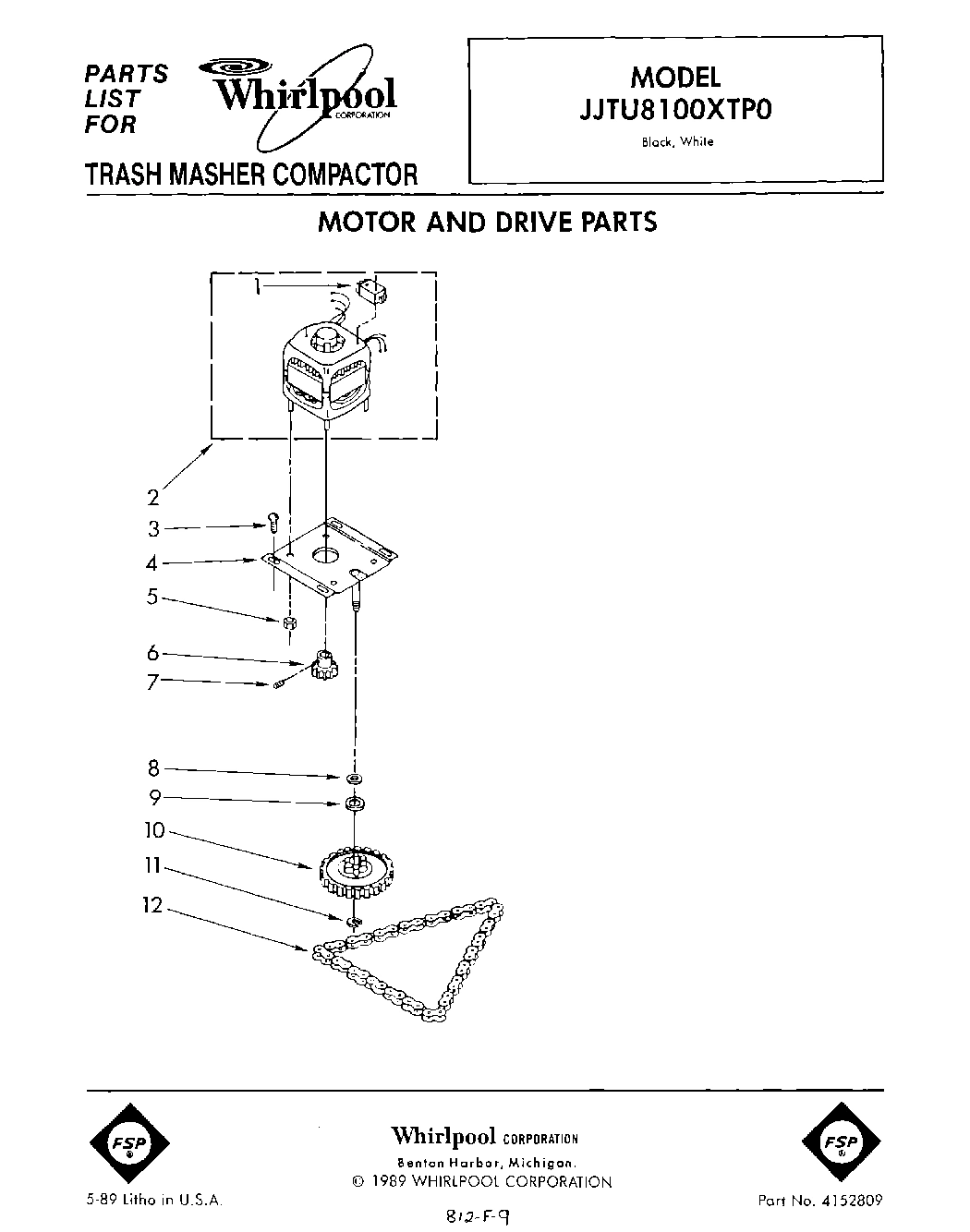

01 - MOTOR AND DRIVE , LIT/OPTIONAL

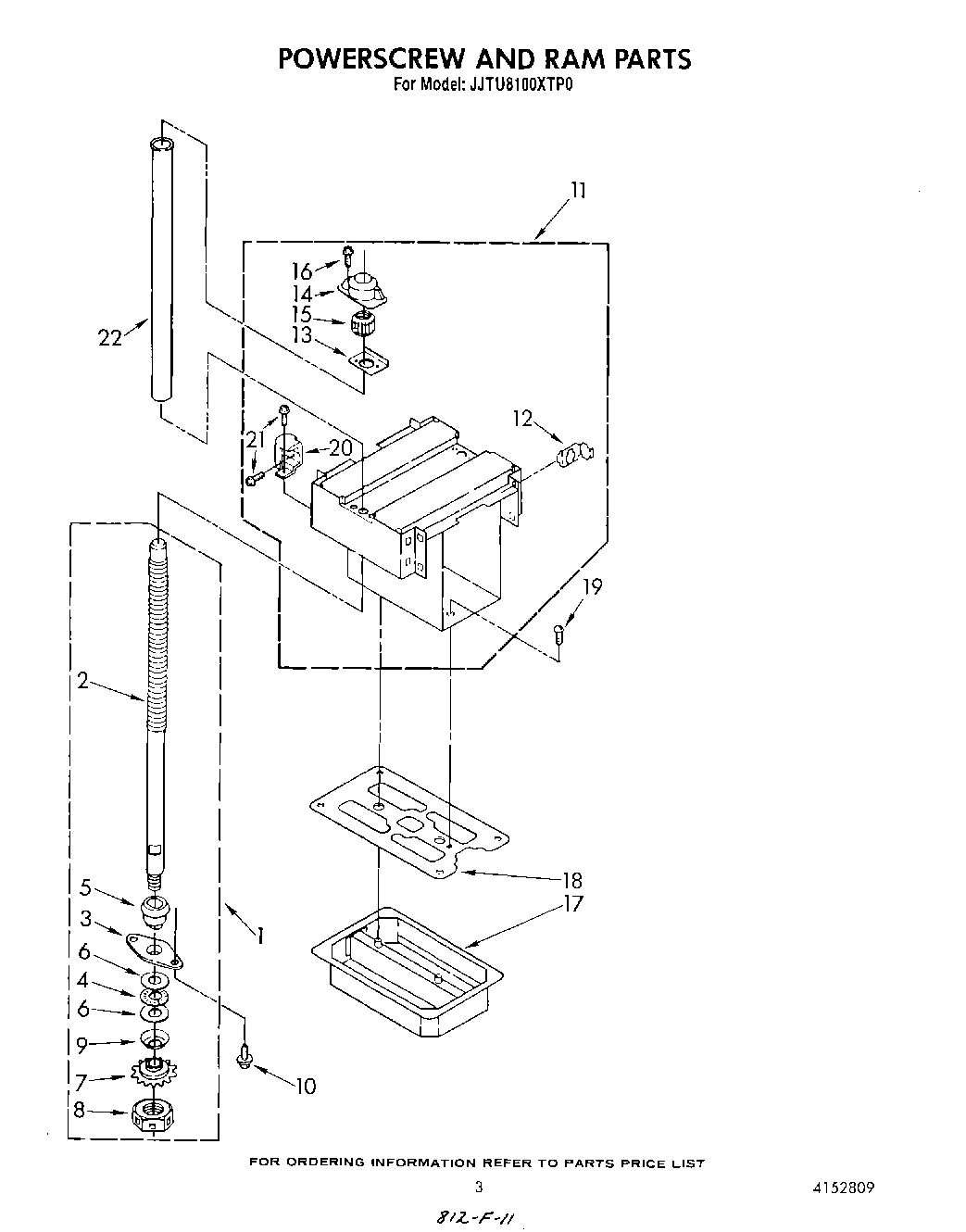

03 - POWER SCREW AND RAM
Common parts from model Whirlpool JJTU8100XTP0 TRASH COMPACTOR
Guide, Use And Care (French) WPL LIT4152806 Contact Us For Availability
List, Repair Parts WPL LIT4152809 Contact Us For Availability
Sheet, Tech (Service Information) (English) WPL LIT4152815 Contact Us For Availability
Sheet, Tech (Service Information) (French) WPL LIT4152816 Contact Us For Availability
Instructions, Installation (English) WPL LIT4152821 Contact Us For Availability
Instructions, Installation (French) WPL LIT4152822 Contact Us For Availability
Guide, Use And Care (English) WPL LIT4152836 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI77830A9 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
bag, trash (96 pack) WPL 675350 Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI77831A3 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
12
Harness, Wiring (Complete Assembly) WPL 4152082 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Plate, Motor Cover WPL 780441 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
17
Panel, Inner Frame WPL 780412 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Lens, Indicator WPL 4147746 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
22
Protector, Powerscrew WPL 780413 Contact Us For Availability
23
Bezel WPL 780387 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
leveler (2) WPL 780082 Contact Us For Availability
26
Screw & Washer Assembly (2) WPL 780125 Contact Us For Availability
27
Wheel, Leveler (Right Side) WPL 780139 Contact Us For Availability
× ![]()
