Model Whirlpool JJTF8500XLP1 TRASH COMPACTOR – Common Parts & Diagrams

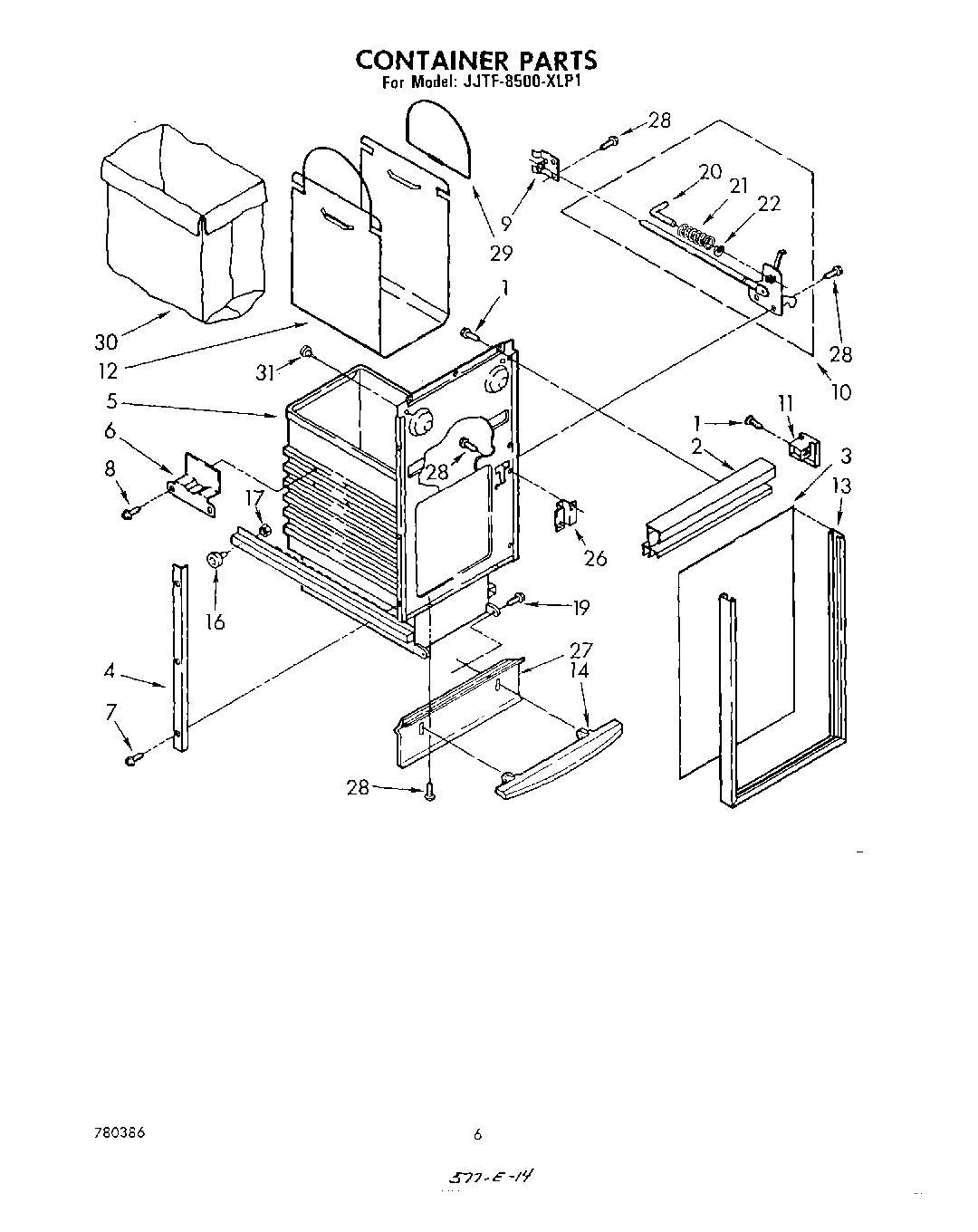

05 - CONTAINER

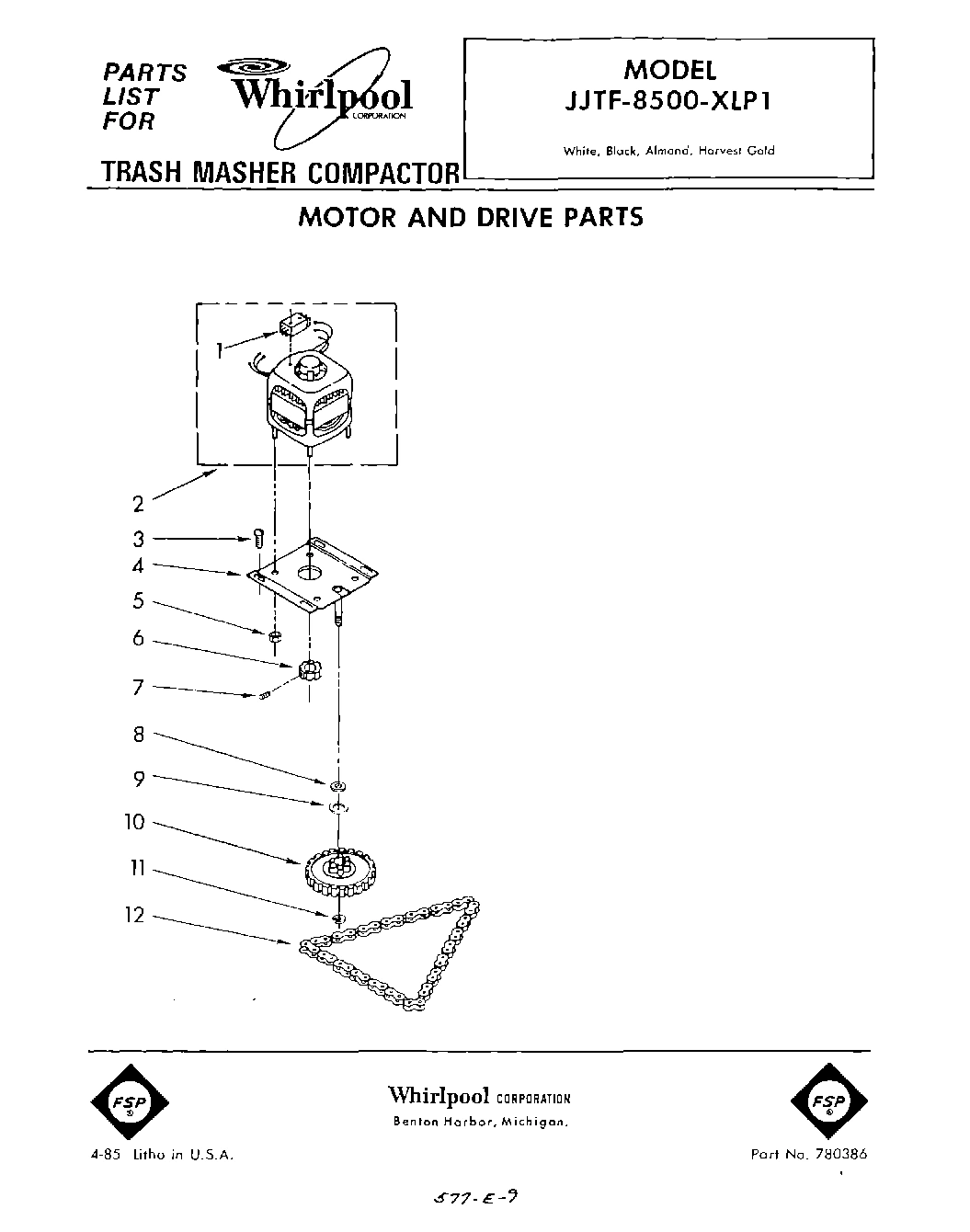

01 - MOTOR AND DRIVE , LITERATURE

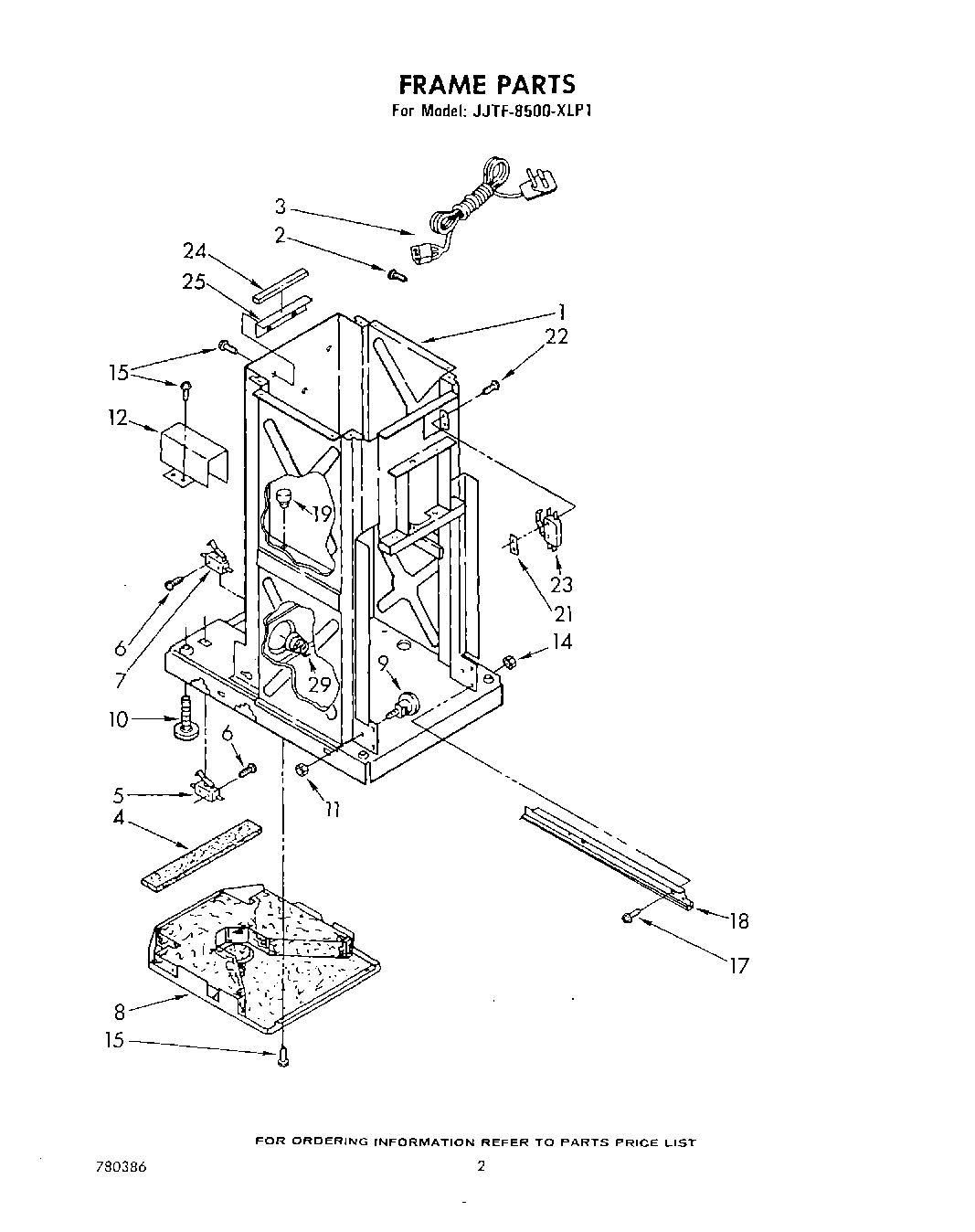

02 - FRAME

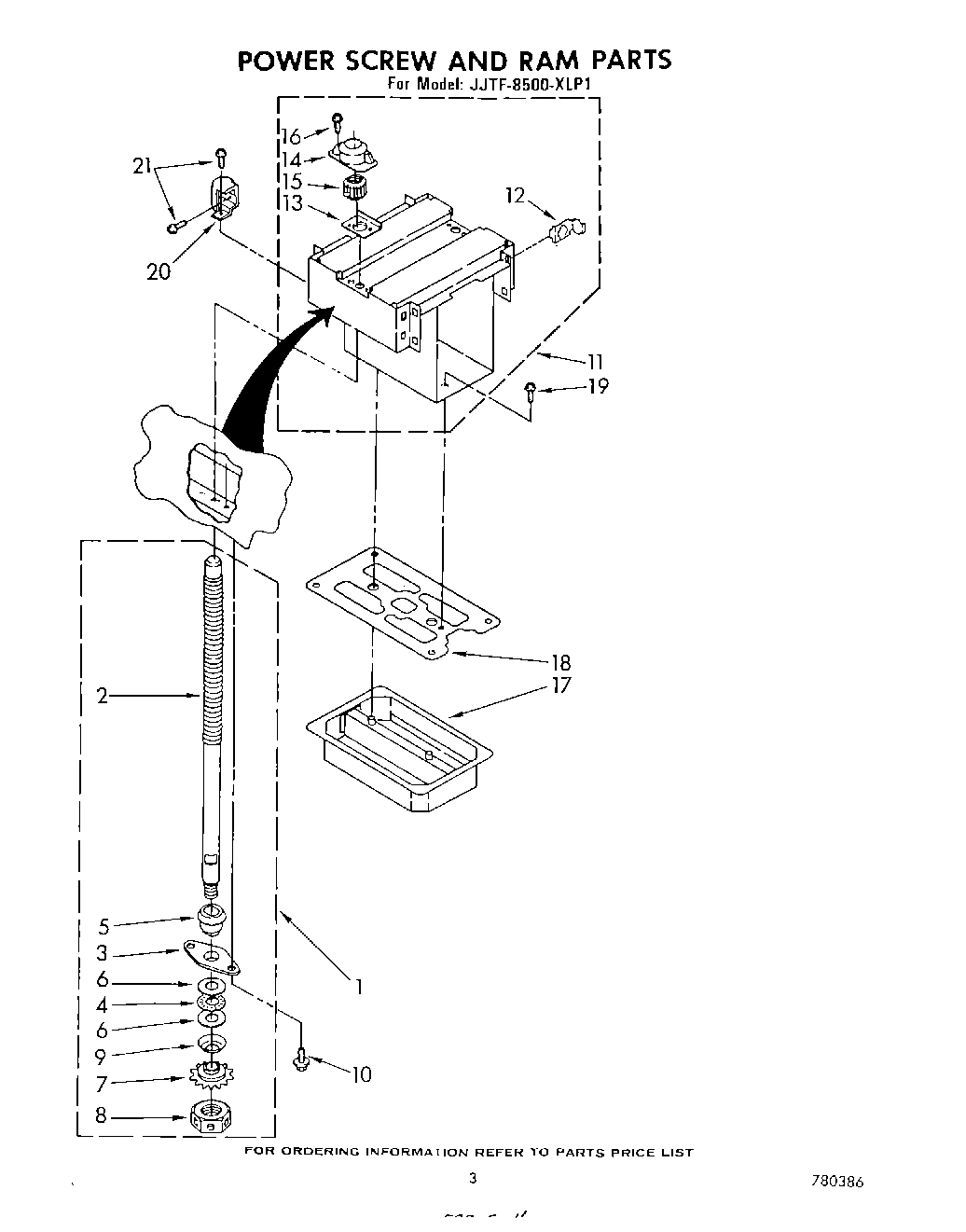

03 - POWER SCREW AND RAM

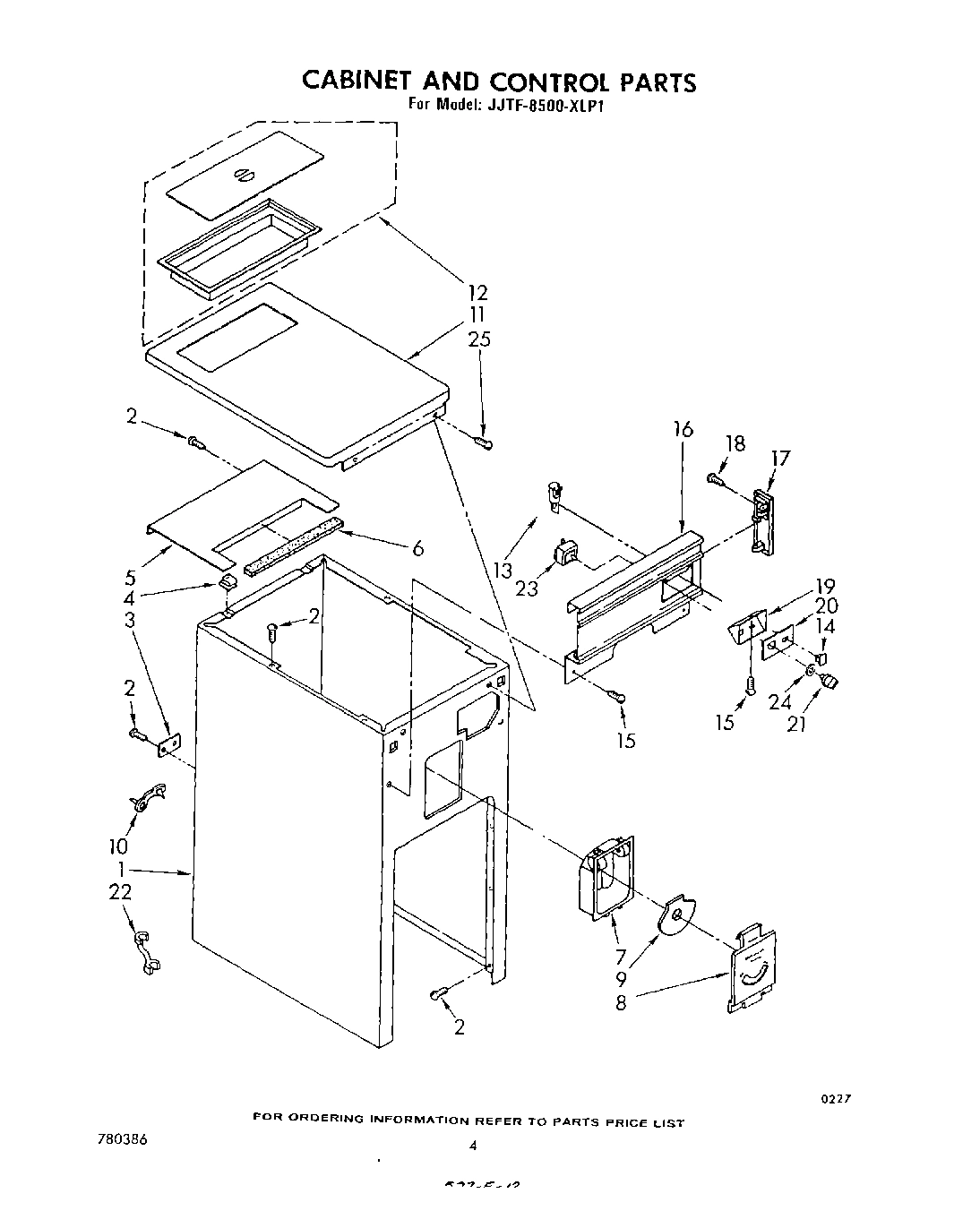

04 - CABINET AND CONTROL
Common parts from model Whirlpool JJTF8500XLP1 TRASH COMPACTOR
1
Frame (Not a Serviceable Part) WPL ARI77812A6 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Cabinet WPL 608826 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI77813A6 Contact Us For Availability
3
Cord, Power WPL 778602 Contact Us For Availability
3
Plate, Power Cord WPL 775676 Contact Us For Availability
4
Clip, Toe Mount WPL 776017 Contact Us For Availability
5
Switch, Drawer Tilt WPL 775804 Contact Us For Availability
5
Plate, Bag Storage WPL 777203 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
6
Barrier, Glass WPL 776780 Contact Us For Availability
6
Screw, 6-32 x 7/8 WPL 777460 Contact Us For Availability
7
Switch, Drawer Safety WPL 775803 Contact Us For Availability
7
Compartment, Air Flow WPL 777642 Contact Us For Availability
8
Cover, Air Flow WPL 608783 Contact Us For Availability
9
Dail, Air Flow WPL 608782 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
10
Clamp, Wire WPL 777035 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
Top, Cabinet WPL 608430 Contact Us For Availability
12
Guide, Use & Care WPL 780213 Contact Us For Availability
12
Guide, Use & Care WPL 780214 Contact Us For Availability
12
List, Repair Parts WPL 780386 Contact Us For Availability
12
Shield, Slide Track WPL 608375 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Frame & Lid Assembly WPL 780081 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Light, Indicator WPL 780181 Contact Us For Availability
14
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
14
Lens, Indicator Light WPL 780182 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
16
Escutcheon, Control WPL 780183 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
17
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Bumper, Ram (4) WPL 775643 Contact Us For Availability
19
Bezel, Switch WPL 780190 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Inset, Bezel WPL 780186 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Harvest Gold WPL 261890 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Brown WPL 978726 Contact Us For Availability
21
Knob, Switch WPL 780191 Contact Us For Availability
22
Bushing, Power Cord WPL 776119 Contact Us For Availability
24
Pad, Top Support WPL 776715 Contact Us For Availability
25
Angle, Top Support WPL 608038 Contact Us For Availability
25
Screw, SM No.8-18 x 1/2 WPL 776493 Contact Us For Availability
× ![]()
