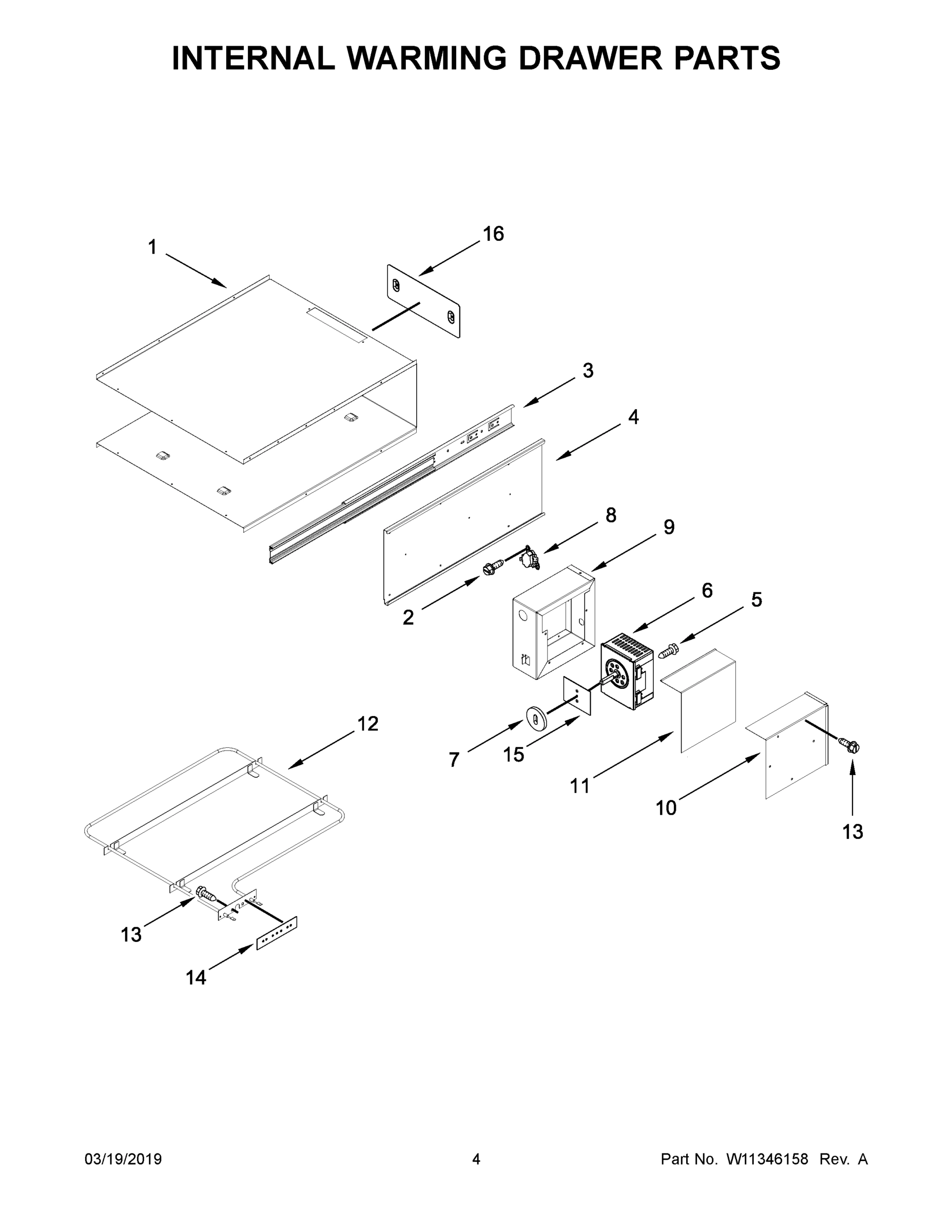

Model Maytag JJD3030IL00 RANGE/OVEN, ELECTRIC, WARMING DRAWER – Common Parts & Diagrams

1
MAY W11295550
MAY W11295550 MAY W11295550 Contact Us For Availability
View on Model
1
WRAPPER
WRAPPER MAY W10684523 Contact Us For Availability
View on Model
1A
SHEET, TECH
SHEET, TECH MAY W10064720 Contact Us For Availability
View on Model
1B
MAY W11295554
MAY W11295554 MAY W11295554 Contact Us For Availability
View on Model
2
RACK, WARMING DRAWER
RACK, WARMING DRAWER MAY 8273277 Contact Us For Availability
View on Model
2
SCREW
SCREW MAY 313806 Contact Us For Availability
View on Model
3
SLIDE, VENT
SLIDE, VENT MAY W10162376 Contact Us For Availability
View on Model
3
ASSEMBLY, SLIDE
ASSEMBLY, SLIDE MAY W10188461 Contact Us For Availability
View on Model
4
PANEL, FRONT
PANEL, FRONT MAY W10515383 Contact Us For Availability
View on Model
4
WALL, CAVITY (LEFT)
WALL, CAVITY (LEFT) MAY W10299387 Contact Us For Availability
View on Model
4A
WALL, CAVITY (RIGHT)
WALL, CAVITY (RIGHT) MAY 9762307 Contact Us For Availability
View on Model
5
GASKET, DRAWER
GASKET, DRAWER MAY W10164998 Contact Us For Availability
View on Model
6
ASSEMBLY, DRAWER
ASSEMBLY, DRAWER MAY 9763646 Contact Us For Availability
View on Model
6
CONTROL
CONTROL MAY W10121337 Contact Us For Availability
View on Model
7
SCREW
SCREW MAY 7101P376-60 Contact Us For Availability
View on Model
7
GASKET, CONTROL
GASKET, CONTROL MAY W10117362 Contact Us For Availability
View on Model
8
MAY W11291101
MAY W11291101 MAY W11291101 Contact Us For Availability
View on Model
8
FUSE, THERMAL
FUSE, THERMAL MAY 9763126 Contact Us For Availability
View on Model
9
MAY W11251202
MAY W11251202 MAY W11251202 Contact Us For Availability
View on Model
9
ENCLOSURE, ELECTRIC
ENCLOSURE, ELECTRIC MAY 9763122 Contact Us For Availability
View on Model
10
SCREW
SCREW MAY W10480830 Contact Us For Availability
View on Model
10
COVER, ENCLOSURE
COVER, ENCLOSURE MAY 9763121 Contact Us For Availability
View on Model
11
KNOB, THERMOSTAT
KNOB, THERMOSTAT MAY W10274390 Contact Us For Availability
View on Model
11
GASKET, ENCLOSURE
GASKET, ENCLOSURE MAY W10117363 Contact Us For Availability
View on Model
12
LIGHT, INDICATOR
LIGHT, INDICATOR MAY W10489562 Contact Us For Availability
View on Model
12
ELEMENT, HEATING
ELEMENT, HEATING MAY W10751753 Contact Us For Availability
View on Model
13
LENS, INDICATOR
LENS, INDICATOR MAY 4456314 Contact Us For Availability
View on Model
13
SCREW
SCREW MAY 3196537 Contact Us For Availability
View on Model
14
RAIL, PAN
RAIL, PAN MAY W10409138 Contact Us For Availability
View on Model
14
SEAL, HEATING ELEMENT
SEAL, HEATING ELEMENT MAY W10118049 Contact Us For Availability
View on Model
15
GRIP, VENT
GRIP, VENT MAY 9763125 Contact Us For Availability
View on Model
15
SEAL, SWITCH
SEAL, SWITCH MAY W10118113 Contact Us For Availability
View on Model
16
MAGNET
MAGNET MAY W10035910 Contact Us For Availability
View on Model
16
SHIELD, HEAT
SHIELD, HEAT MAY W10118073 Contact Us For Availability
View on Model
17
SPACER, LENS
SPACER, LENS MAY 4456861 Contact Us For Availability
View on Model
18
CLIP, LENS RETAINER
CLIP, LENS RETAINER MAY 4456862 Contact Us For Availability
View on Model
19
SPACER, HANDLE
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
View on Model
20
SCREW (FRONT FRAME TO CABINET)
SCREW (FRONT FRAME TO CABINET) MAY 7101P434-60 Contact Us For Availability
View on Model
NI
SCREW, GROUNDING
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
View on Model
NI
RELIEF, STRAIN
RELIEF, STRAIN MAY 4452601 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
CORD, POWER
CORD, POWER MAY W10129023 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN MAY W10129043 Contact Us For Availability
View on Model
NI
SENSOR, SEALED
SENSOR, SEALED MAY W10131847 Contact Us For Availability
