Model Maytag JIM159XYRS0 ICE MAKER – Common Parts & Diagrams
01 - COVER SHEET

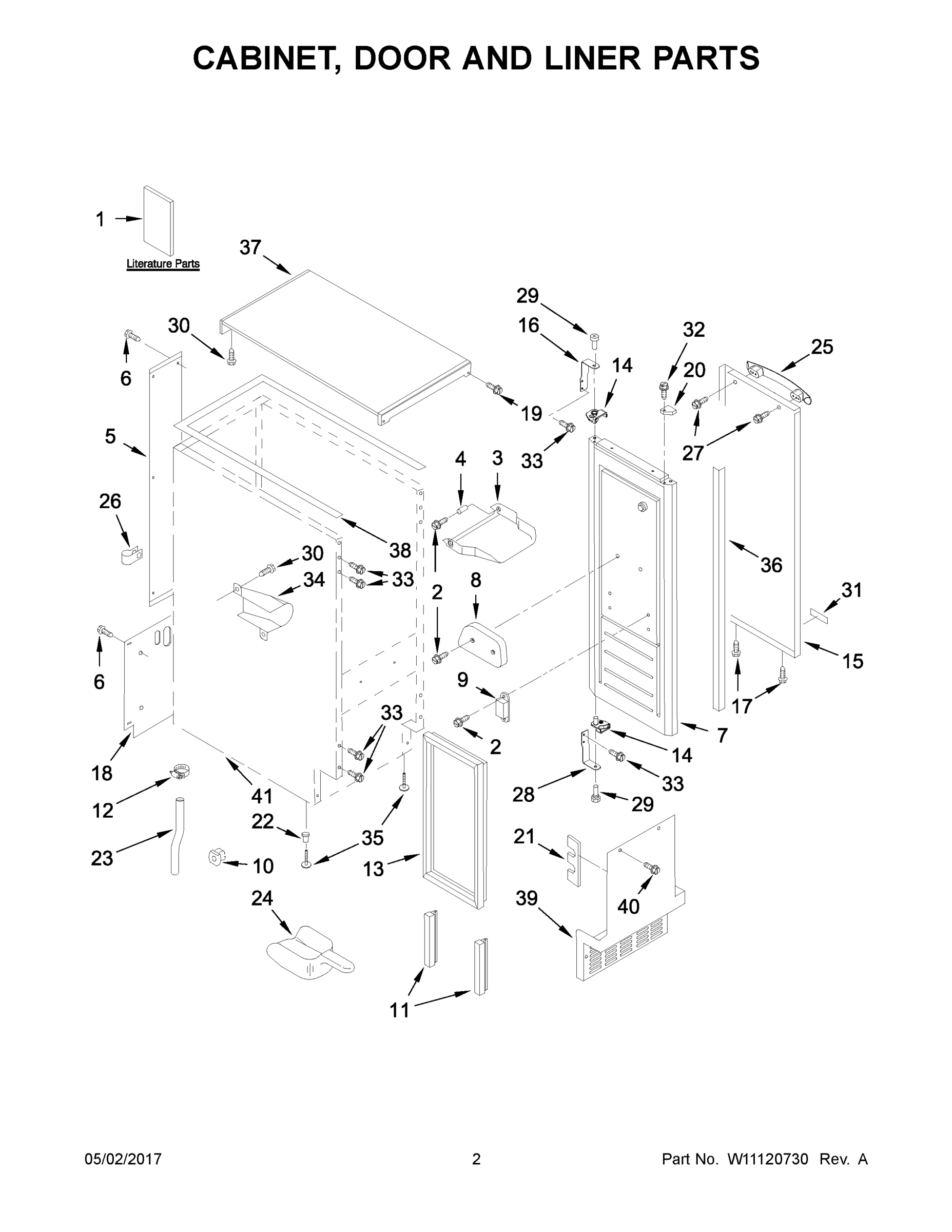

02 - CABINET, DOOR AND LINER PARTS
03 - EVAPORATOR, GRID, AND WATER PARTS
04 - PUMP PARTS
05 - CONTROL PANEL PARTS
06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag JIM159XYRS0 ICE MAKER
1
VALVE, WATER (INCLUDES REGULATOR) MAY W10870921 Contact Us For Availability
1
PUMP, RECIRCULATING (INCLUDES SENSOR) MAY W10747426 Contact Us For Availability
1
HOUSING, CONTROL MAY W10475405 Contact Us For Availability
1
BRACKET, FAN MOUNTING MAY 2185532 Contact Us For Availability
1A
MAY W11050478 MAY W11050478 Contact Us For Availability
2
TUBE, PUMP MAY W10772963 Contact Us For Availability
2
BRACKET, PUMP MAY W10489129 Contact Us For Availability
2
TRANSFORMER MAY W10485951 Contact Us For Availability
2
PAD, FOAM MAY 2185675 Contact Us For Availability
3
MAY W10734102 MAY W10734102 Contact Us For Availability
3
SCREW MAY 488208 Contact Us For Availability
3
ASSEMBLY, PUMP WIRE MAY W10764770 Contact Us For Availability
3
FILTER CAP MAY W10800355 Contact Us For Availability
3
BLADE, FAN MAY 2188935 Contact Us For Availability
4
SPACER MAY 2185678 Contact Us For Availability
4
DISPENSER, WATER MAY 2185523 Contact Us For Availability
4
ASSEMBLY, WATER FILTER HOUSING MAY W10555394 Contact Us For Availability
4
SCREW MAY 8281196 Contact Us For Availability
5
COVER, WIRING MAY 2217394 Contact Us For Availability
5
EVAPORATOR MAY W10218037 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10485960 Contact Us For Availability
5
ASSEMBLY, CABINET WIRE MAY W10460856 Contact Us For Availability
6
SCREW MAY 489442 Contact Us For Availability
6
PUMP, RESERVOIR DRAIN MAY W10489125 Contact Us For Availability
6
SCREW MAY 304392 Contact Us For Availability
7
DOOR (BLACK) MAY W10502166 Contact Us For Availability
7
TUBE, RESERVOIR DRAIN MAY W10539379 Contact Us For Availability
7
ASSEMBLY, DIAMOND LED MAY W10492487 Contact Us For Availability
7
COMPRESSOR MAY W10536005 Contact Us For Availability
8
CAM, DOOR MAY W10486874 Contact Us For Availability
8
WATERLINE, RESERVOIR MAY W10678299 Contact Us For Availability
8
COVER, FILTER MAY W10475416 Contact Us For Availability
8
CLIP, COMPRESSOR MOUNTING MAY A201435 Contact Us For Availability
9
ASSEMBLY, MAGNETIC CATCH MAY W10529250 Contact Us For Availability
9
TUBE, INLET MAY W10776033 Contact Us For Availability
9
THERMISTOR, BIN MAY W10511923 Contact Us For Availability
9
SHIM MAY A201441 Contact Us For Availability
10
NUT, PUSH-IN MAY W10136999 Contact Us For Availability
10
SPACER MAY 836667 Contact Us For Availability
10
ASSEMBLY, CONTROL MAY W10820968 Contact Us For Availability
10
CLAMP, POWER CORD MAY 2185960 Contact Us For Availability
11
GASKET, BOTTOM MAY 2217367 Contact Us For Availability
11
SCREW (STAINLESS) MAY 3400884 Contact Us For Availability
11
RESERVOIR, WATER SLIDE MAY 2185625 Contact Us For Availability
11
GROMMET, COMPRESSOR MAY 2217318 Contact Us For Availability
12
CLAMP, HOSE MAY W10670799 Contact Us For Availability
12
TUBE, WATER SLIDE MAY W10635836 Contact Us For Availability
12
SWITCH, REED (RIGHT HAND) MAY W10485964 Contact Us For Availability
12
TUBE, PROCESS MAY W10528572 Contact Us For Availability
13
GASKET, DOOR MAY 2217294 Contact Us For Availability
13
COVER, BRACKET MAY W10512292 Contact Us For Availability
13
CLAMP, THERMISTOR MAY W10526623 Contact Us For Availability
13
COVER, TERMINAL MAY 2208371 Contact Us For Availability
14
STOP, TOP DOOR (BLACK) MAY W10486559 Contact Us For Availability
14
WATERLINE, VALVE MAY W10678300 Contact Us For Availability
14
ASSEMBLY, FASCIA MAY W10545363 Contact Us For Availability
14
SCREW MAY 489472 Contact Us For Availability
14A
STOP, BOTTOM DOOR (BLACK) MAY W10486561 Contact Us For Availability
15
SCREW (STAINLESS) MAY 3400886 Contact Us For Availability
15
MAY W10786918 MAY W10786918 Contact Us For Availability
15
SCREW MAY 9741232N Contact Us For Availability
15
COIL, SOLENOID MAY W10206473 Contact Us For Availability
16
HINGE, TOP (BLACK) MAY W10476703 Contact Us For Availability
16
ASSEMBLY, GRID MAY W10783275 Contact Us For Availability
16
LATCH, PUSH MAY 2223877 Contact Us For Availability
16
BODY, SOLENOID VALVE MAY 759113 Contact Us For Availability
17
COVER, GRID MAY W10340986 Contact Us For Availability
17
PROTECTOR, OVERLOAD MAY W10783194 Contact Us For Availability
18
COVER, UNIT MAY W10136199 Contact Us For Availability
18
RESERVOIR, WATER MAY W10489137 Contact Us For Availability
18
SHIELD, HEAT MAY W10282061 Contact Us For Availability
19
SCREW (BLACK) MAY 8534075 Contact Us For Availability
19
TIE, WIRE MAY 851095 Contact Us For Availability
20
FILLER, TOP ENDCAP (BLACK) MAY W10501833 Contact Us For Availability
20
CAP, DRAIN MAY W10555398 Contact Us For Availability
20
VALVE, HOT GAS MAY W10534030 Contact Us For Availability
20A
FILLER, BOTTOM ENDCAP (BLACK) MAY W10501849 Contact Us For Availability
21
PAD, FOAM MAY W10532250 Contact Us For Availability
21
GROMMET, SCREW MAY 3400909 Contact Us For Availability
21
JUMPER, WIRE (CONDENSER FAN) MAY 2187629 Contact Us For Availability
22
NUT MAY 3400240 Contact Us For Availability
22
MAY W10782423 MAY W10782423 Contact Us For Availability
22
TRAY, DRIP MAY W10615506 Contact Us For Availability
23
TUBE, BIN TO PUMP MAY W10738312 Contact Us For Availability
23
DRIER MAY W10200037 Contact Us For Availability
24
SCOOP MAY W10493422 Contact Us For Availability
24
CONDENSER MAY 2313624 Contact Us For Availability
25
HANDLE, DOOR (STAINLESS) MAY W10553448 Contact Us For Availability
25
CLAMP, CABLE MAY 2185788 Contact Us For Availability
26
CLIP, WATER TUBE MAY 2208136 Contact Us For Availability
26
CLIP, WIRING MAY 1115375 Contact Us For Availability
27
SCREW MAY 3400237 Contact Us For Availability
27
PAD, FOAM MAY 2217397 Contact Us For Availability
28
HINGE, BOTTOM (BLACK) MAY W10476696 Contact Us For Availability
28
DEVICE, START MAY 2217224 Contact Us For Availability
29
PIN, HINGE MAY 2185712 Contact Us For Availability
29
BASE, UNIT MAY 2217445 Contact Us For Availability
30
SCREW MAY 489048 Contact Us For Availability
30
MOTOR, CONDENSER FAN MAY W10609117 Contact Us For Availability
31
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
31
ASSEMBLY, DRAIN PUMP MAY W10702856 Contact Us For Availability
32
SCREW MAY 348689 Contact Us For Availability
32
HOSE, DRAIN MAY W10762338 Contact Us For Availability
33
SCREW (BLACK) MAY W10495264 Contact Us For Availability
34
HOLDER, SCOOP MAY 2185927 Contact Us For Availability
35
LEG, LEVELING MAY 3374849 Contact Us For Availability
36
GROMMET, EDGE GUARD (BLACK) MAY 2185964 Contact Us For Availability
37
PANEL, TOP (BLACK) MAY W10320117 Contact Us For Availability
38
GASKET, TOP PANEL MAY 2217293 Contact Us For Availability
39
GRILL, FRONT (BLACK) MAY 2185571B Contact Us For Availability
40
SCREW (BLACK) MAY W10531302 Contact Us For Availability
NI
REFRIGERANT CHARGE 5.50 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS MAY F2WC9I1 Contact Us For Availability
× ![]()
