Model Maytag JIM158XXCX2 ICE MAKER – Common Parts & Diagrams

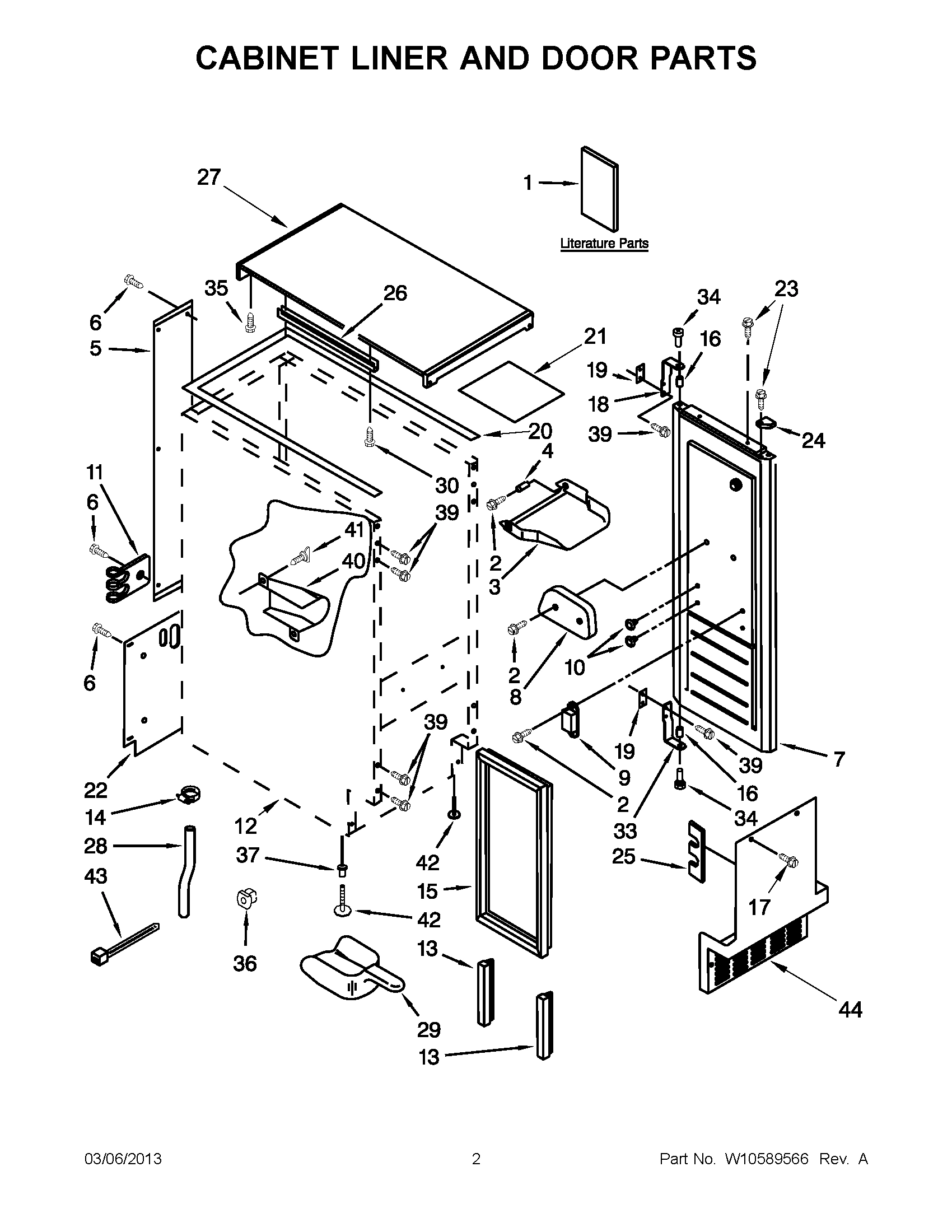

01 - CABINET LINER AND DOOR PARTS

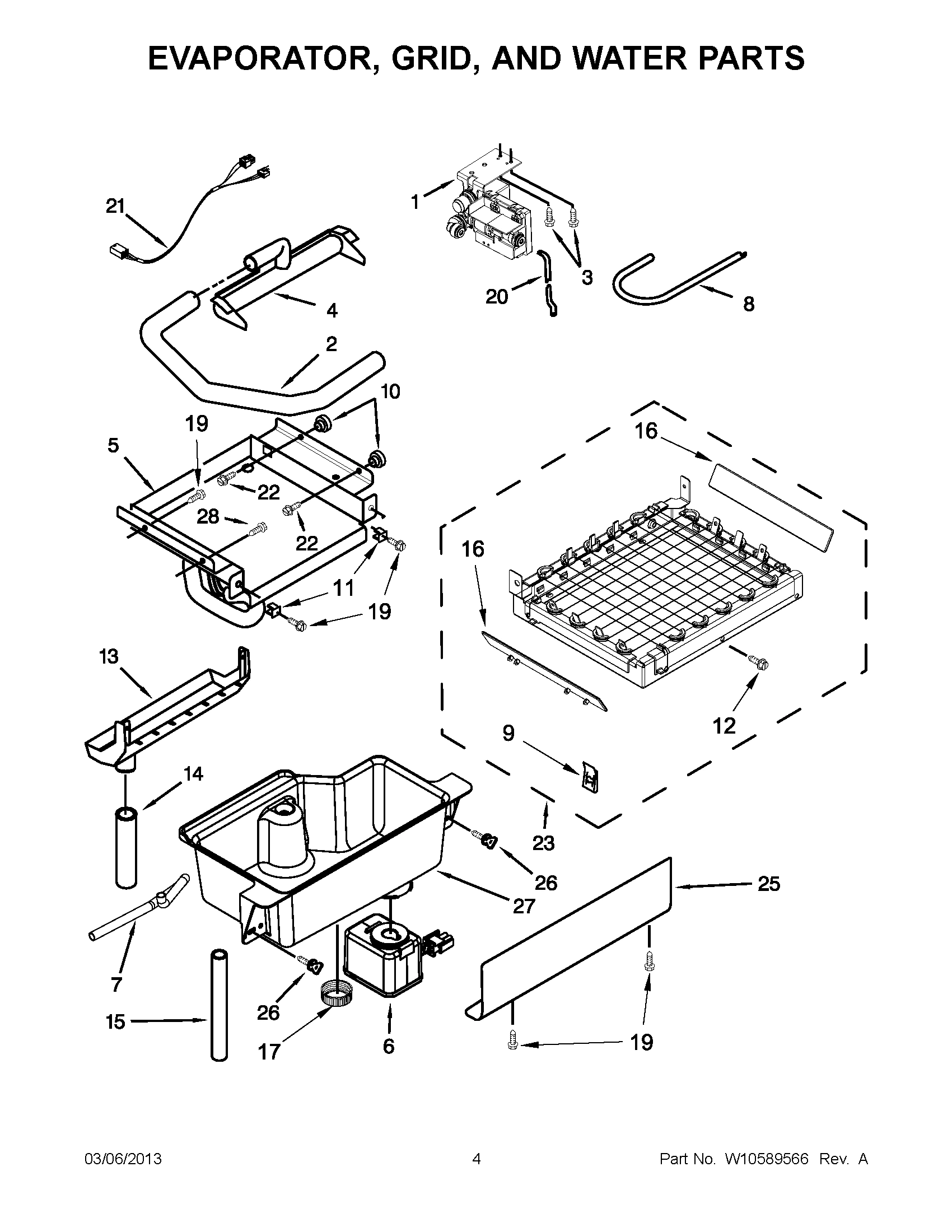

02 - EVAPORATOR, GRID, AND WATER PARTS

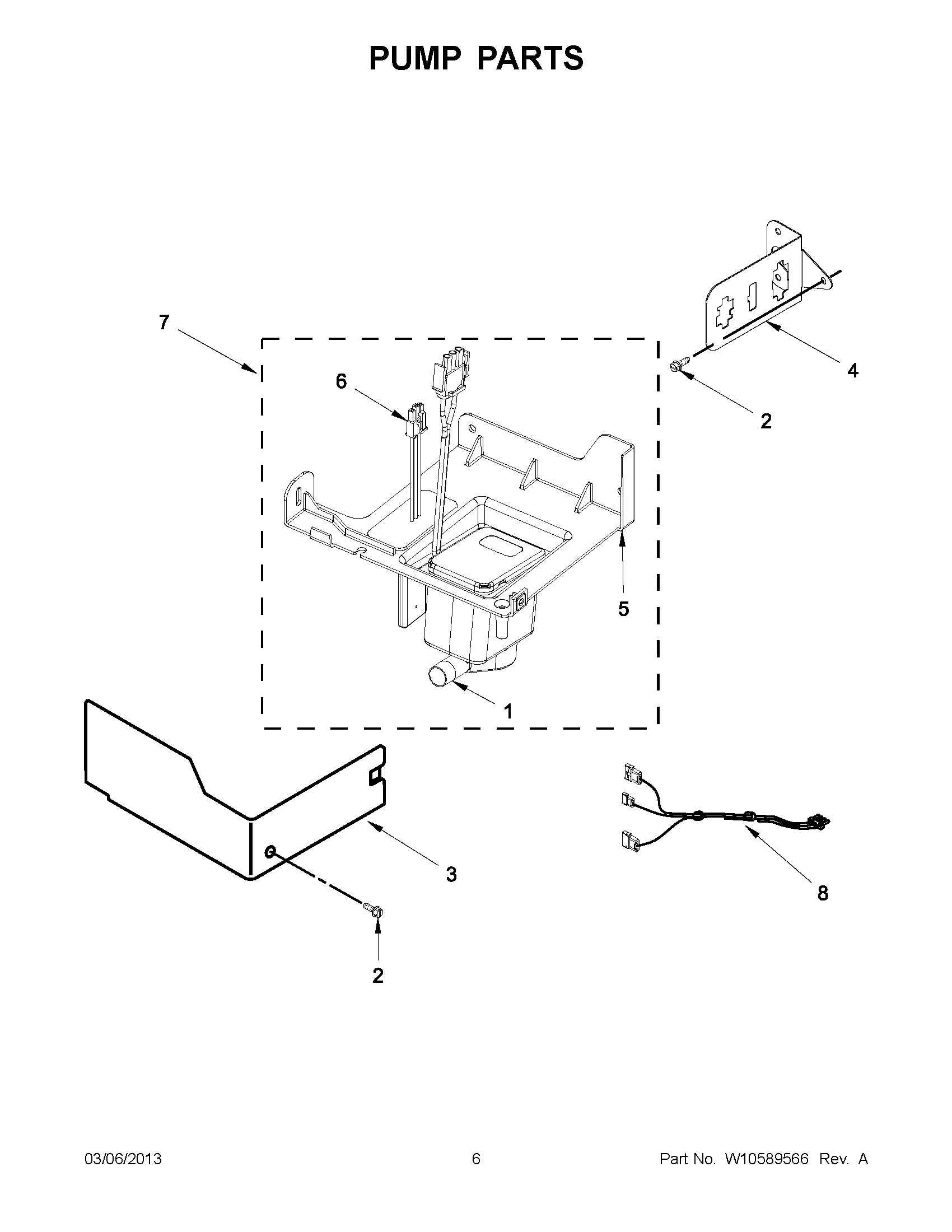

03 - PUMP PARTS

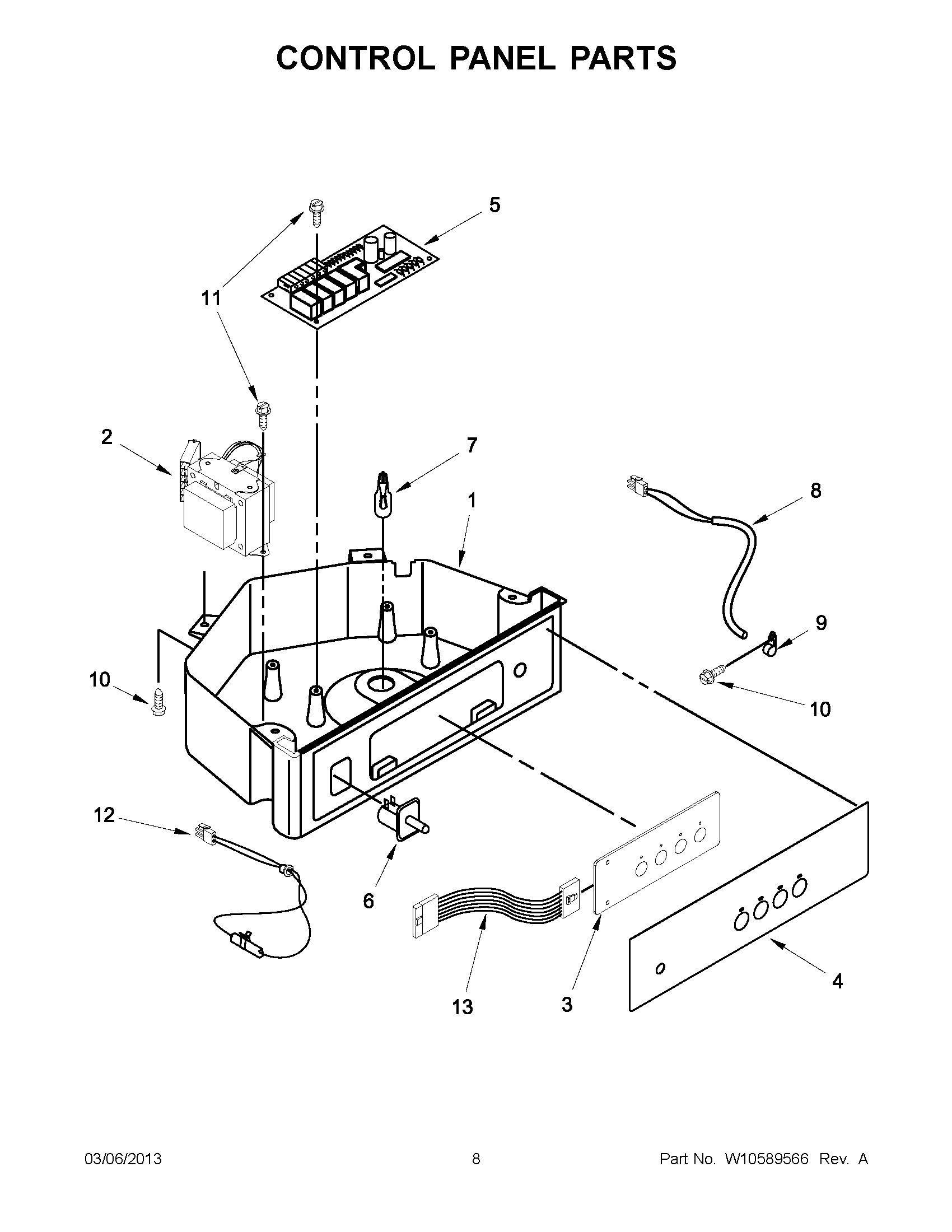

04 - CONTROL PANEL PARTS

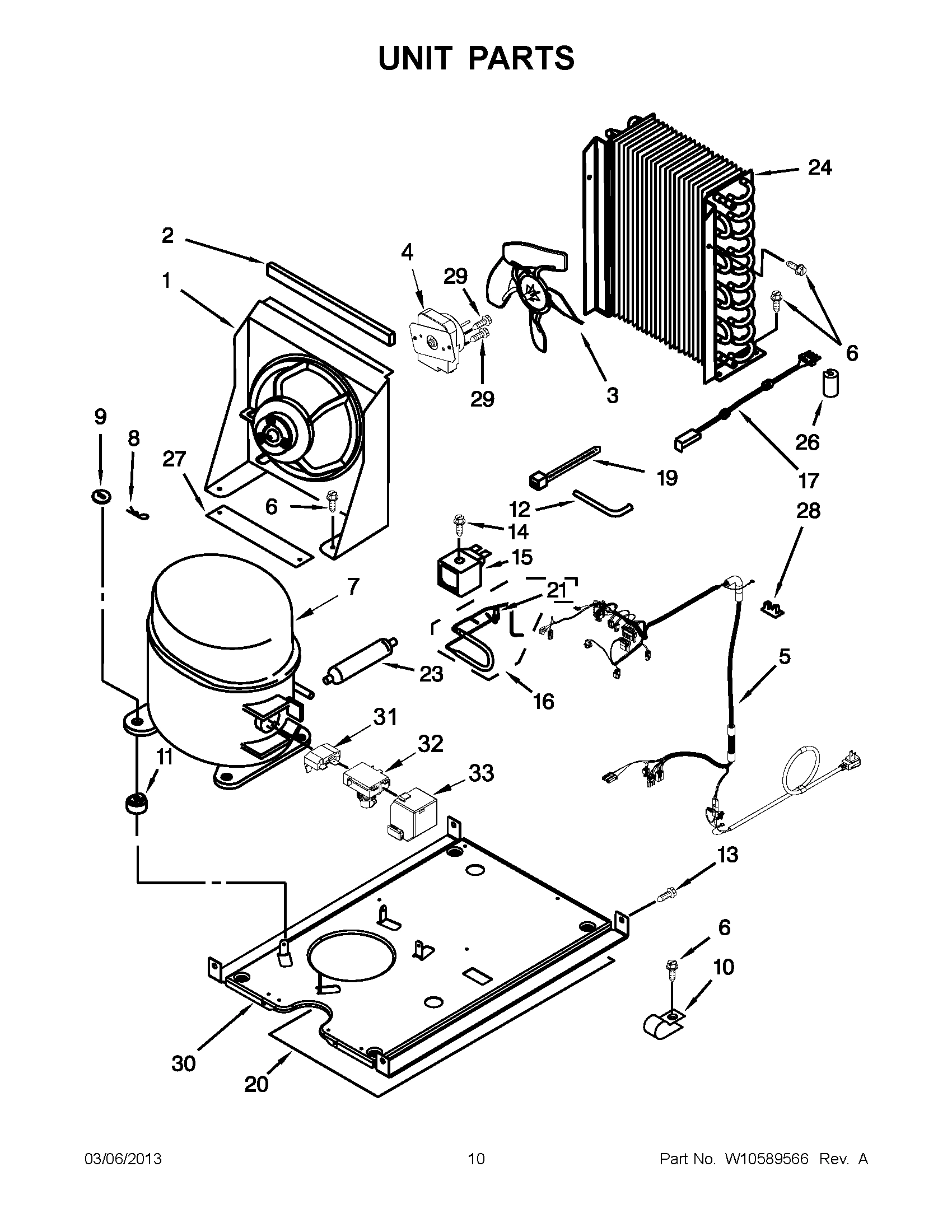

05 - UNIT PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JIM158XXCX2 ICE MAKER
1
MAY W10282143 MAY W10282143 Contact Us For Availability
1
MAY W10536704 MAY W10536704 Contact Us For Availability
1
MAY W10340983 MAY W10340983 Contact Us For Availability
1
Pump-Recirculating MAY 2313628 Contact Us For Availability
1
MAY W10340993 MAY W10340993 Contact Us For Availability
1
BRACKET, FAN MOUNTING MAY 2185532 Contact Us For Availability
2
MAY 2217286 MAY 2217286 Contact Us For Availability
2
MAY 2310139 MAY 2310139 Contact Us For Availability
2
MAY 2185675 MAY 2185675 Contact Us For Availability
3
MAY 2185742 MAY 2185742 Contact Us For Availability
3
Screw MAY 488208 Contact Us For Availability
3
MAY 2185677 MAY 2185677 Contact Us For Availability
3
MAY W10562035 MAY W10562035 Contact Us For Availability
3
MAY 2188935 MAY 2188935 Contact Us For Availability
4
MAY 2185678 MAY 2185678 Contact Us For Availability
4
MAY 2185523 MAY 2185523 Contact Us For Availability
4
MAY 2313844 MAY 2313844 Contact Us For Availability
4
MAY W10282111 MAY W10282111 Contact Us For Availability
4
ASSEMBLY, MOTOR & MOUNTING PLATE MAY 2315558 Contact Us For Availability
5
MAY 2217394 MAY 2217394 Contact Us For Availability
5
MAY W10218037 MAY W10218037 Contact Us For Availability
5
Bracket-Pump MAY 2313627 Contact Us For Availability
5
MAY W10226156 MAY W10226156 Contact Us For Availability
5
MAY W10483743 MAY W10483743 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY 2313705 MAY 2313705 Contact Us For Availability
6
MAY W10548509 MAY W10548509 Contact Us For Availability
6
SWITCH, PLUNGER MAY 2149705 Contact Us For Availability
6
Screw MAY 304392 Contact Us For Availability
7
COMPLETE DOOR (BLACK) MAY W10320412 Contact Us For Availability
7
Tube,Reservoir Pump MAY 2313851 Contact Us For Availability
7
ASSEMBLY, PUMP MAY 2313702 Contact Us For Availability
7
Bulb MAY 745362 Contact Us For Availability
7
MAY W10536005 MAY W10536005 Contact Us For Availability
8
MAY 2185695 MAY 2185695 Contact Us For Availability
8
MAY W10418868 MAY W10418868 Contact Us For Availability
8
MAY W10340992 MAY W10340992 Contact Us For Availability
8
MAY W10503764 MAY W10503764 Contact Us For Availability
8
CLIP, COMPRESSOR MOUNTING MAY A201435 Contact Us For Availability
9
MAY W10529250 MAY W10529250 Contact Us For Availability
9
NUT, ``U`` MAY 488660 Contact Us For Availability
9
MAY 2185825 MAY 2185825 Contact Us For Availability
9
SHIM MAY A201441 Contact Us For Availability
10
MAY 2151652 MAY 2151652 Contact Us For Availability
10
Screw MAY 3400884 Contact Us For Availability
10
MAY 836667 MAY 836667 Contact Us For Availability
10
MAY 2185960 MAY 2185960 Contact Us For Availability
11
MAY 2208136 MAY 2208136 Contact Us For Availability
11
MAY 3400909 MAY 3400909 Contact Us For Availability
11
MAY 3400850 MAY 3400850 Contact Us For Availability
11
GROMMET, COMPRESSOR MAY 2217318 Contact Us For Availability
12
MAY 489443 MAY 489443 Contact Us For Availability
12
MAY 2313635 MAY 2313635 Contact Us For Availability
12
MAY W10528572 MAY W10528572 Contact Us For Availability
13
MAY 2217367 MAY 2217367 Contact Us For Availability
13
MAY 8281265 MAY 8281265 Contact Us For Availability
13
MAY 2185625 MAY 2185625 Contact Us For Availability
13
HARNESS, UNIT MAY 2187585 Contact Us For Availability
14
CLAMP, HOSE MAY 489503 Contact Us For Availability
14
MAY 2185626 MAY 2185626 Contact Us For Availability
14
MAY 489472 MAY 489472 Contact Us For Availability
15
MAY 2217294 MAY 2217294 Contact Us For Availability
15
MAY 2313890 MAY 2313890 Contact Us For Availability
15
MAY W10206473 MAY W10206473 Contact Us For Availability
16
MAY 2185640 MAY 2185640 Contact Us For Availability
16
GUIDE, ICE MAY 2313604 Contact Us For Availability
16
MAY W10534030 MAY W10534030 Contact Us For Availability
17
MAY 489474 MAY 489474 Contact Us For Availability
17
CAP-DRAIN MAY W10503850 Contact Us For Availability
17
JUMPER, WIRE (CONDENSER FAN) MAY 2187629 Contact Us For Availability
18
MAY W10136166 MAY W10136166 Contact Us For Availability
19
MAY 2185709 MAY 2185709 Contact Us For Availability
19
TIE, WIRE MAY 2155774 Contact Us For Availability
20
MAY 2217293 MAY 2217293 Contact Us For Availability
20
MAY W10437855 MAY W10437855 Contact Us For Availability
20
SHIELD, HEAT MAY W10282061 Contact Us For Availability
21
MAY 2185690 MAY 2185690 Contact Us For Availability
21
WIRE ASSEMBLY, SMART VALVE MAY 2310169 Contact Us For Availability
21
BODY, SOLENOID VALVE MAY 759113 Contact Us For Availability
21
MAY W10183199 MAY W10183199 Contact Us For Availability
22
Screw MAY 3400886 Contact Us For Availability
22
Cover Unit MAY W10136199 Contact Us For Availability
23
MAY 8534077 MAY 8534077 Contact Us For Availability
23
MAY W10536696 MAY W10536696 Contact Us For Availability
24
FILLER, ENDCAP LEFT HAND (BLACK) MAY 2185655B Contact Us For Availability
24
FILLER, ENDCAP RIGHT HAND (BLACK) MAY 2185656B Contact Us For Availability
24
MAY 2313624 MAY 2313624 Contact Us For Availability
25
MAY 2185756 MAY 2185756 Contact Us For Availability
25
MAY 2185570 MAY 2185570 Contact Us For Availability
26
MAY 2185691 MAY 2185691 Contact Us For Availability
26
MAY 8281228 MAY 8281228 Contact Us For Availability
26
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
27
PANEL, TOP (BLACK) MAY W10320111 Contact Us For Availability
27
MAY 2324334 MAY 2324334 Contact Us For Availability
27
PAD, FOAM MAY 2217397 Contact Us For Availability
28
MAY 2185989 MAY 2185989 Contact Us For Availability
28
Clip-Wiring MAY 1115375 Contact Us For Availability
29
MAY 585158 MAY 585158 Contact Us For Availability
29
MAY 489420 MAY 489420 Contact Us For Availability
30
MAY 2217388 MAY 2217388 Contact Us For Availability
31
OVERLOAD PROTECTOR MAY 2217223 Contact Us For Availability
32
START, DEVICE MAY 2217224 Contact Us For Availability
33
MAY W10136164 MAY W10136164 Contact Us For Availability
33
MAY 2208371 MAY 2208371 Contact Us For Availability
34
MAY 2185712 MAY 2185712 Contact Us For Availability
35
MAY 489048 MAY 489048 Contact Us For Availability
36
MAY W10136999 MAY W10136999 Contact Us For Availability
37
NUT MAY 3400240 Contact Us For Availability
38
Screw MAY 348689 Contact Us For Availability
40
MAY 2185927 MAY 2185927 Contact Us For Availability
42
LEG, LEVELING MAY 3374849 Contact Us For Availability
43
TIE, WIRE MAY 851095 Contact Us For Availability
44
FRONT PANEL (BLACK) MAY 2185571B Contact Us For Availability
NI
REFRIGERANT CHARGE (6.2 OZ. (R-134A)) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
