Model Maytag JIC4430XS00 30`` INDUCTION COOKTOP – Common Parts & Diagrams

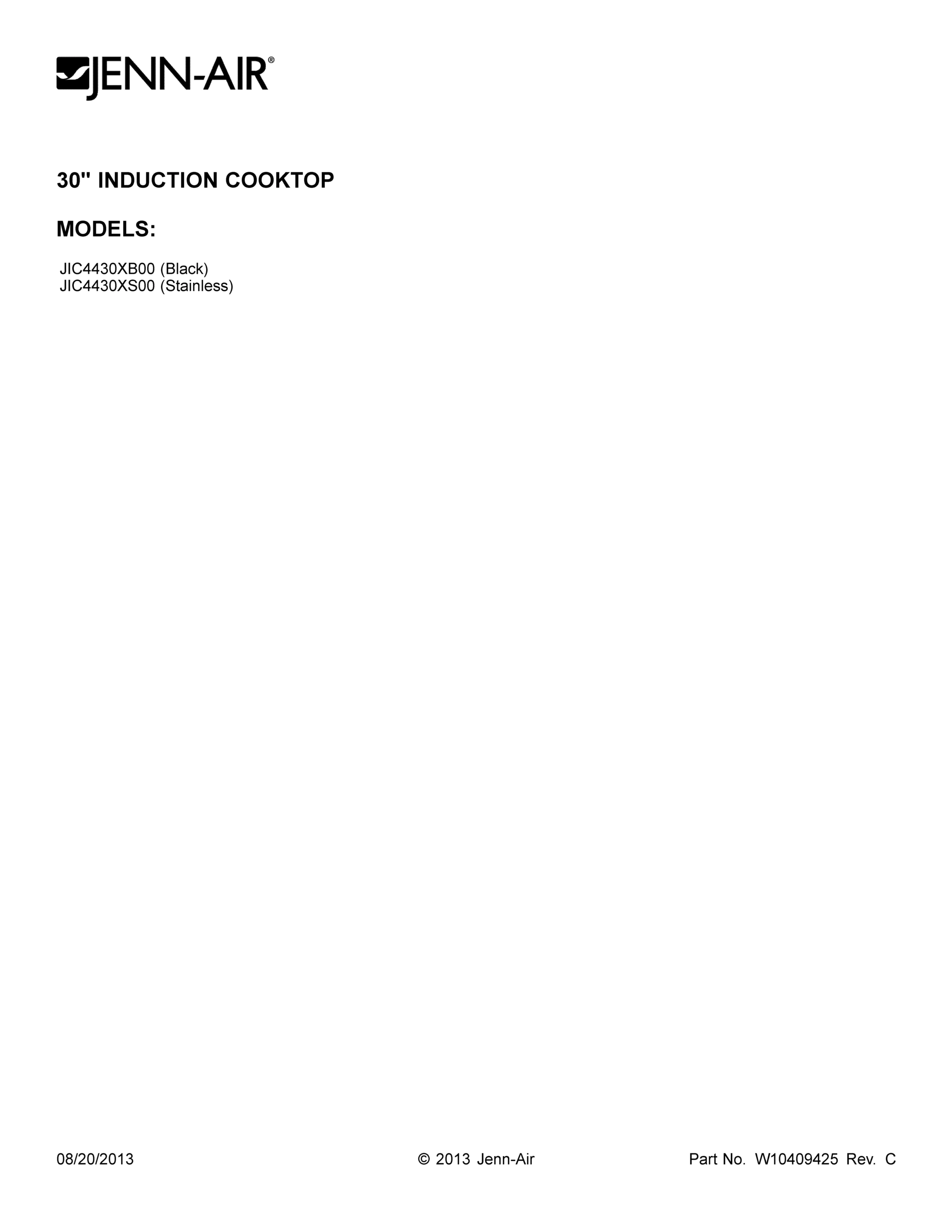

01 - COVER SHEET

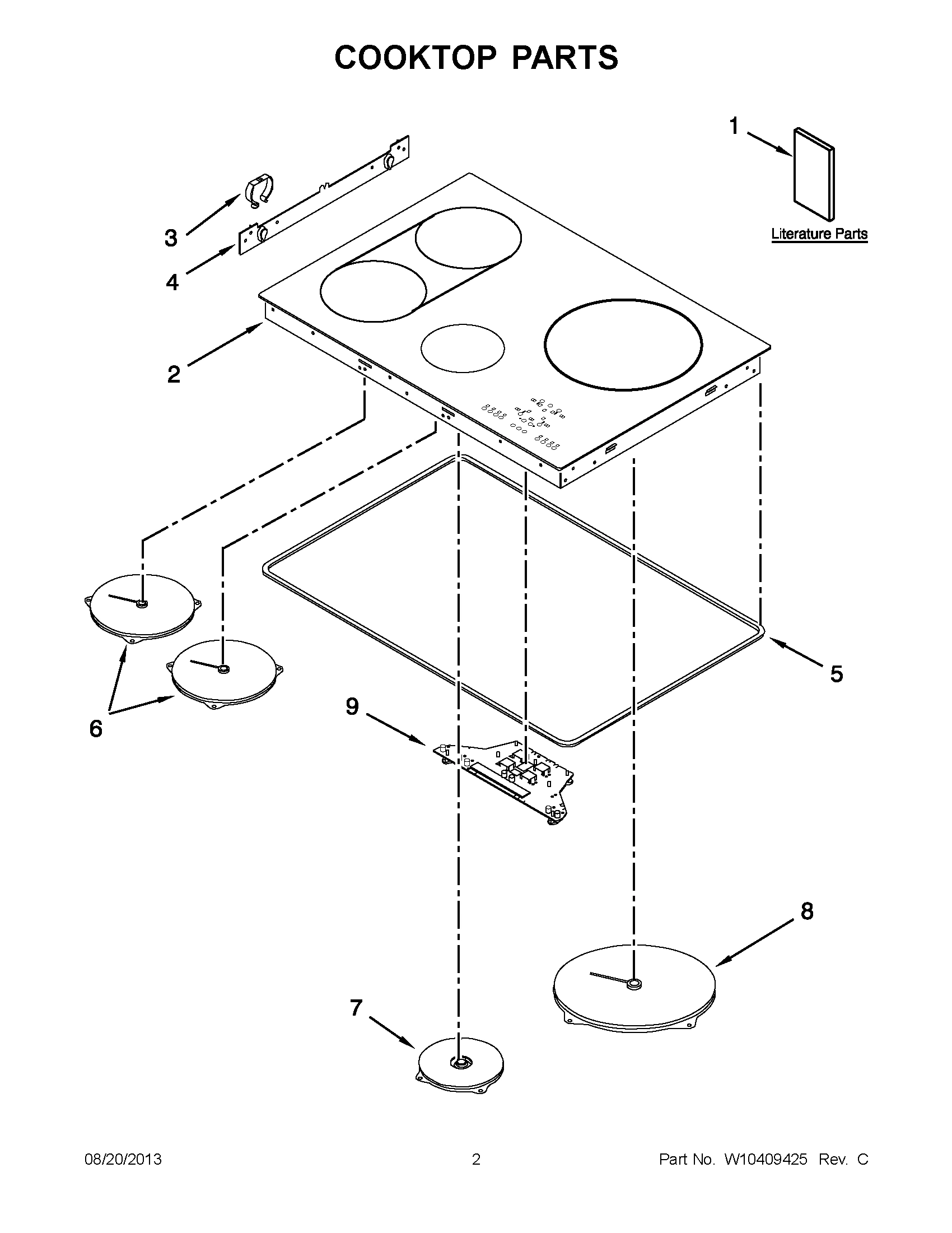

02 - COOKTOP PARTS
03 - INTERIOR PARTS
Common parts from model Maytag JIC4430XS00 30`` INDUCTION COOKTOP
1
INSTALLATION INSTRUCTIONS MAY W10356035 Contact Us For Availability
1
MAY W10408874 MAY W10408874 Contact Us For Availability
1
FAN, COOLING (RIGHT) MAY W10328378 Contact Us For Availability
1
FAN, COOLING (LEFT) MAY W10328381 Contact Us For Availability
2
MAY W10396546 MAY W10396546 Contact Us For Availability
2
MAY W10396621 MAY W10396621 Contact Us For Availability
2
MAY W10328492 MAY W10328492 Contact Us For Availability
3
MAY W10328375 MAY W10328375 Contact Us For Availability
3
MAY W10328396 MAY W10328396 Contact Us For Availability
4
MAY W10328377 MAY W10328377 Contact Us For Availability
4
HARNESS, FIXING CLIP MAY W10328401 Contact Us For Availability
5
MAY W10237005 MAY W10237005 Contact Us For Availability
5
MAY W10396610 MAY W10396610 Contact Us For Availability
6
MAY W10396548 MAY W10396548 Contact Us For Availability
6
HARNESS, WIRE MAY W10396611 Contact Us For Availability
7
COIL, ELEMENT ( CENTER FRONT ) (6 INCH ( 15.2 MAY W10396547 Contact Us For Availability
7
MAY W10432829 MAY W10432829 Contact Us For Availability
8
COIL, ELEMENT ( RIGHT REAR ) (10 INCH ( 25.4 MAY W10396549 Contact Us For Availability
8
MAY W10607546 MAY W10607546 Contact Us For Availability
9
USER INTERFACE – DISPLAY BOARD MAY W10396615 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
ADHESIVE, MARBLE COUNTERTOP MAY W10310006 Contact Us For Availability
NI
MAY W10328499 MAY W10328499 Contact Us For Availability
× ![]()
