Model Maytag JGW8130DDB15 GAS WALL OVEN – Common Parts & Diagrams

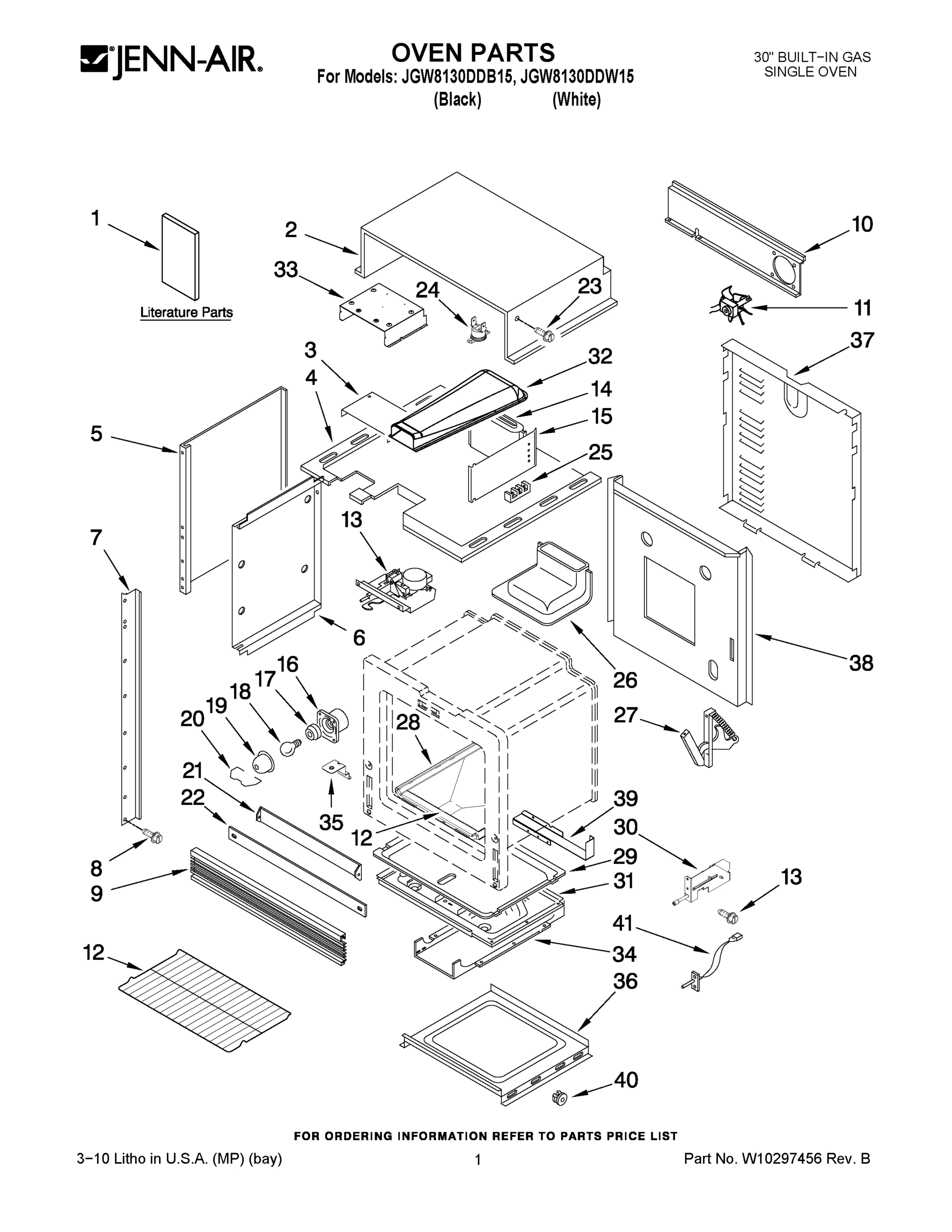

01 - OVEN PARTS

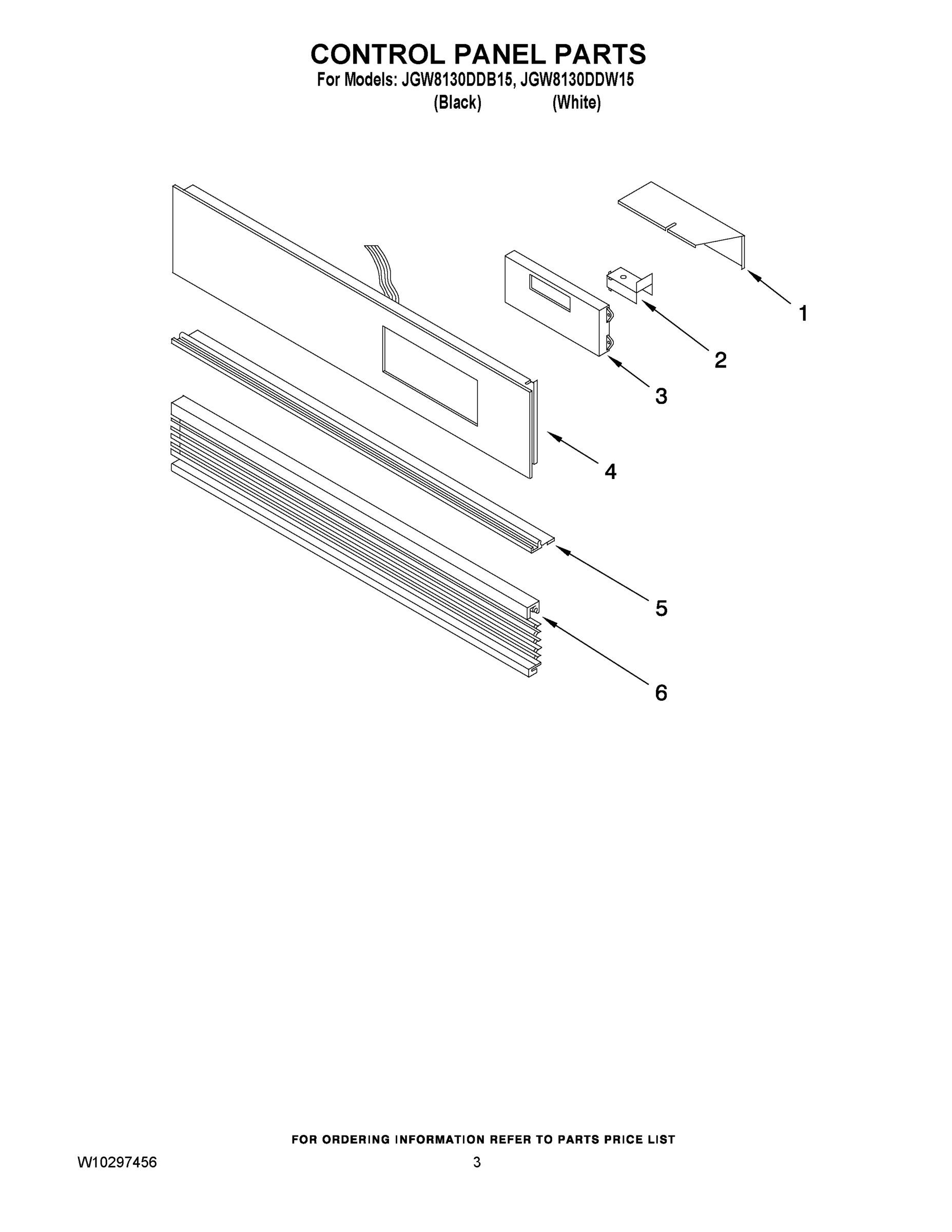

02 - CONTROL PANEL PARTS

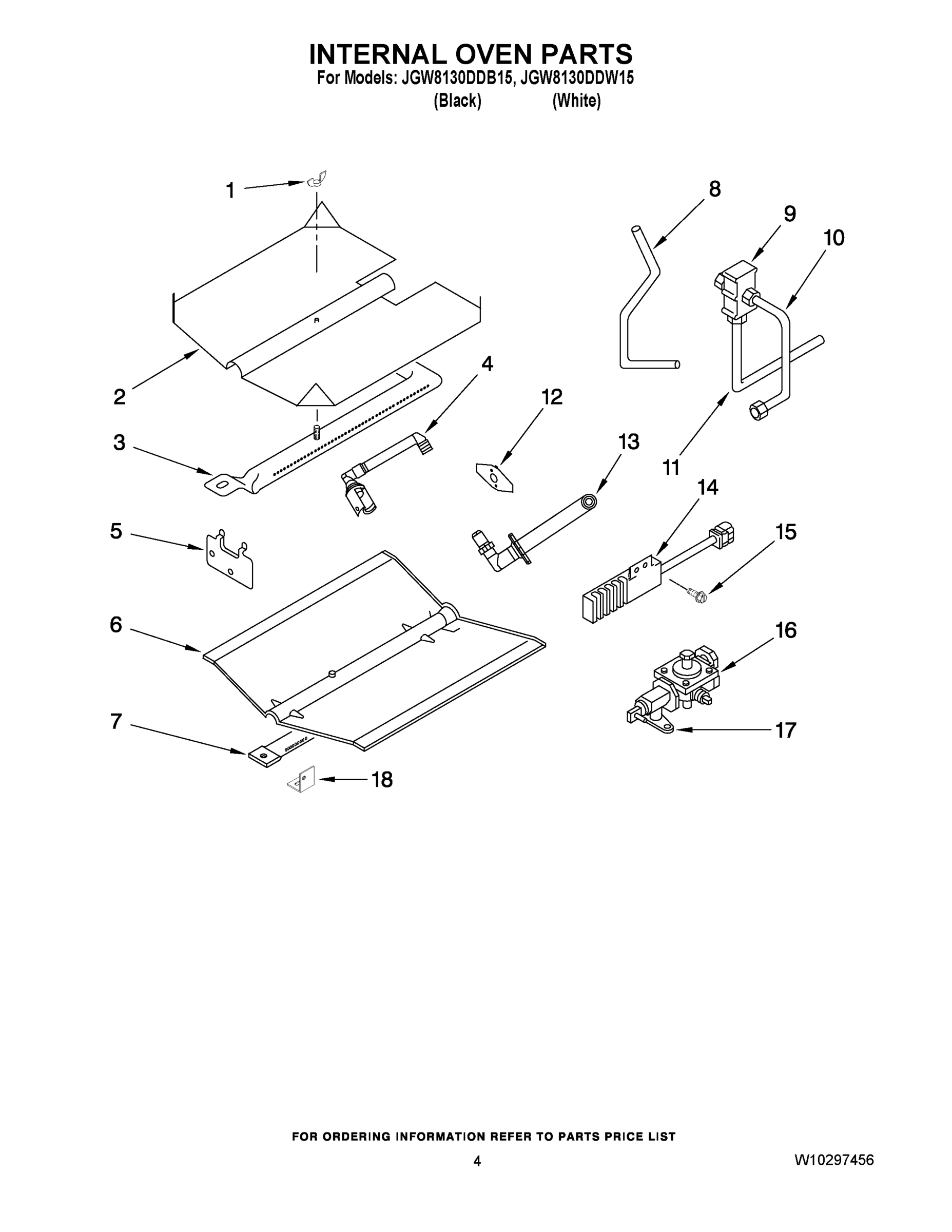

03 - INTERNAL OVEN PARTS

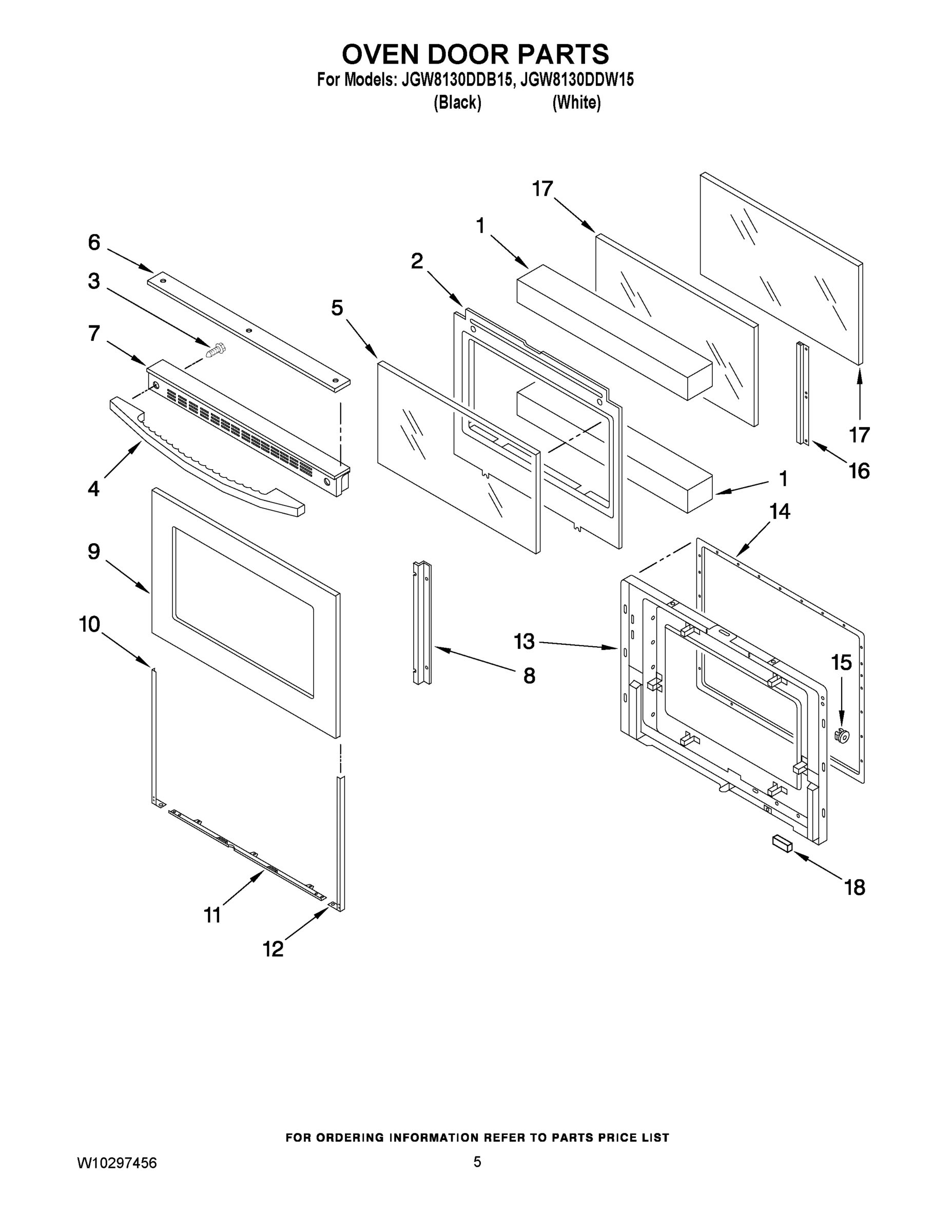

04 - OVEN DOOR PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JGW8130DDB15 GAS WALL OVEN
1
MAY 8119P068-60 MAY 8119P068-60 Contact Us For Availability
1
MAY 8119P069-60 MAY 8119P069-60 Contact Us For Availability
1
BROCHURE, SAFER COOKING TIPS (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, SAFER COOKING TIPS (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10169649 MAY W10169649 Contact Us For Availability
1
MAY 3604F380-51 MAY 3604F380-51 Contact Us For Availability
1
NUT, WING MAY 7103P030-60 Contact Us For Availability
1
INSULATION, OVEN DOOR (2) MAY 7002P246-60 Contact Us For Availability
2
MAY 4005F734-51 MAY 4005F734-51 Contact Us For Availability
2
MAY 8004P088-60 MAY 8004P088-60 Contact Us For Availability
2
BAFFLE, BROIL BURNER MAY 3601F307-45 Contact Us For Availability
2
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
3
MAY 3804F267-51 MAY 3804F267-51 Contact Us For Availability
3
MAY 8507P284-60 MAY 8507P284-60 Contact Us For Availability
3
MAY 7505P293-60 MAY 7505P293-60 Contact Us For Availability
3
MAY 7101P381-60 MAY 7101P381-60 Contact Us For Availability
4
MAY 3804F268-51 MAY 3804F268-51 Contact Us For Availability
4
MAY 5766M099-60 MAY 5766M099-60 Contact Us For Availability
4
MAY 5766M100-60 MAY 5766M100-60 Contact Us For Availability
4
MAY 7506P401-60 MAY 7506P401-60 Contact Us For Availability
4
MAY 7701P200-60 MAY 7701P200-60 Contact Us For Availability
4
MAY 7701P243-60 MAY 7701P243-60 Contact Us For Availability
5
PANEL, BODY (2) MAY 2618F083-51 Contact Us For Availability
5
MAY 7756P197-60 MAY 7756P197-60 Contact Us For Availability
5
MAY 7756P198-60 MAY 7756P198-60 Contact Us For Availability
5
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
5
Glass, Door MAY 7902P468-60 Contact Us For Availability
6
MAY 3804F128-51 MAY 3804F128-51 Contact Us For Availability
6
MAY 7756P199-60 MAY 7756P199-60 Contact Us For Availability
6
MAY 7756P200-60 MAY 7756P200-60 Contact Us For Availability
6
BAFFLE, BOTTOM MAY 3601F239-45 Contact Us For Availability
6
INSERT (WHITE MODEL ONLY) MAY 7728P094-60 Contact Us For Availability
7
MAY 7750P261-60 MAY 7750P261-60 Contact Us For Availability
7
MAY 7750P262-60 MAY 7750P262-60 Contact Us For Availability
7
MAY 7750P263-60 MAY 7750P263-60 Contact Us For Availability
7
MAY 7750P264-60 MAY 7750P264-60 Contact Us For Availability
7
MAY 7505P312-60 MAY 7505P312-60 Contact Us For Availability
7
MAY 7706P601-60 MAY 7706P601-60 Contact Us For Availability
7
MAY 7706P602-60 MAY 7706P602-60 Contact Us For Availability
8
SCREW, EXTRUSION (ZINC) MAY 7101P634-60 Contact Us For Availability
8
SCREW, EXTRUSION (BLACK) MAY 7101P653-60 Contact Us For Availability
8
MAY 7506P299-60 MAY 7506P299-60 Contact Us For Availability
8
MAY 3804F144-45 MAY 3804F144-45 Contact Us For Availability
9
MAY 7756P159-60 MAY 7756P159-60 Contact Us For Availability
9
MAY 7756P160-60 MAY 7756P160-60 Contact Us For Availability
9
VALVE, OVEN MAY 7501P193-60 Contact Us For Availability
9
Kit, Door Glass (Black) MAY 12002300 Contact Us For Availability
9
MAY Y12002301 MAY Y12002301 Contact Us For Availability
10
MAY 4001F083-51 MAY 4001F083-51 Contact Us For Availability
10
MAY 7506P367-60 MAY 7506P367-60 Contact Us For Availability
10
TRIM, DOOR (LEFT) (BLACK) MAY 3608F117-70 Contact Us For Availability
10
TRIM, DOOR (LEFT) (WHITE) MAY 3608F117-71 Contact Us For Availability
11
FAN ASSEMBLY MAY 7427P031-60 Contact Us For Availability
11
MAY 7506P399-60 MAY 7506P399-60 Contact Us For Availability
11
MAY 3807F708-70 MAY 3807F708-70 Contact Us For Availability
11
MAY 3807F708-71 MAY 3807F708-71 Contact Us For Availability
12
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
12
PLATE, BROILER MAY 3605F269-45 Contact Us For Availability
12
TRIM, DOOR (RIGHT) (BLACK) MAY 3608F116-70 Contact Us For Availability
12
TRIM, DOOR (RIGHT) (WHITE) MAY 3608F116-71 Contact Us For Availability
13
MAY W10186996 MAY W10186996 Contact Us For Availability
13
MAY 7507P370-60 MAY 7507P370-60 Contact Us For Availability
13
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
14
MAY 4006D128-45 MAY 4006D128-45 Contact Us For Availability
14
IGNITER, OVEN MAY 7432P106-60 Contact Us For Availability
14
MAY W10162384 MAY W10162384 Contact Us For Availability
15
MAY 3604F379-51 MAY 3604F379-51 Contact Us For Availability
15
SCREW, IGNITER MAY 7101P282-60 Contact Us For Availability
15
Nut, Snap (White (2)) MAY 7103P039-60 Contact Us For Availability
15
NUT, SNAP (BLACK (2)) MAY 7103P141-60 Contact Us For Availability
16
MAY 4001F109-45 MAY 4001F109-45 Contact Us For Availability
16
MAY 7510P080-60 MAY 7510P080-60 Contact Us For Availability
16
Bracket, Inner Glass (2) MAY 3801F886-51 Contact Us For Availability
17
MAY 7408P044-60 MAY 7408P044-60 Contact Us For Availability
17
MAY 7501P041-60 MAY 7501P041-60 Contact Us For Availability
17
GLASS, DOOR-INNER (2) MAY 7902P436-60 Contact Us For Availability
18
SUPPORT, BAKE BURNER MAY 3807F480-45 Contact Us For Availability
18
SPACER, RUBBER (2) (WHITE MODEL ONLY) MAY 8010P130-60 Contact Us For Availability
19
MAY 7724P102-60 MAY 7724P102-60 Contact Us For Availability
20
MAY 7804P001-60 MAY 7804P001-60 Contact Us For Availability
21
BAFFLE, OVEN MAY 3601F251-45 Contact Us For Availability
22
STRIP, BOTTOM (BLACK) MAY 4005F354-70 Contact Us For Availability
22
STRIP, BOTTOM (WHITE) MAY 4005F354-71 Contact Us For Availability
23
SCREW, 8-18 X 3/8 MAY 7101P426-60 Contact Us For Availability
24
MAY 7403P898-60 MAY 7403P898-60 Contact Us For Availability
25
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
26
BOX, FLUE TRANSITION MAY 4006W117-45 Contact Us For Availability
27
MAY 7106P133-60 MAY 7106P133-60 Contact Us For Availability
28
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
29
MAY 3401F086-45 MAY 3401F086-45 Contact Us For Availability
30
SWITCH, OVEN LIGHT MAY 7450P109-60 Contact Us For Availability
31
MAY 3804F245-51 MAY 3804F245-51 Contact Us For Availability
32
DUCT, FLUE MAY 4006D101-45 Contact Us For Availability
33
SHIELD, HEAT-TOP COVER MAY 3604F166-45 Contact Us For Availability
34
Support, Oven MAY 3807F429-51 Contact Us For Availability
35
SUPPORT,OVEN BOTTOM (2) MAY 3807F727-45 Contact Us For Availability
36
MAY 4011F291-51 MAY 4011F291-51 Contact Us For Availability
37
MAY 4005F405-51 MAY 4005F405-51 Contact Us For Availability
38
MAY 4002F320-51 MAY 4002F320-51 Contact Us For Availability
39
MAY 3801F768-51 MAY 3801F768-51 Contact Us For Availability
40
NUT, SNAP (2) MAY 7103P125-60 Contact Us For Availability
41
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
NI
MAY 7002P425-60 MAY 7002P425-60 Contact Us For Availability
NI
INSULATION, OVEN WRAP MAY 7002P426-60 Contact Us For Availability
NI
MAY 7002P460-60 MAY 7002P460-60 Contact Us For Availability
NI
BROILER PAN MAY 3401F020-19 Contact Us For Availability
NI
GRID, BROILER PAN MAY 3413F016-19 Contact Us For Availability
NI
MAY 5130P033-60 MAY 5130P033-60 Contact Us For Availability
NI
MAY 5130P035-60 MAY 5130P035-60 Contact Us For Availability
NI
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
× ![]()
