Model GE JGSS05GPK1 Gas Range Or Dual Fuel – Common Parts & Diagrams

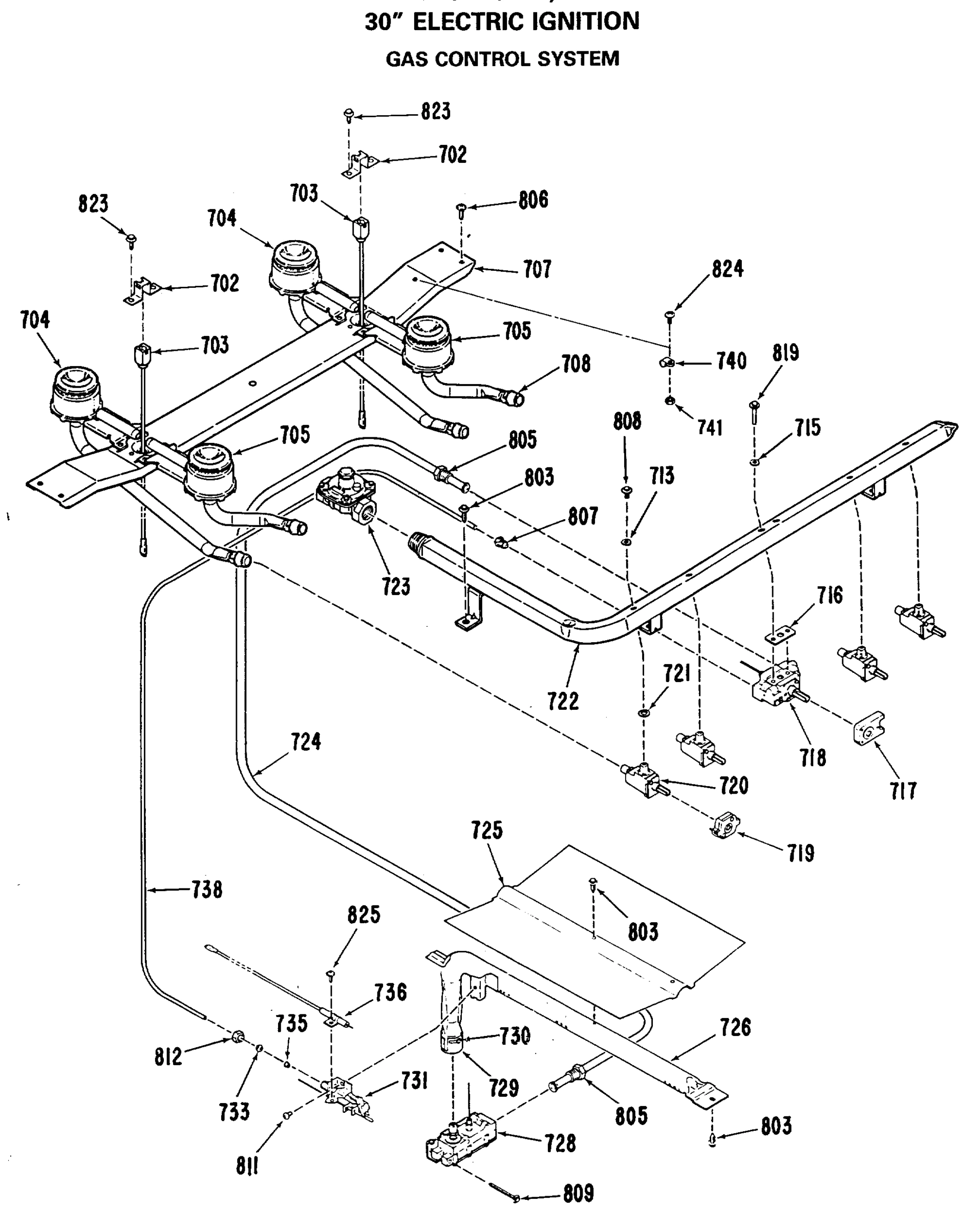

30" ELECTRIC IGNITION

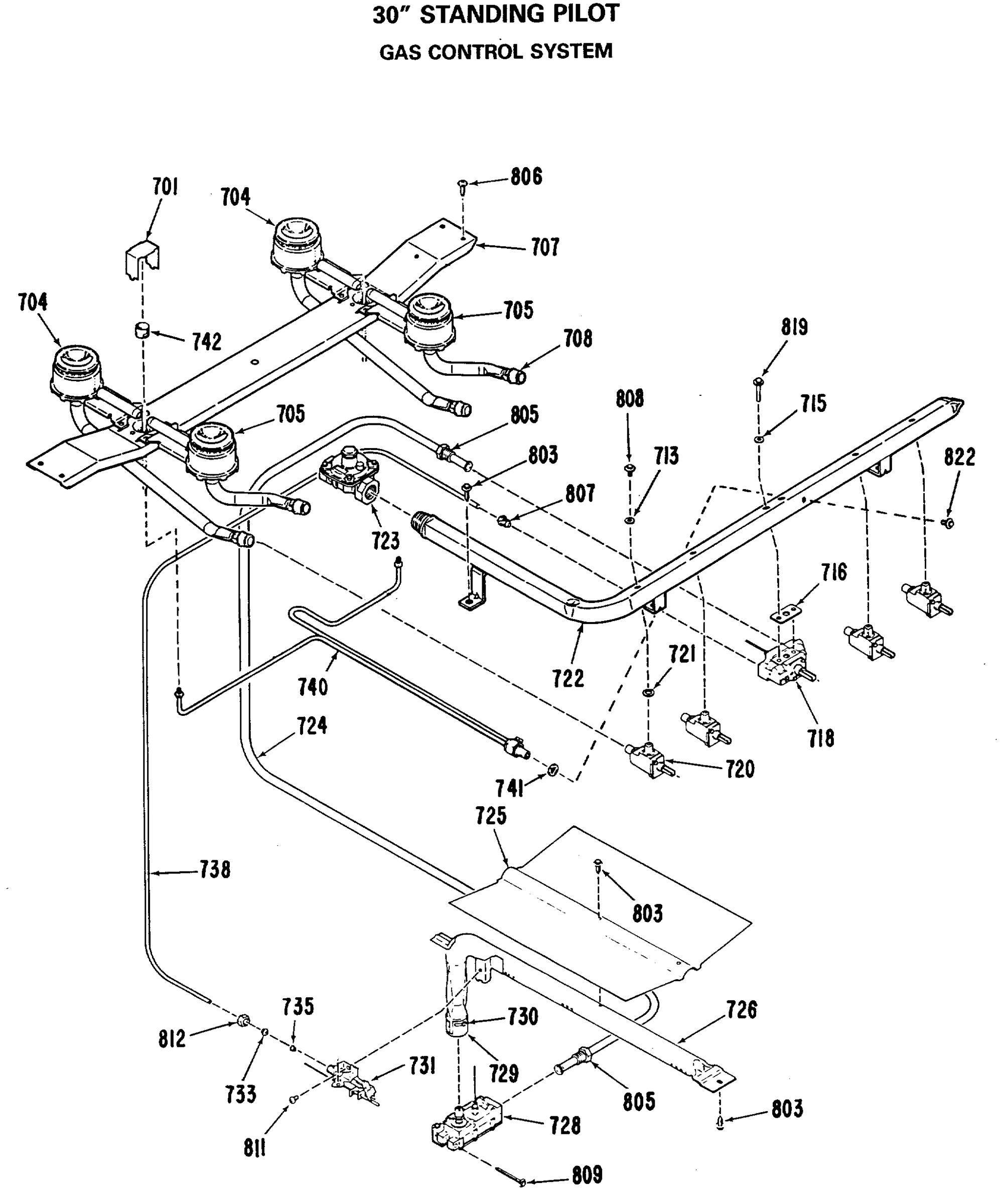

30" STANDING PILOT

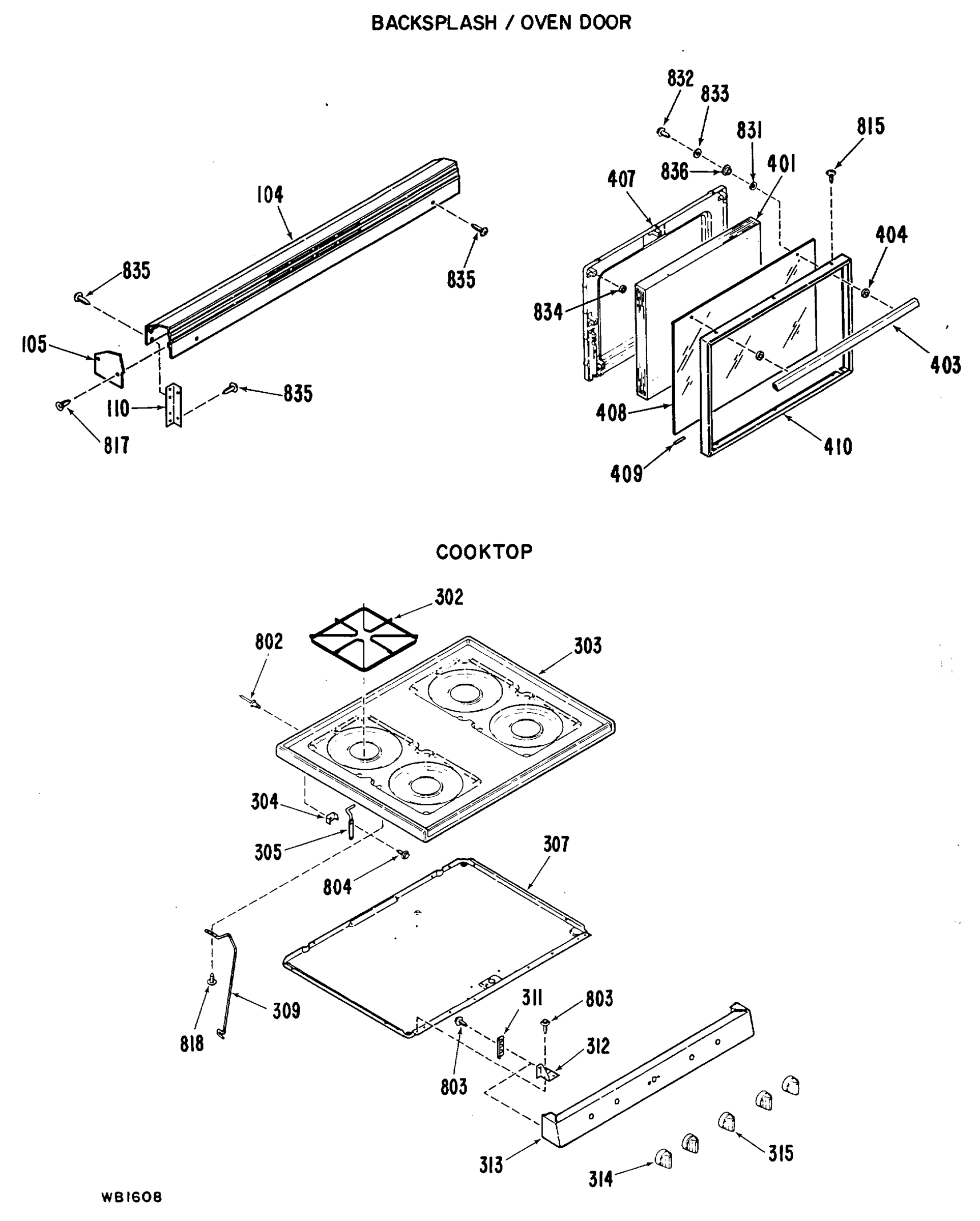

BACKSPLASH/OVEN DOOR

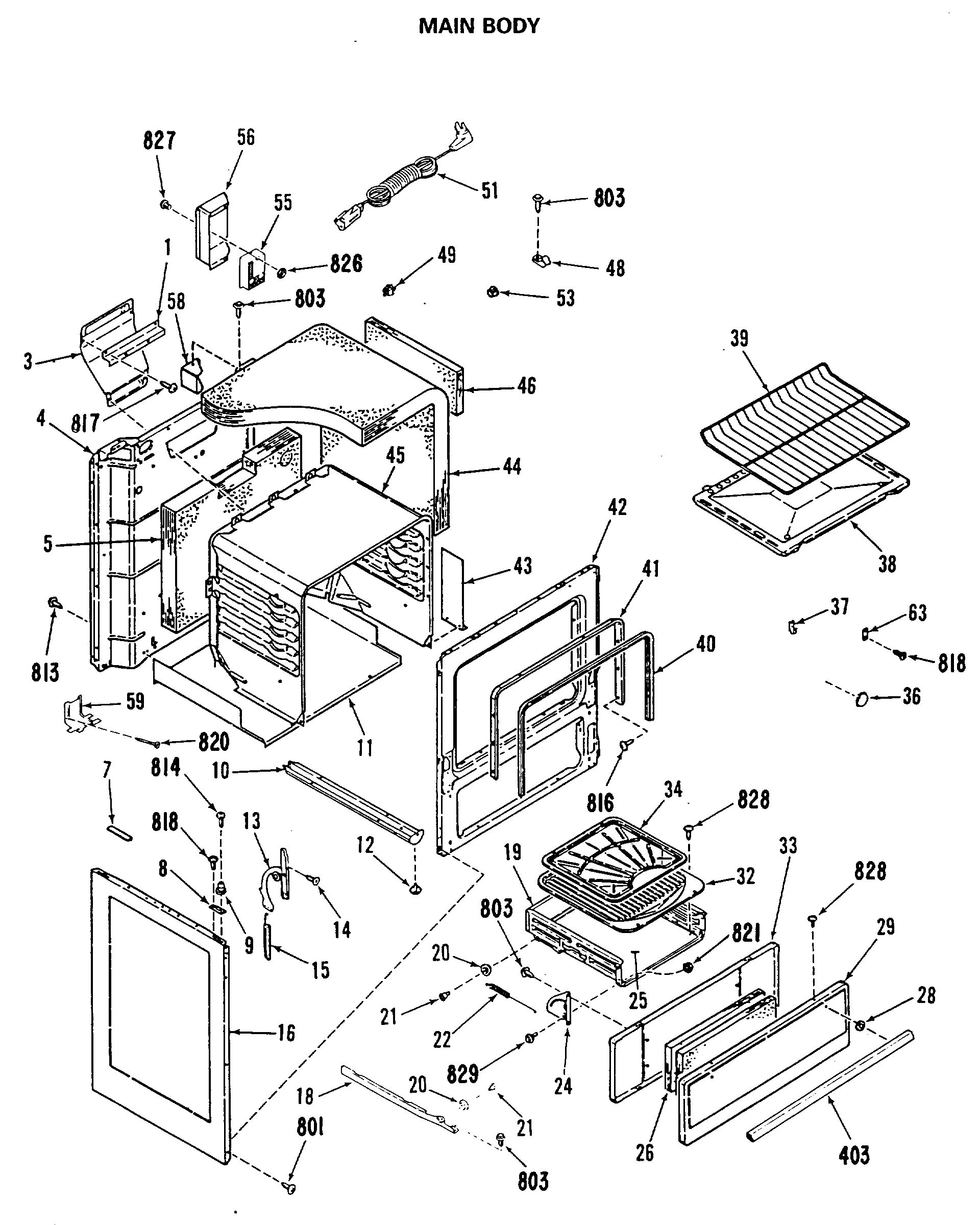

MAIN BODY
Common parts from model GE JGSS05GPK1 Gas Range Or Dual Fuel
1
GEN WB02X9094 GEN WB02X9094 Contact Us For Availability
3
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
4
GEN WB63X0324 GEN WB63X0324 Contact Us For Availability
5
GEN WB02X9021 GEN WB02X9021 Contact Us For Availability
7
GEN WB02X9022 GEN WB02X9022 Contact Us For Availability
8
SUPPORT-BODY-SIDE-LEFT GEN WB02X9023 Contact Us For Availability
8
SUPPORT-BODY-SIDE-RIGHT GEN WB02X9024 Contact Us For Availability
9
GEN WB14X0105 GEN WB14X0105 Contact Us For Availability
10
BASE-RIGHT & LEFT W/LEGS GEN WB02X9040 Contact Us For Availability
11
MAIN BOTTOM GEN WB63X0325 Contact Us For Availability
12
LEVELEING LEG GEN WB02X9025 Contact Us For Availability
15
GEN WB09X0238 GEN WB09X0238 Contact Us For Availability
16
PANEL-SIDE-BLACK-R & L GEN WB63X0330 Contact Us For Availability
18
GUIDE-BROILER-LEFT GEN WB39X0068 Contact Us For Availability
18
GUIDE-BROILER-RIGHT GEN WB39X0069 Contact Us For Availability
19
BROILER DRAWER GEN WB58X0062 Contact Us For Availability
20
GEN WB02X9095 GEN WB02X9095 Contact Us For Availability
21
RIVET GEN WB02X9096 Contact Us For Availability
22
SPRING-BROILER DRAWER GEN WB09X0240 Contact Us For Availability
24
GEN WB10X0253 GEN WB10X0253 Contact Us For Availability
24
GEN WB10X0254 GEN WB10X0254 Contact Us For Availability
25
GEN WB49X0623 GEN WB49X0623 Contact Us For Availability
28
SPACER-BROILER HANDLE GEN WB02X9037 Contact Us For Availability
29
GEN WB55X1899 GEN WB55X1899 Contact Us For Availability
32
BROILER PAN GEN WB49X0619 Contact Us For Availability
33
GEN WB55X0670 GEN WB55X0670 Contact Us For Availability
34
GRID-BROILER PAN GEN WB49X0620 Contact Us For Availability
36
GEN WB02X9097 GEN WB02X9097 Contact Us For Availability
37
GEN WB02X9105 GEN WB02X9105 Contact Us For Availability
38
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
39
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
40
GEN WB02X9028 GEN WB02X9028 Contact Us For Availability
41
GEN WB02X9029 GEN WB02X9029 Contact Us For Availability
42
GEN WB63X0328 GEN WB63X0328 Contact Us For Availability
43
RETAINER-INSULATION GEN WB02X9030 Contact Us For Availability
44
INSULATION-TOP AND SIDES GEN WB02X9031 Contact Us For Availability
45
GEN WB53X0274 GEN WB53X0274 Contact Us For Availability
46
INSULATION GEN WB02X9032 Contact Us For Availability
104
GEN WB61X0358 GEN WB61X0358 Contact Us For Availability
105
GEN WB02X9107 GEN WB02X9107 Contact Us For Availability
110
GEN WB02X9108 GEN WB02X9108 Contact Us For Availability
302
GRATE GEN WB32X0095 Contact Us For Availability
303
GEN WB62X1677 GEN WB62X1677 Contact Us For Availability
304
BRACKET-HINGE GEN WB10X0252 Contact Us For Availability
305
HINGE-RIGHT GEN WB14X0101 Contact Us For Availability
305
HINGE-LEFT GEN WB14X0102 Contact Us For Availability
307
GEN WB63X0323 GEN WB63X0323 Contact Us For Availability
309
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
311
CLEAT GEN WB02X9000 Contact Us For Availability
312
BRACKET-CONTROL PANEL-L GEN WB02X9001 Contact Us For Availability
312
BRACKET-CONTROL PANEL-R GEN WB02X9002 Contact Us For Availability
313
GEN WB07X1580 GEN WB07X1580 Contact Us For Availability
314
GEN WB03X0760 GEN WB03X0760 Contact Us For Availability
315
GEN WB03X0761 GEN WB03X0761 Contact Us For Availability
401
INSULATION-OVEN DOOR GEN WB02X9038 Contact Us For Availability
403
HANDLE-BROILER DRAWER GEN WB15X0270 Contact Us For Availability
403
GEN WB15X0272 GEN WB15X0272 Contact Us For Availability
407
GEN WB56X1885 GEN WB56X1885 Contact Us For Availability
408
GLASS-OUTER-BLACK GEN WB56X1886 Contact Us For Availability
409
CUSHION-DOOR GLASS GEN WB02X9036 Contact Us For Availability
410
OUTER FRAME-OVEN DOOR GEN WB07X1573 Contact Us For Availability
701
GEN WB02X9085 GEN WB02X9085 Contact Us For Availability
702
GEN WB02X9086 GEN WB02X9086 Contact Us For Availability
704
TOP BURNER-REAR GEN WB28X0081 Contact Us For Availability
705
TOP BURNER-FRONT GEN WB28X0082 Contact Us For Availability
707
GEN WB02X9087 GEN WB02X9087 Contact Us For Availability
708
GEN WB02X9007 GEN WB02X9007 Contact Us For Availability
713
GEN WB02X9089 GEN WB02X9089 Contact Us For Availability
713
GASKET GEN WB02X9092 Contact Us For Availability
715
GASKET-THERMOSTAT SCREW GEN WB02X9009 Contact Us For Availability
716
GASKET-THERMOSTAT GEN WB02X9010 Contact Us For Availability
718
GEN WB21X0471 GEN WB21X0471 Contact Us For Availability
720
VALVE-TOP BURNER GEN WB21X0467 Contact Us For Availability
721
GASKET-TOP BURNER VALVE GEN WB02X9011 Contact Us For Availability
722
GEN WB02X9088 GEN WB02X9088 Contact Us For Availability
723
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
724
GEN WB02X9090 GEN WB02X9090 Contact Us For Availability
725
GEN WB49X0618 GEN WB49X0618 Contact Us For Availability
726
GEN WB28X0083 GEN WB28X0083 Contact Us For Availability
728
OVEN SAFETY VALVE GEN WB21X0470 Contact Us For Availability
729
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
731
PILOT GEN WB02X9015 Contact Us For Availability
733
GEN WB02X9016 GEN WB02X9016 Contact Us For Availability
735
GEN WB02X9017 GEN WB02X9017 Contact Us For Availability
738
TUBING-PILOT/THERMOSTAT GEN WB02X9019 Contact Us For Availability
740
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
740
GEN WB02X9091 GEN WB02X9091 Contact Us For Availability
801
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
802
GEN WB01X1114 GEN WB01X1114 Contact Us For Availability
805
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
807
NUT-LOXIT GEN WB01X1120 Contact Us For Availability
808
SCREW-VALVE GEN WB01X1121 Contact Us For Availability
809
SCREW 10-32 GEN WB01X1123 Contact Us For Availability
810
SCREW-ADJUST GEN WB01X1124 Contact Us For Availability
811
SCREW 10-24 GEN WB01X1125 Contact Us For Availability
812
NUT-COMPRESSION GEN WB01X1126 Contact Us For Availability
818
GEN WB01X1150 GEN WB01X1150 Contact Us For Availability
819
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
820
GEN WB01X1152 GEN WB01X1152 Contact Us For Availability
821
GEN WB01X1153 GEN WB01X1153 Contact Us For Availability
822
GEN WB01X1154 GEN WB01X1154 Contact Us For Availability
824
SCREW 8-322 GEN WB01X1128 Contact Us For Availability
826
GEN WB01X1129 GEN WB01X1129 Contact Us For Availability
827
GEN WB01X1157 GEN WB01X1157 Contact Us For Availability
829
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
830
GEN WB01X1155 GEN WB01X1155 Contact Us For Availability
831
WASHER GEN WB01X1138 Contact Us For Availability
832
GEN WB01X1139 GEN WB01X1139 Contact Us For Availability
833
GEN WB01X1140 GEN WB01X1140 Contact Us For Availability
834
FELT WASHER GEN WB01X1159 Contact Us For Availability
836
SPACER-OVEN DOOR GLASS GEN WB02X9039 Contact Us For Availability
9999
GEN 49-4897 GEN 49-4897 Contact Us For Availability
× ![]()
