Model GE JGSS05GEJ1 – Common Parts & Diagrams
BURNER PARTS
CONTROL PANEL & COOKTOP

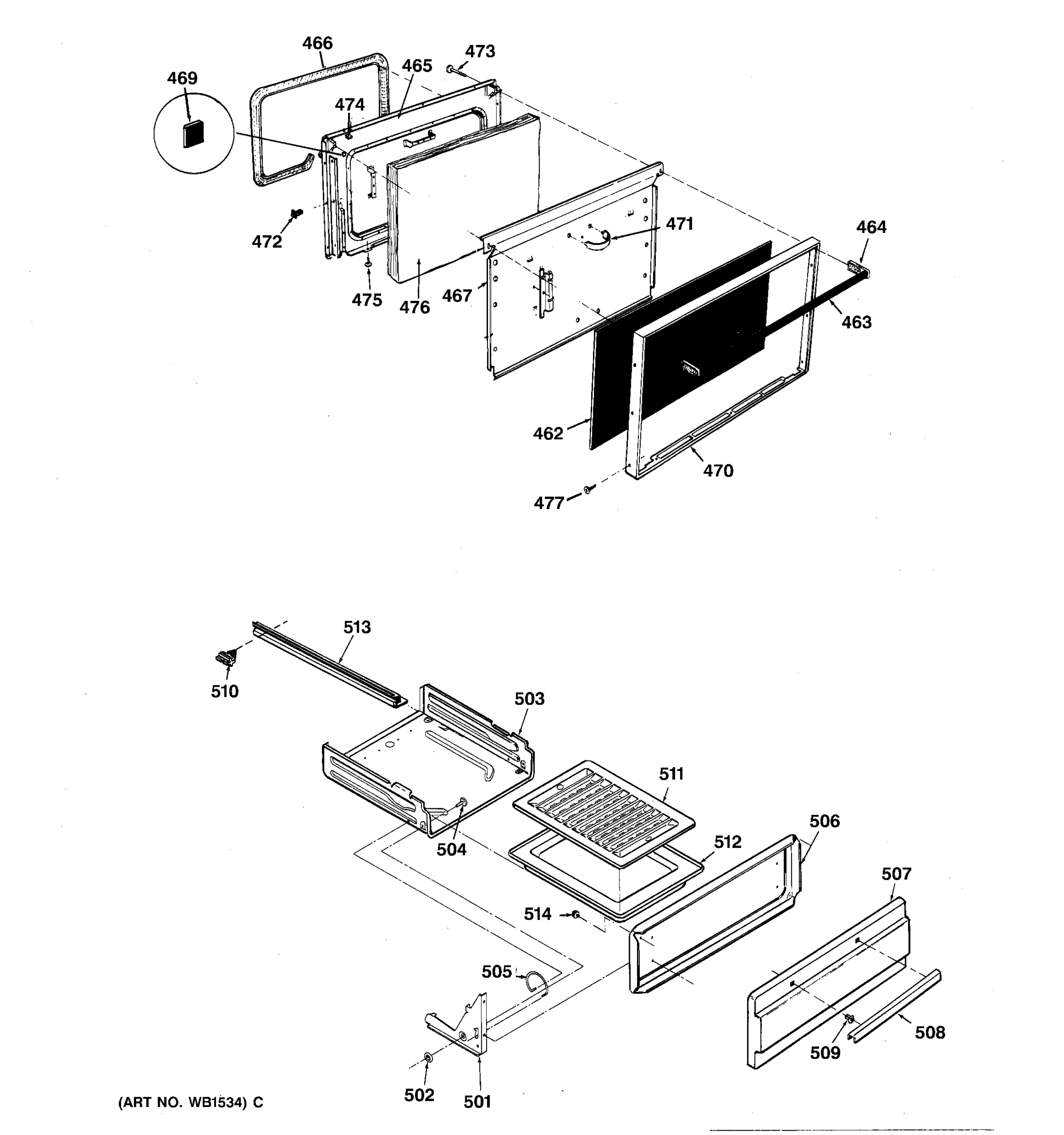

DOOR & DRAWER PARTS

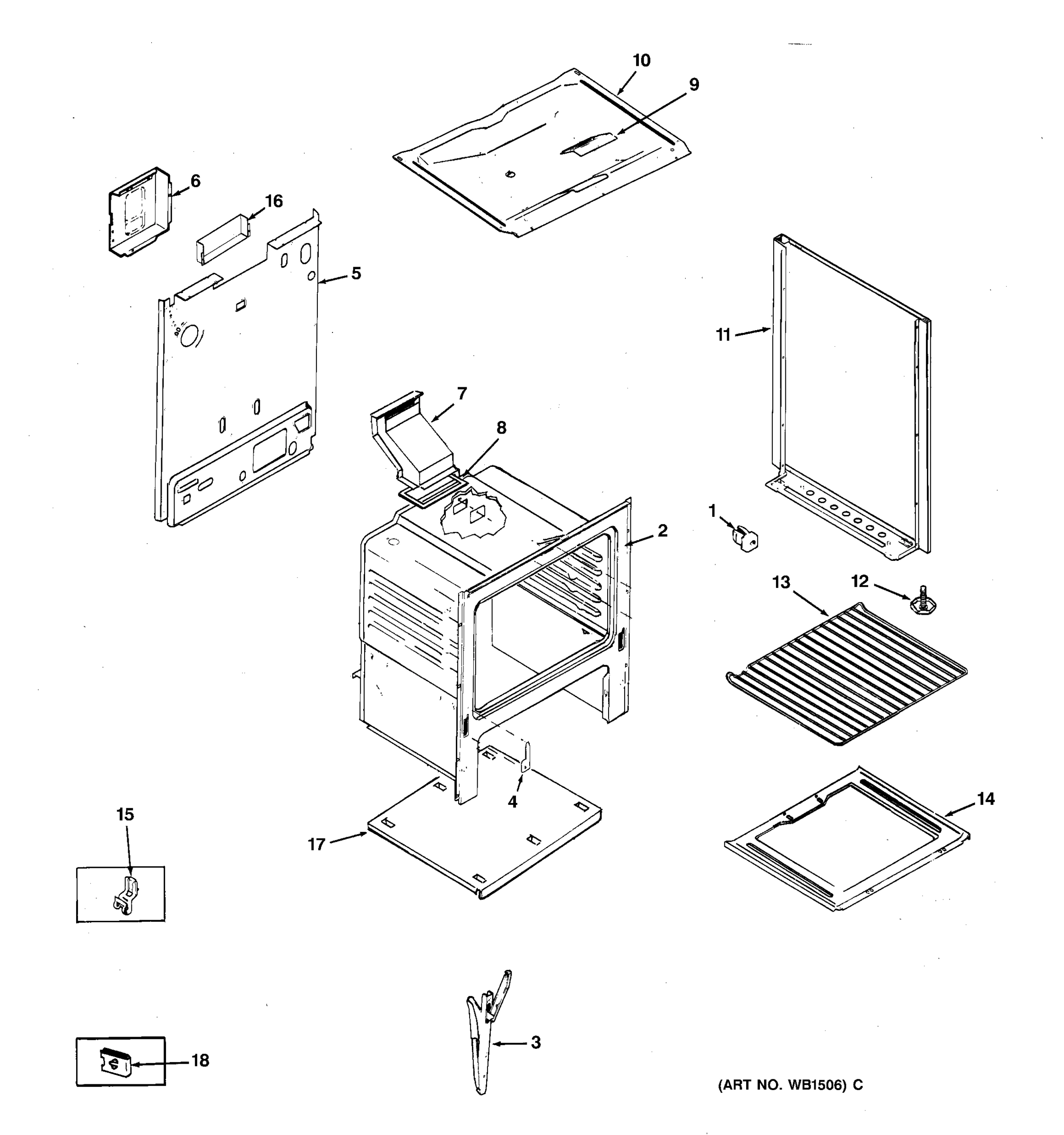

MAIN BODY
Common parts from model GE JGSS05GEJ1
1
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
2
LINER/WRAPPER GEN NOT AVAIL Contact Us For Availability
2
FASTENER-POWER CORD GEN WB01X0925 Contact Us For Availability
2
INSULATION-OVEN WRAP GEN WB02X4964 Contact Us For Availability
2
GEN WB02X4968 GEN WB02X4968 Contact Us For Availability
2
GEN WB02X4970 GEN WB02X4970 Contact Us For Availability
2
GEN WB18X0255 GEN WB18X0255 Contact Us For Availability
2
PLUG-FRONT FRAME GEN WB2X10019 Contact Us For Availability
3
SPRING-OVEN DOOR HINGE GEN WB09X0228 Contact Us For Availability
3
HINGE-W/SPRING GEN WB10X0245 Contact Us For Availability
4
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
5
BACK MAIN GEN WB49X0576 Contact Us For Availability
6
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
7
FLUE GEN WB38X0096 Contact Us For Availability
8
GASKET-FLUE GEN WB38X0099 Contact Us For Availability
9
COVER PLATE GEN WB02X4969 Contact Us For Availability
10
GEN WB63X0293 GEN WB63X0293 Contact Us For Availability
11
PANEL-SIDE-LH-BLACK GEN WB63X0290 Contact Us For Availability
11
PANEL-SIDE-RH-BLACK GEN WB63X0291 Contact Us For Availability
12
LEVELING LEG GEN WB01X0711 Contact Us For Availability
13
GEN WB48X0190 GEN WB48X0190 Contact Us For Availability
14
SCREW-OVEN BOTTOM GEN WB01X1094 Contact Us For Availability
14
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
15
CLIP-THERMOSTAT BULB GEN WB01X0706 Contact Us For Availability
16
GEN WB38X0097 GEN WB38X0097 Contact Us For Availability
17
GEN WB63X0288 GEN WB63X0288 Contact Us For Availability
18
FASTENER-HINGE GEN WB01X1015 Contact Us For Availability
168
END CAP-LH-CHROME GEN WB61X0310 Contact Us For Availability
168
END CAP-RH-CHROME GEN WB61X0311 Contact Us For Availability
180
BACKSPLASH-BRUSH CHROME GEN WB61X0312 Contact Us For Availability
195
GEN WB04X0117 GEN WB04X0117 Contact Us For Availability
196
GEN WB04X0119 GEN WB04X0119 Contact Us For Availability
331
GEN WB38X0083 GEN WB38X0083 Contact Us For Availability
331
GEN WB62X1650 GEN WB62X1650 Contact Us For Availability
332
BRACKET-COOKTOP-LH GEN WB10X0239 Contact Us For Availability
333
BRACKET-COOKTOP-RH GEN WB10X0240 Contact Us For Availability
334
GRATE-TOP BURNER GEN WB32X0089 Contact Us For Availability
335
GEN WB02X4280 GEN WB02X4280 Contact Us For Availability
336
GEN WB03X0717 GEN WB03X0717 Contact Us For Availability
337
GEN WB03X0716 GEN WB03X0716 Contact Us For Availability
338
GEN WB07X1529 GEN WB07X1529 Contact Us For Availability
462
GEN WB56X1836 GEN WB56X1836 Contact Us For Availability
463
GEN WB15X0249 GEN WB15X0249 Contact Us For Availability
464
END CAP GEN WB07X1534 Contact Us For Availability
465
GEN WB55X0636 GEN WB55X0636 Contact Us For Availability
465
GEN WB56X1835 GEN WB56X1835 Contact Us For Availability
466
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
467
GEN WB56X1837 GEN WB56X1837 Contact Us For Availability
469
GEN WB02X4977 GEN WB02X4977 Contact Us For Availability
470
GEN WB07X1535 GEN WB07X1535 Contact Us For Availability
471
CLIP-RETAINER GEN WB02X4738 Contact Us For Availability
472
FASTENER-NYLON GEN WB01X0705 Contact Us For Availability
473
GEN WB01X1017 GEN WB01X1017 Contact Us For Availability
474
GEN WB01X0688 GEN WB01X0688 Contact Us For Availability
475
SCREW-BOTTOM GEN WB01X0787 Contact Us For Availability
476
INSULATION-DOOR GEN WB02X4985 Contact Us For Availability
477
SCREW-TRIM GEN WB01X0786 Contact Us For Availability
501
GEN WB14X0084 GEN WB14X0084 Contact Us For Availability
501
GEN WB14X0085 GEN WB14X0085 Contact Us For Availability
502
PUSH NUT FASTENER GEN WB01X0698 Contact Us For Availability
503
SCREW GEN WB01X0784 Contact Us For Availability
503
SCREW GEN WB01X1024 Contact Us For Availability
503
BODY-BROILER GEN WB55X0569 Contact Us For Availability
504
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
GEN WB09X0200 GEN WB09X0200 Contact Us For Availability
506
INSULATION-BROILER DOOR GEN WB02X4995 Contact Us For Availability
506
LINER-BROILER DOOR PANEL GEN WB56X1851 Contact Us For Availability
507
PANEL-BROILER DOOR-BLACK GEN WB56X1852 Contact Us For Availability
508
HANDLE-BROILER DOOR GEN WB15X0233 Contact Us For Availability
509
GEN WB01X1025 GEN WB01X1025 Contact Us For Availability
510
GLIDE-BROILER GEN WB39X0065 Contact Us For Availability
513
GEN WB39X0066 GEN WB39X0066 Contact Us For Availability
514
GEN WB02X4996 GEN WB02X4996 Contact Us For Availability
701
GEN WB2X10000 GEN WB2X10000 Contact Us For Availability
702
GEN WB21X0442 GEN WB21X0442 Contact Us For Availability
702
SWITCH-IGNITER GEN WB24X0409 Contact Us For Availability
703
GEN WB02X4190 GEN WB02X4190 Contact Us For Availability
704
ELBOW GEN WB02X4750 Contact Us For Availability
705
MANIFOLD PIPE GEN WB2X10001 Contact Us For Availability
706
GEN WB21X0443 GEN WB21X0443 Contact Us For Availability
707
BURNER-TOP (DOUBLE) GEN WB28X0067 Contact Us For Availability
708
GEN WB28X0080 GEN WB28X0080 Contact Us For Availability
709
BURNER TUBE-LEFT FRONT GEN WB02X9053 Contact Us For Availability
710
GEN WB02X4743 GEN WB02X4743 Contact Us For Availability
711
GEN WB02X4744 GEN WB02X4744 Contact Us For Availability
713
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
714
NUT-COMPRESSION GEN WB01X1027 Contact Us For Availability
715
NUT-SPECIAL GEN WB01X0928 Contact Us For Availability
716
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
718
GEN WB2X10003 GEN WB2X10003 Contact Us For Availability
719
FITTING-LOXIT GEN WB2X10012 Contact Us For Availability
720
NUT GEN WB01X0694 Contact Us For Availability
721
GEN WB2X10004 GEN WB2X10004 Contact Us For Availability
722
GEN WB2X10005 GEN WB2X10005 Contact Us For Availability
723
TUBE-ALUMINUM GEN WB02X4758 Contact Us For Availability
724
TUBE-ALUMINUM GEN WB2X10006 Contact Us For Availability
725
VALVE-SAFETY GEN WB21X0444 Contact Us For Availability
727
GEN WB24X0393 GEN WB24X0393 Contact Us For Availability
728
GEN WB20X0093 GEN WB20X0093 Contact Us For Availability
729
GEN WB02X9368 GEN WB02X9368 Contact Us For Availability
730
GEN WB21X0445 GEN WB21X0445 Contact Us For Availability
731
GEN WB2X10010 GEN WB2X10010 Contact Us For Availability
732
BRACKET-BURNER MOUNTING GEN WB02X4741 Contact Us For Availability
32767
GEN 31-0627 GEN 31-0627 Contact Us For Availability
32767
GEN 49-4946 GEN 49-4946 Contact Us For Availability
× ![]()
