Model GE JGSP30GET1BB Gas Range Or Dual Fuel – Common Parts & Diagrams

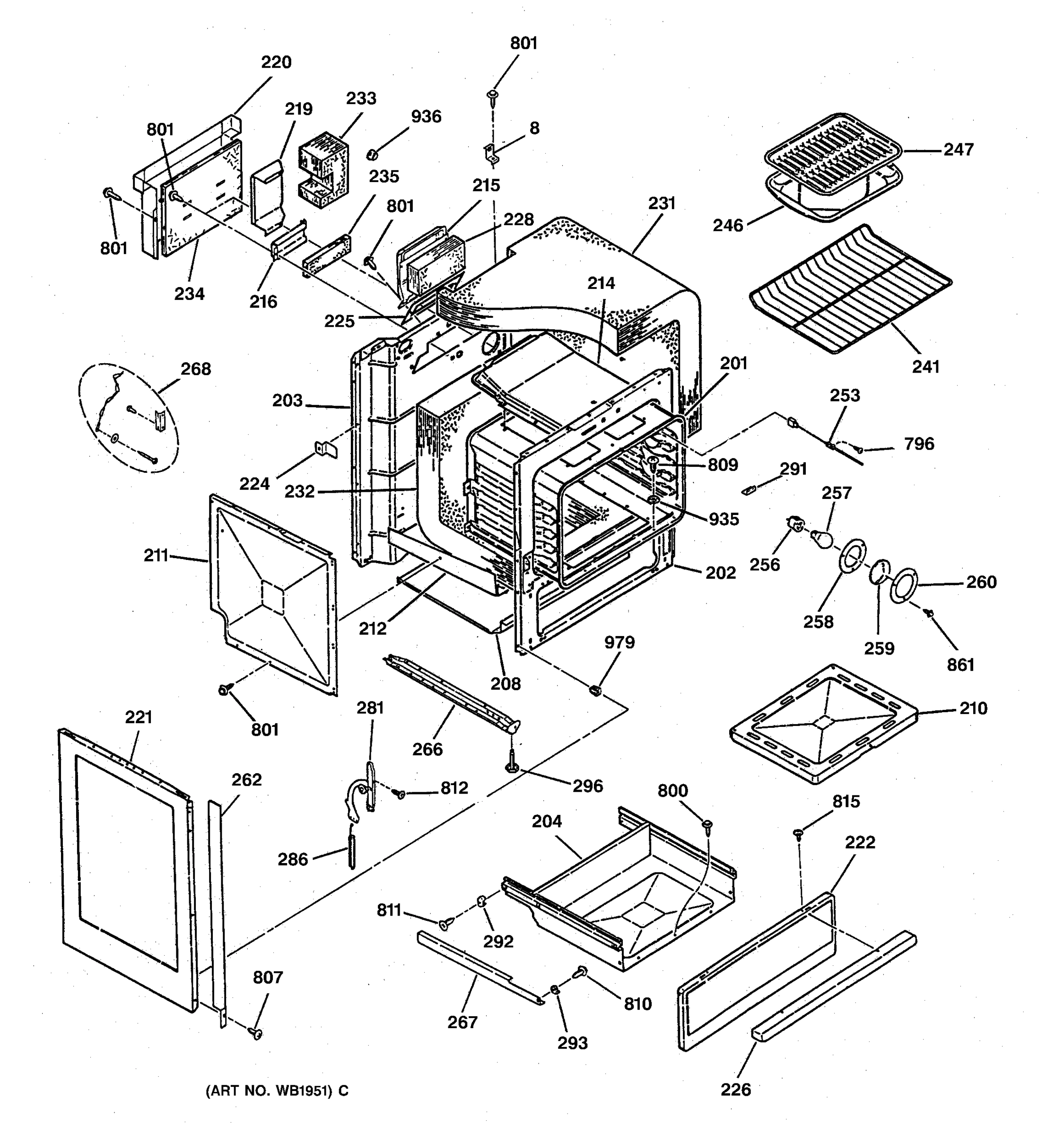

BODY PARTS

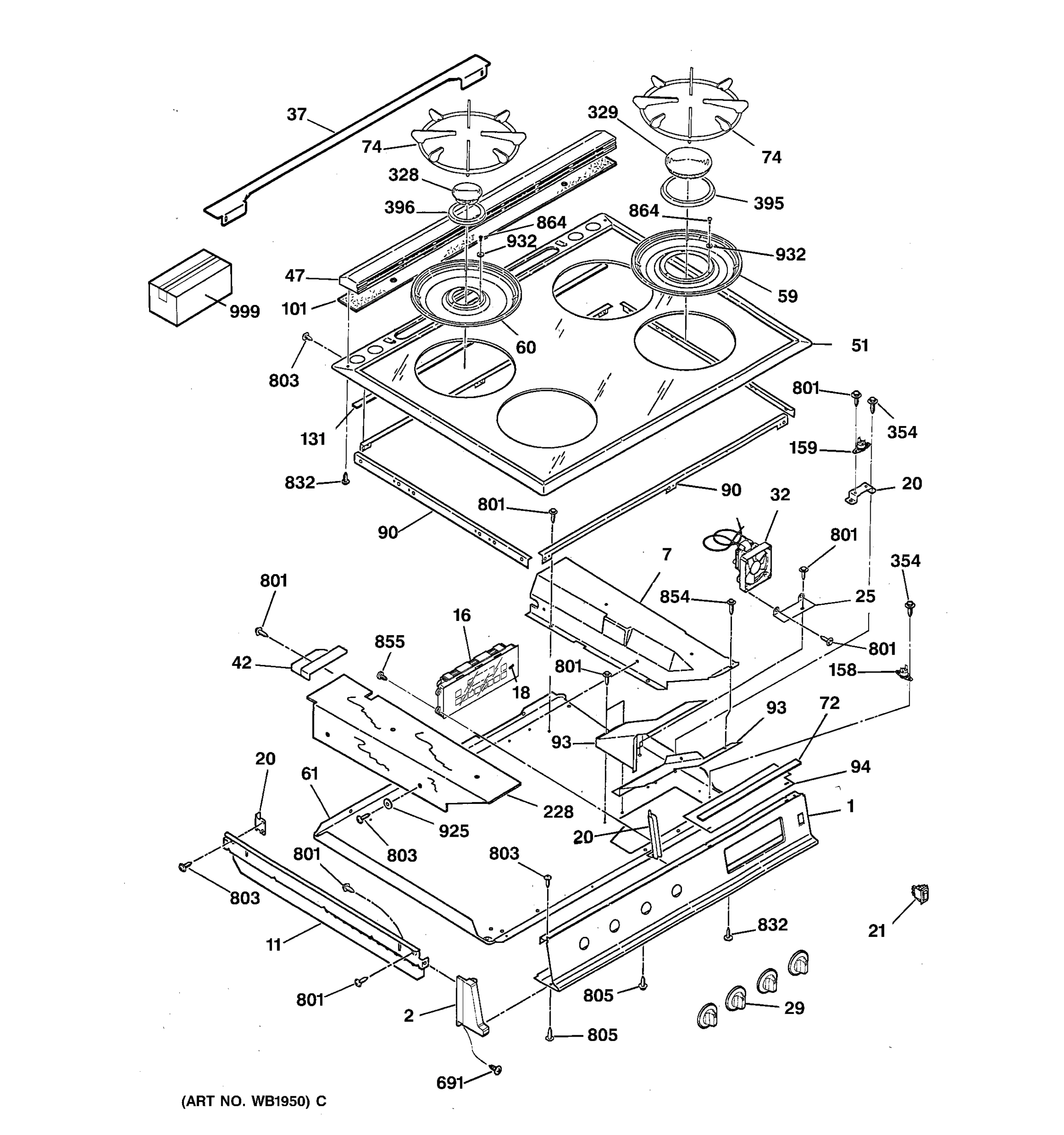

CONTROL PANEL & COOKTOP

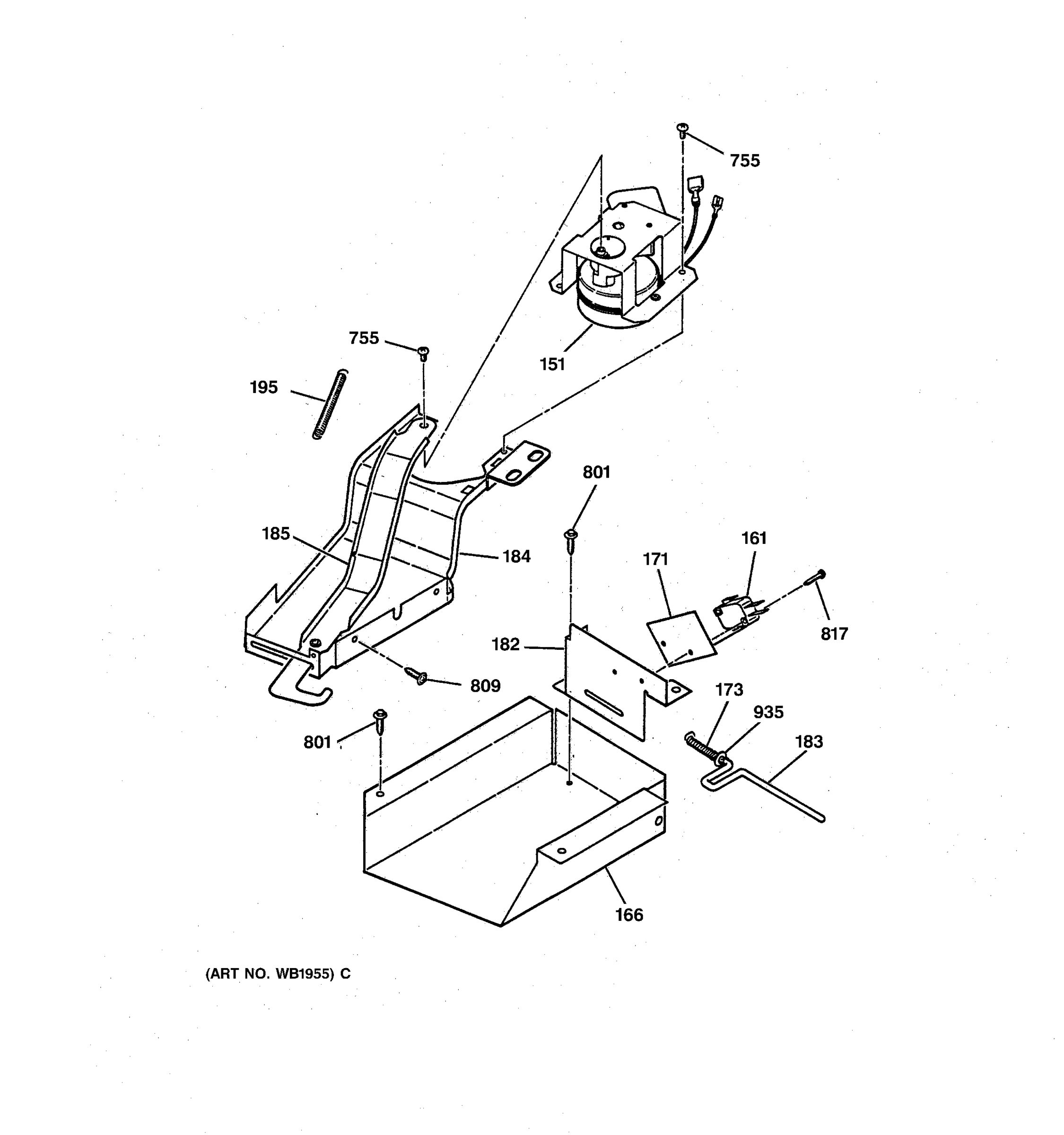

LOCK

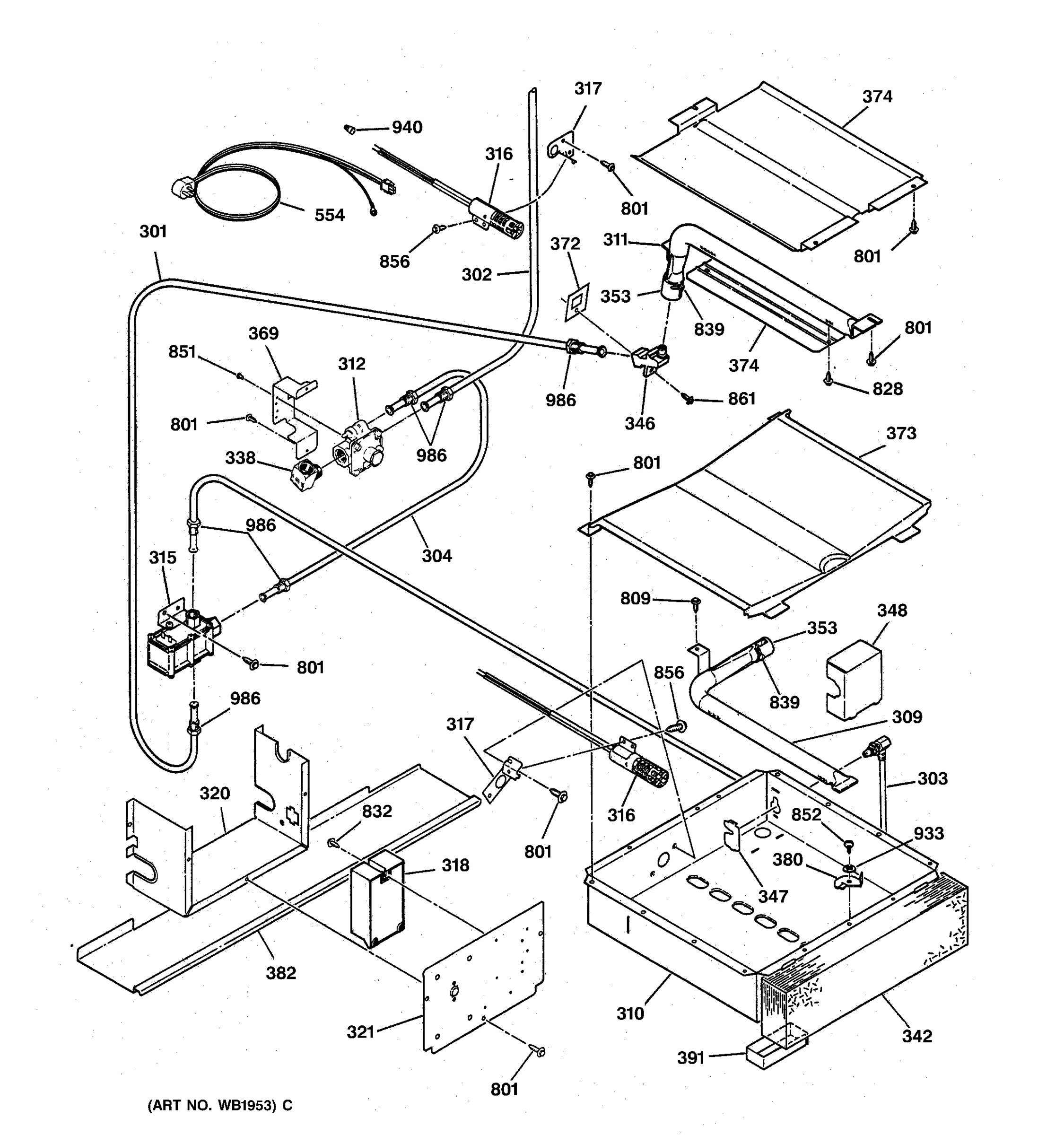

OVEN BURNER

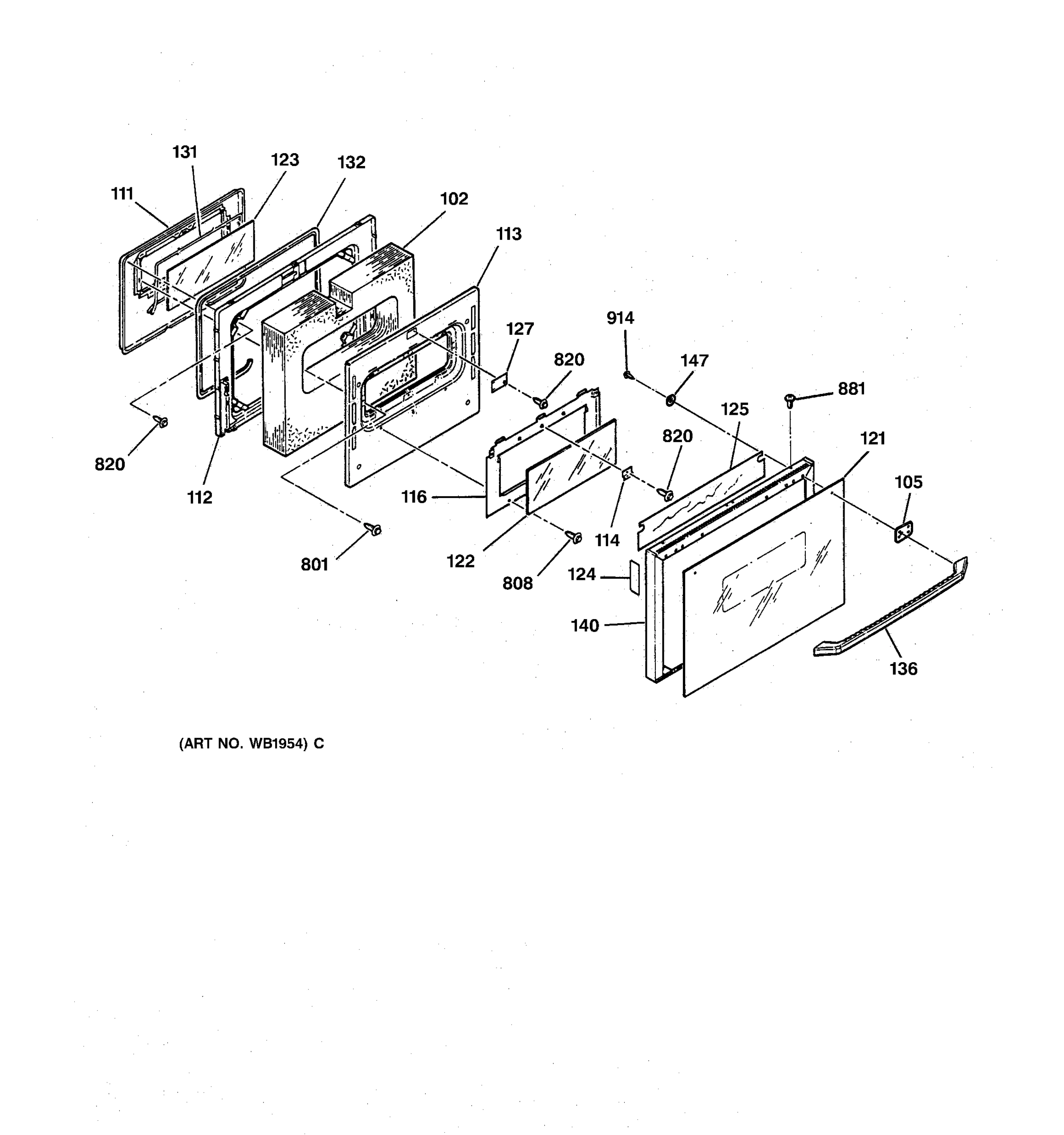

OVEN DOOR

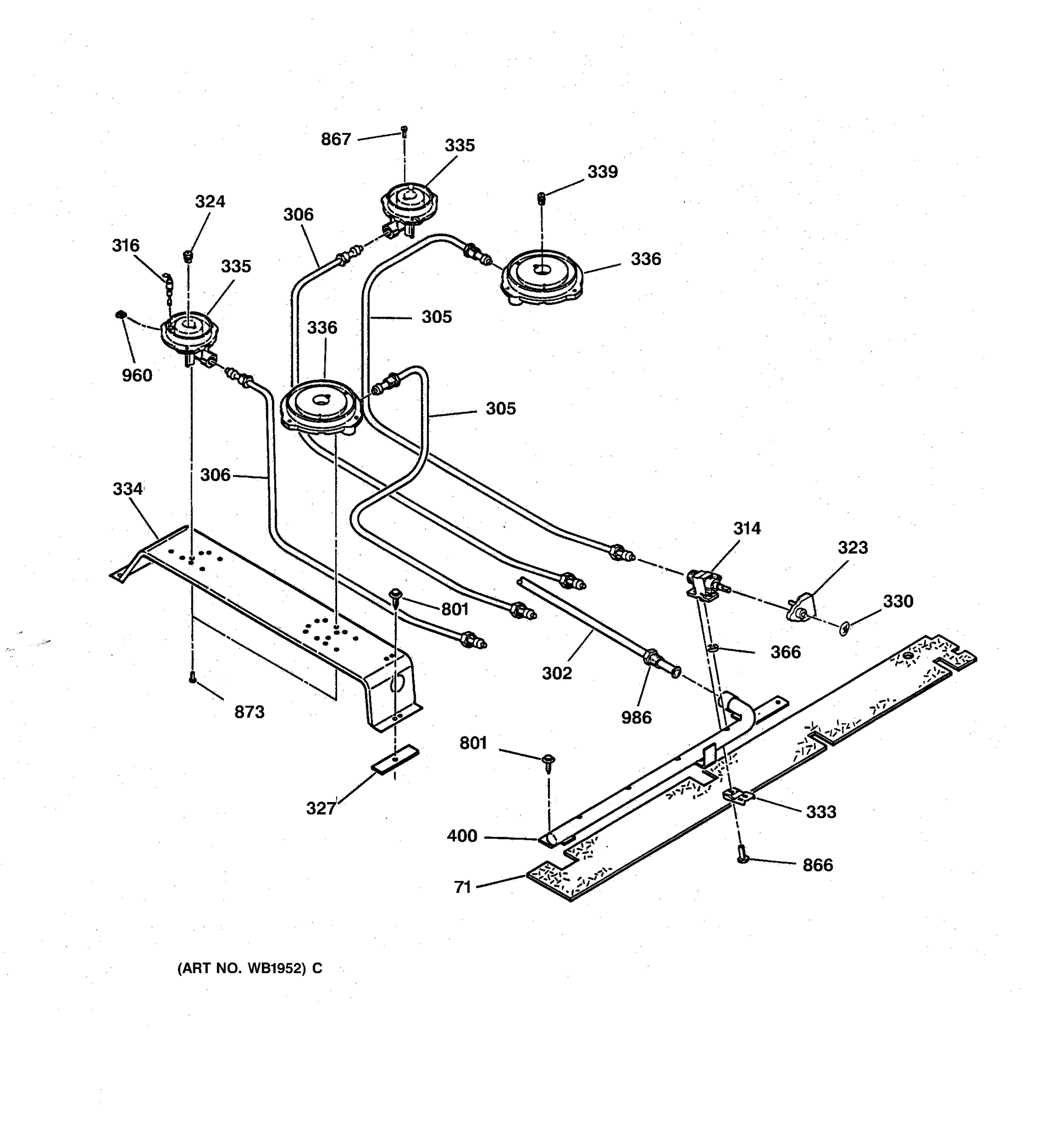

TOP BURNER
Common parts from model GE JGSP30GET1BB Gas Range Or Dual Fuel
1
GEN WB36K5489 GEN WB36K5489 Contact Us For Availability
2
GEN WB36K5379 GEN WB36K5379 Contact Us For Availability
2
GEN WB36K5378 GEN WB36K5378 Contact Us For Availability
7
GEN WB26M0001 GEN WB26M0001 Contact Us For Availability
11
SIDE EXTENSION GEN WB64K5038 Contact Us For Availability
16
GEN WB27K5187 GEN WB27K5187 Contact Us For Availability
18
GEN WB27K5174 GEN WB27K5174 Contact Us For Availability
20
GEN WB02K5238 GEN WB02K5238 Contact Us For Availability
20
GEN WB02M0075 GEN WB02M0075 Contact Us For Availability
20
GEN WB02M0077 GEN WB02M0077 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
25
GEN WB02X9131 GEN WB02X9131 Contact Us For Availability
29
GEN WB03K5047 GEN WB03K5047 Contact Us For Availability
32
GEN WB26X0100 GEN WB26X0100 Contact Us For Availability
37
GEN WB02K5128 GEN WB02K5128 Contact Us For Availability
42
GEN WB34K5076 GEN WB34K5076 Contact Us For Availability
47
GEN WB38K5054 GEN WB38K5054 Contact Us For Availability
51
GEN WB57K5267 GEN WB57K5267 Contact Us For Availability
59
GEN WB31M0007 GEN WB31M0007 Contact Us For Availability
60
GEN WB31M0008 GEN WB31M0008 Contact Us For Availability
61
GEN WB64K5092 GEN WB64K5092 Contact Us For Availability
71
GEN WB35K5107 GEN WB35K5107 Contact Us For Availability
72
GEN WB06K5014 GEN WB06K5014 Contact Us For Availability
74
GEN WB31K5035 GEN WB31K5035 Contact Us For Availability
90
GEN WB02M0081 GEN WB02M0081 Contact Us For Availability
90
GLASS SUPPORT-FRT & BACK GEN WB02M0082 Contact Us For Availability
93
GEN WB34K5074 GEN WB34K5074 Contact Us For Availability
93
GEN WB34K5075 GEN WB34K5075 Contact Us For Availability
94
GEN WB34K5153 GEN WB34K5153 Contact Us For Availability
101
GEN WB35K5037 GEN WB35K5037 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
105
HANDLE TRIM-BLACK GEN WB07K5322 Contact Us For Availability
111
GEN WB55K5037 GEN WB55K5037 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5260 GEN WB57K5260 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
GEN WB35K5103 GEN WB35K5103 Contact Us For Availability
125
GEN WB34K5091 GEN WB34K5091 Contact Us For Availability
127
GEN WB34K5206 GEN WB34K5206 Contact Us For Availability
131
GEN WB32K5020 GEN WB32K5020 Contact Us For Availability
136
GEN WB15X5208 GEN WB15X5208 Contact Us For Availability
140
GEN WB55K5056 GEN WB55K5056 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
161
GEN WB24X0416 GEN WB24X0416 Contact Us For Availability
166
GEN WB02X9126 GEN WB02X9126 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
173
GEN WB09X0242 GEN WB09X0242 Contact Us For Availability
182
GEN WB06X0007 GEN WB06X0007 Contact Us For Availability
183
GEN WB02X9128 GEN WB02X9128 Contact Us For Availability
184
GEN WB02K5237 GEN WB02K5237 Contact Us For Availability
185
LOCK LEVER ASM GEN WB15K5015 Contact Us For Availability
195
GEN WB09X0243 GEN WB09X0243 Contact Us For Availability
210
GEN WB63X0335 GEN WB63X0335 Contact Us For Availability
211
GEN WB02X9755 GEN WB02X9755 Contact Us For Availability
212
INSULATION RETAINER GEN WB02X9149 Contact Us For Availability
214
GEN WB38K5052 GEN WB38K5052 Contact Us For Availability
215
GEN WB38X0108 GEN WB38X0108 Contact Us For Availability
216
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
219
GEN WB34M0006 GEN WB34M0006 Contact Us For Availability
220
GEN WB34K5182 GEN WB34K5182 Contact Us For Availability
221
GEN WB63K5191 GEN WB63K5191 Contact Us For Availability
221
BODY SIDE-SMOOTH GEN WB63X0415 Contact Us For Availability
222
GEN WB56K5032 GEN WB56K5032 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
225
FLUE DEFLECTOR GASKET GEN WB02X9143 Contact Us For Availability
226
GEN WB15K5095 GEN WB15K5095 Contact Us For Availability
228
FLUE DEFL INSULATION-FR GEN WB02X9430 Contact Us For Availability
228
GEN WB35K5044 GEN WB35K5044 Contact Us For Availability
231
INSULATION-TOP & SIDE GEN WB02X9153 Contact Us For Availability
232
GEN WB35K5035 GEN WB35K5035 Contact Us For Availability
233
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
234
GEN WB35K5077 GEN WB35K5077 Contact Us For Availability
235
FLUE BOX INSULATION GEN WB02X9394 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
258
OV LAMP LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
GEN WB02K5303 GEN WB02K5303 Contact Us For Availability
262
GEN WB07K5335 GEN WB07K5335 Contact Us For Availability
262
GEN WB07K5336 GEN WB07K5336 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
GEN WB28K5016 GEN WB28K5016 Contact Us For Availability
302
GEN WB28K5019 GEN WB28K5019 Contact Us For Availability
303
GEN WB28K5024 GEN WB28K5024 Contact Us For Availability
304
GEN WB28K5023 GEN WB28K5023 Contact Us For Availability
305
BURNER TUBE ASM-LT FRONT GEN WB06X0086 Contact Us For Availability
305
GEN WB28K5009 GEN WB28K5009 Contact Us For Availability
306
REAR TUBING GEN WB06X0087 Contact Us For Availability
309
GEN WB28X0089 GEN WB28X0089 Contact Us For Availability
310
BURNER BOX BOTTOM GEN WB53X0277 Contact Us For Availability
311
GEN WB28X0088 GEN WB28X0088 Contact Us For Availability
312
GEN WB19K5017 GEN WB19K5017 Contact Us For Availability
314
GEN WB21K5007 GEN WB21K5007 Contact Us For Availability
314
GEN WB21K5008 GEN WB21K5008 Contact Us For Availability
315
GEN WB21X0475 GEN WB21X0475 Contact Us For Availability
316
GEN WB13K5058 GEN WB13K5058 Contact Us For Availability
317
IGNITER BRACKET-BROIL GEN WB02X9155 Contact Us For Availability
318
GEN WB13K5046 GEN WB13K5046 Contact Us For Availability
320
GEN WB34K5146 GEN WB34K5146 Contact Us For Availability
321
GEN WB34K5189 GEN WB34K5189 Contact Us For Availability
323
GEN WB13M0001 GEN WB13M0001 Contact Us For Availability
324
ORIFICE-SMALL-NAT GAS GEN WB06X0083 Contact Us For Availability
327
GEN WB06X0100 GEN WB06X0100 Contact Us For Availability
328
BURNER CAP-BLACK-SMALL GEN WB13M0005 Contact Us For Availability
329
BURNER CAP-BLACK-LARGE GEN WB13M0004 Contact Us For Availability
330
GEN WB02K5125 GEN WB02K5125 Contact Us For Availability
334
GEN WB02K5130 GEN WB02K5130 Contact Us For Availability
335
GEN WB16K5024 GEN WB16K5024 Contact Us For Availability
336
GEN WB16K5023 GEN WB16K5023 Contact Us For Availability
338
GEN WB06X0080 GEN WB06X0080 Contact Us For Availability
339
ORIFICE-LARGE-NAT GAS GEN WB06X0094 Contact Us For Availability
342
GEN WB06X0081 GEN WB06X0081 Contact Us For Availability
346
GEN WB06X0079 GEN WB06X0079 Contact Us For Availability
348
ORIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
366
VALVE GASKET GEN WB06X0091 Contact Us For Availability
369
GEN WB02K5227 GEN WB02K5227 Contact Us For Availability
372
GEN WB06K5015 GEN WB06K5015 Contact Us For Availability
373
OVEN BURNER BAFFLE GEN WB49X0631 Contact Us For Availability
374
BRO BRN BAFFLE -UPPER GEN WB49X0629 Contact Us For Availability
374
BROILER BURNER BAFFLE-LO GEN WB49X0630 Contact Us For Availability
382
GEN WB34K5147 GEN WB34K5147 Contact Us For Availability
391
INSULATION RETAINER GEN WB02X9176 Contact Us For Availability
395
BURNER TRIM-LARGE GEN WB07M0006 Contact Us For Availability
396
BURNER TRIM-SMALL GEN WB07M0007 Contact Us For Availability
400
GEN WB28K5008 GEN WB28K5008 Contact Us For Availability
803
GEN WB01X1176 GEN WB01X1176 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01K5139 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
839
AIR SHUTTER SCREW GEN WB01X1124 Contact Us For Availability
851
GEN WB01X5691 GEN WB01X5691 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
854
SCREW-BRT. NI. GEN WB01X1164 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
864
GEN WB01X1420 GEN WB01X1420 Contact Us For Availability
866
GEN WB01X1428 GEN WB01X1428 Contact Us For Availability
867
GEN WB01X1429 GEN WB01X1429 Contact Us For Availability
873
GEN WB01X1426 GEN WB01X1426 Contact Us For Availability
881
SCREW-BLACK GEN WB01K5160 Contact Us For Availability
914
GEN WB01K5144 GEN WB01K5144 Contact Us For Availability
932
WASHER GEN WB01X1421 Contact Us For Availability
933
GEN WB01X1256 GEN WB01X1256 Contact Us For Availability
936
GEN WB02X9103 GEN WB02X9103 Contact Us For Availability
960
IGNITER RETAINER GEN WB06X0095 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
986
NUT GEN WB01X1117 Contact Us For Availability
999
GEN 31-10039 GEN 31-10039 Contact Us For Availability
999
GEN 31-13126 GEN 31-13126 Contact Us For Availability
999
GEN 49-8518 GEN 49-8518 Contact Us For Availability
999
GEN WB18K5376 GEN WB18K5376 Contact Us For Availability
999
SWITCH WIRE HARNESS GEN WB18K5383 Contact Us For Availability
999
GEN WB18K5385 GEN WB18K5385 Contact Us For Availability
999
GEN WB18K5386 GEN WB18K5386 Contact Us For Availability
999
GEN WB18K5463 GEN WB18K5463 Contact Us For Availability
999
GEN WB18K5518 GEN WB18K5518 Contact Us For Availability
× ![]()
