Model GE JGSP30GER1BG Gas Range Or Dual Fuel – Common Parts & Diagrams

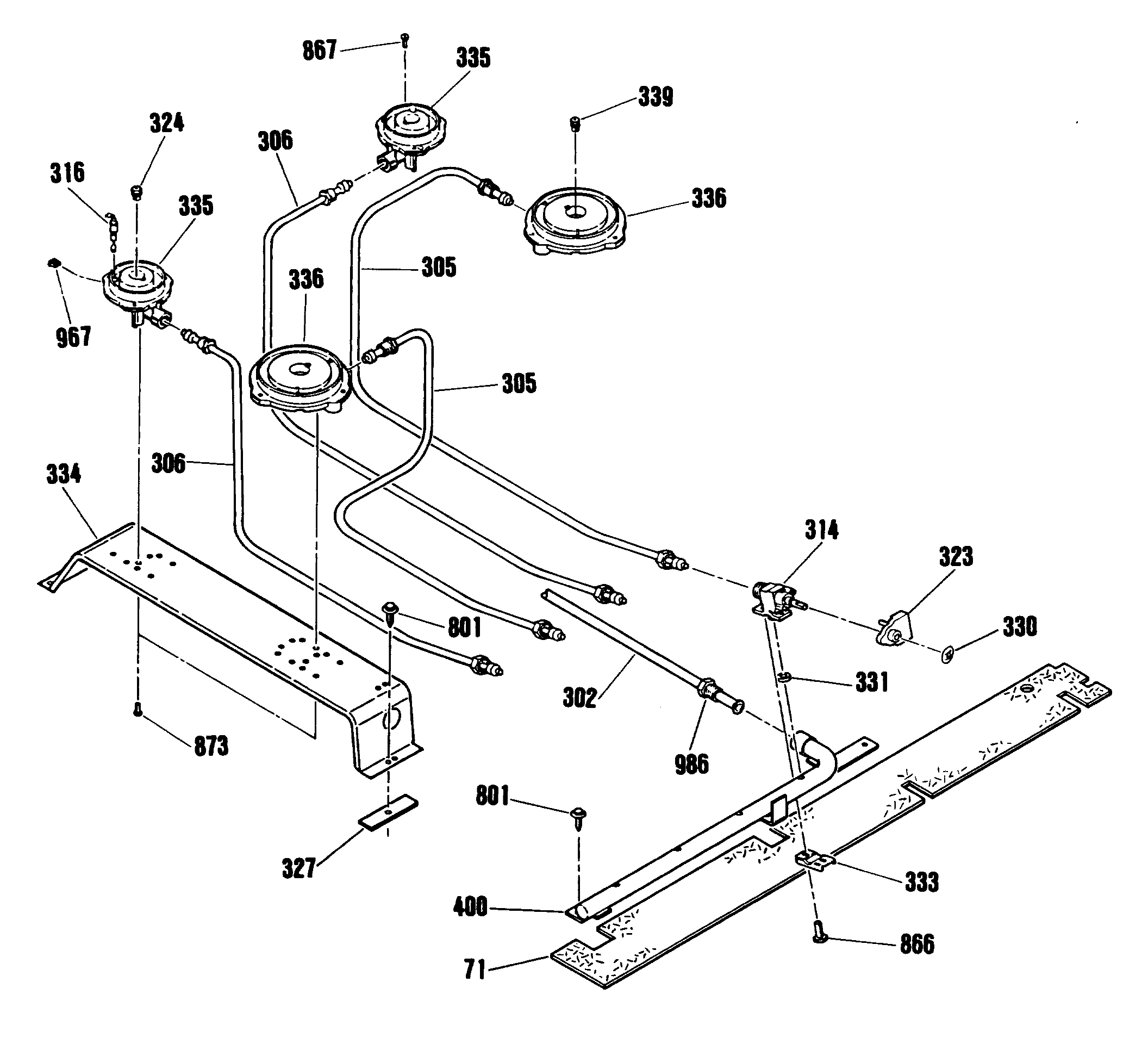

0

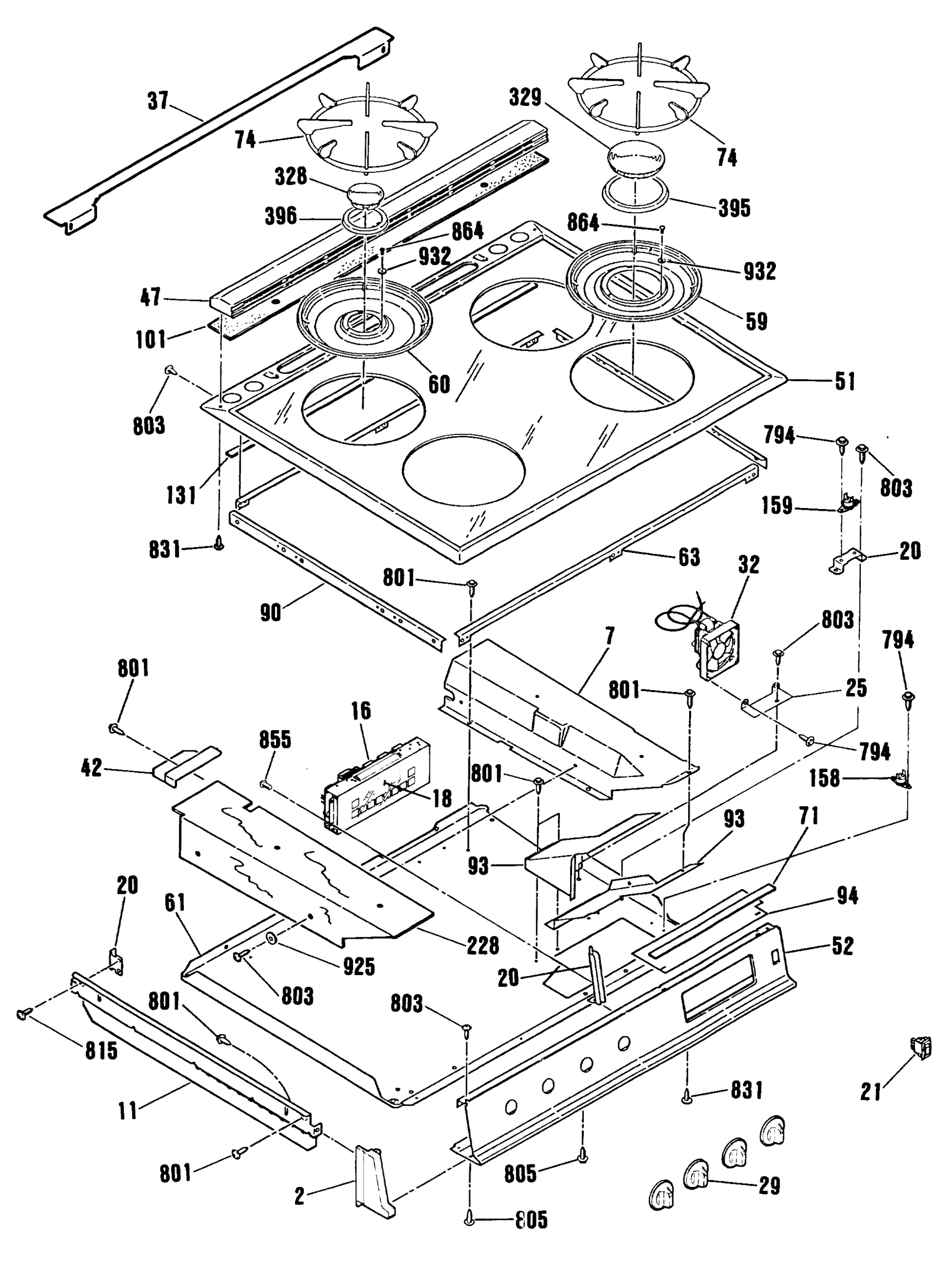

1

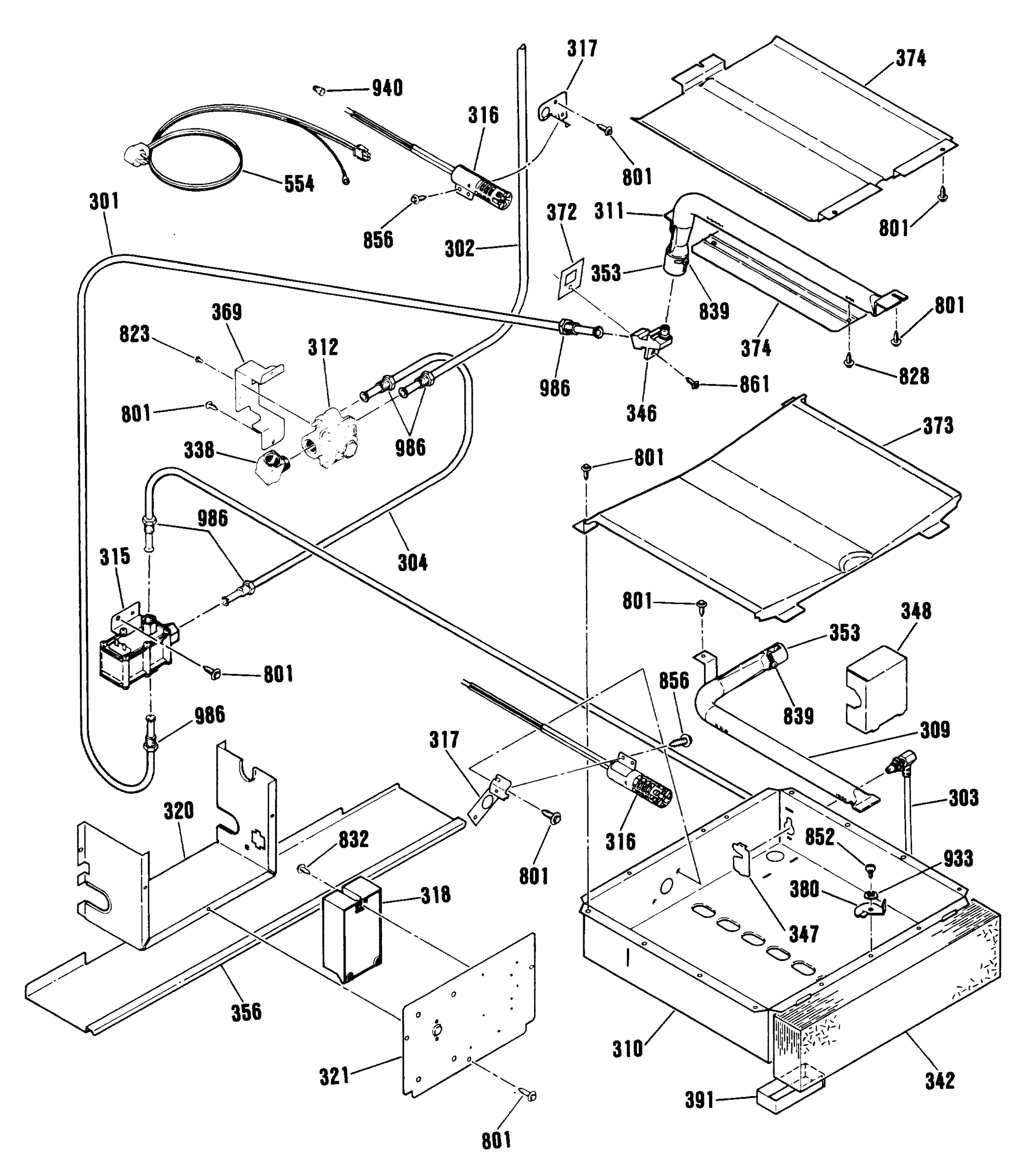

2

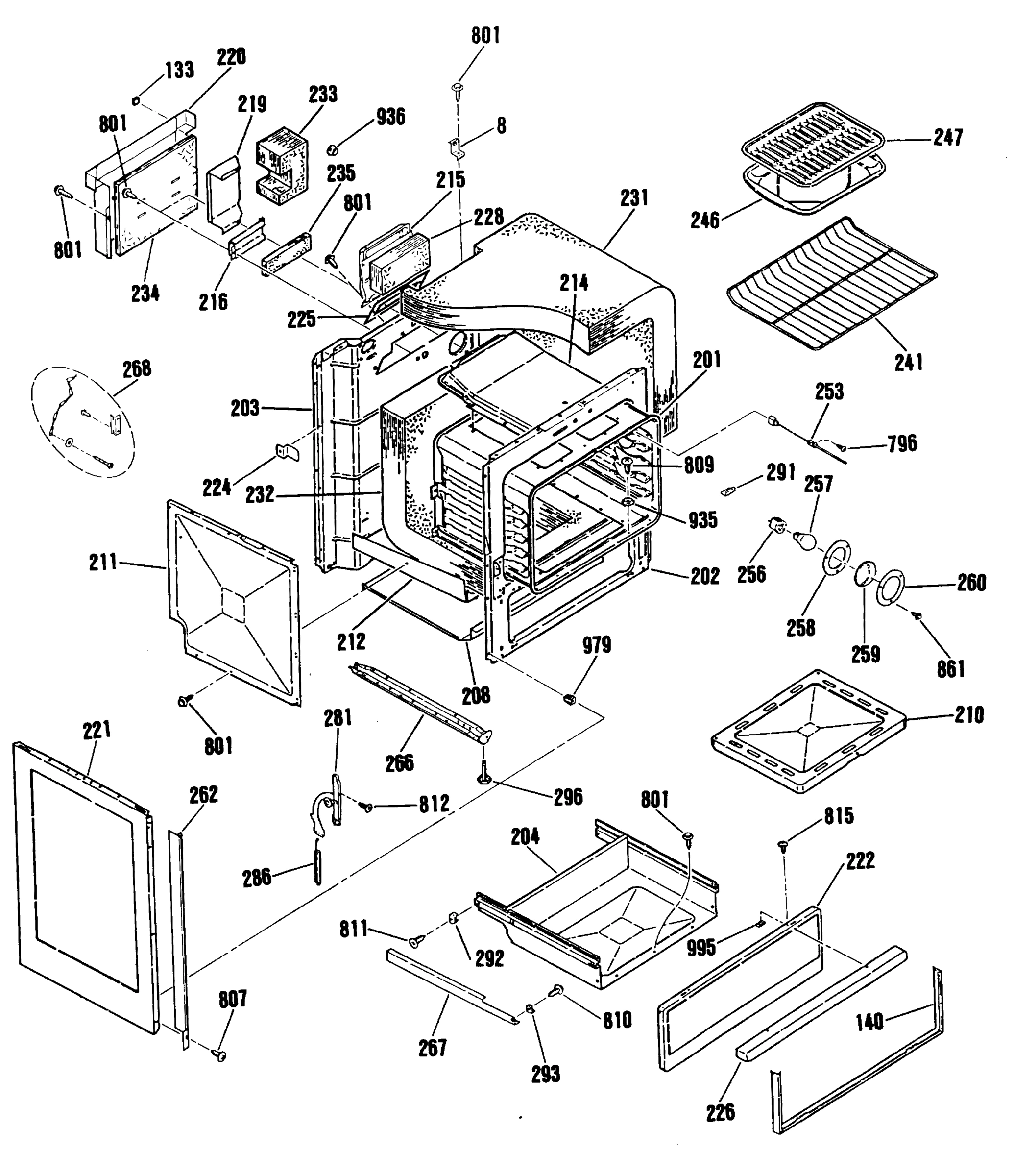

3

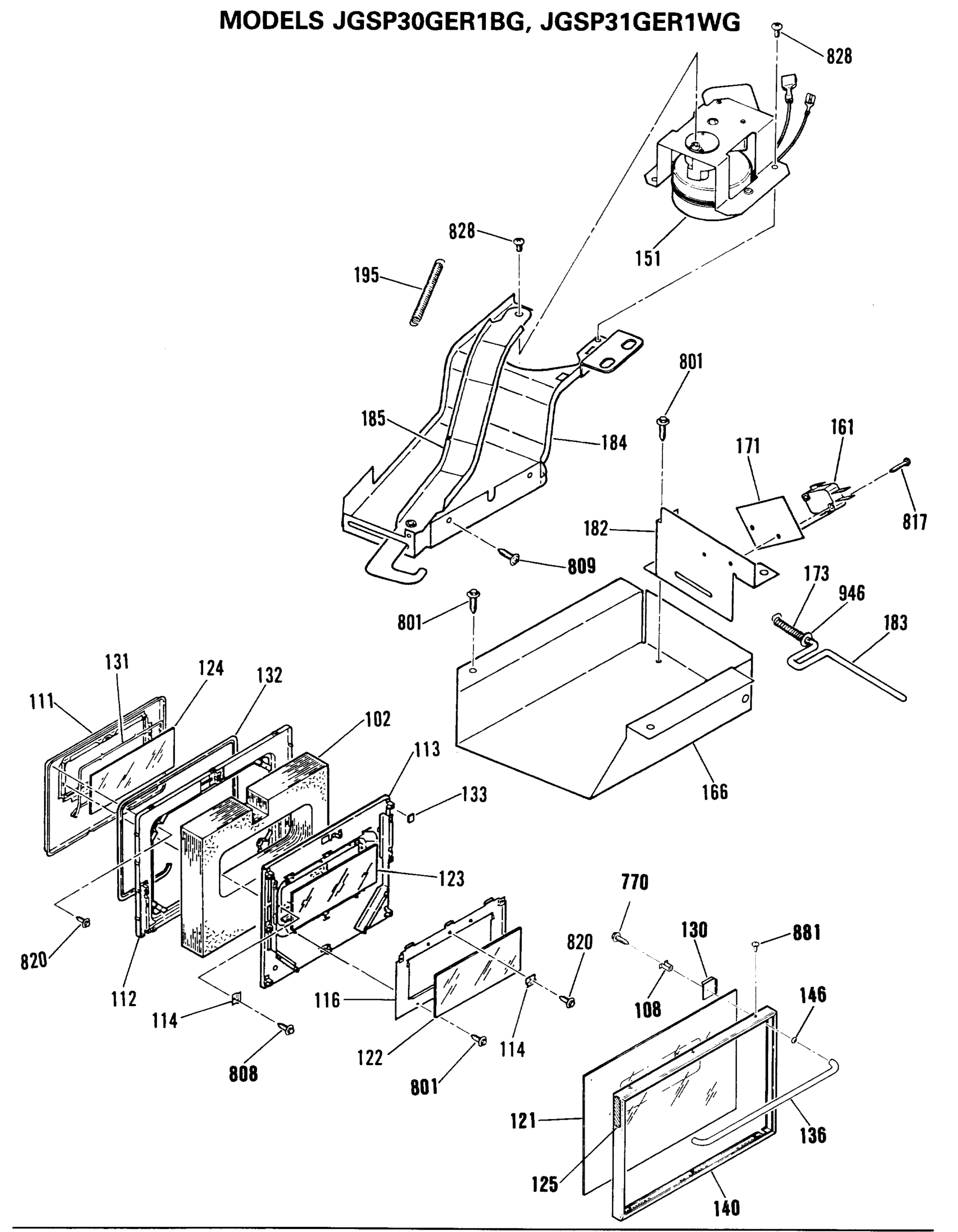

4
Common parts from model GE JGSP30GER1BG Gas Range Or Dual Fuel
2
GEN WB36K5135 GEN WB36K5135 Contact Us For Availability
2
GEN WB36K5136 GEN WB36K5136 Contact Us For Availability
8
GEN WB02K5129 GEN WB02K5129 Contact Us For Availability
11
SIDE EXTENSION GEN WB64K5038 Contact Us For Availability
20
GEN WB02K5238 GEN WB02K5238 Contact Us For Availability
20
GEN WB02M0075 GEN WB02M0075 Contact Us For Availability
20
GEN WB02M0077 GEN WB02M0077 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
25
GEN WB02X9131 GEN WB02X9131 Contact Us For Availability
29
GEN WB03K5047 GEN WB03K5047 Contact Us For Availability
37
GEN WB02K5128 GEN WB02K5128 Contact Us For Availability
47
GEN WB38K5030 GEN WB38K5030 Contact Us For Availability
52
GEN WB36K5273 GEN WB36K5273 Contact Us For Availability
59
GEN WB31M0008 GEN WB31M0008 Contact Us For Availability
60
GEN WB31M0007 GEN WB31M0007 Contact Us For Availability
61
GEN WB64K5053 GEN WB64K5053 Contact Us For Availability
71
GEN WB35K5081 GEN WB35K5081 Contact Us For Availability
72
GEN WB06K5014 GEN WB06K5014 Contact Us For Availability
74
GEN WB31K5035 GEN WB31K5035 Contact Us For Availability
90
GLASS SUPPORT-FRT & BACK GEN WB02M0082 Contact Us For Availability
93
GEN WB34K5074 GEN WB34K5074 Contact Us For Availability
93
GEN WB34K5075 GEN WB34K5075 Contact Us For Availability
94
GEN WB34K5153 GEN WB34K5153 Contact Us For Availability
101
GEN WB35K5037 GEN WB35K5037 Contact Us For Availability
112
OV DOOR LINING GEN WB56M0001 Contact Us For Availability
113
GEN WB02X9372 GEN WB02X9372 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5183 GEN WB57K5183 Contact Us For Availability
122
GEN WB57K5102 GEN WB57K5102 Contact Us For Availability
124
GEN WB57K5063 GEN WB57K5063 Contact Us For Availability
125
GEN WB35M0011 GEN WB35M0011 Contact Us For Availability
130
GEN WB02K5150 GEN WB02K5150 Contact Us For Availability
133
FELT PAD GEN WB01K5115 Contact Us For Availability
136
GEN WB15K5024 GEN WB15K5024 Contact Us For Availability
146
GEN WB02K5151 GEN WB02K5151 Contact Us For Availability
161
GEN WB24X0416 GEN WB24X0416 Contact Us For Availability
166
GEN WB02X9126 GEN WB02X9126 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
182
GEN WB06X0007 GEN WB06X0007 Contact Us For Availability
183
GEN WB02X9128 GEN WB02X9128 Contact Us For Availability
185
LOCK LEVER ASM GEN WB15K5015 Contact Us For Availability
203
GEN WB63K5141 GEN WB63K5141 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9145 Contact Us For Availability
212
INSULATION RETAINER GEN WB02X9149 Contact Us For Availability
216
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
222
GEN WB56K5032 GEN WB56K5032 Contact Us For Availability
225
FLUE DEFLECTOR GASKET GEN WB02X9143 Contact Us For Availability
226
GEN WB15K5010 GEN WB15K5010 Contact Us For Availability
228
GEN WB35K5044 GEN WB35K5044 Contact Us For Availability
231
INSULATION-TOP & SIDE GEN WB02X9153 Contact Us For Availability
232
GEN WB35K5035 GEN WB35K5035 Contact Us For Availability
233
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
234
GEN WB35K5077 GEN WB35K5077 Contact Us For Availability
235
OV LIGHT INSULATION GEN WB02X9430 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
258
OV LAMP LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LITE LENS RETAINER GEN WB02X9150 Contact Us For Availability
266
GEN WB02M0033 GEN WB02M0033 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
GEN WB28K5016 GEN WB28K5016 Contact Us For Availability
302
GEN WB28K5019 GEN WB28K5019 Contact Us For Availability
303
GEN WB28K5024 GEN WB28K5024 Contact Us For Availability
304
GEN WB28K5023 GEN WB28K5023 Contact Us For Availability
305
GEN WB28K5009 GEN WB28K5009 Contact Us For Availability
309
GEN WB28X0089 GEN WB28X0089 Contact Us For Availability
311
GEN WB28X0088 GEN WB28X0088 Contact Us For Availability
312
GEN WB19K5017 GEN WB19K5017 Contact Us For Availability
314
GEN WB21K5007 GEN WB21K5007 Contact Us For Availability
314
GEN WB21K5008 GEN WB21K5008 Contact Us For Availability
315
GEN WB21X0475 GEN WB21X0475 Contact Us For Availability
316
GEN WB13K5058 GEN WB13K5058 Contact Us For Availability
317
IGNITER BRACKET-BROIL GEN WB02X9155 Contact Us For Availability
318
GEN WB13K5046 GEN WB13K5046 Contact Us For Availability
320
GEN WB34K5146 GEN WB34K5146 Contact Us For Availability
321
FRONT WIRE COVER GEN WB34M0005 Contact Us For Availability
323
GEN WB13M0001 GEN WB13M0001 Contact Us For Availability
328
BURNER CAP-BLACK-SMALL GEN WB13M0005 Contact Us For Availability
329
BURNER CAP-BLACK-LARGE GEN WB13M0004 Contact Us For Availability
330
GEN WB02K5125 GEN WB02K5125 Contact Us For Availability
334
GEN WB02K5130 GEN WB02K5130 Contact Us For Availability
335
GEN WB16K5024 GEN WB16K5024 Contact Us For Availability
336
GEN WB16K5023 GEN WB16K5023 Contact Us For Availability
338
GEN WB06X0080 GEN WB06X0080 Contact Us For Availability
342
GEN WB06X0081 GEN WB06X0081 Contact Us For Availability
346
BROIL OFIFICE FITTING GEN WB06X0079 Contact Us For Availability
348
ORIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
369
GEN WB02K5227 GEN WB02K5227 Contact Us For Availability
391
INSULATION RETAINER GEN WB02X9176 Contact Us For Availability
400
GEN WB28K5008 GEN WB28K5008 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
839
AIR SHUTTER SCREW GEN WB01X1124 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
864
GEN WB01X1420 GEN WB01X1420 Contact Us For Availability
866
GEN WB01X1428 GEN WB01X1428 Contact Us For Availability
873
GEN WB01X1426 GEN WB01X1426 Contact Us For Availability
881
GEN WB01X1271 GEN WB01X1271 Contact Us For Availability
933
GEN WB01X1256 GEN WB01X1256 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
936
GEN WB02X9103 GEN WB02X9103 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
986
SCREW GEN WB01X1117 Contact Us For Availability
995
GEN WB01M0040 GEN WB01M0040 Contact Us For Availability
999
GEN 31-10039 GEN 31-10039 Contact Us For Availability
999
GEN 31-13080 GEN 31-13080 Contact Us For Availability
999
GEN 49-8321 GEN 49-8321 Contact Us For Availability
999
GEN WB18K5353 GEN WB18K5353 Contact Us For Availability
999
GEN WB18K5376 GEN WB18K5376 Contact Us For Availability
999
GEN WB18K5382 GEN WB18K5382 Contact Us For Availability
999
GEN WB18K5384 GEN WB18K5384 Contact Us For Availability
999
GEN WB18K5385 GEN WB18K5385 Contact Us For Availability
999
GEN WB18K5386 GEN WB18K5386 Contact Us For Availability
× ![]()
