Model GE JGSP21GEP1 – Common Parts & Diagrams
0
1
2
3
4
Common parts from model GE JGSP21GEP1

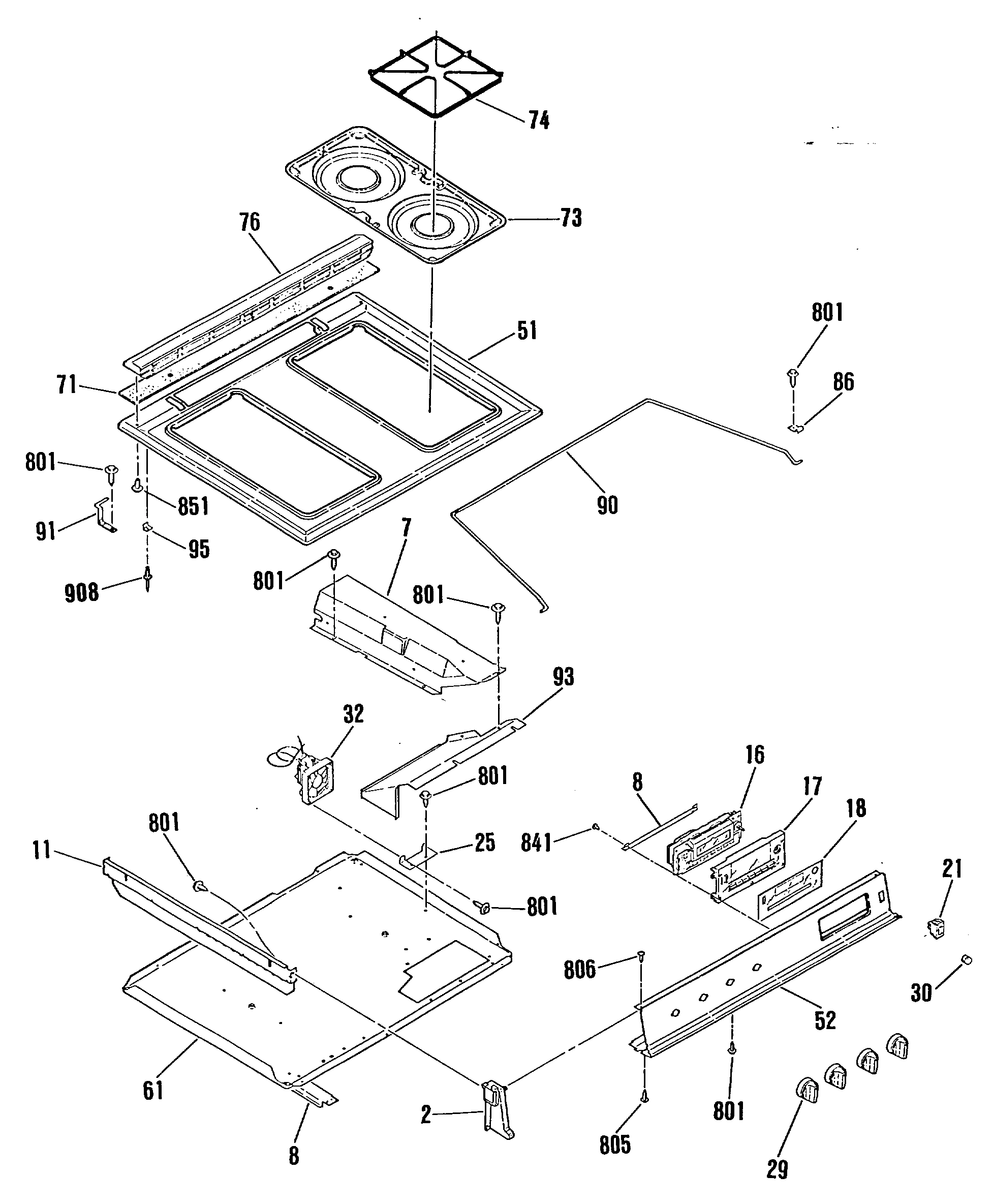

2
END CAP-LT GEN WB07X1581 Contact Us For Availability
2
END CAP-RT GEN WB07X1582 Contact Us For Availability
7
GEN WB26M0001 GEN WB26M0001 Contact Us For Availability
8
BBB STIFFENER-LT GEN WB02X9110 Contact Us For Availability
8
BBB STIFFENER-RT GEN WB02X9132 Contact Us For Availability
8
CLOCK LENS STIFFENER GEN WB02X9884 Contact Us For Availability
11
GEN WB64M0008 GEN WB64M0008 Contact Us For Availability
16
GEN WB19X0264 GEN WB19X0264 Contact Us For Availability
17
GEN WB27M0008 GEN WB27M0008 Contact Us For Availability
18
GEN WB02X9663 GEN WB02X9663 Contact Us For Availability
25
GEN WB02X9131 GEN WB02X9131 Contact Us For Availability
29
GEN WB03K5039 GEN WB03K5039 Contact Us For Availability
30
GEN WB02X0808 GEN WB02X0808 Contact Us For Availability
31
GEN WB27X0425 GEN WB27X0425 Contact Us For Availability
32
FAN ASM GEN WB26X0100 Contact Us For Availability
43
RELAY BOARD SPACER GEN WB02X9158 Contact Us For Availability
51
GEN WB62K5074 GEN WB62K5074 Contact Us For Availability
52
GEN WB36K5099 GEN WB36K5099 Contact Us For Availability
61
BURNER BOX BURNER GEN WB63X0413 Contact Us For Availability
71
GEN WB35K5037 GEN WB35K5037 Contact Us For Availability
73
AERATION PAN GEN WB32X0102 Contact Us For Availability
74
GEN WB31M0004 GEN WB31M0004 Contact Us For Availability
76
GEN WB34K5060 GEN WB34K5060 Contact Us For Availability
86
SUPPORT ROD CLAMP GEN WB02X9138 Contact Us For Availability
90
GEN WB02X9112 GEN WB02X9112 Contact Us For Availability
91
GEN WB14X0109 GEN WB14X0109 Contact Us For Availability
91
GEN WB14X0110 GEN WB14X0110 Contact Us For Availability
93
GEN WB02X9136 GEN WB02X9136 Contact Us For Availability
112
GEN WB56M0001 GEN WB56M0001 Contact Us For Availability
113
OV DR INS RETAINER GEN WB02X9372 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MTG PLATE GEN WB02X9178 Contact Us For Availability
121
GEN WB57M0028 GEN WB57M0028 Contact Us For Availability
122
OV DR INTERMEDIATE GLASS GEN WB56M1906 Contact Us For Availability
123
OV DR CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
GEN WB57K5063 GEN WB57K5063 Contact Us For Availability
130
GEN WB02M0045 GEN WB02M0045 Contact Us For Availability
133
FELT PAD GEN WB01K5115 Contact Us For Availability
136
GEN WB15K5012 GEN WB15K5012 Contact Us For Availability
140
GEN WB56K5066 GEN WB56K5066 Contact Us For Availability
140
LOWER FRONT PANEL FRAME GEN WB56M0006 Contact Us For Availability
143
GEN WB02K5100 GEN WB02K5100 Contact Us For Availability
146
GEN WB02M0046 GEN WB02M0046 Contact Us For Availability

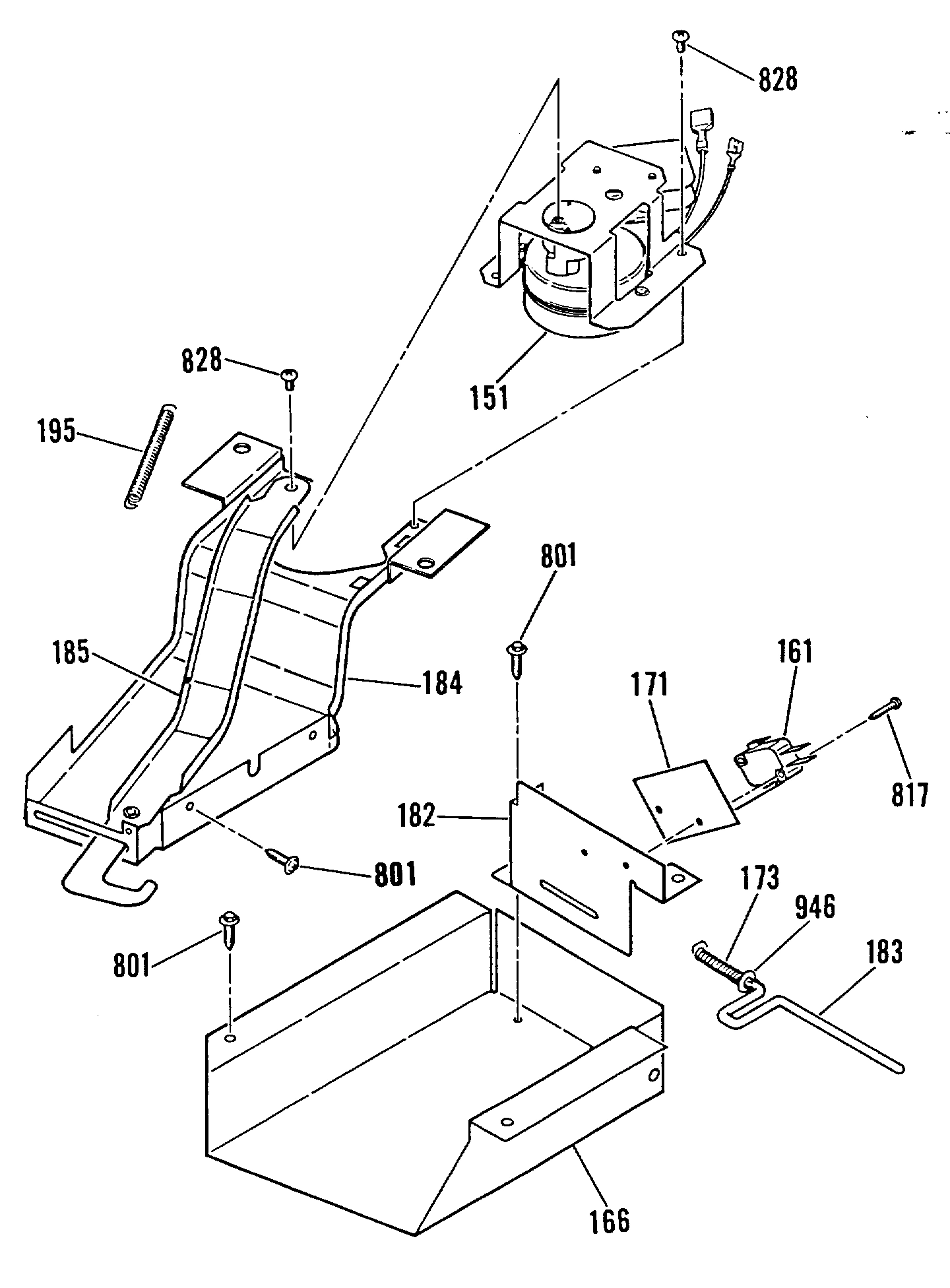

151
LOCK MOTOR GEN WB26X0127 Contact Us For Availability
161
GEN WB24X0416 GEN WB24X0416 Contact Us For Availability
166
GEN WB02X9126 GEN WB02X9126 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
173
GEN WB09X0242 GEN WB09X0242 Contact Us For Availability
182
GEN WB06X0007 GEN WB06X0007 Contact Us For Availability
183
ACTUATOR SWITCH PIN GEN WB02X9128 Contact Us For Availability
184
DR LOCK PLATE GEN WB02X9125 Contact Us For Availability
185
GEN WB15K5015 GEN WB15K5015 Contact Us For Availability
195
GEN WB09X0243 GEN WB09X0243 Contact Us For Availability

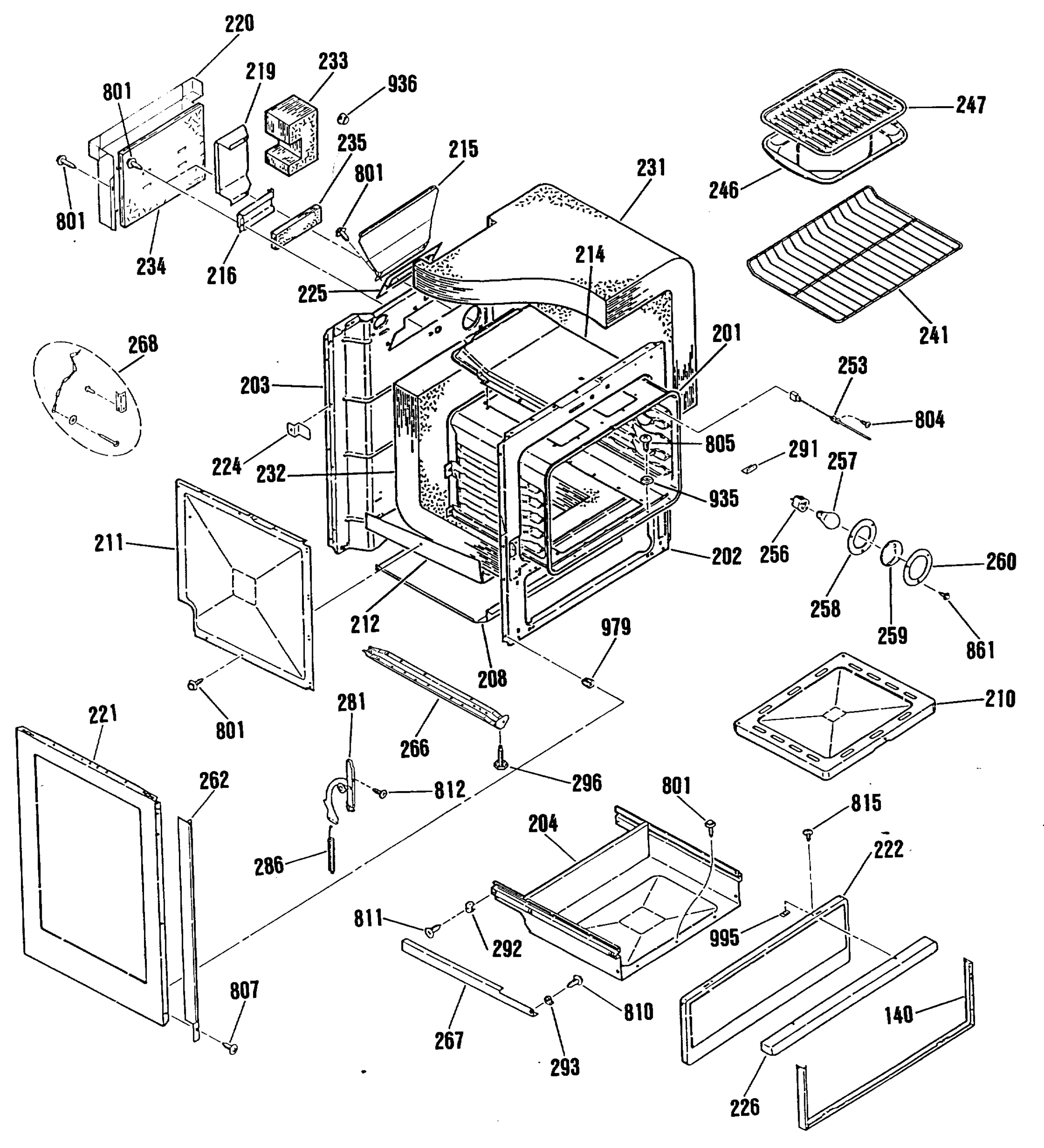

201
OVEN BODY GEN WB53X0276 Contact Us For Availability
202
FRONT FRAME GEN WB63X0338 Contact Us For Availability
203
GEN WB63K5063 GEN WB63K5063 Contact Us For Availability
204
GEN WB58X0063 GEN WB58X0063 Contact Us For Availability
208
GEN WB34M0007 GEN WB34M0007 Contact Us For Availability
210
OV BOTTOM GEN WB63X0335 Contact Us For Availability
211
INS RETAINER GEN WB02X9755 Contact Us For Availability
212
INSULATION RETAINER-L0 GEN WB02X9149 Contact Us For Availability
214
FLUE BOX ASM GEN WB38X0109 Contact Us For Availability
215
GEN WB34K5063 GEN WB34K5063 Contact Us For Availability
216
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
219
GEN WB34M0006 GEN WB34M0006 Contact Us For Availability
220
GEN WB34K5064 GEN WB34K5064 Contact Us For Availability
221
GEN WB63X0415 GEN WB63X0415 Contact Us For Availability
222
LOWER FRONT PANEL GEN WB56K5028 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
225
FLUE INSULATION GEN WB02X9143 Contact Us For Availability
226
LOWER FRONT PANEL HANDLE GEN WB15K5010 Contact Us For Availability
231
INSULATION-TOP & SIDES GEN WB02X9153 Contact Us For Availability
232
INSULATION-BACK/BOTTOM GEN WB35K5035 Contact Us For Availability
233
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
234
GEN WB35K5036 GEN WB35K5036 Contact Us For Availability
235
OV LIGHT INSULATION GEN WB02X9394 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LIGHT LENS RETAINER GEN WB02X9150 Contact Us For Availability
262
SIDE TRIM-LT GEN WB07X1583 Contact Us For Availability
262
SIDE TRIM-RT GEN WB07X1584 Contact Us For Availability
266
GEN WB02M0033 GEN WB02M0033 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
SLIDE BLOCK REAR GEN WB02X9146 Contact Us For Availability
293
SLIDE BLOCK FRONT GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
GEN WB28K5016 GEN WB28K5016 Contact Us For Availability
302
GEN WB28K5017 GEN WB28K5017 Contact Us For Availability
303
GEN WB28K5025 GEN WB28K5025 Contact Us For Availability
307
TOP BURNER-LT FRT GEN WB28X0113 Contact Us For Availability
307
GEN WB28X0114 GEN WB28X0114 Contact Us For Availability
308
TOP BURNER-RT RR GEN WB28X0086 Contact Us For Availability
308
TOP BURNER-LT RR GEN WB28X0115 Contact Us For Availability
309
OVEN BURNER GEN WB28X0089 Contact Us For Availability
310
BURNER BOX BOTTOM GEN WB53X0277 Contact Us For Availability
311
BROILER BURNER GEN WB28X0088 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
314
GAS VALVE-RT/LT RR,LT FT GEN WB21X0483 Contact Us For Availability
314
GEN WB21X0507 GEN WB21X0507 Contact Us For Availability
315
CONTROL VALVE GEN WB21X0475 Contact Us For Availability
317
SPARK IGN BRACKET GEN WB02X9003 Contact Us For Availability
317
BR BURN IGN BRACKET GEN WB02X9155 Contact Us For Availability
318
SPARK IGN MODULE GEN WB20X0107 Contact Us For Availability
319
SHUTOFF VALVE GEN WB21X0482 Contact Us For Availability
320
GEN WB34M0004 GEN WB34M0004 Contact Us For Availability
321
FRONT WIRE COVER GEN WB34M0005 Contact Us For Availability
322
SPARK IGN ELECTRODE-FRT GEN WB13M0003 Contact Us For Availability
322
SPARK IGN ELECTRODE-REAR GEN WB13M0007 Contact Us For Availability
323
SWITCH VALVE GEN WB24X0419 Contact Us For Availability
334
TOP BURNER SUPPORT GEN WB02X9119 Contact Us For Availability
346
ORIFICE FITTING GEN WB02X9156 Contact Us For Availability
348
ORIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
366
VALVE SCREW GASKET GEN WB02X9008 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
366
SAFETY VALVE GASKET GEN WB02X9092 Contact Us For Availability
372
COVER GEN WB06K5015 Contact Us For Availability
373
OV BOTTOM BAFFLE GEN WB49X0631 Contact Us For Availability
374
BROILER BURNER BAFFLE-UP GEN WB49X0629 Contact Us For Availability
374
BAFFLE-LOWER GEN WB49X0630 Contact Us For Availability
391
INS RETAINER-OV ORIFICE GEN WB02X9176 Contact Us For Availability
400
GEN WB02X9279 GEN WB02X9279 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
810
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTING SCREW GEN WB01X1124 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
908
GEN WB01X1114 GEN WB01X1114 Contact Us For Availability
933
SPRING WASHER GEN WB01X1256 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
936
SNAP BUSHING GEN WB02X9103 Contact Us For Availability
946
GEN WB01M0015 GEN WB01M0015 Contact Us For Availability
949
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
979
EXPANSION NUT SPACER GEN WB01X1177 Contact Us For Availability
984
NUT GEN WB01X1117 Contact Us For Availability
999
GEN 31-1126 GEN 31-1126 Contact Us For Availability
999
GEN 31-13037 GEN 31-13037 Contact Us For Availability
999
GEN 49-8201 GEN 49-8201 Contact Us For Availability
999
GEN WB18K5183 GEN WB18K5183 Contact Us For Availability
999
GEN WB18K5184 GEN WB18K5184 Contact Us For Availability
999
GEN WB18K5201 GEN WB18K5201 Contact Us For Availability
999
SPARK MODULE HARNESS GEN WB18M0052 Contact Us For Availability
999
GEN WB18M0053 GEN WB18M0053 Contact Us For Availability
999
GEN WB18M0054 GEN WB18M0054 Contact Us For Availability
999
GEN WB18X0352 GEN WB18X0352 Contact Us For Availability
× ![]()
