Model GE JGSP10GEK3 – Common Parts & Diagrams
0
1
2
3
4

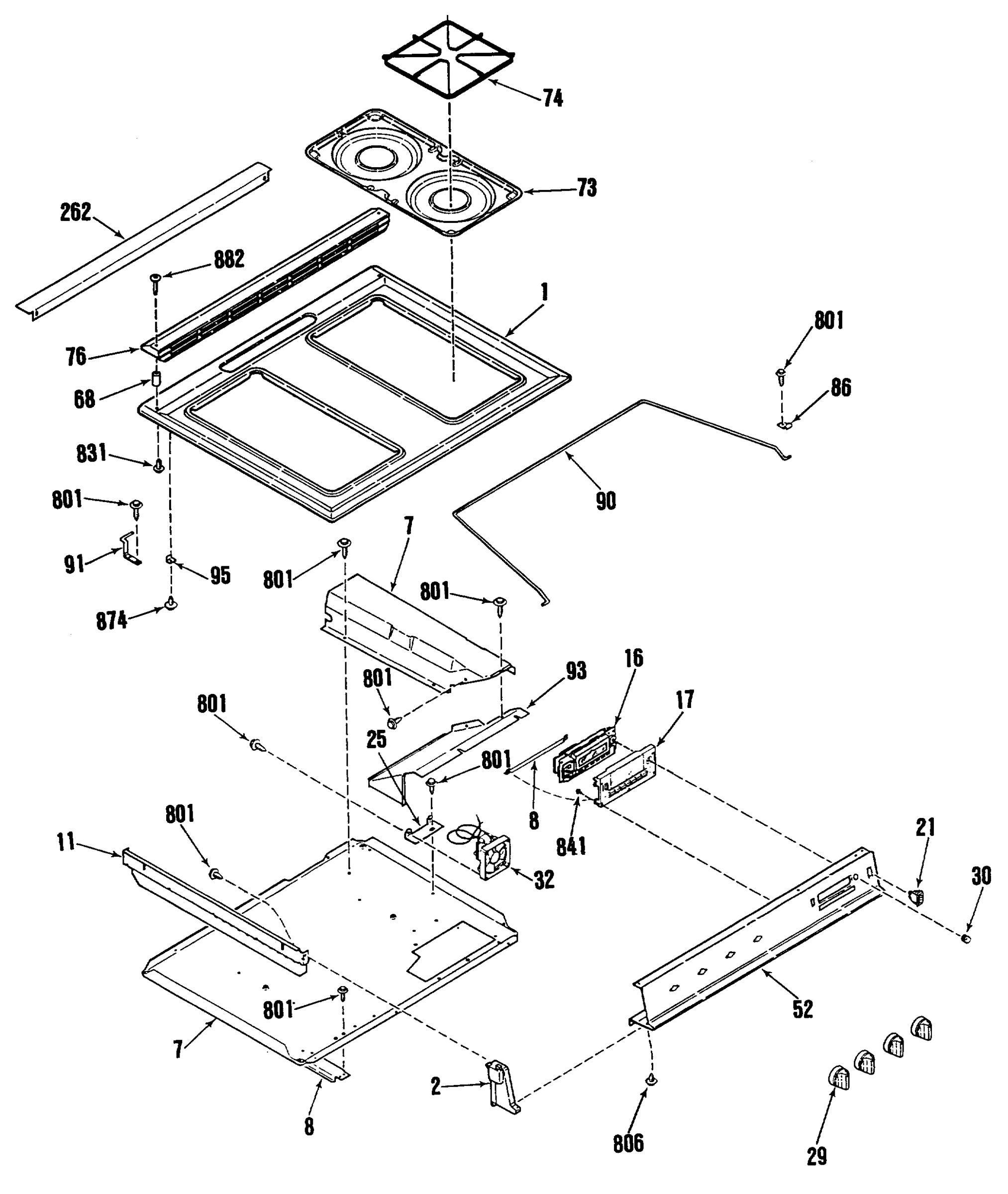

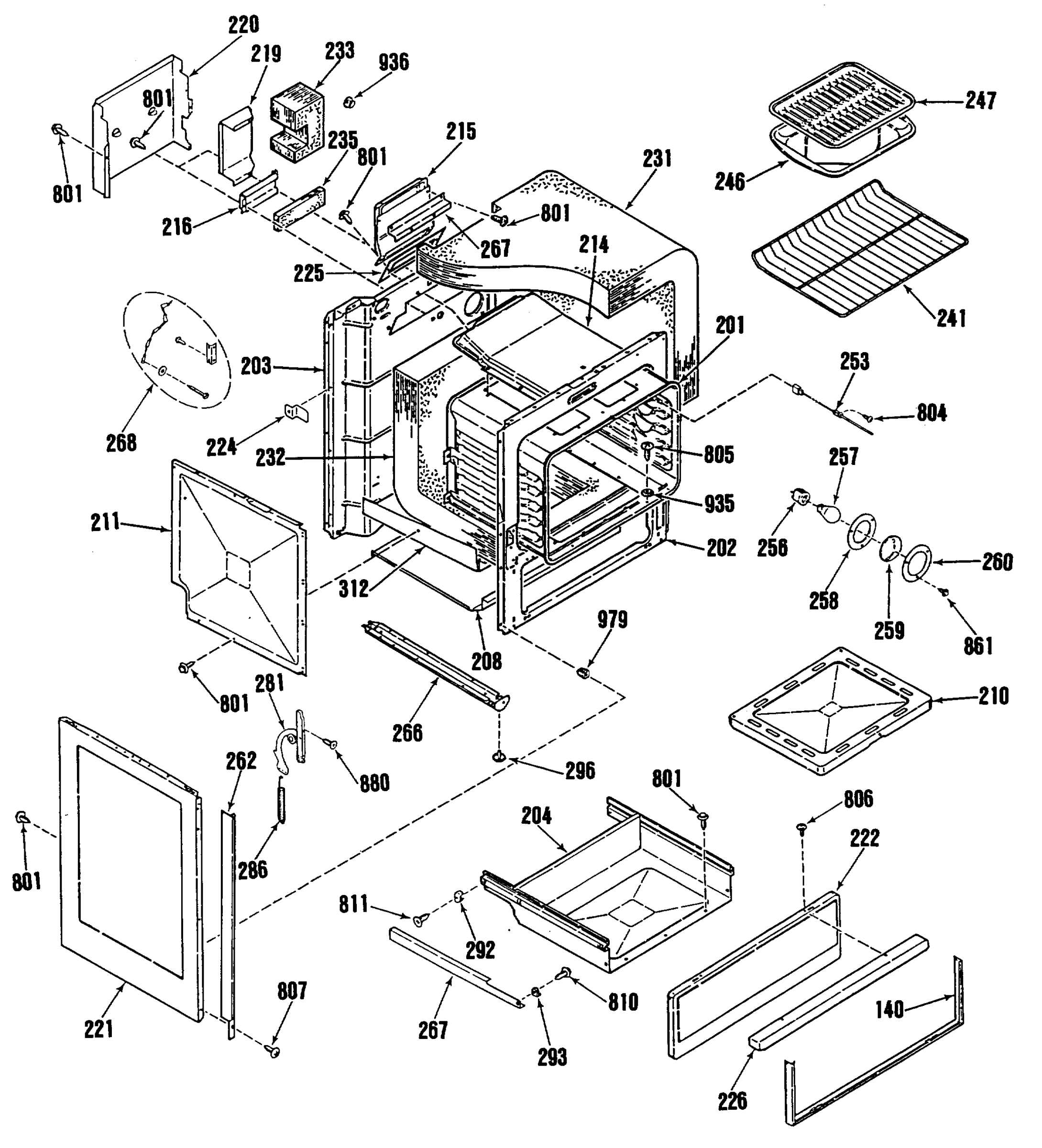

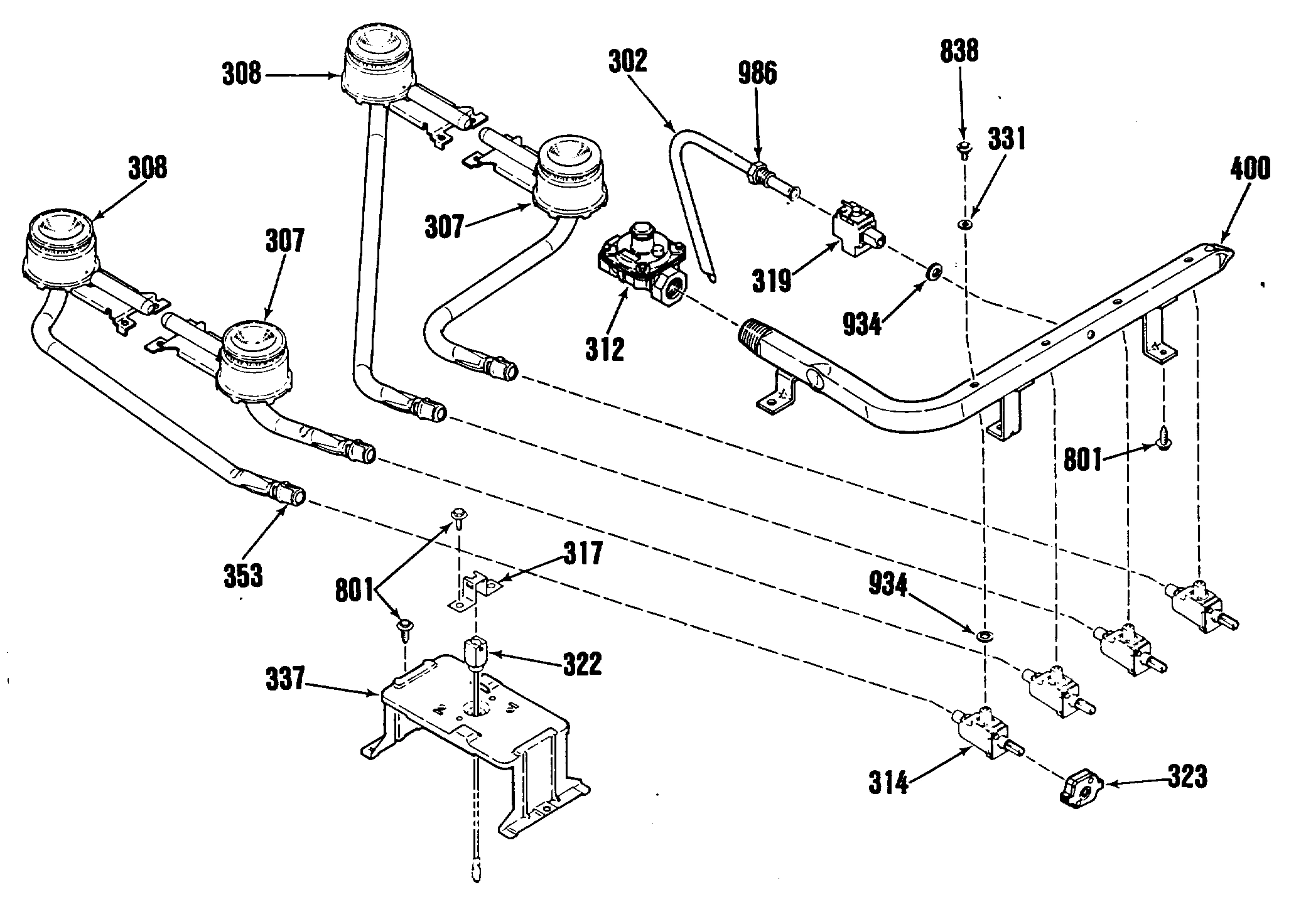

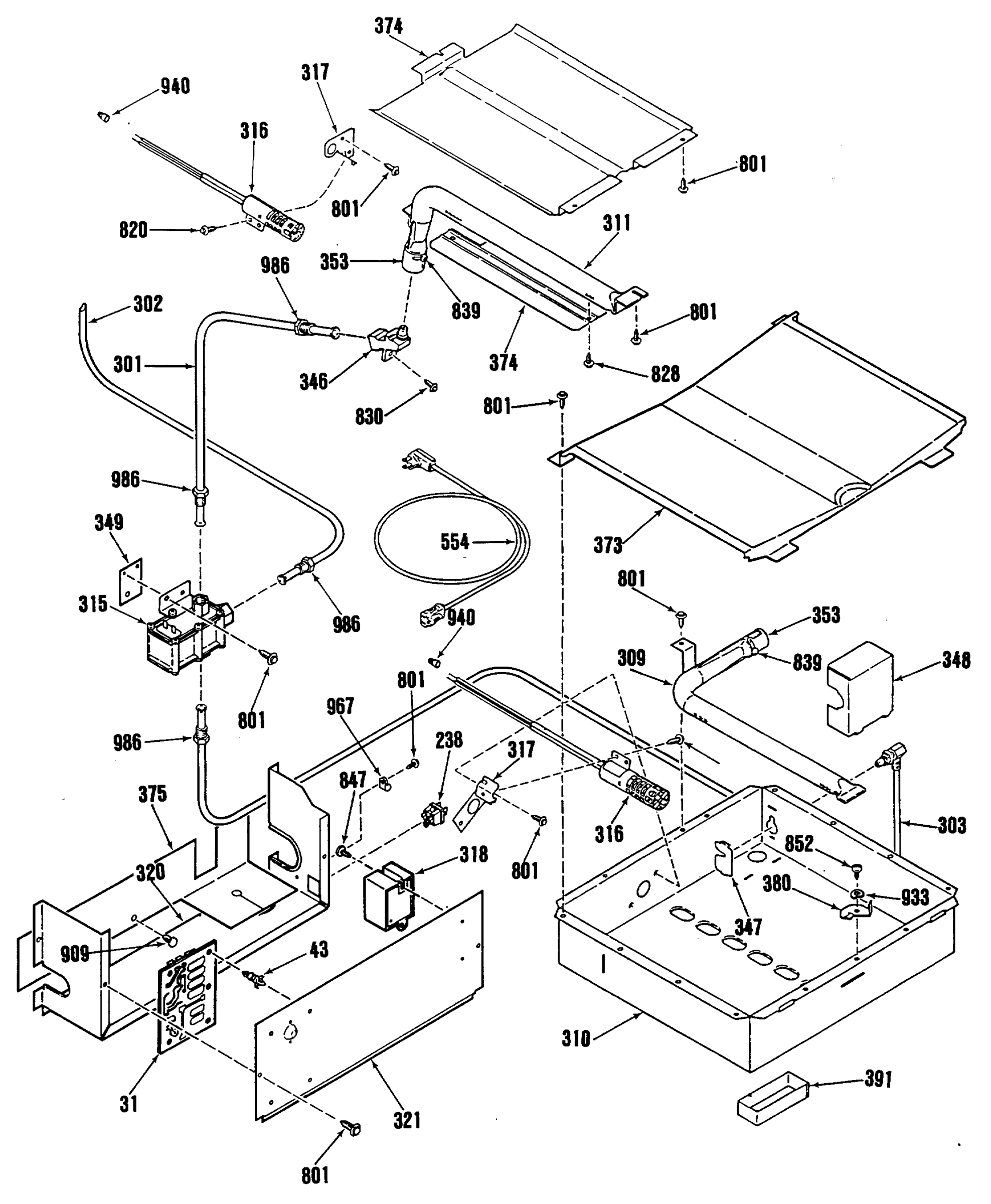

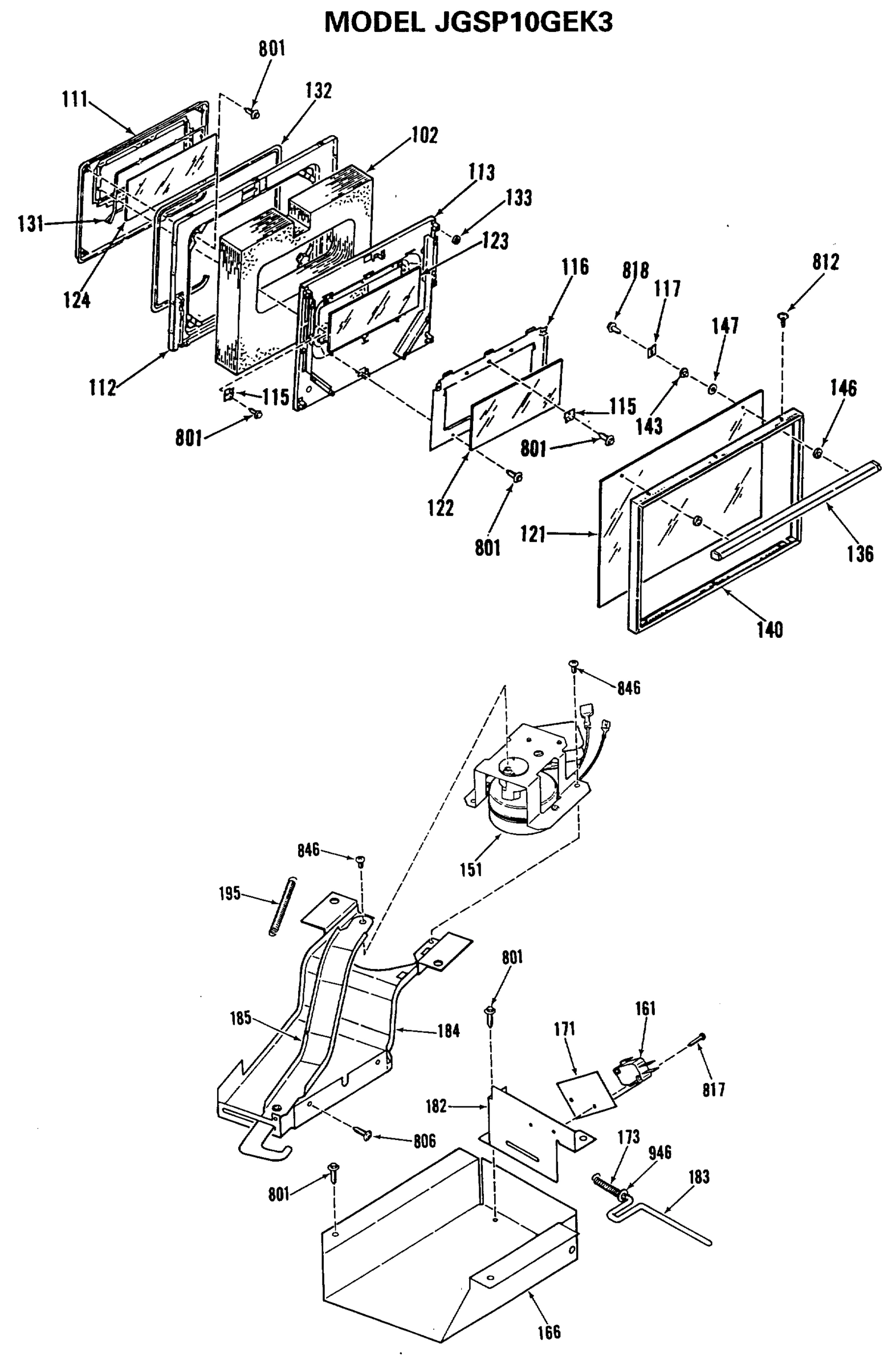

Common parts from model GE JGSP10GEK3
2
END CAP-RT GEN WB07X1582 Contact Us For Availability
7
GEN WB26M0001 GEN WB26M0001 Contact Us For Availability
7
GEN WB63X0413 GEN WB63X0413 Contact Us For Availability
8
B BOX BTM STIFFENER-LT GEN WB02X9110 Contact Us For Availability
8
B BOX BTM STIFFENER-RT GEN WB02X9132 Contact Us For Availability
8
CLOCK LENS STIFFENER GEN WB02X9884 Contact Us For Availability
11
GEN WB64M0008 GEN WB64M0008 Contact Us For Availability
16
GEN WB19X0264 GEN WB19X0264 Contact Us For Availability
17
GEN WB36X0775 GEN WB36X0775 Contact Us For Availability
21
GEN WB24X0435 GEN WB24X0435 Contact Us For Availability
25
GEN WB02X9131 GEN WB02X9131 Contact Us For Availability
29
CONTROL KNOB GEN WB03X0769 Contact Us For Availability
30
GEN WB03X0770 GEN WB03X0770 Contact Us For Availability
31
RELAY CIRCUIT BOARD GEN WB27X0425 Contact Us For Availability
32
FAN ASM GEN WB26X0100 Contact Us For Availability
43
PC BOARD SPACER GEN WB02X9158 Contact Us For Availability
52
GEN WB36M0005 GEN WB36M0005 Contact Us For Availability
68
MT VENT COVER SPACER GEN WB02X9273 Contact Us For Availability
73
AERATION PAN GEN WB32X0102 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
76
VENT COVER GEN WB02X9109 Contact Us For Availability
86
SUPPORT ROD CLAMP GEN WB02X9138 Contact Us For Availability
90
MAIN TOP SUPPORT GEN WB02X9112 Contact Us For Availability
91
MAIN TOP HINGE-RT GEN WB14X0109 Contact Us For Availability
91
MAIN TOP HINGE-LT GEN WB14X0110 Contact Us For Availability
93
GEN WB02X9136 GEN WB02X9136 Contact Us For Availability
102
OV DOOR INSULATION GEN WB35M0002 Contact Us For Availability
111
GEN WB55M0010 GEN WB55M0010 Contact Us For Availability
112
OVEN DOOR LINING GEN WB56M0001 Contact Us For Availability
113
OV DR INS RETAINER GEN WB02X9372 Contact Us For Availability
115
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MTG PLATE GEN WB02X9178 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
122
OV DOOR INNER GLASS GEN WB56X1906 Contact Us For Availability
123
OV DOOR INNER GLASS GEN WB56X1907 Contact Us For Availability
124
OV DOOR INNER GLASS GEN WB57M0001 Contact Us For Availability
133
FELT WASHER GEN WB01X1159 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0272 Contact Us For Availability
140
OVEN DOOR FRAME GEN WB07X1622 Contact Us For Availability
140
LOWER FRONT PANEL FRAME GEN WB56M0006 Contact Us For Availability
143
DOOR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
151
LOCK MOTOR GEN WB26X0127 Contact Us For Availability
161
GEN WB24X0416 GEN WB24X0416 Contact Us For Availability
166
GEN WB02X9126 GEN WB02X9126 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
173
GEN WB09X0242 GEN WB09X0242 Contact Us For Availability
182
DR SWITCH BRACKET GEN WB06X0007 Contact Us For Availability
183
SWITCH ACTUATOR PIN GEN WB02X9128 Contact Us For Availability
184
GEN WB02X9125 GEN WB02X9125 Contact Us For Availability
185
LOCK LEVER ASM GEN WB02X9124 Contact Us For Availability
195
GEN WB09X0243 GEN WB09X0243 Contact Us For Availability
201
OVEN BODY GEN WB53X0276 Contact Us For Availability
202
FRONT FRAME ASM GEN WB63X0338 Contact Us For Availability
203
GEN WB63M0034 GEN WB63M0034 Contact Us For Availability
204
GEN WB58X0063 GEN WB58X0063 Contact Us For Availability
208
GEN WB34M0007 GEN WB34M0007 Contact Us For Availability
210
GEN WB63X0335 GEN WB63X0335 Contact Us For Availability
211
GEN WB02X9755 GEN WB02X9755 Contact Us For Availability
214
FLUE BOX ASM GEN WB38X0109 Contact Us For Availability
215
FLUE DEFLECTOR ASM GEN WB38X0108 Contact Us For Availability
216
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
219
GEN WB34M0006 GEN WB34M0006 Contact Us For Availability
220
FLUE DEFLECTOR SHIELD GEN WB02X9115 Contact Us For Availability
221
GEN WB63X0415 GEN WB63X0415 Contact Us For Availability
222
LOWER FRONT PANEL GEN WB56X1950 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
225
FLUE INSULATION GEN WB02X9143 Contact Us For Availability
226
HANDLE GEN WB15X0273 Contact Us For Availability
231
INSULATION-TOP & SIDES GEN WB02X9153 Contact Us For Availability
232
GEN WB02X9398 GEN WB02X9398 Contact Us For Availability
233
GEN WB02X9397 GEN WB02X9397 Contact Us For Availability
235
INSULATION-OV LITE GEN WB02X9394 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
257
OV LAMP GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OVEN LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LITE LENS RETAINER GEN WB02X9150 Contact Us For Availability
262
MT TRIM FILLER-1 1/2" GEN WB02X9370 Contact Us For Availability
262
MT TRIM FILLER 1" GEN WB02X9371 Contact Us For Availability
262
SIDE TRIM-LT GEN WB07X1583 Contact Us For Availability
262
SIDE TRIM-RT GEN WB07X1584 Contact Us For Availability
266
GEN WB02M0033 GEN WB02M0033 Contact Us For Availability
267
FLUE DEFLECTOR Z-SUPPORT GEN WB02X9094 Contact Us For Availability
267
DRAWER SUPPORT RT & LT GEN WB56M0003 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0244 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
GEN WB28M0005 GEN WB28M0005 Contact Us For Availability
302
3/8 TUBE W/NUT GEN WB02X9753 Contact Us For Availability
303
TUBE & ORIFICE FITTING GEN WB02X9164 Contact Us For Availability
307
TOP BURNER ASM RT FRT GEN WB16M0009 Contact Us For Availability
307
TOP BURNER ASM LT FRT GEN WB28X0113 Contact Us For Availability
308
TOP BURNER ASM RT RR GEN WB28X0086 Contact Us For Availability
308
TOP BURNER ASM LT RR GEN WB28X0115 Contact Us For Availability
309
OVEN BURNER GEN WB28X0095 Contact Us For Availability
310
BURNER BOX BOTTOM GEN WB53X0277 Contact Us For Availability
311
BROILER BURNER GEN WB28X0094 Contact Us For Availability
312
INSULATION RETAINER-LO GEN WB02X9149 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
314
GAS VALVE-170 DEGREE GEN WB21X0483 Contact Us For Availability
315
DUAL CONTROL VALVE GEN WB21X0475 Contact Us For Availability
317
IGNITOR BRACKET-BROIL GEN WB02X9003 Contact Us For Availability
317
BURN IGNITOR BRACKET-BR GEN WB02X9155 Contact Us For Availability
318
SPARK IGNITOR MODULE GEN WB20X0107 Contact Us For Availability
319
SHUTOFF VALVE GEN WB21X0482 Contact Us For Availability
320
GEN WB02M0032 GEN WB02M0032 Contact Us For Availability
321
GEN WB34M0018 GEN WB34M0018 Contact Us For Availability
322
GEN WB13M0003 GEN WB13M0003 Contact Us For Availability
322
GEN WB13M0007 GEN WB13M0007 Contact Us For Availability
323
VALVE SWITCH GEN WB24X0419 Contact Us For Availability
331
GASKET GEN WB02X9092 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9119 Contact Us For Availability
346
ORIFICE FITTING-BROILER GEN WB02X9156 Contact Us For Availability
348
ORIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
349
CONT VALVE MTG BRACKET GEN WB02X9167 Contact Us For Availability
353
AIR SHUTTER-OVEN GEN WB02X9014 Contact Us For Availability
353
AIR SHUTTER-MAIN TOP GEN WB02X9739 Contact Us For Availability
373
OV BOTTOM BAFFLE GEN WB49X0631 Contact Us For Availability
374
BOILER BURNER BAFFLE-UPP GEN WB49X0629 Contact Us For Availability
374
BRO BURNER BAFFLE-LOWER GEN WB49X0630 Contact Us For Availability
375
GEN WB02X9754 GEN WB02X9754 Contact Us For Availability
391
INS RETAINER-OV ORIF GEN WB02X9176 Contact Us For Availability
400
MANIFOLD PIPE ASM GEN WB02X9279 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTMENT SCREW GEN WB01X1327 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
846
SCREW GEN WB01X1169 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
874
GEN WB01X1162 GEN WB01X1162 Contact Us For Availability
882
GEN WB01M0023 GEN WB01M0023 Contact Us For Availability
909
GEN WB18X1173 GEN WB18X1173 Contact Us For Availability
933
SPRING WASHER GEN WB01X1256 Contact Us For Availability
934
GEN WB02X9011 GEN WB02X9011 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
936
SNAP BUSHING GEN WB02X9103 Contact Us For Availability
946
GEN WB01M0015 GEN WB01M0015 Contact Us For Availability
967
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
986
NUT GEN WB01X1117 Contact Us For Availability
999
GEN 31-0723 GEN 31-0723 Contact Us For Availability
999
GEN 339902 GEN 339902 Contact Us For Availability
999
GEN 49-4992 GEN 49-4992 Contact Us For Availability
999
GEN WB18K5137 GEN WB18K5137 Contact Us For Availability
999
GEN WB18M0051 GEN WB18M0051 Contact Us For Availability
999
GEN WB18M0052 GEN WB18M0052 Contact Us For Availability
999
GEN WB18M0054 GEN WB18M0054 Contact Us For Availability
999
IGNITER HARNESS GEN WB18X0313 Contact Us For Availability
999
ERC HARNESS GEN WB18X0315 Contact Us For Availability
999
GEN WB18X0352 GEN WB18X0352 Contact Us For Availability
× ![]()
