Model GE JGSP10GEK1 – Common Parts & Diagrams
COOKTOP
GAS CONTROL SYSTEM-OVEN AND BROILER

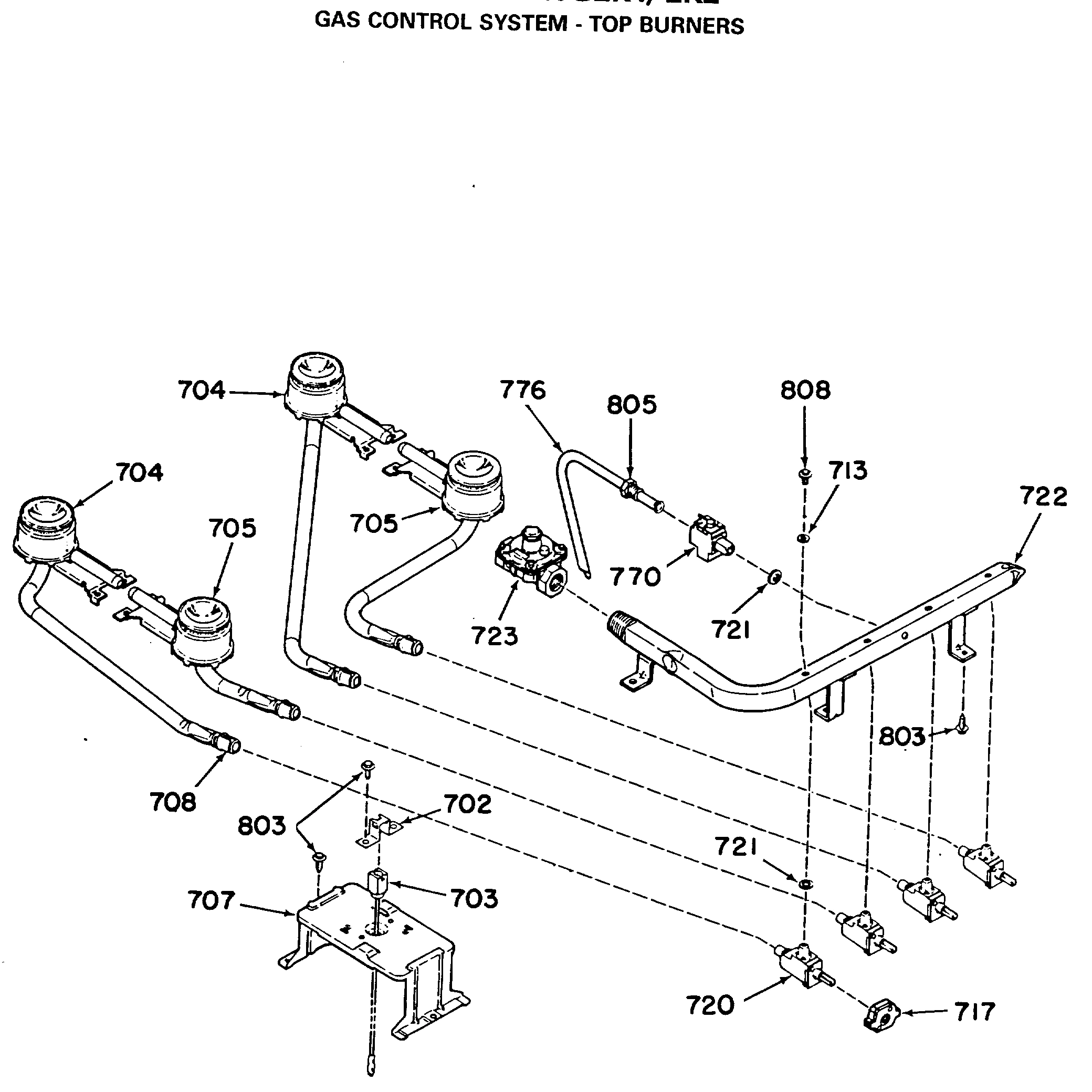

GAS CONTROL SYSTEM-TOP BURNERS

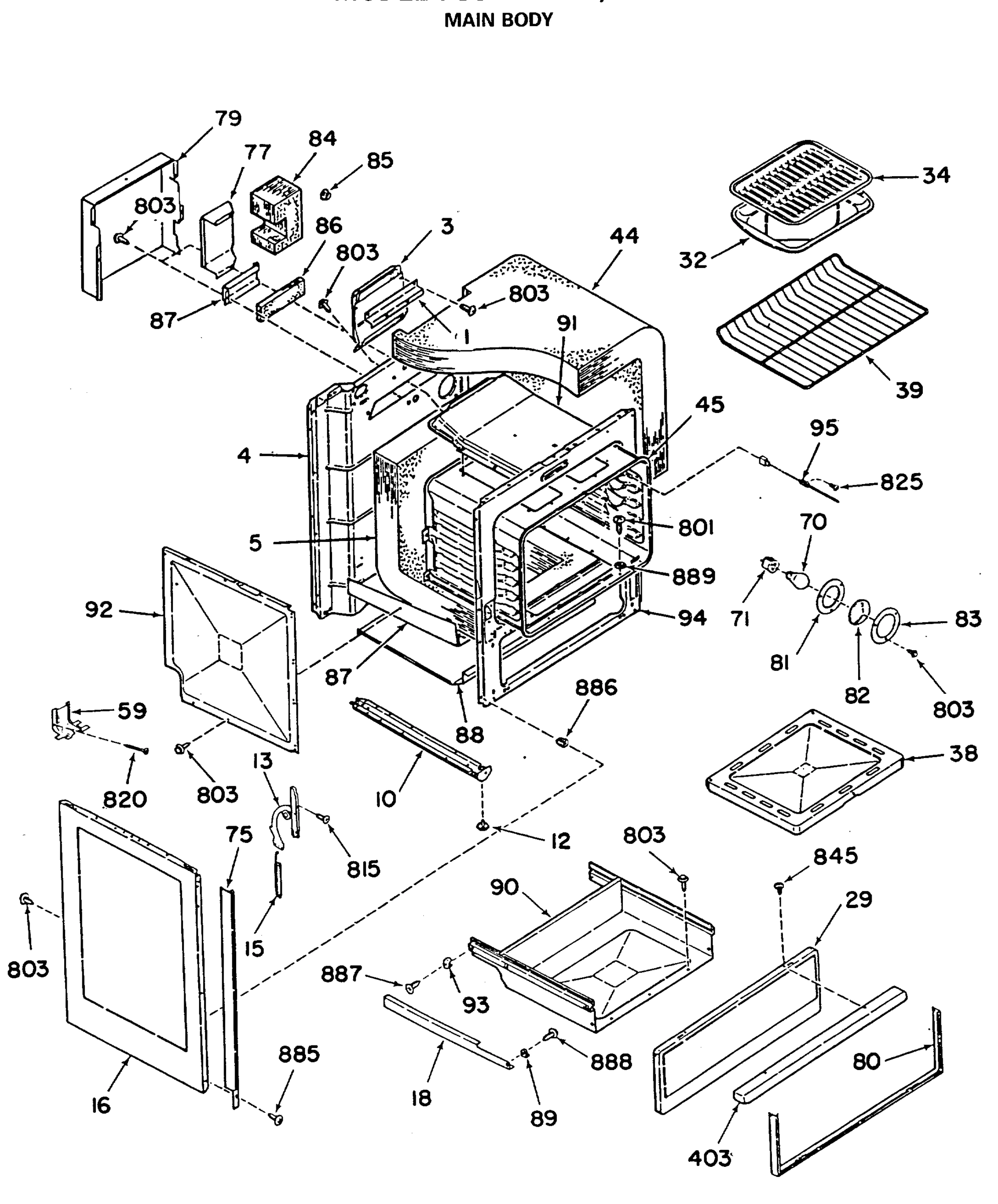

MAIN BODY

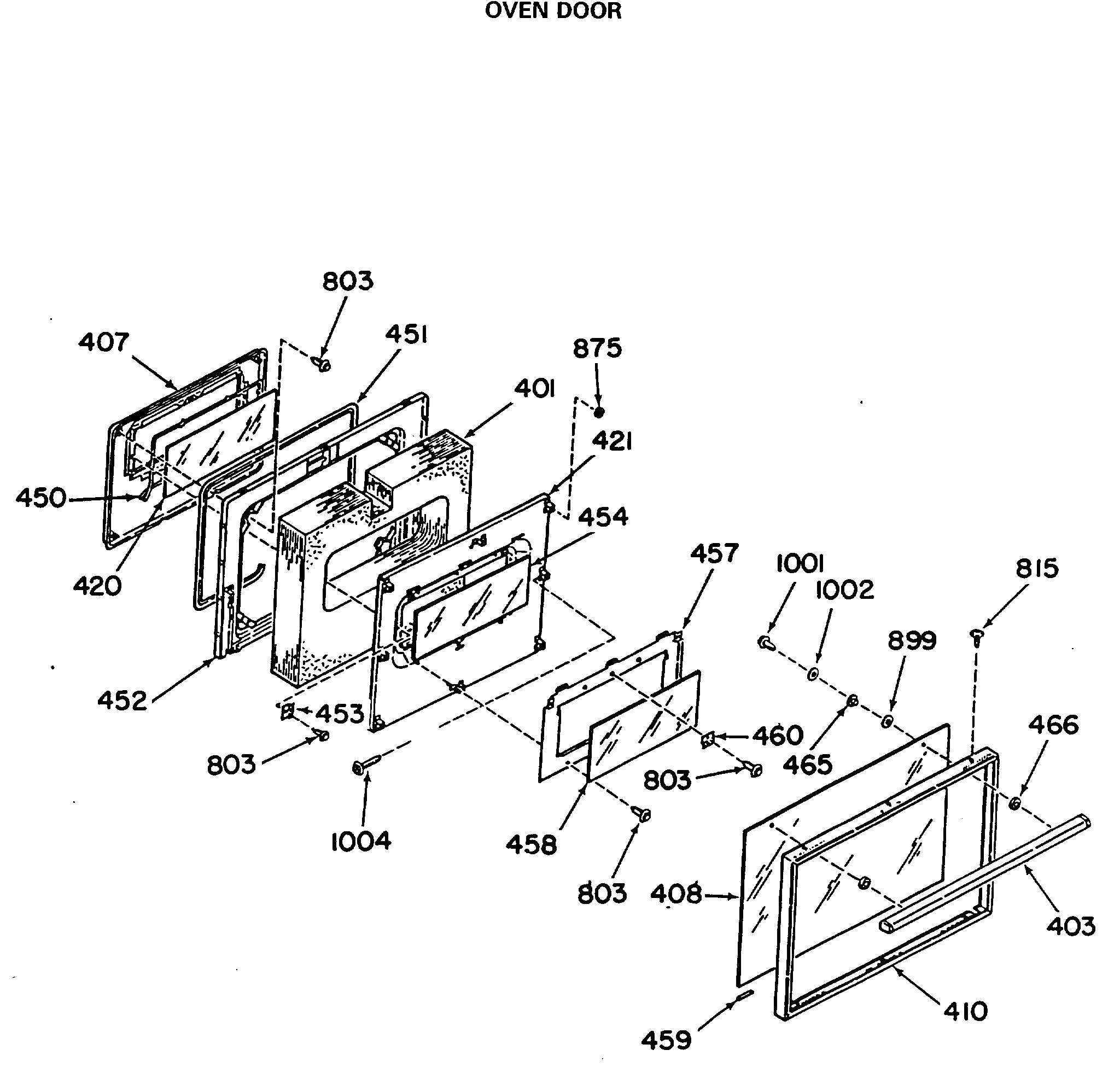

OVEN DOOR

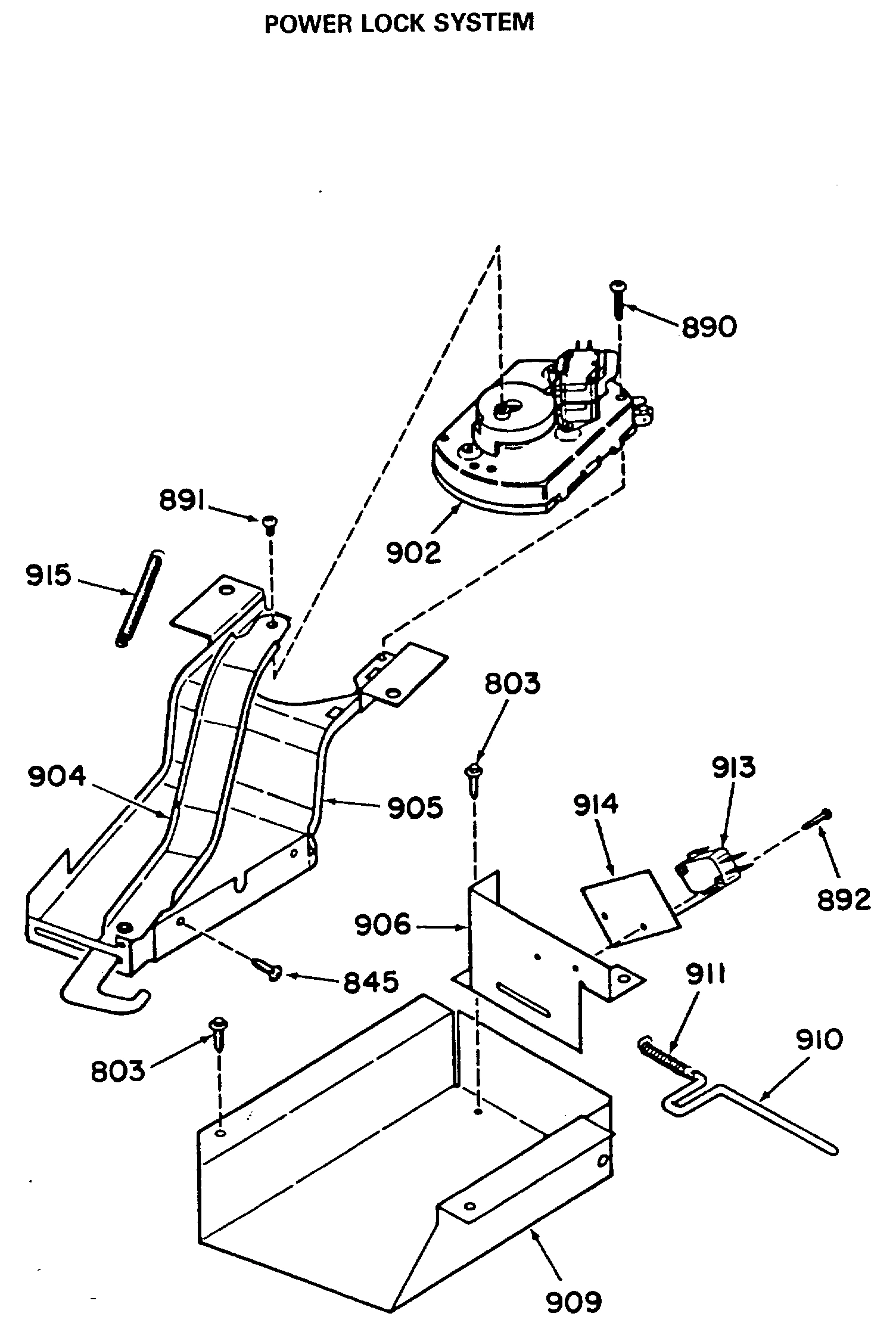

POWER LOCK SYSTEM
Common parts from model GE JGSP10GEK1
1
GEN WB02X9094 GEN WB02X9094 Contact Us For Availability
3
GEN WB38X0108 GEN WB38X0108 Contact Us For Availability
4
GEN WB63X0337 GEN WB63X0337 Contact Us For Availability
5
INSULATION-BACK & BOTTOM GEN WB02X9144 Contact Us For Availability
10
GEN WB02X9113 GEN WB02X9113 Contact Us For Availability
12
LEG-LEVELING GEN WB02X9188 Contact Us For Availability
15
SPRING-OVEN DOOR-RT/LT GEN WB09X0244 Contact Us For Availability
16
GEN WB63X0332 GEN WB63X0332 Contact Us For Availability
18
GEN WB02X9147 GEN WB02X9147 Contact Us For Availability
29
GEN WB02X9143 GEN WB02X9143 Contact Us For Availability
29
GEN WB56X1950 GEN WB56X1950 Contact Us For Availability
38
GEN WB36X0754 GEN WB36X0754 Contact Us For Availability
38
GEN WB63X0335 GEN WB63X0335 Contact Us For Availability
39
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
44
GEN WB02X9153 GEN WB02X9153 Contact Us For Availability
45
GEN WB53X0276 GEN WB53X0276 Contact Us For Availability
49
DISCONNECT GEN WB17X0207 Contact Us For Availability
51
CORD-POWER SUPPLY GEN WB18X0300 Contact Us For Availability
51
GEN WB18X0311 GEN WB18X0311 Contact Us For Availability
51
GEN WB18X0312 GEN WB18X0312 Contact Us For Availability
51
GEN WB18X0313 GEN WB18X0313 Contact Us For Availability
51
GEN WB18X0315 GEN WB18X0315 Contact Us For Availability
51
HARNESS-SENSOR GEN WB18X0352 Contact Us For Availability
51
GEN WB18X0353 GEN WB18X0353 Contact Us For Availability
52
BULB-40 W APPLIANCE GEN BUY LOCAL Contact Us For Availability
53
GEN WB02X9103 GEN WB02X9103 Contact Us For Availability
55
GEN WB20X0107 GEN WB20X0107 Contact Us For Availability
71
GEN WB08X0279 GEN WB08X0279 Contact Us For Availability
74
TUBE-VALVE/OVEN BURNER GEN WB02X9164 Contact Us For Availability
75
GEN WB07X1583 GEN WB07X1583 Contact Us For Availability
75
GEN WB07X1584 GEN WB07X1584 Contact Us For Availability
77
GEN WB02X9139 GEN WB02X9139 Contact Us For Availability
79
GEN WB02X9115 GEN WB02X9115 Contact Us For Availability
81
GASKET-OVEN LAMP LENS GEN WB02X9151 Contact Us For Availability
83
RETAINER-OVEN LAMP LENS GEN WB02X9150 Contact Us For Availability
84
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
86
GEN WB02X9142 GEN WB02X9142 Contact Us For Availability
87
GEN WB02X9141 GEN WB02X9141 Contact Us For Availability
87
RETAINER-INSULATION-LOW GEN WB02X9149 Contact Us For Availability
88
BAFFLE-HEAT GEN WB49X0626 Contact Us For Availability
89
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
90
DRAWER-STORAGE GEN WB58X0063 Contact Us For Availability
91
GEN WB38X0109 GEN WB38X0109 Contact Us For Availability
92
GEN WB02X9145 GEN WB02X9145 Contact Us For Availability
93
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
94
GEN WB63X0338 GEN WB63X0338 Contact Us For Availability
305
HINGE-COOKTOP-RIGHT GEN WB14X0109 Contact Us For Availability
305
HINGE-COOKTOP-LEFT GEN WB14X0110 Contact Us For Availability
307
GEN WB49X0632 GEN WB49X0632 Contact Us For Availability
309
ROD-COOKTOP SUPPORT GEN WB02X9112 Contact Us For Availability
313
GEN WB07X1604 GEN WB07X1604 Contact Us For Availability
314
GEN WB03X0769 GEN WB03X0769 Contact Us For Availability
316
SWITCH-OVEN LIGHT GEN WB24X0415 Contact Us For Availability
321
DRIP PAN GEN WB32X0102 Contact Us For Availability
325
GEN WB07X1581 GEN WB07X1581 Contact Us For Availability
325
GEN WB07X1582 GEN WB07X1582 Contact Us For Availability
326
GEN WB02X9111 GEN WB02X9111 Contact Us For Availability
330
GEN WB02X9109 GEN WB02X9109 Contact Us For Availability
331
GEN WB02X9273 GEN WB02X9273 Contact Us For Availability
340
GEN WB02X9137 GEN WB02X9137 Contact Us For Availability
341
GEN WB19X0247 GEN WB19X0247 Contact Us For Availability
342
LENS ASSEMBLY-CLOCK GEN WB02X9134 Contact Us For Availability
343
KNOB-CLOCK GEN WB03X0770 Contact Us For Availability
350
GEN WB02X9110 GEN WB02X9110 Contact Us For Availability
350
GEN WB02X9132 GEN WB02X9132 Contact Us For Availability
355
GEN WB26X0100 GEN WB26X0100 Contact Us For Availability
356
GEN WB02X9275 GEN WB02X9275 Contact Us For Availability
357
GEN WB02X9130 GEN WB02X9130 Contact Us For Availability
358
GEN WB02X9136 GEN WB02X9136 Contact Us For Availability
359
BRACKET-FAN GEN WB02X9131 Contact Us For Availability
360
GEN WB02X9370 GEN WB02X9370 Contact Us For Availability
360
GEN WB02X9371 GEN WB02X9371 Contact Us For Availability
365
GEN WB02X9138 GEN WB02X9138 Contact Us For Availability
401
GEN WB02X9169 GEN WB02X9169 Contact Us For Availability
403
GEN WB15X0272 GEN WB15X0272 Contact Us For Availability
403
GEN WB15X0273 GEN WB15X0273 Contact Us For Availability
407
PLUG-OVEN DOOR LINER GEN WB02X9171 Contact Us For Availability
410
FRAME-OVEN DOOR GEN WB07X1622 Contact Us For Availability
420
INNER GLASS-OVEN DOOR GEN WB56X1905 Contact Us For Availability
421
GEN WB02X9372 GEN WB02X9372 Contact Us For Availability
428
SPACER GEN WB02X9039 Contact Us For Availability
452
LINER-OVEN DOOR GEN WB56X1904 Contact Us For Availability
453
RETAINER-DOOR GLASS GEN WB02X9177 Contact Us For Availability
454
GEN WB56X1907 GEN WB56X1907 Contact Us For Availability
457
PLATE-GLASS MOUNTING GEN WB02X9178 Contact Us For Availability
458
GLASS-MIDDLE-OVEN DOOR GEN WB56X1906 Contact Us For Availability
459
GEN WB02X9036 GEN WB02X9036 Contact Us For Availability
460
GEN WB02X9174 GEN WB02X9174 Contact Us For Availability
466
SPACER-HANDLE-OVEN DOOR GEN WB02X9037 Contact Us For Availability
702
BRACKET-SPARK IGNITER GEN WB02X9003 Contact Us For Availability
703
GEN WB02X9277 GEN WB02X9277 Contact Us For Availability
703
GEN WB02X9278 GEN WB02X9278 Contact Us For Availability
704
GEN WB28X0085 GEN WB28X0085 Contact Us For Availability
704
GEN WB28X0086 GEN WB28X0086 Contact Us For Availability
705
GEN WB28X0084 GEN WB28X0084 Contact Us For Availability
705
GEN WB28X0087 GEN WB28X0087 Contact Us For Availability
707
GEN WB02X9119 GEN WB02X9119 Contact Us For Availability
708
GEN WB02X9007 GEN WB02X9007 Contact Us For Availability
713
GEN WB02X9008 GEN WB02X9008 Contact Us For Availability
717
GEN WB02X9280 GEN WB02X9280 Contact Us For Availability
717
SWITCH-VALVE-TOP BURNER GEN WB24X0419 Contact Us For Availability
720
GEN WB21X0483 GEN WB21X0483 Contact Us For Availability
721
GASKET-TOP BURNER VALVE GEN WB02X9011 Contact Us For Availability
722
GEN WB02X9279 GEN WB02X9279 Contact Us For Availability
723
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
725
GEN WB49X0631 GEN WB49X0631 Contact Us For Availability
726
GEN WB28X0089 GEN WB28X0089 Contact Us For Availability
729
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
751
GEN WB02X9155 GEN WB02X9155 Contact Us For Availability
752
BAFFLE-BROILER BURNER GEN WB49X0629 Contact Us For Availability
753
GEN WB28X0088 GEN WB28X0088 Contact Us For Availability
754
BAFFLE-BURNER-BROILER GEN WB49X0630 Contact Us For Availability
756
TUBE-CONTROL VALVE/BROIL GEN WB02X9157 Contact Us For Availability
757
ORIFICE FITTING GEN WB02X9156 Contact Us For Availability
758
RELAY CIRCUIT BOARD GEN WB27X0425 Contact Us For Availability
759
GEN WB02X9158 GEN WB02X9158 Contact Us For Availability
760
GEN WB02X9159 GEN WB02X9159 Contact Us For Availability
761
BRACKET-MOUNTING GEN WB02X9160 Contact Us For Availability
763
GEN WB02X9161 GEN WB02X9161 Contact Us For Availability
764
GEN WB21X0475 GEN WB21X0475 Contact Us For Availability
770
VALVE--SHUT-OFF GEN WB21X0482 Contact Us For Availability
770
GEN WB53X0277 GEN WB53X0277 Contact Us For Availability
775
GEN WB02X9165 GEN WB02X9165 Contact Us For Availability
776
GEN WB02X9166 GEN WB02X9166 Contact Us For Availability
777
BRACKET-CONTROL VALVE GEN WB02X9167 Contact Us For Availability
801
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
805
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
808
SCREW-VALVE GEN WB01X1121 Contact Us For Availability
810
SCREW-ADJUST GEN WB01X1124 Contact Us For Availability
820
GEN WB01X1152 GEN WB01X1152 Contact Us For Availability
822
GEN WB01X1154 GEN WB01X1154 Contact Us For Availability
846
GEN WB01X1162 GEN WB01X1162 Contact Us For Availability
874
GEN WB01X1140 GEN WB01X1140 Contact Us For Availability
875
WASHER-FELT GEN WB01X1159 Contact Us For Availability
886
EXPANSION NUT-SPACER GEN WB01X1177 Contact Us For Availability
889
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
890
GEN WB01X1168 GEN WB01X1168 Contact Us For Availability
891
SCREW GEN WB01X1169 Contact Us For Availability
892
GEN WB01X1170 GEN WB01X1170 Contact Us For Availability
897
SCREW GEN WB01X1179 Contact Us For Availability
898
GEN WB01X1182 GEN WB01X1182 Contact Us For Availability
899
WASHER GEN WB01X1138 Contact Us For Availability
902
GEN WB26X0099 GEN WB26X0099 Contact Us For Availability
904
GEN WB02X9124 GEN WB02X9124 Contact Us For Availability
905
PLATE-DOOR LOCK GEN WB02X9125 Contact Us For Availability
906
BRACKET-DOOR SWITCH GEN WB02X9127 Contact Us For Availability
909
GEN WB02X9126 GEN WB02X9126 Contact Us For Availability
910
SWITCH ACTUATOR PIN GEN WB02X9128 Contact Us For Availability
911
SPRING-ACTUATOR PIN GEN WB09X0242 Contact Us For Availability
913
SWITCH-DOOR LOCK GEN WB24X0416 Contact Us For Availability
914
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
915
SPRING-DOOR LOCK GEN WB09X0243 Contact Us For Availability
1004
GEN WB01X1184 GEN WB01X1184 Contact Us For Availability
1006
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
1007
SCREW 6-32 GEN WB01X1132 Contact Us For Availability
32767
GEN 3-A018 GEN 3-A018 Contact Us For Availability
32767
INSTALATION INSTRUCTION GEN 31-0682 Contact Us For Availability
32767
GEN 49-4898 GEN 49-4898 Contact Us For Availability
32767
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
× ![]()
