Model GE JGSC12GET1BG – Common Parts & Diagrams

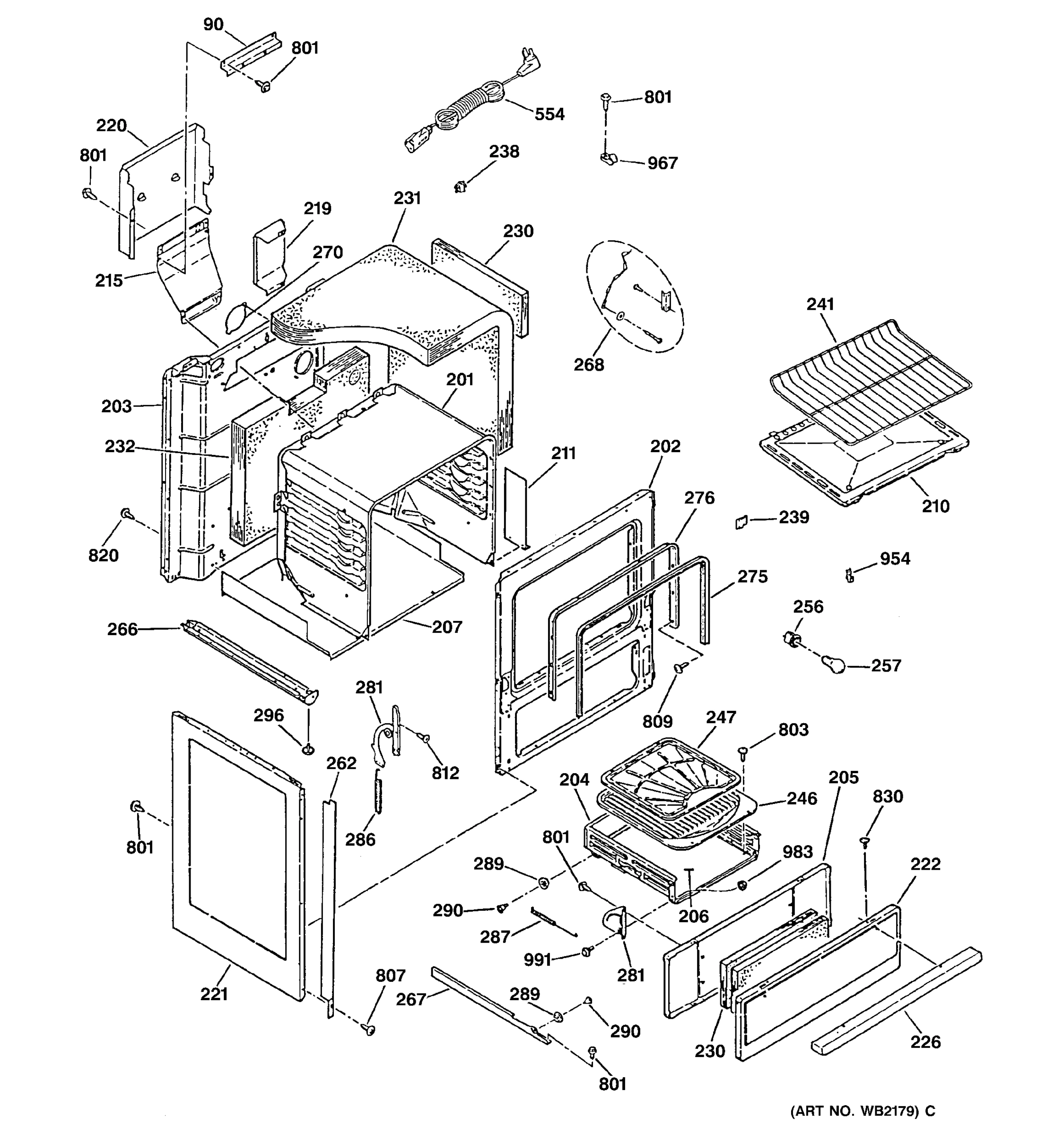

BODY PARTS

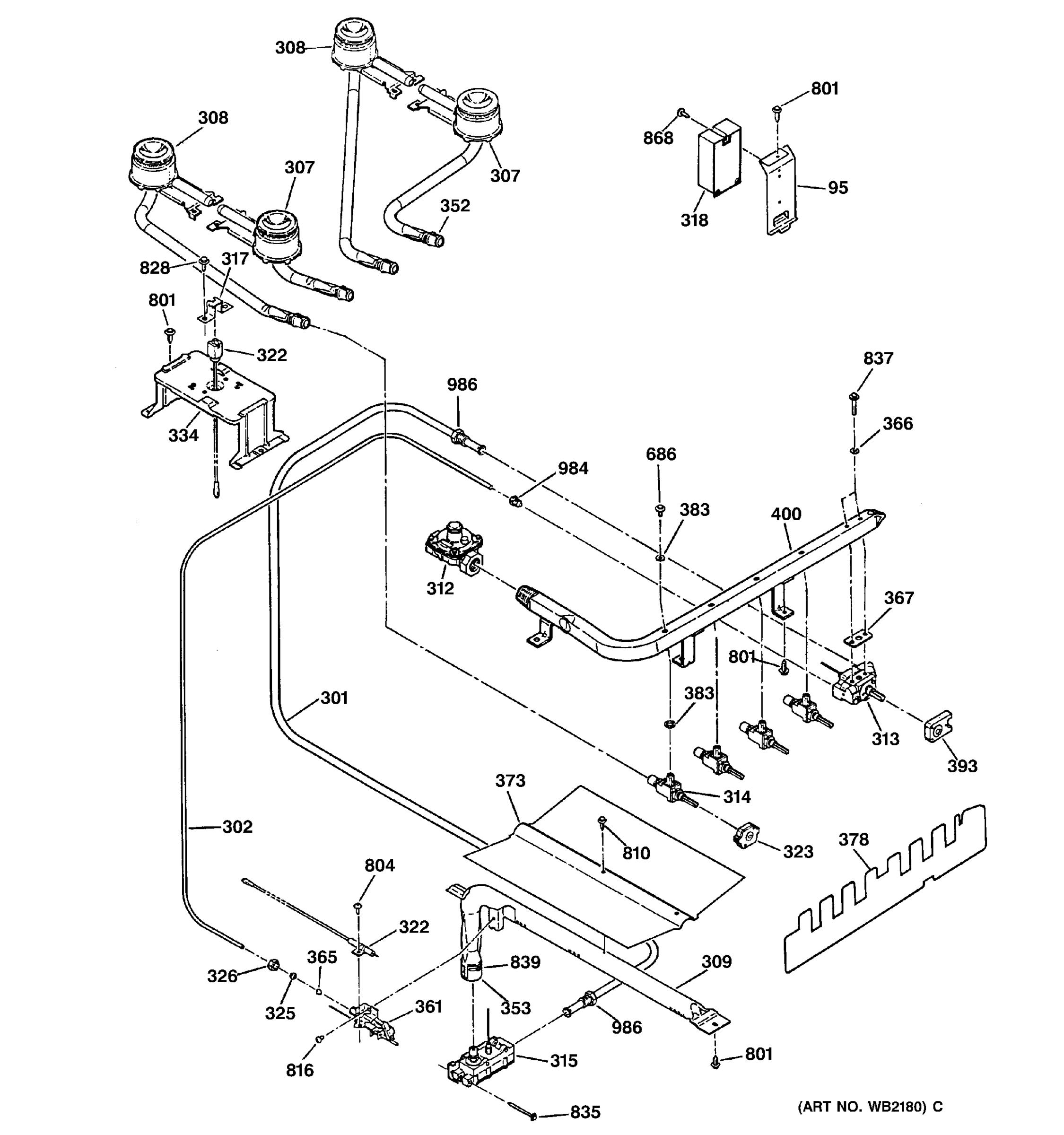

BURNER PARTS

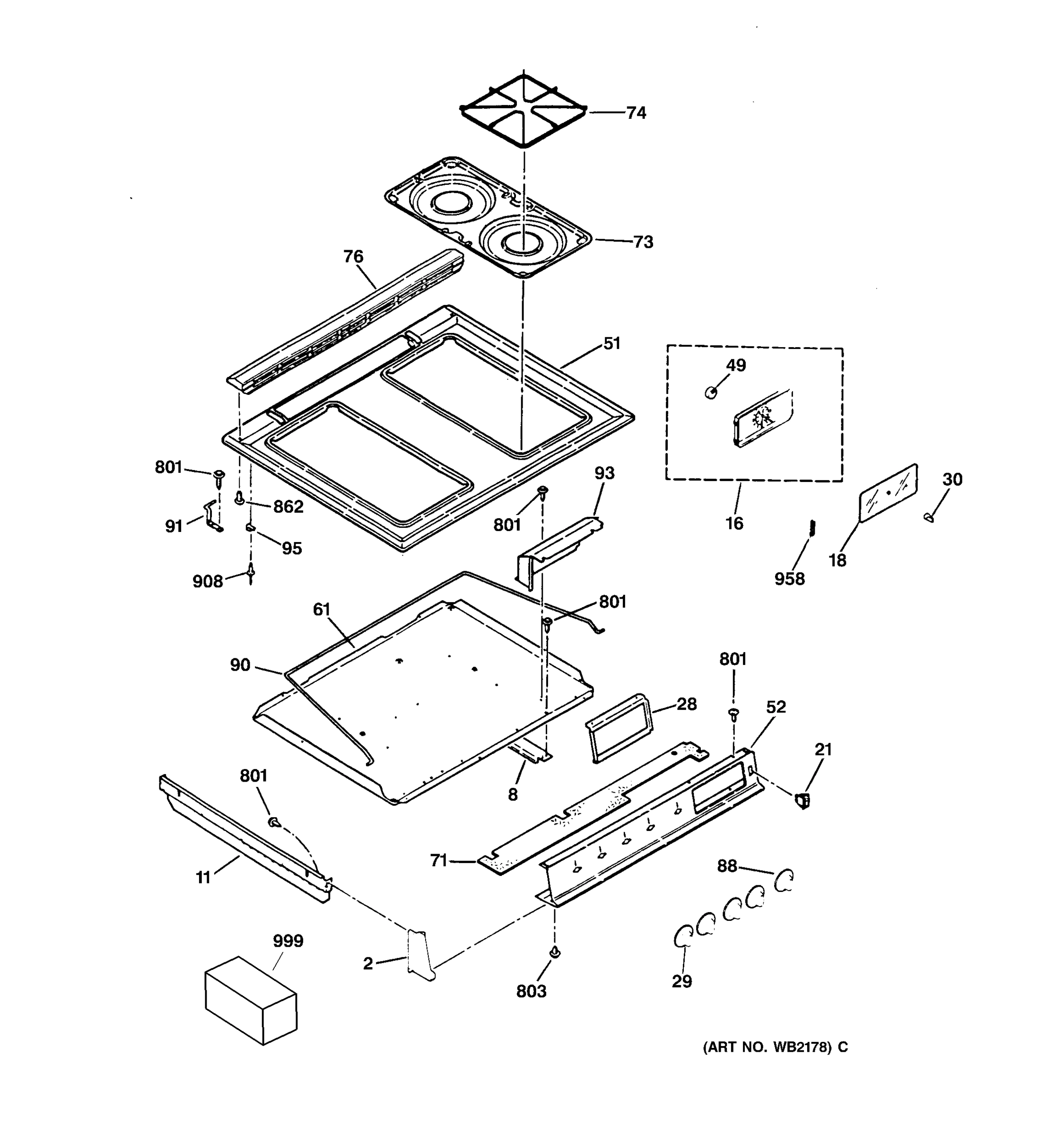

CONTROL PANEL & COOKTOP

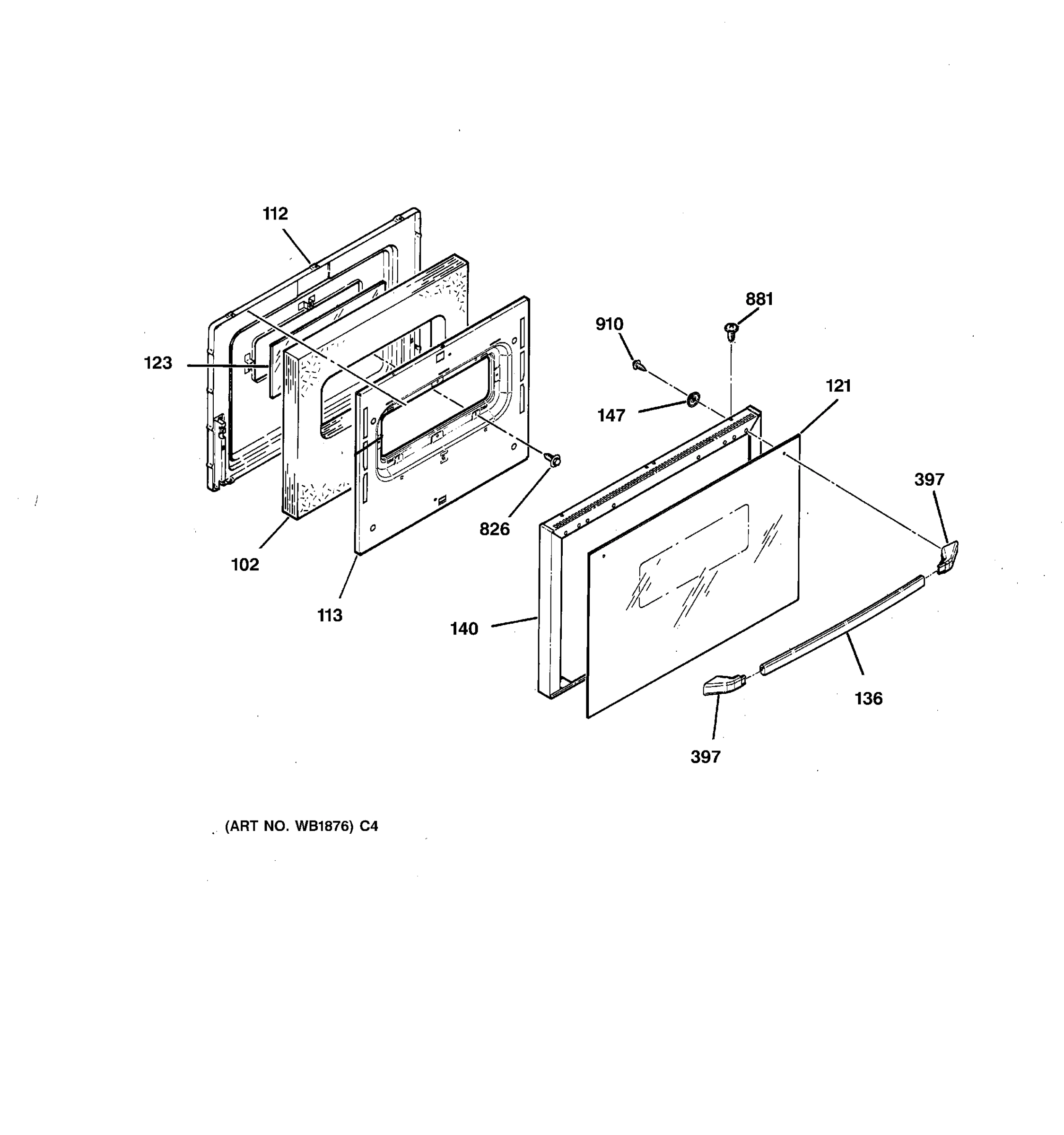

DOOR
Common parts from model GE JGSC12GET1BG
2
GEN WB36K5379 GEN WB36K5379 Contact Us For Availability
2
GEN WB36K5378 GEN WB36K5378 Contact Us For Availability
8
BBB STIFFENER-LT GEN WB02X9110 Contact Us For Availability
11
SIDE EXTENSION GEN WB64K5038 Contact Us For Availability
16
GEN WB11K5030 GEN WB11K5030 Contact Us For Availability
18
CLOCK GLASS GEN WB36X0758 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
28
CLOCK BRACKET GEN WB02X9272 Contact Us For Availability
29
GEN WB03K5223 GEN WB03K5223 Contact Us For Availability
30
GEN WB03X0766 GEN WB03X0766 Contact Us For Availability
49
GEN WB11X0008 GEN WB11X0008 Contact Us For Availability
51
GEN WB62K5034 GEN WB62K5034 Contact Us For Availability
52
GEN WB36K5490 GEN WB36K5490 Contact Us For Availability
61
BURNER BOX BOTTOM GEN WB49X0624 Contact Us For Availability
71
GEN WB35K5107 GEN WB35K5107 Contact Us For Availability
73
DRIP PAN GEN WB32X0102 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
76
GEN WB34K5213 GEN WB34K5213 Contact Us For Availability
88
GEN WB03K5224 GEN WB03K5224 Contact Us For Availability
90
DEFL FLUE Z-SUPPORT GEN WB02X9094 Contact Us For Availability
90
GEN WB02X9112 GEN WB02X9112 Contact Us For Availability
91
GEN WB14X0109 GEN WB14X0109 Contact Us For Availability
91
GEN WB14X0110 GEN WB14X0110 Contact Us For Availability
93
WIRE COVER GEN WB02X9271 Contact Us For Availability
95
GEN WB02K5098 GEN WB02K5098 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
GEN WB55M0008 GEN WB55M0008 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
121
GEN WB57K5235 GEN WB57K5235 Contact Us For Availability
123
GEN WB57K5038 GEN WB57K5038 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
203
GEN WB63K5140 GEN WB63K5140 Contact Us For Availability
204
BRO DRAWER ASM W/ROLLER GEN WB58M0001 Contact Us For Availability
205
GEN WB55K5057 GEN WB55K5057 Contact Us For Availability
206
GEN WB49X0625 GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
215
GEN WB34K5151 GEN WB34K5151 Contact Us For Availability
219
GEN WB02X9114 GEN WB02X9114 Contact Us For Availability
220
FLUE DEFLECTOR SHIELD GEN WB02X9115 Contact Us For Availability
221
GEN WB63K5191 GEN WB63K5191 Contact Us For Availability
221
BODY SIDE-SMOOTH GEN WB63X0415 Contact Us For Availability
222
GEN WB56M0011 GEN WB56M0011 Contact Us For Availability
226
GEN WB15K5095 GEN WB15K5095 Contact Us For Availability
230
GEN WB02X9032 GEN WB02X9032 Contact Us For Availability
231
OV BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
GEN WB02X9631 GEN WB02X9631 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
246
GEN WB49X0619 GEN WB49X0619 Contact Us For Availability
247
GEN WB49X0620 GEN WB49X0620 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5335 GEN WB07K5335 Contact Us For Availability
262
GEN WB07K5336 GEN WB07K5336 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
GEN WB39M0004 GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
275
GEN WB02X9028 GEN WB02X9028 Contact Us For Availability
276
DOOR SEAL RETAINER GEN WB02K5123 Contact Us For Availability
281
GEN WB14K5018 GEN WB14K5018 Contact Us For Availability
281
GEN WB14K5019 GEN WB14K5019 Contact Us For Availability
286
GEN WB09X0267 GEN WB09X0267 Contact Us For Availability
287
GEN WB09X0240 GEN WB09X0240 Contact Us For Availability
289
GEN WB02X9638 GEN WB02X9638 Contact Us For Availability
290
GEN WB01X1331 GEN WB01X1331 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
GEN WB28K5019 GEN WB28K5019 Contact Us For Availability
302
GEN WB28K5012 GEN WB28K5012 Contact Us For Availability
307
GEN WB16K5025 GEN WB16K5025 Contact Us For Availability
307
TOP BURNER-FRONT-LEFT GEN WB28X0113 Contact Us For Availability
308
GEN WB28X0086 GEN WB28X0086 Contact Us For Availability
308
TOP BURNER-REAR-LEFT GEN WB28X0115 Contact Us For Availability
309
GEN WB16M0008 GEN WB16M0008 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
GEN WB20K5010 GEN WB20K5010 Contact Us For Availability
314
GEN WB21K5027 GEN WB21K5027 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
317
IGNITER BRACKET-TOP BURN GEN WB02X9003 Contact Us For Availability
318
SPARK MODULE GEN WB20X0104 Contact Us For Availability
322
IGNITER GEN WB02X9117 Contact Us For Availability
322
IGNITER-TOP BURNER-LEFT GEN WB02X9532 Contact Us For Availability
322
GEN WB13K5073 GEN WB13K5073 Contact Us For Availability
323
GEN WB24K5120 GEN WB24K5120 Contact Us For Availability
325
TUBING SLEEVE 3/16 GEN WB02X9751 Contact Us For Availability
326
GEN WB01X1126 GEN WB01X1126 Contact Us For Availability
334
TOP BURN SUPPORT GEN WB02X9119 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
PILOT GEN WB02X9015 Contact Us For Availability
365
CUP PILOT ORIF (RPR) GEN WB02X9017 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
367
THERMOSTAT GASKET GEN WB02X9010 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
378
GEN WB35K5108 GEN WB35K5108 Contact Us For Availability
383
GEN WB04K5002 GEN WB04K5002 Contact Us For Availability
383
GEN WB04K5003 GEN WB04K5003 Contact Us For Availability
393
IGNITER SWITCH-THERMO GEN WB24X0411 Contact Us For Availability
400
GEN WB28K5066 GEN WB28K5066 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
686
GEN WB01K5171 GEN WB01K5171 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
839
AIR SHUTTER SCREW GEN WB01X1124 Contact Us For Availability
854
SCREW-BRT. NI. GEN WB01X1164 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
868
GEN WB01X1166 GEN WB01X1166 Contact Us For Availability
881
GEN WB01X1271 GEN WB01X1271 Contact Us For Availability
908
POP RIVET GEN WB01X1114 Contact Us For Availability
954
THERMOSTAT BULB RET CLIP GEN WB02X9105 Contact Us For Availability
958
CLOCK BEZEL CLIP GEN WB02X9274 Contact Us For Availability
967
HARNESS CLAMP GEN WB02X1422 Contact Us For Availability
983
GEN WB01X1153 GEN WB01X1153 Contact Us For Availability
984
GEN WB01X1120 GEN WB01X1120 Contact Us For Availability
986
NUT GEN WB01X1117 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-10040 GEN 31-10040 Contact Us For Availability
999
GEN 31-13078 GEN 31-13078 Contact Us For Availability
999
GEN 49-8523 GEN 49-8523 Contact Us For Availability
999
GEN WB18K5127 GEN WB18K5127 Contact Us For Availability
999
GEN WB18K5128 GEN WB18K5128 Contact Us For Availability
999
MODULE WIRE HARNESS GEN WB18X0307 Contact Us For Availability
× ![]()
