Model GE JGSC12GEP1 – Common Parts & Diagrams
0
1
2
3

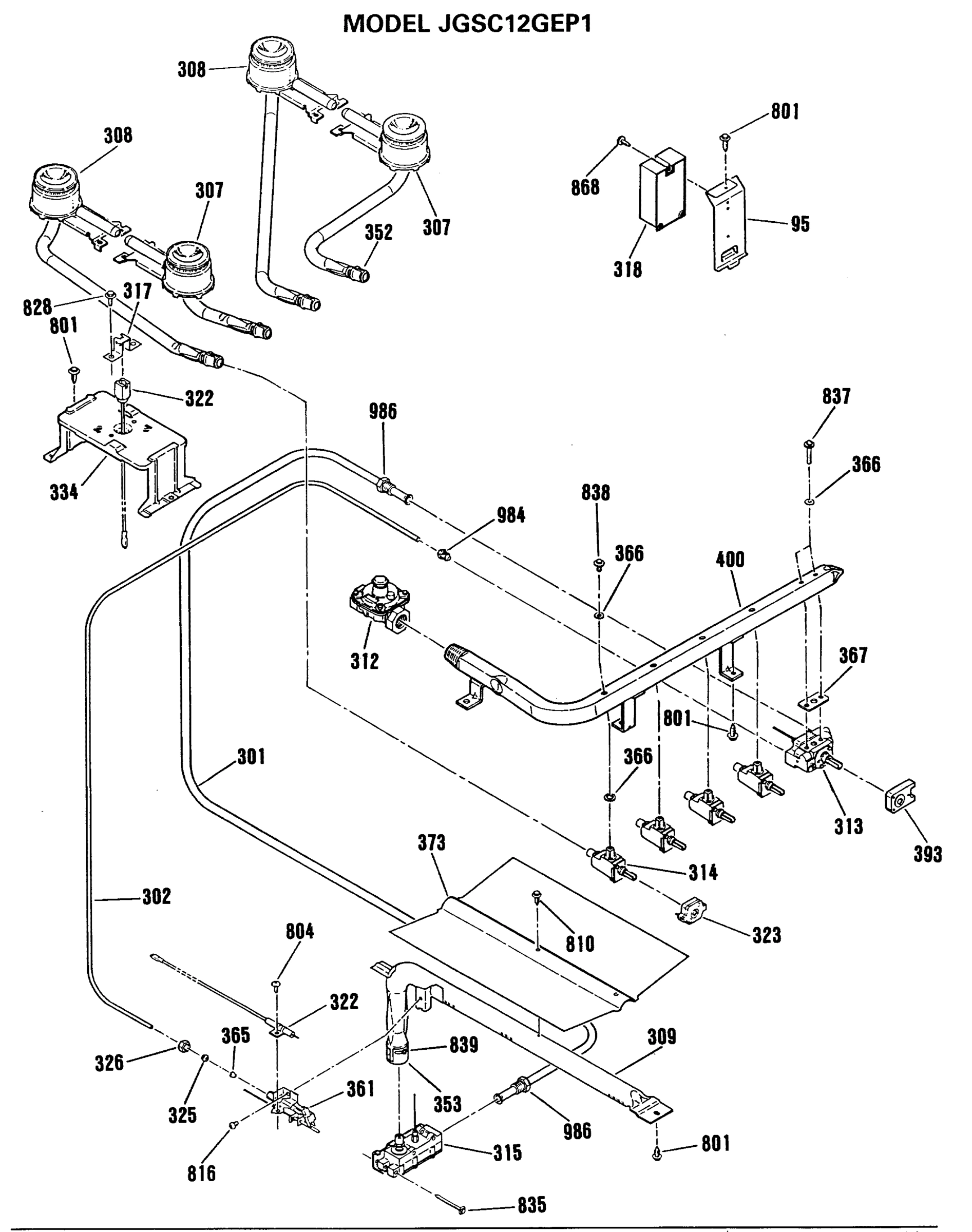

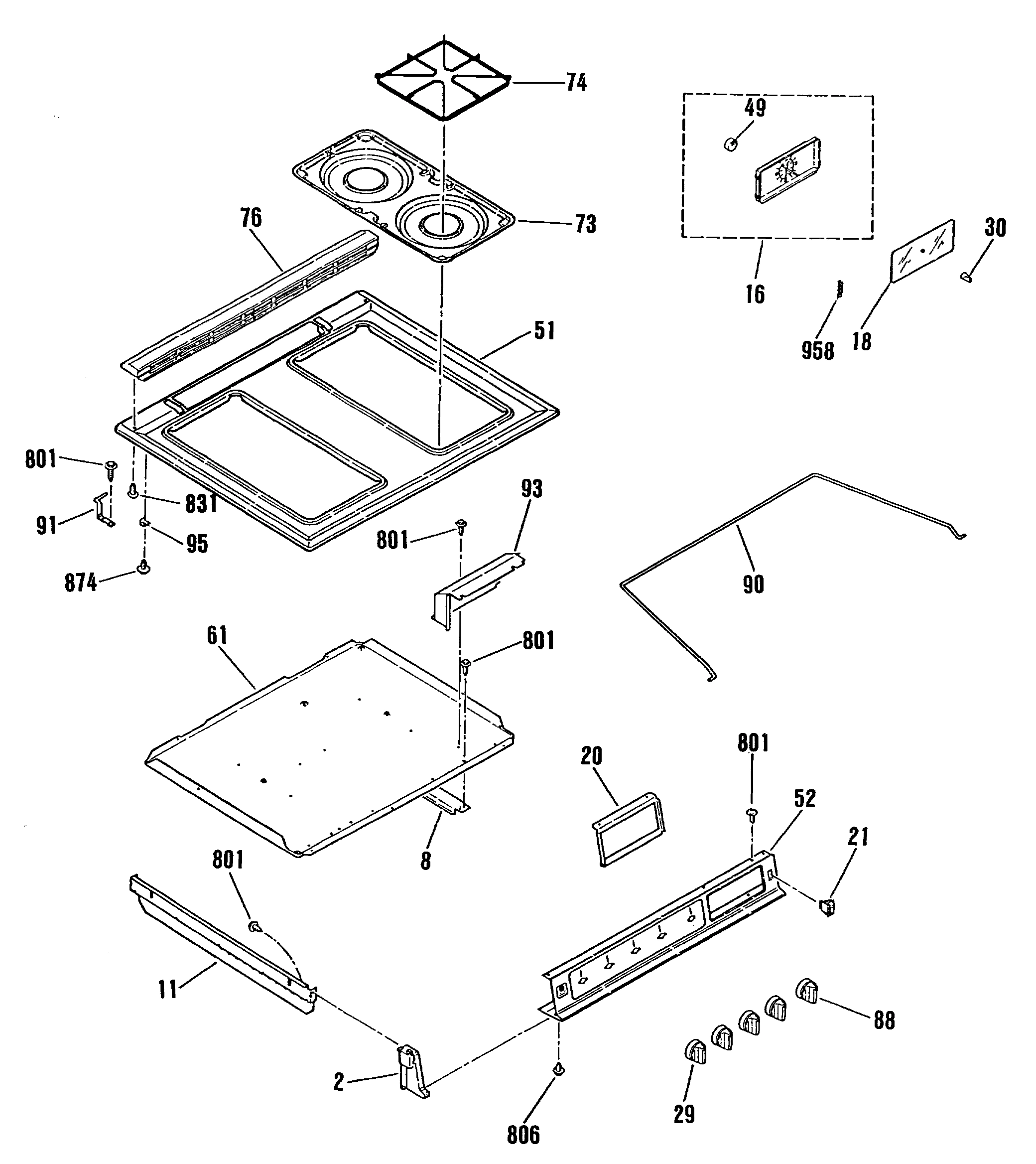

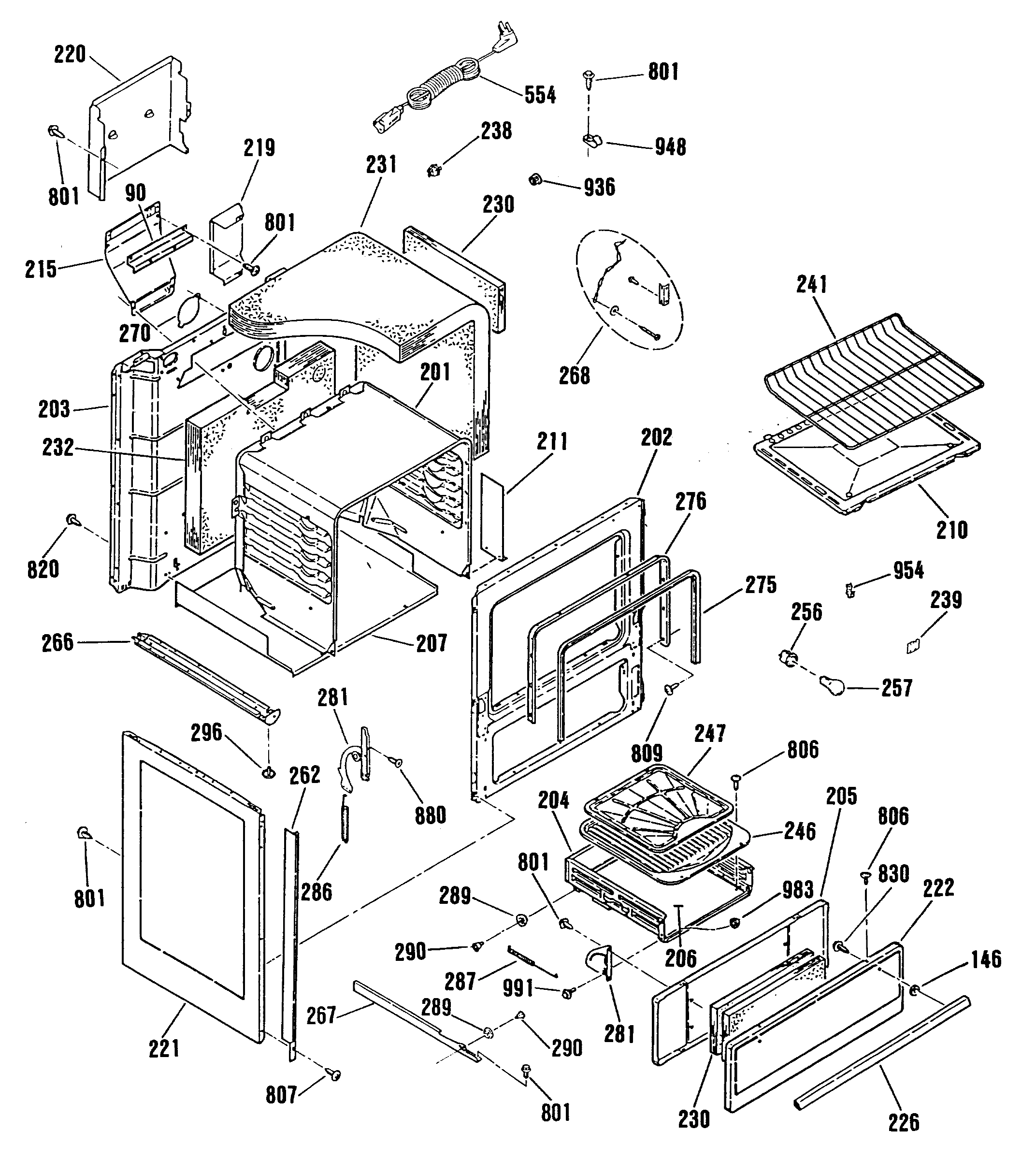

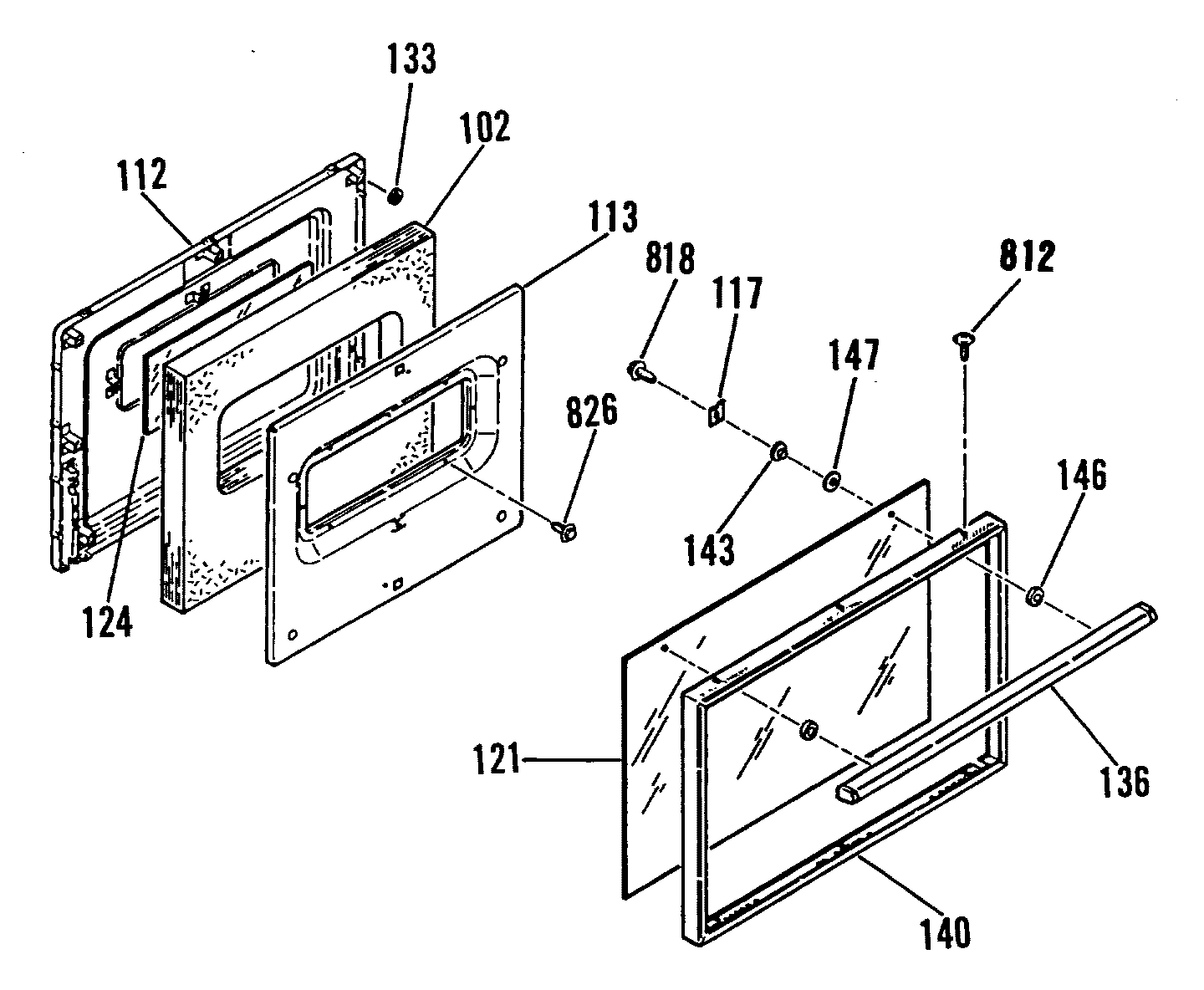

Common parts from model GE JGSC12GEP1
2
END CAP-RT GEN WB07X1582 Contact Us For Availability
8
BBB STIFFENER GEN WB02X9110 Contact Us For Availability
11
GEN WB64M0008 GEN WB64M0008 Contact Us For Availability
16
CLOCK W/4 HR TIMER GEN WB19X0249 Contact Us For Availability
18
CLOCK GLASS GEN WB36X0758 Contact Us For Availability
20
CLOCK BRACKET GEN WB02X9272 Contact Us For Availability
21
GEN WB24X0435 GEN WB24X0435 Contact Us For Availability
29
CONTROL KNOB GEN WB03X0768 Contact Us For Availability
30
GEN WB03X0766 GEN WB03X0766 Contact Us For Availability
49
CLOCK ROTOR 50 CYCLE GEN WB11M0002 Contact Us For Availability
49
CLOCK ROTOR 60 CYCLE GEN WB11X0008 Contact Us For Availability
51
GEN WB62K5034 GEN WB62K5034 Contact Us For Availability
52
GEN WB36K5056 GEN WB36K5056 Contact Us For Availability
61
BURNER BOX BOTTOM GEN WB49X0624 Contact Us For Availability
73
AERATION PAN GEN WB32X0102 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
76
GEN WB34K5060 GEN WB34K5060 Contact Us For Availability
88
THERMOSTAT KNOB GEN WB03X0767 Contact Us For Availability
90
DEFL FLUE Z-SUPPORT GEN WB02X9094 Contact Us For Availability
90
GEN WB02X9112 GEN WB02X9112 Contact Us For Availability
91
GEN WB14X0109 GEN WB14X0109 Contact Us For Availability
91
GEN WB14X0110 GEN WB14X0110 Contact Us For Availability
93
WIRE COVER GEN WB02X9271 Contact Us For Availability
95
GEN WB02K5098 GEN WB02K5098 Contact Us For Availability
95
GEN WB10X0255 GEN WB10X0255 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
OV DR LINING GEN WB56M0002 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X1910 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OV DR INNER GLASS GEN WB57K5038 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0272 Contact Us For Availability
140
OV DR FRAME GEN WB07X1585 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
201
OVEN BODY GEN WB53X0275 Contact Us For Availability
202
GEN WB63X0333 GEN WB63X0333 Contact Us For Availability
203
GEN WB63K5063 GEN WB63K5063 Contact Us For Availability
204
BROILER DRAWER BOTTOM GEN WB49X0625 Contact Us For Availability
204
BROILER DRAWER W/ROLLER GEN WB58M0001 Contact Us For Availability
205
BROILER DOOR LINING GEN WB56X2015 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
215
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
219
GEN WB02X9114 GEN WB02X9114 Contact Us For Availability
220
FLUE DEFLECTOR SHIELD GEN WB02X9115 Contact Us For Availability
221
GEN WB63X0415 GEN WB63X0415 Contact Us For Availability
222
LOWER FRONT PANEL GEN WB56X2057 Contact Us For Availability
226
GEN WB15X0270 GEN WB15X0270 Contact Us For Availability
230
INSULATION-BBB OR BRO DR GEN WB02X9394 Contact Us For Availability
231
OV BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9631 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
241
OV RACK GEN WB48X0210 Contact Us For Availability
246
BROILER PAN GEN WB49X0619 Contact Us For Availability
247
BROILER PAN GRID GEN WB49X0620 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
SIDE TRIM-LT GEN WB07X1583 Contact Us For Availability
262
SIDE TRIM-RT GEN WB07X1584 Contact Us For Availability
266
GEN WB02M0033 GEN WB02M0033 Contact Us For Availability
267
GEN WB39M0004 GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
275
GEN WB06X0105 GEN WB06X0105 Contact Us For Availability
276
DOOR SEAL RETAINER GEN WB02K5123 Contact Us For Availability
281
BROILER DRAWER HINGE-LT GEN WB14X0116 Contact Us For Availability
281
BROILER DRAWER HINGE-RT GEN WB14X0117 Contact Us For Availability
286
GEN WB09X0267 GEN WB09X0267 Contact Us For Availability
287
BROILER DRAWER SPRING GEN WB09X0240 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
RIVET GEN WB01X1331 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
TUBE W/NUTS 3/8 GEN WB02X9753 Contact Us For Availability
302
TUBE 3/16 GEN WB28K5006 Contact Us For Availability
307
GEN WB16M0009 GEN WB16M0009 Contact Us For Availability
307
GEN WB28X0113 GEN WB28X0113 Contact Us For Availability
308
GEN WB28X0086 GEN WB28X0086 Contact Us For Availability
308
GEN WB28X0115 GEN WB28X0115 Contact Us For Availability
309
OV BURN ASM (309,373,801 GEN WB16K5011 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
GEN WB20K5010 GEN WB20K5010 Contact Us For Availability
314
GAS VALVE 90 DEGREE GEN WB21X0473 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
317
SPARK IGN BRACKET GEN WB02X9003 Contact Us For Availability
318
GEN WB20X0105 GEN WB20X0105 Contact Us For Availability
322
SPARK IGN ELECTRODE-OV GEN WB02X9018 Contact Us For Availability
322
SPARK IGN ELECTRODE-RT GEN WB02X9117 Contact Us For Availability
322
GEN WB02X9532 GEN WB02X9532 Contact Us For Availability
323
VALVE SWITCH GEN WB24X0412 Contact Us For Availability
325
TUBING NUT 3/16 GEN WB01X1126 Contact Us For Availability
326
TUBING SLEEVE 3/16 GEN WB02X9016 Contact Us For Availability
334
TOP BURN SUPPORT GEN WB02X9119 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
PILOT W/CUP GEN WB02X9015 Contact Us For Availability
365
GEN WB02X9017 GEN WB02X9017 Contact Us For Availability
366
VALVE SCREW GASKET GEN WB02X9008 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
367
THERMOSTAT GASKET GEN WB02X9010 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
393
THERMOSTAT SWITCH GEN WB24X0411 Contact Us For Availability
400
MAINFOLD PIPE GEN WB02X9118 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTING SCREW GEN WB01X1124 Contact Us For Availability
868
GEN WB01X1166 GEN WB01X1166 Contact Us For Availability
874
GEN WB01X1162 GEN WB01X1162 Contact Us For Availability
936
SNAP BUSHING 1/2" GEN WB02X9033 Contact Us For Availability
936
SNAP BUSHING 1 1/2" GEN WB02X9103 Contact Us For Availability
948
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
954
THMST BULB RET CLIP GEN WB02X9105 Contact Us For Availability
958
CLOCK BEZEL CLIP GEN WB02X9274 Contact Us For Availability
983
HEX NUT GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
NUT GEN WB01X1117 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-0932 GEN 31-0932 Contact Us For Availability
999
GEN 31-0985 GEN 31-0985 Contact Us For Availability
999
GEN 49-4997 GEN 49-4997 Contact Us For Availability
999
GEN WB18K5127 GEN WB18K5127 Contact Us For Availability
999
GEN WB18K5128 GEN WB18K5128 Contact Us For Availability
999
MODULE WIRE HARNESS GEN WB18X0307 Contact Us For Availability
× ![]()
