Model GE JGSC07GEJ1 – Common Parts & Diagrams

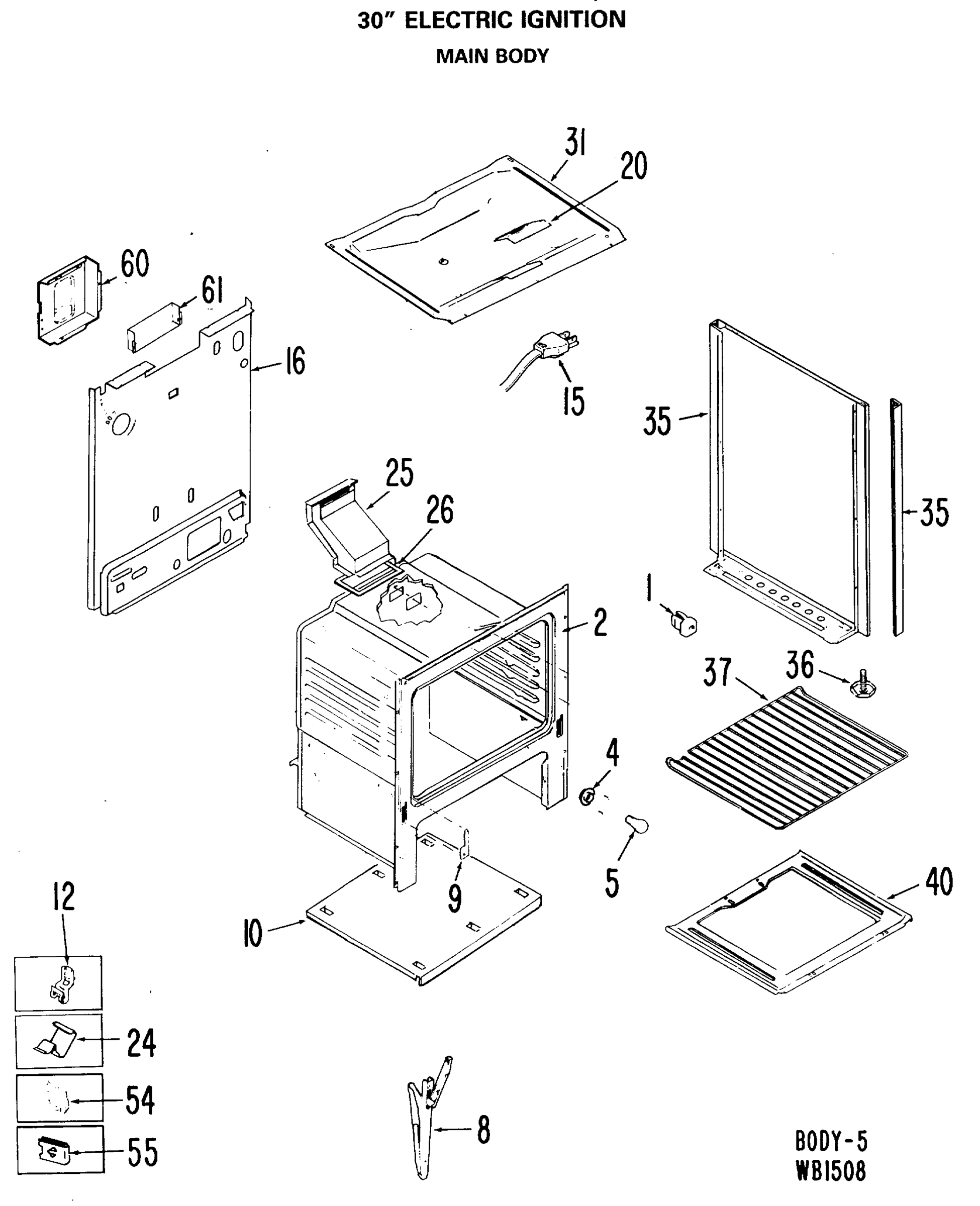

30" ELECTRIC IGNITION

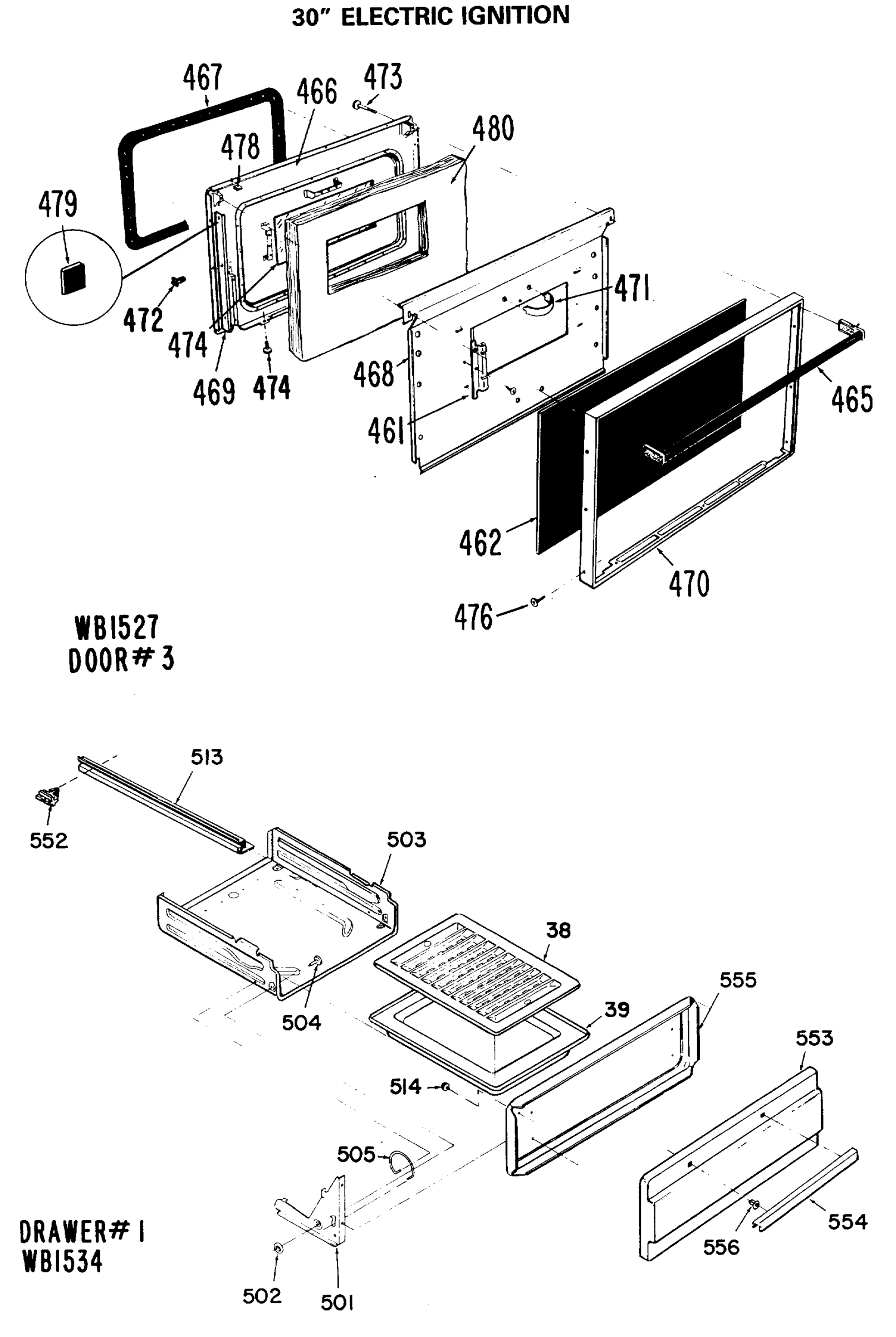

30" ELECTRIC IGNITION
30" ELECTRIC IGNITION
30" STANDING PILOT
Common parts from model GE JGSC07GEJ1
1
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
2
LINER/WRAPPER GEN NOT AVAIL Contact Us For Availability
2
GEN WB02X4964 GEN WB02X4964 Contact Us For Availability
2
GEN WB02X4965 GEN WB02X4965 Contact Us For Availability
2
GEN WB02X4966 GEN WB02X4966 Contact Us For Availability
2
GEN WB2X10119 GEN WB2X10119 Contact Us For Availability
4
GEN WB02X4967 GEN WB02X4967 Contact Us For Availability
4
GEN WB08X0262 GEN WB08X0262 Contact Us For Availability
5
BULB-40 WATT-APPLIANCE GEN BUY LOCAL Contact Us For Availability
8
GEN WB09X0228 GEN WB09X0228 Contact Us For Availability
8
GEN WB10X0245 GEN WB10X0245 Contact Us For Availability
9
GEN WB02X4763 GEN WB02X4763 Contact Us For Availability
10
GEN WB63X0294 GEN WB63X0294 Contact Us For Availability
12
CLIP-THERMOSTAT BULB GEN WB01X0706 Contact Us For Availability
15
*FASTENER-POWER CORD GEN WB01X0925 Contact Us For Availability
15
*COVER-POWER CORD GEN WB02X4968 Contact Us For Availability
15
GEN WB18X0255 GEN WB18X0255 Contact Us For Availability
16
BACK-MAIN GEN WB63X0276 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
25
FLUE GEN WB38X0096 Contact Us For Availability
26
GEN WB38X0095 GEN WB38X0095 Contact Us For Availability
30
GEN WB02X4775 GEN WB02X4775 Contact Us For Availability
31
GEN WB63X0289 GEN WB63X0289 Contact Us For Availability
35
GEN WB07X1532 GEN WB07X1532 Contact Us For Availability
35
GEN WB63X0290 GEN WB63X0290 Contact Us For Availability
35
GEN WB63X0291 GEN WB63X0291 Contact Us For Availability
36
SCREW-LEVELING GEN WB01X0711 Contact Us For Availability
37
GEN WB48X0209 GEN WB48X0209 Contact Us For Availability
40
GEN WB02X4776 GEN WB02X4776 Contact Us For Availability
40
GEN WB53X0272 GEN WB53X0272 Contact Us For Availability
54
GEN WB01X1014 GEN WB01X1014 Contact Us For Availability
55
GEN WB01X1015 GEN WB01X1015 Contact Us For Availability
60
GEN WB63X0286 GEN WB63X0286 Contact Us For Availability
61
GEN WB38X0097 GEN WB38X0097 Contact Us For Availability
168
GEN WB61X0310 GEN WB61X0310 Contact Us For Availability
168
GEN WB61X0311 GEN WB61X0311 Contact Us For Availability
170
GEN WB07X1530 GEN WB07X1530 Contact Us For Availability
170
GEN WB19X0235 GEN WB19X0235 Contact Us For Availability
180
GEN WB01X1010 GEN WB01X1010 Contact Us For Availability
180
GEN WB61X0312 GEN WB61X0312 Contact Us For Availability
195
GEN WB04X0117 GEN WB04X0117 Contact Us For Availability
196
GEN WB04X0120 GEN WB04X0120 Contact Us For Availability
255
GEN WB24X0392 GEN WB24X0392 Contact Us For Availability
301
GEN WB07X1531 GEN WB07X1531 Contact Us For Availability
302
GEN WB03X0714 GEN WB03X0714 Contact Us For Availability
303
GRATE-TOP BURNER GEN WB32X0089 Contact Us For Availability
307
GEN WB10X0241 GEN WB10X0241 Contact Us For Availability
307
HINGE-COOKTOP-LEFT GEN WB10X0242 Contact Us For Availability
307
GEN WB62X1652 GEN WB62X1652 Contact Us For Availability
308
GEN WB02X4736 GEN WB02X4736 Contact Us For Availability
343
GEN WB03X0716 GEN WB03X0716 Contact Us For Availability
461
BRACKET-GLASS GEN WB02X4980 Contact Us For Availability
462
GEN WB56X1883 GEN WB56X1883 Contact Us For Availability
465
GEN WB07X1534 GEN WB07X1534 Contact Us For Availability
465
GEN WB15X0249 GEN WB15X0249 Contact Us For Availability
466
LINER-OVEN DOOR GEN WB55X0635 Contact Us For Availability
466
GEN WB55X0636 GEN WB55X0636 Contact Us For Availability
467
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
468
SHIEL-INSULATION GEN WB02X4976 Contact Us For Availability
469
GEN WB02X4738 GEN WB02X4738 Contact Us For Availability
470
GEN WB07X1537 GEN WB07X1537 Contact Us For Availability
471
GEN WB56X1834 GEN WB56X1834 Contact Us For Availability
472
GEN WB01X0705 GEN WB01X0705 Contact Us For Availability
473
GEN WB01X1017 GEN WB01X1017 Contact Us For Availability
474
GEN WB01X0787 GEN WB01X0787 Contact Us For Availability
476
GEN WB01X0786 GEN WB01X0786 Contact Us For Availability
478
GEN WB01X0688 GEN WB01X0688 Contact Us For Availability
479
GEN WB02X4977 GEN WB02X4977 Contact Us For Availability
480
GEN WB02X4985 GEN WB02X4985 Contact Us For Availability
501
GEN WB14X0084 GEN WB14X0084 Contact Us For Availability
501
GEN WB14X0085 GEN WB14X0085 Contact Us For Availability
502
GEN WB01X0698 GEN WB01X0698 Contact Us For Availability
503
GEN WB01X1024 GEN WB01X1024 Contact Us For Availability
503
BODY-BROILER GEN WB55X0569 Contact Us For Availability
504
GEN WB01X0701 GEN WB01X0701 Contact Us For Availability
505
GEN WB09X0197 GEN WB09X0197 Contact Us For Availability
505
GEN WB09X0200 GEN WB09X0200 Contact Us For Availability
513
GEN WB39X0066 GEN WB39X0066 Contact Us For Availability
514
GEN WB02X4996 GEN WB02X4996 Contact Us For Availability
552
GEN WB39X0065 GEN WB39X0065 Contact Us For Availability
553
PANEL-DRAWER-BLACK GEN WB56X1852 Contact Us For Availability
554
GEN WB15X0233 GEN WB15X0233 Contact Us For Availability
555
GEN WB02X4995 GEN WB02X4995 Contact Us For Availability
555
GEN WB56X1851 GEN WB56X1851 Contact Us For Availability
556
FASTENER-NYLON GEN WB01X1025 Contact Us For Availability
702
GEN WB49X0593 GEN WB49X0593 Contact Us For Availability
704
GEN WB28X0074 GEN WB28X0074 Contact Us For Availability
705
GEN WB28X0067 GEN WB28X0067 Contact Us For Availability
706
BRACKET-BURNER MOUNTING GEN WB02X4741 Contact Us For Availability
706
GEN WB02X4751 GEN WB02X4751 Contact Us For Availability
707
GEN WB02X4742 GEN WB02X4742 Contact Us For Availability
708
GEN WB02X4743 GEN WB02X4743 Contact Us For Availability
709
GEN WB02X4744 GEN WB02X4744 Contact Us For Availability
710
GEN WB02X4745 GEN WB02X4745 Contact Us For Availability
711
GEN WB02X4746 GEN WB02X4746 Contact Us For Availability
712
GEN WB2X10007 GEN WB2X10007 Contact Us For Availability
713
GEN WB2X10001 GEN WB2X10001 Contact Us For Availability
714
GEN WB21X0443 GEN WB21X0443 Contact Us For Availability
715
GEN WB02X4750 GEN WB02X4750 Contact Us For Availability
716
GEN WB24X0393 GEN WB24X0393 Contact Us For Availability
719
GEN WB20X0093 GEN WB20X0093 Contact Us For Availability
725
GEN WB02X4756 GEN WB02X4756 Contact Us For Availability
727
GEN WB02X4758 GEN WB02X4758 Contact Us For Availability
730
GEN WB21X0444 GEN WB21X0444 Contact Us For Availability
732
GEN WB21X0445 GEN WB21X0445 Contact Us For Availability
733
GEN WB2X10000 GEN WB2X10000 Contact Us For Availability
734
NUT-SPECIAL-HEX-10-24 GEN WB01X0694 Contact Us For Availability
737
GEN WB01X0928 GEN WB01X0928 Contact Us For Availability
742
GEN WB21X0442 GEN WB21X0442 Contact Us For Availability
743
GEN WB02X4190 GEN WB02X4190 Contact Us For Availability
744
GEN WB2X10004 GEN WB2X10004 Contact Us For Availability
745
GEN WB2X10009 GEN WB2X10009 Contact Us For Availability
746
GEN WB2X10010 GEN WB2X10010 Contact Us For Availability
747
GEN WB2X10006 GEN WB2X10006 Contact Us For Availability
749
GEN WB2X10005 GEN WB2X10005 Contact Us For Availability
751
GEN WB2X10003 GEN WB2X10003 Contact Us For Availability
765
NUT-COMPRESSION GEN WB01X1027 Contact Us For Availability
767
FITTING-LOXIT GEN WB02X4961 Contact Us For Availability
32767
GEN 31-0627 GEN 31-0627 Contact Us For Availability
32767
GEN 49-4946 GEN 49-4946 Contact Us For Availability
× ![]()
