Model Maytag JGS9900CDS01 GAS RANGE – Common Parts & Diagrams

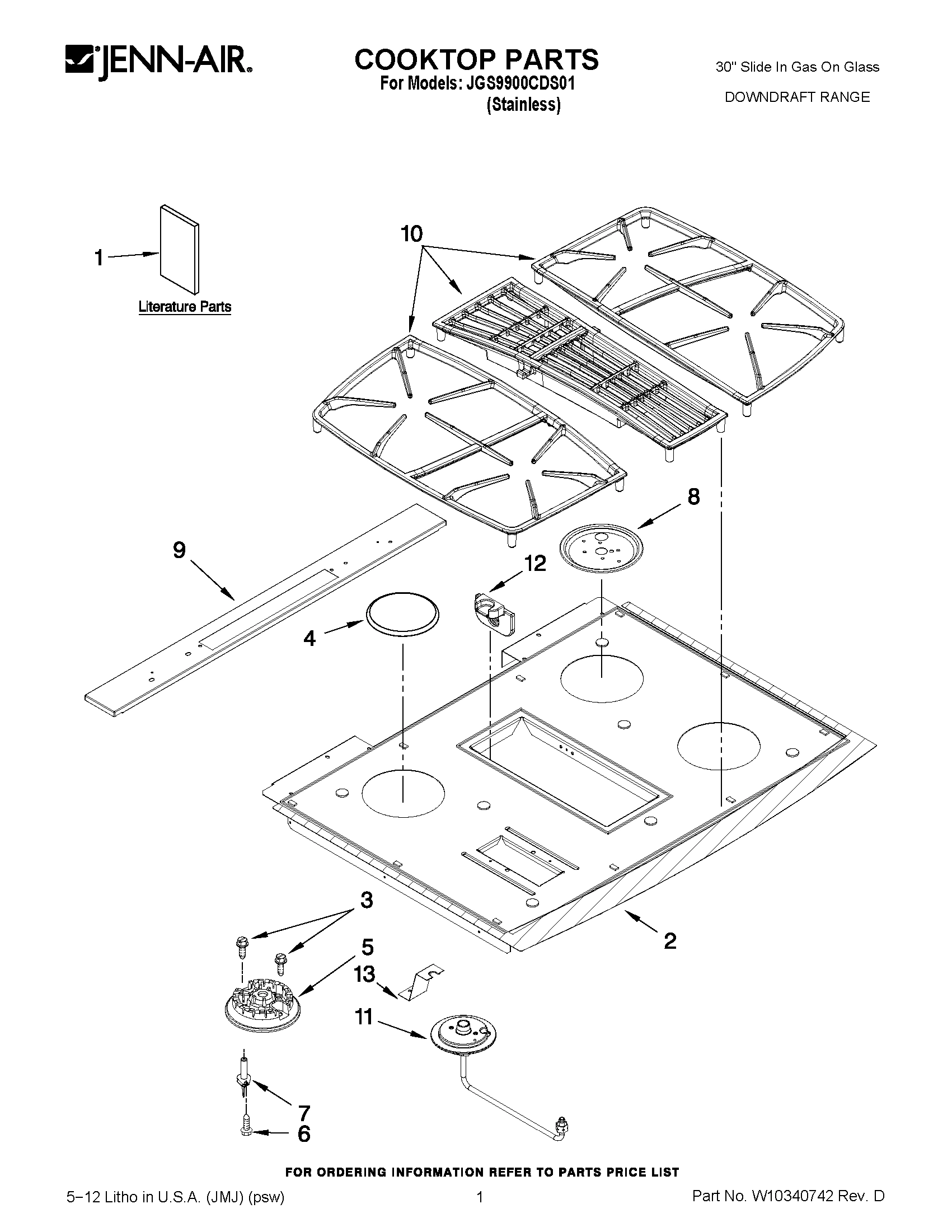

01 - COOKTOP PARTS

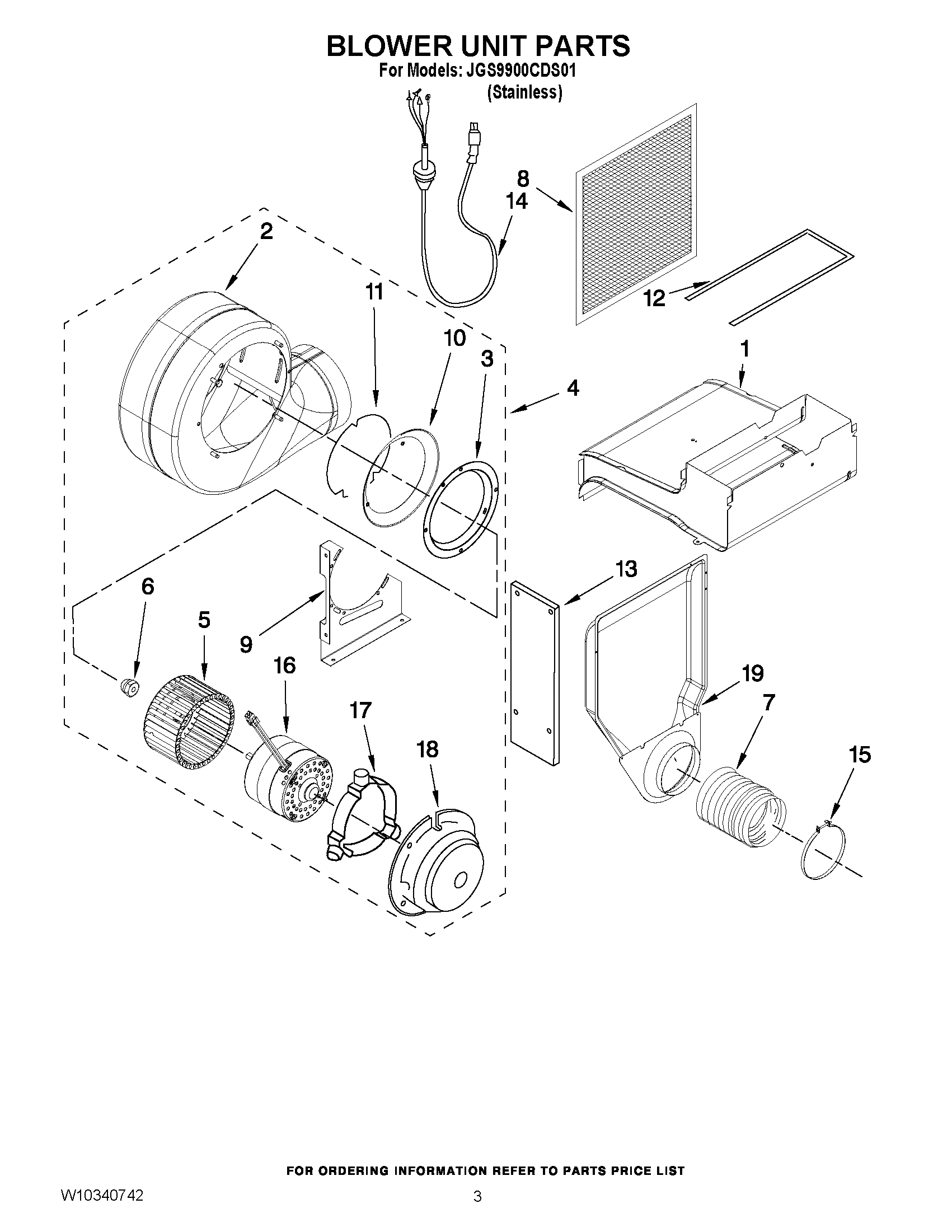

02 - BLOWER UNIT PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - DOOR PARTS
07 - DRAWER AND RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS9900CDS01 GAS RANGE
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10235694 MAY W10235694 Contact Us For Availability
1
MAY W10430928 MAY W10430928 Contact Us For Availability
1
MAY W10430956 MAY W10430956 Contact Us For Availability
1
MAY 2801W034-80 MAY 2801W034-80 Contact Us For Availability
1
SUPPORT, CONTROL PANEL MAY 3807F751-51 Contact Us For Availability
1
MAY 7101P639-60 MAY 7101P639-60 Contact Us For Availability
1
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
1
MAY W10223152 MAY W10223152 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
2
TOP, MAIN (STAINLESS) MAY W10235921 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT FRONT, DUAL (INCLUDES S MAY 7527P061-60 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT REAR 5K) MAY 7527P085-60 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT REAR 9.2K) MAY 7527P086-60 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT FRONTE 16K) MAY 7527P087-60 Contact Us For Availability
2
MAY 2822W003-80 MAY 2822W003-80 Contact Us For Availability
2
KNOB, CONTROL MAY W10255425 Contact Us For Availability
2
GLASS, DOOR (STAINLESS) MAY W10301578 Contact Us For Availability
2
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
3
SCREW MAY 3368921 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10314419 MAY W10314419 Contact Us For Availability
3
MAY 7101P360-60 MAY 7101P360-60 Contact Us For Availability
3
SCREW, SHOULDER MAY 7101P604-60 Contact Us For Availability
3
MAY W10214168 MAY W10214168 Contact Us For Availability
3
PANEL, DRAWER FRNT (BLACK) MAY 2416F086-70 Contact Us For Availability
4
CAP, BURNER KIT MAY 7504P260-60 Contact Us For Availability
4
MOTOR, BLOWER ASSEMBLY MAY W10273267 Contact Us For Availability
4
MAY 4011F476-51 MAY 4011F476-51 Contact Us For Availability
4
PANEL, SIDE (LEFT HAND) MAY 2618F202-51 Contact Us For Availability
4
PANEL, SIDE (RIGHT HAND) MAY 2618F206-51 Contact Us For Availability
4
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
4
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
4
MAY 3806F011-80 MAY 3806F011-80 Contact Us For Availability
5
BURNER, HEAD (LR) MAY 7505P305-60 Contact Us For Availability
5
MAY 7505P306-60 MAY 7505P306-60 Contact Us For Availability
5
BURNER, HEAD (RR) MAY 7505P339-60 Contact Us For Availability
5
BURNER, HEAD (LF - DUAL) MAY 7505P349-60 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
SPACER, RUBBER MAY 7109P082-60 Contact Us For Availability
5
MAY W10184467 MAY W10184467 Contact Us For Availability
6
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
6
IGNITOR, TOP BURNER MAY 7432P121-60 Contact Us For Availability
6
NUT MAY 7103P162-60 Contact Us For Availability
6
MAY 3604F446-45 MAY 3604F446-45 Contact Us For Availability
6
SPACER, SIDE PANEL (LONG) MAY 8004P024-60 Contact Us For Availability
6
SCREW MAY 7103P176-60 Contact Us For Availability
7
MAY 8032P003-60 MAY 8032P003-60 Contact Us For Availability
7
CONTROL (GAS) MAY 8507P236-60 Contact Us For Availability
7
MAY 7513P473-60 MAY 7513P473-60 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P426-60 Contact Us For Availability
8
MAY 3424F039-09 MAY 3424F039-09 Contact Us For Availability
8
MAY 8310P007-60 MAY 8310P007-60 Contact Us For Availability
8
MAY 3604F433-51 MAY 3604F433-51 Contact Us For Availability
8
VALVE (RIGHT REAR) MAY 7502P470-60 Contact Us For Availability
8
VALVE (LEFT REAR) MAY 7502P471-60 Contact Us For Availability
8
VALVE (LEFT FRONT, DUAL) MAY 7502P493-60 Contact Us For Availability
8
VALVE (RIGHT FRONT) MAY 7502P548-60 Contact Us For Availability
8
MAY 7101P660-60 MAY 7101P660-60 Contact Us For Availability
8
SUPPORT, GLASS MAY 3804F317-80 Contact Us For Availability
9
COVER, TRIM MAY 4005F789-09 Contact Us For Availability
9
MAY 3801F906-51 MAY 3801F906-51 Contact Us For Availability
9
MAY 3801F912-51 MAY 3801F912-51 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
BASE, GEMINI MAY W10271711 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
GRATE (RIGHT HAND) MAY 7518P332-60 Contact Us For Availability
10
GRATE (LEFT HAND) MAY 7518P338-60 Contact Us For Availability
10
GRATE (CTR., GRILLE) MAY 7772P055-60 Contact Us For Availability
10
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
10
MAY 7505P344-60 MAY 7505P344-60 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
SENSOR, OVEN (LOWER OVEN) MAY 7430P041-60 Contact Us For Availability
11
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
11
MAY 3604F419-51 MAY 3604F419-51 Contact Us For Availability
11
MAY 7505P324-60 MAY 7505P324-60 Contact Us For Availability
11
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
12
MAY 8008P075-60 MAY 8008P075-60 Contact Us For Availability
12
GASKET, PLENUM MAY 7201P144-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7510P100-60 MAY 7510P100-60 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
IGNITER (BROIL) MAY 7432P140-60 Contact Us For Availability
13
Igniter (Bake) MAY 7432P143-60 Contact Us For Availability
14
POWER CORD MAY 7402P121-60 Contact Us For Availability
14
COVER, UPPER WIRE MAY 4005F810-51 Contact Us For Availability
14
TRIM, DOOR MAY 3608F138-70 Contact Us For Availability
15
MAY 7111P047-60 MAY 7111P047-60 Contact Us For Availability
15
MAY 7507P421-60 MAY 7507P421-60 Contact Us For Availability
15
MAY W10317679 MAY W10317679 Contact Us For Availability
15
MAY 3604F418-51 MAY 3604F418-51 Contact Us For Availability
16
MOTOR, BLOWER MAY W10201322 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
SWITCH, ROTARY FITTING MAY 7450P030-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
16
FRAME, DOOR (STAINLESS, OVERLAY) MAY W10184466 Contact Us For Availability
17
BAND, MOTOR MAY 5700D526-60 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
MAY 4020F032-80 MAY 4020F032-80 Contact Us For Availability
17
MAY 4020F033-80 MAY 4020F033-80 Contact Us For Availability
17
WASHER MAY 7109P084-60 Contact Us For Availability
18
MAY 4005F537-80 MAY 4005F537-80 Contact Us For Availability
18
SCREW MAY 7101P502-60 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
SIDE PLENUM ASSY MAY 2801L037-80 Contact Us For Availability
19
RETAINER, REAR MAY 3804F313-51 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
BAFFLE, BAKE BURNER VALVE MAY 3601F339-45 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
INSULATOR, BAFFLE MAY 7003P154-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY 4005F815-51 MAY 4005F815-51 Contact Us For Availability
22
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
23
SCREW, IGNITER BURNER (WITH ORIFICE) MAY 7101P282-60 Contact Us For Availability
23
SUPPORT, LWR OVEN MAY 3807F615-51 Contact Us For Availability
24
MAY 7431P038-60 MAY 7431P038-60 Contact Us For Availability
24
LIGHT ASSY. MAY 7407P180-60 Contact Us For Availability
25
MAY 7501P193-60 MAY 7501P193-60 Contact Us For Availability
25
BULB, LIGHT MAY 899138-001 Contact Us For Availability
26
TUBING, BROIL BURNER (WITH ORIFICE) MAY 7506P475-60 Contact Us For Availability
26
LATCH, SWITCH MAY 8002P089-60 Contact Us For Availability
27
MAY 3801F681-45 MAY 3801F681-45 Contact Us For Availability
27
MAY 3818F121-51 MAY 3818F121-51 Contact Us For Availability
28
MAY 8405P073-60 MAY 8405P073-60 Contact Us For Availability
29
BRACKET, SUPPORT REGULATOR MAY 3801F913-51 Contact Us For Availability
29
MAY 8026P092-60 MAY 8026P092-60 Contact Us For Availability
30
FLUE ASSY., UPPER MAY 8407P013-60 Contact Us For Availability
31
MAY W10206590 MAY W10206590 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
SEAL, FRONT FRAME MAY 7201P143-60 Contact Us For Availability
34
COVER, BURNER OPENING MAY 4005F736-45 Contact Us For Availability
35
BAFFLE, LOWER OVEN VENT MAY 3601F221-45 Contact Us For Availability
36
COVER, CONVECTION MAY 3605F350-19 Contact Us For Availability
37
MAY 2205F051-19 MAY 2205F051-19 Contact Us For Availability
38
RECEPTACLE, PROBE MAY 7408P086-60 Contact Us For Availability
39
MAY 3804F315-51 MAY 3804F315-51 Contact Us For Availability
40
MAY 3401F091-45 MAY 3401F091-45 Contact Us For Availability
41
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
42
EDGE GUARD MAY W10183566 Contact Us For Availability
43
MAY 4005F817-51 MAY 4005F817-51 Contact Us For Availability
44
RETAINER, INSUL. CONVECT. MAY 3804F300-51 Contact Us For Availability
45
COVER, DOOR LATCH MAY 4005F750-51 Contact Us For Availability
46
ACCESS PANEL MAY 4005F612-51 Contact Us For Availability
47
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
NI
WOK MAY AO142 Contact Us For Availability
NI
SWITCH, REIGNITION (RF/RR) MAY 7450P004-60 Contact Us For Availability
NI
MAY 7506P464-60 MAY 7506P464-60 Contact Us For Availability
NI
MAY 7506P479-60 MAY 7506P479-60 Contact Us For Availability
NI
MAY 7506P480-60 MAY 7506P480-60 Contact Us For Availability
NI
MAY 7506P482-60 MAY 7506P482-60 Contact Us For Availability
NI
MAY W10258123 MAY W10258123 Contact Us For Availability
NI
INSULATION (LOWER OVEN) MAY 7002P447-60 Contact Us For Availability
NI
INSULATION, WRAP (LOWER OVEN INSULATION, BACK MAY 7002P479-60 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
STAINLESS STEEL CLEANER & POLISH MAY 31462 Contact Us For Availability
NI
GAS GRATE & DRIP PAN CLEANER MAY 31617 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
NI
SWITCH, REIGNITION (LF/LR) MAY 7450P003-60 Contact Us For Availability
NI
MAGNETIC DOOR SPACER MAY 8010P146-60 Contact Us For Availability
NI
MAY DRYINGRACK MAY DRYINGRACK Contact Us For Availability
NI
MAY W10173466 MAY W10173466 Contact Us For Availability
NI
MAY W10255415 MAY W10255415 Contact Us For Availability
NI
MAY W10348630 MAY W10348630 Contact Us For Availability
× ![]()
