Model Maytag JGS9900BDS16 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - BLOWER UNIT PARTS

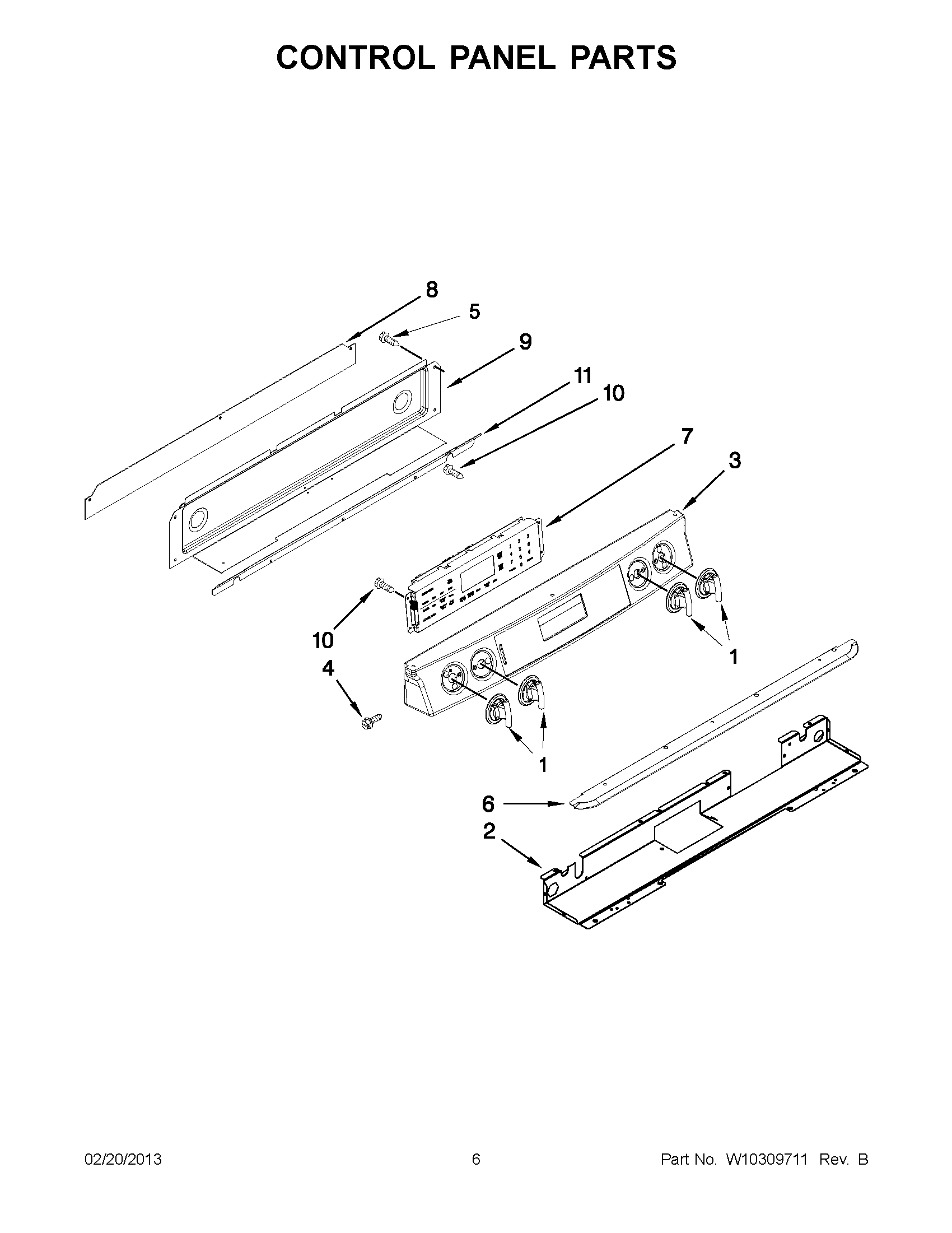

03 - CONTROL PANEL PARTS

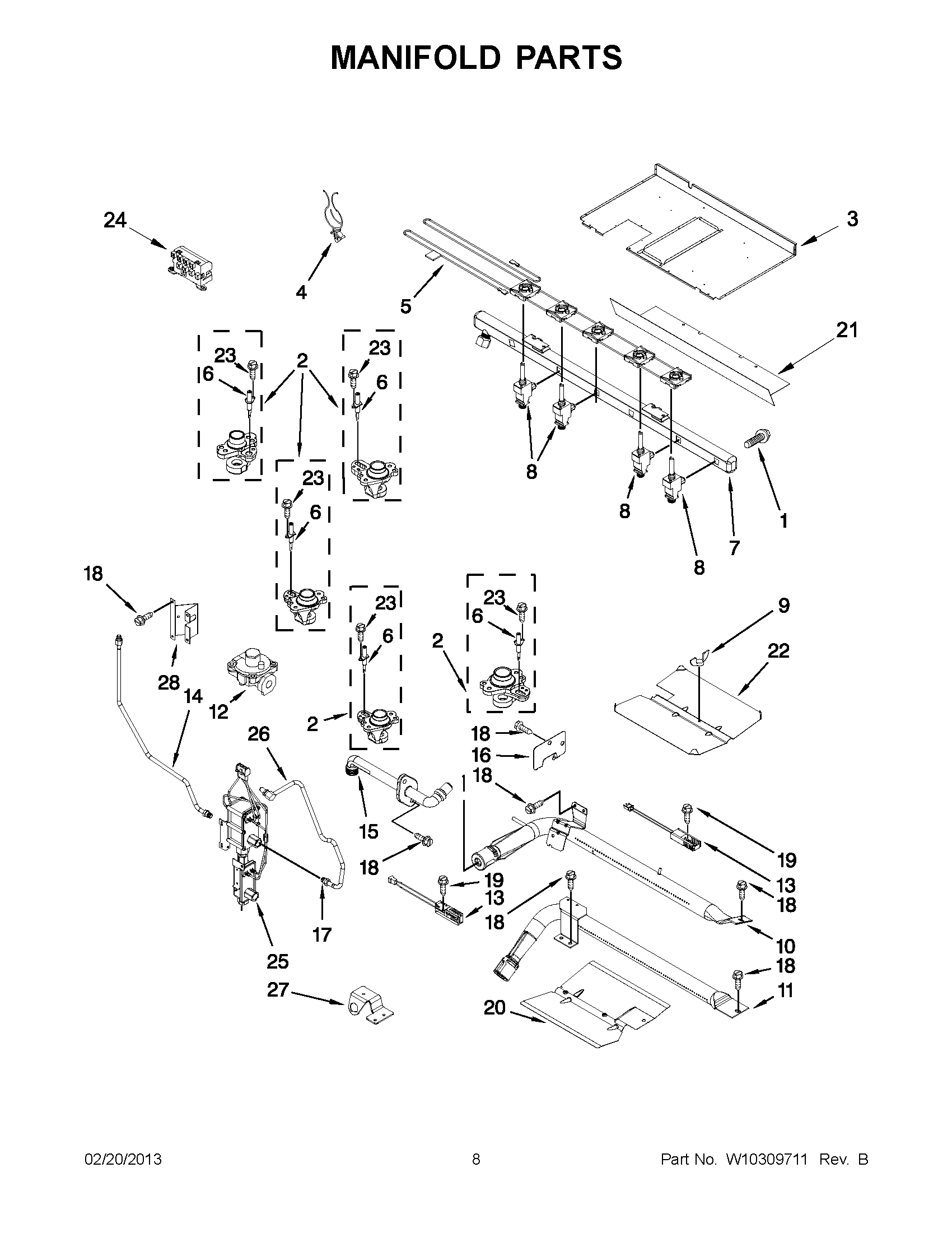

04 - MANIFOLD PARTS

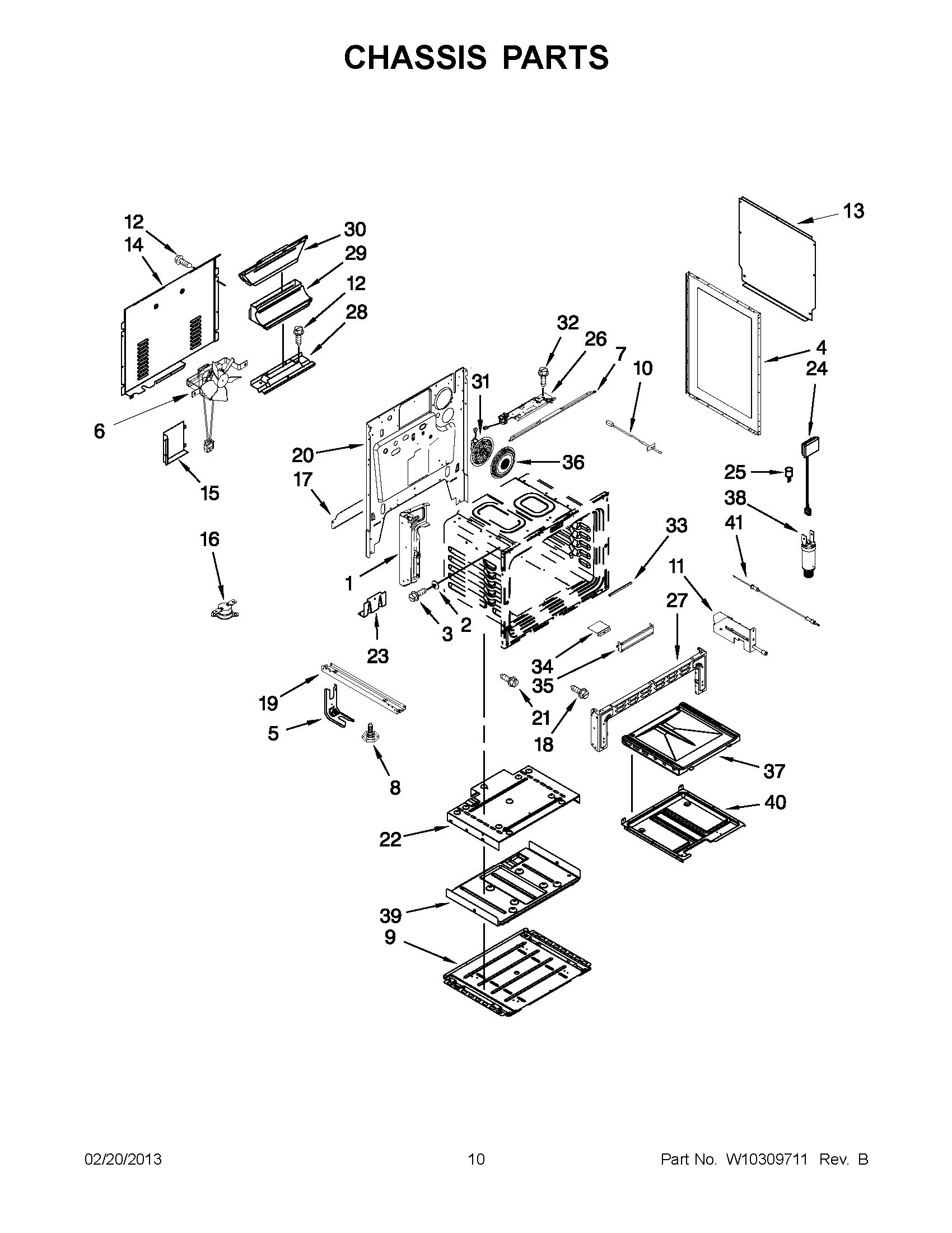

05 - CHASSIS PARTS

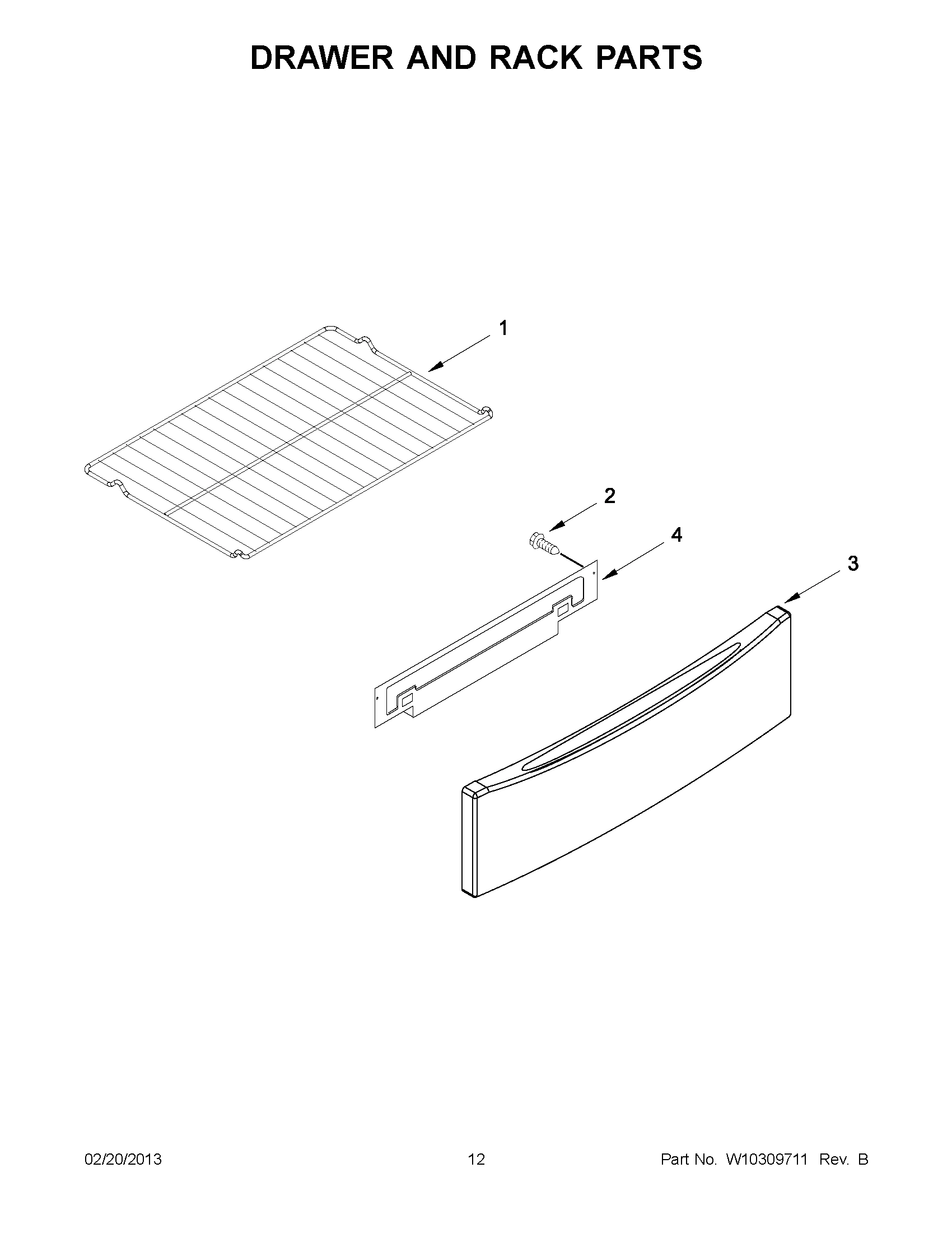

06 - DRAWER AND RACK PARTS

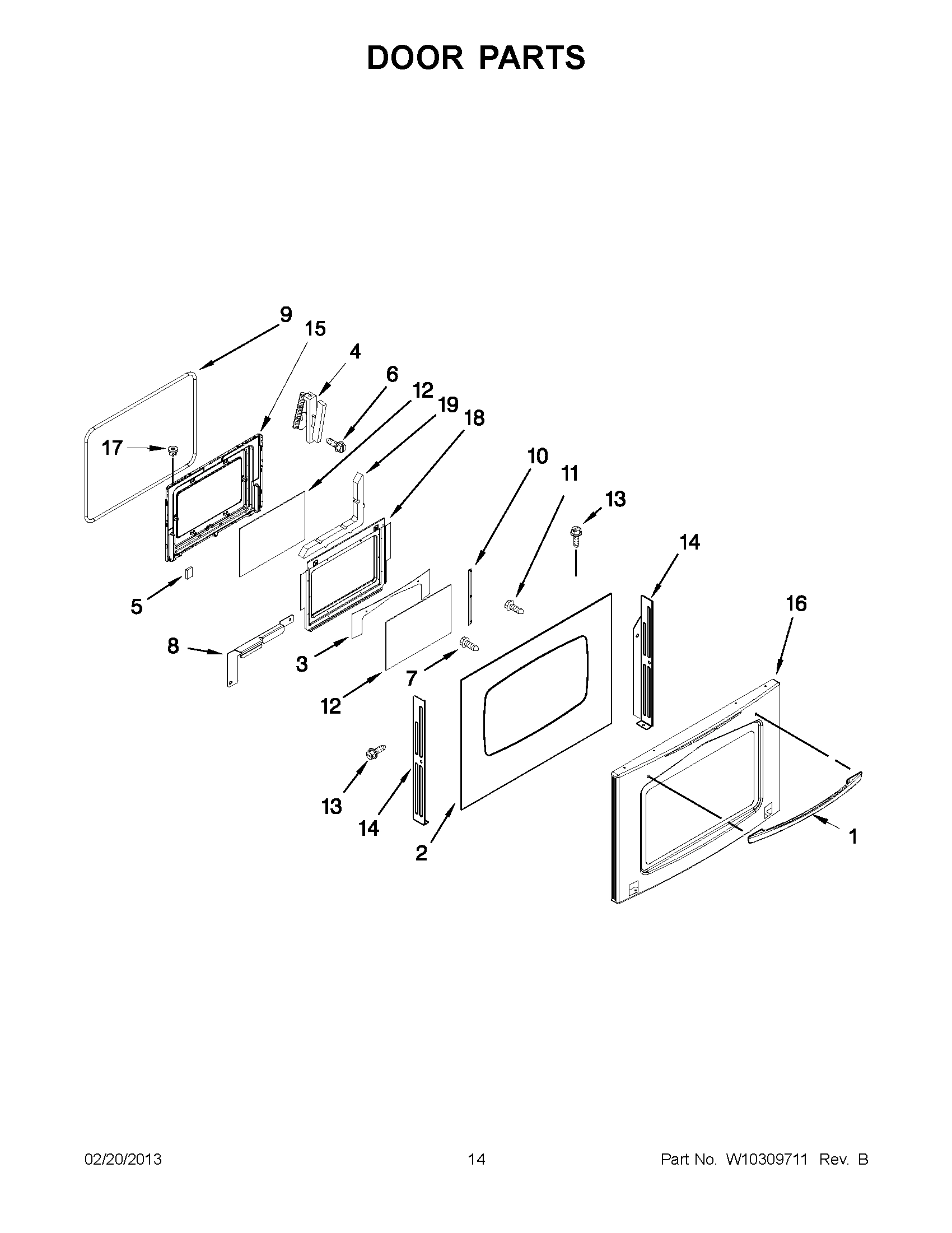

07 - DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGS9900BDS16 GAS RANGE
1
MAY 8101P185-60 MAY 8101P185-60 Contact Us For Availability
1
MAY 8101P701-60 MAY 8101P701-60 Contact Us For Availability
1
MAY 8101P725-60 MAY 8101P725-60 Contact Us For Availability
1
MAY 8106P068-60 MAY 8106P068-60 Contact Us For Availability
1
MAY 8113P752-60 MAY 8113P752-60 Contact Us For Availability
1
MAY 8119P164-60 MAY 8119P164-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY 2801W034-80 MAY 2801W034-80 Contact Us For Availability
1
KNOB, SIMMER MAY 7733P480-60 Contact Us For Availability
1
MAY 7733P481-60 MAY 7733P481-60 Contact Us For Availability
1
KNOB, METAL MAY 7733P482-60 Contact Us For Availability
1
SCREW MAY 7101P639-60 Contact Us For Availability
1
EXTENSION, MAIN BACK MAY 3826F066-51 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
1
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
2
MAY 7920P228-60 MAY 7920P228-60 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT FRONT) MAY 7527P061-60 Contact Us For Availability
2
MAY 7527P085-60 MAY 7527P085-60 Contact Us For Availability
2
MAY 7527P086-60 MAY 7527P086-60 Contact Us For Availability
2
MAY 7527P087-60 MAY 7527P087-60 Contact Us For Availability
2
MAY 2822W003-80 MAY 2822W003-80 Contact Us For Availability
2
SUPPORT, PANEL MAY 3807F751-51 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
GLASS, DOOR (COATED) MAY 7902P768-60 Contact Us For Availability
3
MAY 4026F008-51 MAY 4026F008-51 Contact Us For Availability
3
MAY W10206071 MAY W10206071 Contact Us For Availability
3
MAY 4011F476-51 MAY 4011F476-51 Contact Us For Availability
3
SCREW, SHOULDER MAY 7101P604-60 Contact Us For Availability
3
PANEL, DRAWER FRONT (BLACK) MAY 2416F086-70 Contact Us For Availability
3
INSULATION, DOOR MAY 7002P465-60 Contact Us For Availability
4
CAP, BURNER (BLACK (LEFT REAR)) MAY 7504P165-60 Contact Us For Availability
4
CAP, BURNER (BLACK (RIGHT REAR)) MAY 7504P202-60 Contact Us For Availability
4
CAP, BURNER (BLACK (RIGHT FRONT)) MAY 7504P204-60 Contact Us For Availability
4
CAP, BURNER (BLACK, DUAL INNER) MAY 7504P242-60 Contact Us For Availability
4
CAP, BURNER (BLACK, DUAL OUTER) MAY 7504P243-60 Contact Us For Availability
4
MAY 5700D919-60 MAY 5700D919-60 Contact Us For Availability
4
CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
4
MAY 2618F202-51 MAY 2618F202-51 Contact Us For Availability
4
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
4
HANGER, ACCESS PANEL MAY 3806F011-80 Contact Us For Availability
4
HINGE, DOOR MAY 7106P143-60 Contact Us For Availability
5
ASSEMBLY, BURNER (LEFT REAR) MAY 7505P305-60 Contact Us For Availability
5
ASSEMBLY, BURNER (RIGHT FRONT) MAY 7505P306-60 Contact Us For Availability
5
ASSEMBLY, BURNER (RIGHT REAR) MAY 7505P339-60 Contact Us For Availability
5
ASSEMBLY, BURNER (LEFT FRONT) MAY 7505P349-60 Contact Us For Availability
5
MAY 7114P005-60 MAY 7114P005-60 Contact Us For Availability
5
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
5
SWITCH, RE-IGNITION (RIGHT FRONT & RIGHT REAR MAY 7450P004-60 Contact Us For Availability
5
MAY 7450P007-60 MAY 7450P007-60 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
MAY 7101P606-60 MAY 7101P606-60 Contact Us For Availability
6
MAY 7432P121-60 MAY 7432P121-60 Contact Us For Availability
6
NUT MAY 7103P212-60 Contact Us For Availability
6
MAY 3604F446-45 MAY 3604F446-45 Contact Us For Availability
6
Screw MAY 7101P282-60 Contact Us For Availability
6
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
7
MAY 8507P236-60 MAY 8507P236-60 Contact Us For Availability
7
MAY 7513P473-60 MAY 7513P473-60 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
MAY 3424F039-09 MAY 3424F039-09 Contact Us For Availability
8
MAY 8310P007-60 MAY 8310P007-60 Contact Us For Availability
8
SHIELD, SIDE MAY 3604F433-51 Contact Us For Availability
8
VALVE (RIGHT REAR) MAY 7502P470-60 Contact Us For Availability
8
VALVE (LEFT REAR) MAY 7502P471-60 Contact Us For Availability
8
VALVE (LEFT FRONT) MAY 7502P493-60 Contact Us For Availability
8
VALVE (RIGHT FRONT) MAY 7502P548-60 Contact Us For Availability
8
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
8
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
8
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
8
RETAINER, GLASS (LOWER) MAY 3804F317-80 Contact Us For Availability
9
MAY 4005F789-09 MAY 4005F789-09 Contact Us For Availability
9
ASSEMBLY, PLENUM SIDE MAY 2801L037-80 Contact Us For Availability
9
WING NUT MAY 7103P030-60 Contact Us For Availability
9
MAY W10271711 MAY W10271711 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7518P332-60 MAY 7518P332-60 Contact Us For Availability
10
MAY 7518P338-60 MAY 7518P338-60 Contact Us For Availability
10
MAY 7772P055-60 MAY 7772P055-60 Contact Us For Availability
10
RING, RESTRICTOR MAY 4026F009-51 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7505P344-60 MAY 7505P344-60 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
11
MAY 8038P003-60 MAY 8038P003-60 Contact Us For Availability
11
MAY 3604F419-51 MAY 3604F419-51 Contact Us For Availability
11
MAY 7505P324-60 MAY 7505P324-60 Contact Us For Availability
11
ASSEMBLY, LIGHT SWITCH MAY 7450P109-60 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
12
MAY 7724P200-60 MAY 7724P200-60 Contact Us For Availability
12
GASKET, PLENUM MAY 7201P144-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7510P100-60 MAY 7510P100-60 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
13
MAY 4005F537-80 MAY 4005F537-80 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 7432P140-60 MAY 7432P140-60 Contact Us For Availability
13
MAY 7432P143-60 MAY 7432P143-60 Contact Us For Availability
13
SHIELD, LOWER MAY 3604F416-51 Contact Us For Availability
14
MAY 8008P075-60 MAY 8008P075-60 Contact Us For Availability
14
MAY 3804F304-51 MAY 3804F304-51 Contact Us For Availability
14
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
14
TRIM, DOOR MAY 3608F138-70 Contact Us For Availability
15
MAY 7507P421-60 MAY 7507P421-60 Contact Us For Availability
15
MAY 3801F906-51 MAY 3801F906-51 Contact Us For Availability
15
MAY 3801F912-51 MAY 3801F912-51 Contact Us For Availability
15
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
16
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
16
SWITCH, ROTARY FITTING MAY 7450P030-60 Contact Us For Availability
16
MAY 3603F075-70 MAY 3603F075-70 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
MAY 4020F032-80 MAY 4020F032-80 Contact Us For Availability
17
MAY 4020F033-80 MAY 4020F033-80 Contact Us For Availability
17
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
18
SCREW MAY 7101P502-60 Contact Us For Availability
18
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
19
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
19
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
20
MAY 3601F339-45 MAY 3601F339-45 Contact Us For Availability
20
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
21
INSULATOR, BAFFLE MAY 7003P154-60 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY 4005F815-51 MAY 4005F815-51 Contact Us For Availability
23
MAY 3807F615-51 MAY 3807F615-51 Contact Us For Availability
24
MAY 7431P038-60 MAY 7431P038-60 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY 7407P180-60 Contact Us For Availability
25
MAY 7501P193-60 MAY 7501P193-60 Contact Us For Availability
25
BULB, OVEN MAY 899138-001 Contact Us For Availability
26
MAY 7506P475-60 MAY 7506P475-60 Contact Us For Availability
26
ASSEMBLY, LATCH MAY 8002P089-60 Contact Us For Availability
27
BRACKET, ORIFICE MAY 3801F681-45 Contact Us For Availability
27
PEDESTAL, FRONT MAY 4020F036-80 Contact Us For Availability
28
MAY 8405P073-60 MAY 8405P073-60 Contact Us For Availability
29
MAY 8026P092-60 MAY 8026P092-60 Contact Us For Availability
30
MAY 8407P013-60 MAY 8407P013-60 Contact Us For Availability
31
MAY 7427P113-60 MAY 7427P113-60 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
MAY 7201P143-60 MAY 7201P143-60 Contact Us For Availability
34
COVER, BURNER OPENING MAY 4005F736-45 Contact Us For Availability
35
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
36
COVER MAY 3605F350-19 Contact Us For Availability
37
MAY 2205F051-19 MAY 2205F051-19 Contact Us For Availability
38
RECEPTACLE, MEAT PROBE MAY 7408P086-60 Contact Us For Availability
39
MAY 3804F315-51 MAY 3804F315-51 Contact Us For Availability
40
PAN, BAKE MAY 3401F091-45 Contact Us For Availability
41
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
NI
MAY 7506P464-60 MAY 7506P464-60 Contact Us For Availability
NI
MAY 7506P479-60 MAY 7506P479-60 Contact Us For Availability
NI
MAY 7506P480-60 MAY 7506P480-60 Contact Us For Availability
NI
MAY 7506P482-60 MAY 7506P482-60 Contact Us For Availability
NI
MAY 7507P420-60 MAY 7507P420-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
NI
MAY 7002P447-60 MAY 7002P447-60 Contact Us For Availability
NI
MAY 7002P479-60 MAY 7002P479-60 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) MAY 241430 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIDE MOUNT LOC MAY 5171P467-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, TOP MAY 5171P537-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY 5171P782-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR POSITION MAY 5175P365-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SPARK MAY W10173466 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
